2005-2012 Land Rover Range Rover Sport (L320) Service & Repair Manual (incl. Owners Manual)

2010 Range Rover Sport L320, 3.0L Diesel, 6-Spd Auto 6HP28, LHD

PUBLISHED: 11-MAY-2011 2010.0 RANGE ROVER SPORT (LS), 501-02 FRONT END BODY PANELS ENGINE UNDERSHIELD (G354673)

REMOVAL AND INSTALLATION 76.10.50 ENGINE UNDERSHIELD - CENTRE - RENEW ALL DERIVATIVES 0.2 USED WITHINS REMOVAL WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands. Raise and support the vehicle. 1. CAUTION: Note the special washer. 2.

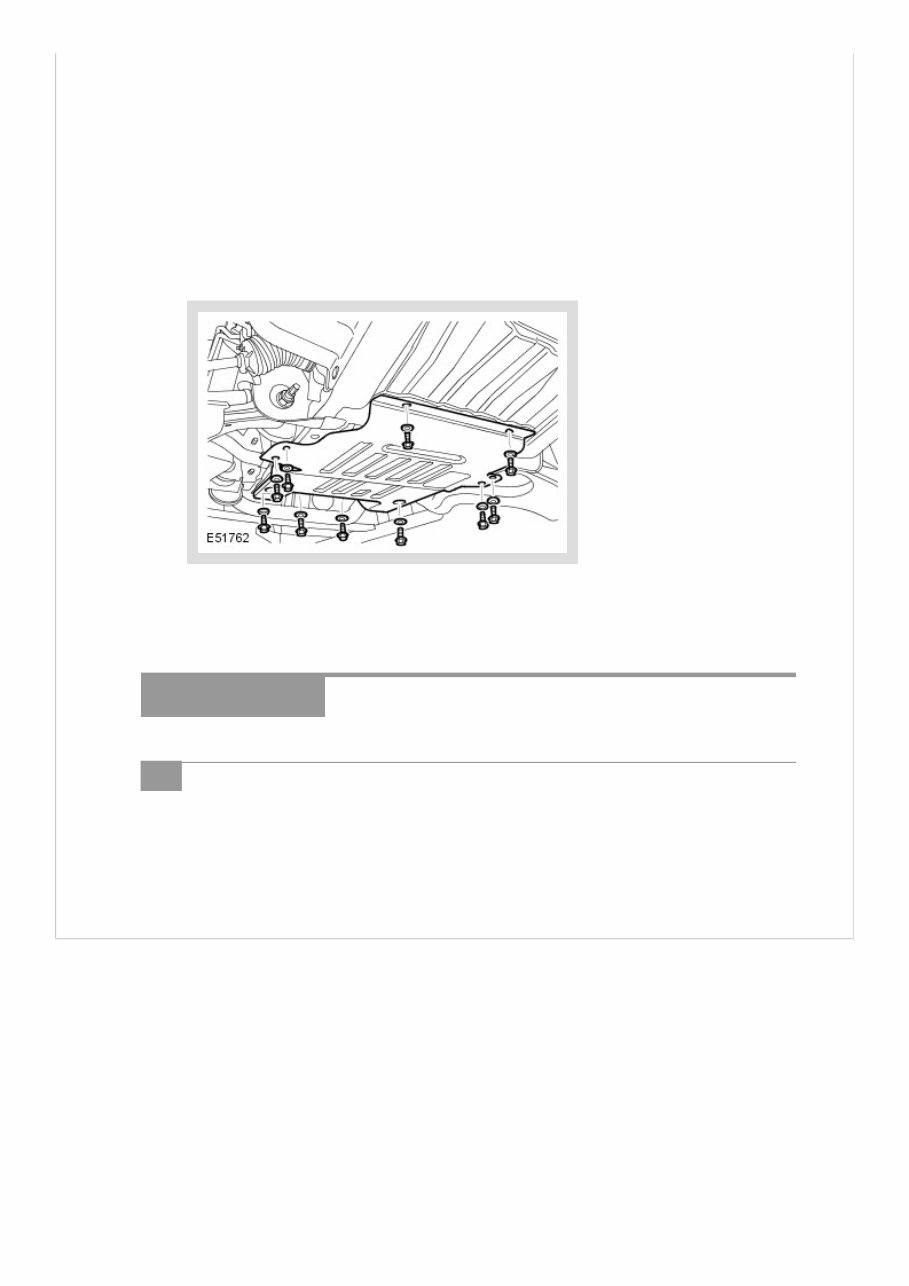

Remove the engine undershield. Remove the 10 bolts. INSTALLATION To install, reverse the removal procedure. 1. Tighten the bolts to 62 Nm (46 lb.ft).

PUBLISHED: 11-MAY-2011 2010.0 RANGE ROVER SPORT (LS), 501-02 FRONT END BODY PANELS FENDER (G301240)

REMOVAL AND INSTALLATION 76.10.24 FENDER - FRONT - LH/EACH - REMOVE FOR ACCESS AND REFIT ALL DERIVATIVES 1.7 USED WITHINS REMOVAL Remove the plenum chamber panel. For additional information, refer to: (412-01 Air Distribution Plenum Chamber and Filtering, Removal and Installation). 1. Remove the front bumper cover. For additional information, refer to: (501-19 Bumpers, Front Bumper Cover Removal and Installation). 2. Remove the fender splash shield. For additional information, refer to: (501-02 Front End Fender Splash Shield Body Panels, Removal and Installation). 3. 4.

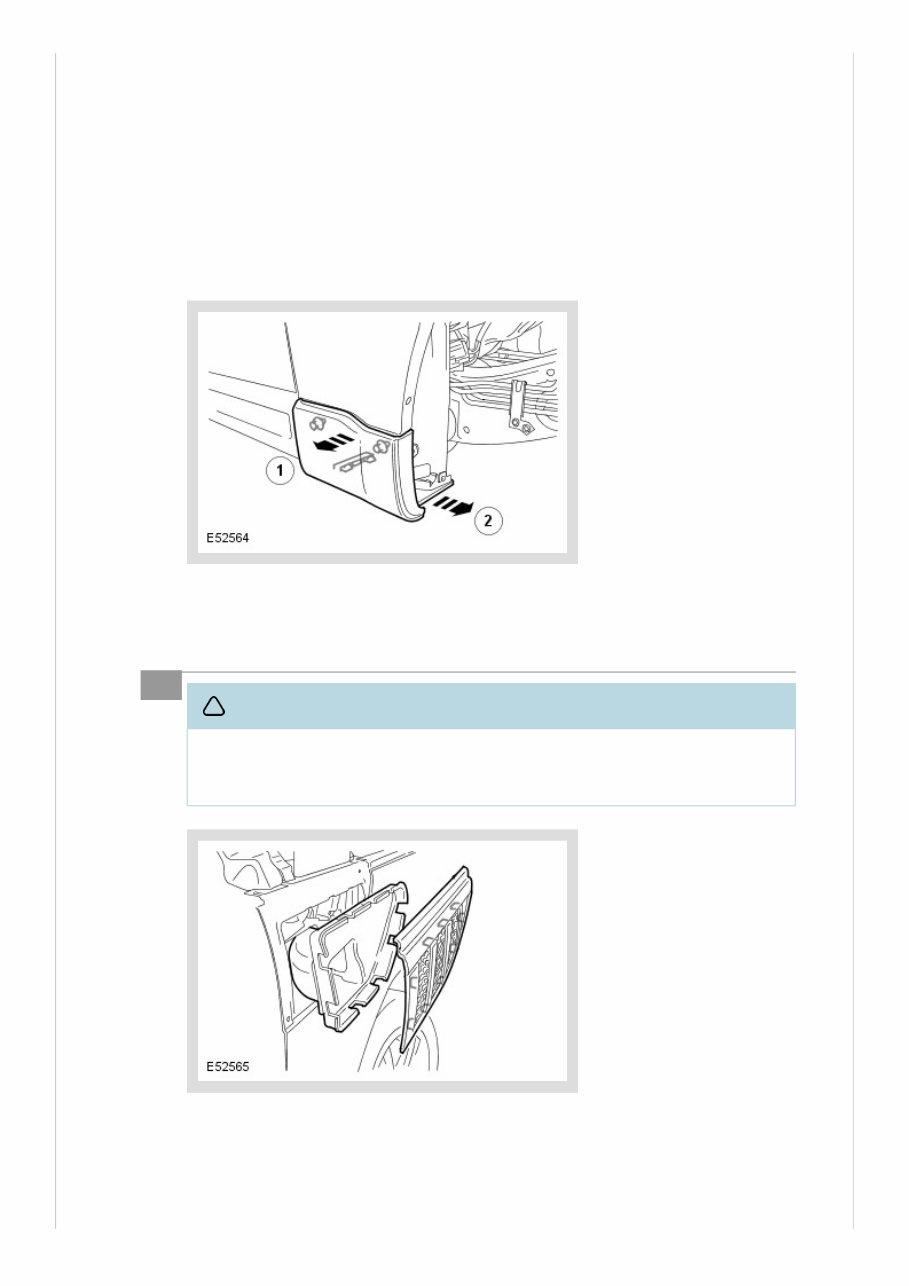

Remove the fender moulding. Release the 4 clips. Remove the fender air intake grille. 5. NOTE: Right-hand shown, left-hand similar. Release the 9 clips. Remove the air ducting.

Remove the bumper cover clip. 6. Remove the 2 bolts. Remove the front fender. 7. Remove the 5 Torx bolts. Remove the nut.

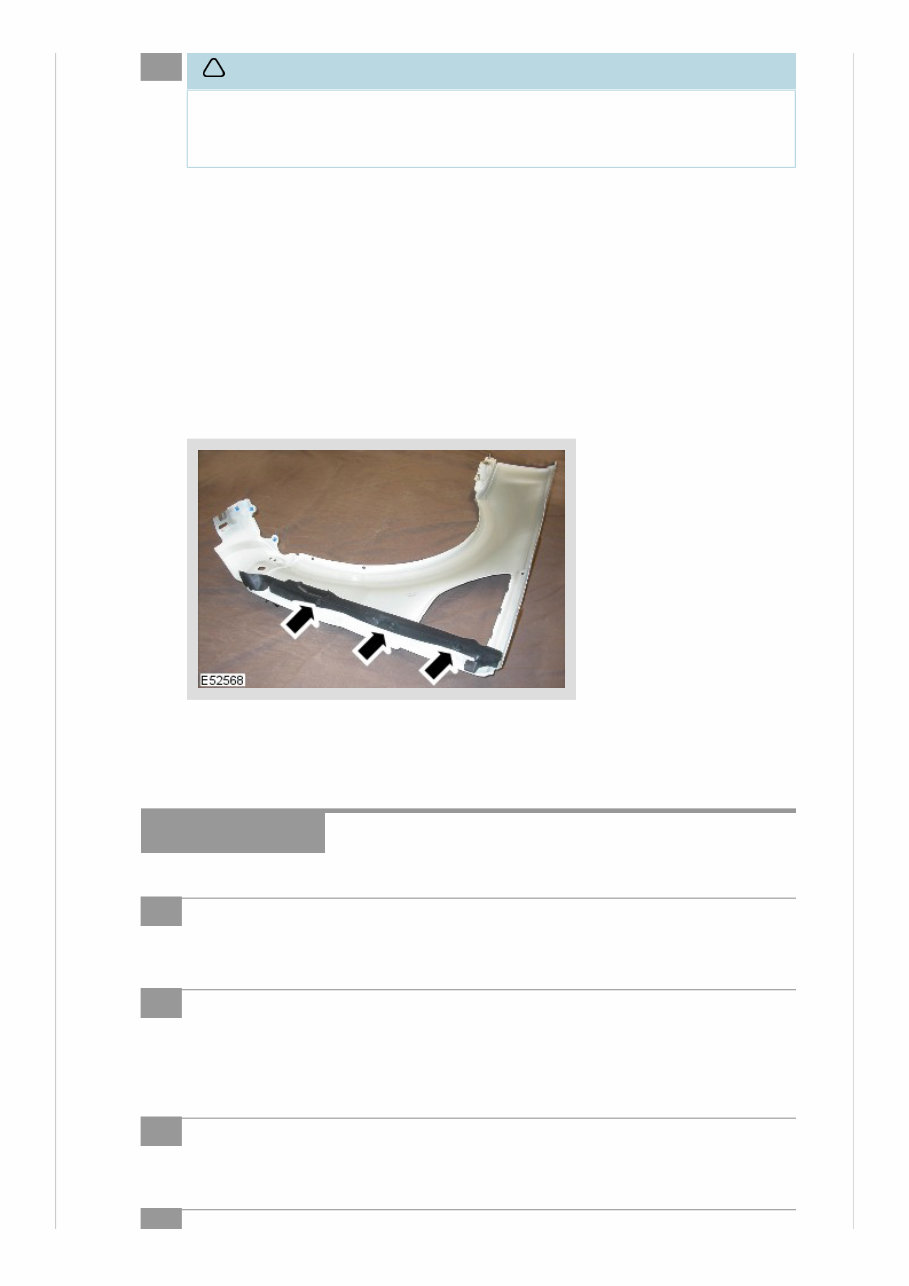

Remove the fender rear trim. 8. NOTE: Do not disassemble further if the component is removed for access only. Remove the 3 clips. INSTALLATION Install the fender rear trim. 1. Secure in the 3 clips. Install the front fender. 2. Install the bolts and tighten to 10 Nm (7 lb.ft). Install the nut and tighten to 10 Nm (7 lb.ft). Install the front bumper clip. 3. Install the bolts and tighten to 6 Nm (4 lb.ft).

Install the fender air intake grille. 4. Install the air ducting. Install the fender moulding. 5. Secure in the clips. Install the fender splash shield. For additional information, refer to: (501-02 Front End Fender Splash Shield Body Panels, Removal and Installation). 6. Install the front bumper cover. For additional information, refer to: (501-19 Bumpers, Front Bumper Cover Removal and Installation). 7. Install the plenum chamber panel. For additional information, refer to: (412-01 Air Distribution Plenum Chamber and Filtering, Removal and Installation). 8.
