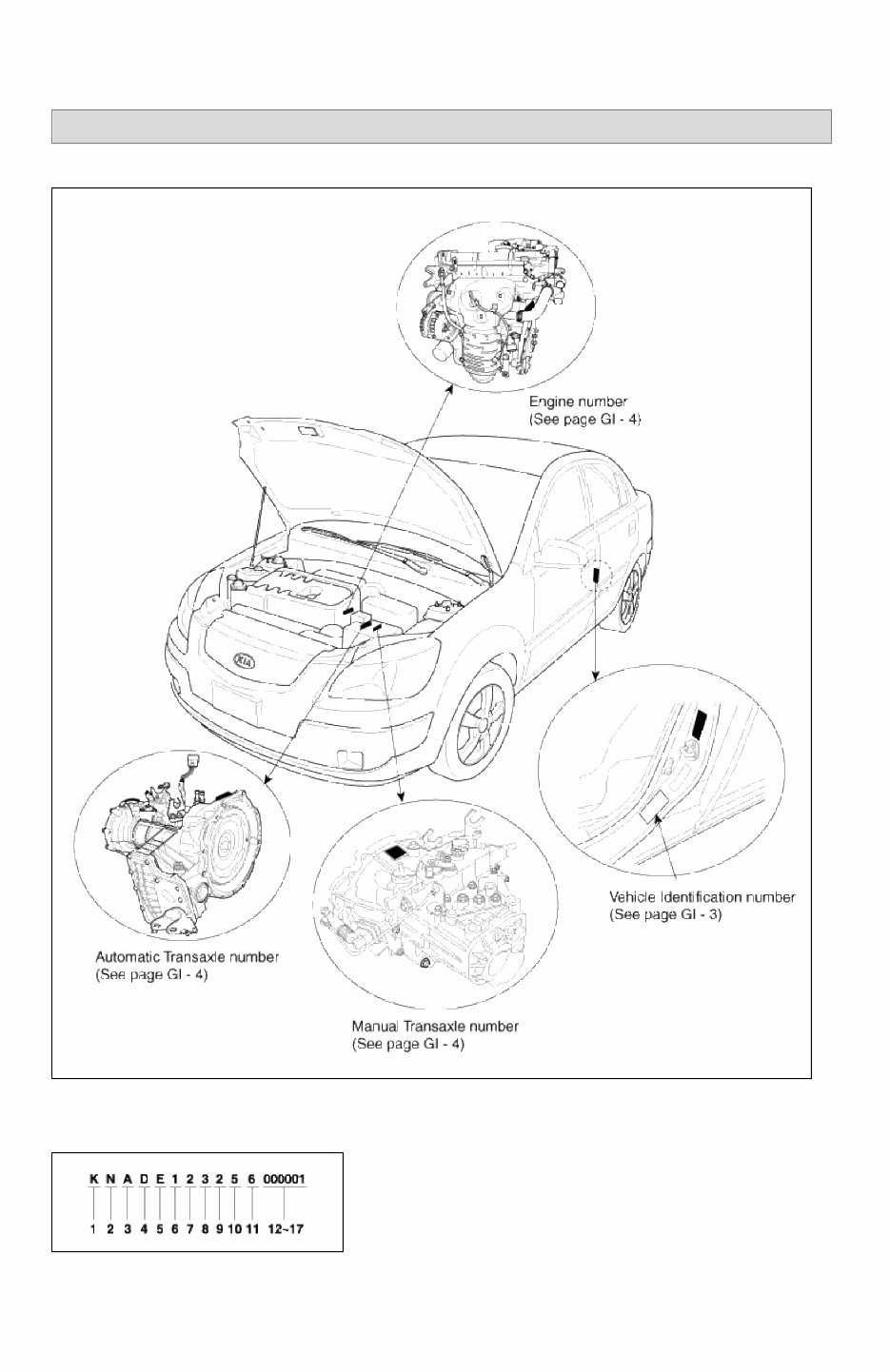

RIO(JB) > 2008 > G 1.6 DOHC > General Information General Information > General Information > General Information IDENTIFICATION NUMBER LOCATIONS IDENTIFICATION NUMBER DESCRIPTION VEHICLE IDENTIFICATION NUMBER 1 - 3 : Make / Vehicle type - KNE, KNA = Kia Passenger Car Page 1 of 24

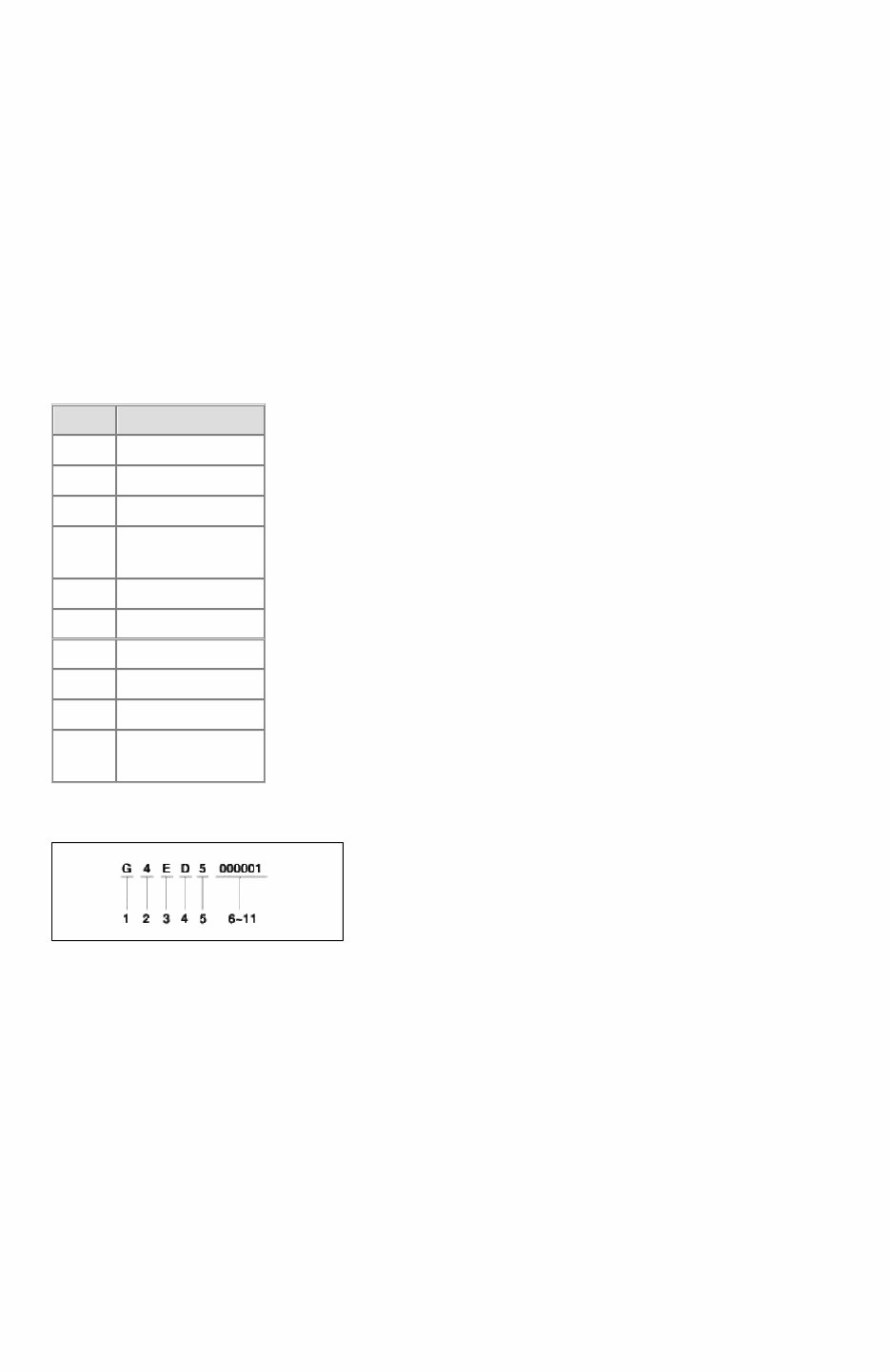

4 - 5 : Vehicle Line / Series - DE = RIO 6 - 7: Body type - 12 = 4 Door Sedan - 16 = 5 Door Hatchback 8 : Engine type - 3 = 1.6 Gasoline (G4ED) 9 : Transaxle type - Check digit 10 : Model year - 5 = 2005, 6 = 2006 11 : Plant location - 6 = Sohari plant 12 : Sequential number - 000001 ~ 999999 PAINT CODE CODE COLOR UD CLEAR WHITE 6C CLEAR SILVER J1 POLAR SILVER J4 CASHMERE BEIGE 2D SOFT GREEN T5 SAPPHIRE 06 SUNSET ORANGE 08 TROPICAL RED 7V OLIVE GRAY 9B MIDNIGHT BLACK ENGINE IDENTIFICATION NUMBER 1. Engine fuel - G = Gasoline 2. Engine range - 4 = 4 cycle 4 cylinder 3. Engine development order - E = ALPHA Engine 4. Engine capacity - D = 1,599cc 5. Production year - 5 : 2005, 6 : 2006 6. Engine production sequence number - 000001 ~ 999999 TRANSMISSION IDENTIFICATION NUMBER MANUAL MANUAL Page 2 of 24

1. Model - R = M5CF1 - P = M5CF2 2. Production year - 5 : 2005, 6 : 2006 3. Gear ratio(Tooth number) <Differential drive gear tooth number / Output shaft gear tooth number> - 1873 = 73/18 = 4.056 4. Transaxle production sequence number - 000001 ~ 999999 AUTOMATIC 1. Modle - T = A4AF3 2. Production year - 5 : 2005, 6 : 2006 3. Gear ratio - N = 4.041 4. Detailed chassification - UD = 1.4 DOHC - WD = 1.6 CVVT 5. Spare 6. Transaxle production sequence number - 000001 ~ 999999 WARNING / CAUTION LABEL LOCATIONS Page 3 of 24

AIR BAG WARNING / CAUTION LABEL Page 4 of 24

AIR BAG WARNING / CAUTION LABEL (CONT’D) Page 5 of 24

AIR BAG WARNING / CAUTION LABEL (CONT’D) A : WARNING SEE OWNER'S MANUAL. This car is equipped a side airbag for each front seat. • Do not use any accessory seat covers. • Use of other seat covers could reduce the effect of the system. • Do not install any accessories on the side or near the side airbag. • Do not use excessive force on the side of the seal. • For further information, see the owner's manual. B : CAUTION AIRBAG ESPE UNIT Detach connector before unmounting. Assemble strictly according to manual instructions. Page 6 of 24

C : PASSENGER MODULE CAUTION CAUTION Don't open, remove or transfer to another vehicle. Risk of malfunction and bodily injury! This unit is to be installed and/or dismantled by trained personnel only. This item contains an explosive to be installed igniter. D : SUPPLEMENTAL RESTRAINT SYSTEM (AIRBAG) INFORMATION • The airbag is a Supplement Restraint System (SRS). You must always wear the seat belts. • The airbag system condition is normal when the "SRS" lamp in the cluster flashes approximately 6 times after the ignition key is turned on and then goes off. • If any of the following condition occur, the system must be serviced. • "SRS" lamp does not light up when the key is turned on. • "SRS" lamp stays lit or flashes continuously. • The airbag has inflated. • The airbag system must be inspected by an authorized dealer ten years after the vehicle manufacture date shown on the certification label, located on left front door opening area. WARNING Failure to the above instructions may result in injury to you or other occupants in the vehicle • See the "SRS" section in Owner's Manual for more information about airbags. BATTERY CAUTION LABEL DESCRIBTION Page 7 of 24
