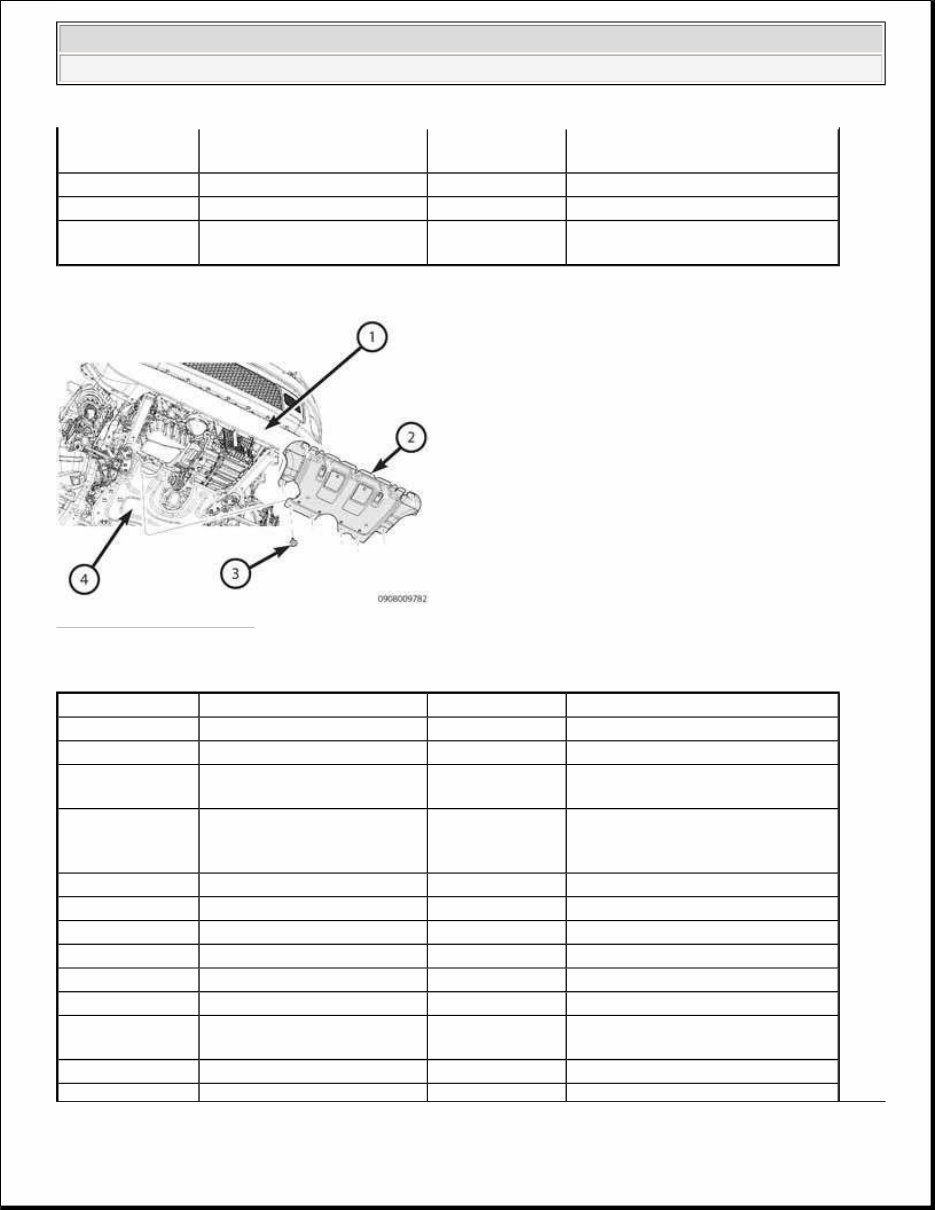

2014-2019 Jeep Cherokee Service & Repair Manual

2014 GENERAL INFORMATION Vehicle Data - Cherokee VEHICLE INFORMATION INTERNATIONAL VEHICLE CONTROL AND DISPLAY SYMBOLS DESCRIPTION DESCRIPTION Chrysler LLC uses international symbols to identify various systems on the vehicle. The graphic symbols illustrated are used to identify various instrument controls, vehicle controls and service information references. The symbols correspond to the controls and displays that are located on the instrument panel and throughout the vehicle. Fig. 1: Information Symbols Courtesy of CHRYSLER GROUP, LLC INTERNATIONAL INFORMATION SYMBOL IDENTIFICATION SYMBOL DESCRIPTION SYMBOL DESCRIPTION 1 115-Volt Power Inverter 11 Side Airbag 2 USB Connector 12 Seat Belt 3 Lighter 13 Airbag 4 Fuel Fill Side 14 Supplemental Restraint System 5 Spare Tire Winch 15 Power Steering Fluid 6 Fuse 16 See Owner's Manual 2014 Jeep Cherokee Latitude 2014 GENERAL INFORMATION Vehicle Data - Cherokee 2014 Jeep Cherokee Latitude 2014 GENERAL INFORMATION Vehicle Data - Cherokee Friday, April 29, 2016 2:49:03 PM Page 1 Friday, April 29, 2016 2:49:05 PM Page 1 1

Fig. 2: Indicator Symbols Courtesy of CHRYSLER GROUP, LLC INTERNATIONAL INDICATOR SYMBOL IDENTIFICATION 7 Key Activate (Power Outlet) 17 See Appropriate Service Information 8 Warning 18 Emergency Release Handle 9 Child Seat Tether Anchor 19 Jack/Jack Tools Location 10 Lower Anchors and Tether for Children (latch) SYMBOL DESCRIPTION SYMBOL DESCRIPTION 1 Electronic Speed Control 30 Door Ajar 2 Hill Descent Control 31 Liftgate Open 3 Traction Control 32 Brake System Warning Parking Brake 4 Electronic Stability Program/Brake System Assist System 33 All Wheel Drive 5 Security Indicator 34 Four Wheel Drive 6 Turn Signals 35 Four Wheel Drive Low 7 Water In Fuel 36 Tow/Haul 8 Low Fuel 37 Service Four Wheel Drive 9 Side Airbag 38 Service Four Wheel Drive 10 Seat Belt Reminder 39 Cruise Indicator 11 Airbag Warning Light 40 Brake System Warning Parking Brake 12 Passenger Airbag Off 41 Tire Pressure Monitor 2014 Jeep Cherokee Latitude 2014 GENERAL INFORMATION Vehicle Data - Cherokee Friday, April 29, 2016 2:49:03 PM Page 2 2

Fig. 3: Control Symbols Courtesy of CHRYSLER GROUP, LLC INTERNATIONAL CONTROL SYMBOL IDENTIFICATION 13 Failure Of Anti-Lock Braking System 42 Sway Bar Disconnect Indicator 14 HEV Brake Regenerative Light 43 Front Axle Lock 15 Electronic Throttle Control 44 Rear Axle Lock 16 HEV Service Light 45 Park Asist Indicator 17 Engine Oil 46 Park Brake Indicator 18 Battery Charging 47 Electronic Stability Control/Traction Control Off 19 Glow Plug/Intake Air Heated 48 Trailer Brake System Off 20 Power Steering Fluid 49 Diesel Exhaust Fluid 21 Engine Coolant Temperature 50 Coolant Level 22 Malfunction Indicator Light 51 Fuel Cap 23 Transmission Oil Temperature Light 52 EPS (Electric Power Steering) 24 Diesel Exhaust Brake 53 Icy Road Condition 25 High Beam 54 Electric Vehicle Plug In State 26 Front Fog Light 55 Vehicle Theft Alarm 27 Rear Fog Light 56 Stored Warnings 28 Cargo Lamp 57 Service ETC 29 Exterior Bulb Failure 58 Electric Vehicle System Service SYMBOL DESCRIPTION SYMBOL DESCRIPTION SYMBOL DESCRIPTION 2014 Jeep Cherokee Latitude 2014 GENERAL INFORMATION Vehicle Data - Cherokee Friday, April 29, 2016 2:49:03 PM Page 3 3

1 Rear Window Wiper 26 Passenger Air Bag Off 51 Door Ajar 2 Rear Window Intermittent Wiper 27 Electronic Speed Control 52 Liftgate Release 3 Rear Window Washer 28 Cruise Indicator 53 Sliding Door 4 Rear Window Defrost 29 Hill Descent Control 54 Sliding Door 5 Heated Mirror 30 Park Assist Off 55 Convertible Top Down 6 Turn Signals 31 Electronic Stability Program/Brake System Assist System 56 Convertible Top Up 7 Adjustable Pedals 32 Park Brake Release 57 Door Lock 8 Horn 33 Adjustable Headlights 58 Window Lift 9 Windshield Wiper Intermittent 34 Low Beam 59 Convertible 4 Window Down 10 Windshield Washer 35 Front Fog Light 60 Window Lock 11 Windshield Washer Fluid Level 36 Rear Fog Light 61 Power Rear Window 12 Windshield Electrically Heated 37 Cargo Lamp 62 Voice Recognition Button 13 Windshield Defrost 38 Hazard Lights 63 Uconnect™ Button 14 Windshield Wiper And Washer 39 115-Volt Power Inverter 64 SwayBar Disconnect 15 Ventilating Fan 40 Key Activate (Power Outlet) 65 All Wheel Drive 16 Air Conditioning 41 Exterior Bulb Failure 66 Four Wheel Drive 17 Upper Air Outlet 42 Master Lighting Switch 67 Two Wheel Drive 18 Upper And Lower Air Outlet 43 Dome Light 68 Four Wheel Drive Low 19 Lower Air Outlet 44 Park Lights 69 Four Wheel Drive Lock 20 Defrost And Lower Air Outlet 45 Instrument Panel Illumination 70 Four Wheel Drive Auto 21 Heated Seat Low 46 Electronic Stability Program Off 71 Front Axle Lock 22 Heated Seat High 47 Diesel Exhaust Brake 72 Rear Axle Lock 23 Ventilated Seat 48 Overdrive Off 73 EVIC Menu 24 Recirculation 49 Hood Release 74 Navigation Button 2014 Jeep Cherokee Latitude 2014 GENERAL INFORMATION Vehicle Data - Cherokee Friday, April 29, 2016 2:49:03 PM Page 4 4

ENGINE COMPARTMENT Fig. 4: International Symbols Courtesy of CHRYSLER GROUP, LLC The graphic symbols illustrated are used to identify engine compartment lubricant and fluid inspection and fill locations. The symbols correspond to the caps located within the engine compartment. LABEL, VEHICLE EMISSION CERTIFICATION INFORMATION (VECI) DESCRIPTION DESCRIPTION All models have a VECI Label. Chrysler permanently attaches the label in the engine compartment. It cannot be removed without defacing information and destroying the label. The label contains the vehicle's emission specifications and vacuum hose routings. All hoses must be connected and routed according to the label. 25 Heated Steering Wheel 50 Trunk/Deck Release 75 Step 76 Reset 77 Axle Lock Button 78 Traction Control Off 79 Electronic Stability Control Off 80 Trailer Brakes NOTE: The Vehicle Emission Control Information (VECI) label(s) must be in place for the life of the vehicle. When replacing the component in which the VECI label is adhered, a new VECI label must also be adhered to the new component. 2014 Jeep Cherokee Latitude 2014 GENERAL INFORMATION Vehicle Data - Cherokee Friday, April 29, 2016 2:49:03 PM Page 5 5

VEHICLE CERTIFICATION LABEL DESCRIPTION DESCRIPTION Fig. 5: Vehicle Certification Label - Typical Courtesy of CHRYSLER GROUP, LLC A vehicle certification label is attached to every Chrysler LLC vehicle. The label certifies that the vehicle conforms to all applicable Federal Motor Vehicle Standards. The label also lists:  Month and year of vehicle manufacture.  Gross Vehicle Weight Rating (GVWR). The gross front and rear axle weight ratings (GAWR's) are based on a minimum rim size and maximum cold tire inflation pressure.  Vehicle Identification Number (VIN).  Type of vehicle.  Type of rear wheels.  Bar code.  Month, Day and Hour (MDH) of final assembly.  Paint and Trim codes.  Country of origin. The label is located on the driver-side door shut-face. VEHICLE IDENTIFICATION NUMBER DESCRIPTION DESCRIPTION 2014 Jeep Cherokee Latitude 2014 GENERAL INFORMATION Vehicle Data - Cherokee Friday, April 29, 2016 2:49:03 PM Page 6 6

Fig. 6: Vehicle Identification Number (VIN) Label Courtesy of CHRYSLER GROUP, LLC The Vehicle Identification Number (VIN) label (1) can be viewed through the windshield at the upper left corner of the instrument panel, near the left windshield pillar. The VIN consists of 17 characters in a combination of letters and numbers that provide specific information about the vehicle. Refer to the charts below for decoding information. To protect the consumer from theft and possible fraud the manufacturer is required to include a Check Digit at the ninth position of the vehicle identification number. The check digit is used by the manufacturer and government agencies to verify the authenticity of the vehicle and official documentation. The formula to use the check digit is not released to the general public. POSITIONS 1 - 3: WORLD MANUFACTURER IDENTIFIER POSITION 4: RESTRAINT SYSTEM 1 2 3 MANUFACTURER VEHICLE TYPE 1 C 4 Chrysler Group LLC (USA) MPV Brake System GVWR Range Active Belts, Air Bags Active Belts, Air Bags, Side Bags- Front Row Active Belts, Air Bags, Side Bags-All Rows Active Belts, No Air Bags Active Belts, GVWR > 10, 000 lbs. Pounds Kilograms Hydraulic 4001-5000 (1815-2267 kg) - - N - - Hydraulic 5001-6000 (2268 - 2721 kg) - - P - - 2014 Jeep Cherokee Latitude 2014 GENERAL INFORMATION Vehicle Data - Cherokee Friday, April 29, 2016 2:49:03 PM Page 7 7

POSITIONS 5 - 7 Define the following: brand, marketing name, price series, drive position, drive type and body type POSITION 8: ENGINE POSITION 9: CHECK DIGIT 0 through 9 or X POSITION 10: MODEL YEAR E = 2014 POSITION 11: ASSEMBLY PLANT POSITION 12 - 17: PLANT SEQUENCE NUMBER A six digit number assigned by assembly plant. FWD 4WD BODY TYPE POSITION SERIES J L A J M A Sport Utility 4 Door Left Hand Drive Sport - - - J M B Trailhawk J L C J M C Latitude J L D J M D Limited J L E J M E Right Hand Drive Sport - - - J M F Trailhawk J L G J M G Latitude J L H J M H Limited CODE DISPLACEMENT CYLINDERS FUEL TURBO SALES CODES Y 2.0 Liter 4 Diesel Yes EBT B 2.4 Liter 4 Gasoline No ED6 S 3.2 Liter 6 Gasoline No EHB CODE PLANT W Toledo North Assembly 2014 Jeep Cherokee Latitude 2014 GENERAL INFORMATION Vehicle Data - Cherokee Friday, April 29, 2016 2:49:03 PM Page 8 8

2014 GENERAL INFORMATION Vehicle Quick Reference - Cherokee CAPACITIES AND RECOMMENDED FLUIDS DESCRIPTION FLUID TYPES When service is required, Chrysler Group LLC recommends that only Mopar® brand parts, lubricants and chemicals be used. Mopar® provides the best engineered products for servicing Chrysler Group LLC vehicles. Only lubricants bearing designations defined by the following organization should be used to service a Chrysler Group LLC vehicle:  Society of Automotive Engineers (SAE)  American Petroleum Institute (API)  National Lubricating Grease Institute (NLGI)  European Automobile Manufacturers Association (ACEA) API QUALITY CLASSIFICATION Fig. 1: API Symbol Courtesy of CHRYSLER GROUP, LLC This symbol on the front of an oil container means that the oil has been certified by the American Petroleum Institute (API) to meet all the lubrication requirements specified by Chrysler Group LLC. GEAR LUBRICANTS 2014 Jeep Cherokee Latitude 2014 GENERAL INFORMATION Vehicle Quick Reference - Cherokee 2014 Jeep Cherokee Latitude 2014 GENERAL INFORMATION Vehicle Quick Reference - Cherokee Friday, April 29, 2016 2:46:39 PM Page 1 Friday, April 29, 2016 2:46:41 PM Page 1 1

SAE ratings also apply to multigrade gear lubricants. In addition, API classification defines the lubricant's usage, such as API GL-5 and SAE 75W-90. LUBRICANT RECOMMENDATIONS CHASSIS BODY ENGINE OIL When service is required, Chrysler Corporation recommends that only Mopar® brand parts, lubricants and chemicals be used. Mopar® provides the best engineered products for servicing Chrysler Corporation vehicles. Only lubricants bearing designations defined by the following organization should be used:  Society of Automotive Engineers (SAE)  American Petroleum Institute (API)  National Lubricating Grease Institute (NLGI)  Association des Constructeurs Europ e ens d' Automobiles (European Automobile Manufacturers Association) (ACEA) API CERTIFICATION AND LICENSE SYMBOL COMPONENT FLUID, LUBRICANT, OR GENUINE PART Steering Gear AND Linkage, Ball Joints, Prop Shafts AND Yokes, Wheel Bearings Mopar® Multi-Purpose Lubricant NLGI Grade 2 EP, GC-LB COMPONENT FLUID, LUBRICANT, AND GENUINE PART Hinges: Door AND Hood Mopar® Engine Oil Swing Gate Mopar® Multi-Purpose Lube NLGI Grade 2 EP, GC-LB Latches: Door, Hood/Safety Catch, Swing Gate Mopar® Multi-Purpose Lube NLGI Grade 2 EP, GC-LB Seat Regulator AND Track Mopar® Multi-Purpose Lube NLGI Grade 2 EP, GC-LB Lock Cylinders Mopar® Lock Cylinder Lube WARNING: New or used engine oil can be irritating to the skin. Avoid prolonged or repeated skin contact with engine oil. Contaminants in used engine oil, caused by internal combustion, can be hazardous to your health. Thoroughly wash exposed skin with soap and water. Do not wash skin with gasoline, diesel fuel, thinner, or solvents, health problems can result. Do not pollute, dispose of used engine oil properly. Contact your government agency for location of collection center in your area. 2014 Jeep Cherokee Latitude 2014 GENERAL INFORMATION Vehicle Quick Reference - Cherokee Friday, April 29, 2016 2:46:39 PM Page 2 2
