2007 Jeep Compass (MK) Parts Catalogue

VIN PLATE DECODING INFORMATION 1 2 3 4 5 6 7 8 9 10 11 12 thru 17 Country Make Vehicle Type Other Line Series Body Style Engine Check Digit Model Year Assy. Plant Sequence No. The following table interprets the VIN Plate position shown above. Position Interpretation Codes = Description 1 Country of Origin 1 = Manufactured By DaimlerChrysler Corporation 2 Assembler J = Jeep 3 Vehicle Type 7 = Truck Less Sales Code "CGS" Side Air Bags 4 GVWR & Pass. Safety D = 1-3000 GVWR & Hyd. Brakes E = 3001-4000 GVWR & Hyd. Brakes F = 4001-5000 GVWR & Hyd. Brakes G = 5001-6000 GVWR & Hyd. Brakes 5 Vehicle Line T = Compass / Patriot Left Hand Drive (FWD) F = Compass / Patriot Left Hand Drive (4x4) 7 = Compass / Patriot Right Hand Drive (4x4) 6 Series 2 = Patroit -74 4 = Patroit Limited -74 4 = Compass-49 5 = Compass Limited-49 7 Body Style 8 = Sport Utility 4 Door 8 Engine K = 2.4L I4 CYL DOHC 16 Valve Dual VVT Gasoline (ED3) 9 Check Digit 0 = Check Digit 10 Model Year 6 = 2006 11 Assembly Plant D = Belvidere 12 thru 17 Vehicle Build Sequence Model Year Assembly Sequence

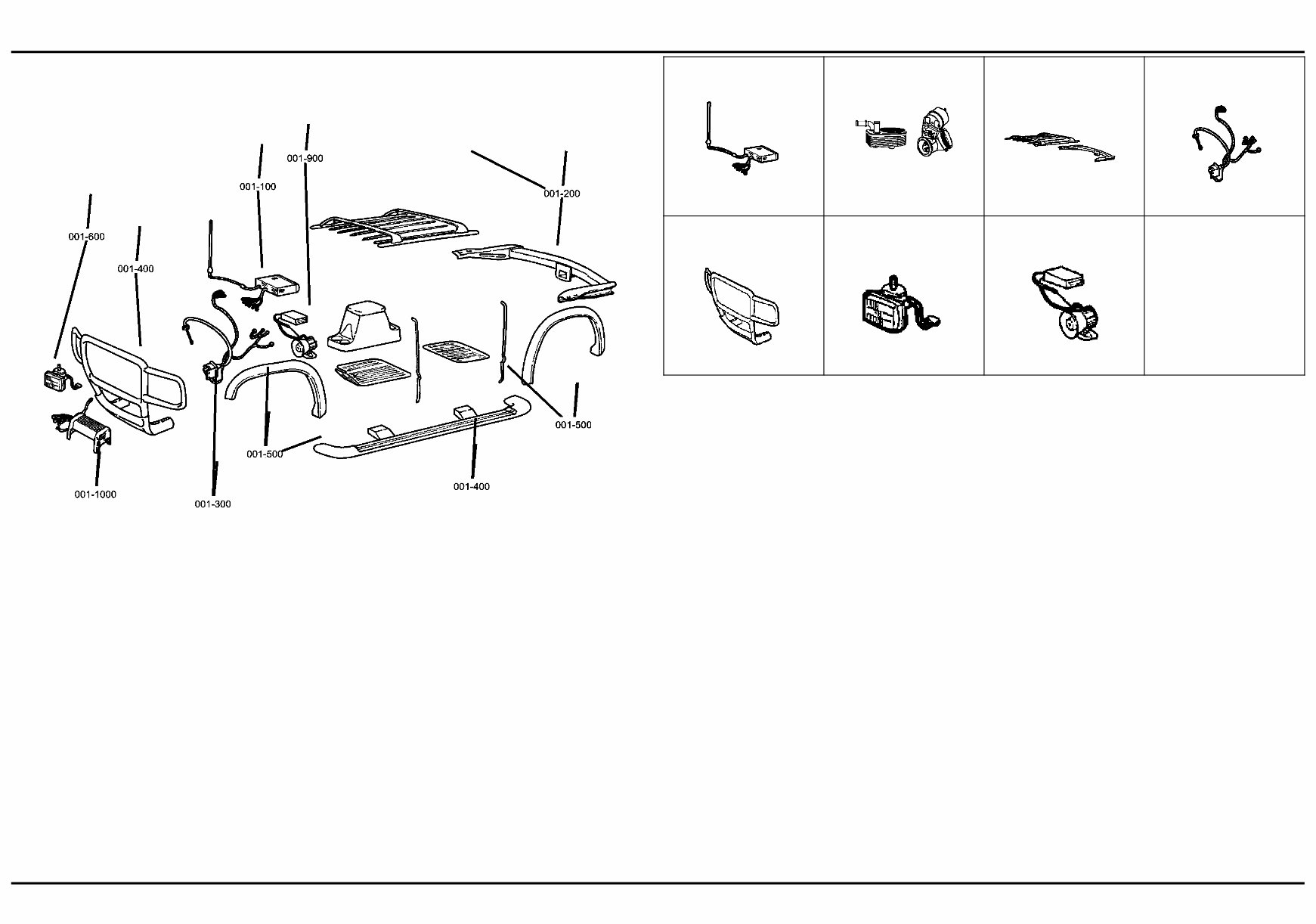

Group - 1 Component Parts for Mopar Accessories 001-100 Audio & Electronics 001-1100 Powertrain 001-200 Carriers & Cargo Hauling 001-300 Driving Convenience 001-400 Exterior Appearance 001-600 Fog Lights & Electrical 001-900 Security 2007 MK

Group - 1 Component Parts for Mopar Accessories Illustration Title Group-Fig. No. Audio & Electronics Satellite Receiver GEN 2.5 .................................................................................................................. Fig. 1 - 105 Install Kit - Satellite Radio ................................................................................................................... Fig. 1 - 107 Video Entertainment System-Compass .................................................................................................... Fig. 1 - 110 Video Entertainment System-Patriot ........................................................................................................ Fig. 1 - 115 Navigation Kit [REC] ......................................................................................................................... Fig. 1 - 120 Navigation Kit - Stand Alone ................................................................................................................ Fig. 1 - 125 Module Kit-IPod Adapter..................................................................................................................... Fig. 1 - 130 FMiPod Adapter .............................................................................................................................. Fig. 1 - 135 Carriers & Cargo Hauling Bike Carrier - Roof - Upright Mount ......................................................................................................... Fig. 1 - 205 Bike Carrier -Hitch Mount .................................................................................................................... Fig. 1 - 210 Bike Carrier-Roof-Fork Mount ............................................................................................................... Fig. 1 - 215 Luggage Carrier-Roof-Vinyl ................................................................................................................. Fig. 1 - 220 Ski Carrier-Roof Mount ...................................................................................................................... Fig. 1 - 225 Ski Carrier-Ski or Snowboard ............................................................................................................... Fig. 1 - 230 Carrier Kit - Canoe ........................................................................................................................... Fig. 1 - 235 Carrier Kit-Water Sports ..................................................................................................................... Fig. 1 - 240 Driving Convenience Speed Control Kit-Patriot .................................................................................................................... Fig. 1 - 305 Speed Control Kit-Compass ................................................................................................................. Fig. 1 - 307 Remote Start ................................................................................................................................. Fig. 1 - 310 Sensor Package Park/Distance ............................................................................................................. Fig. 1 - 315 Hands-Free Kit/Cellular Phone-Blue Tooth................................................................................................. Fig. 1 - 320 Hands-free Kit/Cellular Phone-Blue Tooth-Low Speed .................................................................................... Fig. 1 - 325 Exterior Appearance Wheel Kit...................................................................................................................................... Fig. 1 - 405 Wheel Kit...................................................................................................................................... Fig. 1 - 410 Fog Lights & Electrical Off-Road/Driving Lamp Wiring Kit........................................................................................................... Fig. 1 - 605 Roof Mounted Off-Road Lamp Wiring Kit .................................................................................................. Fig. 1 - 610 Fog Lamp Kit ................................................................................................................................. Fig. 1 - 615 Engine Block Heater ......................................................................................................................... Fig. 1 - 620 Security Alarm Kit ...................................................................................................................................... Fig. 1 - 910 Powertrain Engine Oil Cooler ........................................................................................................................... Fig. 1 - 1105 Engine Oil Cooler ........................................................................................................................... Fig. 1 - 1110 2007 MK

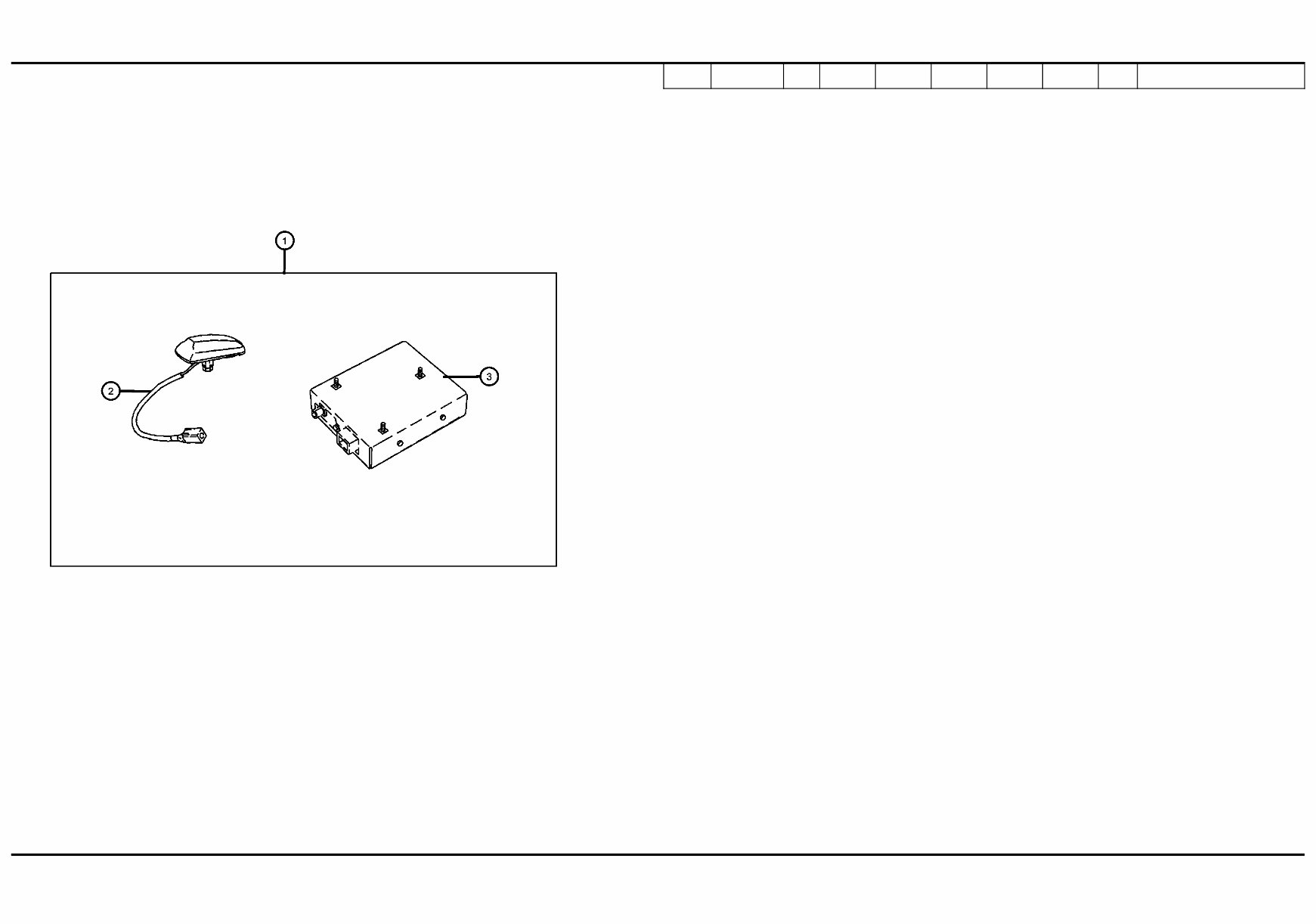

Satellite Receiver GEN 2.5 Figure 1-105 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Satellite Receiver GEN 2.5 SRGEN 2.5 Note: For Warranty Repair On Item 3, Order Using Z Prex 1 82209719AC 1 RECEIVER, Satelite 2 05150048AB 1 ANTENNA, Satellite 3 68015147AD 1 RECEIVER, Satellite COMPASS/PATRIOT (MK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE L = LOWLINE P = PREMIUM J = JEEP - 4WD T = JEEP - 2WD 49 = HATCHBACK TYPE #2 74 = SPORT UTILITY 4-DR TYPE #4 ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DAV = Continuously Variable Transmission DAW = Cont.Var. w/Off-Rd Crawl Ratio Trans AR = use ase required - = Non illustrrated part 2007 MK << RETURN TO GROUP INDEX

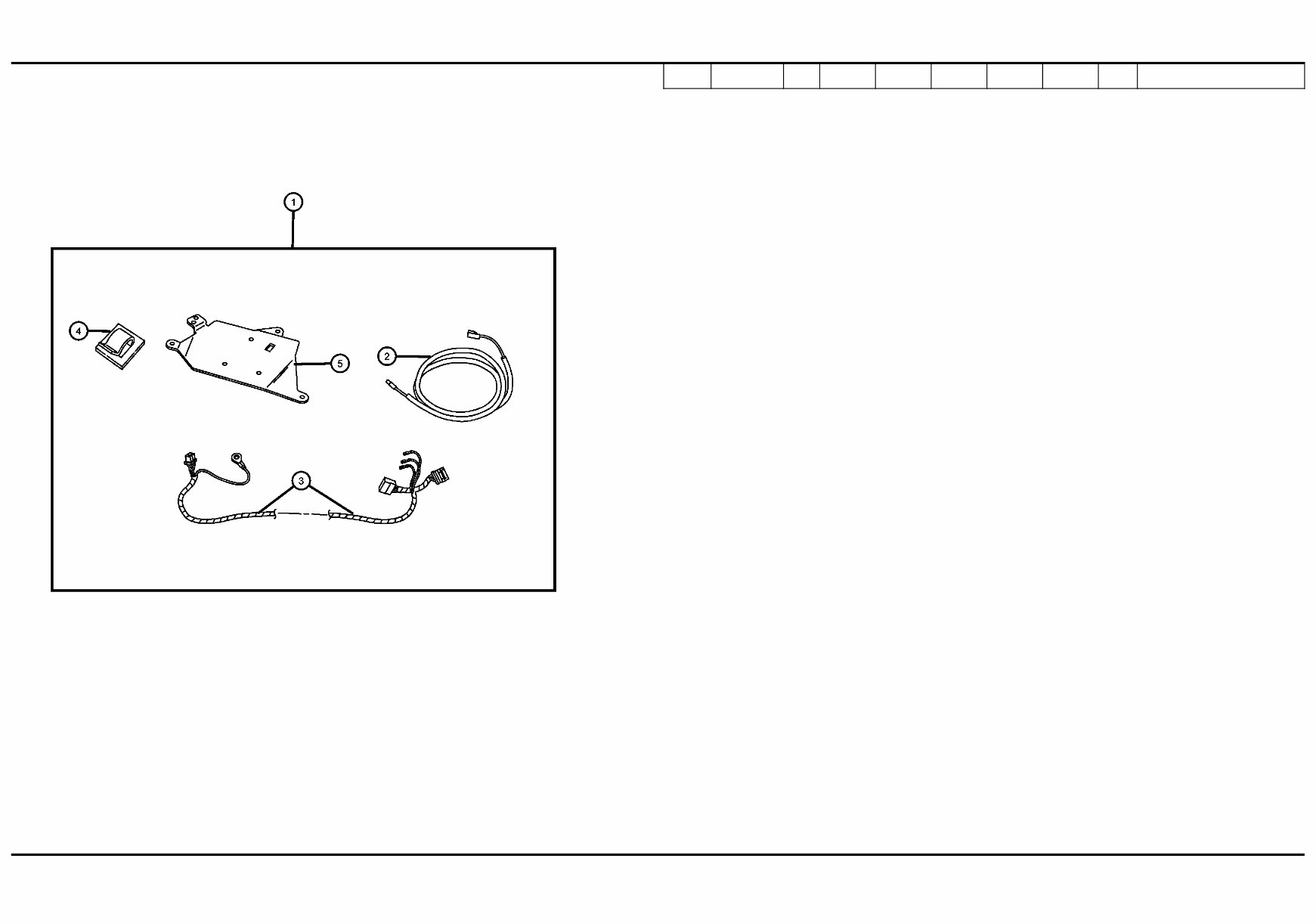

Install Kit - Satellite Radio Figure 1-107 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Install Kit - Satellite Radio 1 82209500AB 1 INSTALL KIT, Satelite Receiver 2 05183898AA 1 CABLE, Antenna 3 05159035AA 1 HARNESS, Overlay 4 05142940AA 1 CLIP 5 05183897AA 1 BRACKET, Radio COMPASS/PATRIOT (MK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE L = LOWLINE P = PREMIUM J = JEEP - 4WD T = JEEP - 2WD 49 = HATCHBACK TYPE #2 74 = SPORT UTILITY 4-DR TYPE #4 ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DAV = Continuously Variable Transmission DAW = Cont.Var. w/Off-Rd Crawl Ratio Trans AR = use ase required - = Non illustrrated part 2007 MK << RETURN TO GROUP INDEX

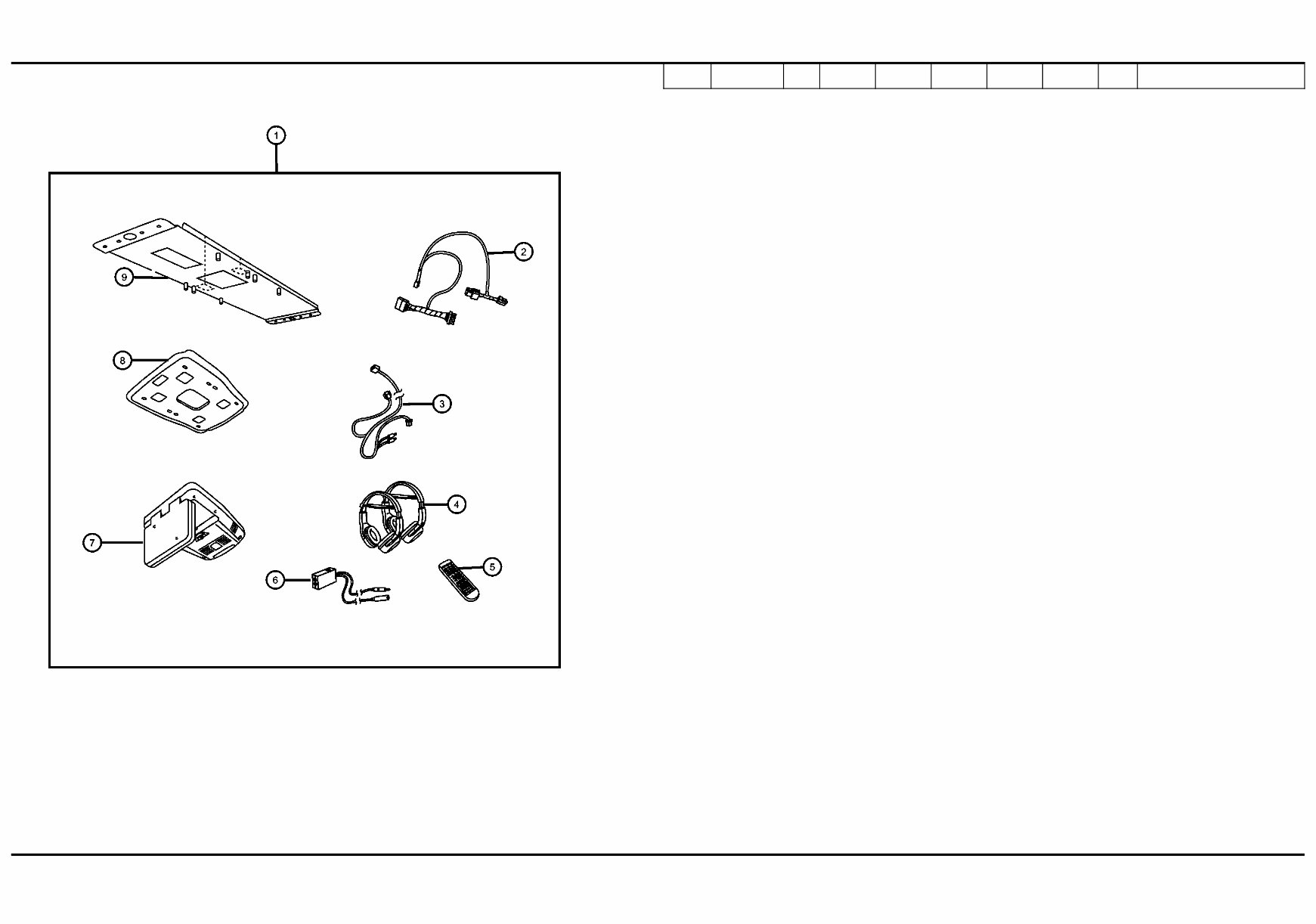

Video Entertainment System-Compass Figure 1-110 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Video Entertainment System-Compass 1 82210358 1 49 MEDIA SYSTEM, Monitor with DVD 2 05191900AA 1 49 HARNESS, Wiring 3 05166870AA 1 49 HARNESS, Wiring 4 05064037AA 1 49 HEADPHONES, Wireless 5 05166873AA 1 49 REMOTE, Wireless Infrared 6 05166872AA 1 49 MODULATOR, FM 7 05166869AA 1 49 MEDIA SYSTEM, Monitor with DVD 8 68001720AA 1 49 SHROUD, SHROUD 9 68001717AA 1 49 BRACKET, Mounting COMPASS/PATRIOT (MK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE L = LOWLINE P = PREMIUM J = JEEP - 4WD T = JEEP - 2WD 49 = HATCHBACK TYPE #2 74 = SPORT UTILITY 4-DR TYPE #4 ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DAV = Continuously Variable Transmission DAW = Cont.Var. w/Off-Rd Crawl Ratio Trans AR = use ase required - = Non illustrrated part 2007 MK << RETURN TO GROUP INDEX

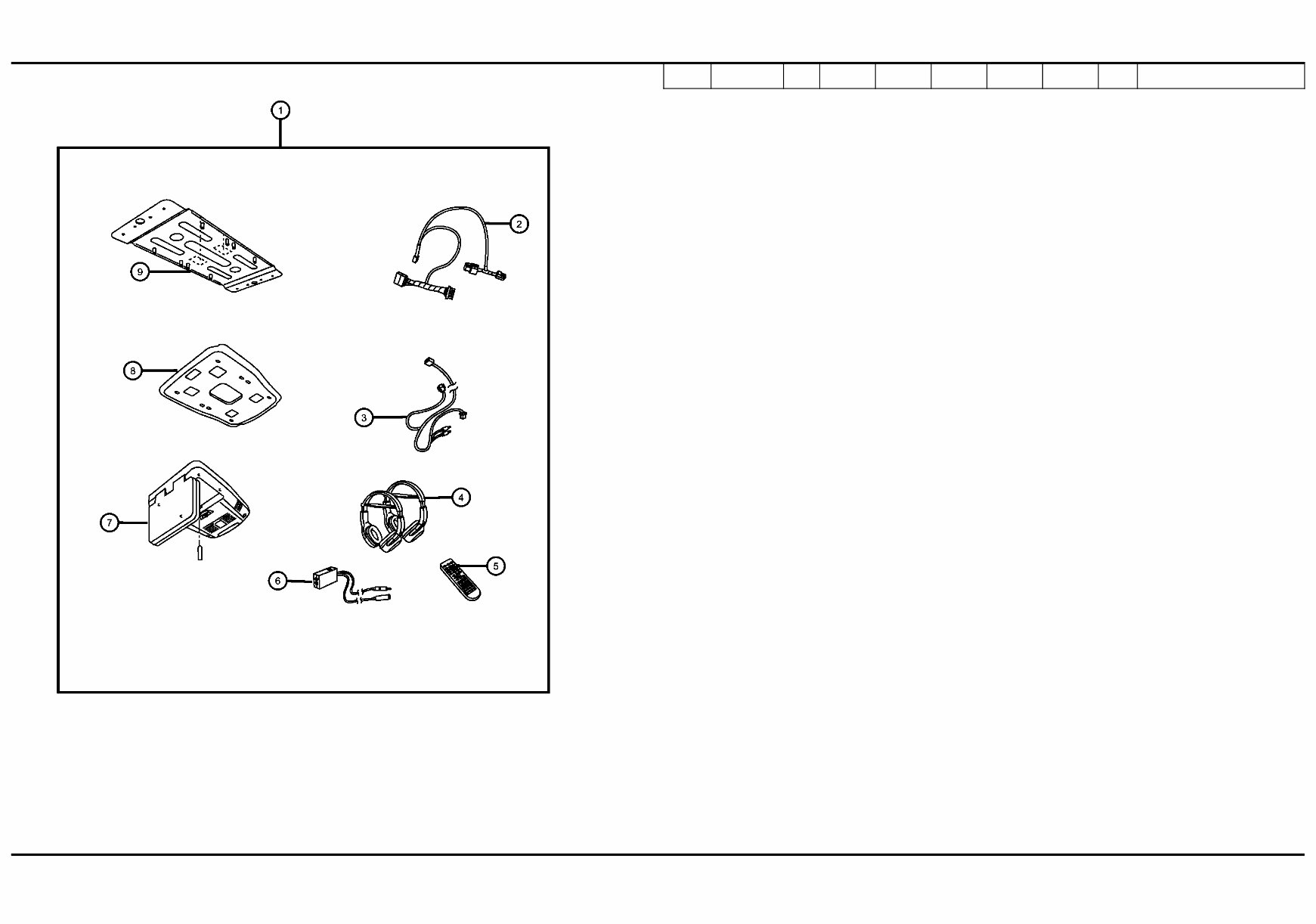

Video Entertainment System-Patriot Figure 1-115 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Video Entertainment System-Patriot 1 82210468 1 74 MEDIA SYSTEM, Monitor with DVD 2 05191900AA 1 74 HARNESS, Wiring 3 05166870AA 1 74 HARNESS, Wiring 4 05064037AA 1 74 HEADPHONES, Wireless 5 05166873AA 1 74 REMOTE, Wireless Infrared 6 05166872AA 1 74 MODULATOR, FM 7 05166869AA 1 74 MEDIA SYSTEM, Monitor with DVD 8 68001721AA 1 74 SHROUD, SHROUD 9 68001718AA 1 74 BRACKET, Mounting COMPASS/PATRIOT (MK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE L = LOWLINE P = PREMIUM J = JEEP - 4WD T = JEEP - 2WD 49 = HATCHBACK TYPE #2 74 = SPORT UTILITY 4-DR TYPE #4 ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DAV = Continuously Variable Transmission DAW = Cont.Var. w/Off-Rd Crawl Ratio Trans AR = use ase required - = Non illustrrated part 2007 MK << RETURN TO GROUP INDEX

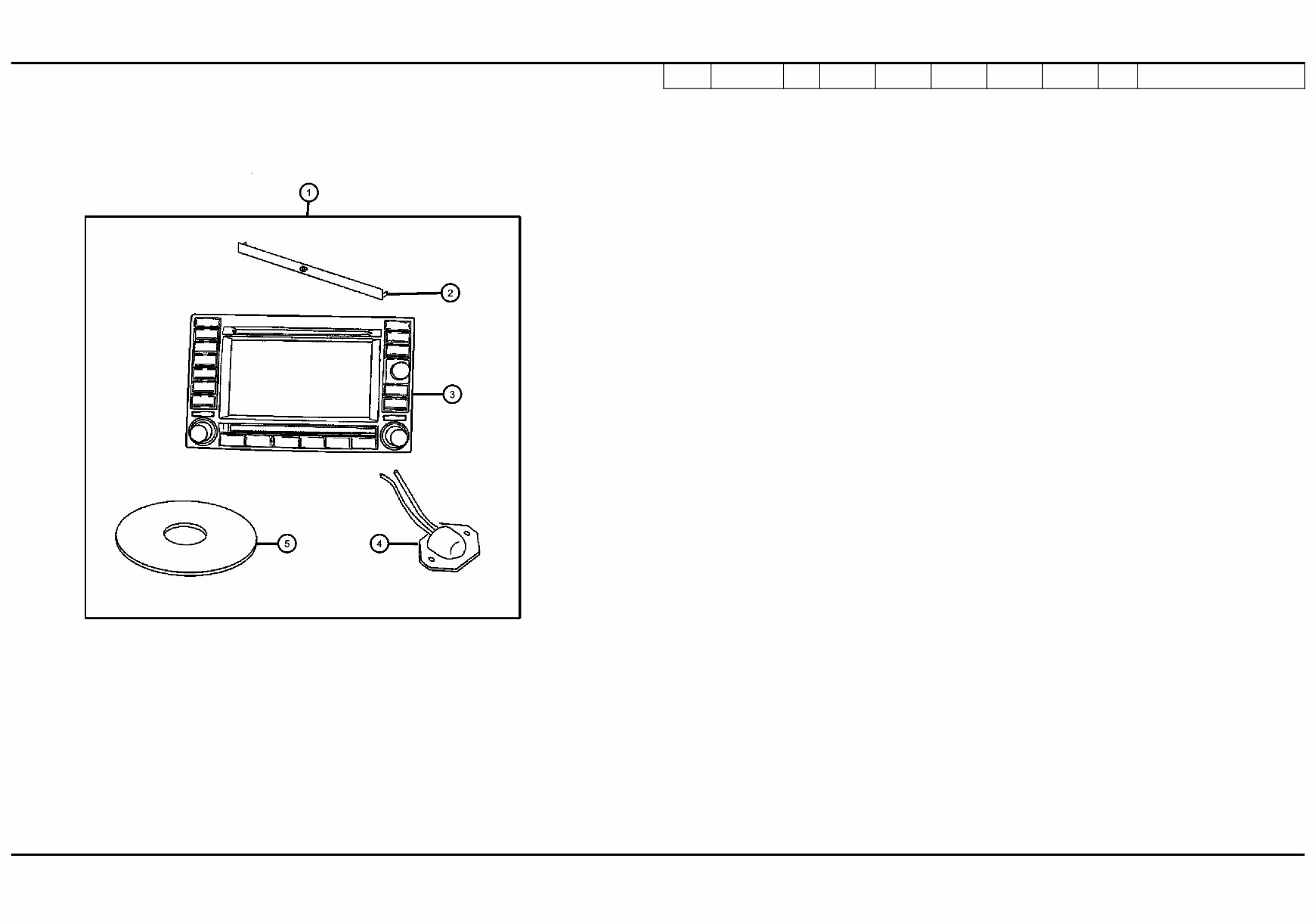

Navigation Kit [REC] Figure 1-120 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Navigation Kit [REC] NK[REC] Note: For Warranty Repair on Item 2, Order Using Z Prex 1 82208653AI 1 RADIO, AM/FM CD W/NAV/DVD & CD-CTRL, [REC] 2 05161571AA 1 COVER, Radio 3 82208653AI 1 RADIO, AM/FM CD W/NAV/DVD & CD-CTRL 4 56038630AA 1 ANTENNA, GPS 5 05064033AE 1 DVD, Geographic Database COMPASS/PATRIOT (MK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE L = LOWLINE P = PREMIUM J = JEEP - 4WD T = JEEP - 2WD 49 = HATCHBACK TYPE #2 74 = SPORT UTILITY 4-DR TYPE #4 ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DAV = Continuously Variable Transmission DAW = Cont.Var. w/Off-Rd Crawl Ratio Trans AR = use ase required - = Non illustrrated part 2007 MK << RETURN TO GROUP INDEX

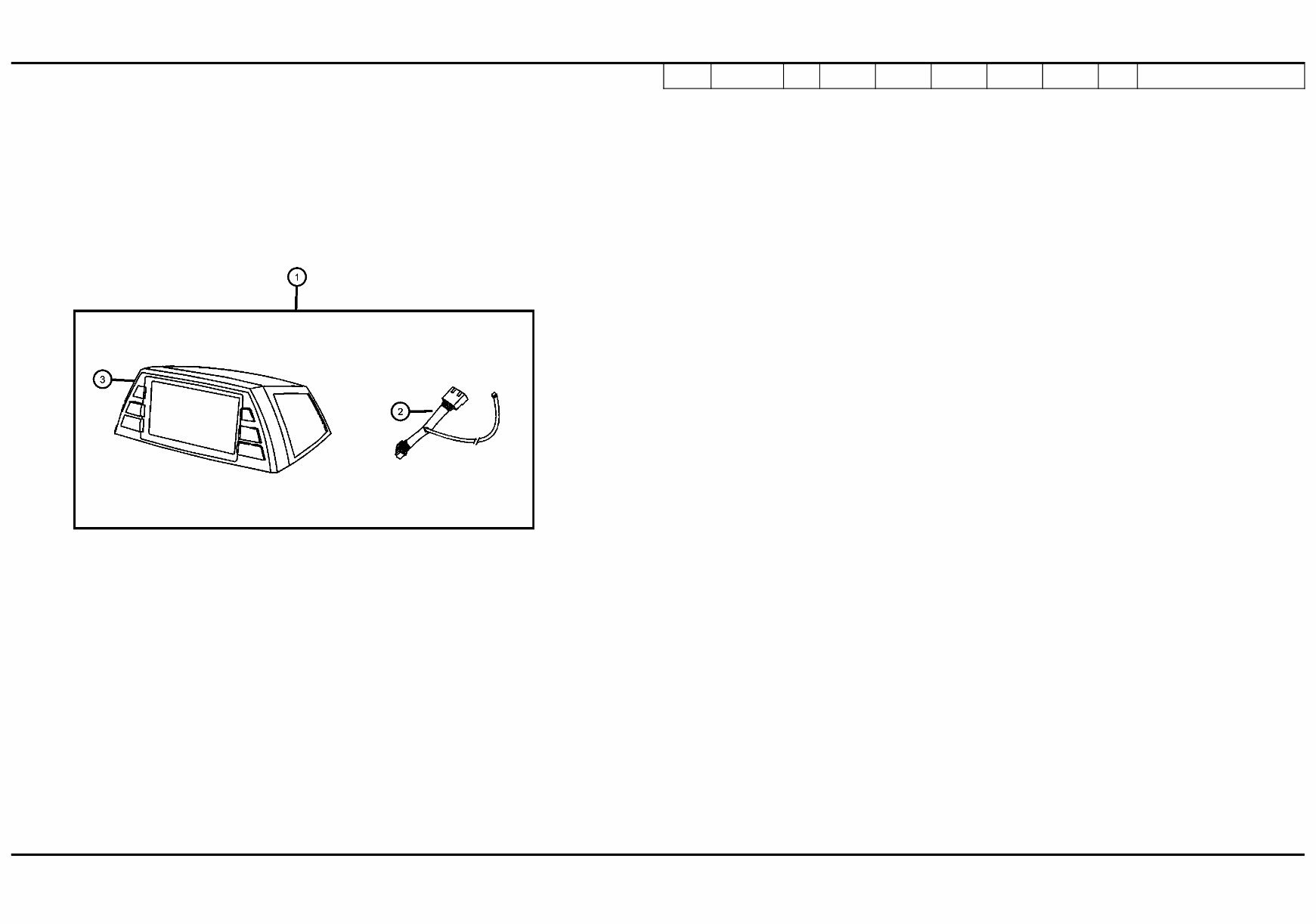

Navigation Kit - Stand Alone Figure 1-125 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Navigation Kit - Stand Alone 1 82209850 1 NAVIGATION KIT, Vehicle 2 05175003AA 1 WIRING, Navigation Display 3 05175002AA 1 MODULE, Navigation Display -4 05175839AA 1 COVER, Radio -5 05175016AA 1 MEMORY CARD, Map Data COMPASS/PATRIOT (MK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE L = LOWLINE P = PREMIUM J = JEEP - 4WD T = JEEP - 2WD 49 = HATCHBACK TYPE #2 74 = SPORT UTILITY 4-DR TYPE #4 ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DAV = Continuously Variable Transmission DAW = Cont.Var. w/Off-Rd Crawl Ratio Trans AR = use ase required - = Non illustrrated part 2007 MK << RETURN TO GROUP INDEX

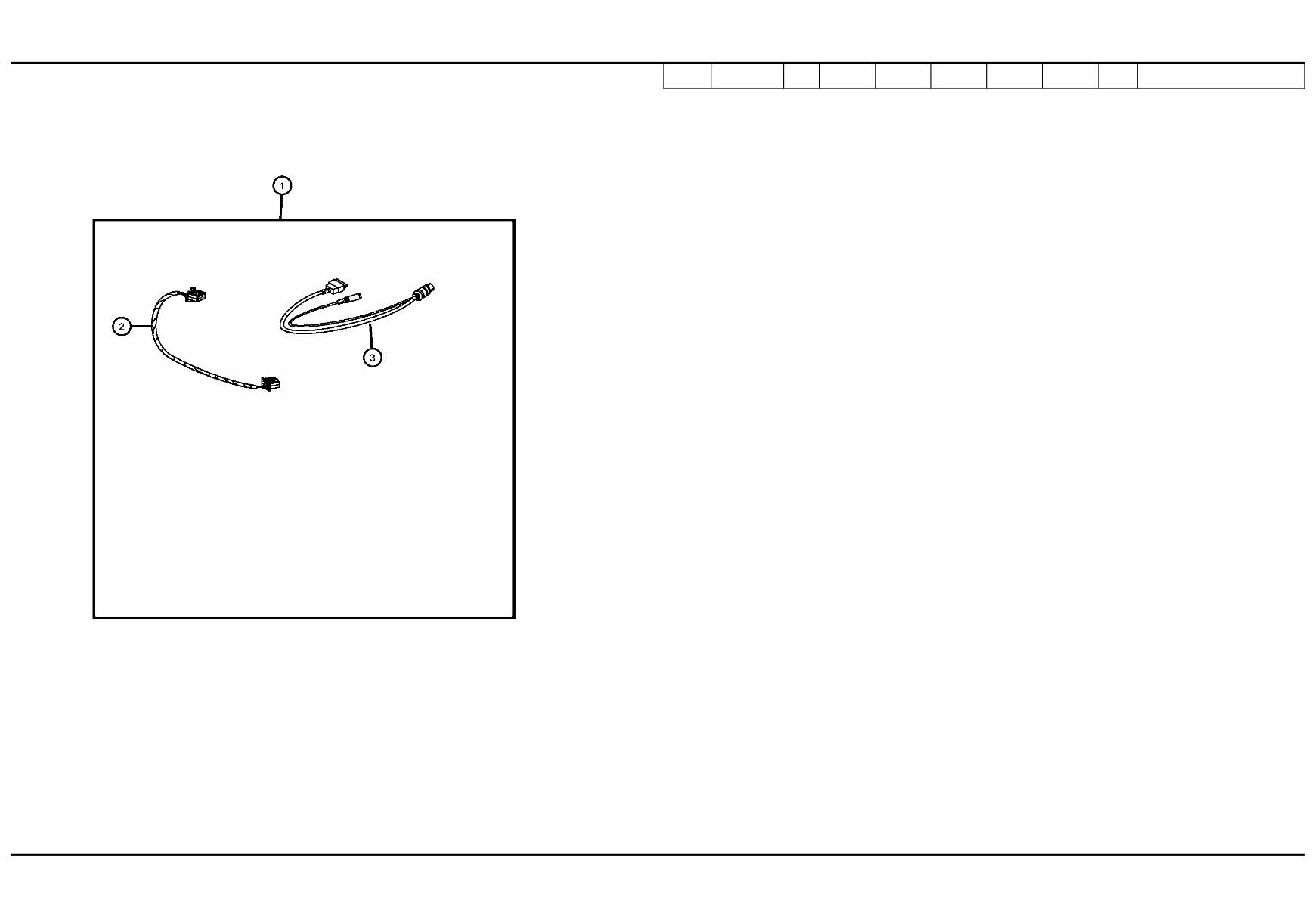

Module Kit-IPod Adapter Figure 1-130 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Module Kit-IPod Adapter 1 82209617 1 MODULE KIT, IPOD Interface 2 68029468AA 1 CABLE 3 68029461AA 1 CABLE COMPASS/PATRIOT (MK) SERIES LINE BODY ENGINE TRANSMISSION H = HIGHLINE L = LOWLINE P = PREMIUM J = JEEP - 4WD T = JEEP - 2WD 49 = HATCHBACK TYPE #2 74 = SPORT UTILITY 4-DR TYPE #4 ED3 = 2.4L 4 Cyl DOHC 16V Dual VVT Engine DD7 = 5-Speed Manual T355 Transmission DEF = 6-Speed Manual Aisin BG6 Trans DAV = Continuously Variable Transmission DAW = Cont.Var. w/Off-Rd Crawl Ratio Trans AR = use ase required - = Non illustrrated part 2007 MK << RETURN TO GROUP INDEX
