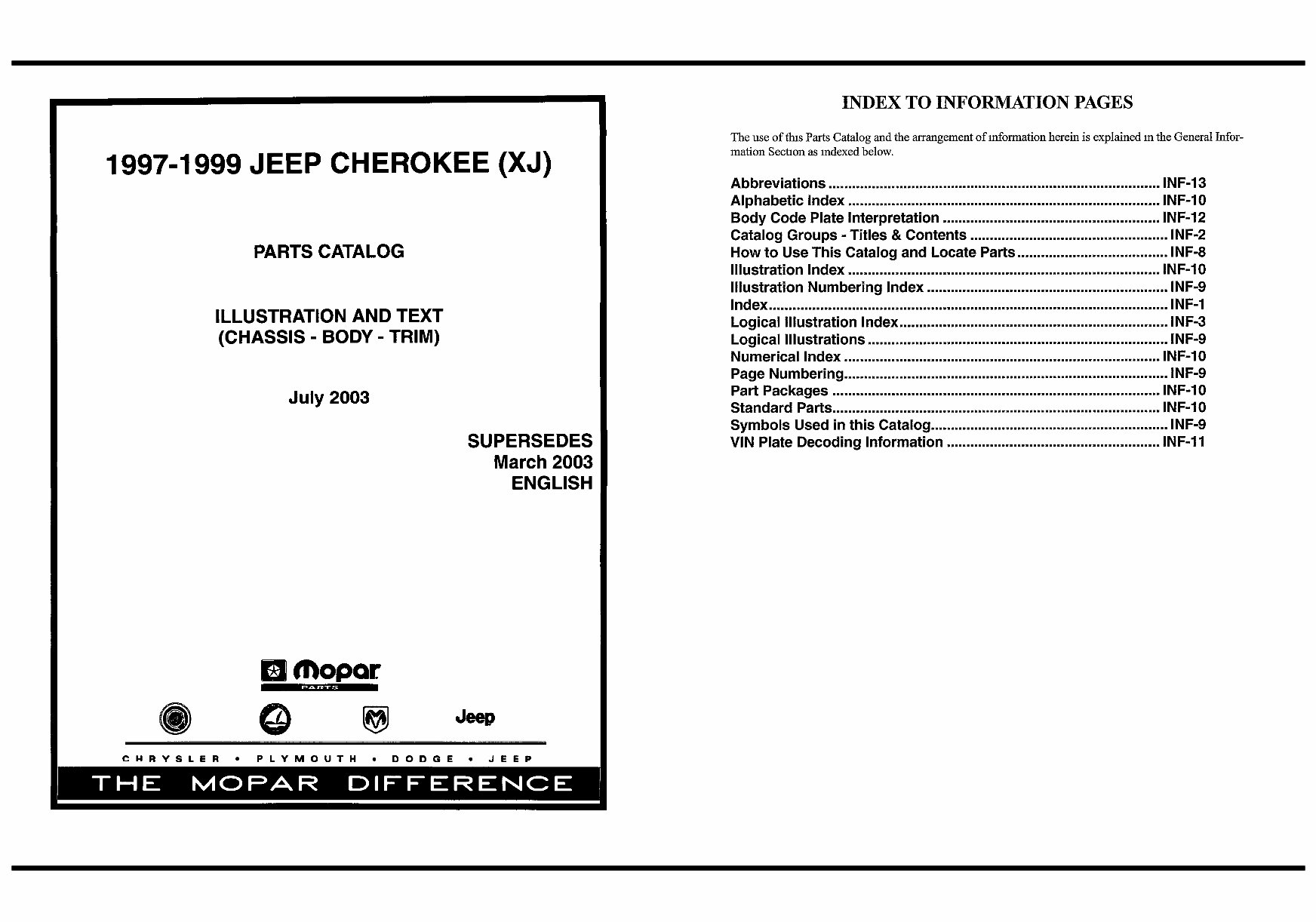

1997-1999 Jeep Cherokee XJ Parts List

July 4, 2003 July 4, 2003

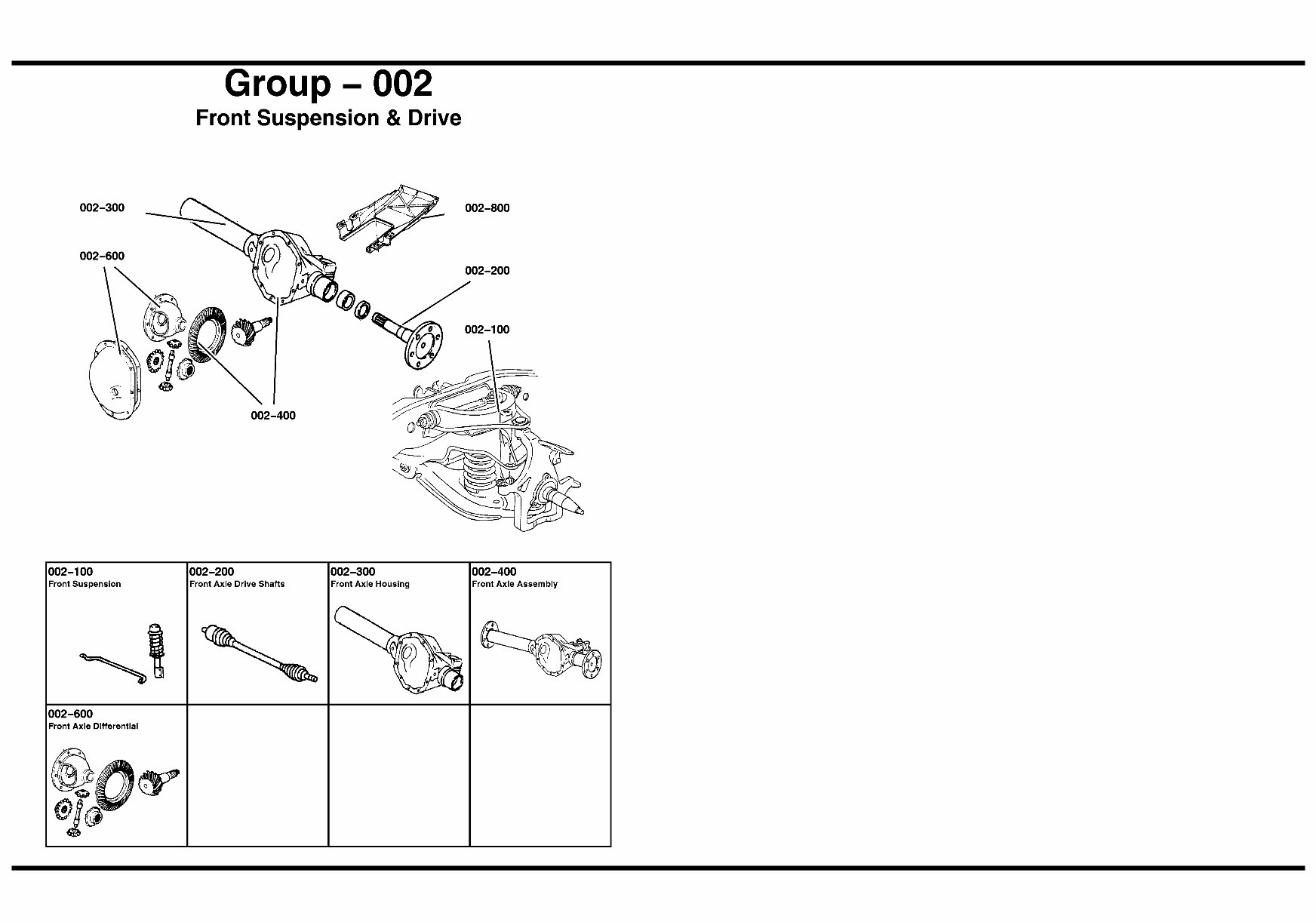

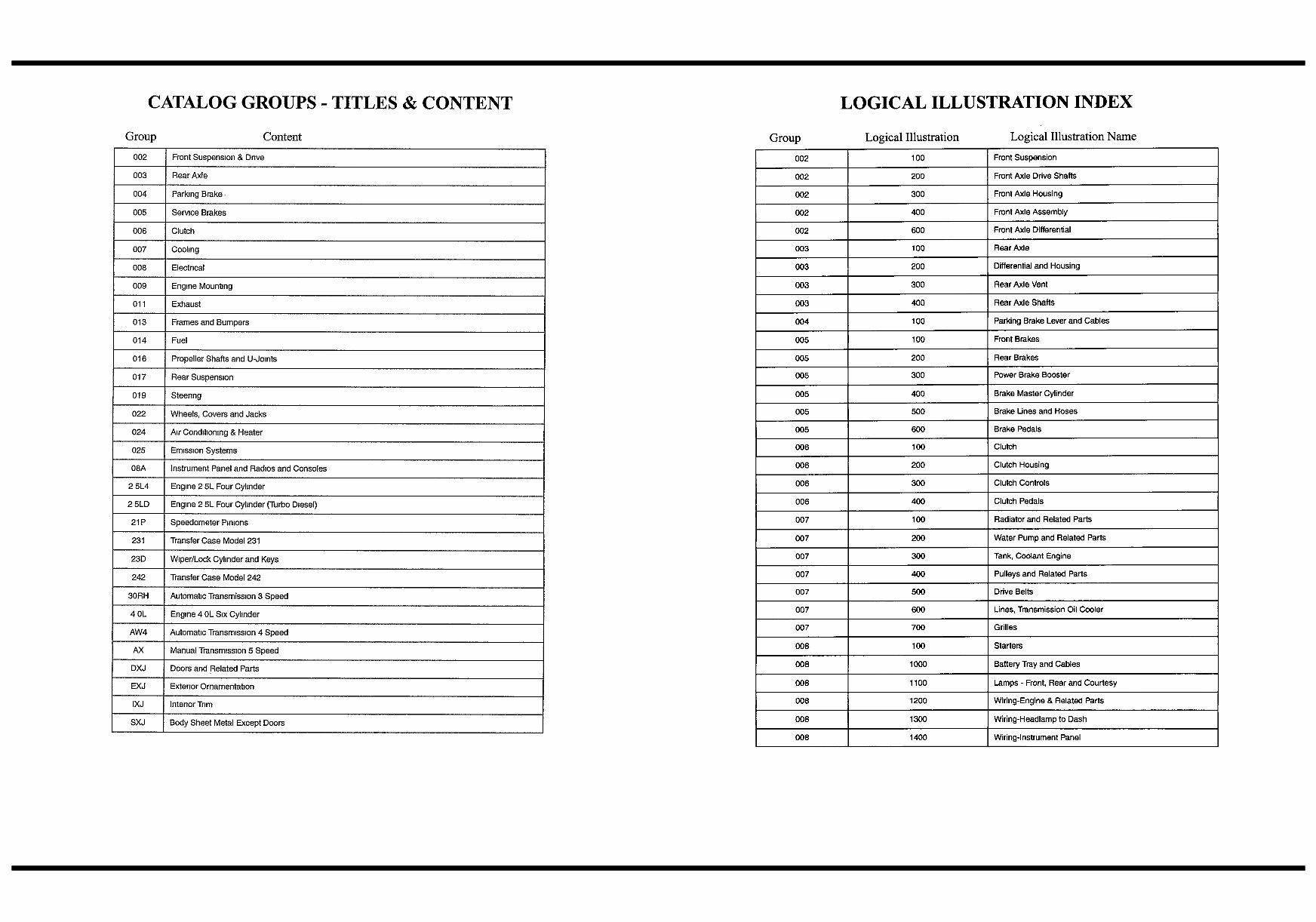

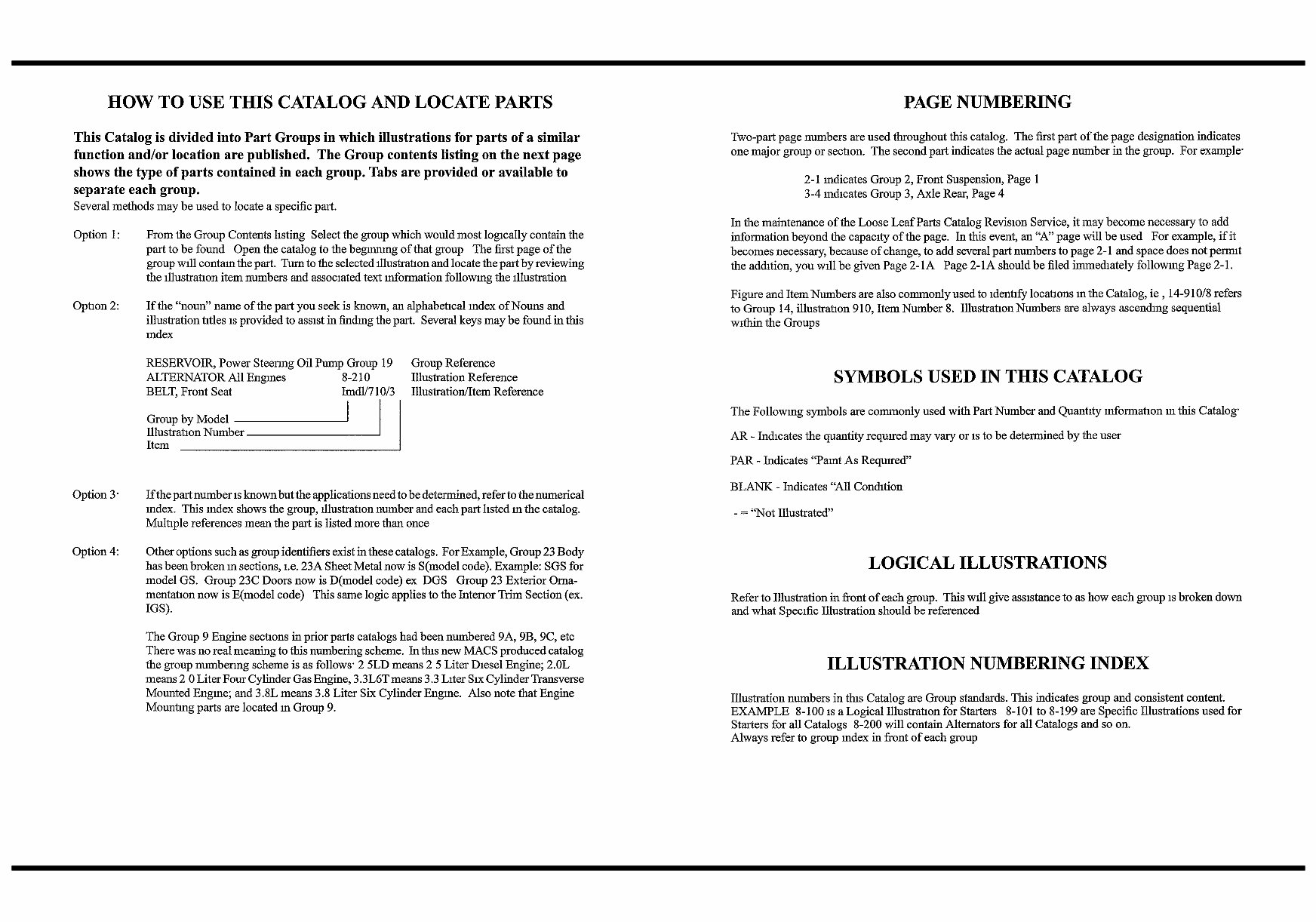

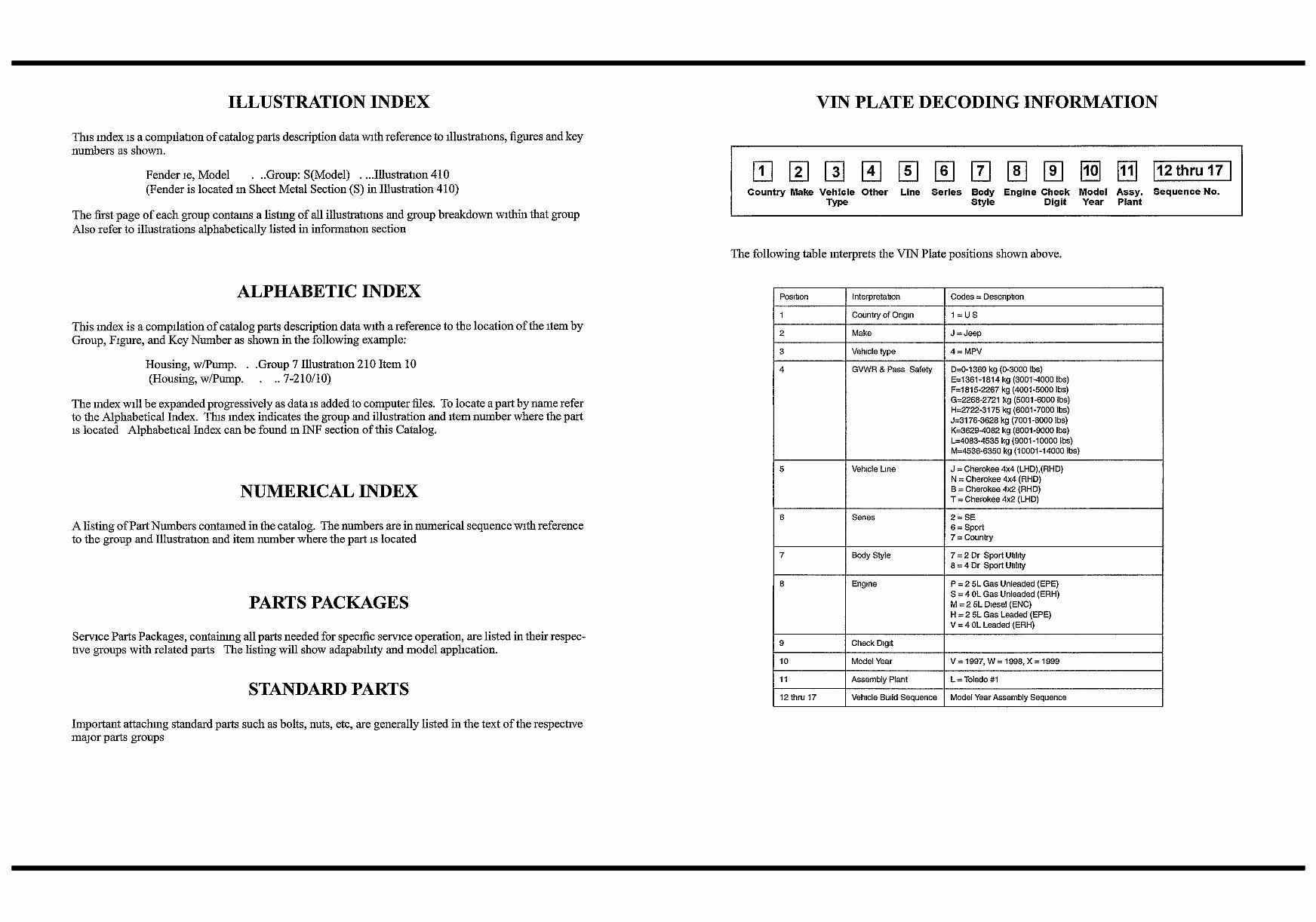

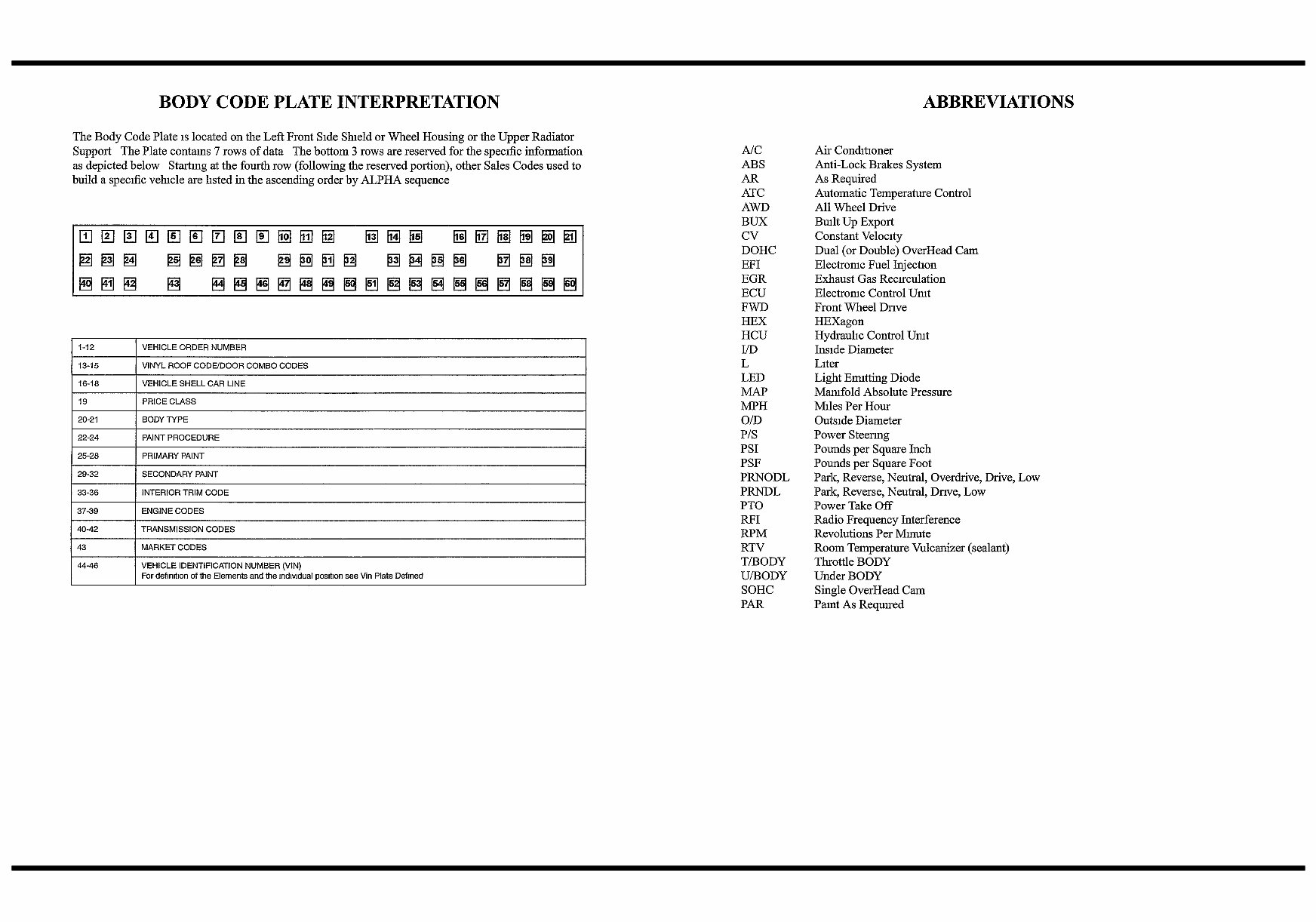

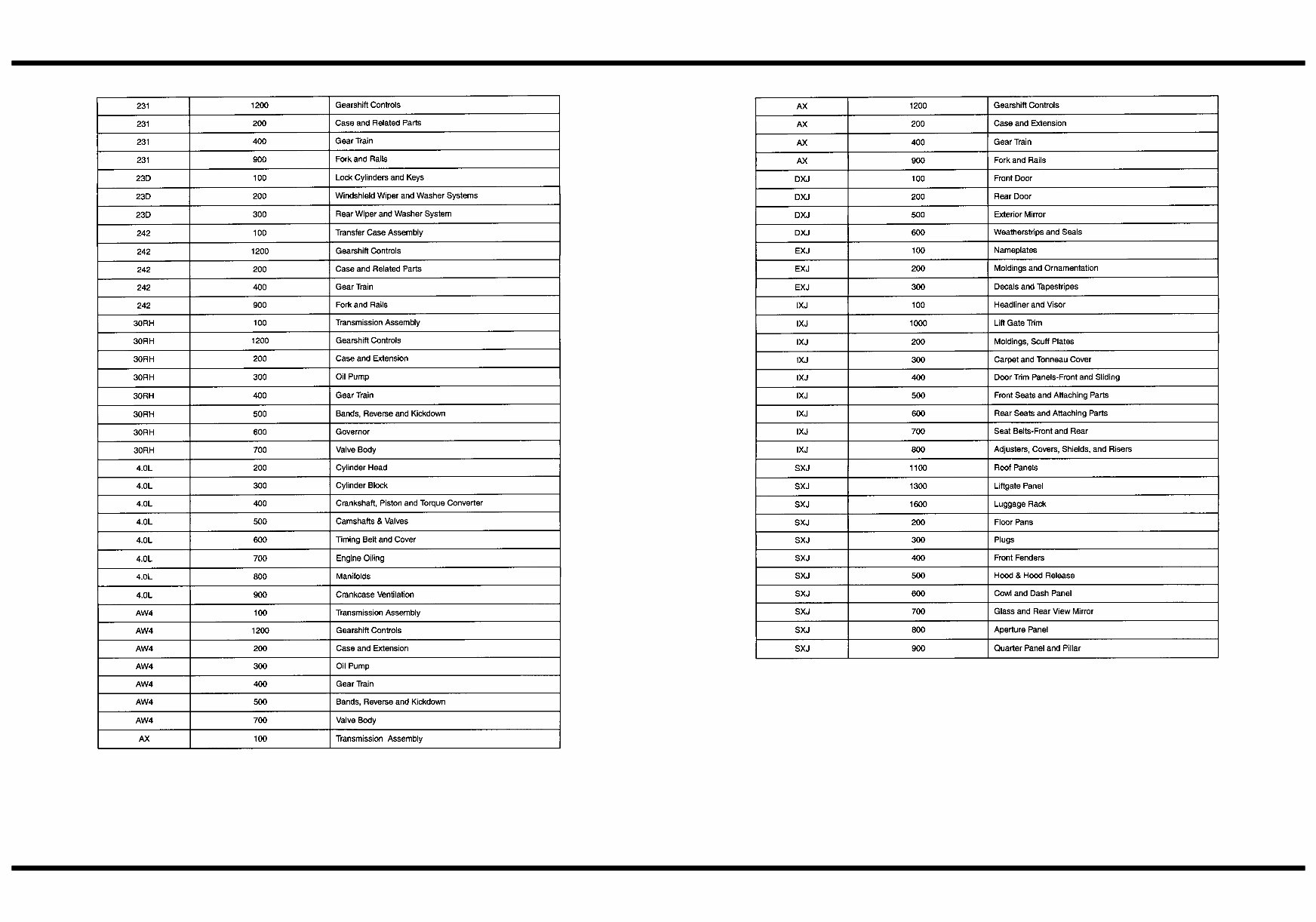

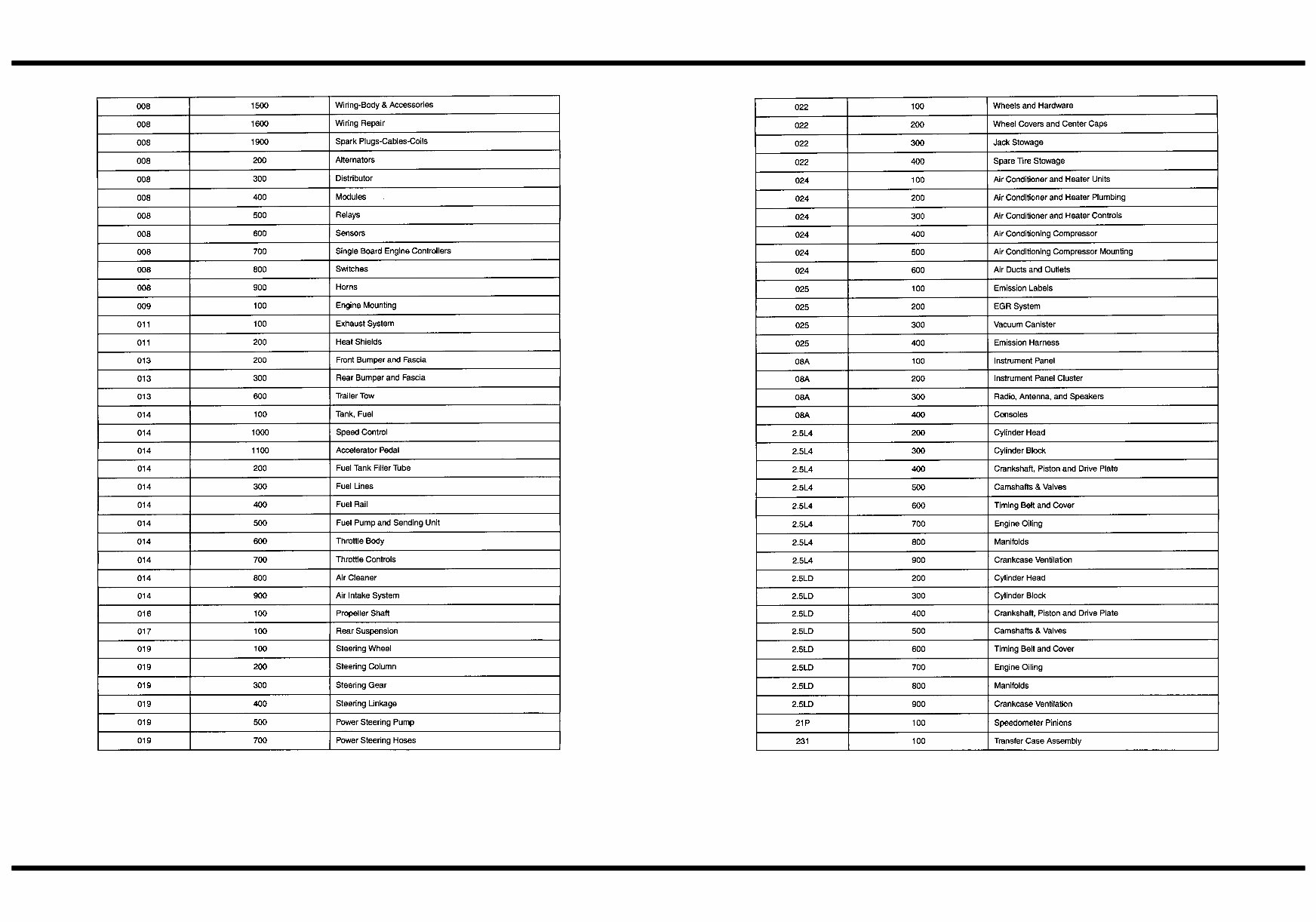

GROUP 2 - Front Suspension & Drive Illustration Title Group-Fig. No. Front Suspension Arms,Control,Upper and Lower 1997 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-110 Arms,Control,Upper and Lower 1998 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-110 Arms,Control,Upper and Lower 1999 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-110 Springs and Shocks,Front 1997 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-120 Spring and Shocks,Front 1998 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-120 Spring and Shocks,Front 1999 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-120 Front Stabilizer Bar and Track Bar 1997 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-130 Front Stabilizer Bar and Track Bar 1998 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-130 Front Stabilizer Bar and Track Bar 1999 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-130 Front Axle Drive Shafts Shafts, Front Axle 1997 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-210 Shafts,Front Axle 1998 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-210 Shafts,Front Axle 1999 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-210 Front Axle Housing Housing,Front Axle,2 Wheel Drive 1997 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-310 Housing,Front Axle,2 Wheel Drive 1998 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-310 Housing,Front Axle,2 Wheel Drive 1999 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-310 Housing,Front Axle,4 Wheel Drive 1997 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-320 Housing,Front Axle,4 Wheel Drive 1998 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-320 Housing,Front Axle,4 Wheel Drive 1999 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-320 Front Axle Assembly Axle Assembly,Front,4 Wheel Drive 1997 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-410 Axle Assembly, Front 4 Wheel Drive 1998 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-410 Axle Assembly, Front 4 Wheel Drive 1999 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-410 Front Axle Differential Differential,Front Axle 1997 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-610 Differential,Front Axle 1998 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-610 Differential,Front Axle 1999 XJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 002-610 July 4, 2003

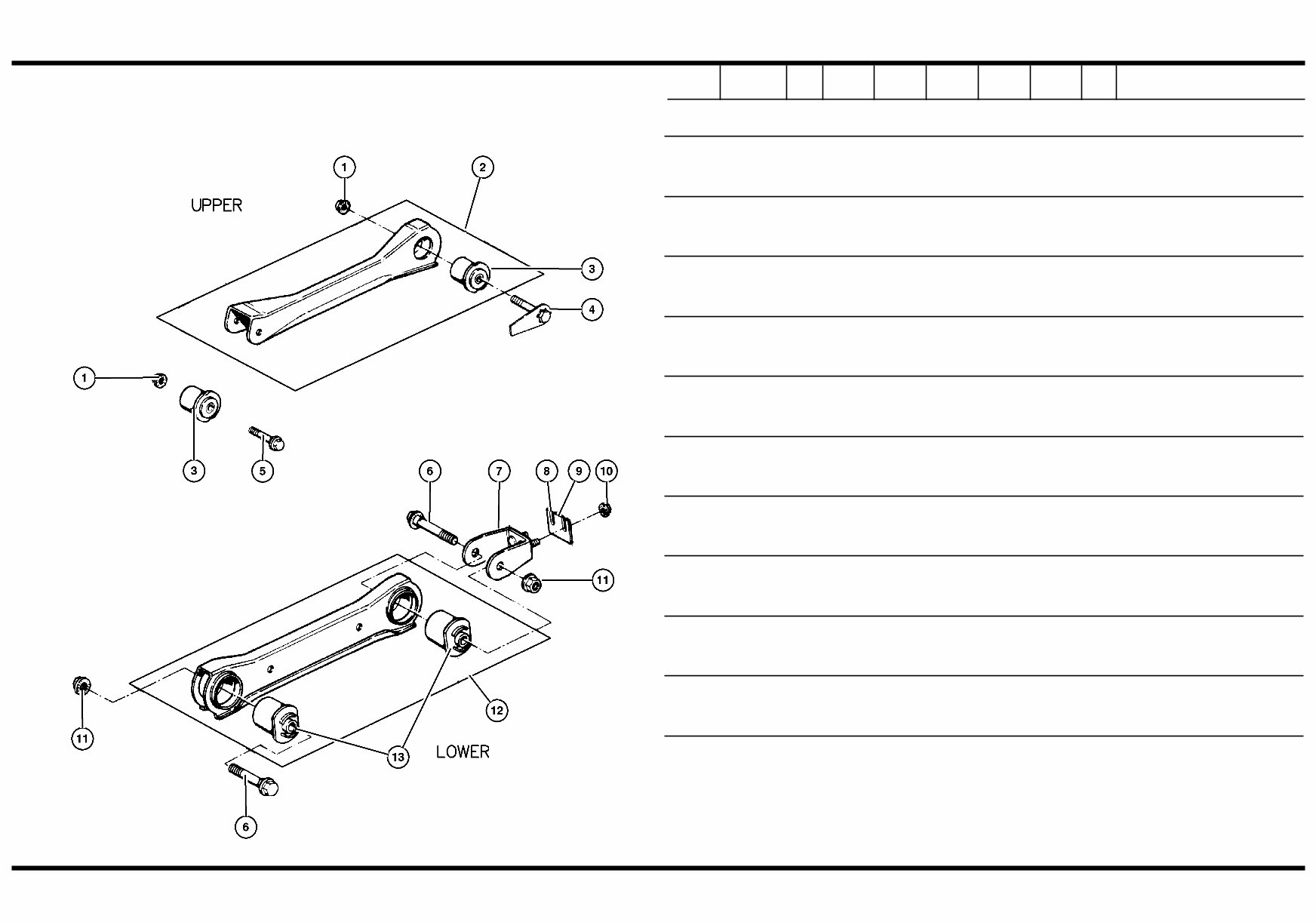

1 1150 6007 4 NUT, Hex Flange, M10x1.5, UCA to Sill and Axle, Mounting 2 5208 7710 2 ARM, Control, Upper 3 5203 8025 2 BUSHING, Control Arm, UCA to Sill and Axle 4 6505 153AA 2 BOLT, M10x1.50x85, UCA to Sill, Mounting 5 6505 154AA 2 BOLT, UCA to Axle, Mounting 6 3420 1334 4 BOLT, Hex Flange Head, M14x2. 00x110, LCA to Clevis and Axle, Mounting 7 5200 0532 2 CLEVIS, Lower Suspension Arm, To Sill 8 5200 0234 AR SHIM, Control Arm, Caster and Pinion Angle Adjusting-.9mm Thick 9 5200 3976 AR SHIM, Pinion Angle, Caster and Pinion Angle Adjusting-.4mm Thick 10 6101 695 4 NUT, Hex Flange Lock, Clevis to Sill, Mounting 11 1150 2814 4 NUT, Hex Flange Lock, M14z2, LCA to Clevis and Axle, Mounting 12 5200 1162 2 ARM, Control, Lower 13 5200 1161 4 BUSHING, Control Arm, Lower Arms,Control,Upper and Lower 1997 XJ Figure 002-110 July 4, 2003 JEEP CHEROKEE (XJ) —————————————————————————————————————————————————————————————— SERIES LINE BODY ENGINE TRANSMISSION L=Low Line J=LHD (4WD) 74=4 DR. (101.4 WB) ENC,EN0=2.5L 4 cyl. Turbo Die DDQ=5Spd Man. U=RHD (4WD) 72=2 DR. (101.4 WB) ERH,ER0=4.0L Power Tech I-6 DGS=4 Spd. Auto. AISIN T=LHD (2WD) EPE,EP0=Magnum 2.5L SMPI DG0=All Auto Trans B=RHD (2WD) DBB=All Manual Trans. PART ITEM NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION AR = Use as required - = Non illustrated part # = New this model year « RETURN TO GROUP INDEX

1 1150 6007 4 NUT, Hex Flange, M10x1.5, UCA to Sill and Axle, Mounting 2 5208 7710 2 ARM, Control, Upper 3 5203 8025 2 BUSHING, Control Arm, UCA to Sill and Axle 4 6505 153AA 2 BOLT, M10x1.50x85, UCA to Sill, Mounting 5 6505 154AA 2 BOLT, UCA to Axle, Mounting 6 3420 1334 4 BOLT, Hex Flange Head, M14x2. 00x110, LCA to Clevis and Axle, Mounting 7 5200 0532 2 CLEVIS, Lower Suspension Arm, To Sill 8 5200 0234 AR SHIM, Control Arm, Caster and Pinion Angle Adjusting-.9mm Thick 9 5200 3976 AR SHIM, Pinion Angle, Caster and Pinion Angle Adjusting-.4mm Thick 10 6101 695 4 NUT, Hex Flange Lock, Clevis to Sill, Mounting 11 1150 2814 4 NUT, Hex Flange Lock, M14z2, LCA to Clevis and Axle, Mounting 12 5200 1162 2 ARM, Control, Lower 13 5200 1161 4 BUSHING, Control Arm, Lower Arms,Control,Upper and Lower 1998 XJ Figure 002-110 July 4, 2003 JEEP CHEROKEE (XJ) —————————————————————————————————————————————————————————————— SERIES LINE BODY ENGINE TRANSMISSION L=Low Line J=LHD (4WD) 74=4 DR. (101.4 WB) ENC,EN0=2.5L 4 cyl. Turbo Die DDQ=5Spd Man. U=RHD (4WD) 72=2 DR. (101.4 WB) ERH,ER0=4.0L Power Tech I-6 DGS=4 Spd. Auto. AISIN T=LHD (2WD) EPE,EP0=Magnum 2.5L SMPI DG0=All Auto Trans B=RHD (2WD) DBB=All Manual Trans. PART ITEM NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION AR = Use as required - = Non illustrated part # = New this model year « RETURN TO GROUP INDEX
