Jaguar Cars Limited
2002.5 Model Year
Electrical Guide
Published by Parts and Service Communications
Publication Part Number – JJM 10 38 16/25 Issue 2
Jaguar S-TYPE 2002.5
1
DATE OF ISSUE: June 2002
Table of Contents
Table of Contents: Figures ................................................................................................................... 2–3
Abbreviations and Acronyms ............................................................................................................... 4
Introduction ........................................................................................................................................ 5
Component Index ............................................................................................................................... 6 – 11
Symbols and Codes ........................................................................................................................... 12 – 14
Network Configuration ...................................................................................................................... 15
Fuse Box Location ............................................................................................................................. 16
Relay and Fuse Location .................................................................................................................... 17
Harness In-Line Connectors ............................................................................................................... 18 – 19
Control Module Location ................................................................................................................... 20 – 21
Ground Point Location ...................................................................................................................... 22
Control Module Pin Identification ...................................................................................................... 23 – 29
Electrical Guide Figures and Data ............................................................................ follows after page 29
(pages are numbered by Figure number)
Appendix (SCP and CAN Messages) ................................................................... follows Figures and Data
Jaguar S-TYPE 2002.5
2
DATE OF ISSUE: June 2002
Table of Contents: Figures
FIGURES
Fig. Description Variant
01 Power Distribution
Fig. 01.1 ...... Main Power Distribution ............................................................................ All Vehicles
Fig. 01.2 ...... Battery Power Distribution: Part 1 .............................................................. All Vehicles
Fig. 01.3 ...... Battery Power Distribution: Part 2 .............................................................. All Vehicles
Fig. 01.4 ...... Ignition Switched Power Distribution: I (Accessory) ..................................... All Vehicles
Fig. 01.5 ...... Ignition Switched Power Distribution: II (Run) ............................................. All Vehicles
Fig. 01.6 ...... Switched System Power Distribution .......................................................... All Vehicles
Fig. 01.7 ...... Engine Management System Switched Power Distribution ........................... All Vehicles
02 Battery; Starter; Generator
Fig. 02.1 ...... Battery; Starter; Generator: V6 ................................................................... V6 Vehicles
Fig. 02.2 ...... Battery; Starter; Generator: V8 ................................................................... V8 Vehicles
03 Engine Management
Fig. 03.1 ...... Engine Management: V6 – Part 1 ................................................................ V6 Vehicles
Fig. 03.2 ...... Engine Management: V6 – Part 2 ................................................................ V6 Vehicles
Fig. 03.3 ...... Engine Management: V8 N/A – Part 1 ......................................................... V8 N/A Vehicles
Fig. 03.4 ...... Engine Management: V8 N/A – Part 2 ......................................................... V8 N/A Vehicles
Fig. 03.5 ...... Engine Management: V8 SC – Part 1 ........................................................... V8 SC Vehicles
Fig. 03.6 ...... Engine Management: V8 SC – Part 2 ........................................................... V8 SC Vehicles
04 Transmission
Fig. 04.1 ...... Transmissions ............................................................................................ All Vehicles
05 Chassis
Fig. 05.1 ...... Dynamic Stability Control .......................................................................... All Vehicles
Fig. 05.2 ...... Electronic Parking Brake; Variable Assist Power Steering ............................. All Vehicles
Fig. 05.3 ...... Adaptive Speed Control ............................................................................. Adaptive Speed Control Vehicles
Fig. 05.4 ...... Suspension Adaptive Damping ................................................................... Adaptive Damping Vehicles
06 Climate Control
Fig. 06.1 ...... Climate Control System; Windshield Heaters .............................................. All Vehicles
07 Instrumentation
Fig. 07.1 ...... Instrument Cluster; Audible Warnings ........................................................ All Vehicles
08 Exterior Lighting
Fig. 08.1 ...... Exterior Lighting: Front .............................................................................. Non HID Headlamp Vehicles
Fig. 08.2 ...... Exterior Lighting: Front – HID .................................................................... HID Headlamp Vehicles
Fig. 08.3 ...... Exterior Lighting: Rear ................................................................................ All Vehicles
Fig. 08.4 ...... Exterior Lighting: Rear – Trailer Towing ...................................................... Trailer Towing Vehicles
Fig. 08.5 ...... Headlamp Leveling .................................................................................... Headlamp Leveling Vehicles
09 Interior Lighting
Fig. 09.1 ...... Interior Lighting ......................................................................................... All Vehicles
Fig. 09.2 ...... Dimmer-Controlled Lighting ....................................................................... All Vehicles
10 Steering Column; Pedals; Mirrors; Heaters
Fig. 10.1 ...... Steering Column Adjust; Pedal Adjust ......................................................... All Vehicles
Fig. 10.2 ...... Door Mirrors: Movement and Heaters; Heated Rear Window ...................... All Vehicles
Fig. 10.3 ...... Electrochromic Rear View Mirror; Fold-Back Mirrors .................................. All Vehicles; Fold-Back Mirror Vehicles
Jaguar S-TYPE 2002.5
3
DATE OF ISSUE: June 2002
Table of Contents: Figures
FIGURES
Fig. Description Variant
11 Seat Systems
Fig. 11.1 ...... Driver Seat: 10-Way Movement with Memory ............................................ 10-Way Driver Seat Memory Vehicles
Fig. 11.2 ...... Driver Seat: 16-Way Movement with Memory ............................................ 16-Way Driver Seat Memory Vehicles
Fig. 11.3 ...... Driver Seat: Non Memory .......................................................................... Non Memory Driver Seat Vehicles
Fig. 11.4 ...... Passenger Seat ........................................................................................... 6 / 8 / 10-Way Passenger Seat Vehicles
Fig. 11.5 ...... Passenger Seat: 16-Way Movement ............................................................ 16-Way Passenger Seat Vehicles
Fig. 11.6 ...... Seat Heaters .............................................................................................. Heated Seat Vehicles
12 Central Locking; Security
Fig. 12.1 ...... Central Locking: Double Locking ................................................................ Double Locking Vehicles
Fig. 12.2 ...... Central Locking: Non Double Locking ......................................................... Non Double Locking Vehicles
Fig. 12.3 ...... Security System ......................................................................................... All Vehicles
13 Wash / Wipe
Fig. 13.1 ...... Wash / Wipe System .................................................................................. All Vehicles
14 Powered Windows; Sliding Roof
Fig. 14.1 ...... Powered Windows; Sliding Roof ................................................................. All Vehicles
15 In-Car Entertainment
Fig. 15.1 ...... In-Car Entertainment: Standard .................................................................. Standard ICE Vehicles
Fig. 15.2 ...... In-Car Entertainment: Premium ................................................................. Premium ICE Vehicles
16 Telematics
Fig. 16.1 ...... Telephone System: ROW ........................................................................... ROW Vehicles
Fig. 16.2 ...... Telephone System: NAS ............................................................................. NAS Vehicles
Fig. 16.3 ...... Telephone System with Voice: ROW .......................................................... ROW Vehicles
Fig. 16.4 ...... Telephone System with Voice: NAS ............................................................ NAS Vehicles
Fig. 16.5 ...... Voice Control System ................................................................................. Voice Only Vehicles
Fig. 16.6 ...... Navigation System (except Japan) ............................................................... Navigation Vehicles (except Japan)
Fig. 16.7 ...... Navigation System with TV (except Japan) ................................................... Navigation Vehicles with TV (except Japan)
Fig. 16.8 ...... Navigation System: Japan ........................................................................... Japan Navigation Vehicles
17 Occupant Protection
Fig. 17.1 ...... Advanced Restraint System: Part 1 ............................................................. All Vehicles
Fig. 17.2 ...... Advanced Restraint System: Part 2 ............................................................. All Vehicles
18 Driver Assist
Fig. 18.1 ...... Parking Aid System .................................................................................... Parking Aid Vehicles
19 Ancillaries
Fig. 19.1 ...... Ancillaries: Horn, Cigar Lighter, Power Point,
Accessory Connector, Sun Shade, Singapore Road Pricing ........................... All Vehicles
20 Vehicle Multiplex Systems
Fig. 20.1 ...... Controller Area Network ............................................................................ All Vehicles
Fig. 20.2 ...... Standard Corporate Protocol Network; Serial Data Link .............................. All Vehicles
Fig. 20.3 ...... D2B Network: Part 1 ................................................................................. All Vehicles
Fig. 20.4 ...... D2B Network: Part 2 ................................................................................. All Vehicles
Fig. 20.5 ...... D2B Network: Part 3 ................................................................................. All Vehicles
Jaguar S-TYPE 2002.5
4
DATE OF ISSUE: June 2002
Abbreviations and Acronyms
The following abbreviations and acronyms are used throughout this Electrical Guide:
A/C Air Conditioning
A/CCM Air Conditioning Control Module
APP SENSOR Accelerator Pedal Position Sensor
APP1 Accelerator Pedal Position Sensor Element 1
APP2 Accelerator Pedal Position Sensor Element 2
AUTO Automatic Transmission
B+ Battery Voltage
BANK 1 RH Cylinder Bank (Cylinders 1, 3, 5, 7)
BANK 2 LH Cylinder Bank (Cylinders 2, 4, 6, 8)
CAN Controller Area Network
CKP SENSOR Crankshaft Position Sensor
CM Control Module
CMP SENSOR / 1 Camshaft Position Sensor / RH Bank
CMP SENSOR / 2 Camshaft Position Sensor / LH Bank
D2B D2B Network
DSC Dynamic Stability Control
ECM Engine Control Module
ECT SENSOR Engine Coolant Temperature Sensor
EFT SENSOR Engine Fuel Temperature Sensor
EGR Exhaust Gas Recirculation
EGT SENSOR Exhaust Gas Temperature Sensor
EOT SENSOR Engine Oil Temperature Sensor
EVAP CANISTER CLOSE VALVE Evaporative Emission Canister Close Valve
EVAP CANISTER PURGE VALVE Evaporative Emission Canister Purge Valve
FTP SENSOR Fuel Tank Pressure Sensor
GECM General Electronic Control Module
GPS Global Positioning System
HID High Intensity Discharge
HO2 SENSOR 1 / 1 Heated Oxygen Sensor – RH Bank / Upstream
HO2 SENSOR 1 / 2 Heated Oxygen Sensor – RH Bank / Downstream
HO2 SENSOR 2 / 1 Heated Oxygen Sensor – LH Bank / Upstream
HO2 SENSOR 2 / 2 Heated Oxygen Sensor – LH Bank / Downstream
IAT SENSOR Intake Air Temperature Sensor
IC Instrument Cluster
ICE In-Car Entertainment System
IMT VALVE / 1 Intake Manifold Tuning Valve / Top
IMT VALVE / 2 Intake Manifold Tuning Valve / Bottom
IP SENSOR Injection Pressure Sensor
KS / 1 Knock Sensor / RH Bank
KS / 2 Knock Sensor / LH Bank
LH Left Hand
LHD Left Hand Drive
MAF SENSOR Mass Air Flow Sensor
MAN Manual Transmission
MAP SENSOR Manifold Absolute Pressure Sensor
N/A Normally Aspirated
NAS North American Specification
PATS Passive Anti-Theft System
PWM Pulse Width Modulated
RECM Rear Electronic Control Module
RH Right Hand
RHD Right Hand Drive
ROW Rest of World
SCP Standard Corporate Protocol Network
TCM Transmission Control Module
TP SENSOR Throttle Position Sensor
TP1 Throttle Position Sensor Element 1
TP2 Throttle Position Sensor Element 2
TURN Turn Signal
TV Television
V6 V6 Engine
V8 V8 Engine
VICS Vehicle Information Control System
VVT VALVE / 1 Variable Valve Timing Valve / Bank 1
VVT VALVE / 2 Variable Valve Timing Valve / Bank 2
+ve Positive
–ve Negative
Jaguar S-TYPE 2002.5
5
DATE OF ISSUE: June 2002
Introduction
Electrical Guide Format
This Electrical Guide is made up of two major sections. The first section, at the front of the book, provides general information for and about
the use of the book, and information and illustrations to aid in the understanding of the Jaguar S-TYPE electrical / electronic systems, as well
as the location and identification of components.
The second section includes the Figures, which are the basis of the book. Each Figure is identified by a Figure Number (i.e. Fig. 01.1) and
Title, and is accompanied by a page of data containing information specific to that Figure.
It is recommended that the user read through the front section of the book to develop a familiarity with the layout of the book and with the
system of symbols and abbreviations used. The Table of Contents should help to guide the user.
Vehicle Identification Numbers (VIN)
VIN ranges are presented throughout the book in the following manner:
➞
VIN 123456 indicates “up to VIN 123456”; VIN 123456
➞
indicates “from VIN 123456 on”.
Jaguar S-TYPE Electrical System Architecture
Power Supplies
The Jaguar S-TYPE electrical system is a supply-side switched system. The ignition switch directly carries much of the ignition switched power
supply load. Power supply is provided via three methods: direct battery power supply, ignition switched power supply, and “Switched System
Power Supply”. The “Switched System Power Supply” circuit is controlled via the GECM (General Electronic Control Module) and the RECM
(Rear Electronic Control Module). Refer to Figure 01.6 for circuit activation details.
Fuse Boxes
The electrical harness incorporates two hard-wired power distribution fuse boxes: the Front Power Distribution Fuse Box located in the engine
compartment and the Rear Power Distribution Fuse Box located in the trunk. A serviceable Primary Junction Fuse Box is located in the front
right-hand foot well. All fuses and relays (except the trailer towing accessory kit) are located in the two fuse boxes.
Vehicle Networks
The New Jaguar S-TYPE employs three different networks: a CAN (Controller Area Network) for high-speed power train communications,
an SCP (Standard Corporate Protocol) network for slower speed body systems communications, and a D2B (Optical) Network for very high-
speed “real-time” audio data transfer. The D2B Network is a fiber optic network with a gateway to the remaining vehicle networks via the
Audio Unit. Technician access to the three networks and the Serial Data Link is via the Data Link Connector.
Ground Studs
Circuit ground connections are made at body studs located throughout the vehicle. There are no separate power and logic grounding systems;
however, there are a certain number of components that use unique ground points.

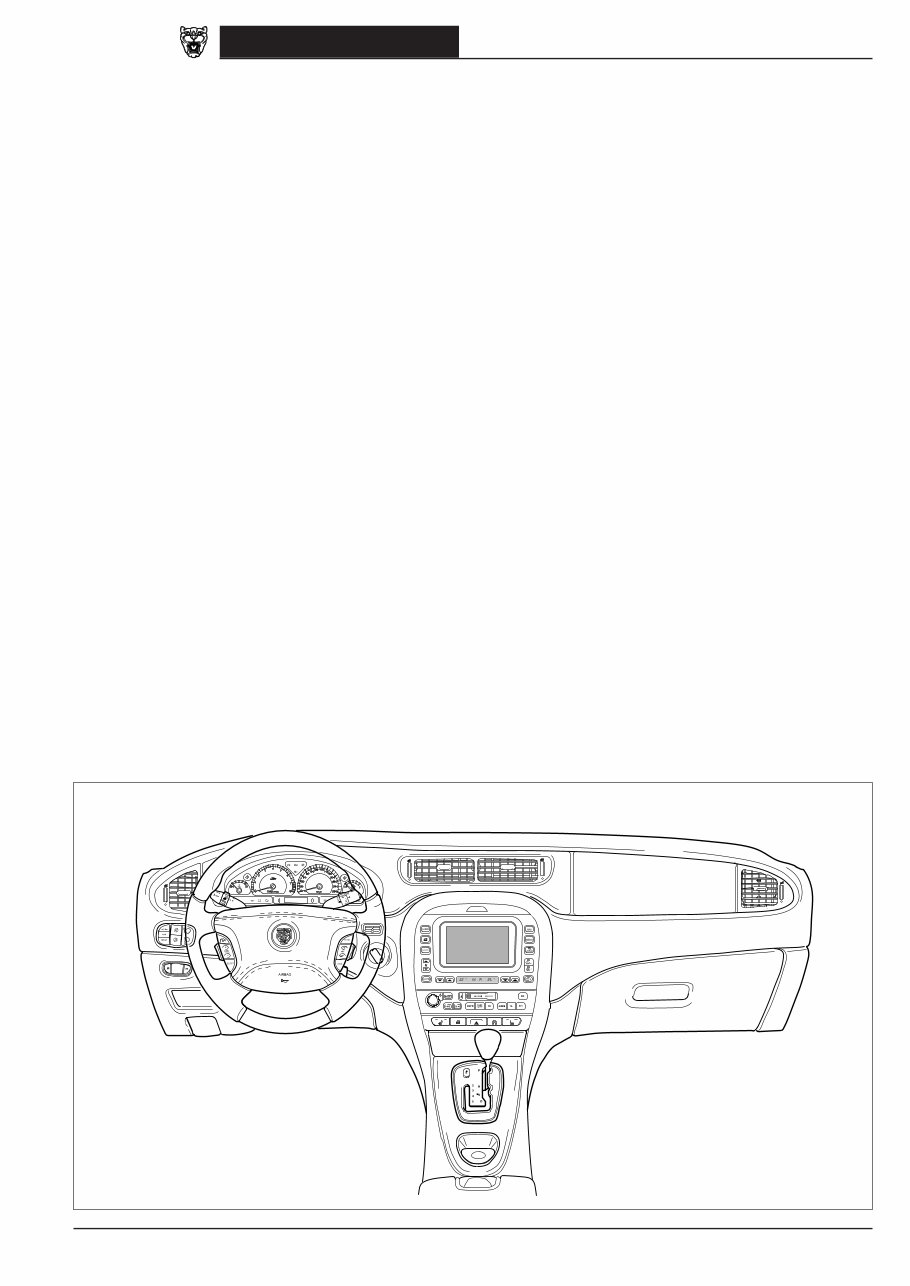

S-TYPE INSTRUMENT PANEL
Jaguar S-TYPE 2002.5
6
DATE OF ISSUE: June 2002
Component Index
ACCESSORY CONNECTOR ...................................................... Fig. 19.1
ACCESSORY RELAY .................................................................. Fig. 19.1
ACTIVE BRAKE BOOSTER ........................................................ Fig. 05.1
ACTIVE BRAKE BOOSTER SOLENOID ...................................... Fig. 05.1
ACTIVE SECURITY SOUNDER .................................................. Fig. 12.3
ADAPTIVE DAMPING CONTROL MODULE .............................. Fig. 05.4
............................................................................................... Fig. 20.2
ADAPTIVE SPEED CONTROL CHIME MODULE ........................ Fig. 05.3
ADAPTIVE SPEED CONTROL CONTROL MODULE ................... Fig. 05.3
............................................................................................... Fig. 20.1
AIR CLEANER SOLENOID VALVE ............................................. Fig. 03.6
AIR CONDITIONING COMPRESSOR CLUTCH .......................... Fig. 03.6
............................................................................................... Fig. 03.2
............................................................................................... Fig. 03.4
AIR CONDITIONING COMPRESSOR CLUTCH RELAY ............... Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
AIR CONDITIONING CONTROL MODULE – PANEL ................ Fig. 06.1
............................................................................................... Fig. 09.2
............................................................................................... Fig. 10.2
............................................................................................... Fig. 20.1
AIR CONDITIONING CONTROL MODULE – REMOTE ............. Fig. 06.1
............................................................................................... Fig. 10.2
............................................................................................... Fig. 20.1
AIR CONDITIONING PRESSURE SENSOR ................................. Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
AIRBAG IGNITERS, EXCEPT PASSENGER DUAL ........................ Fig. 17.1
AIRBAG IGNITERS – PASSENGER DUAL ................................... Fig. 17.2
AM / FM ANTENNA AMPLIFIER ............................................... Fig. 15.1
............................................................................................... Fig. 15.2
AMBIENT TEMPERATURE SENSOR ........................................... Fig. 06.1
APP SENSOR ........................................................................... Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
AUDIO UNIT ........................................................................... Fig. 09.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 15.1
............................................................................................... Fig. 15.2
............................................................................................... Fig. 16.1
............................................................................................... Fig. 16.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
............................................................................................... Fig. 16.5
............................................................................................... Fig. 20.2
............................................................................................... Fig. 20.3
............................................................................................... Fig. 20.4
............................................................................................... Fig. 20.5
AUXILIARY COOLANT PUMP .................................................. Fig. 06.1
AUXILIARY COOLANT PUMP RELAY ........................................ Fig. 06.1
AUXILIARY LIGHTING SWITCH ................................................ Fig. 07.1
............................................................................................... Fig. 08.1
............................................................................................... Fig. 08.2
............................................................................................... Fig. 08.3
............................................................................................... Fig. 08.5
............................................................................................... Fig. 09.2
BATTERY ................................................................................. Fig. 01.1
............................................................................................... Fig. 02.1
............................................................................................... Fig. 02.2
............................................................................................... Fig. 08.4
BLOWER MOTOR .................................................................... Fig. 06.1
BLOWER MOTOR RELAY ......................................................... Fig. 06.1
BRAKE CANCEL SWITCH ......................................................... Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
BRAKE FLUID RESERVOIR ........................................................ Fig. 05.1
BRAKE ON / OFF SWITCH ....................................................... Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
............................................................................................... Fig. 08.3
BRAKE PRESSURE SENSOR ...................................................... Fig. 05.1
CD AUTOCHANGER ................................................................ Fig. 15.1
............................................................................................... Fig. 15.2
............................................................................................... Fig. 20.3
............................................................................................... Fig. 20.4
............................................................................................... Fig. 20.5
CELLULAR PHONE CONTROL MODULE .................................. Fig. 16.1
............................................................................................... Fig. 16.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
............................................................................................... Fig. 20.3
............................................................................................... Fig. 20.4
............................................................................................... Fig. 20.5
CENTER CONSOLE SWITCH PACK ........................................... Fig. 05.1
............................................................................................... Fig. 08.1
............................................................................................... Fig. 08.2
............................................................................................... Fig. 08.3
............................................................................................... Fig. 09.2
............................................................................................... Fig. 11.6
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 14.1
CIGAR LIGHTER ...................................................................... Fig. 09.2
............................................................................................... Fig. 19.1
CIGAR LIGHTER / POWER POINT RELAY ................................. Fig. 19.1
CKP SENSOR (V6) .................................................................... Fig. 03.1
CKP SENSOR (V8) .................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
CLUTCH CANCEL SWITCH ...................................................... Fig. 03.2
............................................................................................... Fig. 04.1
CLUTCH PEDAL POSITION SENSOR ........................................ Fig. 04.1
............................................................................................... Fig. 05.2
CLUTCH PEDAL SAFETY SWITCH ............................................ Fig. 02.1
............................................................................................... Fig. 04.1
CMP SENSORS (V6) ................................................................. Fig. 03.1
CMP SENSORS (V8) ................................................................. Fig. 03.3
............................................................................................... Fig. 03.5
COLD AIR BYPASS ACTUATOR ................................................ Fig. 06.1
COLUMN AND PEDAL ADJUST SWITCH .................................. Fig. 10.1
Jaguar S-TYPE 2002.5
7
DATE OF ISSUE: June 2002
COOLING FAN MODULE ........................................................ Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
COURTESY LAMPS .................................................................. Fig. 09.1
DAMPER SOLENOIDS .............................................................. Fig. 05.4
DATA LINK CONNECTOR ....................................................... Fig. 20.1
............................................................................................... Fig. 20.2
DEFROST MODE ACTUATOR .................................................. Fig. 06.1
DISCHARGE TEMPERATURE SENSORS ..................................... Fig. 06.1
DOOR LATCH ASSEMBLY – DRIVER ......................................... Fig. 09.1
............................................................................................... Fig. 10.1
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 14.1
DOOR LATCH ASSEMBLY – LH REAR ....................................... Fig. 09.1
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
DOOR LATCH ASSEMBLY – PASSENGER .................................. Fig. 09.1
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
DOOR LATCH ASSEMBLY – RH REAR ....................................... Fig. 09.1
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
DOOR MIRRORS ..................................................................... Fig. 10.2
DOOR SWITCH PACK – DRIVER .............................................. Fig. 09.2
............................................................................................... Fig. 10.1
............................................................................................... Fig. 10.2
............................................................................................... Fig. 10.3
............................................................................................... Fig. 11.1
............................................................................................... Fig. 14.1
DOOR SWITCH PACK – LH REAR ............................................ Fig. 14.1
DOOR SWITCH PACK – PASSENGER ....................................... Fig. 14.1
DOOR SWITCH PACK – RH REAR ............................................ Fig. 14.1
DRIVER DOOR CONTROL MODULE ........................................ Fig. 09.1
............................................................................................... Fig. 10.1
............................................................................................... Fig. 10.2
............................................................................................... Fig. 10.3
............................................................................................... Fig. 11.1
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 14.1
............................................................................................... Fig. 20.2
DRIVER SEAT CONTROL MODULE .......................................... Fig. 11.1
............................................................................................... Fig. 11.2
............................................................................................... Fig. 20.2
DRIVER SEAT POSITION SWITCH ............................................ Fig. 17.1
DUAL COOLANT CONTROL VALVE ........................................ Fig. 06.1
DUAL SOLAR SENSOR (CLIMATE CONTROL) ........................... Fig. 06.1
DUAL SOLAR SENSOR (AUTO HEADLAMP) ............................. Fig. 08.1
............................................................................................... Fig. 08.2
............................................................................................... Fig. 08.3
DYNAMIC STABILITY CONTROL CONTROL MODULE ............. Fig. 05.1
............................................................................................... Fig. 05.3
............................................................................................... Fig. 05.4
............................................................................................... Fig. 20.1
ECT SENSOR ........................................................................... Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
EFT SENSOR (V6) ..................................................................... Fig. 03.1
EFT SENSOR (V8) ..................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
EGR VALVE (V8 N/A) ................................................................ Fig. 03.3
EGR VALVE (V8 SC) .................................................................. Fig. 03.5
ELECTROCHROMIC REAR VIEW MIRROR AND COMPASS ....... Fig. 10.3
ELECTRONIC ROAD PRICING MODULE .................................. Fig. 19.1
EMS CONTROL RELAY ............................................................. Fig. 01.7
ENGINE CONTROL MODULE .................................................. Fig. 01.7
............................................................................................... Fig. 02.1
............................................................................................... Fig. 02.2
............................................................................................... Fig. 03.1
............................................................................................... Fig. 03.2
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.5
............................................................................................... Fig. 03.6
............................................................................................... Fig. 04.1
............................................................................................... Fig. 05.3
............................................................................................... Fig. 12.3
............................................................................................... Fig. 20.1
............................................................................................... Fig. 20.2
ENGINE COOLANT LEVEL SENSOR ......................................... Fig. 07.1
EOT SENSOR ........................................................................... Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
EVAP CANISTER CLOSE VALVE ................................................ Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
EVAP CANISTER PURGE VALVE ............................................... Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
EXTERNAL TRUNK RELEASE SWITCH ....................................... Fig. 12.1
............................................................................................... Fig. 12.2
FASCIA LAMPS ........................................................................ Fig. 09.1
FLOOR MODE ACTUATOR ...................................................... Fig. 06.1
FRESH / RECIRCULATION ACTUATOR ..................................... Fig. 06.1
FRONT FOG LAMPS ................................................................ Fig. 08.1
............................................................................................... Fig. 08.2
FRONT FOG LAMP RELAY ....................................................... Fig. 08.1
............................................................................................... Fig. 08.2
Component Index
Jaguar S-TYPE 2002.5
8
DATE OF ISSUE: June 2002
FRONT POWER DISTRIBUTION FUSE BOX .............................. Fig. 01.1
............................................................................................... Fig. 01.2
............................................................................................... Fig. 01.5
............................................................................................... Fig. 01.7
............................................................................................... Fig. 02.1
............................................................................................... Fig. 02.2
............................................................................................... Fig. 03.1
............................................................................................... Fig. 03.2
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.5
............................................................................................... Fig. 03.6
............................................................................................... Fig. 06.1
............................................................................................... Fig. 08.1
............................................................................................... Fig. 08.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 13.1
............................................................................................... Fig. 19.1
FTP SENSOR ............................................................................ Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
FUEL FLAP AND TRUNK RELEASE SWITCH PACK .................... Fig. 05.3
............................................................................................... Fig. 09.2
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
FUEL FLAP RELAY .................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
FUEL FLAP RELEASE SOLENOID ............................................... Fig. 12.1
............................................................................................... Fig. 12.2
FUEL INJECTORS (V6) .............................................................. Fig. 03.2
FUEL INJECTORS (V8 N/A) ....................................................... Fig. 03.4
FUEL INJECTORS (V8 SC) ......................................................... Fig. 03.6
FUEL LEVEL SENSORS .............................................................. Fig. 07.1
FUEL PUMP 1 .......................................................................... Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
FUEL PUMP 2 .......................................................................... Fig. 03.6
FUEL PUMP 2 MODULE .......................................................... Fig. 03.6
FUEL PUMP RELAY .................................................................. Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
GENERAL ELECTRONIC CONTROL MODULE ........................... Fig. 01.6
............................................................................................... Fig. 05.2
............................................................................................... Fig. 07.1
............................................................................................... Fig. 08.1
............................................................................................... Fig. 08.2
............................................................................................... Fig. 09.1
............................................................................................... Fig. 09.2
............................................................................................... Fig. 10.1
............................................................................................... Fig. 10.2
............................................................................................... Fig. 12.1
............................................................................................... Fig. 12.2
............................................................................................... Fig. 12.3
............................................................................................... Fig. 13.1
............................................................................................... Fig. 19.1
............................................................................................... Fig. 20.2
GENERATOR (V6) .................................................................... Fig. 02.1
GENERATOR (V8) .................................................................... Fig. 02.2
GLOVE BOX LAMP .................................................................. Fig. 09.1
HAND SET RECEIVER ............................................................... Fig. 16.1
............................................................................................... Fig. 16.2
............................................................................................... Fig. 16.3
............................................................................................... Fig. 16.4
HEADLAMP LEVELING ACTUATORS ........................................ Fig. 08.5
HEADLAMP LEVELING CONTROL MODULE ............................ Fig. 08.5
............................................................................................... Fig. 20.1
............................................................................................... Fig. 20.2
HEADLAMP UNITS (NOT HID) ................................................. Fig. 08.1
............................................................................................... Fig. 08.2
HEATED REAR WINDOW ........................................................ Fig. 10.2
............................................................................................... Fig. 15.1
............................................................................................... Fig. 15.2
HEATED REAR WINDOW RELAY .............................................. Fig. 10.2
HID HEADLAMP UNITS ........................................................... Fig. 08.5
HID RELAYS ............................................................................ Fig. 08.2
HIGH-MOUNTED STOP LAMP ................................................ Fig. 08.3
............................................................................................... Fig. 08.4
HO2 SENSORS ........................................................................ Fig. 03.1
............................................................................................... Fig. 03.3
............................................................................................... Fig. 03.5
HO2S RELAY ........................................................................... Fig. 01.7
HOOD AJAR SWITCH .............................................................. Fig. 12.3
HORN RELAY .......................................................................... Fig. 12.3
............................................................................................... Fig. 19.1
HORNS ................................................................................... Fig. 12.3
............................................................................................... Fig. 19.1
HUMIDITY SENSOR ................................................................. Fig. 06.1
IAT SENSOR 2 ......................................................................... Fig. 03.5
IGNITION CAPACITOR ............................................................ Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
IGNITION COIL RELAY ............................................................ Fig. 01.7
IGNITION MODULES AND COILS ............................................ Fig. 03.2
............................................................................................... Fig. 03.4
............................................................................................... Fig. 03.6
IGNITION SWITCH .................................................................. Fig. 01.1
............................................................................................... Fig. 01.4
............................................................................................... Fig. 01.5
............................................................................................... Fig. 02.1
............................................................................................... Fig. 02.2
............................................................................................... Fig. 04.1
............................................................................................... Fig. 07.1
............................................................................................... Fig. 12.3
IMPACT SENSORS ................................................................... Fig. 17.1
IMT SOLENOID VALVES .......................................................... Fig. 03.1
IN-CAR TEMPERATURE SENSOR .............................................. Fig. 06.1
INCLINATION SENSOR ............................................................ Fig. 12.3
INERTIA SWITCH ..................................................................... Fig. 01.5
Component Index
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$41.99
Viewed 52 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$41.99
Get your hands on the complete service and repair manual for the 2002-2008 Jaguar S-Type & S-Type R. This comprehensive manual is an invaluable resource for both professional mechanics and DIY enthusiasts.
The manual provides easy-to-follow, step-by-step instructions and detailed illustrations for every service and repair procedure, allowing you to save a significant amount of money by performing the repairs yourself. You have the flexibility to print out specific pages, chapters, or the entire manual, and it can also be conveniently accessed on your tablet or smartphone.
All models, engines, trim levels, and transmission types are covered in this high-quality manual, ensuring that it caters to a wide range of needs. From basic maintenance to complex repairs, this manual encompasses all repair procedures from A to Z.
Compatible with all PC and MAC computers, tablets, and mobile phones, this manual requires only Adobe Reader, which is commonly pre-installed on most computers or can be downloaded for free. Upon payment confirmation via Visa, MasterCard, or PayPal, the manual will be instantly delivered to your provided email address.
Rest assured, customer satisfaction is guaranteed with this comprehensive service and repair manual.
