1992-1995 Del Sol Repair Manual

The Guide Compiled by: Kyle Schlagheck TSI# 1603 VTEC Sol Release date: 3-21-07 1

TO HELP CONTRIBUTE TO THE DEL SOL GUIDE Any comments / suggestions or information not contained in this text you think should be, please E-Mail to: K_Schlagheck@msn.com Your feedback is greatly appreciated! 2

Index: Section 1: General Information – Dimensions Mechanical cut-away VIN Number Decoder ECU Guide Spark Plug Guide Paint Code Guide USDM Decal Guide JDM Decal Guide EDM Decal Guide Theft Rates Total Sales by Year / Market Trans top info Trans top video clip Section 2: Model Information – USDM Model History USDM Model Options S Si VTEC VTEC video clip Section 2: Model Information (Cont’d)– JDM Model History JDM Model Options JDM ABS / TCS Diag. VXi, VGi, SiR EDM Model History EDM Model Options CRX Del Sol ESi Motegi ESi, VTi Section 3: Engine Source Guide - Section 4: Reference Manuals / Service Bulletins Section 5: Works Cited 3 The del Sol Guide

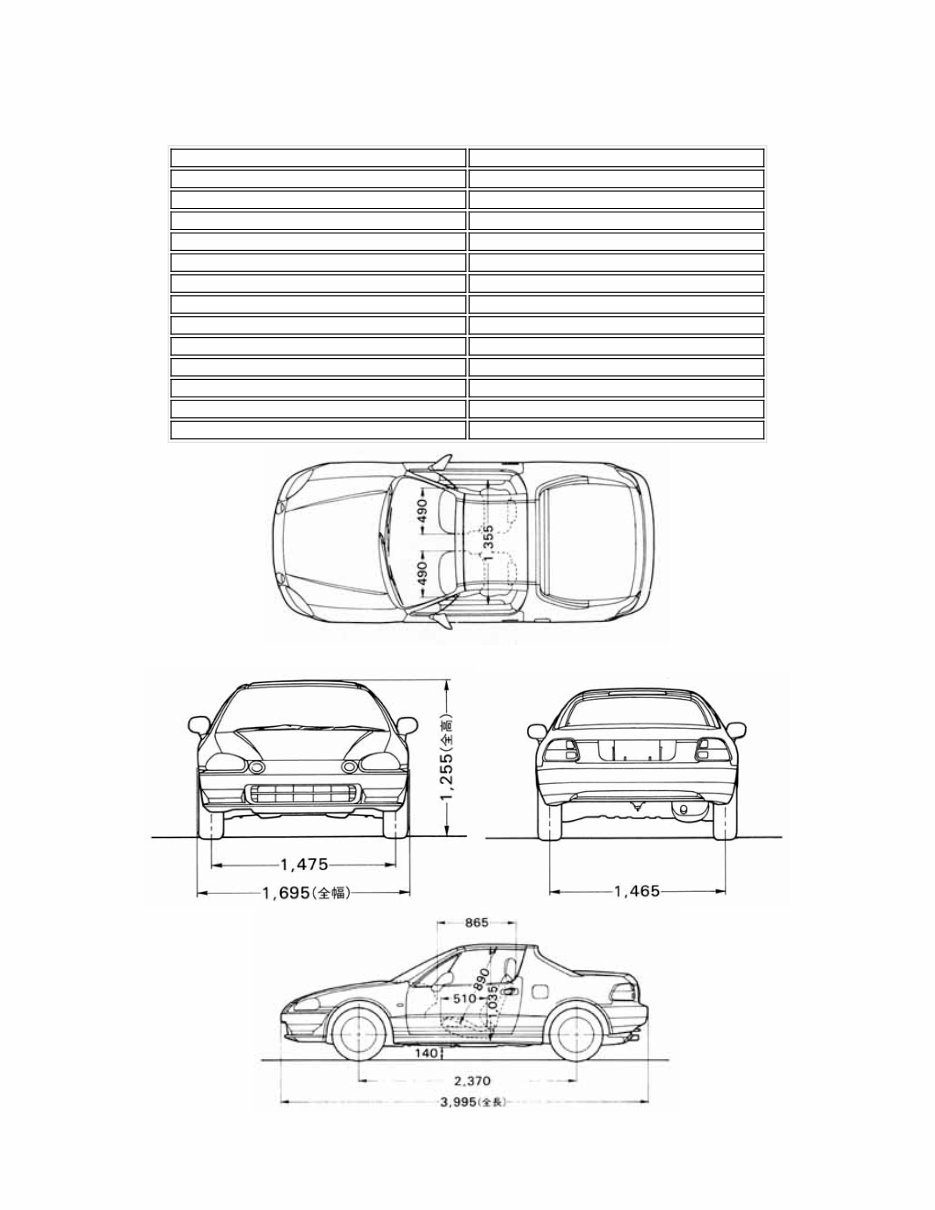

Dimensions Parameter Value Length 157.3" Width 66.7" Height 49.4" Ground Clearance 5.5" Wheelbase 93.3" Front/Rear Track 58.1" / 57.7" Head / Leg Room 37.5" / 40.3" Shoulder / Hip Room 52.9" / 49.3" Cargo Volume 10.5 cu.ft. / 8.3 cu.ft. roof stowed Passenger Volume 47.8 cu.ft. Fuel Tank Capacity 11.9 gallons, 83 lbs. Suspension A-Arm double wishbone Drag Coefficient 0.378 4 The del Sol Guide

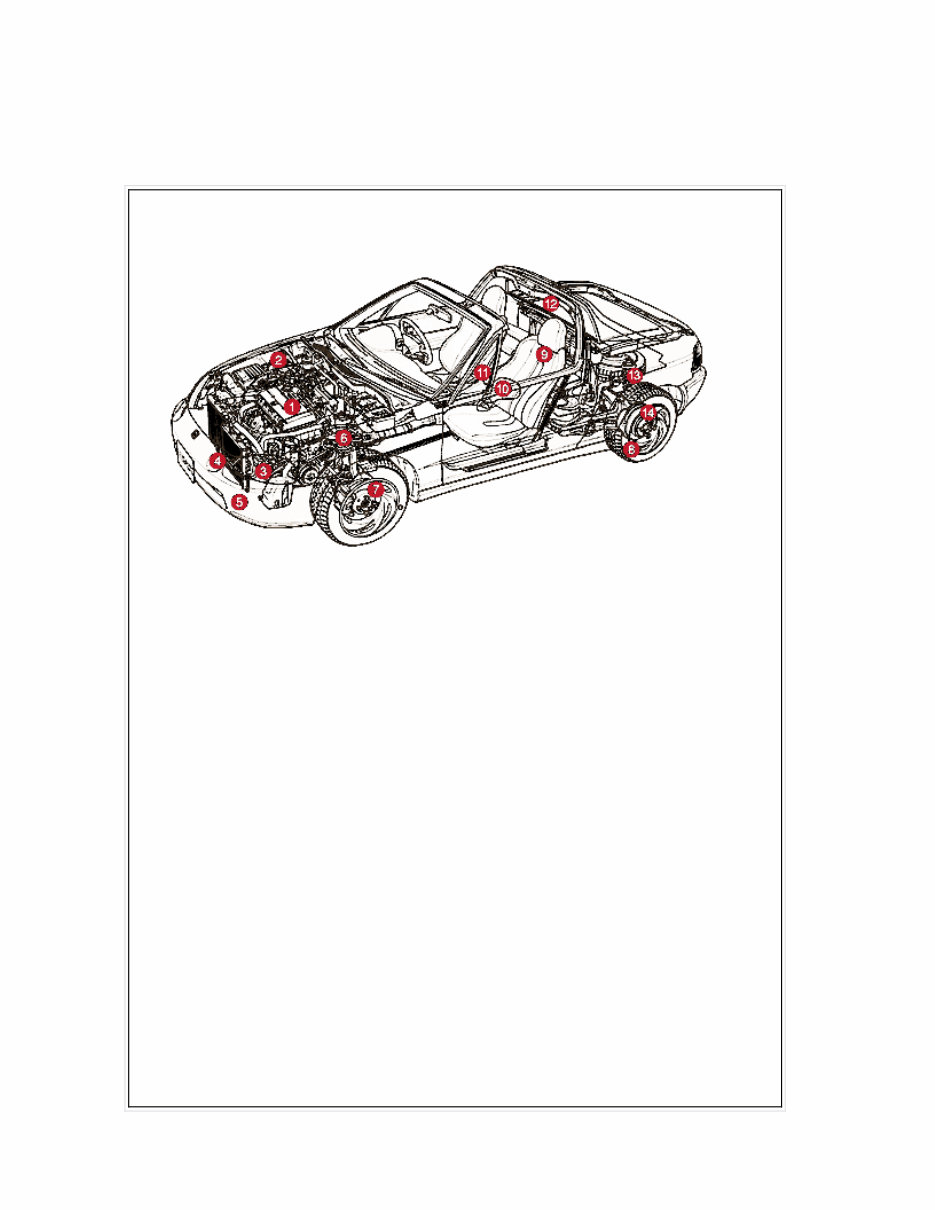

Mechanical Cut-Away (JDM SiR model shown with Trans top, 4-speed AT) (1) 1.6 liter 170-Horsepower DOHC 16-Valve Engine with Multi-Point Programmed fuel injection (PGM-FI) and Variable Valve Timing (VTEC) (2) Front strut tower bar (3) One piece turn signal and halogen headlight combo (4) Auxiliary light (5) Round integral bumper (6) Front double Wishbone suspension (7) Front large diameter ventilated disk brake (8) 195/55R15 83V tire (9) Bucket seat (10) Body colored power remote control door mirror (door skin mount type) (11) Front quarter window (12) Power rear window (13) Rear double wishbone suspension (14) Rear disk brake  Automatic 4-speed transmission  Trans top (electromotive open roof)  Door safety beam  LED high mount brake light  Power trunk lid 5 The del Sol Guide

Universal VIN Decoder ECU Guide Spark Plug Guide JHMEG217*SS000000 Manufacturer. Make and Type of Vehicle JHM: HONDA MOTOR CO., LTD. HONDA Passenger Car Line, Body and Engine Type EG1: Civic Del Sol / D15B / D15B7 EG2: Civic Del Sol / B16A / B16A2 / B16A3 EH6: Civic Del Sol / D16Y7 / D16Y8 / D16Z6 EJ4: Civic Del Sol / D16A Body Type and Transmission Type 1: 2-door Convertible / 5-speed Manual 2: 2-door Convertible / 4-speed Automatic Vehicle Grade (Series) 4: S 6: Si 7: Si With ABS, VTEC Check Digit Model Year N: 1992 P: 1993 R: 1994 S: 1995 T: 1996 V: 1997 W: 1998 Factory Code S: Suzuka Factory in Japan Serial Number Model / Grade Origin ECU Part Number S USDM VXi JDM P06 37820-P06-A01 Si USDM VGi JDM ESi EDM P28 37820-P28-A01 VTEC USDM SiR JDM VTi EDM P30 37820-P30-A01 Model / Grade Origin Part Number S USDM VXi JDM ZFR5F-11 Si USDM VGi JDM ESi EDM ZFR5J-11 VTEC USDM SiR JDM VTi EDM PFR6L-13 6 The del Sol Guide

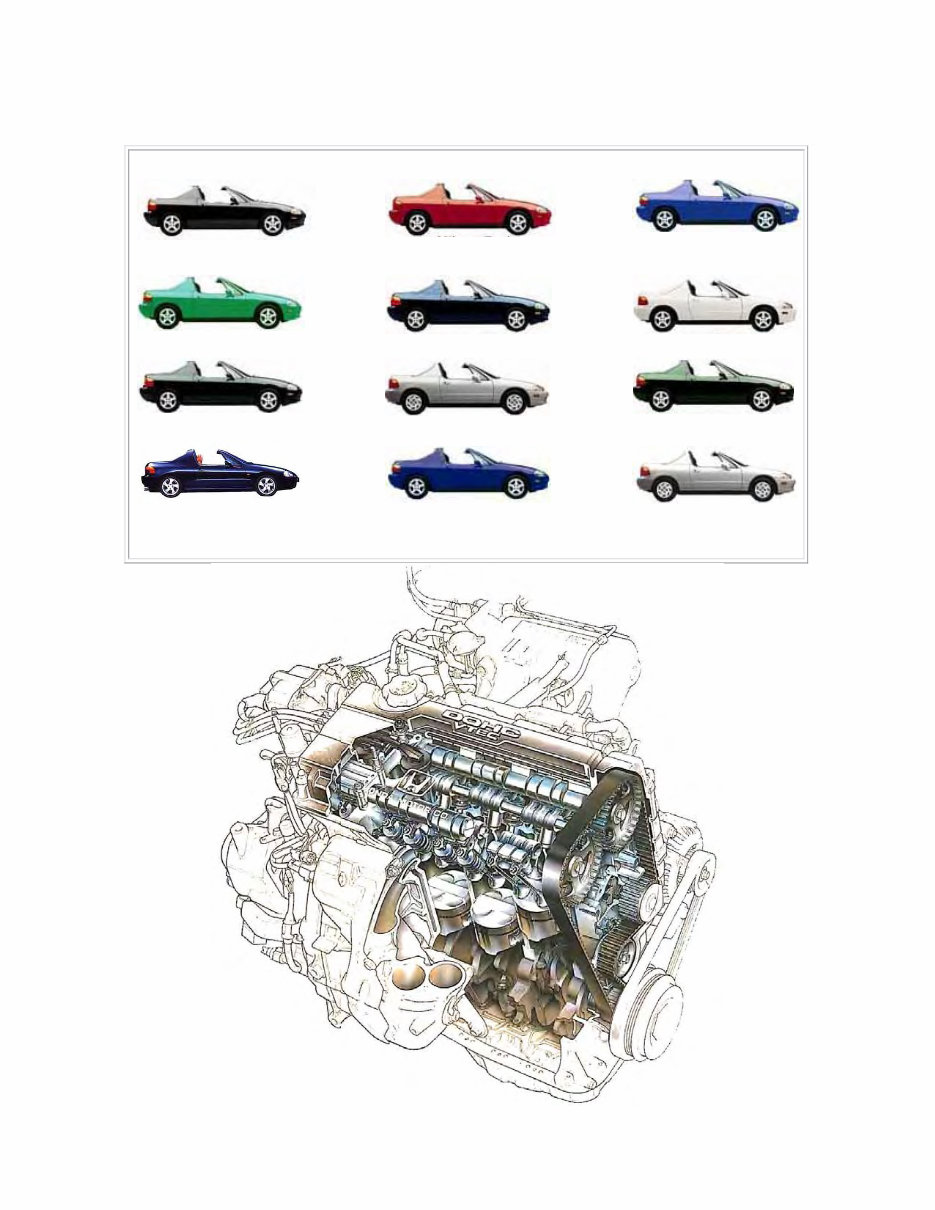

Paint Code Guide Granada Black Pearl Milano Red Captiva Blue Pearl NH503P R81 B62P Samba Green Pearl Paradise Blue-Green Pearl Frost White GY15P BG33P NH538 Isle Green Pearl Vogue Silver Metallic Cypress Green Pearl / G71P NH550M Lausanne Green Pearl G82P Adriatic Blue Pearl Harvard Blue Pearl New Vogue Silver Metallic B74P B63P NH583M (Not Pictured) Flint Black Metallic NH526M Above: A Cut-away of the B16A3 7 The del Sol Guide

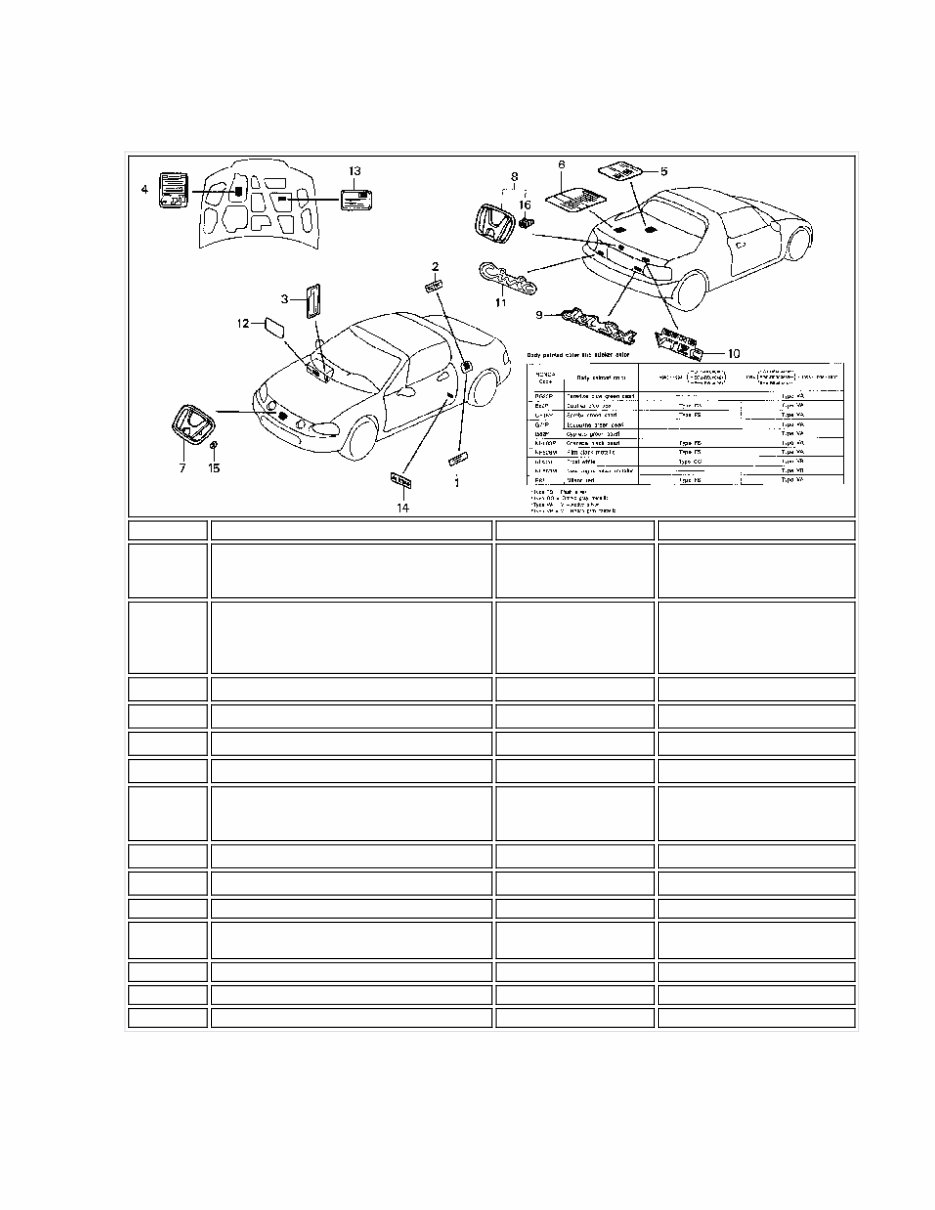

USDM Decal Guide # Decal Color Part # 2 Fuel Information S, Si VTEC Canada 17669-SA0-670 17669-SL0-A00 17671-SM4-A00 3 Specification ABS Caution S Si VTEC n/a 42762-SR2-A01 42762-SR2-A11 42762-SR2-A22 57079-SR3-A00 5 Roof Holder Caution n/a 74742-SR2-A50 6 Roof Holder Information n/a 74748-SR2-A50 7 H n/a 75700-SR2-000 8 H n/a 75701-SR4-000 9 Del sol Gray British Gray Metallic Active Silver 75723-SR2-A02ZF 75723-SR2-A02ZG 75723-SR2-A02Z 10 DOHC VTEC Gray 75723-SR2-A21ZB 11 Civic Gray 75765-SR2-A02ZE 12 Glove Box Information n/a 77870-SM5-A80 13 SRS Information 93’ 94’ – 97’ 77871-SM5-A80 77871-SM4-A70 14 Airbag Information n/a 77876-SG0-A80 15 4mm nut n/a 90190-SB2-000 16 clip n/a 91512-SR3-004 8 The del Sol Guide

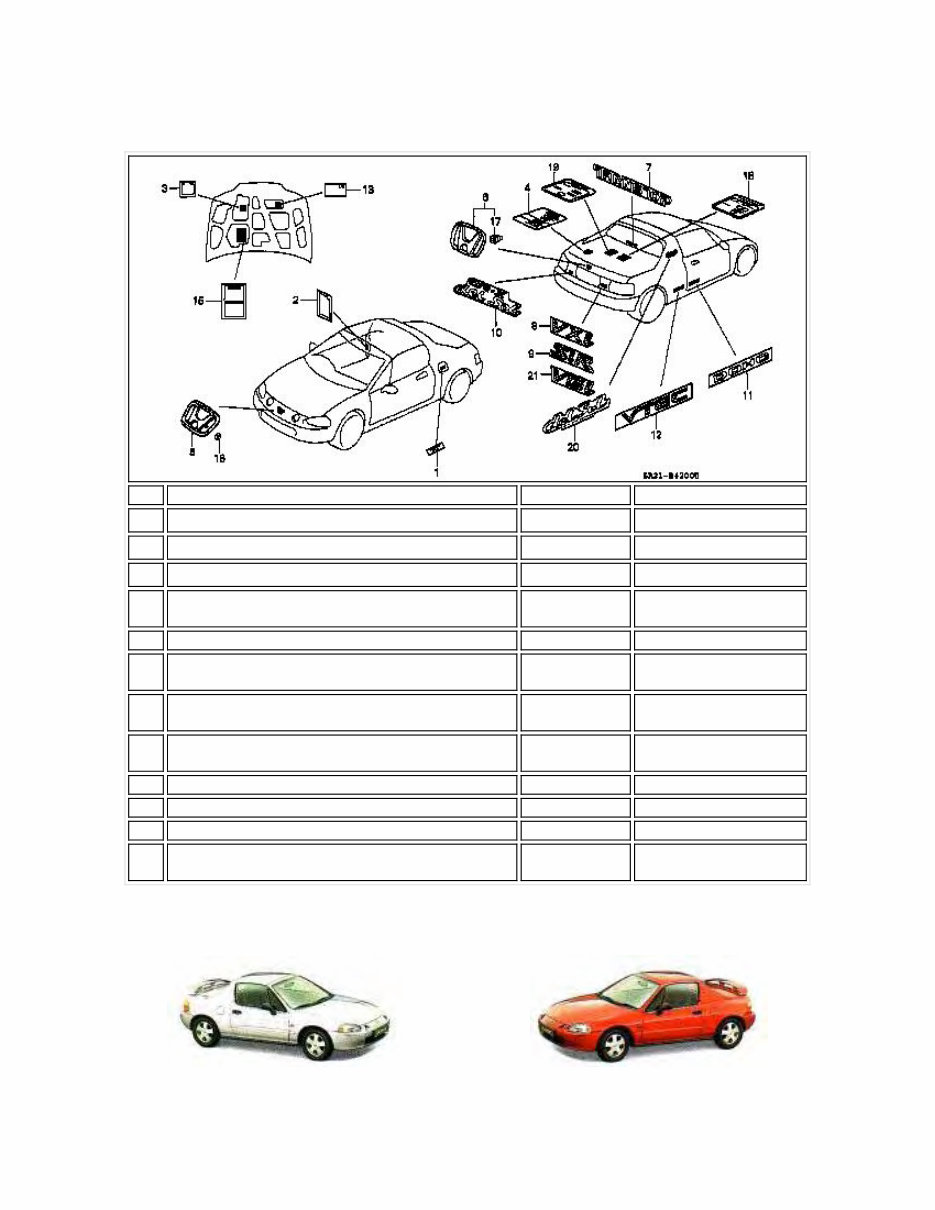

JDM Decal Guide # Decal Color Part # 5 H n/a 75700-SR2-000 6 H n/a 75701-SR4-000 7 Transtop ? ? 8 VXi Gray Silver 75723-SR2-J02ZF 75723-SR2-J02ZE 9 SiR Silver 75723-SR2-J12ZE 10 CRX del Sol Gray Silver 75765-SR2-J02ZF 75765-SR2-J02ZE 11 DOHC Gray Silver 75772-SR2-003ZF 75772-SR2-003ZE 12 VTEC Gray Silver 75774-SR2-003ZF 75774-SR2-003ZE 16 4mm nut n/a 90190-SB2-000 17 clip n/a 91512-SR3-004 20 Two Way Paradise n/a 75774-SR2-V01ZA 21 VGi Gray Silver 75723-SR2-J21 ZB 75723-SR2-J21 ZA 9 The del Sol Guide

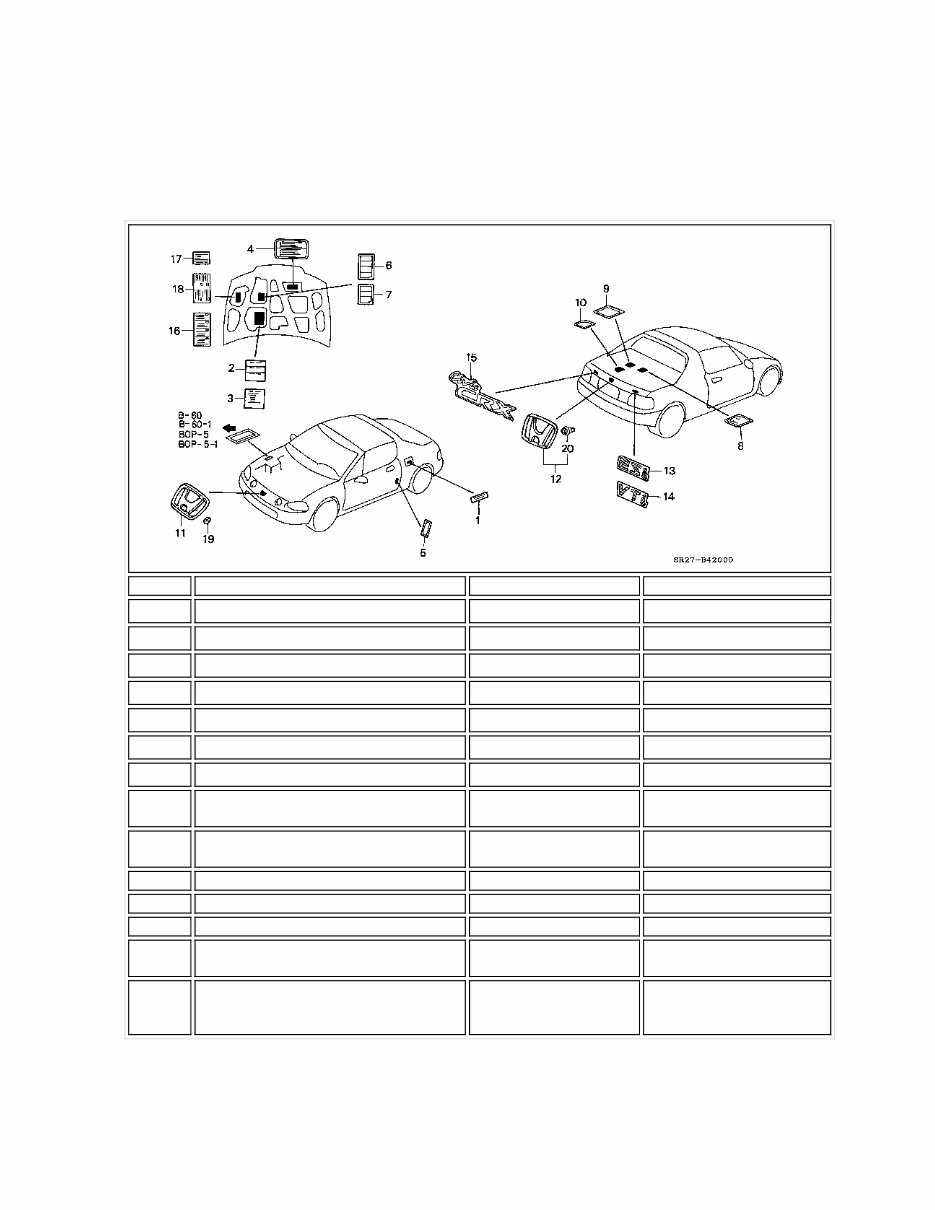

EDM Decal Guide Note: Information label Languages for all of the decals listed are not known. They could be English, French, Dutch, etc. # Decal Color Part # 1 Fuel Information n/a 17669-SM4-X00 5 Tire Information n/a 42760-SR2-B11 8 Roof holder Information n/a 74742-SR2-F50 10 Roof holder Information n/a 74748-SR2-F50 11 H n/a 75700-SR2-000 12 H n/a 75701-SR4-000 13 ESi ? ? 14 VTi Gray Silver 75723-SR2-G02ZE 75723-SR2-G02ZF 16 Civic CRX Gray Silver 75765-SR2-G02ZE 75765-SR2-G02ZF 18 SRS Information n/a 77875-SP0-G80 19 4mm nut n/a 90190-SB2-000 20 clip n/a 91512-SR3-004 n/a CRX Lt. Gray Dk. Gray 75765-SR2-Q01ZC 75765-SR2-Q01ZD n/a del sol Gray British Gray Metallic Active Silver 75723-SR2-A02ZF 75723-SR2-A02ZG 75723-SR2-A02Z 10 The del Sol Guide
