2020 Honda CR-V OEM Service & Repair Manual

Service Information The service and repair information contained in this manual is intended for use by qualified, professional technicians. Attempting service or repairs without the proper training, tools, and equipment could cause injury to you or others. It could also damage the vehicle or create an unsafe condition. This manual describes the proper methods and procedures for doing service, maintenance, and repairs. Some procedures require the use of specially designed tools and dedicated equipment. Any person who intends to use a replacement part, a service procedure, or a tool that is not recommended by Honda, must determine the risks to their personal safety and the safe operation of the vehicle. If you need to replace any parts, always use the correct parts supplied by a Honda dealer. Never use inferior quality parts. FOR YOUR CUSTOMER'S SAFETY Proper service and maintenance are essential to the customer's safety and the reliability of the vehicle. Any error or oversight while servicing a vehicle can result in faulty operation, damage to the vehicle, or injury to others. Improper service or repairs can create an unsafe condition that can cause your customers or others to be seriously hurt or killed. Follow the procedures and precautions in this manual and other service materials carefully. FOR YOUR SAFETY Because this manual is intended for the professional service technician, we do not provide warnings about many basic shop safety practices (for example, hot parts－wear gloves). If you have not received shop safety training or do not feel confident about your knowledge of safe servicing practices, we recommend that you do not attempt to do the procedures described in this manual. Failure to properly follow instructions and precautions can cause you to be seriously hurt or killed. Follow the procedures and precautions in this manual carefully. Some of the most important general service safety precautions follow this text. However, we cannot warn you of every conceivable hazard that can arise in doing service and repair procedures. Only you can decide whether or not you should do a given task. IMPORTANT SAFETY PRECAUTIONS Make sure you have a clear understanding of all basic shop safety practices, and that you are wearing appropriate clothing and using safety equipment. When doing any service task, be especially careful of the following: － Read all of the instructions before you begin, and make sure you have the tools, the replacement or repair parts, and the skills required to do the tasks safely and completely. － Protect your eyes by using proper safety glasses, goggles, or face shields anytime you hammer, drill, grind, or work around pressurized air or liquids and springs, or other stored-energy components. If there is any doubt, put on eye protection. － Use other protective wear when necessary, such as gloves or safety shoes. Handling hot or sharp parts can cause severe burns or cuts. Before you grab something that looks like it can hurt you, stop and put on gloves. － Protect yourself and others whenever you have the vehicle up in the air. Anytime you raise the vehicle, either with a lift or a jack, make sure that it is always securely supported. Use safety stands if needed. － Protect yourself by wearing an approved welding helmet, gloves, and safety shoes anytime you are welding. You can receive burns from hot parts; allow the parts to cool before working in that area. － Protect yourself from paints and harmful chemicals by wearing an approved respirator, eye protection, and gloves whenever you are painting. Spray paint only in an approved paint booth that is well ventilated. Make sure the engine is off before you begin any servicing procedures, unless the instruction tells you to do otherwise. This will help eliminate several potential hazards: － Carbon monoxide poisoning from engine exhaust. Be sure there is adequate ventilation whenever you run the engine. － Burns from hot parts or coolant. Let the engine and exhaust system cool before working in those areas. － Injury from moving parts. If the instruction tells you to run the engine, be sure your hands, fingers, and clothing are out of the way. Gasoline vapors and hydrogen gases from batteries are explosive. To reduce the possibility of a fire or explosion, be careful when working around gasoline or batteries: － Use only a nonflammable solvent, not gasoline, to clean parts. － Never drain or store gasoline in an open container. － Keep all cigarettes, sparks, and flames away from the battery and all fuel-related parts.

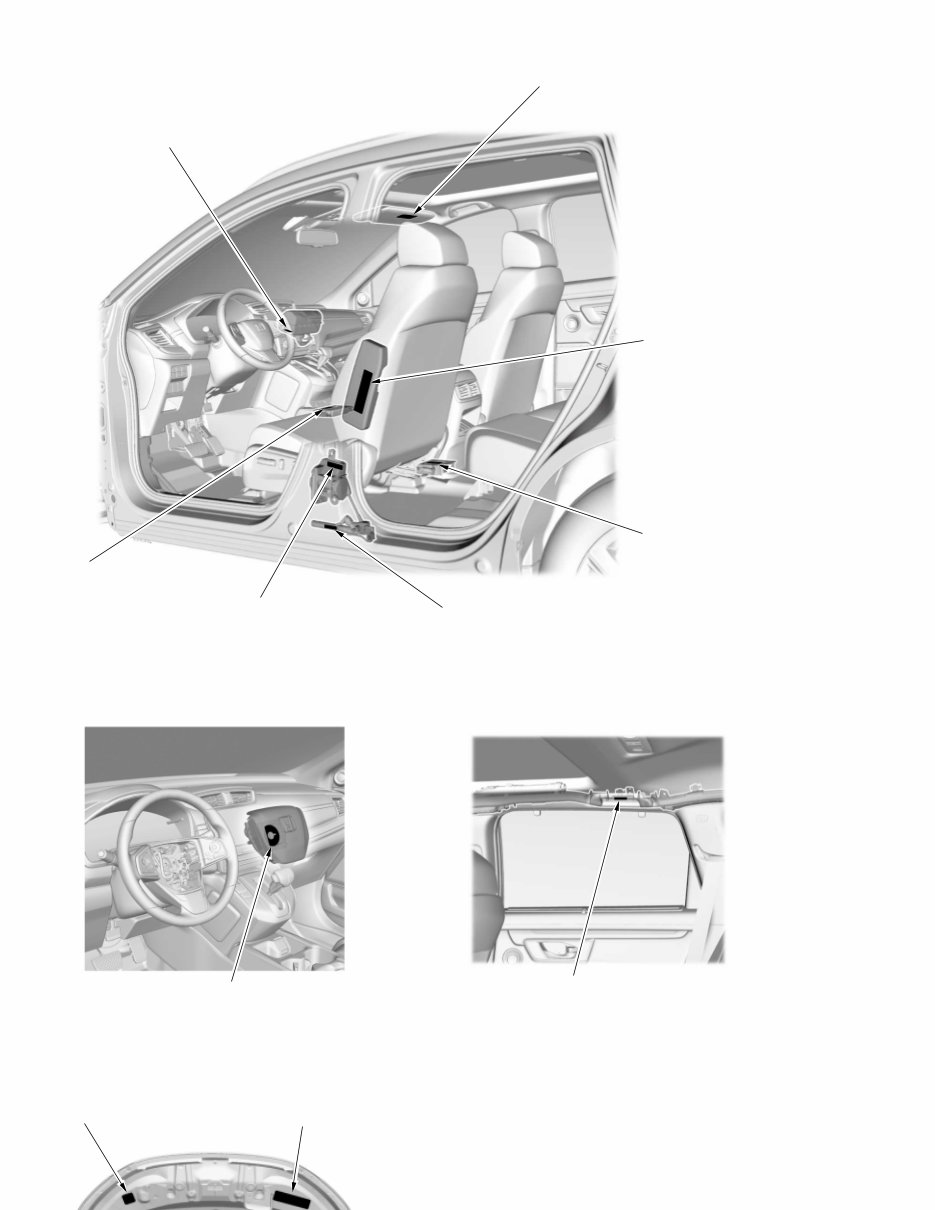

Front Passenger's Compartment: Steering Wheel: Rear Passenger's Compartment: Engine Compartment: SRS WARNING INFORMATION SRS UNIT SEAT BELT TENSIONER WARNING SIDE AIRBAG MODULE DANGER PASSENGER AIRBAG MODULE DANGER SEAT BELT OUTER LAP TENSIONER WARNING WIRELESS CHARGER CAUTION DRIVER AIRBAG MODULE DANGER ROOF-SIDE AIRBAG MODULE DANGER AIR CONDITIONING INFORMATION EMISSION CONTROL INFORMATION and ENGINE COOLANT INFORMATION

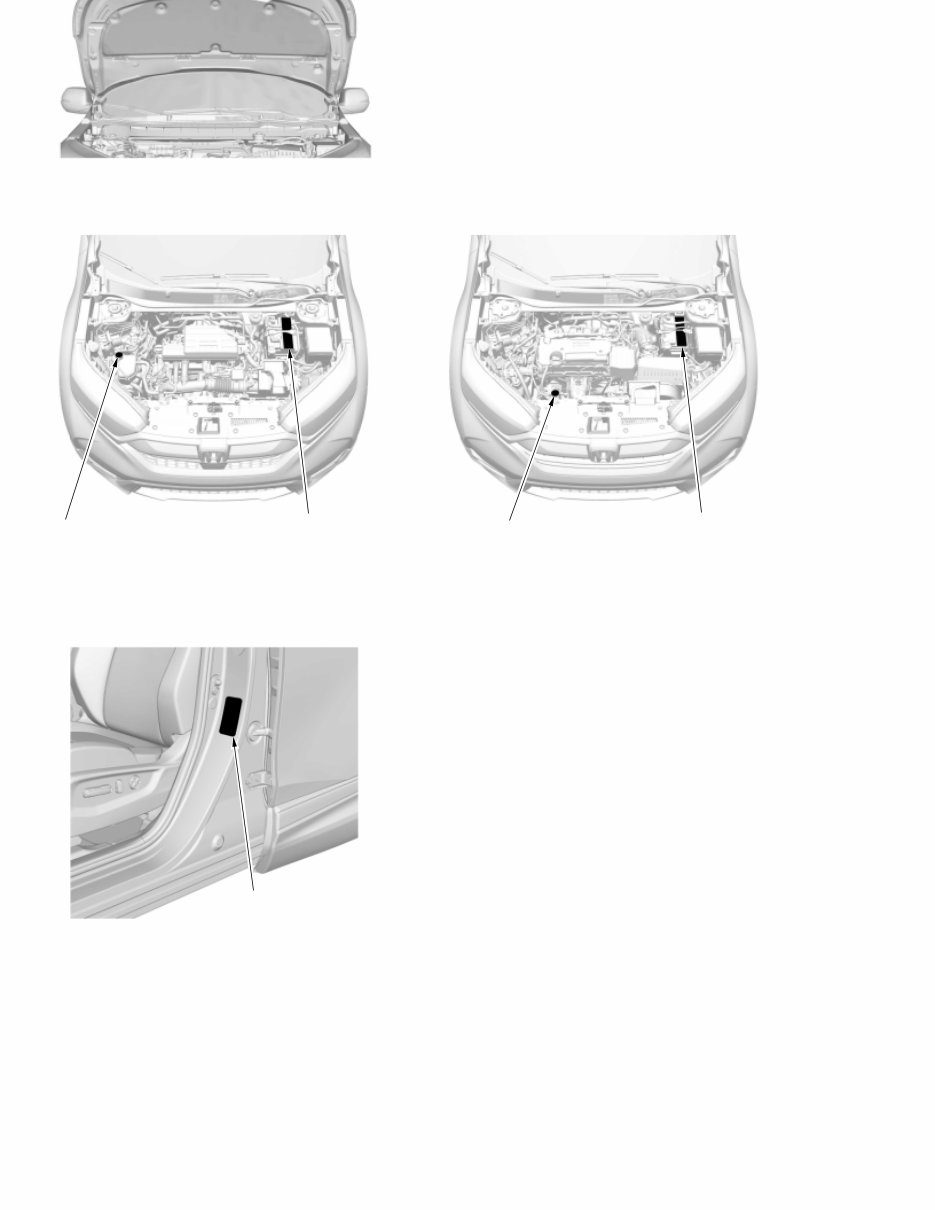

1.5 L engine model: 2.4 L engine model: Driver's Doorjamb: EXPANSION TANK CAP DANGER 12 VOLT BATTERY CAUTION RADIATOR CAP DANGER 12 VOLT BATTERY CAUTION TIRE INFORMATION

Front Passenger's Compartment: Steering Wheel: Rear Passenger's Compartment: Engine Compartment: SRS WARNING INFORMATION SRS UNIT SEAT BELT TENSIONER WARNING SIDE AIRBAG MODULE DANGER PASSENGER AIRBAG MODULE DANGER SEAT BELT OUTER LAP TENSIONER WARNING WIRELESS CHARGER CAUTION DRIVER AIRBAG MODULE DANGER ROOF-SIDE AIRBAG MODULE DANGER AIR CONDITIONING INFORMATION ENGINE COOLANT INFORMATION

1.5 L engine model: 2.4 L engine model: Driver's Doorjamb: EXPANSION TANK CAP DANGER 12 VOLT BATTERY CAUTION RADIATOR CAP DANGER 12 VOLT BATTERY CAUTION TIRE INFORMATION

Item Measurement Qualification Specification CVT Type Electronically-controlled continuously variable transmission, multi plate wet sump, hydraulic Primary reduction Direct 1:1 Gear ratio Low－High 2.645－0.405 Reverse 1.857－1.264 Final reduction Type Single helical gear Gear ratio 3.238 STEERING Type Rack and pinion with electrical power-assisted Overall ratio 2WD 12.4 AWD 12.3 Turns, lock-to-lock 2.34 Steering wheel diameter 370 mm (14.57 in) SUSPENSION Type Front MacPherson strut with stabilizer, coil spring Rear Independent multilink with stabilizer, coil spring Shock absorber Front and rear Telescopic, hydraulic, nitrogen gas-filled TIRES Size See tire information label attached to driver's doorjamb. BRAKES Type of service brake Front Power-assisted self-adjusting ventilated disc Rear Power-assisted self-adjusting solid disc Type of parking brake Electrical parking brake AIR CONDITIONING Compressor Type Variable swash plate type Capacity (1.5 L engine) 140 mL (8.5 cu in)/rev Capacity (2.4 L engine) 160 mL (9.76 cu in)/rev Maximum speed (1.5 L engine) 9,500 rpm Maximum speed (2.4 L engine) 8,000 rpm Condenser Type Corrugated fin Evaporator Type Corrugated fin Blower Type Stabilized swirling flow Motor type 260 W/12 V Speed control Infinitely variable Maximum capacity 520 m 3 (18,364 cu ft)/h Temperature control Air-mix type Compressor clutch Type Dry, single plate, poly V-belt drive Electrical power consumption at 68 °F (20 °C) (1.5 L engine) 35 W maximum at 12 V Electrical power consumption at 68 °F (20 °C) (2.4 L engine) 29.2 W maximum at 12 V ELECTRICAL RATINGS 12 volt battery 55B24L 12 V－47 Ah/20 HR (12 V－38 Ah/5 HR) L2 12 V－60 Ah/20 HR (12 V－48 Ah/5 HR) Fuses Under-hood fuse/relay box 125 A, 70 A, 60 A, 50 A, 40 A, 30 A, 20 A, 15 A, 10 A, 7.5 A Fuse/relay holder A 7.5 A Fuse/relay holder B 7.5 A Under-dash fuse/relay box 20 A, 15 A, 10 A, 5 A Auxiliary under- dash fuse box 20 A Light bulbs Headlight high beam (Bulb type) 12 V - 60 W (HB3) Headlight high beam (LED type) LED Headlight low beam (Bulb type) 12 V - 55 W (H11) Headlight low beam (LED type) LED Front fog lights 12 V－35 W (H8) Front parking/daytime LED

Item Measurement Qualification Specification running lights Front side marker lights LED Front turn signal lights LED Side turn signal lights LED Rear turn signal lights LED Brake lights/taillights LED Inner taillights LED Rear side marker lights LED High-mount brake light LED Back-up lights 12 V－16 W License plate lights LED Ignition key light LED Ceiling light 12 V－8 W Front individual map lights (without roof console module) 12 V－8 W Front individual map lights (with roof console module) LED Interior lights (with roof console module) LED Rear individual map lights (with roof console module) LED Cargo area lights 12 V－5 W Ambient light LED Vanity mirror lights 14 V－1CP Footwell light LED Door inner handle lights LED Console Box Light LED

Item Measurement Qualification Specification CVT Type Electronically-controlled continuously variable transmission, multi plate wet sump, hydraulic Primary reduction Direct 1:1 Gear ratio Low－High 2.645－0.405 Reverse 1.859－1.265 Final reduction Type Single helical gear Gear ratio 3.238 STEERING Type Rack and pinion with electrical power-assisted Overall ratio 2WD 12.4 AWD 12.3 Turns, lock-to-lock 2.34 Steering wheel diameter 370 mm (14.57 in) SUSPENSION Type Front MacPherson strut with stabilizer, coil spring Rear Independent multilink with stabilizer, coil spring Shock absorber Front and rear Telescopic, hydraulic, nitrogen gas-filled TIRES Size See tire information label attached to driver's doorjamb. BRAKES Type of service brake Front Power-assisted self-adjusting ventilated disc Rear Power-assisted self-adjusting solid disc Type of parking brake Electrical parking brake AIR CONDITIONING Compressor Type (1.5 L engine) Variable capacity, swash plate type Type (2.4 L engine) Fixed capacity, swash plate type Capacity (1.5 L engine) 140 mL (8.5 cu in)/rev Capacity (2.4 L engine) 160 mL (9.76 cu in)/rev Maximum speed (1.5 L engine) 9,500 rpm Maximum speed (2.4 L engine) 8,000 rpm Condenser Type Corrugated fin Evaporator Type Corrugated fin Blower Type Stabilized swirling flow Motor type 260 W/12 V Speed control Infinitely variable Maximum capacity 520 m 3 (18,364 cu ft)/h Temperature control Air-mix type Compressor clutch Type Dry, single plate, poly V-belt drive Electrical power consumption at 68 °F (20 °C) (1.5 L engine) 35 W maximum at 12 V Electrical power consumption at 68 °F (20 °C) (2.4 L engine) 29.2 W maximum at 12 V ELECTRICAL RATINGS 12 volt battery 55B24L 12 V－47 Ah/20 HR (12 V－38 Ah/5 HR) L2 12 V－60 Ah/20 HR (12 V－48 Ah/5 HR) Fuses Under-hood fuse/relay box 125 A, 70 A, 60 A, 50 A, 40 A, 30 A, 20 A, 15 A, 10 A, 7.5 A Fuse/relay holder A 7.5 A Fuse/relay holder B 7.5 A Under-dash fuse/relay box 20 A, 15 A, 10 A, 5 A Auxiliary under- dash fuse box 20 A Light bulbs Headlight high beam (Bulb type) 12 V - 60 W (HB3) Headlight high beam (LED type) LED Headlight low beam (Bulb type) 12 V - 55 W (H11) Headlight low beam (LED type) LED

Item Measurement Qualification Specification Front fog lights 12 V－35 W (H8) Front parking/daytime running lights LED Front side marker lights LED Front turn signal lights LED Side turn signal lights LED Rear turn signal lights LED Brake lights/taillights LED Inner taillights LED Rear side marker lights LED High-mount brake light LED Back-up lights 12 V－16 W License plate lights LED Ignition key light LED Ceiling light 12 V－8 W Front individual map lights (without roof console module) 12 V－8 W Front individual map lights (with roof console module) LED Interior lights (with roof console module) LED Rear individual map lights (with roof console module) LED Cargo area lights 12 V－5 W Ambient light LED Vanity mirror lights 14 V－1CP Footwell light LED Door inner handle lights LED Console Box Light LED

Item Measurement Qualification Specification CVT Type Electronically-controlled continuously variable transmission, multi plate wet sump, hydraulic Primary reduction Direct 1:1 Gear ratio Low－High 2.645－0.405 Reverse 1.859－1.265 Final reduction Type Single helical gear Gear ratio 3.238 STEERING Type Rack and pinion with electrical power-assisted Overall ratio 2WD 12.4 AWD 12.3 Turns, lock-to-lock 2.34 Steering wheel diameter 370 mm (14.57 in) SUSPENSION Type Front MacPherson strut with stabilizer, coil spring Rear Independent multilink with stabilizer, coil spring Shock absorber Front and rear Telescopic, hydraulic, nitrogen gas-filled TIRES Size See tire information label attached to driver's doorjamb. BRAKES Type of service brake Front Power-assisted self-adjusting ventilated disc Rear Power-assisted self-adjusting solid disc Type of parking brake Electrical parking brake AIR CONDITIONING Compressor Type (1.5 L engine) Variable capacity, swash plate type Type (2.4 L engine) Fixed capacity, swash plate type Capacity (1.5 L engine) 140 mL (8.5 cu in)/rev Capacity (2.4 L engine) 160 mL (9.76 cu in)/rev Maximum speed (1.5 L engine) 9,500 rpm Maximum speed (2.4 L engine) 8,000 rpm Condenser Type Corrugated fin Evaporator Type Corrugated fin Blower Type Stabilized swirling flow Motor type 260 W/12 V Speed control Infinitely variable Maximum capacity 520 m 3 (18,364 cu ft)/h Temperature control Air-mix type Compressor clutch Type Dry, single plate, poly V-belt drive Electrical power consumption at 68 °F (20 °C) (1.5 L engine) 35 W maximum at 12 V Electrical power consumption at 68 °F (20 °C) (2.4 L engine) 29.2 W maximum at 12 V ELECTRICAL RATINGS 12 volt battery 55B24L 12 V－47 Ah/20 HR (12 V－36 Ah/5 HR) L2 12 V－60 Ah/20 HR (12 V－48 Ah/5 HR) Fuses Under-hood fuse/relay box 125 A, 70 A, 60 A, 50 A, 40 A, 30 A, 20 A, 15 A, 10 A, 7.5 A Fuse/relay holder A 7.5 A Fuse/relay holder B 7.5 A Under-dash fuse/relay box 20 A, 15 A, 10 A, 5 A Auxiliary under- dash fuse box 20 A Light bulbs Headlight high beam (Bulb type) 12 V - 60 W (HB3) Headlight high beam (LED type) LED Headlight low beam (Bulb type) 12 V - 55 W (H11) Headlight low beam (LED type) LED

2020 Honda CR-V OEM Service & Repair Manual
