2004 Ford Ranger Service & Repair Manual

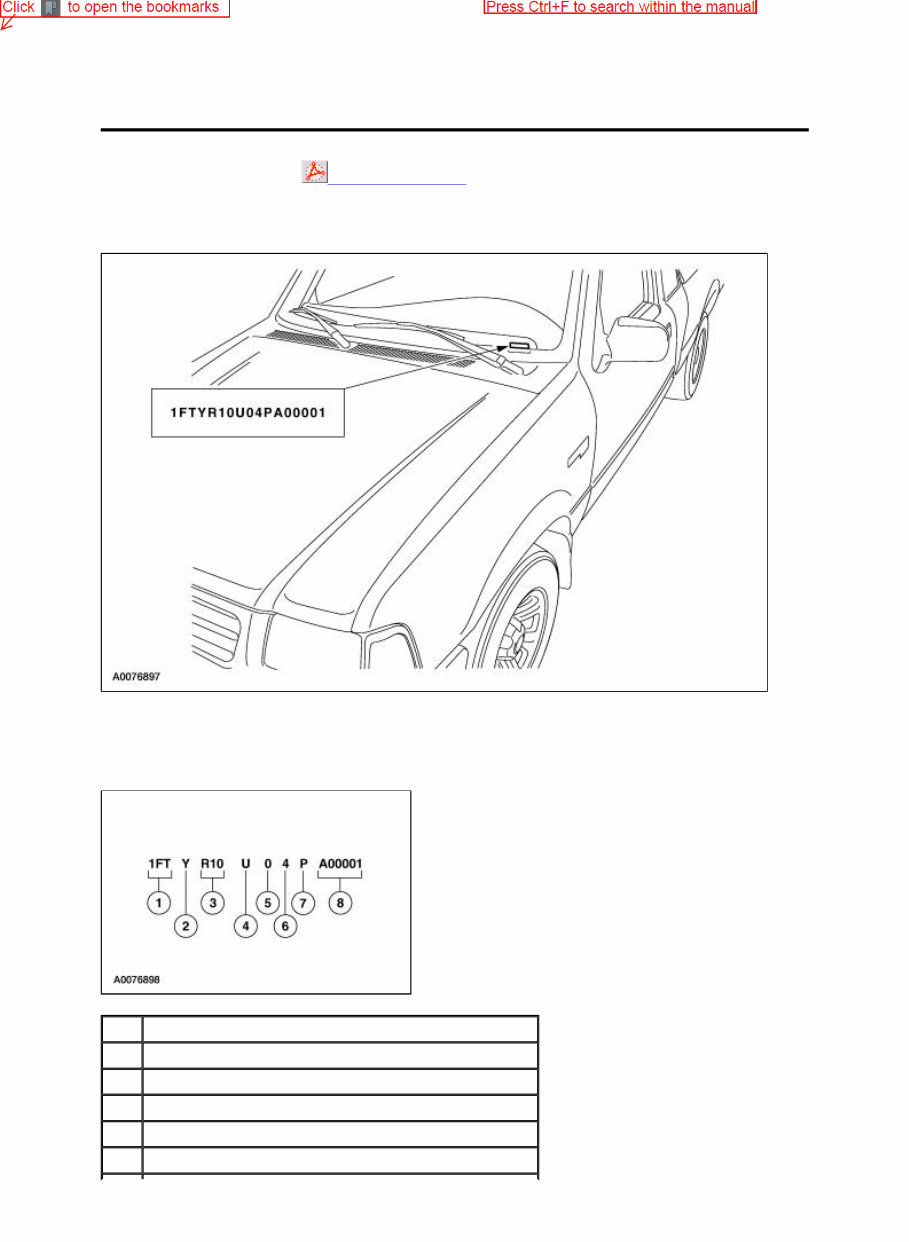

Identification Codes Printable View (450 KB) Vehicle identification Number (VIN) Locator The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label. SECTION 100-01: Identification Codes 2004 Ranger Workshop Manual DESCRIPTION AND OPERATION Procedure revision date: 06/26/2003 Item Description 1 World manufacturer identifier (WMI) 2 Brake type and gross vehicle weight rating (GVWR) code 3 Vehicle line, series, body type code 4 Engine type code 5 Computer generated check digit 03.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1396\S4L~us~en~file=S4L01001.htm~g...

Vehicle Identification Number World Manufacturer Identifier (WMI) The first three vehicle identification number (VIN) positions are the world manufacturer identifier (WMI). 1FT — Ford Motor Company, USA, truck, completed vehicle Brake, Restraint Type and Gross Vehicle Weight Rating (GVWR) The fourth VIN position is the vehicle brake type and gross vehicle weight rating (GVWR) code (all vehicles use hydraulic brakes). Y — 4,001 - 5,000 pounds GVWR, active safety belts (all positions) with driver and front passenger air bags Z — 5,001 - 6,000 pounds GVWR, active safety belts (all positions) with driver and front passenger air bags Vehicle Line, Series and Body Type 6 Model year code 7 Assembly plant code 8 Production sequence number 03.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1396\S4L~us~en~file=S4L01001.htm~g...

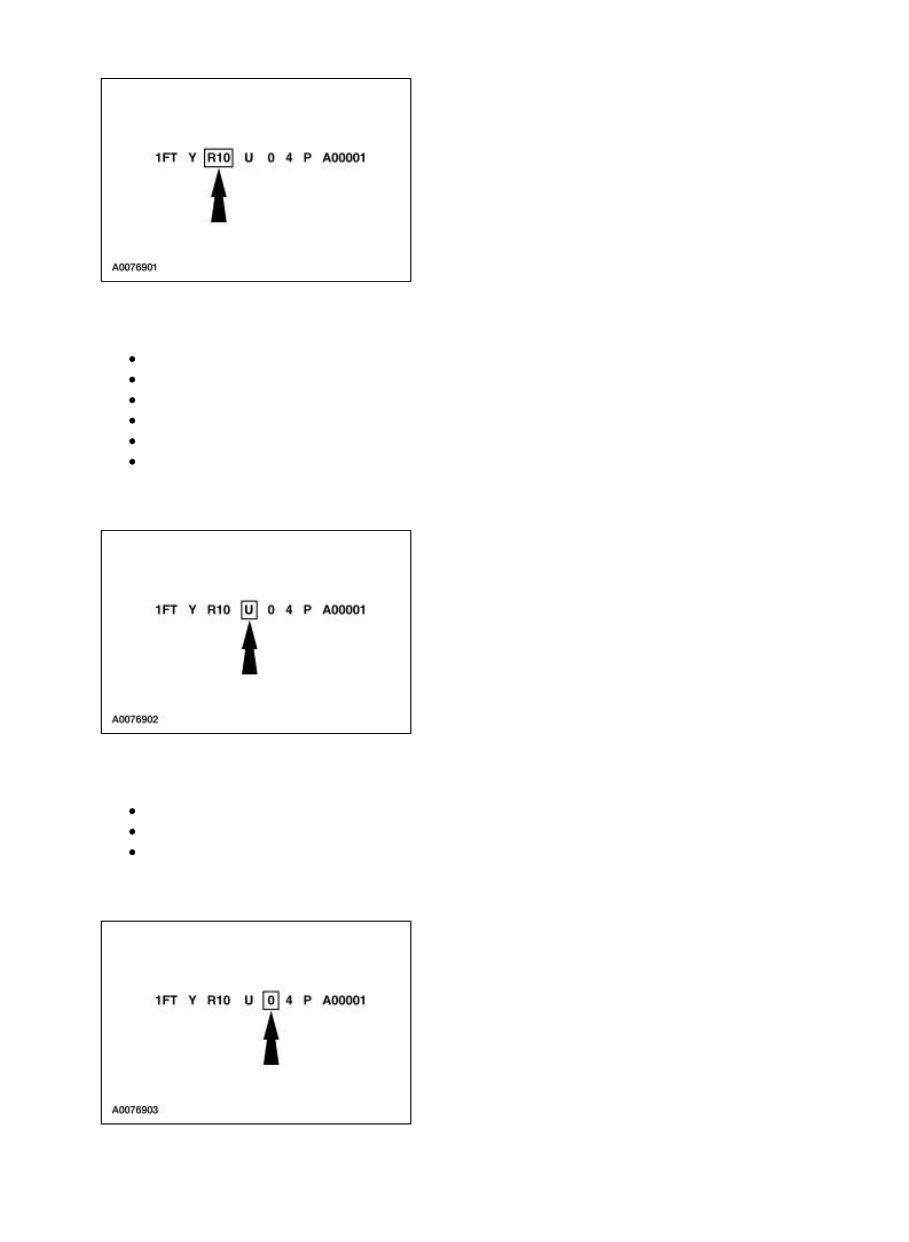

Positions 5 through 7 indicate vehicle line, series and body type. R10 — 4x2, Regular cab R11 — 4x4, Regular cab R14 — 4x2, SuperCab (two-door) R15 — 4x4, SuperCab (two-door) R44 — 4x2, SuperCab (four-door) R45 — 4x4, SuperCab (four-door) Engine Code The eighth VIN position identifies the engine type, displacement and number of cylinders. D — 2.3L, EFI, four cylinder, gas E — 4.0L, EFI, SOHC, V6, gas U — 3.0L, EFI, OHV, V6, gas Check Digit The ninth VIN position is a government-assigned, computer-generated check digit. 03.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1396\S4L~us~en~file=S4L01001.htm~g...

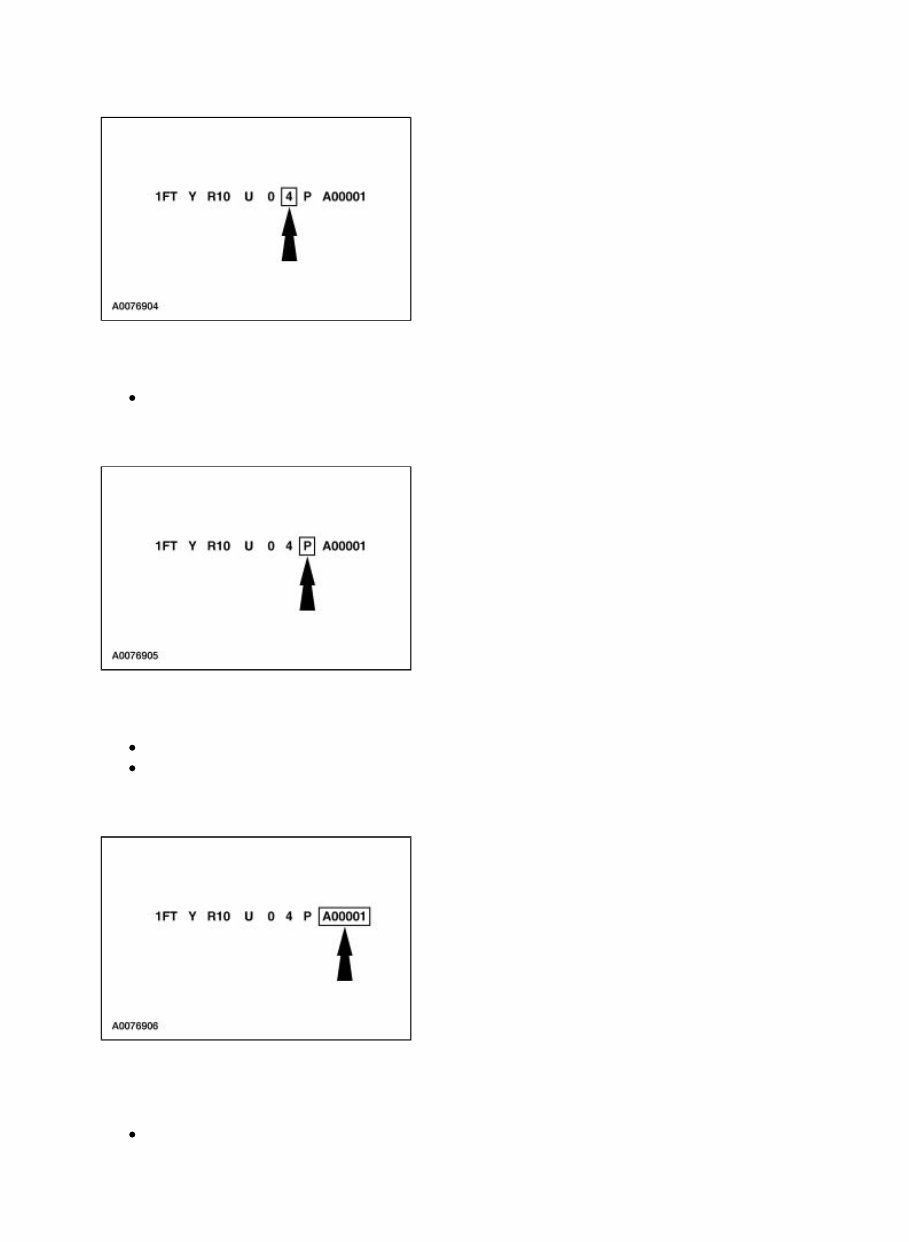

Model Year The tenth VIN position is the model year code. 4 — 2004 Assembly Plant The eleventh VIN position is the assembly plant code. P — Twin Cities (St. Paul, Minnesota) T — Edison (Edison, New Jersey) Production Sequence Number The last six VIN positions are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. Ford Motor Company — A00001-F99999 03.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1396\S4L~us~en~file=S4L01001.htm~g...

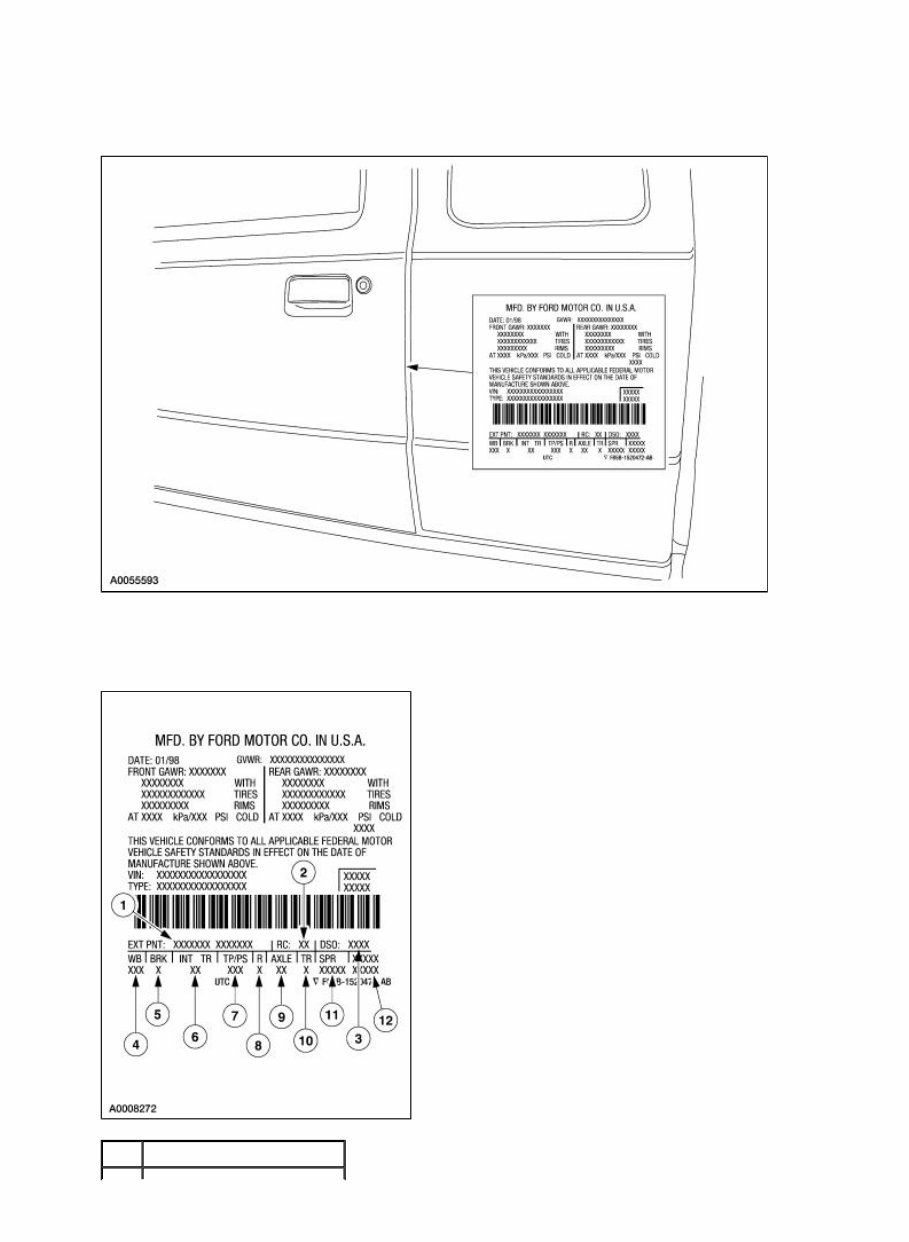

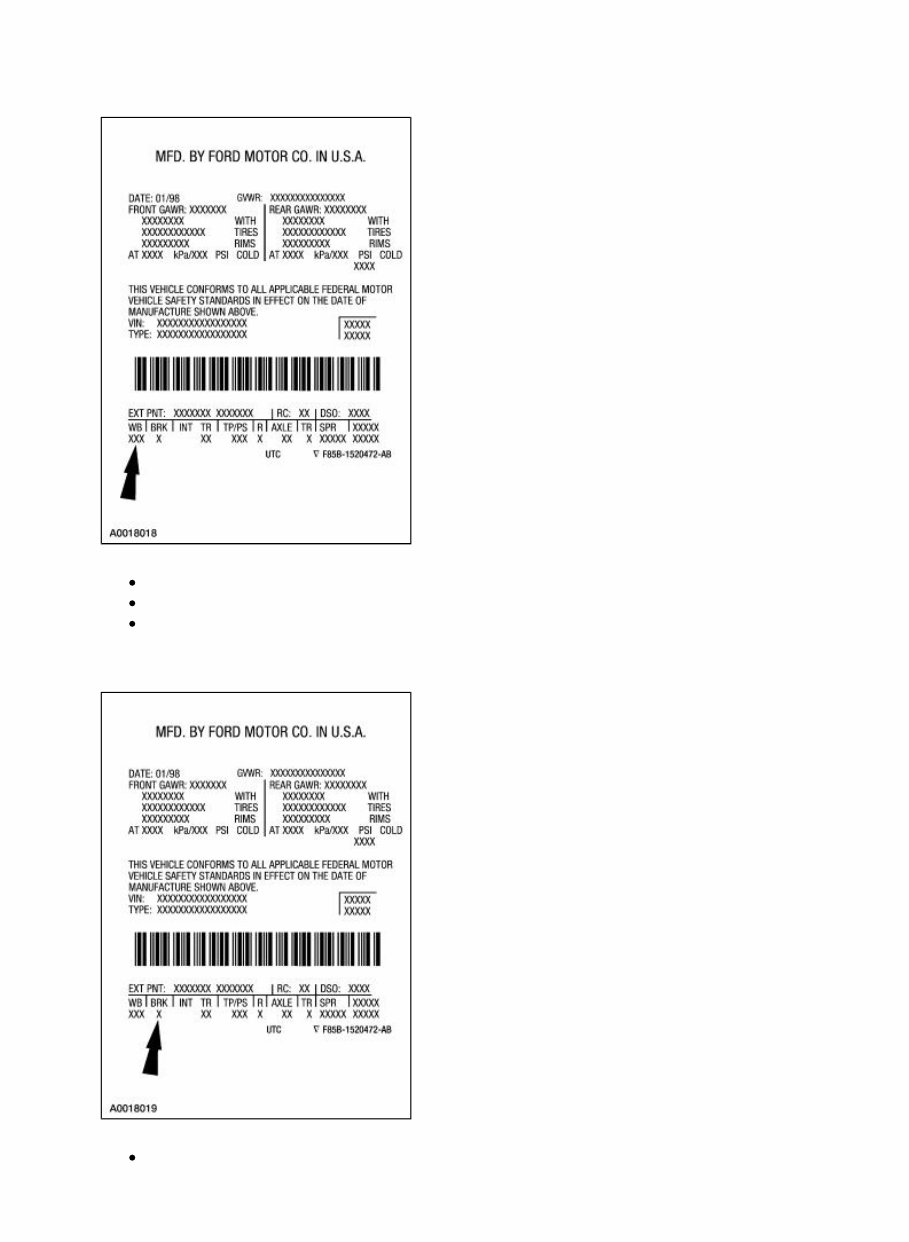

Vehicle Certification (VC) Label Vehicle Certification (VC) Label Locator The upper portion of the vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement, and the VIN. It also includes gross vehicle weight ratings (GVWR). Item Description 03.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1396\S4L~us~en~file=S4L01001.htm~g...

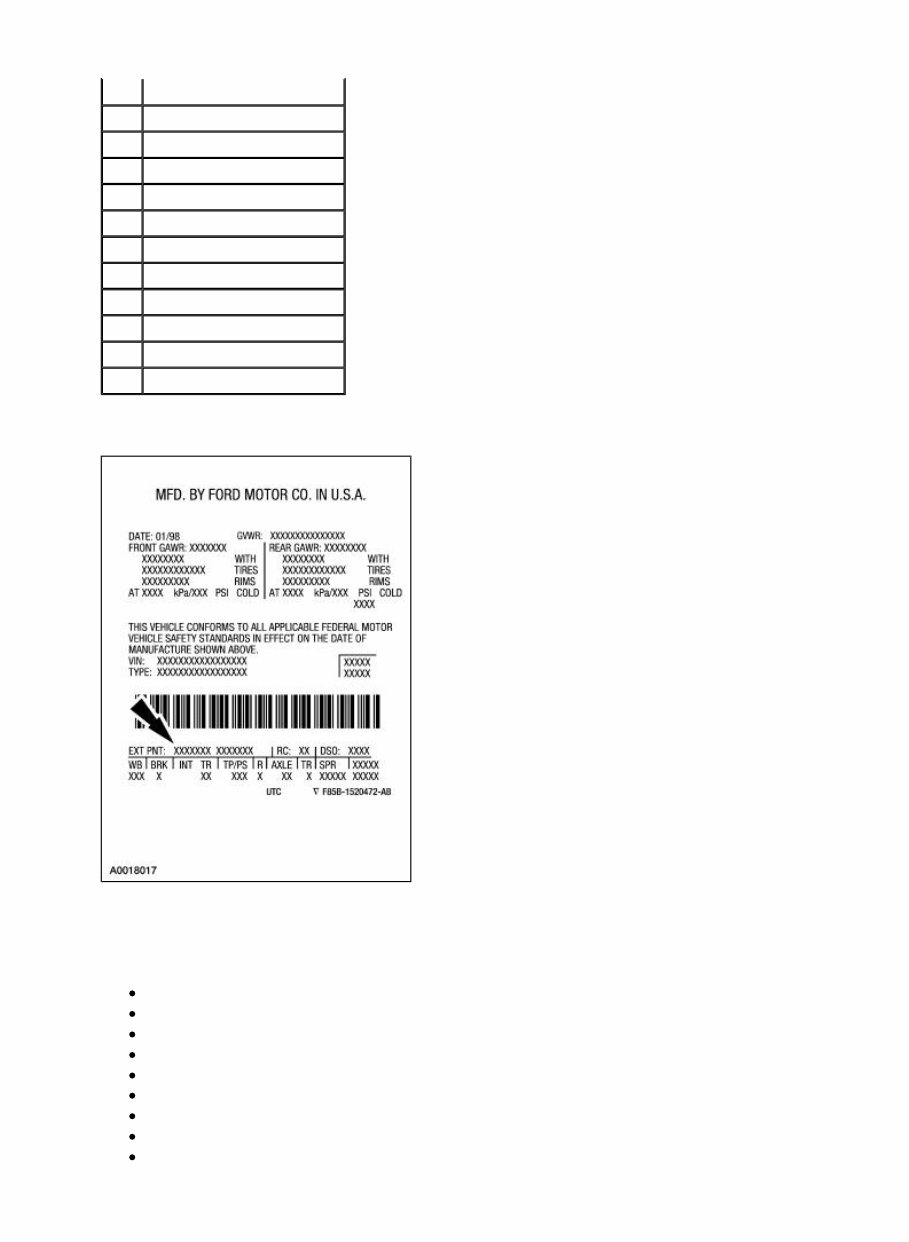

Paint Code Exterior paint codes may be listed as a two-part code. The first set of letters/numbers identify the vehicle primary body color. The second set of letters/number (if applicable) identify a two-tone or accent body color. AQ — Arizona Beige CX — Dark Shadow Gray (clear coat) E4 — Vermilion (clear coat) FL — Medium Toreador Red (clear coat) FU — Dark Satin Green (clear coat) SN — Sonic Blue (clear coat) UA — Ebony (clear coat) YN — Silver Metallic #2 (clear coat) YZ — Oxford White (clear coat) 1 Exterior paint code 2 Region code 3 Domestic special order code 4 Wheelbase code 5 Brake code 6 Interior trim code 7 Tape/paint pinstripe code 8 Radio code 9 Axle code 10 Transmission code 11 Spring code 12 Calibration numbering 03.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1396\S4L~us~en~file=S4L01001.htm~g...

Wheelbase 112 — 112-inch (2,845 mm) wheelbase 118 — 118-inch (2,997 mm) wheelbase 126 — 126-inch (3,200 mm) wheelbase Brake Type B — Four-wheel anti-lock brake system (ABS) 03.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1396\S4L~us~en~file=S4L01001.htm~g...

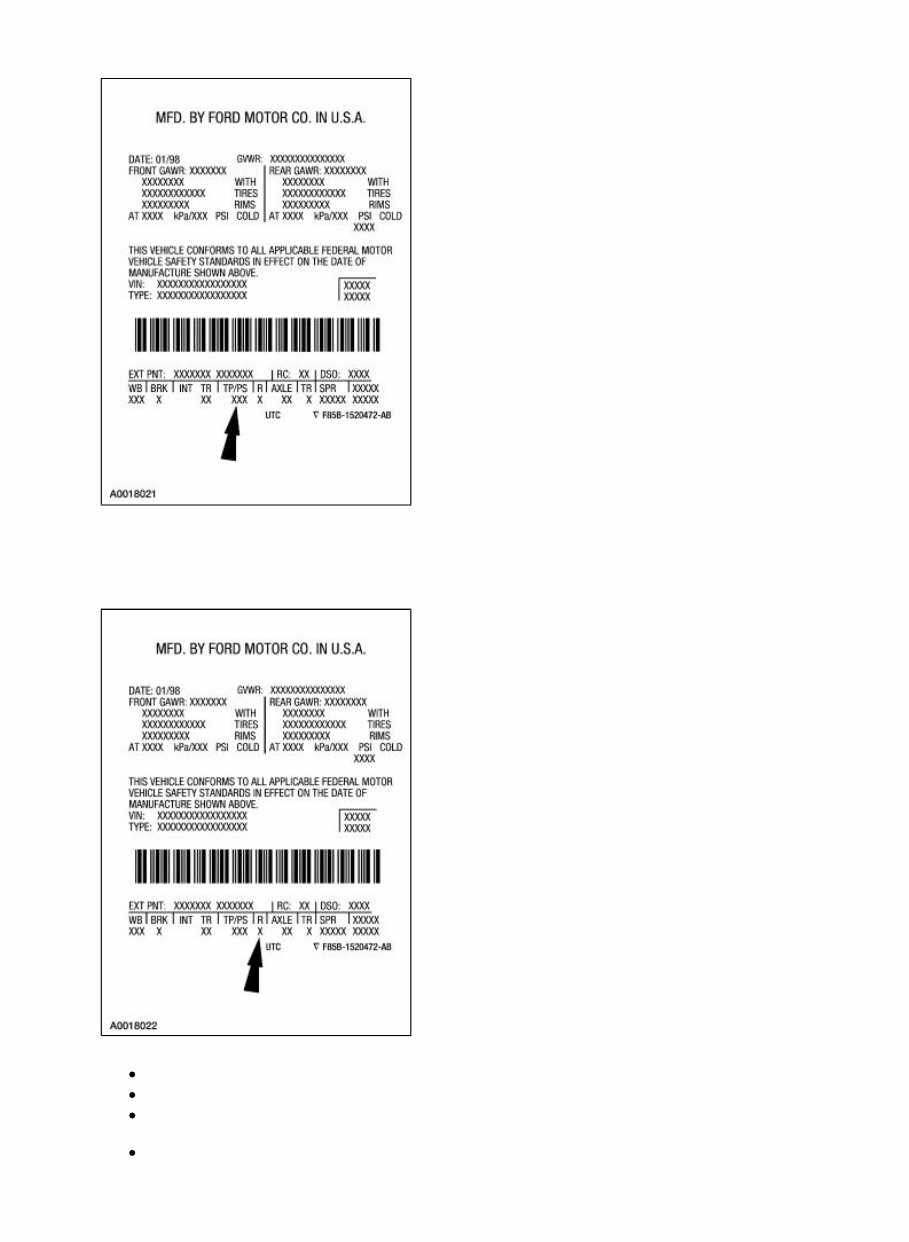

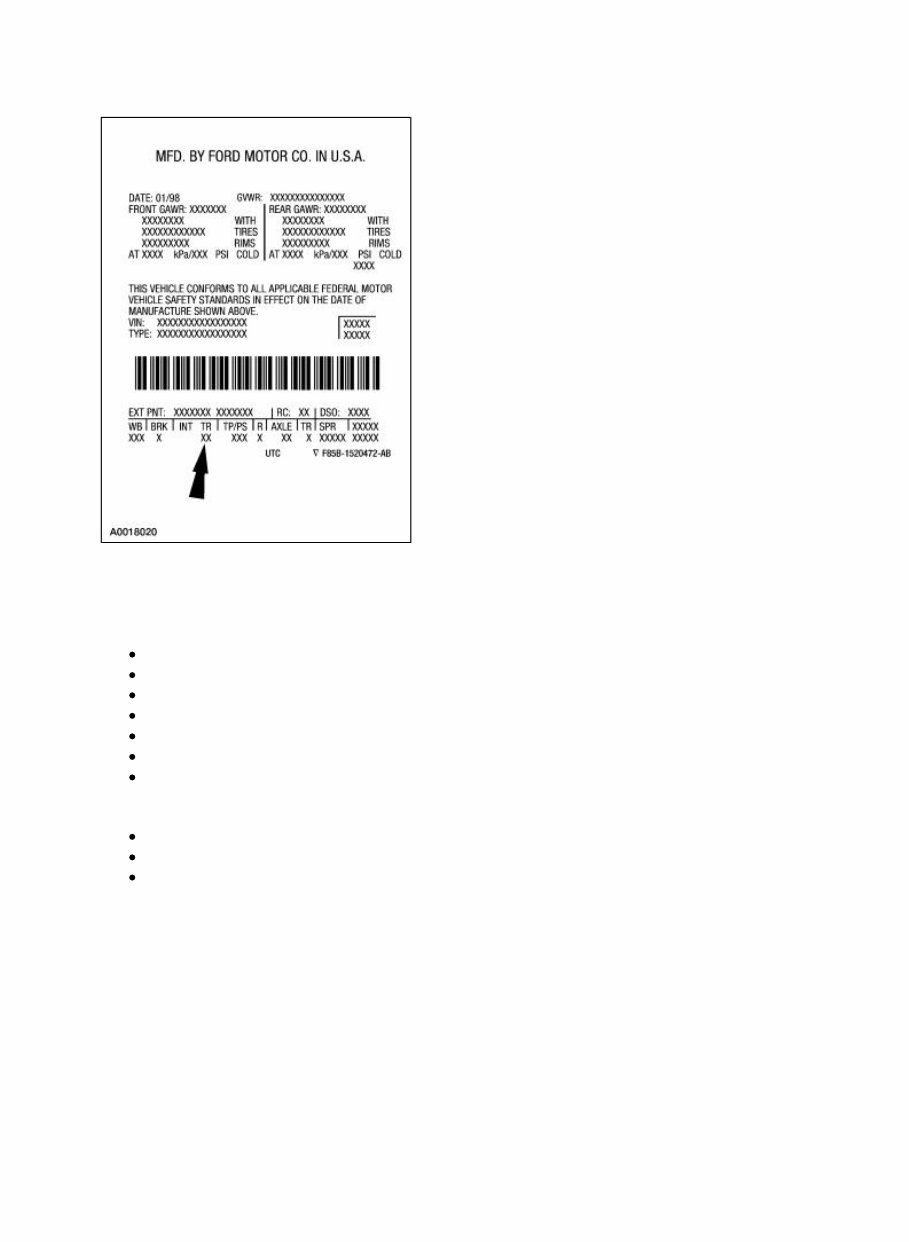

Interior Trim Interior trim codes are listed as a two-part code. The first code listed, identifies the trim level. The second code listed, identifies the interior trim color. Interior Trim Type L — Stockton cloth bucket seats M — Stockton 2 cloth bucket seats Q — Cenery grain vinyl split bench seat R — Brick cloth split bench seat S — Brick cloth bucket seats T — Imola leather split bench seat U — Imola leather bucket seats Interior Trim Color B — Ebony F — Medium/Dark Flint P — Medium Pebble Tape/Paint Stripe 03.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1396\S4L~us~en~file=S4L01001.htm~g...

Tape and paint stripe codes do not apply. Radio Type 7 — Electronic AM/FM stereo with clock B — Premium electronic AM/FM stereo with six-disc CD changer and MP3 capability E — Electronic AM/FM stereo with compact disc (CD) player and MP3 capability (audiophile sound system) P — AM/FM stereo with compact disc (CD) player and MP3 capability 03.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1396\S4L~us~en~file=S4L01001.htm~g...

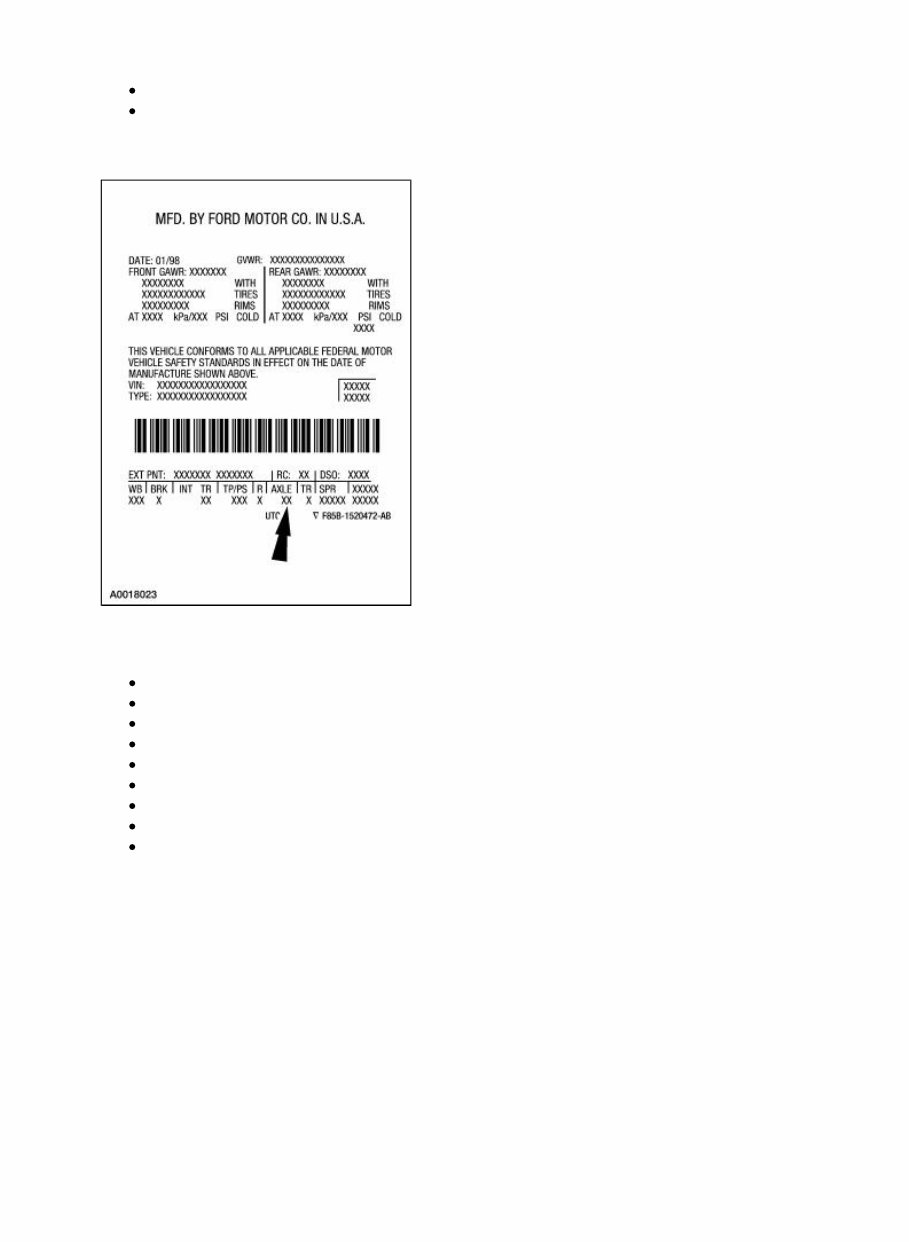

W — Premium electronic AM/FM stereo with cassette, compact disc (CD) player and clock Z — AM/FM stereo with compact disc (CD) player and clock Axle Code The following lists the gear ratios on axles. 86 — 3.73 non-limited slip (7.5-inch) 87 — 4.10 non-limited slip (7.5-inch) 95 — 3.55 non-limited slip (8.8-inch) 96 — 3.73 non-limited slip (8.8-inch) 97 — 4.10 non-limited slip (8.8-inch) F6 — 3.73 limited slip (7.5-inch) R5 — 3.55 limited slip (8.8-inch) R6 — 3.73 limited slip (8.8-inch) R7 — 4.10 limited slip (8.8-inch) Transmission Type 03.02.2002 file://C:\TSO\tsocache\SUPER10-45B629E_1396\S4L~us~en~file=S4L01001.htm~g...
