DESCRIPTION AND OPERATION Identification Codes The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted on the instrument panel top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label. Vehicle Identification Number The first three vehicle identification number (VIN) positions are the world manufacturer code. 1FT — Ford Motor Company, USA, truck, completed vehicle 1FD — Ford Motor Company, USA, incomplete vehicle 1FC — Ford Motor Company, USA, basic (stripped) chassis SECTION 100-01: Identification Codes 1999 F-Super Duty 250-550 Workshop Manual Item Description 1 World Manufacturer Identifier 2 Brake Type and Gross Vehicle Weight Rating (GVWR) 3 Vehicle Line, Series, Body Type 4 Engine Type 5 Check Digit 6 Model Year 7 Assembly Plant 8 Production Sequence Number 13.03. 2012 file:///C:/Ford/1996-1999/tsocache/SHEF_4560/SXO~us~en...

1FF — Ford Motor Company, USA, motor vehicle equipment without engine/powertrain (Glider) 3FC — Ford Motor Company, Mexico, basic (stripped) chassis 3FE — Ford Motor Company, Mexico, incomplete vehicle 3FT — Ford Motor Company, Mexico, truck, completed vehicle The fourth VIN position is the vehicle brake type and GVW code (all vehicles use hydraulic brakes). H — 8,501-9,000 pounds GVWR J — 9,001-10,000 pounds GVWR K — 10,001-14,000 pounds GVWR L — 14,001-16,000 pounds GVWR M — 16,001-19,501 pounds GVWR N — 19,501-26,000 pounds GVWR N — 8,501-9,000 pounds GVWR with second generation air bags S — 9,001-10,000 pounds GVWR with second generation air bags W — 10,001-14,000 pounds GVWR with second generation air bags X — 14,001-16,000 pounds GVWR with second generation air bags A — 16,001-19,500 pounds GVWR with second generation air bags Positions 5 through 7 indicate vehicle line, series and body type. F20 — F-250 Regular Cab, 4x2 (single rear wheels) F21 — F-250 Regular Cab, 4x4 (single rear wheels) X20 — F-250 SuperCab, 4x2 (single rear wheels) X21 — F-250 SuperCab, 4x4 (single rear wheels) 13.03. 2012 file:///C:/Ford/1996-1999/tsocache/SHEF_4560/SXO~us~en...

W20 — F-250 Crew Cab, 4x2 (single rear wheels) W21 — F-250 Crew Cab, 4x4 (single rear wheels) F30 — F-350 Regular Cab, 4x2 (single rear wheels) F31 — F-350 Regular Cab, 4x4 (single rear wheels) X30 — F-350 SuperCab, 4x2 (single rear wheels) X31 — F-350 SuperCab, 4x4 (single rear wheels) W30 — F-350 Crew Cab, 4x2 (single rear wheels) W31 — F-350 Crew Cab, 4x4 (single rear wheels) F32 — F-350 Regular Cab, 4x2 (dual rear wheels) F33 — F-350 Regular Cab, 4x4 (dual rear wheels) X32 — F-350 SuperCab, 4x2 (dual rear wheels) X33 — F-350 SuperCab, 4x4 (dual rear wheels) W32 — F-350 Crew Cab, 4x2 (dual rear wheels) W33 — F-350 Crew Cab, 4x4 (dual rear wheels) F34 — F-350 Chassis Cab (Regular Cab), 4x2 (single rear wheels) F35 — F-350 Chassis Cab (Regular Cab), 4x4 (single rear wheels) X34 — F-350 Chassis Cab (SuperCab), 4x2 (single rear wheels) X35 — F-350 Chassis Cab (SuperCab), 4x4 (single rear wheels) W34 — F-350 Chassis Cab (Crew Cab), 4x2 (single rear wheels) W35 — F-350 Chassis Cab (Crew Cab), 4x4 (single rear wheels) F36 — F-350 Chassis Cab (Regular Cab), 4x2 (dual rear wheels) F37 — F-350 Chassis Cab (Regular Cab), 4x4 (dual rear wheels) X36 — F-350 Chassis Cab (SuperCab), 4x2 (dual rear wheels) X37 — F-350 Chassis Cab (SuperCab), 4x4 (dual rear wheels) W36 — F-350 Chassis Cab (Crew Cab), 4x2 (dual rear wheels) W37 — F-350 Chassis Cab (Crew Cab), 4x4 (dual rear wheels) F46 — F-450 Chassis Cab (Regular Cab), 4x2 (dual rear wheels) F47 — F-450 Chassis Cab (Regular Cab), 4x4 (dual rear wheels) W46 — F-450 Chassis Cab (Crew Cab), 4x2 (dual rear wheels) W47 — F-450 Chassis Cab (Crew Cab), 4x4 (dual rear wheels) F56 — F-550 Chassis Cab (Regular Cab), 4x2 (dual rear wheels) F57 — F-550 Chassis Cab (Regular Cab), 4x4 (dual rear wheels) W56 — F-550 Chassis Cab (Crew Cab), 4x2 (dual rear wheels) W57 — F-550 Chassis Cab (Crew Cab), 4x4 (dual rear wheels) F53 — Recreational Stripped Chassis (Motorhome) 13.03. 2012 file:///C:/Ford/1996-1999/tsocache/SHEF_4560/SXO~us~en...

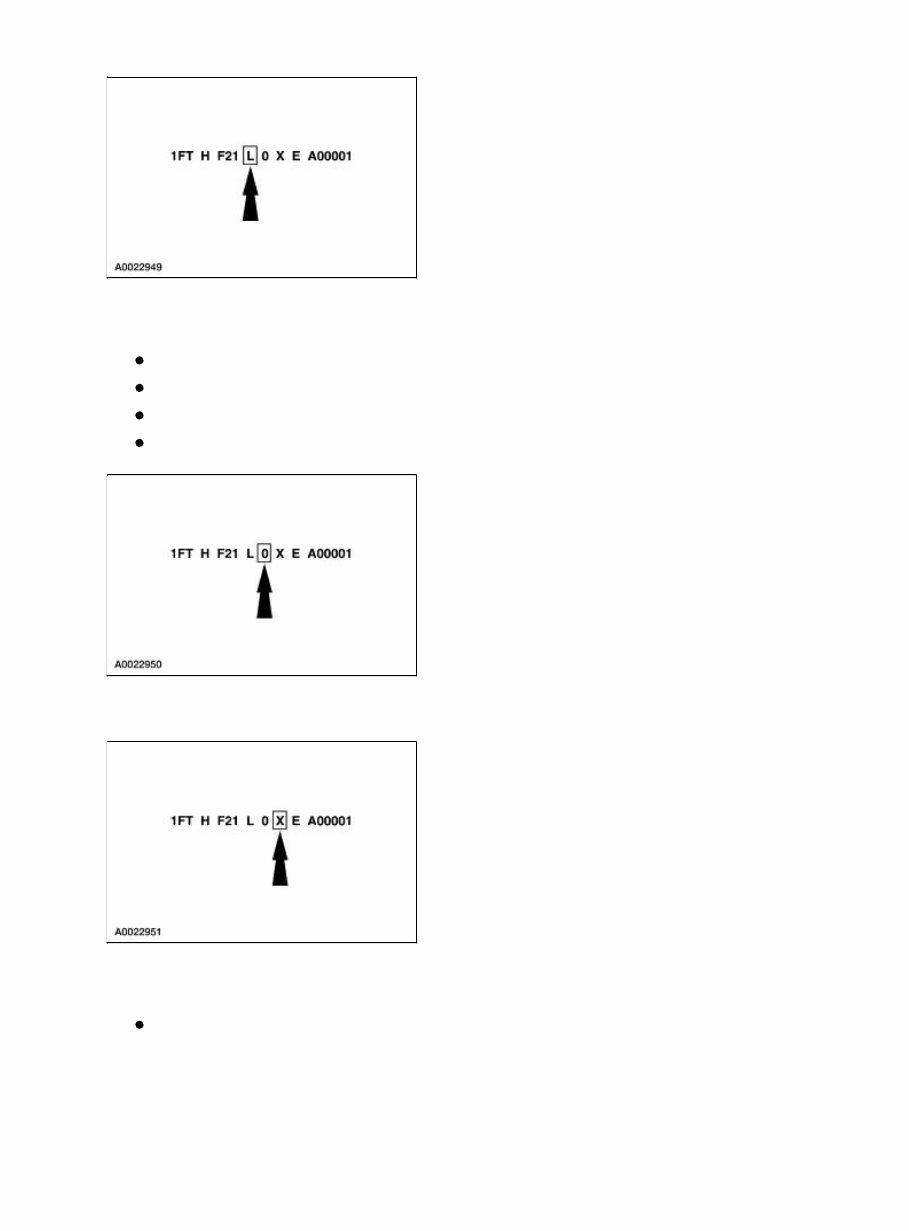

The eighth VIN position is the engine displacement and number of cylinders. S — 6.8L SOHC, EFI, V10, Gas F — 7.3L OHV, DI Turbo, V8, Diesel 2 — 4.2L OHV, EFI, V6, Gas L — 5.4L, 2V, SOHC, EFI, V8, Gas The ninth VIN position is a check digit. The tenth VIN position is the model year code. X — 1999 13.03. 2012 file:///C:/Ford/1996-1999/tsocache/SHEF_4560/SXO~us~en...

The eleventh VIN position is the assembly plant code. S — Allen Park (Allen Park, Michigan) E — Kentucky Truck (Jefferson County, Kentucky) J — IMMSA (Monterrey, Mexico) M — Cuautitlan (Cuautitlan, Mexico) The last six VIN positions are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. A00001-E99999 Vehicle Certification (VC) Label 13.03. 2012 file:///C:/Ford/1996-1999/tsocache/SHEF_4560/SXO~us~en...

The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement, and the VIN. It also includes gross vehicle weight ratings (GVWR). Vehicle Certification (VC) Label — Canada (Typical) Item Description 1 Exterior Paint Code 2 Region Code 3 Domestic Special Order Code 4 Wheel Base Code 5 Brake Code 6 Interior Trim Code 7 Tape/Paint Pinstripe Code 8 Radio Code 9 Axle Code 10 Transmission Code 11 Spring Code 13.03. 2012 file:///C:/Ford/1996-1999/tsocache/SHEF_4560/SXO~us~en...

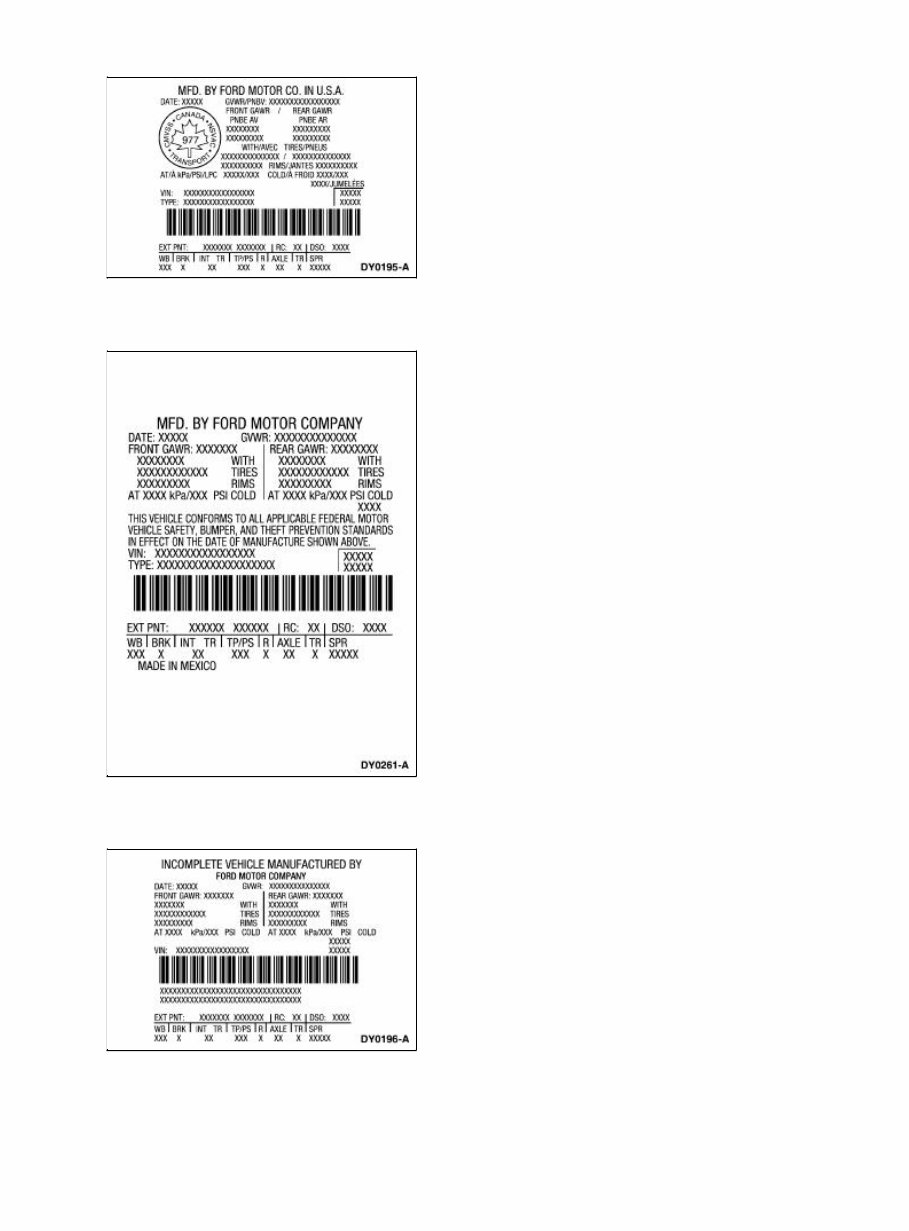

Vehicle Certification (VC) Label — Mexico (Typical) Vehicle Certification (VC) Label — Incomplete Vehicle (Typical) Paint Codes Refer to the paint manufacturer code book for information. Radio Codes 13.03. 2012 file:///C:/Ford/1996-1999/tsocache/SHEF_4560/SXO~us~en...

7 — AM/FM stereo with clock 9 — AM/FM stereo cassette and clock K — AM /FM stereo cassette with CD player Y — Delete standard radio with clock G — Delete radio chassis only, AM/FM stereo, all other components installed R — Delete radio chassis only, AM/FM cassette, all other components installed E — Install Unique Gulf Coast Country Radio Axle Codes The following lists the gear ratios on rear axles. 31 — 3.73 non-limited slip, F-250, single rear wheels 32 — 4.10 non-limited slip, F-250, single rear wheels 33 — 4.30 non-limited slip, F-250, single rear wheels 36 — 4.56 non-limited slip, F-250, single rear wheels C1 — 3.73 limited slip, F-250, single rear wheels C2 — 4.10 limited slip, F-250, single rear wheels C3 — 4.30 limited slip, F-250, single rear wheels C6 — 4.56 limited slip, F-250, single rear wheels 41 — 3.73 non-limited slip, F-350, single rear wheels 42 — 4.10 non-limited slip, F-350, single rear wheels 43 — 4.30 non-limited slip, F-350, single rear wheels 46 — 4.56 non-limited slip, F-350, single rear wheels D1 — 3.73 limited slip, F-350, single rear wheels D2 — 4.10 limited slip, F-350, single rear wheels D3 — 4.30 limited slip, F-350, single rear wheels D6 — 4.56 limited slip, F-350, single rear wheels 61 — 3.73 non-limited slip, F-350, dual rear wheels 62 — 4.10 non-limited slip, F-350, dual rear wheels 63 — 4.30 non-limited slip, F-350, dual rear wheels 66 — 4.56 non-limited slip, F-350, dual rear wheels F1 — 3.73 limited slip, F-350, dual rear wheels F2 — 4.10 limited slip, F-350, dual rear wheels F3 — 4.30 limited slip, F-350, dual rear wheels F6 — 4.56 limited slip, F-350, dual rear wheels 81 — 3.73 non-limited slip, F-350, narrow frame, dual rear wheels 82 — 4.10 non-limited slip, F-350, narrow frame, dual rear wheels 83 — 4.30 non-limited slip, F-350, narrow frame, dual rear wheels 86 — 4.56 non-limited slip, F-350, narrow frame, dual rear wheels 88 — 4.88 non-limited slip, F-350, narrow frame, dual rear wheels 13.03. 2012 file:///C:/Ford/1996-1999/tsocache/SHEF_4560/SXO~us~en...

E1 — 3.73 limited slip, F-350, narrow frame, dual rear wheels E2 — 4.10 limited slip, F-350, narrow frame, dual rear wheels EW — 4.10 limited slip, F-350, narrow frame, dual rear wheels E3 — 4.30 limited slip, F-350, narrow frame, dual rear wheels E6 — 4.56 limited slip, F-350, narrow frame, dual rear wheels 78 — 4.88 non-limited slip, F-450, Chassis Cab, dual rear wheels 75 — 5.38 non-limited slip, F-450, Chassis Cab, dual rear wheels G8 — 4.88 limited slip, F-450, Chassis Cab, dual rear wheels G5 — 5.38 limited slip, F-450, Chassis Cab, dual rear wheels GW — 4.10 limited slip, F-450, Chassis Cab, dual rear wheels 98 — 4.88 non-limited slip, F-550, Chassis Cab, dual rear wheels 95 — 5.38 non-limited slip, F-550, Chassis Cab, dual rear wheels K8 — 4.88 limited slip, F-550, Chassis Cab, dual rear wheels K5 — 5.38 limited slip, F-550, Chassis Cab, dual rear wheels KW — 4.10 limited slip, F-550, Chassis Cab, dual rear wheels 75 — Dana 80, 11,000 pounds GVWR, F53 Recreational Stripped Chassis, Motorhome 95 — Dana 135, 13,500 pounds GVWR, F53 Recreational Stripped Chassis, Motorhome Transmission Codes B — Four-speed manual, T199, (Mexico) W — Five-speed manual, heavy-duty overdrive (Dana ZF) E — Four-speed automatic overdrive (4R100) 6 — Six-speed manual ZF (M6HD-6) M — Five-speed manual overdrive Mazda (M5R2-C) E — Automatic (4R100) Expedition/Navigator (5.4L engine), F53 Recreational Stripped Chassis, Motorhome Spring Codes The following lists available spring codes. Front Springs Base part number — 5310 (RH/LH) Rear Springs Base part number — 5560 C — 5588, auxiliary rear spring D — 5588, auxiliary rear spring Interior Trim Codes The following lists the interior trim and interior color codes. 13.03. 2012 file:///C:/Ford/1996-1999/tsocache/SHEF_4560/SXO~us~en...

Interior Trim V — Vinyl bench K — Knitted vinyl bench C — Cloth bench F — Flight bench (Mexico only) M — Full bench (Mexico only) 3 — Cloth 40/20/40 8 — Leather 40/20/40 2 — Cloth captains chairs 4 — Leather captains chairs 5 — Leather quad captains chairs Interior Color Codes X — Medium Prairie Tan 2 — Medium Graphite D — Denim Blue Tape Stripe Codes S — Silver Metallic/Dark Violet/Bright Green (XLT) V — Prairie Tan/Dark Violet/Burnt Orange (Lariat) W — Cordovan (Super Crew Appearance Package) X — Ebony/Dark Violet/Burnt Orange (Lariat) D — Silver Metallic/Medium Platinum Metallic (XL and XLT) 13.03. 2012 file:///C:/Ford/1996-1999/tsocache/SHEF_4560/SXO~us~en...
