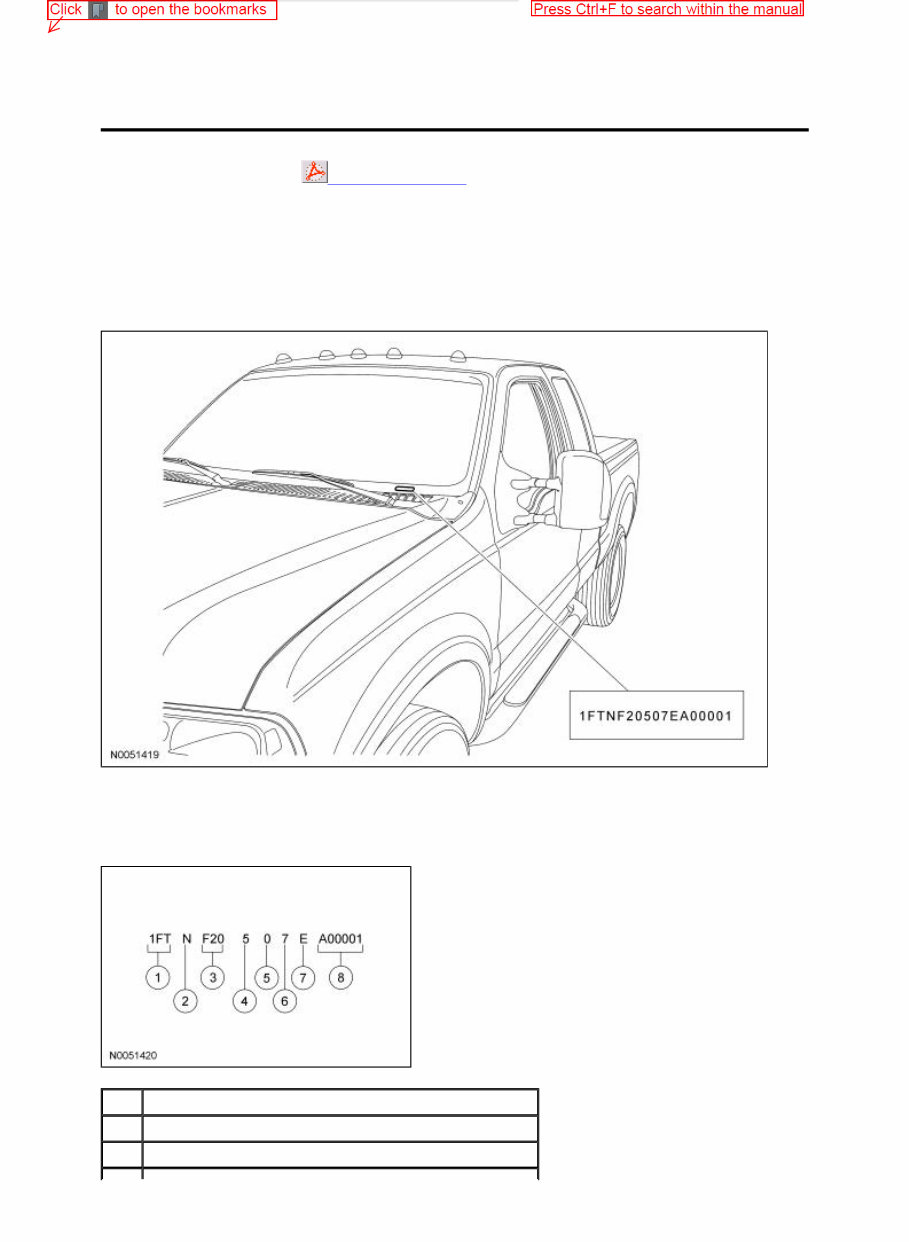

Identification Codes Printable View (702 KB) Vehicle Identification Number (VIN) Vehicle Identification Number (VIN) Location The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN is also found on the vehicle certification (VC) label. SECTION 100-01: Identification Codes 2007 F-Super Duty 250-550 Workshop Manual DESCRIPTION AND OPERATION Procedure revision date: 05/11/2006 Item Description 1 World manufacturer identifier (WMI) 2 Brake type and gross vehicle weight rating (GVWR) code 13.12.2002 file://C:\TSO\tsocache\SUPER10-45B629E_3932\S7O~us~en~file=S7O01001.htm~g...

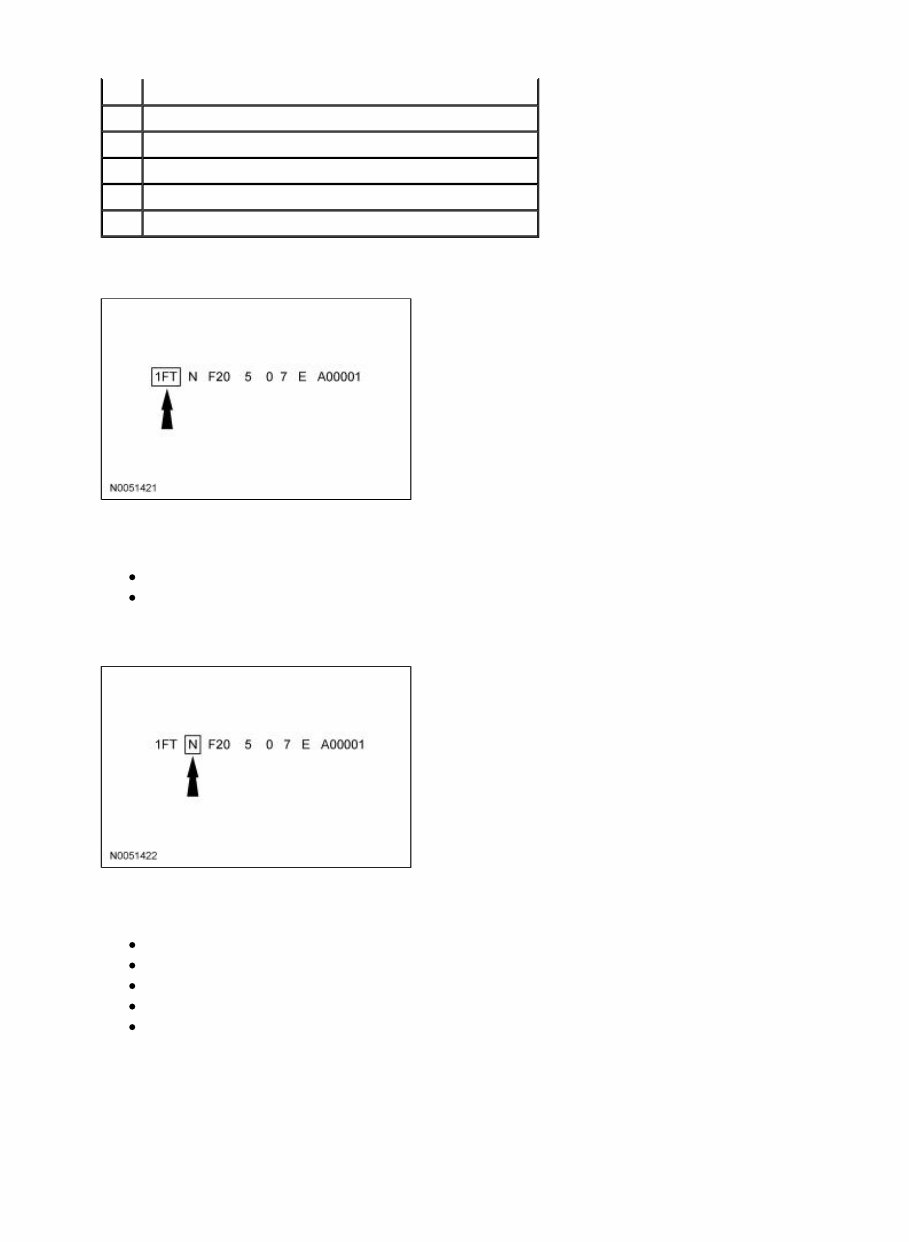

World Manufacturer Identifier (WMI) The first 3 vehicle identification number (VIN) positions are the world manufacturer code. 1FD — Ford Motor Company, USA, incomplete vehicle 1FT — Ford Motor Company, USA, truck, completed vehicle Brake Type and Gross Vehicle Weight Rating (GVWR) The fourth VIN position is the vehicle brake type and GVWR code (all vehicles use hydraulic brakes). N — 8,501-9,000 pounds GVWR with driver and front passenger air bags S — 9,001-10,000 pounds GVWR with driver and front passenger air bags W — 10,001-14,000 pounds GVWR with driver and front passenger air bags X — 14,001-16,000 pounds GVWR with driver and front passenger air bags A — 16,001-19,500 pounds GVWR with driver and front passenger air bags Vehicle Line, Series and Body Type 3 Vehicle line, series and body-type code 4 Engine-type code 5 Government-assigned, computer-generated check digit 6 Model year code 7 Assembly plant code 8 Production sequence number 13.12.2002 file://C:\TSO\tsocache\SUPER10-45B629E_3932\S7O~us~en~file=S7O01001.htm~g...

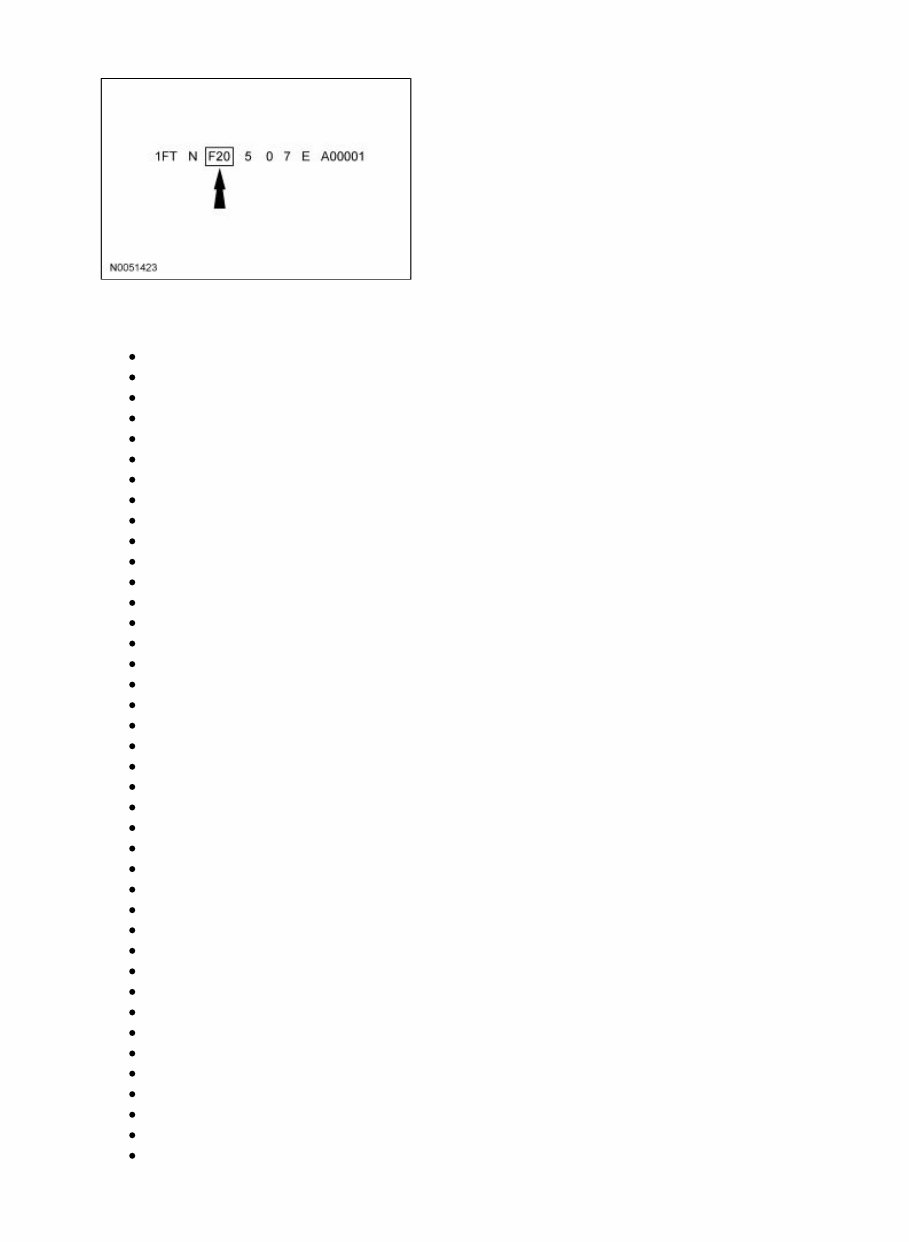

Positions 5 through 7 indicate vehicle line, series and body type. F20 — F-250, Regular Cab, rear wheel drive (RWD), single rear wheels F21 — F-250, Regular Cab, four wheel drive (4WD), single rear wheels F30 — F-350, Regular Cab, RWD, single rear wheels F31 — F-350, Regular Cab, 4WD, single rear wheels F32 — F-350, Regular Cab, RWD, dual rear wheels F33 — F-350, Regular Cab, 4WD, dual rear wheels F34 — F-350, Regular Cab (Chassis Cab), RWD, single rear wheels F35 — F-350, Regular Cab (Chassis Cab), 4WD, single rear wheels F36 — F-350, Regular Cab (Chassis Cab), RWD, dual rear wheels F37 — F-350, Regular Cab (Chassis Cab), 4WD, dual rear wheels F46 — F-450, Regular Cab (Chassis Cab), RWD, dual rear wheels F47 — F-450, Regular Cab (Chassis Cab), 4WD, dual rear wheels F56 — F-550, Regular Cab (Chassis Cab), RWD, dual rear wheels F57 — F-550, Regular Cab (Chassis Cab), 4WD, dual rear wheels W20 — F-250, Crew Cab, RWD, single rear wheels W21 — F-250, Crew Cab, 4WD, single rear wheels W30 — F-350, Crew Cab, RWD, single rear wheels W31 — F-350, Crew Cab, 4WD, single rear wheels W32 — F-350, Crew Cab, RWD, dual rear wheels W33 — F-350, Crew Cab, 4WD, dual rear wheels W34 — F-350, Crew Cab (Chassis Cab), RWD, single rear wheels W35 — F-350, Crew Cab (Chassis Cab), 4WD, single rear wheels W36 — F-350, Crew Cab (Chassis Cab), RWD, dual rear wheels W37 — F-350, Crew Cab (Chassis Cab), 4WD, dual rear wheels W46 — F-450, Crew Cab (Chassis Cab), RWD, dual rear wheels W47 — F-450, Crew Cab (Chassis Cab), 4WD, dual rear wheels W56 — F-550, Crew Cab (Chassis Cab), RWD, dual rear wheels W57 — F-550, Crew Cab (Chassis Cab), 4WD, dual rear wheels X20 — F-250, SuperCab, RWD, single rear wheels X21 — F-250, SuperCab, 4WD, single rear wheels X30 — F-350, SuperCab, RWD, single rear wheels X31 — F-350, SuperCab, 4WD, single rear wheels X32 — F-350, SuperCab, RWD, dual rear wheels X33 — F-350, SuperCab, 4WD, dual rear wheels X34 — F-350, SuperCab (Chassis Cab), RWD, single rear wheels X35 — F-350, SuperCab (Chassis Cab), 4WD, single rear wheels X36 — F-350, SuperCab (Chassis Cab), RWD, dual rear wheels X37 — F-350, SuperCab (Chassis Cab), 4WD, dual rear wheels X46 — F-450, SuperCab (Chassis Cab), RWD, dual rear wheels X47 — F-450, SuperCab (Chassis Cab), 4WD, dual rear wheels 13.12.2002 file://C:\TSO\tsocache\SUPER10-45B629E_3932\S7O~us~en~file=S7O01001.htm~g...

X56 — F-550, SuperCab (Chassis Cab), RWD, dual rear wheels X57 — F-550, SuperCab (Chassis Cab), 4WD, dual rear wheels Engine Code The eighth VIN position is the engine displacement and number of cylinders. 5 — 5.4L, Modular, 3V, SOHC, EFI, V8, gas L — 5.4L, Modular, SOHC, EFI, V8, gas (Mexico market) P — 6.0L, OHV, DI Turbo, V8, Diesel S — 6.8L, SOHC, EFI, V10, gas (Mexico market) Y — 6.8L, 3V, EFI, V10, gas Check Digit Code The ninth VIN position is a government-assigned, computer-generated check digit. Model Year Code The tenth VIN position is the model year code. 13.12.2002 file://C:\TSO\tsocache\SUPER10-45B629E_3932\S7O~us~en~file=S7O01001.htm~g...

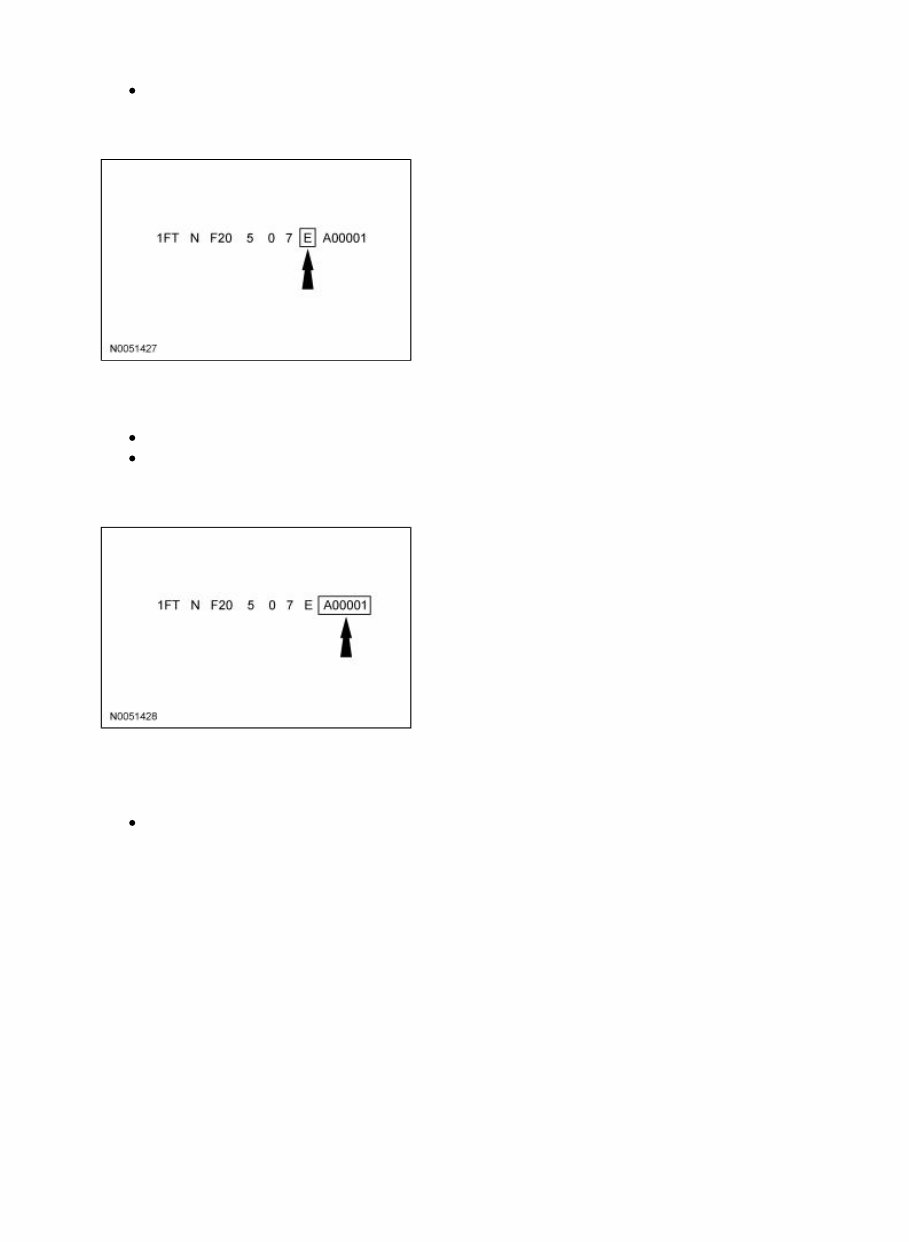

7 — 2007 Assembly Plant Code The eleventh VIN position is the assembly plant code. E — Kentucky Truck (Jefferson County, Kentucky — USA) M — Cautitlan Assembly (Cautitlan, Mexico) — Mexico market Sequential Build Code The last 6 VIN positions are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. A00001-F99999 — Ford Division Vehicle Certification (VC) Label Vehicle Certification (VC) Label Location 13.12.2002 file://C:\TSO\tsocache\SUPER10-45B629E_3932\S7O~us~en~file=S7O01001.htm~g...

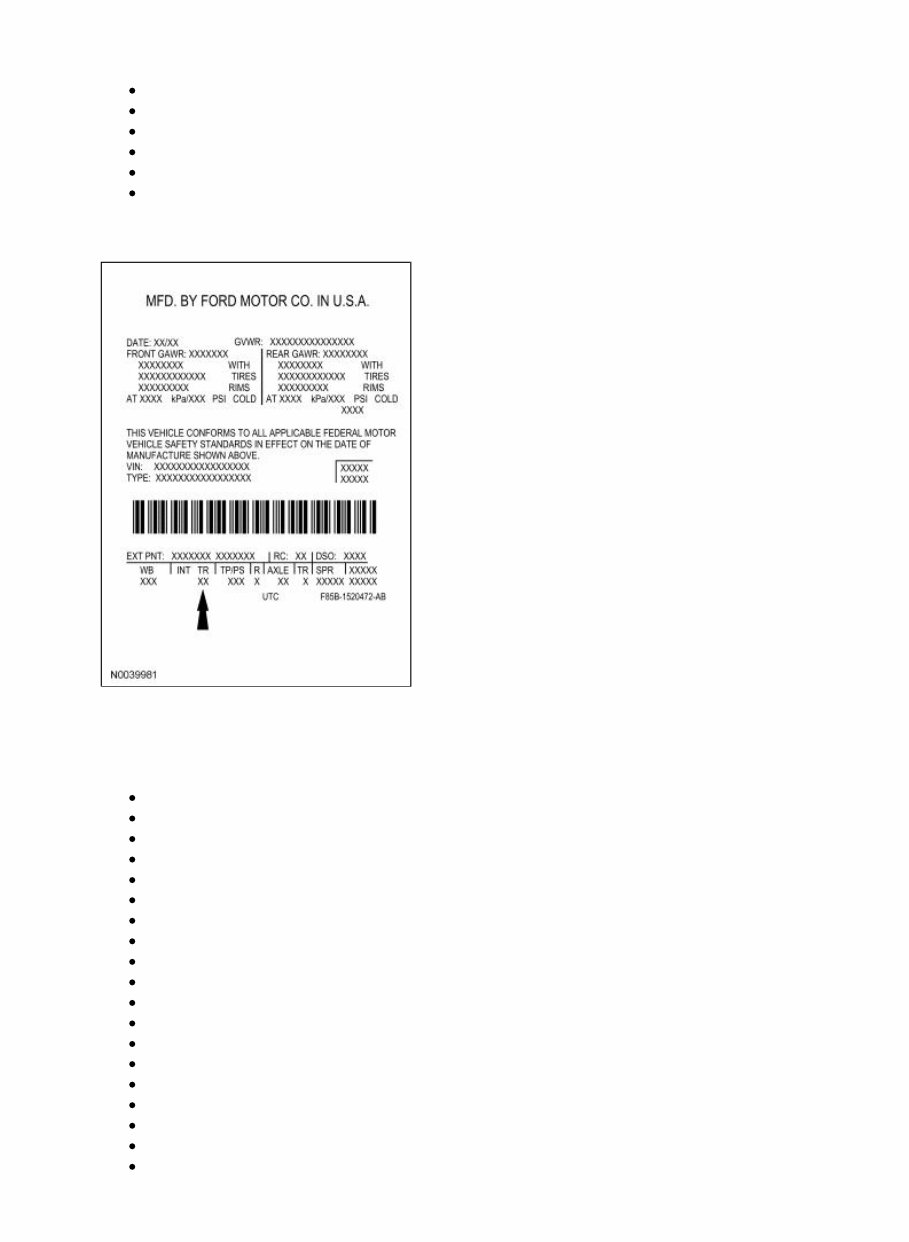

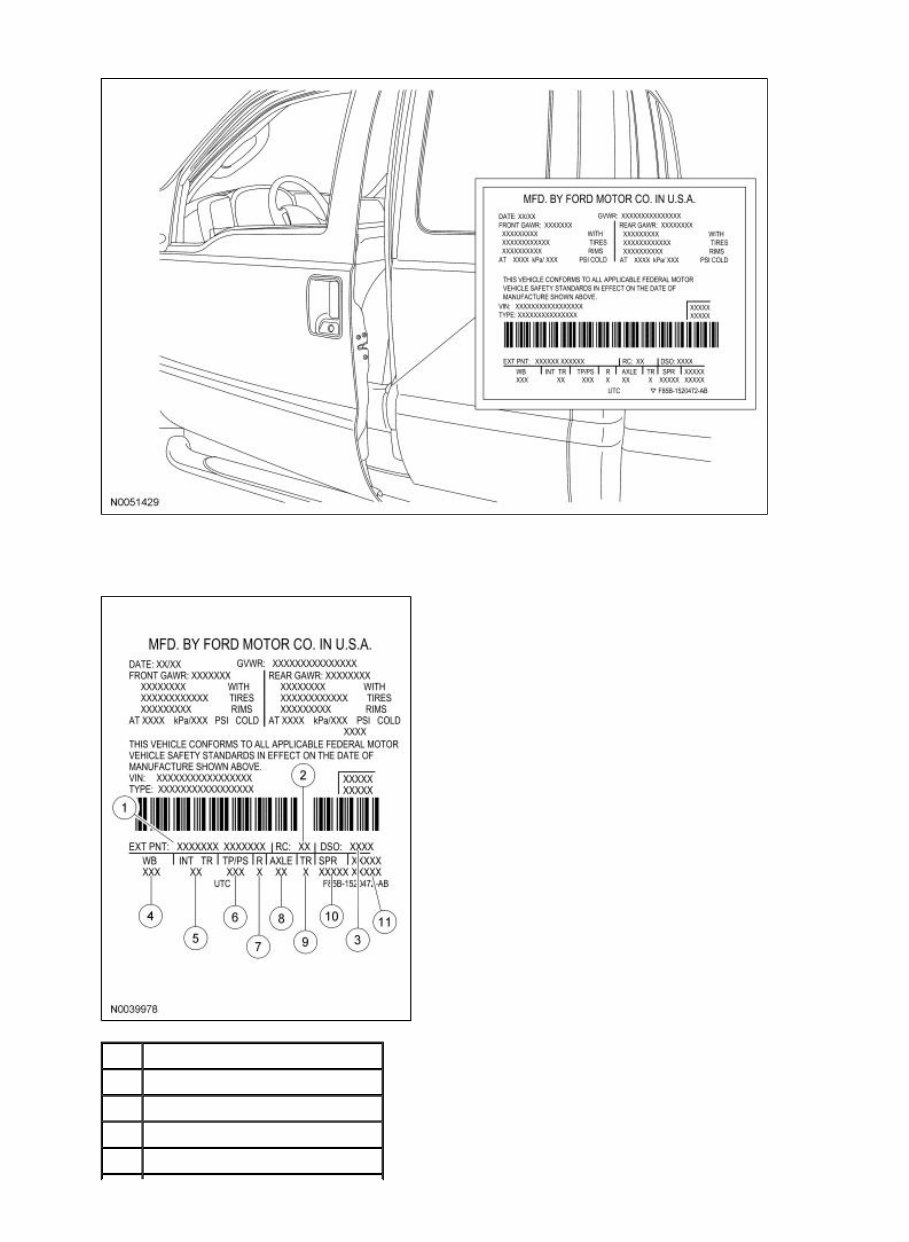

The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight ratings (GVWR). Item Description 1 Exterior Paint Code 2 Region Code 3 Domestic Special Order Code 4 Wheelbase Code 13.12.2002 file://C:\TSO\tsocache\SUPER10-45B629E_3932\S7O~us~en~file=S7O01001.htm~g...

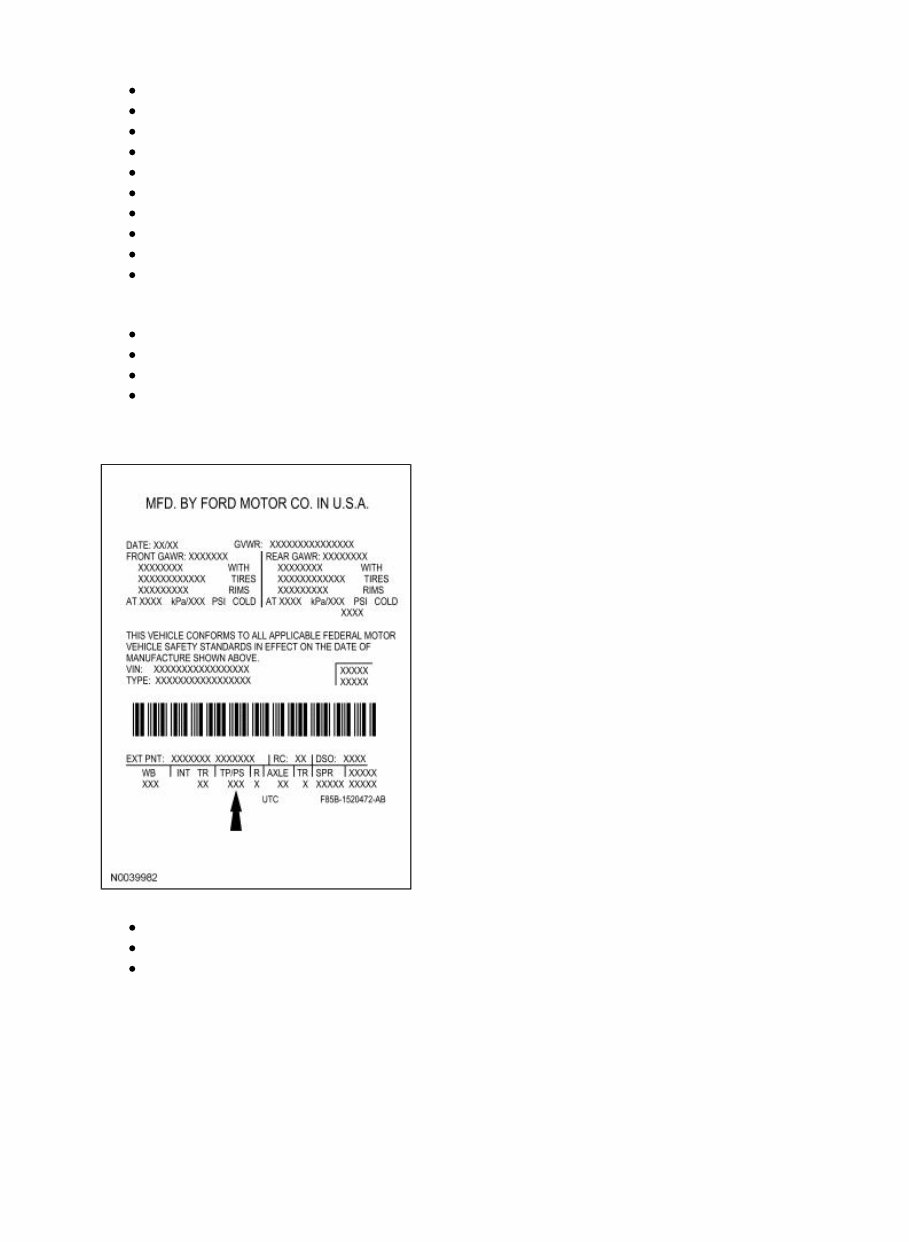

Vehicle Certification (VC) Label — Incomplete Vehicle (Typical) Paint Code Exterior paint codes may be listed as a 2-part code. The first set of characters listed indicate the vehicle primary body color code. The second set of characters listed (if applicable) indicate a 2-tone or accent body color code. Primary Body Color AQ — Arizona Beige (clear coat) CX — Dark Shadow Gray (clear coat) 5 Interior Trim Code 6 Tape/Paint Pinstripe Code 7 Radio Code 8 Axle Code 9 Transmission Code 10 Spring Code 11 Powertrain Calibration Information 13.12.2002 file://C:\TSO\tsocache\SUPER10-45B629E_3932\S7O~us~en~file=S7O01001.htm~g...

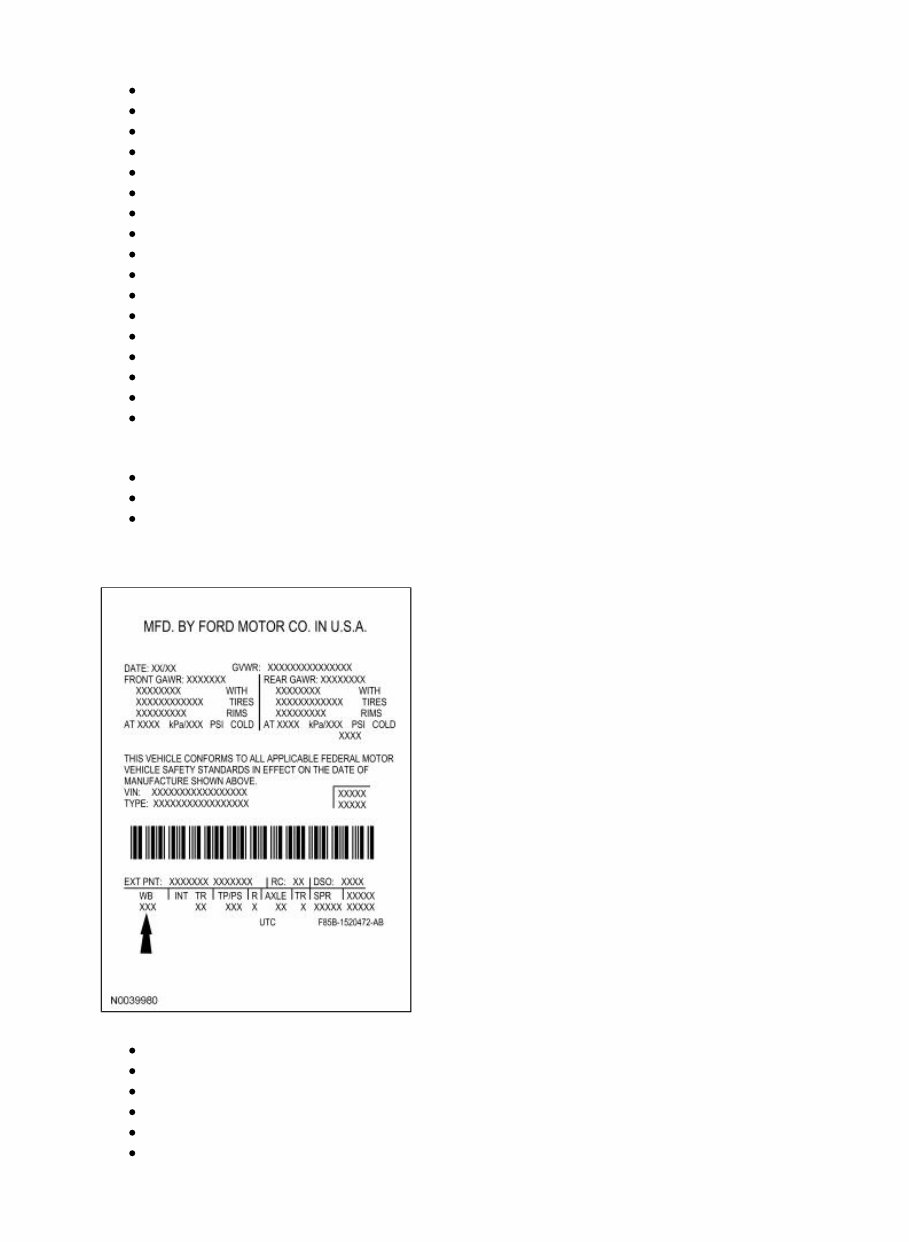

E4 — Vermilion Red (clear coat) — Mexico market F1 — Vermilion Red (waterborne) clear coat FL — Medium Toreador Red (clear coat) — Mexico market FW — Dark Satin Green (waterborne) clear coat JM — Dark Toreador Red (waterborne) clear coat L2 — True Blue (waterborne) clear coat LD — Medium Wedgewood Blue (clear coat) P — Stripped chassis paint (DSO) P5 — Aspen Green (clear coat) — Mexico market T5 — Dark Copper (waterborne) clear coat T7 — Charcoal Beige (waterborne) clear coat UA — Ebony (clear coat) — Mexico market UD — Ebony (waterborne) clear coat YN — Silver Metallic (clear coat) — Mexico market YZ — Oxford White (clear coat) — Mexico market Z1 — Oxford White (waterborne) clear coat Z3 — Silver Metallic (waterborne) clear coat 2-Tone Color AQ — Arizona Beige (clear coat) UD — Ebony (waterborne) clear coat Z3 — Silver Metallic (waterborne) clear coat Wheelbase 137 — 137 inch (3,480 mm) wheelbase 141 — 141 inch (3,581 mm) wheelbase 142 — 142 inch (3,607 mm) wheelbase 156 — 156 inch (3,962 mm) wheelbase 158 — 158 inch (4,013 mm) wheelbase 162 — 162 inch (4,115 mm) wheelbase 13.12.2002 file://C:\TSO\tsocache\SUPER10-45B629E_3932\S7O~us~en~file=S7O01001.htm~g...

165 — 165 inch (4,191 mm) wheelbase 172 — 172 inch (4,369 mm) wheelbase 176 — 176 inch (4,470 mm) wheelbase 189 — 189 inch (4,795 mm) wheelbase 200 — 200 inch (5,085 mm) wheelbase 201 — 201 inch (5,105 mm) wheelbase Interior Trim Interior trim codes are listed as a 2-part code. The first character listed identifies the trim type. The second character listed identifies the interior trim color. Interior Trim Type 1 — Imola/Milled Pebble leather captain's chairs 2 — Brick cloth captain's chairs 3 — Brick cloth 40/20/40 bench seat 4 — Imola leather captain's chairs 6 — Brick cloth captain's chairs with integrated restraints 7 — Imola leather captain's chairs with integrated restraints 8 — Imola leather 40/20/40 bench seat 9 — Imola leather 40/20/40 bench seat with integrated restraints A — Quad captains chairs — Harley Davidson edition B — Dual captains chairs w/rear bench seat — Harley Davidson edition C — Links cloth bench seat D — Brick cloth 40/20/40 bench seat with integrated restraints F — Dillon cloth flight bench seat G — Links cloth high back bucket seats H — Captains cloth/vinyl weave high back bucket seats I — Brick cloth 40/20/40 bench seat J — G-Grain vinyl high back bucket seats K — Captains cloth/vinyl weave bench seat L — Links cloth 40/20/40 bench seat with integrated restraints 13.12.2002 file://C:\TSO\tsocache\SUPER10-45B629E_3932\S7O~us~en~file=S7O01001.htm~g...

M — Captains cloth unique XLT/Sport seat with integrated restraints P — Imola/Milled Pebble leather unique XLT/Sport captain's chairs with integrated restraints Q — Brick cloth captain's chairs R — King Ranch leather quad captains chairs S — King Ranch leather captain's chairs T — G-Grain vinyl 40/20/40 bench seat V — G-Grain vinyl bench seat W — Links cloth 40/20/40 bench seat X — Links cloth captain's chairs Y — Imola/Milled Pebble leather captain's chairs Interior Trim Color B — Ebony D — Dark Flint E — Medium Flint H — Medium Pebble Tape/Paint Stripe D — Light Argent/Medium Platinum/Light Argent E — Arizona Beige/Deep Sandalwood/Arizona Beige R — Vermilion Red/Ebony/Vermilion Red Radio Type 13.12.2002 file://C:\TSO\tsocache\SUPER10-45B629E_3932\S7O~us~en~file=S7O01001.htm~g...
