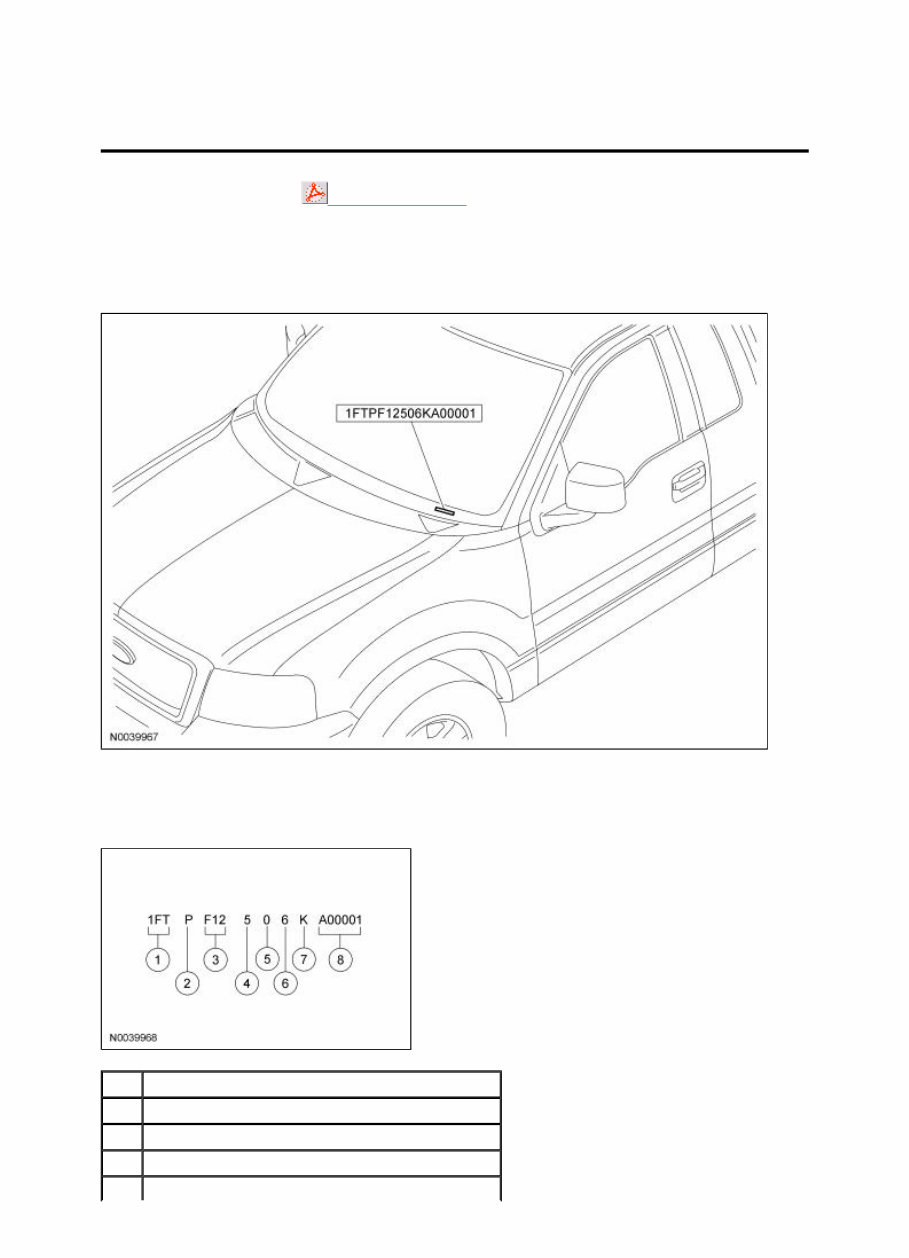

Identification Codes Printable View (580 KB) Vehicle Identification Number Vehicle Identification Number (VIN) Tag Locator The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted on the instrument panel, top upper left of the dash. The VIN is also found on the vehicle certification (VC) label. SECTION 100-01: Identification Codes 2006 F-150/Mark LT Workshop Manual DESCRIPTION AND OPERATION Procedure revision date: 06/29/2005 Item Description 1 World manufacturer identifier 2 Brake type and gross vehicle weight rating (GVWR) 3 Vehicle line, series, body type Page 1 of 16 2006 F-150/Mark LT Workshop Manual

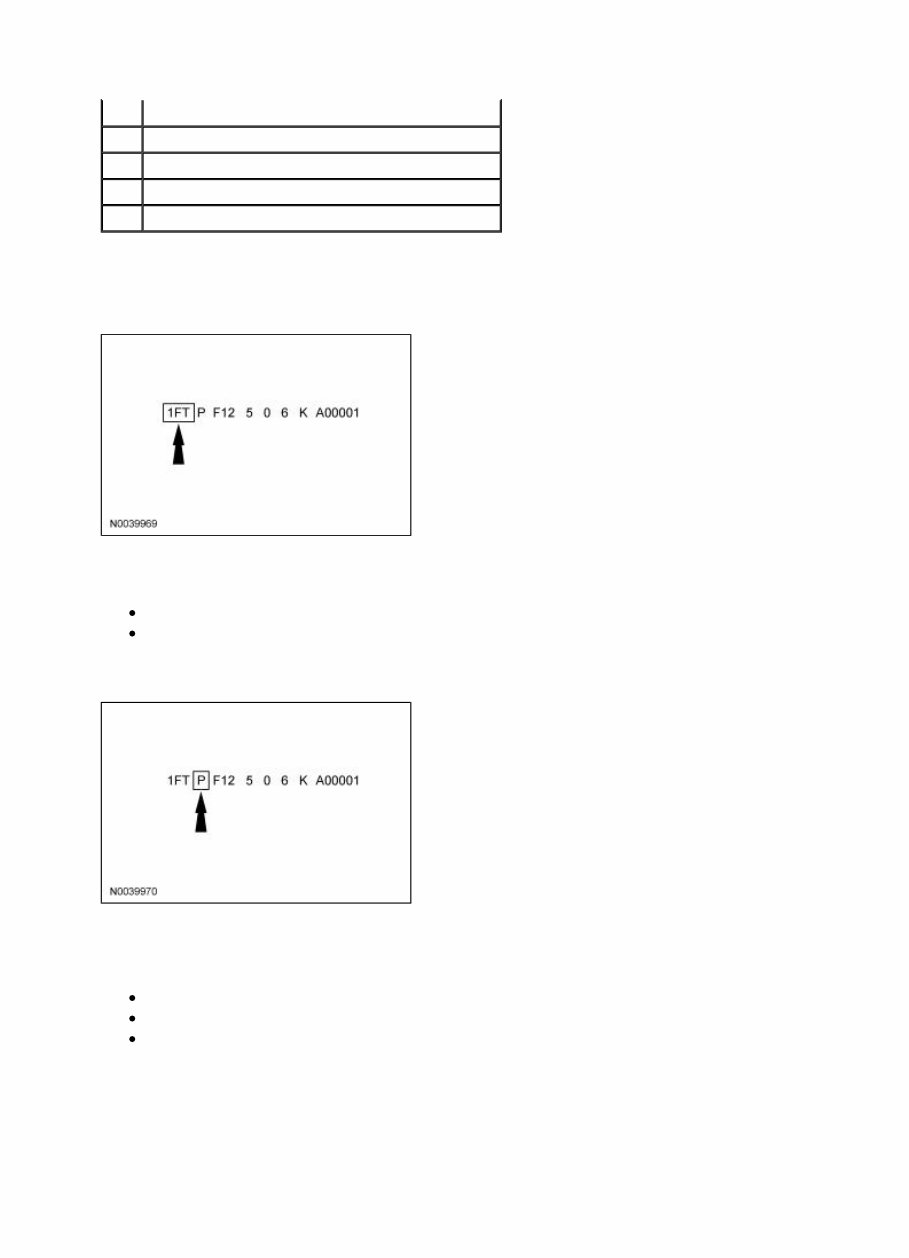

World Manufacturer Identifier The first 3 vehicle identification number (VIN) positions are the world manufacturer identifier. 1FT — Ford Motor Company, USA, truck (completed vehicle) 5LT — Ford Motor Company (Lincoln), USA, truck (completed vehicle) Brake Type and Gross Vehicle Weight Rating (GVWR) The fourth VIN position is the vehicle brake type and gross vehicle weight rating (GVWR) code, all vehicles use hydraulic brakes. This code may also identify the vehicle safety restraint system. R — 6,001-7,000 pounds GVWR with driver and front passenger air bags — F-150 P — 7,001-8,000 pounds GVWR with driver and front passenger air bags — F-150/Mark LT V — 8,001-8,500 pounds GVWR with driver and front passenger air bags — F-150 Line, Series and Body Type 4 Engine type 5 Check digit 6 Model year 7 Assembly plant 8 Production sequence number Page 2 of 16 2006 F-150/Mark LT Workshop Manual

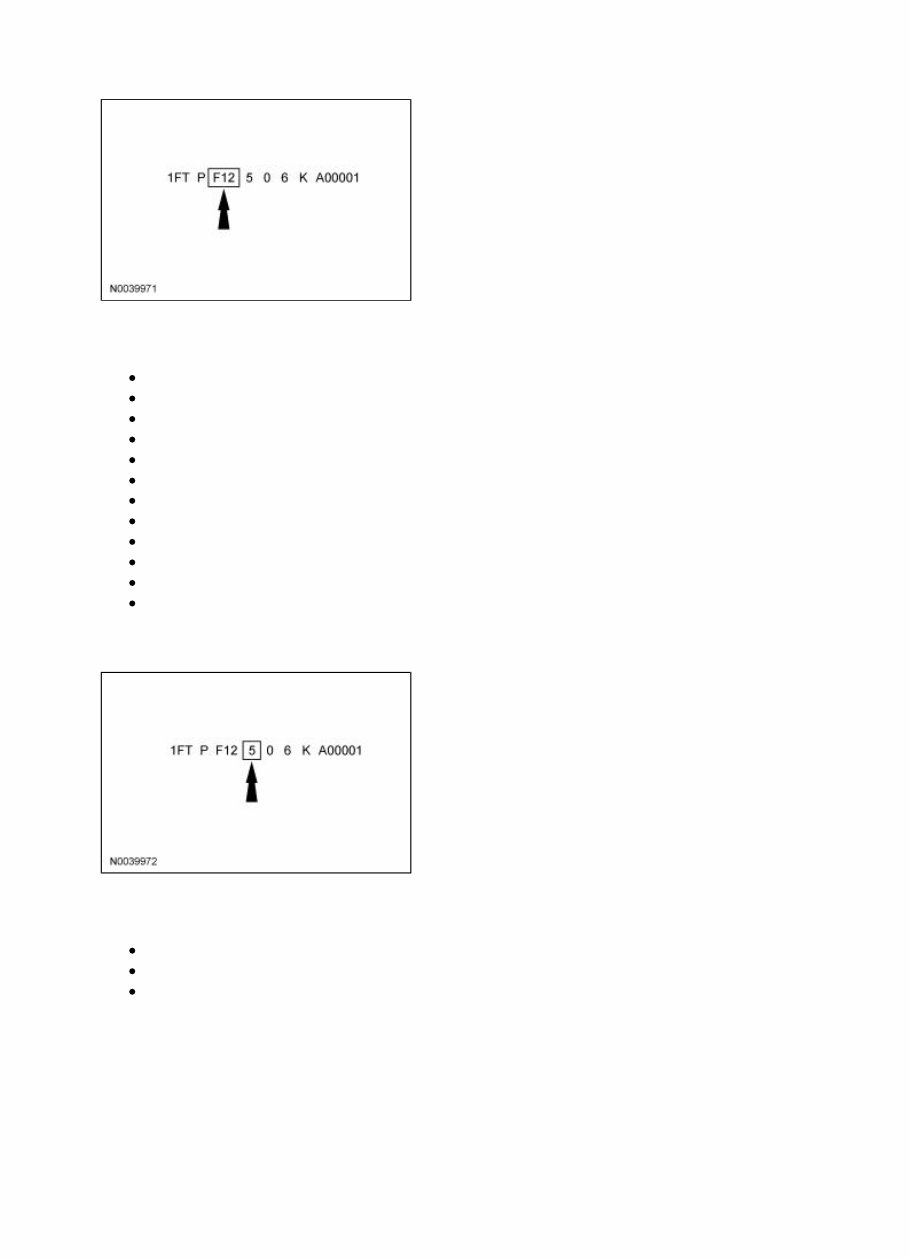

VIN positions 5 through 7 indicate the vehicle line, series and body type. F02 — F-150, 4x2, regular cab, 6.5 ft. flareside F04 — F-150, 4x4, regular cab, 6.5 ft. flareside F12 — F-150, 4x2, regular cab, 6.5 ft. or 8 ft. styleside F14 — F-150, 4x4, regular cab, 6.5 ft. or 8 ft. styleside W12 — F-150, 4x2, Crew Cab, 5.5 ft. or 6.5 ft. styleside W16 — Mark LT, 4x2, Crew Cab, 5.5 ft. styleside W18 — Mark LT, 4x4, Crew Cab, 5.5 ft. styleside W14 — F-150, 4x4, Crew Cab, 5.5 ft. or 6.5 ft. styleside X02 — F-150, 4x2, SuperCab, 6.5 ft. flareside X04 — F-150, 4x4, SuperCab, 6.5 ft. flareside X12 — F-150, 4x2, SuperCab, 8 ft. styleside, 5.5 ft. styleside or 6.5 ft. styleside X14 — F-150, 4x4, SuperCab, 8 ft. styleside, 5.5 ft. styleside or 6.5 ft. styleside Engine Type The eighth VIN position is the engine type (displacement and number of cylinders). 2 — 4.2L, OHV, V6, EFI — F-150 5 — 5.4L, 3-valve, SOHC, V8, EFI — F-150/Mark LT W — 4.6L, SOHC, V8, EFI — F-150 Check Digit Page 3 of 16 2006 F-150/Mark LT Workshop Manual

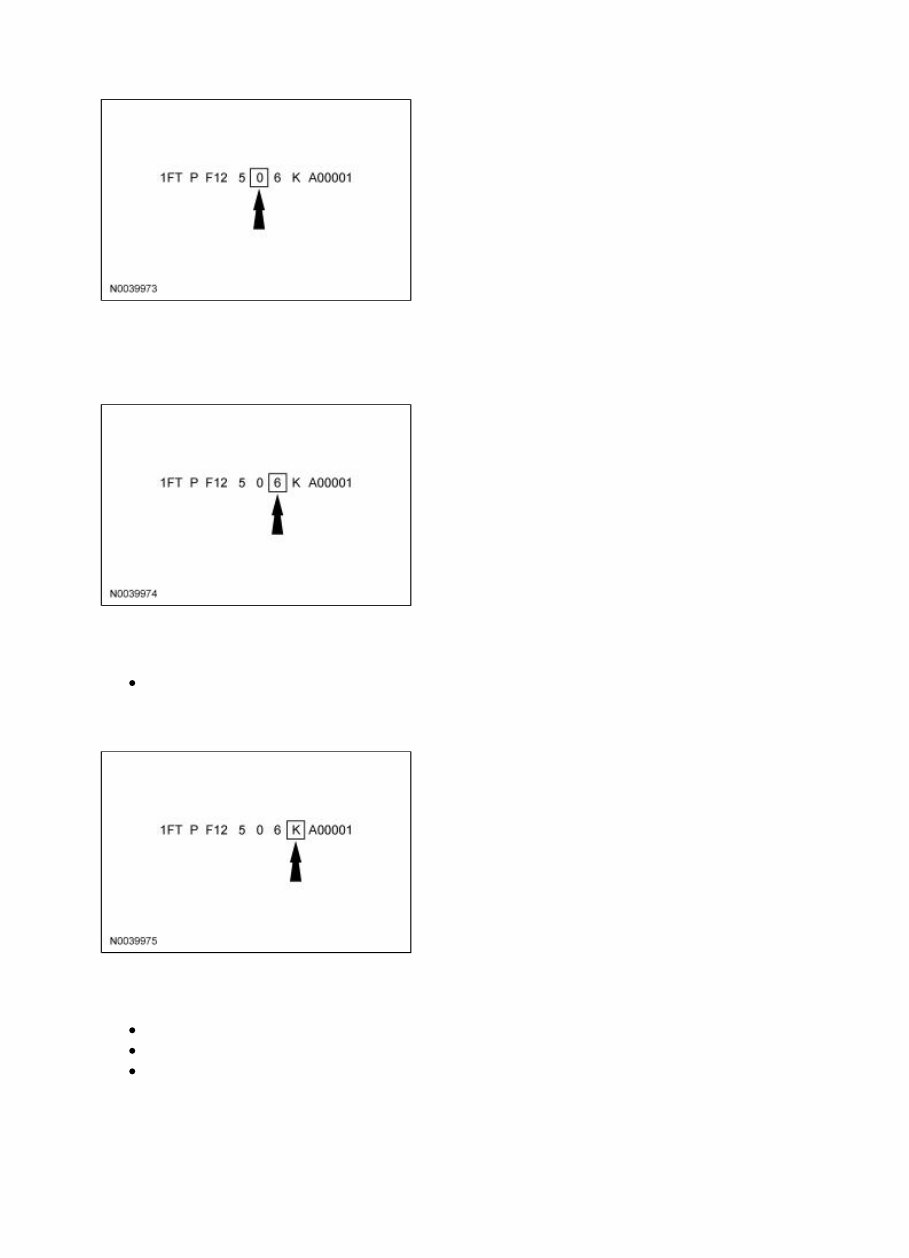

The ninth VIN position is a government-assigned, computer-generated check digit. Model Year The tenth VIN position is the model year code. 6 — 2006 Assembly Plant The eleventh VIN position is the assembly plant code. F — Dearborn — Dearborn, Michigan, USA — F-150/Mark LT K — Kansas City — Claycomo, Missouri, USA — F-150 N — Norfolk — Norfolk, Virginia, USA — F-150 Build Sequence Page 4 of 16 2006 F-150/Mark LT Workshop Manual

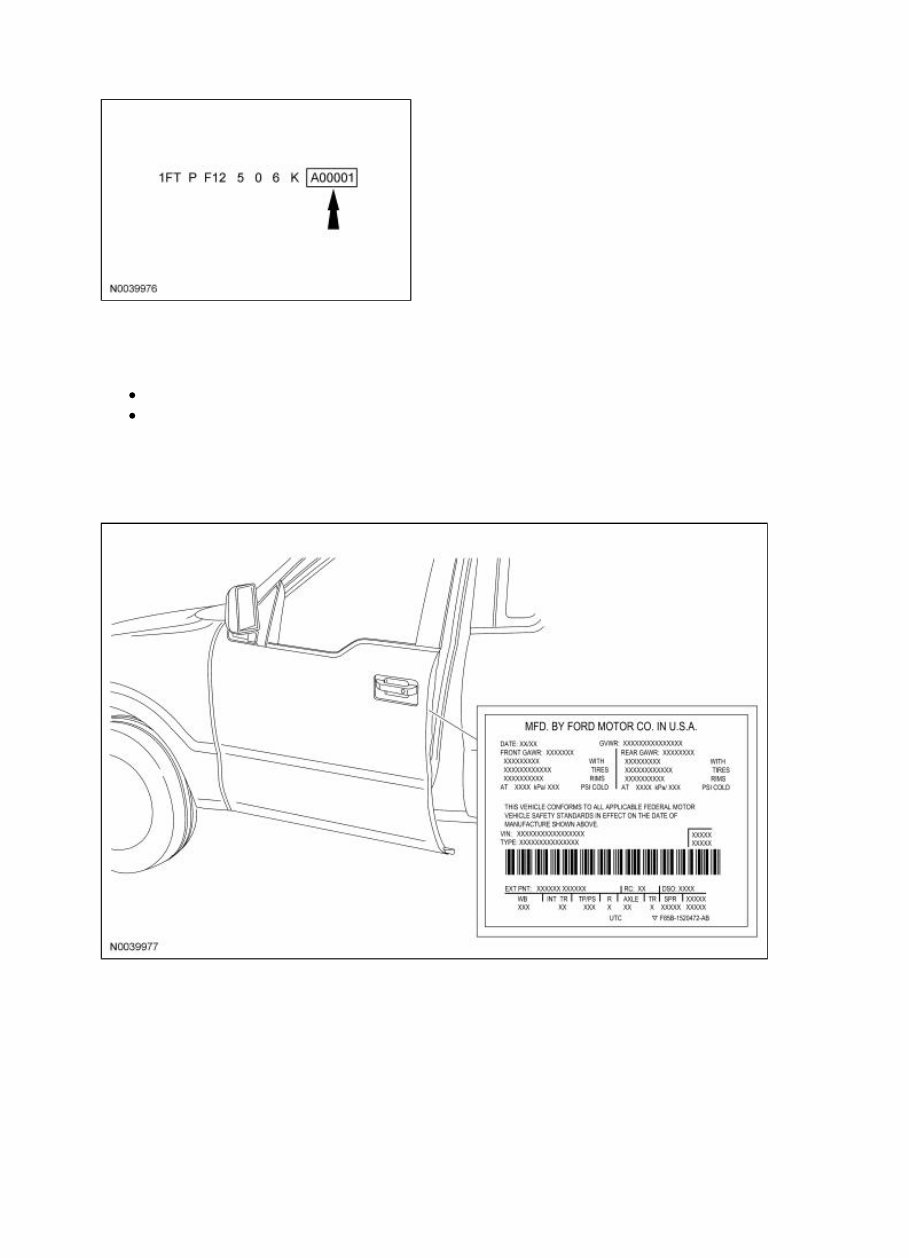

VIN positions 12 through 17 are an alphanumeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. A00001-F99999 — F-150 J00001-L99999 — Mark LT Vehicle Certification (VC) Codes Vehicle Certification (VC) Label Locator Page 5 of 16 2006 F-150/Mark LT Workshop Manual

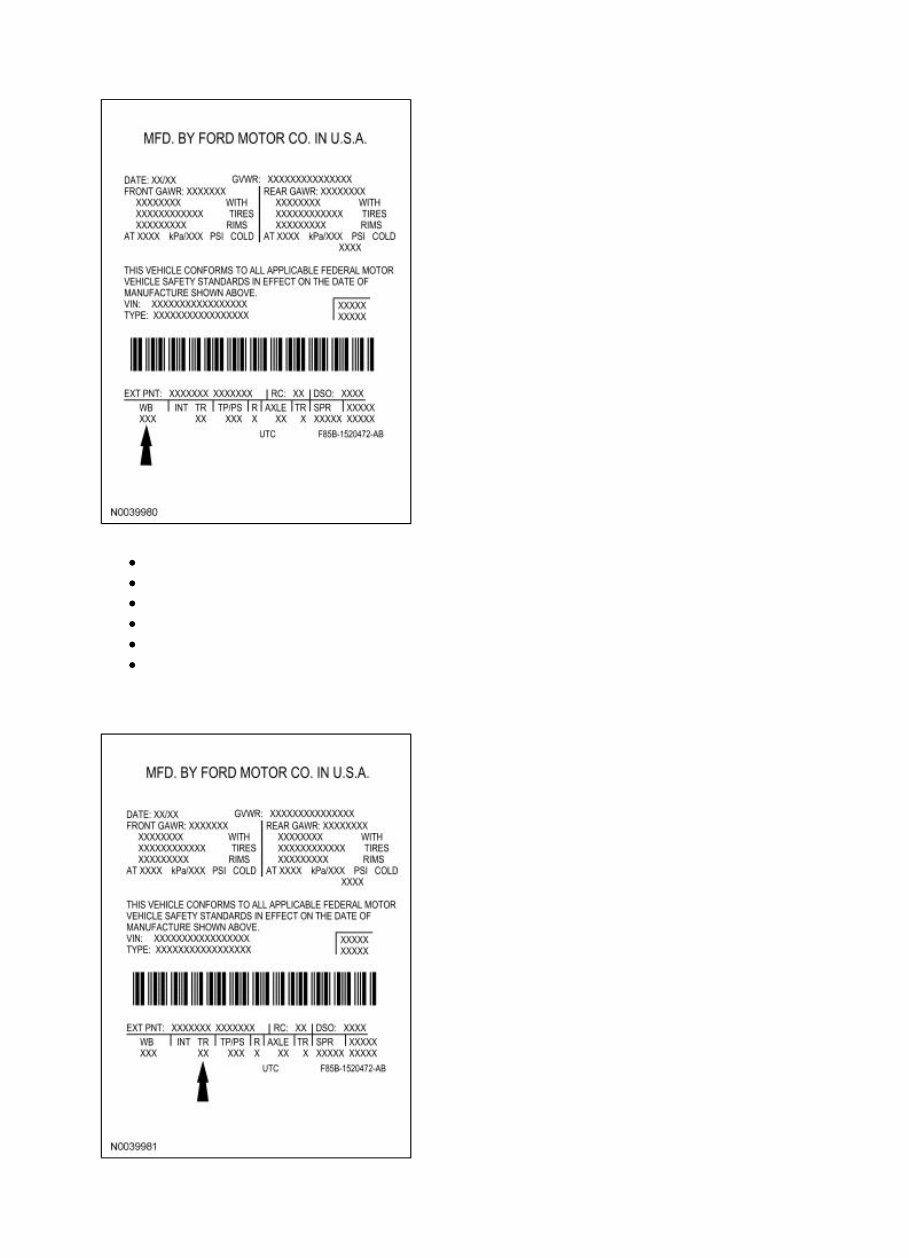

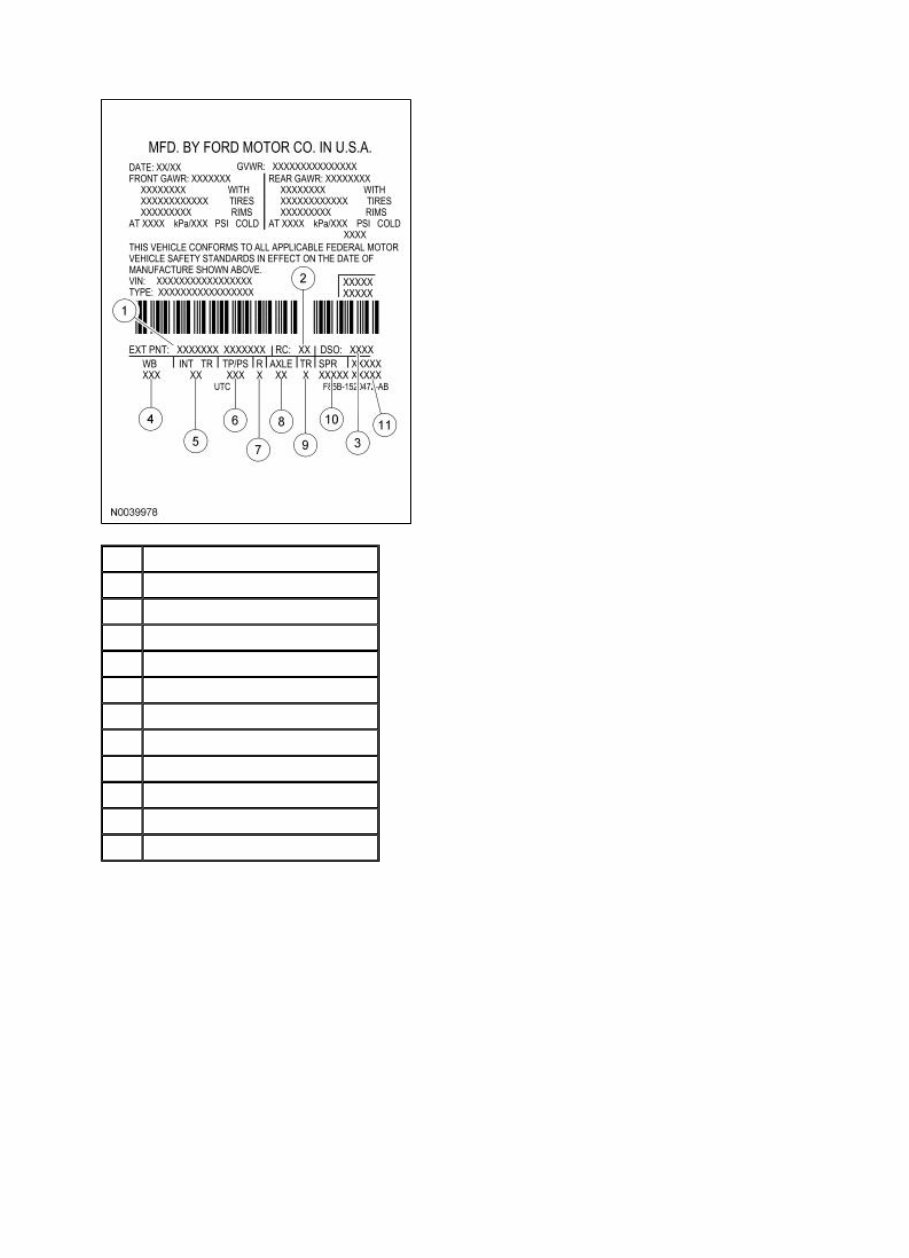

The vehicle (VC) label contains information on the manufacturer name, the month and year of manufacture, the certification statement and the VIN. This label also includes gross vehicle weight (GVWR) information. Exterior Paint Item Description 1 Exterior paint code 2 Region code 3 Domestic special order 4 Wheelbase code 5 Interior trim code 6 Tape/paint stripe code 7 Radio code 8 Axle code 9 Transmission code 10 Spring code 11 Powertrain calibration information Page 6 of 16 2006 F-150/Mark LT Workshop Manual

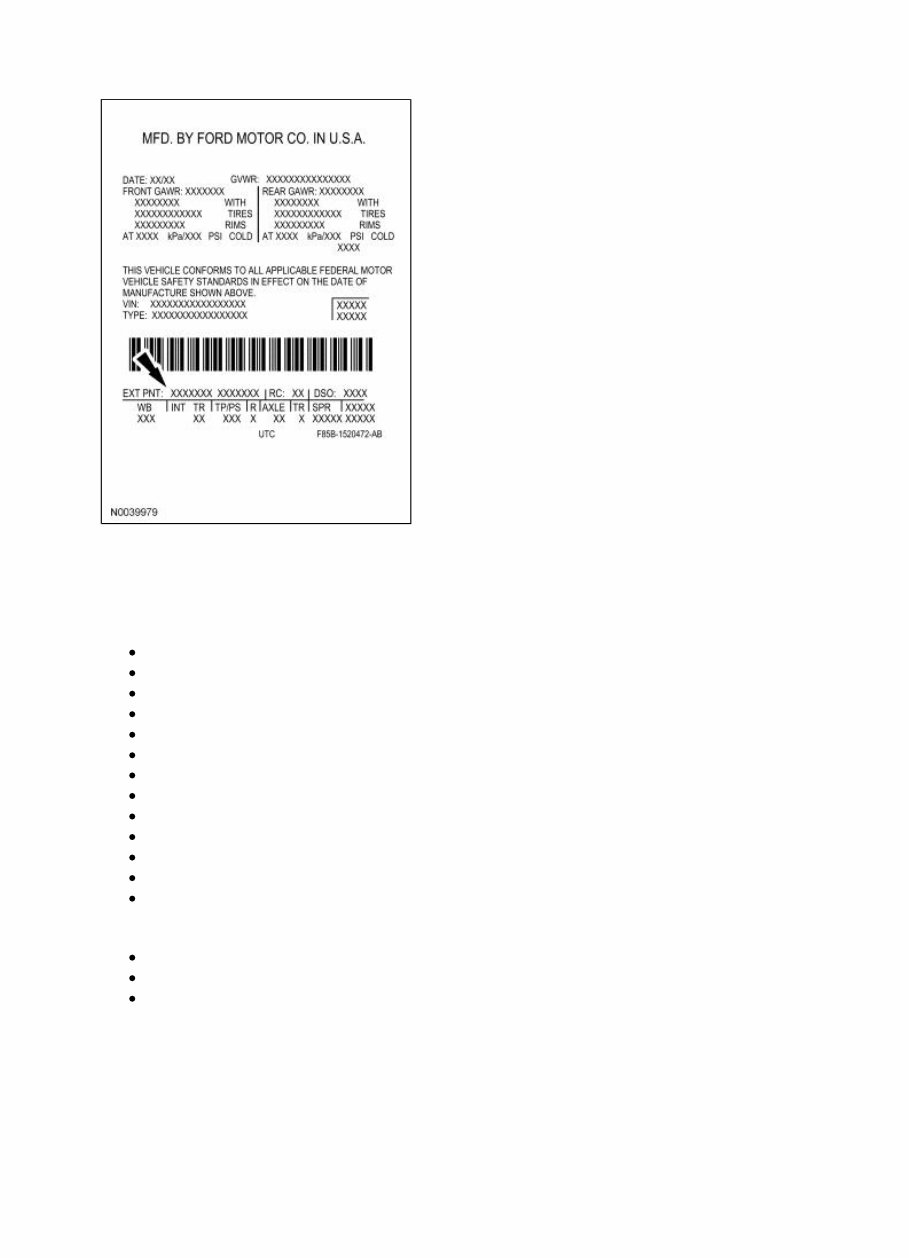

Exterior paint codes may be listed as a 2-part code. The first set of characters identify the primary body color. The second set of characters (if applicable) identify the vehicle accent or 2-tone body color. All colors are base coat/clear coat. Primary Exterior Color Codes AQ — Arizona Beige — F-150/Mark LT CX — Dark Shadow Gray — F-150/Mark LT E4 — Vermilion — F-150 HG — Smokestone — F-150/Mark LT JL — Dark Toreador Red — F-150/Mark LT L2 — True Blue Pearl — F-150 LD — Medium Wedgewood Blue — F-150 P5 — Aspen Green Metallic — F-150 T5 — Dark Copper — F-150 T7 — Charcoal Beige — F-150 UA — Ebony — F-150/Mark LT YN — Silver Metallic — F-150/Mark LT YZ — Oxford White — F-150/Mark LT Exterior Accent Color Codes AQ — Arizona Beige — F-150 CX — Dark Shadow Gray — F-150 YN — Silver Metallic — F-150 Wheelbase Page 7 of 16 2006 F-150/Mark LT Workshop Manual

126 — 126 inches (3,200 mm) — F-150 133 — 133 inches (3,378 mm) — F-150 139 — 139 inches (3,531 mm) — F-150/Mark LT 145 — 145 inches (3,675 mm) — F-150 150 — 150 inches (3,810 mm) — F-150 163 — 163 inches (4,140 mm) — F-150 Interior Trim Interior trim codes are listed as a 2-part code. The first character identifies the interior trim type. The Page 8 of 16 2006 F-150/Mark LT Workshop Manual

second character identifies the interior trim color. Interior Trim Type A — Cenery vinyl, 40/20/40 — F-150 B — Impulse cloth, 40/20/40 — F-150 C — Mortar cloth, 40/20/40 — F-150 D — Harley Davidson leather, 40/console/40 — F-150 E — Imola leather, 40/20/40 — F-150 F — Brick cloth, captain chairs — F-150 G — Impulse (2-tone), 40/20/40 — F-150 H — Imola leather, captain chairs — F-150 J — Link Weave leather captain chairs — F-150 K — Antiline leather, 40/console/40 — F-150 (King Ranch) L — Impulse (2-tone), bucket seats — F-150 M — Brick cloth, 40/20/40 — F-150 N — Brick cloth (2-tone), 40/20/40 — F-150 P — Brick cloth (2-tone), captain chairs — F-150 Q — Link Weave leather (2-tone), bucket seats — F-150 R — Impulse cloth, captain chairs — F-150 S — Mortar cloth, 40/20/40 — F-150 T — Cenery vinyl, captain chairs — F-150 U — Mortar cloth, 40/console/40 — F-150 V — Nudo leather, 40/console/40 — Mark LT Interior Trim Color B — Ebony — F-150/Mark LT E — Medium Flint — F-150 W — Medium Pebble Tan — F-150/Mark LT Tape/Paint Stripe Tape and paint stripe codes do not apply. Page 9 of 16 2006 F-150/Mark LT Workshop Manual

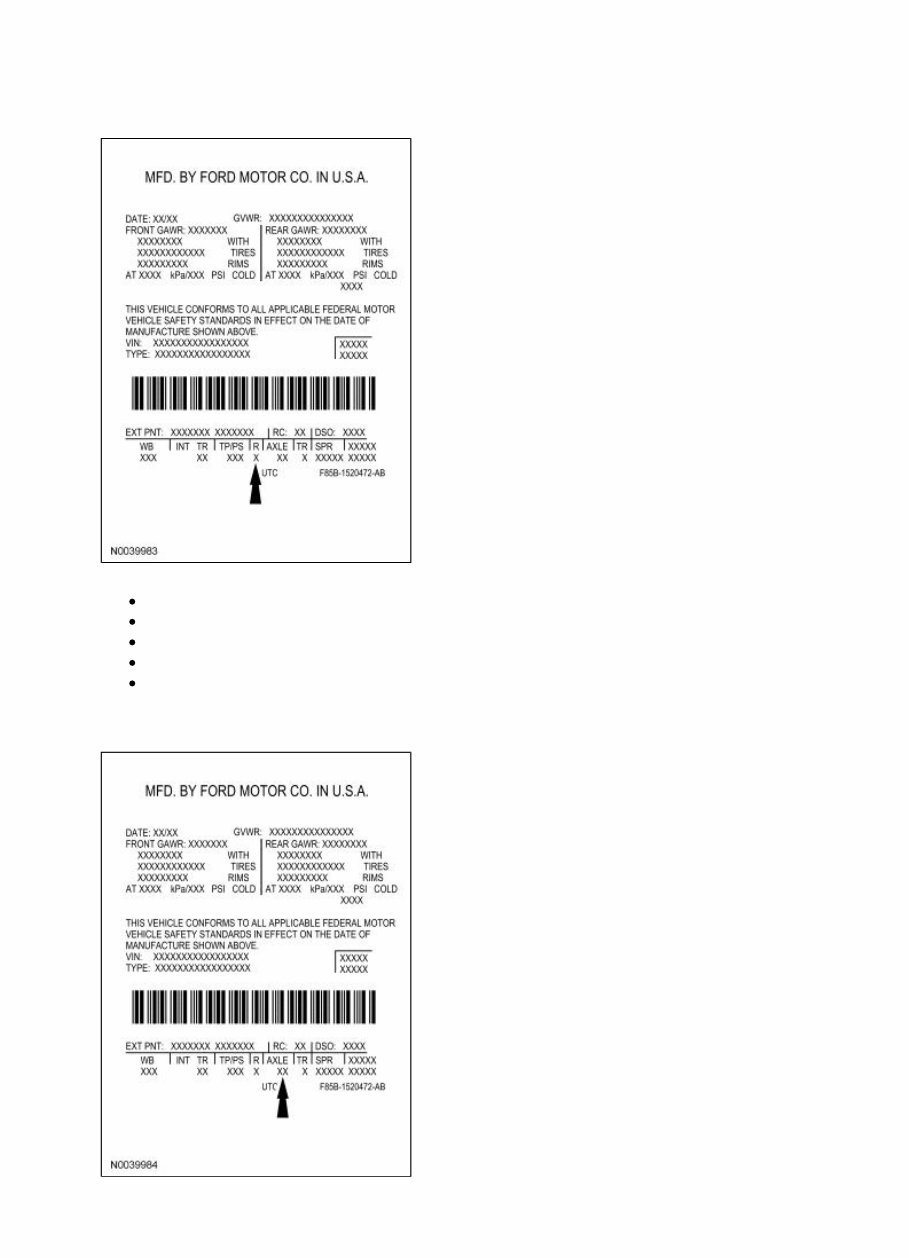

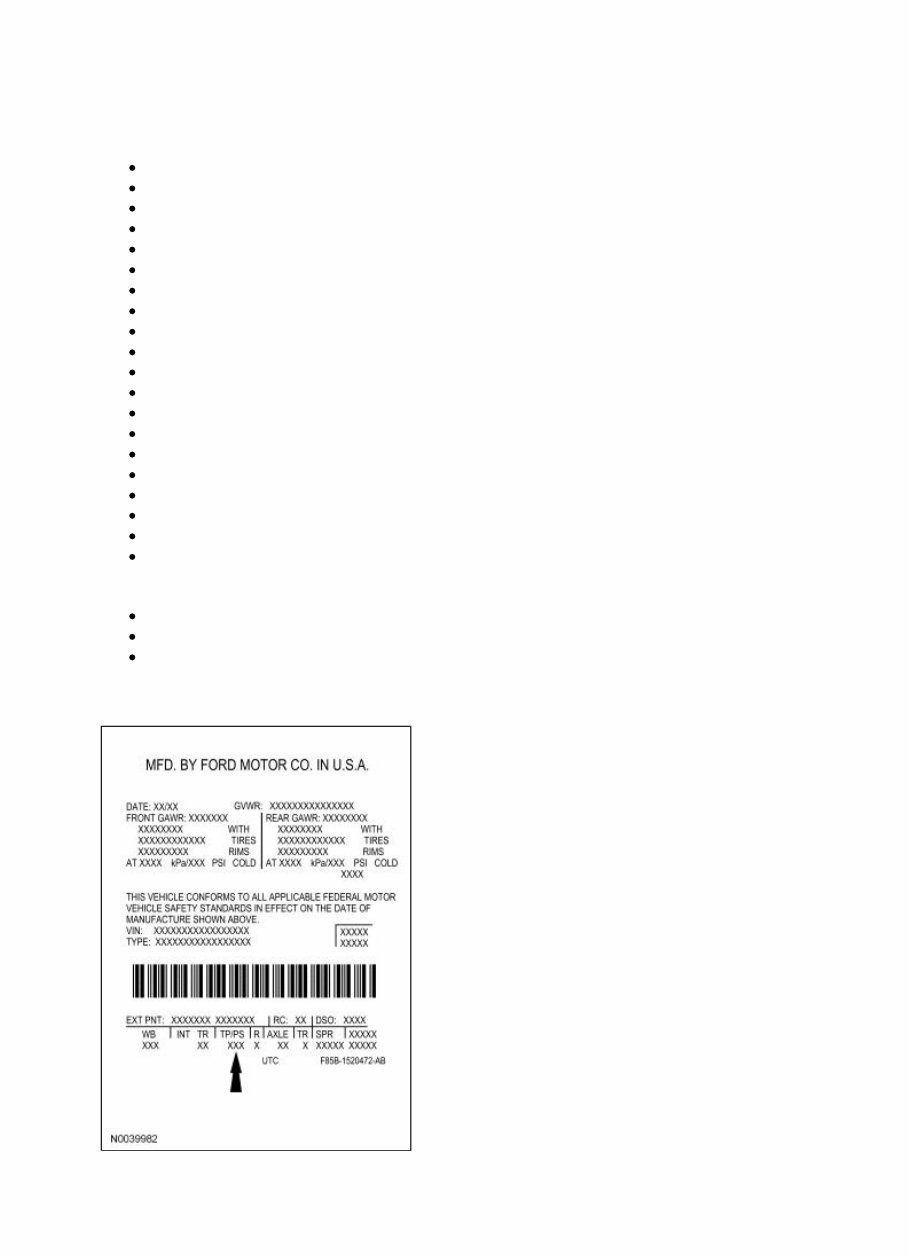

Radio Type 5 — Premium electronic AM/FM stereo with compact disc (CD) player — F-150 6 — Premium electronic AM/FM stereo with CD changer, clock and MP3 — F-150 7 — Electronic AM/FM stereo clock — F-150 B — AM/FM stereo with CD changer, clock and MP3 — F-150/Mark LT K — Premium electronic AM/FM stereo with CD player, cassette and clock — F-150 Axle Type Page 10 of 16 2006 F-150/Mark LT Workshop Manual
