Ferrari F430 Cou Parts manual Catalogue Catalog with exploded views

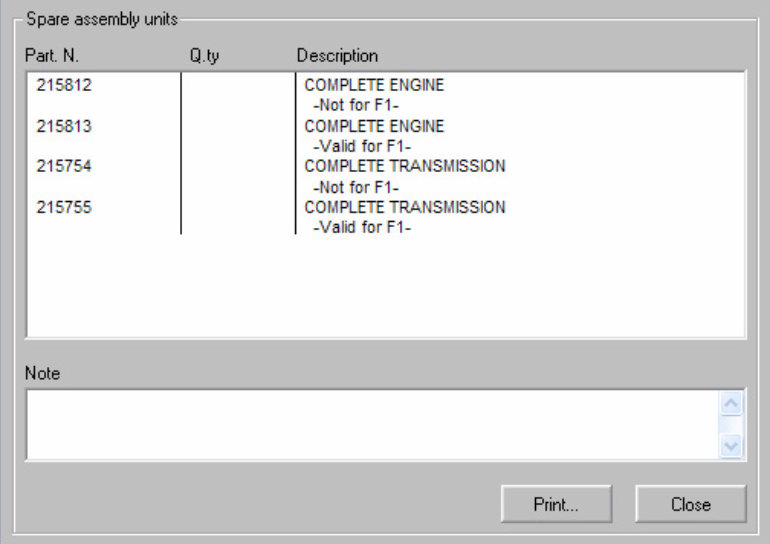

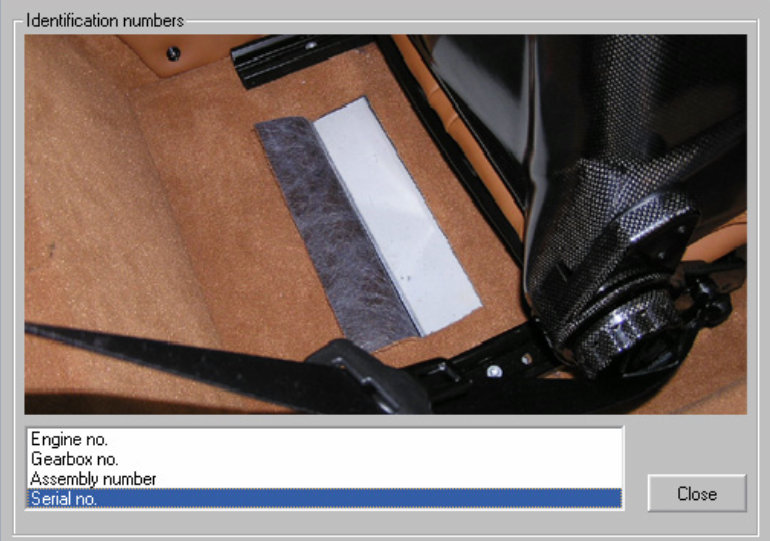

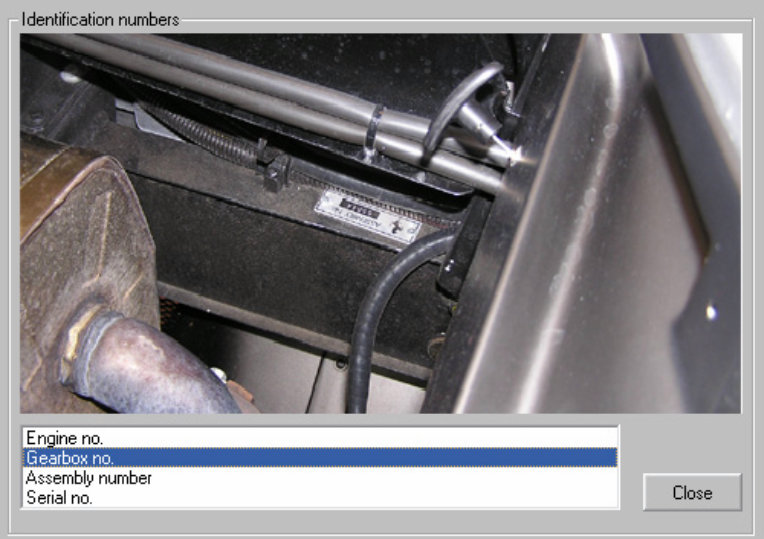

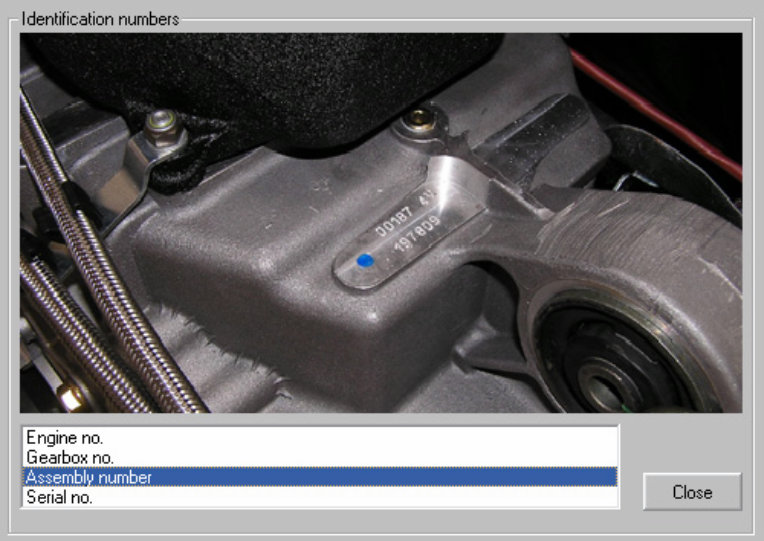

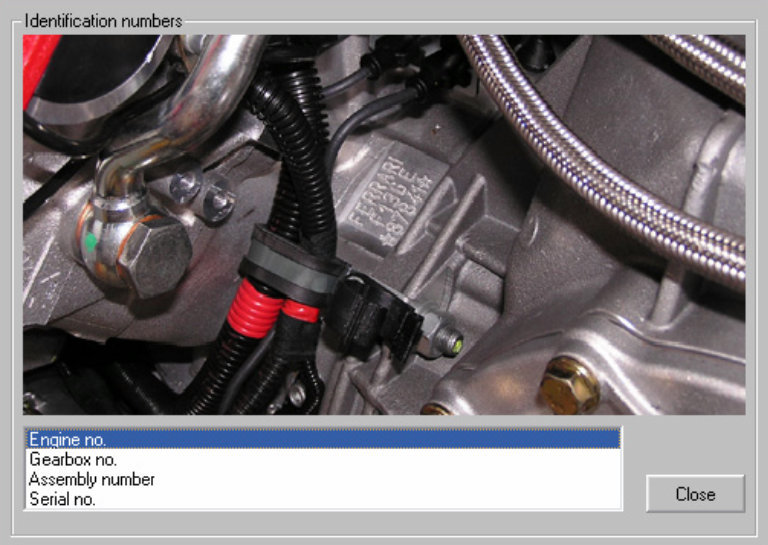

F430 - Spare assembly units Part. N. Q.ty Description 215812 COMPLETE ENGINE -Not for F1- 215813 COMPLETE ENGINE -Valid for F1- 215754 COMPLETE TRANSMISSION -Not for F1- 215755 COMPLETE TRANSMISSION -Valid for F1-

F430 - Numerical index Code No. Drwg. Pos. N. Code No. Drwg. Pos. N. Code No. Drwg. Pos. N. Code No. Drwg. Pos. N. 100052 1 20 101139 18 23 101139 36 29 101305 25 18 101525 51 9 101677 16 3 102725 3 31 102725 4 21 102741 11 56 102741 21 22 102741 23 10 102741 24 9 102741 26 55 102741 41 26 102741 48 19 102741 48 7 102741 116 42 102741 117 31 102741 117 55 102741 130 5 102742 39 29 102742 39 32 102825 44 21 102948 16 16 102948 35 16 102948 39 24 102948 134 22 102948 137 10 103038 26 4 103163 25 29 103163 25 4 103163 25 7 103447 11 3 103549 41 14 103876 23 4 103876 24 4 103877 2 9 104030 11 8 104030 25 36 104030 34 19 104030 34 30 104030 40 35 104030 43 7 104030 45 6 104030 118 11 104030 119 12 104030 132 5 104114 43 18 104114 45 18 104114 118 19 104114 118 9 104114 119 16 104212 6 38 104280 1 36 104370 42 32 104370 44 37 104919 10 13 105586 16 13 106004 28 10 106083 25 33 106850 22 15 106850 22 20 106852 25 25 108010 32 11 108947 46 4 109407 32 38 109407 32 53 109407 32 56 109483 141 19 111743 17 15 112254 1 58 113647 14 10 113647 47 2 113647 125 41 113647 136 2 113647 141 22 113833 25 33 113834 25 33 113834 25 34 113835 25 33 113835 25 34 113836 25 32 113836 25 33 113836 25 34 114749 17 14 115980 32 26 116373 36 12 116374 36 24 118100 36 18 118502 8 25 120065 46 5 121276 19 18 121699 23 37 121699 24 37 121813 23 27 121834 24 6 122091 38 12 122429 28 58 123622 10 24 124034 26 42 124034 41 28 124338 22 18 124342 3 12 124342 4 12 124342 13 3 124406 8 20 124683 49 24 127213 35 8 127492 8 10 127492 112 19 127494 10 19 127494 12 7 127494 16 25 127494 25 21 127494 27 52 127494 34 5 127494 35 14 127494 36 21 127494 39 21 127494 42 14 127494 44 12 127494 49 16 127494 117 59 127494 128 3 127494 132 4 127496 17 29 127496 17 39 127496 26 31 127496 26 33 127496 26 6 127496 36 32 127496 38 7 127496 38 9 127496 42 31 127496 44 39 127496 104 20 127496 104 26 127496 125 3 127496 135 18 127497 1 48 127497 28 49 128016 15 12 129225 44 20 129230 40 55 132829 19 8 132877 1 31 133555 25 12 133902 7 7 133938 19 4 133988 1 38 133988 1 44 133988 28 48 134233 3 21 134233 4 23 134701 5 17 134701 5 23 134704 1 64 134903 34 29 135355 40 10 136140 23 25 136140 24 25 136379 34 12 137192 28 46 137873 19 29 139512 24 8 139517 110 8 139517 127 4 140135 3 14 140576 115 11 140727 10 36 141250 19 9 141496 50 8 142202 14 4 142202 20 3 143331 113 14 144240 17 4 144730 7 8 145030 20 2 145192 28 20 145854 114 35 145992 31 12 147121 8 14 147985 25 15 147985 40 64 147985 138 2 148045 10 25 148153 5 6 148225 19 7 149415 33 8 149536 19 34 149707 18 4 149707 26 46 149707 41 15 150302 15 15 150595 17 5 150957 28 43 151117 3 8 151117 4 8 151914 19 33 152034 40 5 152954 26 25 152954 27 36 152954 37 4 152955 26 26 152955 27 37 152955 37 5 153069 114 18 153603 142 5 153628 19 36 153815 53 16 154011 34 8 154191 19 23 154213 33 15 154507 23 17 154507 24 17 154508 23 16 154551 23 18 154803 49 12 154985 17 9 155002 42 21 155184 135 20 155184 136 16 155206 23 24 155206 24 24 155207 23 22 155207 24 22 155838 51 8 155978 141 17 155996 19 15 156198 135 15 156198 135 5 156834 3 10 156834 4 10 157115 16 4 157630 42 5 157630 44 5 157757 14 3 159137 32 7 159147 11 48 159147 138 30 159357 32 20 159545 53 2 159601 13 7 160092 42 18 160092 42 23 160092 42 34 160092 44 18 160092 44 23 160092 44 34 160472 26 38 160472 26 49 160472 49 20 160480 32 10 161109 44 22 161110 44 22 161490 35 10 161490 35 7 161490 39 14 161490 39 8 161590 135 21 161590 136 18 161591 136 18 161816 18 32 162412 12 18 162606 42 13 162606 44 11 162606 135 10 162619 42 22 162620 42 22 163675 134 7 163816 40 9 164015 35 2 164216 37 1 164400 1 14 164400 3 17 164400 4 18 164467 49 7 164834 130 8 165558 130 7 165567 24 50 165658 24 51 165861 37 1 165862 37 1 166101 101 14 166101 102 36 166101 103 32 166101 104 16 166101 105 26 166115 102 31 166132 103 11 166168 121 10 166168 123 8 166168 124 11 166191 102 19 166215 102 30 166232 103 10 166291 102 18 166301 102 15 166432 24 27 166467 116 58 166730 39 16 166835 51 10 167064 129 5 167802 24 30 168133 109 6 168133 131 11 168133 134 8 168248 8 27 168386 35 6 168617 117 49 168698 114 32 168729 24 40 168852 48 1 169180 112 9 169180 134 12 169180 135 13 169438 51 10 169438 134 29 169476 36 23 169476 36 5 169611 140 12 169684 42 4 169684 44 4 169814 116 57

170038 16 15 170061 51 10 170061 134 29 170061 136 18 170093 51 10 170093 134 29 170093 136 18 170114 136 15 170127 10 10 170154 43 17 170155 43 6 170155 45 9 170588 42 26 170715 42 24 170716 44 27 170717 44 28 170877 41 5 170925 16 18 170950 44 30 171120 116 12 171406 8 15 171454 24 28 171454 26 13 171454 26 16 171466 16 9 171468 16 6 171488 53 1 171489 53 3 171490 53 4 171491 53 5 171492 53 6 171501 40 60 171502 40 61 171503 40 38 171519 39 26 171523 40 56 171528 40 25 171529 40 62 171531 40 27 171540 40 18 171542 40 63 171544 40 59 171630 26 24 171630 27 48 171671 32 44 171673 32 47 171677 32 42 171746 27 20 171755 26 21 171847 43 14 171847 45 14 171848 43 3 171848 45 3 172328 5 8 172347 33 14 172363 23 26 172363 24 26 172452 5 8 172537 49 25 172563 40 50 172871 51 10 172871 134 29 172871 136 18 172875 51 10 172875 135 21 172875 136 18 172876 51 10 172876 135 21 172876 136 18 172877 51 10 172877 136 18 172878 51 10 172878 135 21 172878 136 18 172879 51 10 172879 136 18 172880 51 10 172880 135 21 172881 51 10 172881 135 21 172881 136 18 172882 135 21 172882 136 18 172899 10 7 172918 32 18 172934 32 14 172970 23 13 172972 23 15 173360 23 6 173360 24 7 173416 132 2 173594 13 8 173611 28 44 173842 35 1 173999 16 10 174000 16 14 174001 16 11 174166 46 6 174177 34 6 174257 26 27 174258 53 9 174445 11 2 174554 24 38 174600 18 2 174623 12 19 174725 42 9 174725 44 8 174726 42 10 174726 44 9 174727 42 7 174727 44 6 174728 42 8 174728 44 7 174818 15 10 174911 32 48 174912 32 54 174915 31 10 174967 32 6 174974 32 49 174984 32 43 175189 34 16 175220 135 1 175282 6 33 175283 27 5 175286 6 3 175303 6 5 175314 6 26 175351 16 5 175367 2 18 175381 5 9 175395 5 11 175428 50 5 175436 49 28 175611 1 15 175612 2 14 175614 2 16 175657 1 28 175667 26 18 175768 11 2 175856 17 3 175861 44 29 175910 45 4 175911 45 4 175912 45 4 175921 38 31 175922 38 31 175947 37 2 176118 38 4 176245 38 16 176261 38 22 176322 21 7 176388 18 21 176419 32 16 176421 1 2 176422 32 61 176425 32 13 176464 25 1 176466 25 2 176471 25 13 176475 25 30 176475 25 5 176475 25 8 176522 25 16 176524 25 42 176573 1 68 176626 32 12 176642 32 15 176918 25 31 177027 32 23 177028 32 24 177029 32 22 177437 10 26 177553 10 30 177553 115 20 177576 18 5 177576 26 47 177585 40 11 177596 19 19 177597 19 16 177604 19 3 177612 17 24 177613 15 8 177631 39 19 177673 3 28 177673 4 35 177688 42 3 177688 44 3 177727 1 13 177748 11 47 177749 11 46 177752 11 42 177753 11 45 177763 11 45 177768 11 41 177769 11 40 177770 11 38 177771 11 38 177772 11 33 177773 11 33 177774 11 32 177775 11 32 177778 26 53 177778 36 31 177791 48 23 177794 48 24 177812 32 30 177902 129 4 177977 40 52 177981 15 22 177995 20 22 177995 20 24 177995 20 26 177995 21 20 177996 18 27 177996 41 19 178051 18 28 178051 41 21 178051 41 25 178052 10 32 178053 20 17 178053 20 19 178187 116 29 178247 135 12 178247 135 2 178251 135 7 178309 8 6 178340 25 34 178341 42 40 178342 23 8 178348 1 37 178356 49 14 178366 17 2 178369 8 12 178423 32 39 178423 32 52 178430 40 53 178491 8 26 178515 8 7 178552 8 11 178659 51 5 178676 48 25 178682 48 21 178772 11 16 178772 34 2 178772 35 11 178851 43 13 178852 43 13 178853 43 13 178890 2 17 178938 36 25 178940 43 13 178942 45 4 178943 45 4 178944 45 4 178953 45 4 178954 45 4 179242 11 17 179268 104 28 179269 104 28 179280 20 6 179296 27 2 179301 41 6 179309 140 10 179328 45 11 179330 45 11 179338 27 21 179340 26 7 179342 26 8 179343 26 9 179344 26 10 179345 26 11 179346 26 15 179533 27 1 179554 43 15 179554 45 15 179555 39 34 179555 43 2 179555 45 13 179555 45 2 179556 39 33 179556 43 10 179556 45 10 179556 45 24 179593 27 19 179600 37 1 179602 37 1 179603 37 1 179605 37 1 179636 27 10 179637 27 12 179638 27 13 179639 27 11 179697 116 48 179763 5 2 179808 17 40 179810 137 11 179844 32 19 179912 15 16 179926 5 22 179959 5 10 180042 34 22 180046 15 19 180127 32 62 180137 19 30 180137 21 6 180169 49 18 180183 23 31 180183 24 31 180184 23 34 180184 24 34 180199 134 17 180233 11 20 180266 3 30 180266 4 32 180267 4 14 180348 11 1 180516 25 11 180542 42 36 180558 25 3 180559 25 6 180560 25 28 180591 42 33 180591 44 33 180604 41 3 180632 40 34 180638 12 4 180720 52 2 180730 129 9 180731 129 6 180733 129 7 180734 129 8 180745 26 51 180841 34 15 180915 17 17 180936 32 5 180957 10 28 180965 26 57 180972 12 15 181056 48 16 181120 15 23

181191 11 43 181192 11 43 181272 20 30 181291 46 3 181377 11 44 181383 17 31 181598 43 4 181598 45 20 181617 33 20 181618 28 31 181681 9 9 181682 9 5 181751 32 1 181752 32 21 181753 32 21 181757 21 3 181828 24 16 181836 24 18 181837 24 13 181838 24 15 181882 39 2 181910 33 7 181929 10 37 181930 10 38 181979 103 53 181979 105 33 181980 103 52 181980 105 32 181981 103 51 182070 53 * 182100 28 32 182117 28 36 182119 28 39 182121 37 9 182122 37 8 182123 37 3 182194 1 53 182215 45 17 182237 32 59 182268 32 28 182363 11 50 182391 32 51 182435 32 36 182623 103 40 182624 103 39 182837 17 16 182985 119 22 182985 133 11 183010 1 23 183098 10 35 183126 20 9 183221 12 11 183234 128 10 183275 135 21 183343 135 6 183433 25 23 183447 3 15 183447 4 17 183524 3 7 183524 4 7 183554 104 24 183641 21 19 183642 21 21 183662 136 18 183718 27 29 183816 102 16 183818 25 22 183919 20 7 183945 30 17 183946 30 13 183947 29 14 183948 29 19 183949 29 7 183955 31 4 183957 135 11 183962 28 38 183970 29 11 183971 30 15 183972 30 18 183973 29 20 183975 30 31 183976 30 14 183976 30 34 183981 28 12 183982 31 5 183984 29 4 183985 29 28 183986 28 47 183993 40 23 184005 29 18 184010 29 13 184011 29 10 184012 29 22 184013 29 24 184014 29 15 184014 30 12 184015 29 8 184016 30 16 184017 30 30 184018 30 22 184019 29 5 184020 30 19 184021 29 21 184022 31 6 184041 30 24 184042 29 17 184042 30 20 184137 41 7 184363 8 21 184391 134 1 184497 34 17 184532 13 10 184609 43 16 184609 45 16 184610 43 5 184610 45 5 184646 31 11 184681 3 29 184681 4 31 184727 28 19 184731 5 19 184786 115 10 184966 1 4 184967 1 4 184990 31 9 184994 28 24 184994 33 22 184995 28 23 184995 33 21 185018 30 9 185020 30 6 185021 30 7 185022 30 3 185027 30 4 185028 30 4 185029 28 51 185033 28 51 185034 28 51 185036 30 14 185037 30 14 185042 30 5 185043 30 5 185044 30 5 185045 30 4 185049 30 27 185050 30 29 185164 30 28 185165 29 16 185166 29 9 185184 47 6 185189 46 11 185216 31 7 185283 36 28 185307 17 42 185345 19 10 185360 1 9 185399 43 11 185400 43 11 185418 48 29 185452 16 2 185486 40 49 185543 22 4 185581 18 10 185668 130 3 185669 130 3 185670 130 4 185671 130 4 185708 31 1 185721 28 60 185723 28 57 185724 6 15 185725 6 30 185854 6 43 185858 27 25 186037 27 16 186045 11 15 186159 6 18 186172 10 22 186180 119 19 186181 6 21 186184 6 4 186185 6 8 186186 6 12 186201 2 11 186251 1 6 186272 19 21 186369 32 37 186371 32 55 186585 142 6 186593 137 6 186594 137 1 186685 26 41 186698 28 7 186854 6 2 186914 7 1 186943 43 13 186944 43 13 187014 25 10 187014 25 26 187051 19 5 187143 49 9 187162 19 6 187201 2 15 187652 51 9 187706 3 16 187706 4 19 187718 1 59 187739 1 49 187740 1 49 187873 32 63 187874 32 64 187875 32 65 188141 28 8 188172 136 3 188266 127 7 188320 29 29 188320 30 36 188471 11 21 188497 30 11 188504 7 1 188606 141 1 188607 115 37 188609 141 11 188610 141 12 188717 1 22 189351 5 12 189563 6 46 189564 6 11 189569 6 27 189778 19 14 189779 6 48 190060 6 42 190115 11 13 190151 15 14 190171 6 44 190183 28 59 190405 40 24 190455 141 16 190469 10 6 190662 27 28 190676 42 2 190677 44 2 190770 1 5 191046 129 22 191087 34 1 191204 14 1 191206 14 2 191230 13 9 191390 7 5 191392 7 5 191393 7 6 191620 1 65 192069 6 45 192106 2 7 192229 40 54 192327 18 14 192534 49 13 192534 133 14 192538 129 1 192637 7 4 192784 133 7 192787 47 5 192787 133 4 192789 128 8 192879 12 13 192882 12 17 192883 12 16 192934 46 7 193186 35 9 193439 30 23 193440 30 37 193463 21 16 193492 42 6 193540 27 27 193565 6 47 193616 6 25 193656 1 21 193770 37 1 193772 37 1 193779 5 25 193877 36 4 193885 1 17 194001 38 1 194003 128 12 194031 32 31 194078 22 1 194085 22 3 194086 22 3 194132 103 47 194134 42 27 194134 44 32 194192 5 35 194261 6 35 194262 6 32 194265 46 1 194266 46 1 194414 140 7 194519 22 7 194530 22 8 194598 34 10 194601 36 7 194602 36 6 194603 36 8 194604 36 9 194605 36 10 194606 36 11 194608 36 1 194621 47 7 194700 5 1 194713 5 3 194718 5 7 194754 1 7 194755 1 8 194756 1 56 194757 1 57 194791 45 21 194794 45 27 194906 17 10 194907 17 11 194909 135 21 194909 136 17 194913 134 14 194938 103 1 194945 102 13 194946 102 14 194973 135 16 194974 135 16 194977 5 38 194986 103 49 194987 103 48 194988 103 50 195056 5 28 195206 15 13 195207 105 12 195208 105 11 195288 12 10 195298 52 1 195307 2 2 195308 2 2 195330 18 31
