VIN PLATE DECODING INFORMATION 1 2 3 4 5 6 7 8 9 10 11 12 thru 17 Country Make Vehicle Type Other Line Series Body Style Engine Check Digit Model Year Assy. Plant Sequence No. The following table interprets the VIN Plate position shown above. Position Interpretation Codes = Description 1 Country of Origin 3 = Built in Mexico by DaimlerChrysler de Mexico 1 = Built in U.S. by DaimlerChrysler Corporation 2 Assembler D = Dodge 3 Vehicle Type 2 = Incomplete with Side Airbag 6 = Incomplete without Side Airbag 3 = Truck with Side Airbag 7 = Truck without Side Airbag 4 GVWR & Pass. Safety H = 2722-3175 kg (6001-7000 lbs) W = Buses/Incomplete Vehicles with Hydraulic Brakes 5 Vehicle Line A = Ram Pickup 4x2 U = Ram Pickup 4x4 6 Series 1 = 1500 (DR1, DR6) 2 = 2500 (DR2, DR7) 4 = 3500 (DR3, DR8) 3 = 3500 w/o ‘AA9‘ (DR3, DR8) 7 Body Style 6 = Conventional Cab (61, 62) 8 = Quad Cab Full Rear Doors (41, 42) 8 Engine K = 3.7L 6 Cyl. MPI (EKG) N = 4.7L 8 Cyl. MPI (EVA) D = 5.7L 8 Cyl. SMPI (EZA) 6 = 5.9L 6 Cyl Turbo Diesel (ETC) C = 5.9L 6 Cyl Turbo Diesel H/O (ETH) Z = 5.9L 8 Cyl. MPI-LDC (EML) W = 8.0L 10 Cyl. MPI (EWA) 9 Check Digit 0 = Check Digit 0 = Check Digit 10 Model Year 5 = 2005 11 Assembly Plant S = Dodge City G = Saltillo J = St. Louis North 12 thru 17 Vehicle Build Sequence Model Year Assembly Sequence

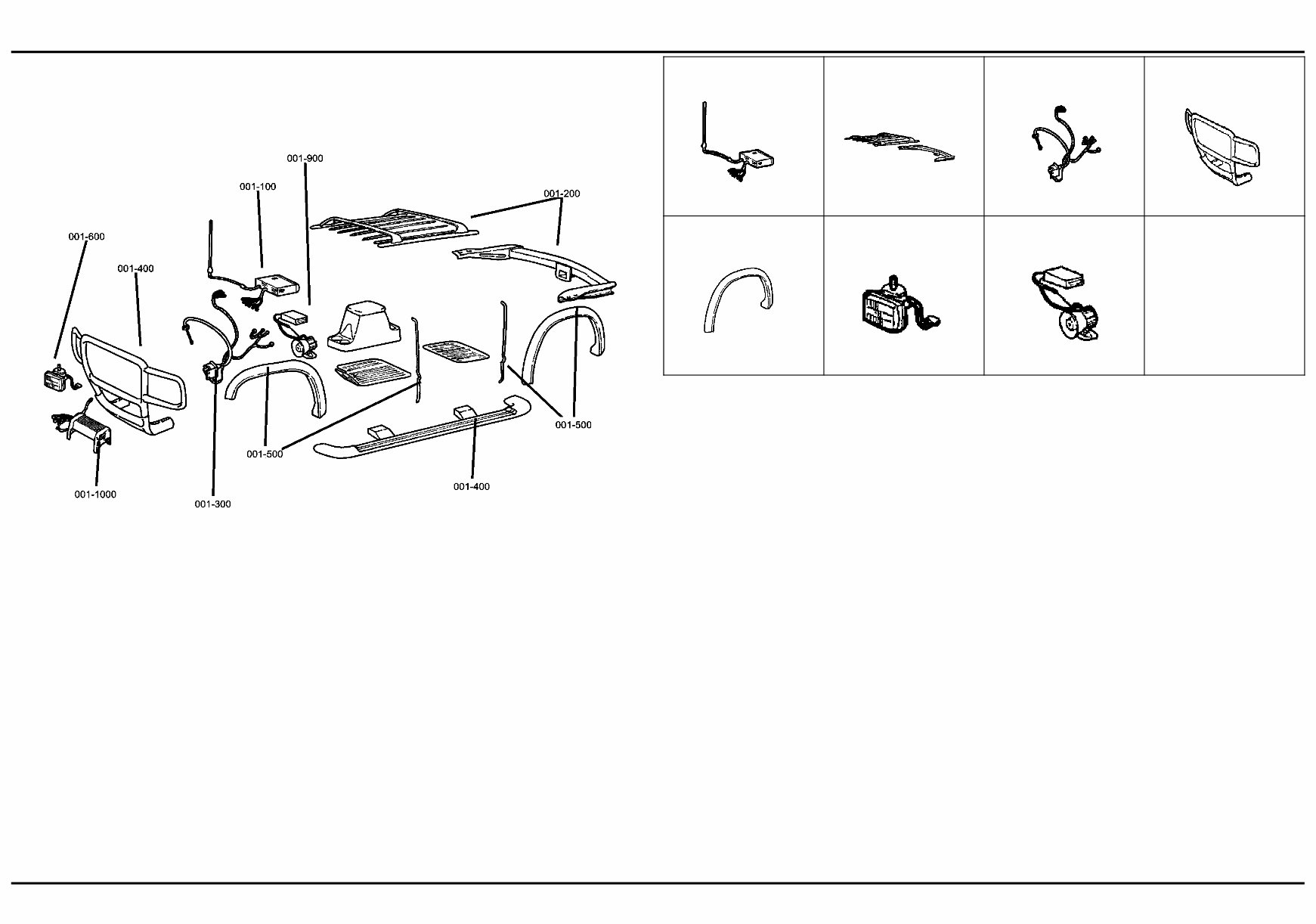

Group - 1 Component Parts for Mopar Accessories 001-100 Audio & Electronics 001-200 Carriers & Cargo Hauling 001-300 Driving Convenience 001-400 Exterior Appearance 001-500 Exterior Protection 001-600 Fog Lights & Electrical 001-900 Security 2005 DR

Group - 1 Component Parts for Mopar Accessories Illustration Title Group-Fig. No. Audio & Electronics Player Kit - CD Changer 6 Disc ............................................................................................................. Fig. 1 - 110 Satellite Receiver Kit ......................................................................................................................... Fig. 1 - 120 Navigation Kit (RB1) ......................................................................................................................... Fig. 1 - 150 Navigation Kit (RB4) ......................................................................................................................... Fig. 1 - 160 Media System - Rear Seat Video ........................................................................................................... Fig. 1 - 170 Carriers & Cargo Hauling Receiver Kit - Trailer Tow .................................................................................................................... Fig. 1 - 225 Wiring Package - Trailer Tow ................................................................................................................ Fig. 1 - 240 Adapter Kit - Ball Mount ..................................................................................................................... Fig. 1 - 250 Cover Kit - Tonneau Hard, One Piece ...................................................................................................... Fig. 1 - 255 Cover Kit - Tonneau Hard, Gull Wing ....................................................................................................... Fig. 1 - 256 Cover Kit - Tonneau Soft..................................................................................................................... Fig. 1 - 257 Driving Convenience Remote Start - Installation Kit ............................................................................................................... Fig. 1 - 310 Hands Free Kit/Cellular Phone Blue Tooth ................................................................................................. Fig. 1 - 320 Exterior Appearance Daytona ....................................................................................................................................... Fig. 1 - 405 Rumble Bee .................................................................................................................................. Fig. 1 - 410 Hemi Sport .................................................................................................................................... Fig. 1 - 420 Accent Kit, Body .............................................................................................................................. Fig. 1 - 430 Exterior Protection Grille Kit / Chrome Applique ................................................................................................................. Fig. 1 - 520 Liner Kit / Wheel House...................................................................................................................... Fig. 1 - 522 Skid Plate Package - Front .................................................................................................................. Fig. 1 - 530 Skid Plate Transfer Case .................................................................................................................... Fig. 1 - 534 Fog Lights & Electrical Light Kit - Fog................................................................................................................................. Fig. 1 - 610 Security Alarms - EVS ll, Without Keyless Entry ..................................................................................................... Fig. 1 - 910 Alarm Package - Security with Sentry Key ................................................................................................. Fig. 1 - 914 Factory keyless Entry ........................................................................................................................ Fig. 1 - 916 2005 DR

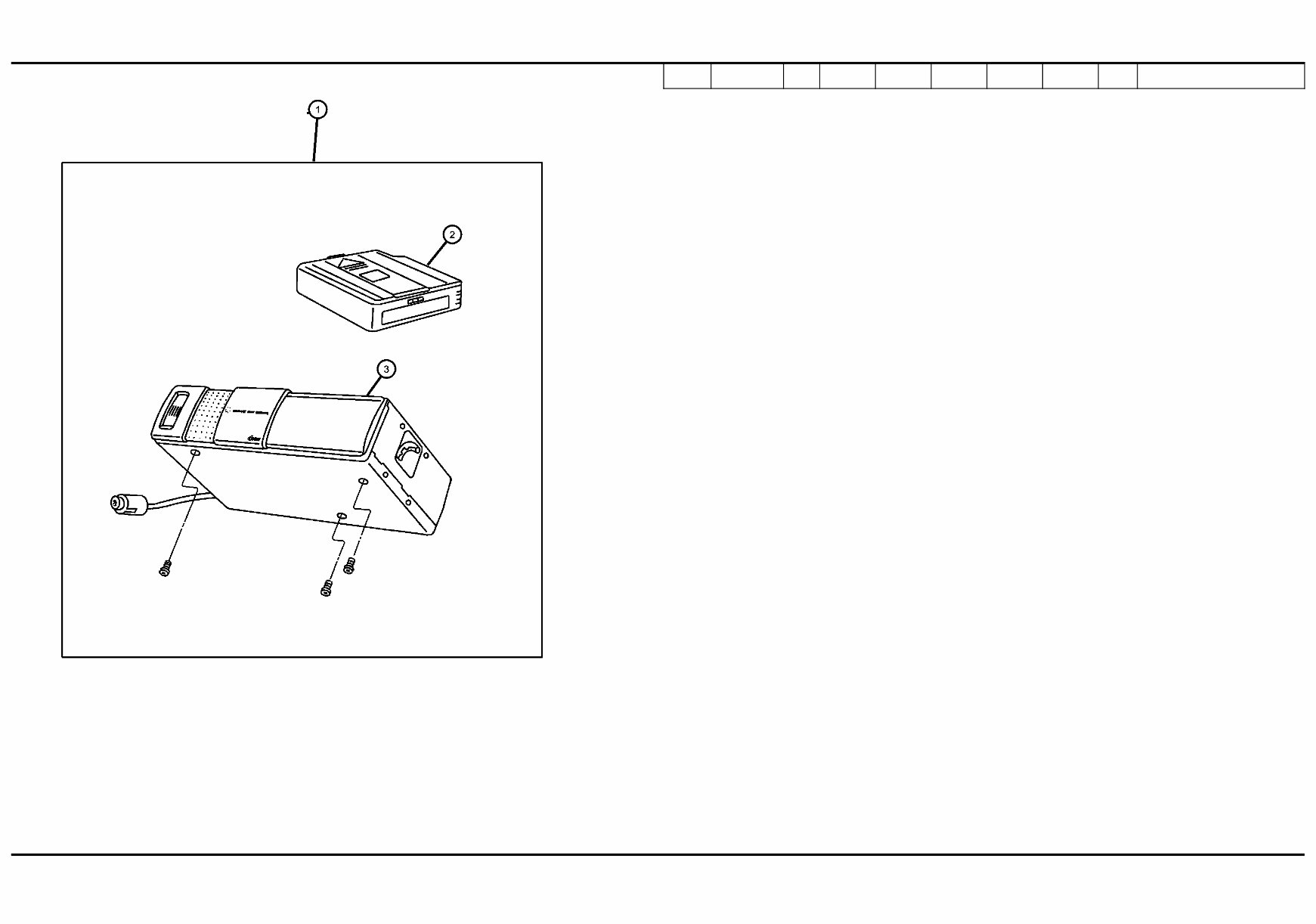

Player Kit - CD Changer 6 Disc Figure 1-110 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Player Kit - CD Changer 6 Disc PK- CD C6D NOTE: For Warranty Repairs on item 3, Order Using Z Prex. 1 82207483 1 PLAYER KIT, CD Changer - 6 Disc 2 04797433 1 MAGAZINE, CD Changer 3 04797433 1 CHANGER, CD, (NOT SERVICED) DODGE - REGULAR & QUAD CAB PICKUP (DR) SERIES LINE BODY ENGINE TRANSMISSION H = SLT L = ST 1 = 1500 2WD 6 = 1500 4WD 62 = Regular Cab (140.5 WB) 41 = Quad Cab (140.5 WB) 42 = Quad Cab (160.5 WB) 61 = Regular Cab (120.5 WB) EZA = 5.7L HEMI Magnum V8SMPI EKG = 3.7L Magnum V6 MPI EVA = 4.7L Magnum V8 EVD = 4.7L Magnum V8 FFV EWC = 8.3L V10 SFI DGQ = Multi-speed Automatic (45RFE) DG4 = Multi-speed Automatic (45RFE) DG8 = 4 Speed Automatic (48RE) DEC = 6 Speed Manual DEJ = 6 Speed Manual AR = use ase required - = Non illustrrated part 2005 DR << RETURN TO GROUP INDEX

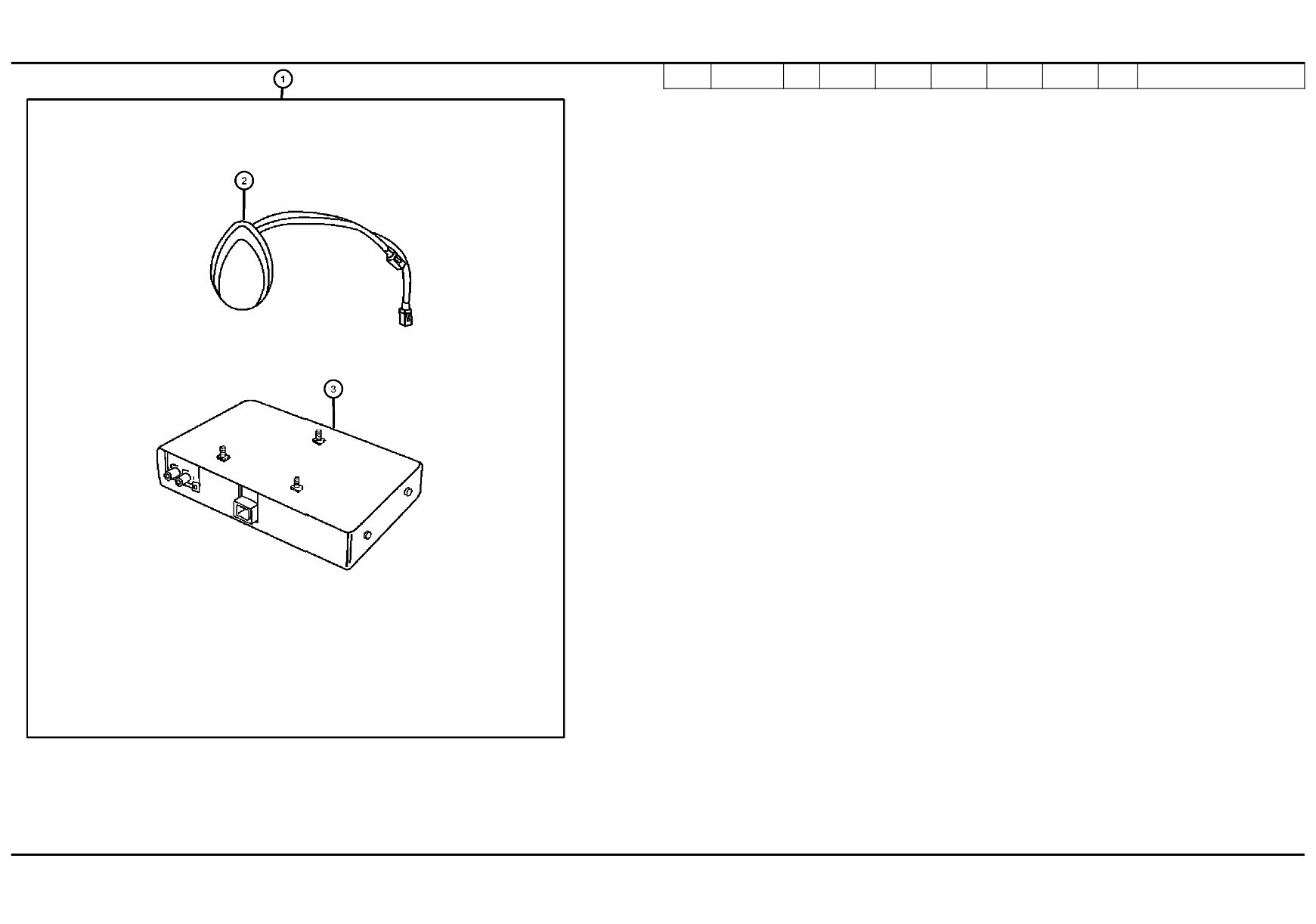

Satellite Receiver Kit Figure 1-120 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Satellite Receiver Kit SRK Note; For Warranty Repair On Item 3, Order using Z Prex 1 82206488AB 1 RECEIVER, Satelite, Includes Receiver and Antenna 2 05066205AC 1 ANTENNA, Satellite, Antenna Only 3 05064020AJ 1 RECEIVER, Satellite, Receiver Only -4 82208116 1 INSTALL KIT, Satelite Receiver, Includes Antenna Cable Extension, Interconnecting Cable, Receiver Brackets, Antenna Templates, and Installation Instructions. DODGE - REGULAR & QUAD CAB PICKUP (DR) SERIES LINE BODY ENGINE TRANSMISSION H = SLT L = ST 1 = 1500 2WD 6 = 1500 4WD 62 = Regular Cab (140.5 WB) 41 = Quad Cab (140.5 WB) 42 = Quad Cab (160.5 WB) 61 = Regular Cab (120.5 WB) EZA = 5.7L HEMI Magnum V8SMPI EKG = 3.7L Magnum V6 MPI EVA = 4.7L Magnum V8 EVD = 4.7L Magnum V8 FFV EWC = 8.3L V10 SFI DGQ = Multi-speed Automatic (45RFE) DG4 = Multi-speed Automatic (45RFE) DG8 = 4 Speed Automatic (48RE) DEC = 6 Speed Manual DEJ = 6 Speed Manual AR = use ase required - = Non illustrrated part 2005 DR << RETURN TO GROUP INDEX

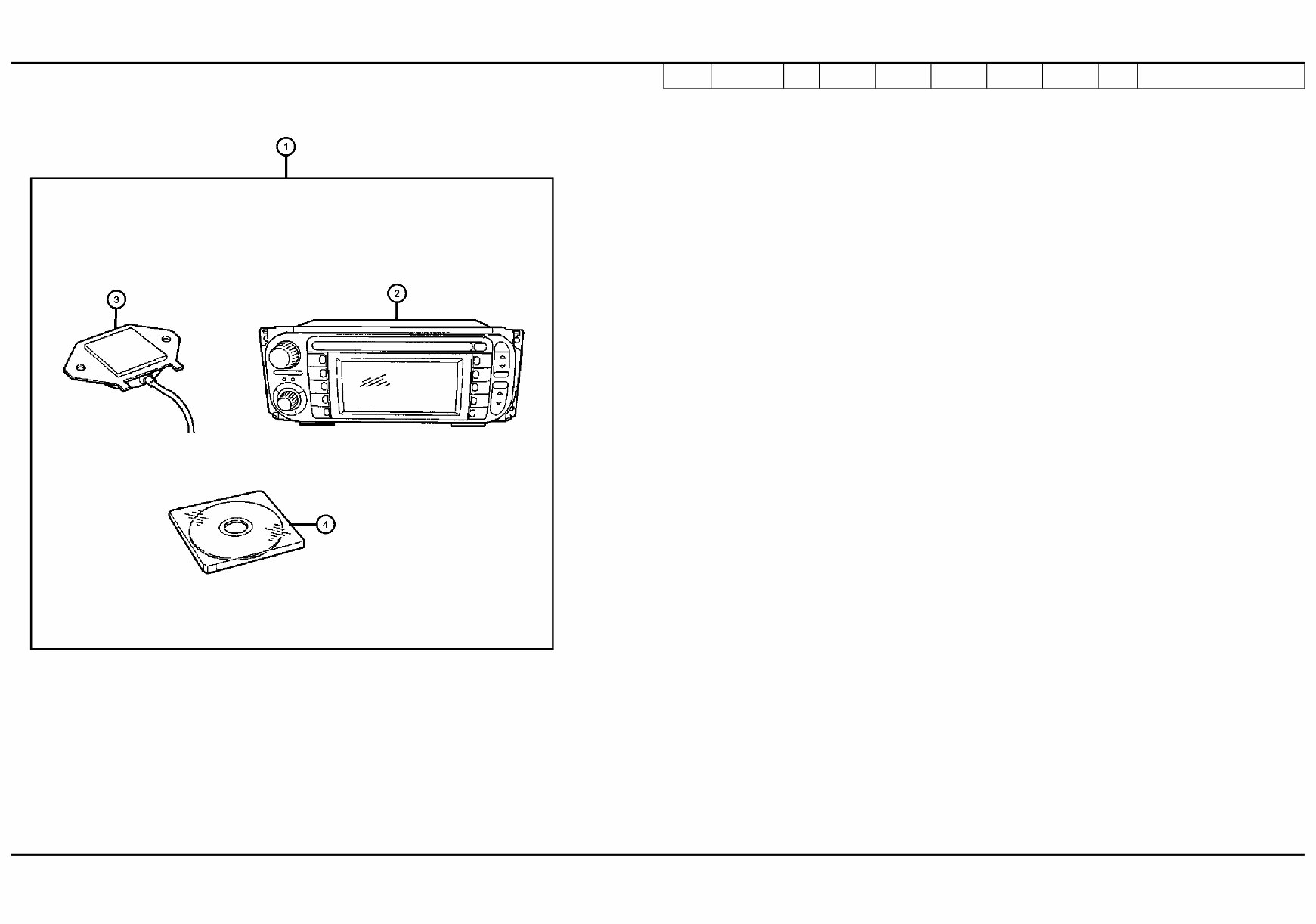

Navigation Kit (RB1) Figure 1-150 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Navigation Kit (RB1) NK(RB1) Note: For Warranty Repair On Item 2, Order using Z Prex 1 82208715AB 1 RADIO, AM/FM CD W/NAV/DVD & CD-CTRL 2 56038629AG 1 RADIO, AM/FM CD W/NAV/DVD & CD-CTRL 3 56038630AA 1 ANTENNA, GPS 4 05064033AA 1 DVD, Geographic Database DODGE - REGULAR & QUAD CAB PICKUP (DR) SERIES LINE BODY ENGINE TRANSMISSION H = SLT L = ST 1 = 1500 2WD 6 = 1500 4WD 62 = Regular Cab (140.5 WB) 41 = Quad Cab (140.5 WB) 42 = Quad Cab (160.5 WB) 61 = Regular Cab (120.5 WB) EZA = 5.7L HEMI Magnum V8SMPI EKG = 3.7L Magnum V6 MPI EVA = 4.7L Magnum V8 EVD = 4.7L Magnum V8 FFV EWC = 8.3L V10 SFI DGQ = Multi-speed Automatic (45RFE) DG4 = Multi-speed Automatic (45RFE) DG8 = 4 Speed Automatic (48RE) DEC = 6 Speed Manual DEJ = 6 Speed Manual AR = use ase required - = Non illustrrated part 2005 DR << RETURN TO GROUP INDEX

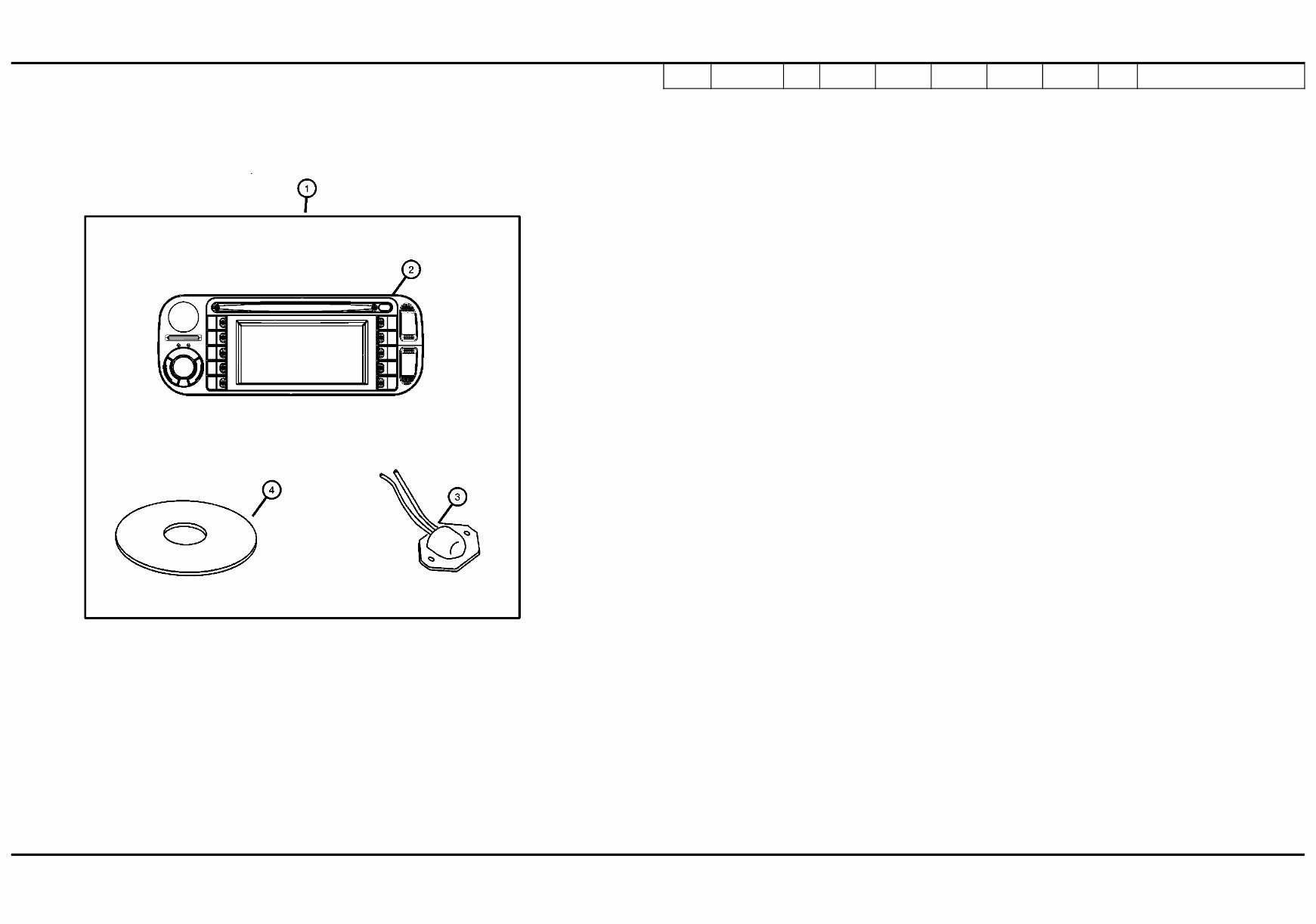

Navigation Kit (RB4) Figure 1-160 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Navigation Kit (RB4) NK(RB4) Note: For Warranty Repair on Item 2, Order Using Z Prex 1 82208481 1 RADIO, AM/FM CD W/NAV/DVD & CD-CTRL 2 56043286AE 1 RADIO, AM/FM CD W/NAV/DVD & CD-CTRL 3 05094003AA 1 ANTENNA, Satellite 4 05091501AG 1 COMPACT DISC, Navigation DODGE - REGULAR & QUAD CAB PICKUP (DR) SERIES LINE BODY ENGINE TRANSMISSION H = SLT L = ST 1 = 1500 2WD 6 = 1500 4WD 62 = Regular Cab (140.5 WB) 41 = Quad Cab (140.5 WB) 42 = Quad Cab (160.5 WB) 61 = Regular Cab (120.5 WB) EZA = 5.7L HEMI Magnum V8SMPI EKG = 3.7L Magnum V6 MPI EVA = 4.7L Magnum V8 EVD = 4.7L Magnum V8 FFV EWC = 8.3L V10 SFI DGQ = Multi-speed Automatic (45RFE) DG4 = Multi-speed Automatic (45RFE) DG8 = 4 Speed Automatic (48RE) DEC = 6 Speed Manual DEJ = 6 Speed Manual AR = use ase required - = Non illustrrated part 2005 DR << RETURN TO GROUP INDEX

Media System - Rear Seat Video Figure 1-170 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Media System - Rear Seat Video MS-RSV Note: Must Order Item #2 To Install Item#1 Note; For Warranty Repair On Item 8, Order Using Z Prex 1 82207997 1 41, 42 MEDIA SYSTEM, Monitor with DVD 2 82206419 1 41, 42 INSTALL KIT, MEDIA SYSTEM 3 05166867AA 1 41, 42 SHROUD, SHROUD 4 05166865AA 1 41, 42 BRACKET, Mounting 5 05166869AA 1 41, 42 MEDIA SYSTEM, Monitor with DVD 6 05166870AA 1 41, 42 HARNESS, Wiring 7 05166871AA 1 41, 42 HARNESS, Wiring 8 05166872AA 1 41, 42 MODULATOR, FM 9 05166873AA 1 41, 42 REMOTE, Wireless Infrared 10 05064037AA 1 41, 42 HEADPHONES, Wireless DODGE - REGULAR & QUAD CAB PICKUP (DR) SERIES LINE BODY ENGINE TRANSMISSION H = SLT L = ST 1 = 1500 2WD 6 = 1500 4WD 62 = Regular Cab (140.5 WB) 41 = Quad Cab (140.5 WB) 42 = Quad Cab (160.5 WB) 61 = Regular Cab (120.5 WB) EZA = 5.7L HEMI Magnum V8SMPI EKG = 3.7L Magnum V6 MPI EVA = 4.7L Magnum V8 EVD = 4.7L Magnum V8 FFV EWC = 8.3L V10 SFI DGQ = Multi-speed Automatic (45RFE) DG4 = Multi-speed Automatic (45RFE) DG8 = 4 Speed Automatic (48RE) DEC = 6 Speed Manual DEJ = 6 Speed Manual AR = use ase required - = Non illustrrated part 2005 DR << RETURN TO GROUP INDEX

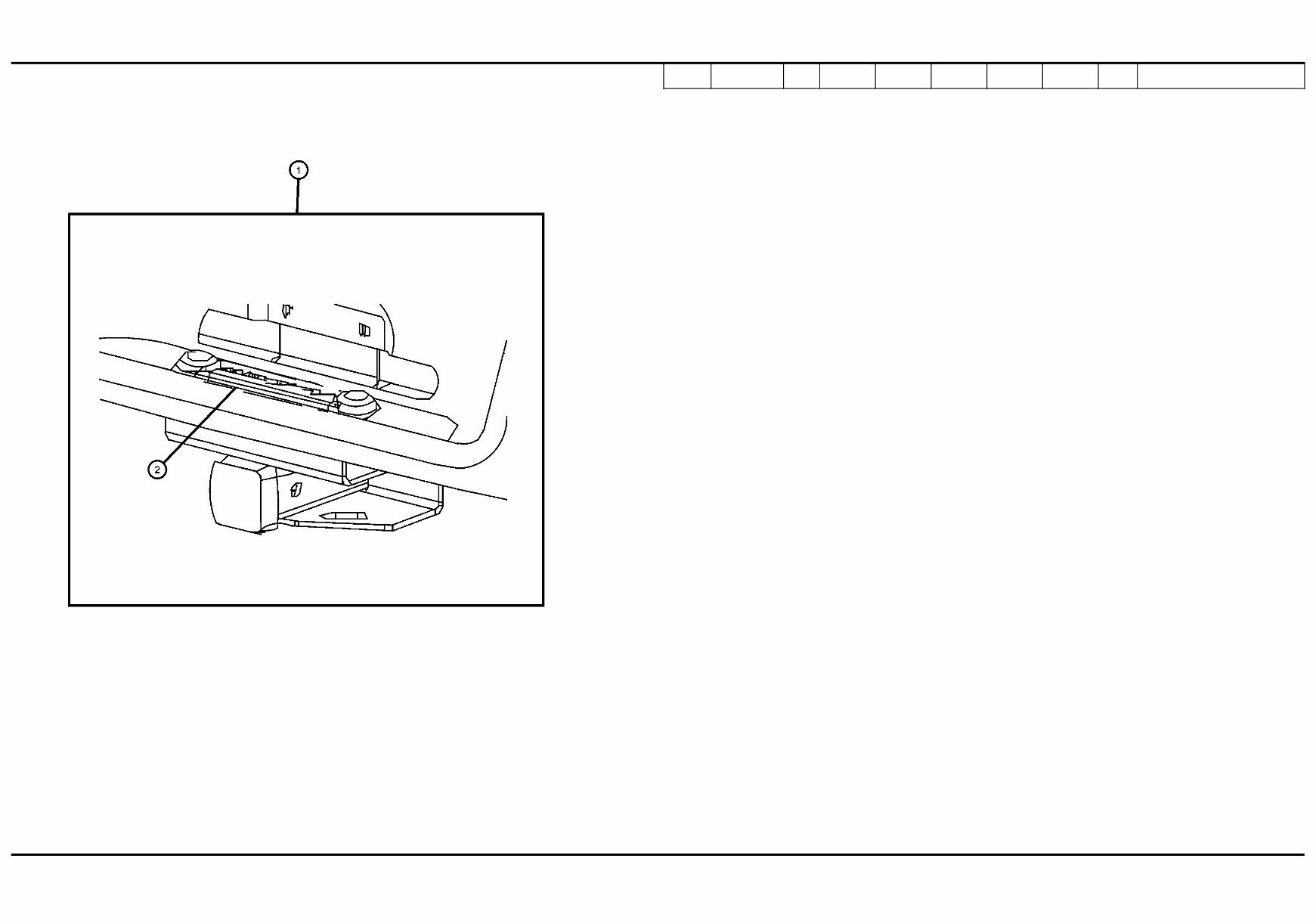

Receiver Kit - Trailer Tow Figure 1-225 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Receiver Kit - Trailer Tow RK-TT NOTE: Cover Mounts to Bumper After Hitch is Installed. 1 82207911 1 1, 6 RECEIVER KIT, Trailer Tow 2 05103387AA 1 COVER, Bolt DODGE - REGULAR & QUAD CAB PICKUP (DR) SERIES LINE BODY ENGINE TRANSMISSION H = SLT L = ST 1 = 1500 2WD 6 = 1500 4WD 62 = Regular Cab (140.5 WB) 41 = Quad Cab (140.5 WB) 42 = Quad Cab (160.5 WB) 61 = Regular Cab (120.5 WB) EZA = 5.7L HEMI Magnum V8SMPI EKG = 3.7L Magnum V6 MPI EVA = 4.7L Magnum V8 EVD = 4.7L Magnum V8 FFV EWC = 8.3L V10 SFI DGQ = Multi-speed Automatic (45RFE) DG4 = Multi-speed Automatic (45RFE) DG8 = 4 Speed Automatic (48RE) DEC = 6 Speed Manual DEJ = 6 Speed Manual AR = use ase required - = Non illustrrated part 2005 DR << RETURN TO GROUP INDEX

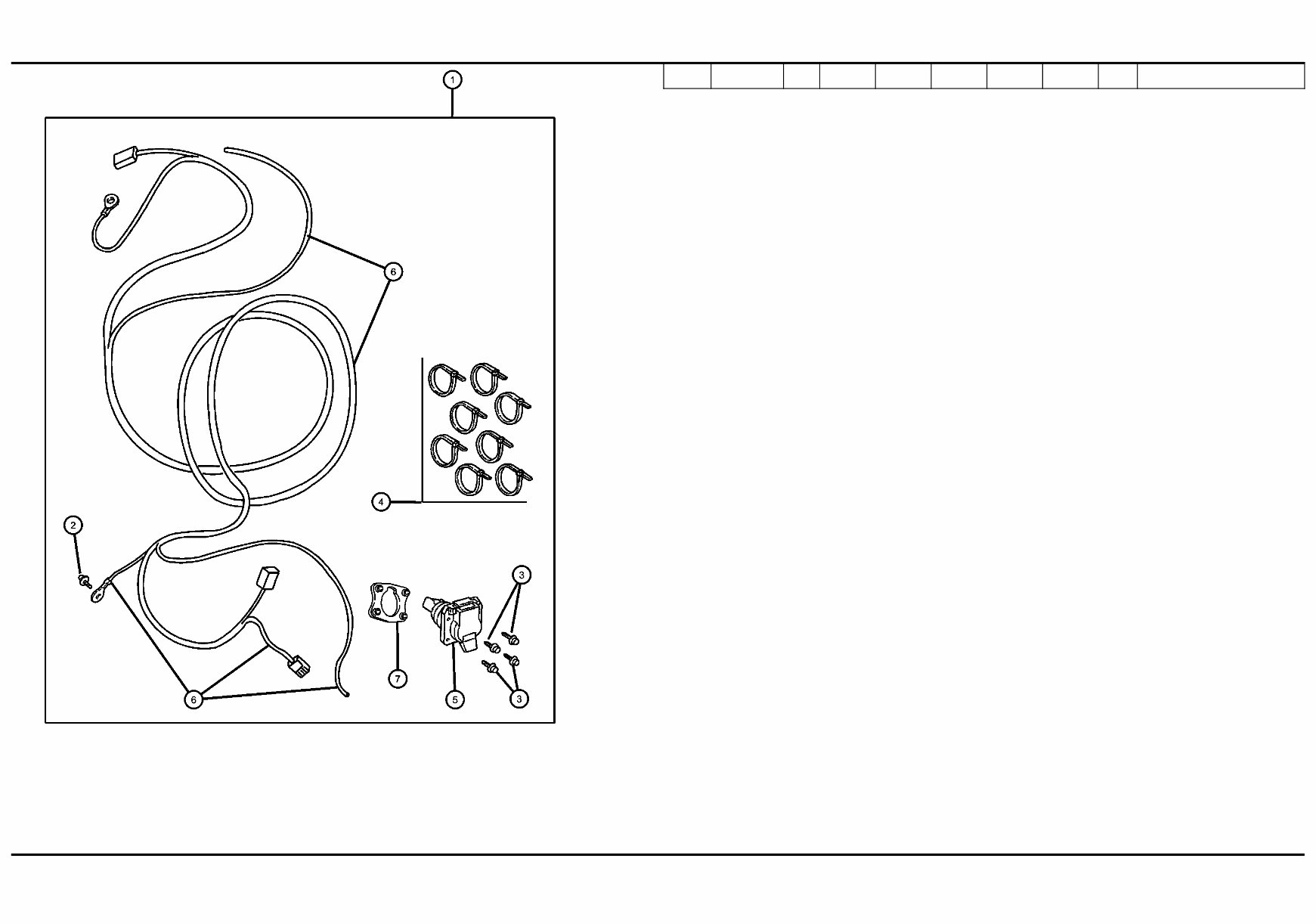

Wiring Package - Trailer Tow Figure 1-240 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Wiring Package - Trailer Tow 1 82207253 1 WIRING PACKAGE, Trailer Tow 2 00154554 1 SCREW, Self Piercing, .25-14x.625 3 06034912 4 SCREW, Pan Head, .19-16x.75 4 STRAP, Tie 05073039AA 1 6.9 Inch 06016155 1 14.5 Inch 5 56038366AB 1 CONNECTOR, 7 Way 6 56038366AB 1 WIRING KIT, Trailer Tow - 7 Way, (NOT SERVICED) 7 55077360AB 1 TAPPING PLATE DODGE - REGULAR & QUAD CAB PICKUP (DR) SERIES LINE BODY ENGINE TRANSMISSION H = SLT L = ST 1 = 1500 2WD 6 = 1500 4WD 62 = Regular Cab (140.5 WB) 41 = Quad Cab (140.5 WB) 42 = Quad Cab (160.5 WB) 61 = Regular Cab (120.5 WB) EZA = 5.7L HEMI Magnum V8SMPI EKG = 3.7L Magnum V6 MPI EVA = 4.7L Magnum V8 EVD = 4.7L Magnum V8 FFV EWC = 8.3L V10 SFI DGQ = Multi-speed Automatic (45RFE) DG4 = Multi-speed Automatic (45RFE) DG8 = 4 Speed Automatic (48RE) DEC = 6 Speed Manual DEJ = 6 Speed Manual AR = use ase required - = Non illustrrated part 2005 DR << RETURN TO GROUP INDEX
