SPECIAL CAUTIONS
CUTAWAY VAN
Cutaway vehicles are supplied incomplete to aftermarket specialty
manufacturers, which may have special options not available on
regular production (complete) vehicles. Extra care should be
exercised when estimating these vehicles. It may be necessary to
consult the OEM dealer or particular specialty manufacturer for
specific information.
AIR BAGS
Refer to Procedure Explanation 29 for Supplemental Restraint/Air
Bag Special Cautions.
PAINT CODE
LOCATION
Located on firewall behind battery.
CLEAR COAT
IDENTIFICATION
No colors are clear coat.
INFORMATION LABELS
Label, Emission
6 Cyl
w/Calif Emission 00 53032224AA $3.10
01 52121011AA $3.55
02 52113833AB $2.45
03 52110406AB $0.45
w/o Calif Emission 99 53031772AA $3.85
00 53032222AA $3.95
01 52121011AA $3.55
02-03 52121027AB $0.45
8 Cyl
5.2L Eng
w/Calif Emission 00 53032227AA $2.35
01 52121000AA $3.55
02 52113841AA $2.20
03 52110407AA $0.50
w/o Calif Emission 99 53031781AA $4.35
00 53032225AA $3.45
01 52102996AA $3.80
02 52113839AA $2.45
03 52110409AA $0.50
5.9L Eng
w/Calif Emission 00 53032241AA $3.35
01 52121007AA $3.55
02 52113849AA $2.45
1994-2003 Dodge Ram
Page 1 of 205
03 52110408AB $0.45
w/o Calif Emission 99 53031792AA $3.75
00 53032239AA $3.35
01 52121005AA $3.80
02 52113842AA $2.45
03 52110410AA $0.50
Label, Air Bag Warning (a) R 4787436AA $6.45
L 4787436AA $6.45
(a) Located on Visor
Label, Air Bag Warning (b) 4595748AA $5.85
(b) Located in Glove Box
Label, Fuel Door 53015512AA $12.85
Label, CNG Manual Shut-Off Valve 55274676 $10.10
Label, Service Warning 4673523 $10.81
Label, Unleaded Fuel 94-01 4206059 $5.10
02-03 4490411 $2.20
Order by Application
Label, Belt Routing 53008745 $4.00
Label, Exhaust Warning 55174544 $10.97
Order by Application

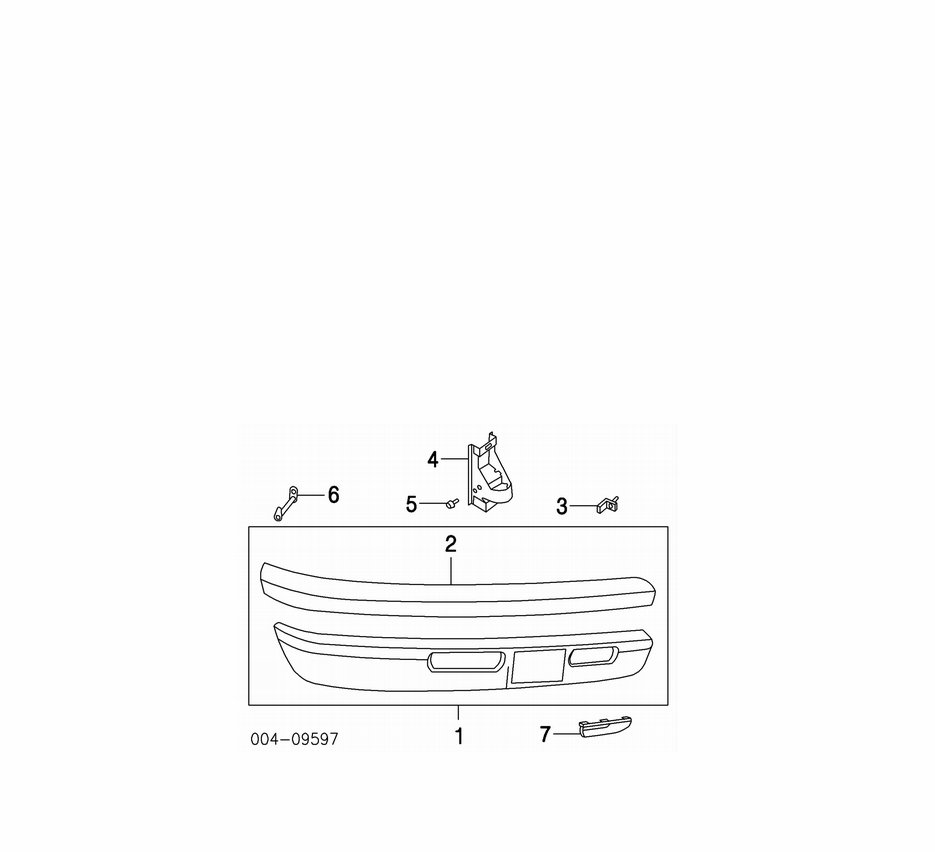

FRONT BUMPER
Use Procedure Explanations 1 and 28
with the following text.
Refinish Face Bar 1.5
R&I Bumper Assy .5
O/H Bumper Assy (Includes R&I) 1.2
NOTE: All Parts in this section are included in overhaul unless
Page 2 of 205
noted otherwise.
1 Bar Assy, Face
Chrome 94-97 55076752 $454.00 .9
98-03 55076934AB $712.00 .9
Painted Argent 94-97 5EB73RSA $379.00 .9
98-03 5GA48MSAAB $590.00 .9
2 Cover, Bumper 94-97 55234680 $135.00 #.3
98-03 55076500 $163.00 #.3
Included w/Face Bar Assy
#Included in R&R Face Bar or O/H Bumper Assy
Absorber, Impact
1994-97
Outer R 55295644 $94.05
L 55295645 $122.32
Center 55295643 $80.00
1998-03-Serviced w/Face Bar
Bracket, Bumper
3 1994-97 R 55234702 $72.20
L 55234703 $72.20
4 1998-03 R 55076504 $72.75
L 55076505 $72.75
5 Bolt, Bracket R 6504122 $7.00
L 6504122 $7.00
6 Support, Side 94-97 R 55234704 $9.00
L 55234705 $9.00
98-03 R 55076872AA $23.25
L 55076873AA $23.25
7 Shield, Sight 94-97 R 55235134 $24.06
L 55235134 $24.06
98-03 R 55076497 $31.95
L 55076497 $31.95

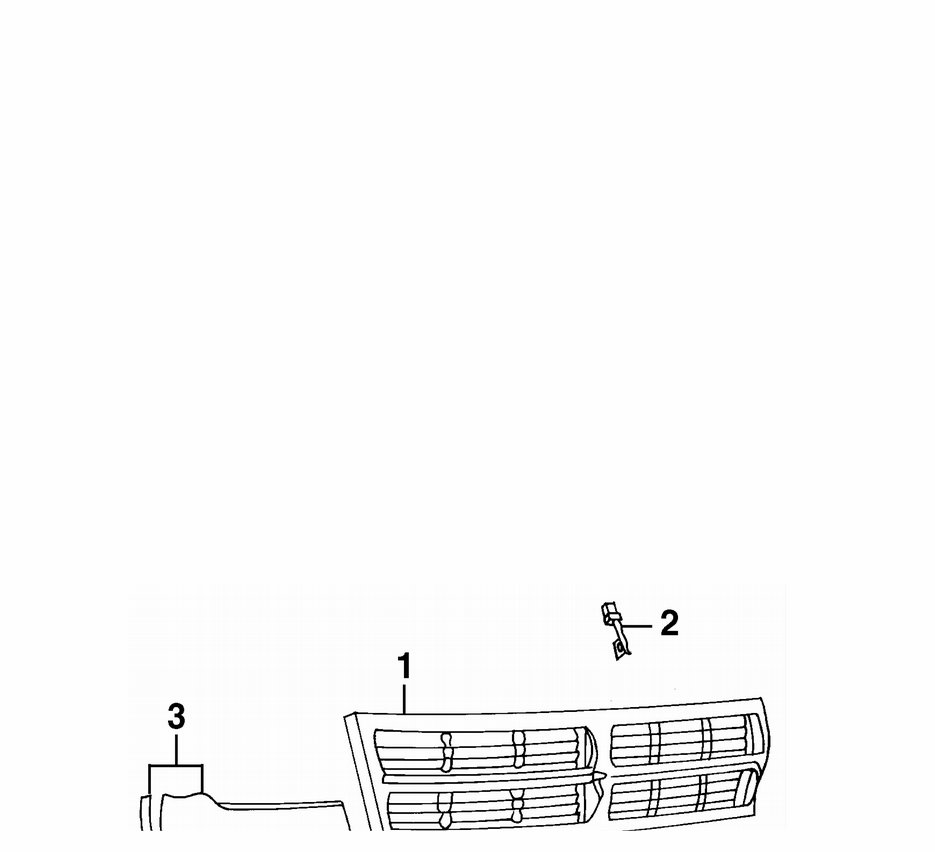

GRILLE
Page 3 of 205
Refinish Grille 1.2
Refinish Extension Panel R .4
L .4
R&I Grille .2
1 Grille
Chrome 94-97 55054636 $224.00 .2
98-03 55076540AD $292.00 .2
Paint to Match 94-97 55054635 $189.00 .2
98-03 5FC46MSAAC $280.00 .2
2 Brkt, Center Grille 94-97 55345469 $28.45
98-03 55346879 $19.20
3 Panel, Extension (P) 94-97 R 55346162 $158.00 .2
L 55346163 $158.00 .2
98-03 R 55347244AE $65.35 .2
L 55347245AE $65.35 .2
(P) Paint to Match
FRONT LAMPS

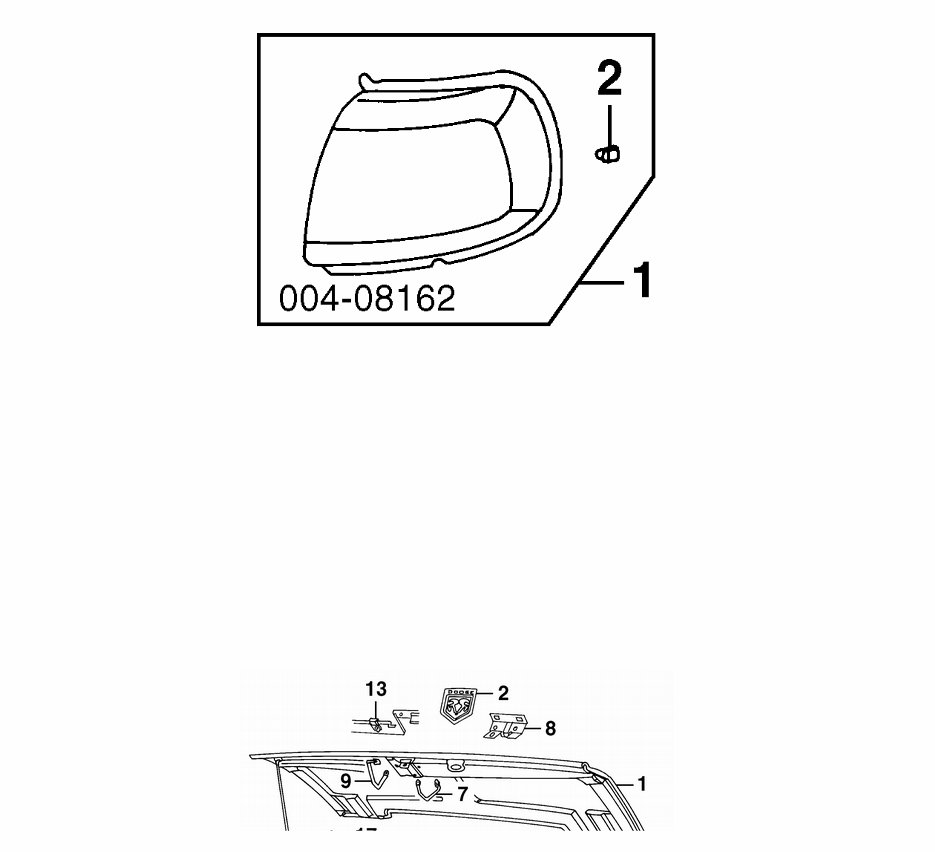

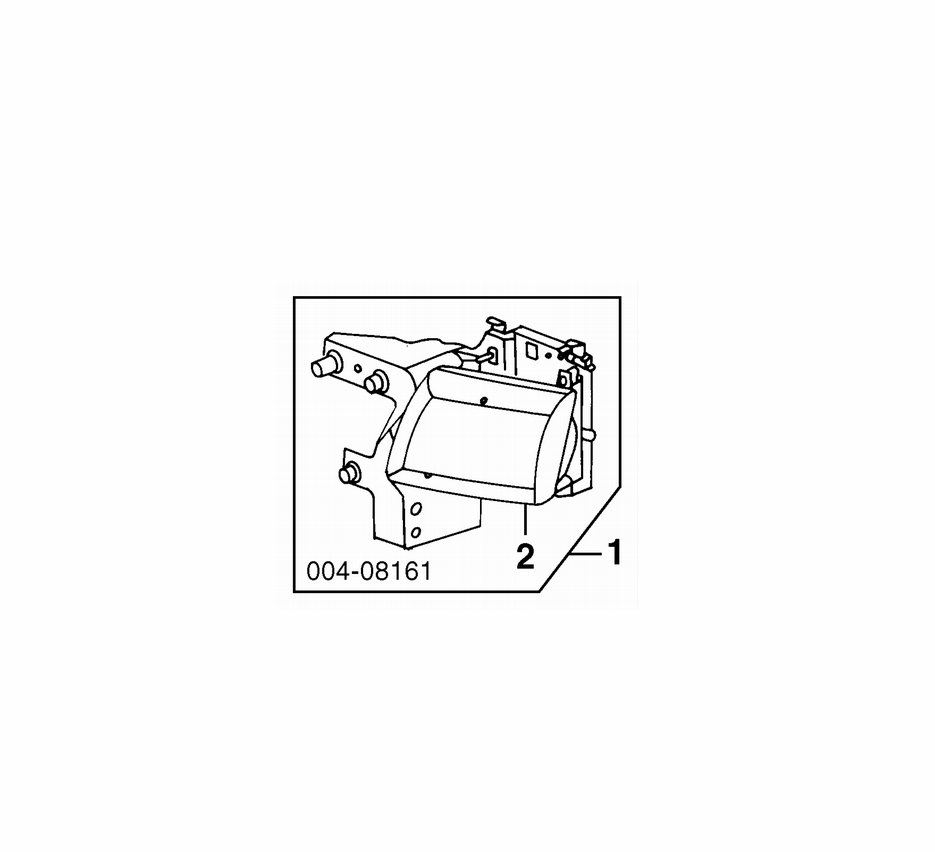

HEADLAMP
HEADLAMP 1994-97
Aim Lamps .4
R&I Headlamp Assy R #.3
L #.3
Page 4 of 205
#Includes R&I/R&R Park/Signal Lamp Assy
NOTE: R&R Does Not include aim lamps.
1 Headlamp Assy R 55055276AB $340.00 #.3
L 55055277AB $340.00 #.3
#Includes R&I/R&R Park/Signal Lamp Assy
2 Lens & Housing R 5013664AA $215.00 #.2
L 5013665AA $215.00 #.2
Bulb, Headlamp R 154824 $12.95 #.2
L 154824 $12.95 #.2
Included w/Headlamp Assy
#R&R One Side Complete, Included in R&I/R&R Headlamp
Assy
Module, DRL
Canada N.A.
HEADLAMP
HEADLAMP 1998-03
Aim Lamps .4
R&I Headlamp Assy R #.3
L #.3
#Includes R&I/R&R Park/Signal Lamp Assy
NOTE: R&R Does Not include aim lamps.
1 Headlamp Assy R 55076524AC $292.00 #.3
L 55076525AC $292.00 #.3
#Includes R&I/R&R Park/Signal Lamp Assy
2 Lens & Housing R 55076562AB $292.00 #.2
L 55076563AB $287.00 #.2
Bulb, Headlamp 98-00 R 154824 $12.95 #.2
L 154824 $12.95 #.2
01-03 R L0009004LL $17.85 #.2
Page 5 of 205
L L0009004LL $17.85 #.2
#R&R One Side Complete, Included in R&I/R&R Headlamp
Assy
Nut, Retainer R 4388227 $16.45
L 4388227 $16.45
Included w/Headlamp Assy
Tube, Headlamp Vent R 4857156AA $3.20
L 4857156AA $3.20
Module, DRL
Canada N.A.

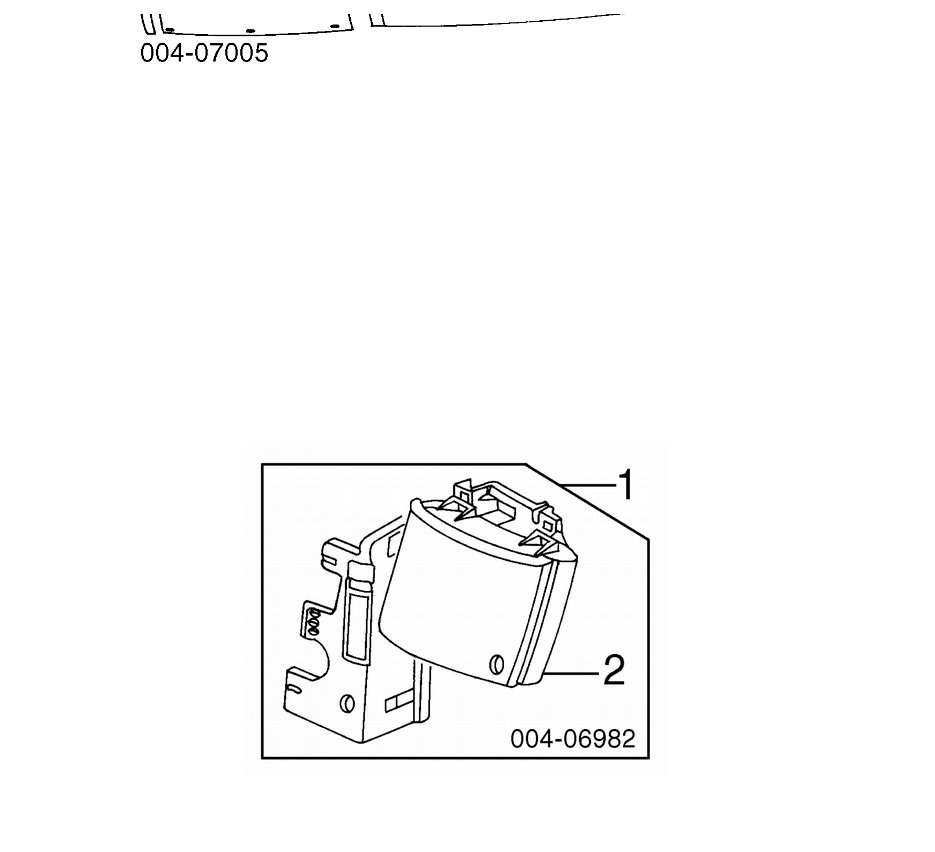

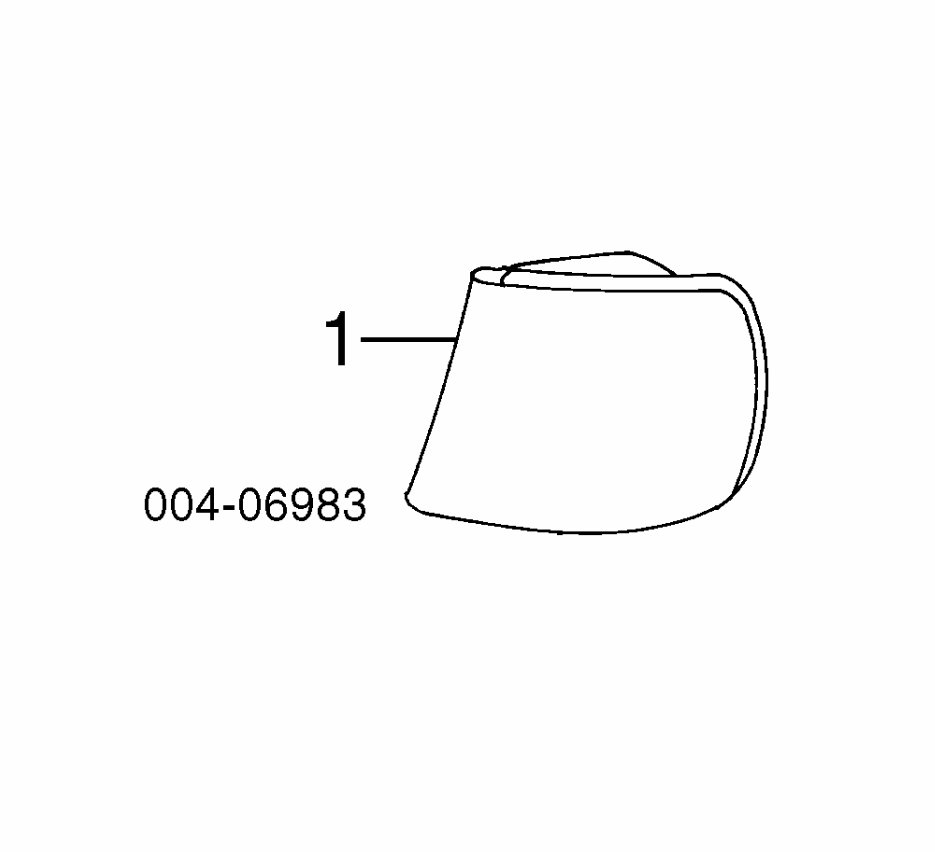

PARK/SIGNAL LAMP
PARK/SIGNAL LAMP 1994-97
R&I Park/Signal Lamp Assy R .3
L .3
1 Lamp Assy, Park/Signal R 55054872 $144.00 .3
L 55054873 $137.00 .3
Bulb, Park/Signal R L0002057 $1.35 #.2
L L0002057 $1.35 #.2
Included w/Park/Signal Lamp Assy
#Included in R&I/R&R Park/Signal Lamp Assy
Socket, Park/Signal R 4399900 $11.95
L 4399900 $11.95
PARK/SIGNAL LAMP
PARK/SIGNAL LAMP 1998-03
Page 6 of 205
R&I Park/Signal Lamp Assy R .3
L .3
1 Lamp Assy, Park/Signal R 55076526AC $108.00 .3
L 55076527AC $108.00 .3
2 Clip, Mounting (a) R 6502776 $2.45
L 6502776 $2.45
(a) As Required
Bulb, Park/Signal 98-00 R L003457K $3.10 #.2
L L003457K $3.10 #.2
01-03 R L0000168 $1.20 #.2
L L0000168 $1.20 #.2
Included w/Park/Signal Lamp Assy
#Included in R&I/R&R Park/Signal Lamp Assy
Socket, Park/Signal R 4399900 $11.95
L 4399900 $11.95
HOOD
Use Procedure Explanations 4 and 28
with the following text.
Page 7 of 205
Refinish Hood Outside 2.3
Add for Underside 1.1
Refinish Hinge Arm R .2
L .2
R&I Hood .4
Add to R&R Hood
w/Underhood Lamp .1
1 Panel, Hood 94-97 55344901AB $540.60 .7
98-99 55346549AC $545.00 .7
00-03 55346549AI $545.00 .7
2 Nameplate (Adhesive)
Rams Head 94-00 55295241AB $26.70 .2
01-03 55076512 $34.10 .2
3 Latch 94-97 5207088 $58.20 .3
98-01 55346931AC $55.60 .3
02-03 55346931AD $69.60 .3
4 Cable, Latch Release 94-97 55074995 $35.70 .5
98 55347060AB $36.45 .5
99 55347060AB $36.45 .5
00-03 55347060AC $55.25 .5
Includes Interior Release Handle
5 Shield, Latch 94-97 55075458 $6.30 .1
6 Catch, Safety 94-97 55075870 $29.07 .1
7 Striker, Latch 94-97 4087802 $25.67 .2
98-03 55346928AC $31.25 .2
8 Reinf, Latch Striker 94-97 4087521 $18.25 #.3
#Includes R&R Striker
9 Striker, Catch 94-97 55254983 $32.81 .2
10 Spring, Hood 94-97 5207387 $1.90 .1
11 Arm, Hinge 94-99 R 55347106AB $25.45 #.7
L 55347107AB $25.45 #.7
00-03 R 55347106AB $25.45 #.7
L 55347107AB $25.45 #.7
#w/Hood Removed, Includes R&R Cowl Panel Grille, R&R Both
Sides .8
Reinf, Hinge R 55344970 $15.60
L 55344971 $15.60
12 Rod, Prop 94-97 55234850 $13.20 .2
Page 8 of 205
98-00 55347054AD $36.95 .2
01-03 55347054AD $36.95 .2
13 Retainer, Prop Rod 3495003 $4.10
14 Clip, Rod 94-97 6015640 $1.85
98-03 J4007456 $15.70
15 Bumper, Hood 94-96 R 2276804 $4.35 .1
L 2276804 $4.35 .1
97-03 R 55347225 $9.10 .1
L 55347225 $9.10 .1
16 Screw, Bumper R 6035724 $2.95
L 6035724 $2.95
17 Bumper, Side R 55346355 $3.85
L 55346355 $3.85
Lamp, Underhood 94-97 5093194AA $25.20 .2
98-03 56021441 $23.75 .2
Bulb, Lamp 94-97 L0001003 $0.80
98-03 L0000561 $1.95

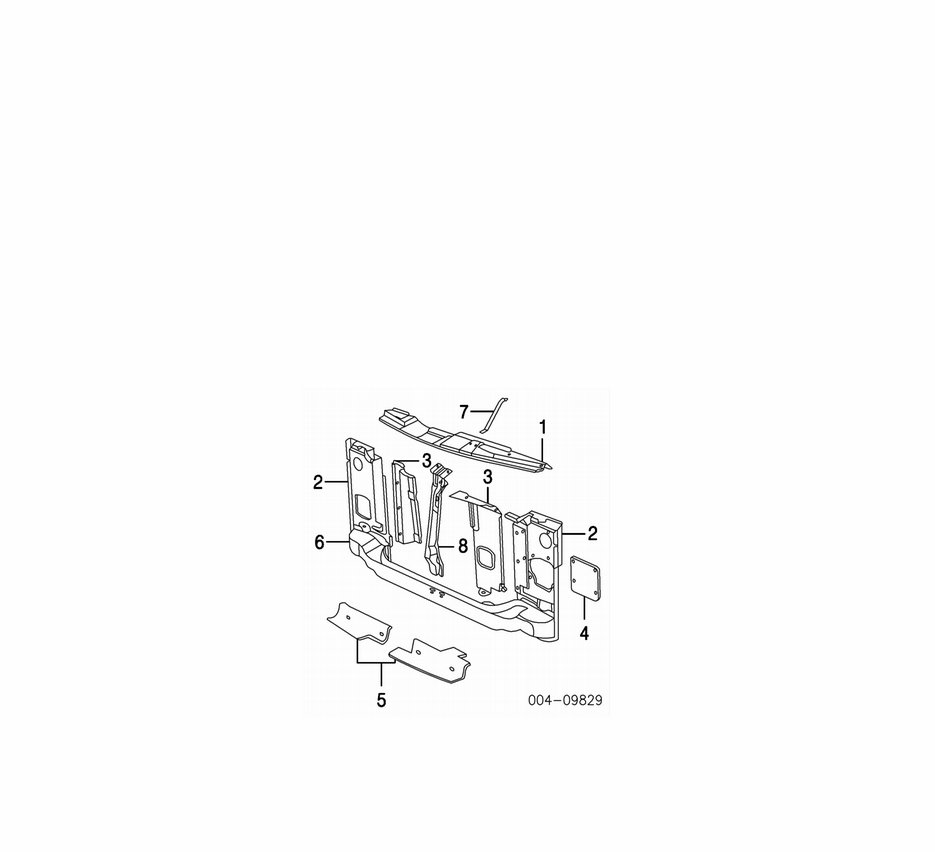

COOLING
Use Procedure Explanations 5 and 28
with the following text.
Refinish Radiator Support Complete 1.5
Refinish Upper Tie Bar .5
Refinish Side Support R .5
L .5
Refinish Radiator Support R .5
L .5
Page 9 of 205
Refinish Lower Crossmember .5
R&I Radiator #1.5
#w/ A/C Add .2, w/Aux Trans Cooler Add .1
R&R Radiator Support Complete #7.2
#Includes R&R Radiator, Shroud, H/Lamp Assemblies, Grille,
Grille Extension Panels, Air Cleaner Flex Duct, Hood Latch,
Safety Latch, Latch Shield, Pop-Up Spring, Coolant Tank, Horns
& Lower Baffle & Disconnect & Connect Upper Support Brace,
Hood Release Cable, Washer Tank, Wiring &/or Harness as
Necessary
Add to R&R Radiator Support Complete
w/ A/C #.4
#Includes R&I/R&R Condenser
Add to R&R Radiator Support Complete w/Aux
Trans Cooler
#.3
#Includes R&R Aux Trans Cooler
Add to R&R Radiator Support Complete
w/Cruise Control
#.1
#Includes R&R Servo
Add to R&R Radiator Support Complete w/4
Wheel ABS
#2.0
#Includes R&R ABS Front Hydro Unit
To Aim Lamps .4
Evacuate & Recharge System 1.4
Recover Refrigerant .3
1 Bar, Upper Tie 94-97 55346530 $189.00 #.7
98-03 55359063AB $92.50 #.7
#Included in R&R Radiator Support Complete
2 Support, Side 94-99 R 55344956 $160.00 #1.5
L 55344957 $95.95 #1.5
00-03 R 55346749AE $64.10 #1.5
L 55346751AE $64.25 #1.5
#w/Lower Crossmember Removed, Included in R&R Radiator
Support Complete
3 Support, Radiator 94-97 R 55344952 $37.49 #.5
L 55346641 $116.00 #.5
98-01 R 55359056AA $44.45 #.5
L 55346775AC $57.75 #.5
02-03 R 55359056AA $44.45 #.5
L 55346775AC $57.75 #.5
4 Cover, ABS Hole L 55346400 $10.45 #.2
L 55347164AC $10.10 #.2
L 55347164AC $10.10 #.2
L 55347164AD $20.00 #.2
5 Deflector, Radiator 94-95 R 55036454 $11.35 #.2
L 55036455 $11.45 #.2
96-97 55055548 $17.80 #.2
98-03 55055827AC $39.70 #.2
6 Crossmember, Lower 94-97 55234742 $217.00 #4.0
98-00 55346744AB $132.00 #4.0
Page 10 of 205
