2006 Chrysler Crossfire Parts Catalog

VIN PLATE DECODING INFORMATION 1 2 3 4 5 6 7 8 9 10 11 12 thru 17 Country Make Vehicle Type Other Line Series Body Style Engine Check Digit Model Year Assy. Plant Sequence No. The following table interprets the VIN Plate position shown above. Position Interpretation Codes = Description 1 Country of Origin 4 = Built in Germany 2 Assembler C = Chrysler 3 Vehicle Type 3 = Passenger 4 GVWR & Pass. Safety A = Restraint System Active Front & Side Air Bags (CGS) B = Restraint System Manual/Active Uni-belt (CGA) D = Restraint System w/o Air Bags (CGJ) E = Restraint System Active Driver & Passenger Air Bags (CGW) 5 Vehicle Line N = Crossre (LHD) P = Crossre (RHD) 6 Series 5 = Premium 7 Body Style 6 = Crossre (29) 8 Engine L = 3.2L V6 18V SOHC (EGX) N = 3.2L V6 Supercharged (EGZ) 9 Check Digit 0 = Check Digit 0 = Check Digit 10 Model Year 6 = 2006 11 Assembly Plant X = Karmann - Osnabrueck 12 thru 17 Vehicle Build Sequence Model Year Assembly Sequence

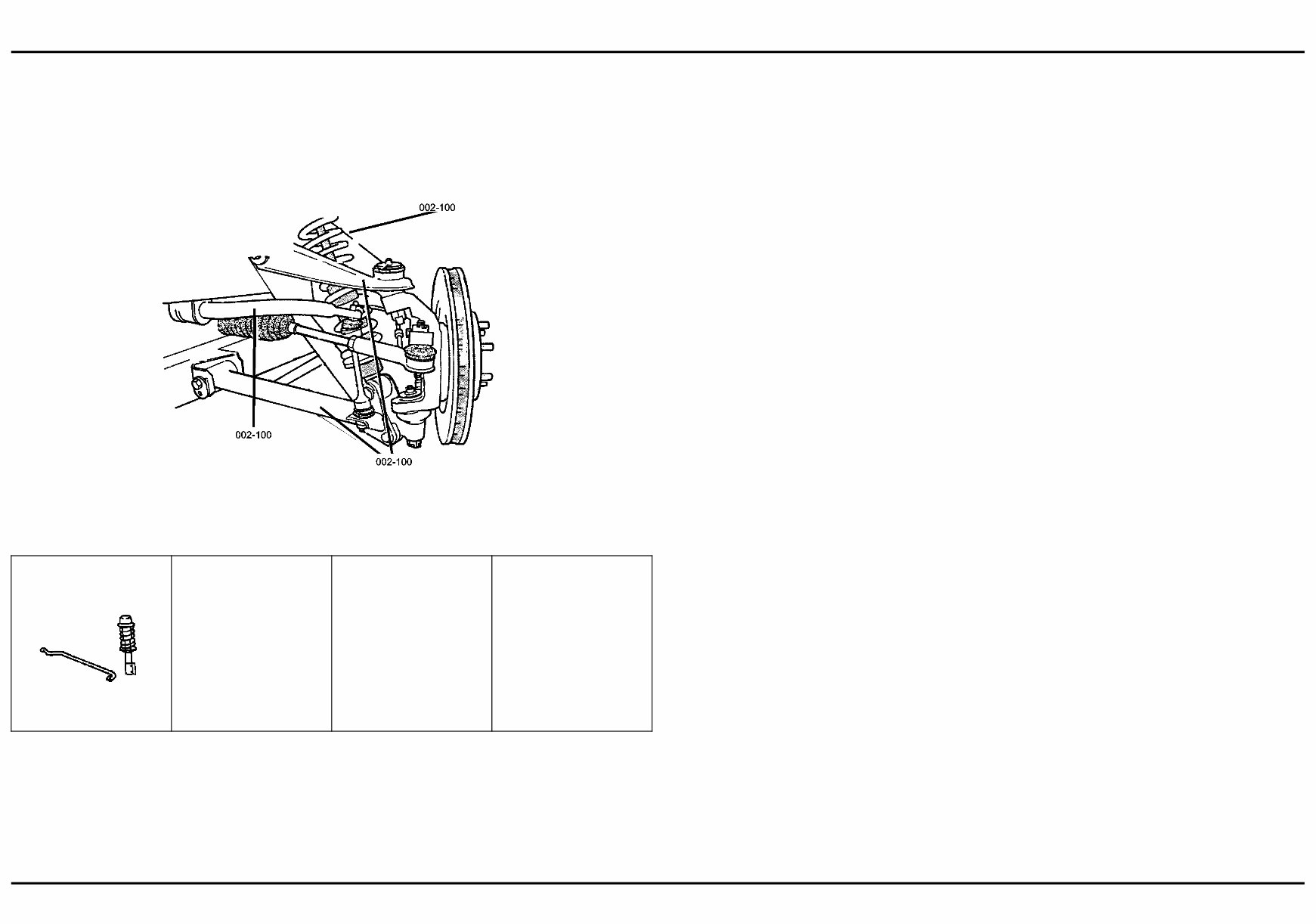

Group - 2 Front Suspension & Drive 002-100 Front Suspension Group - 2 Front Suspension & Drive Illustration Title Group-Fig. No. Front Suspension Suspension, Front ............................................................................................................................ Fig. 2 - 120 Sway Bar, Front .............................................................................................................................. Fig. 2 - 130 2006 ZH

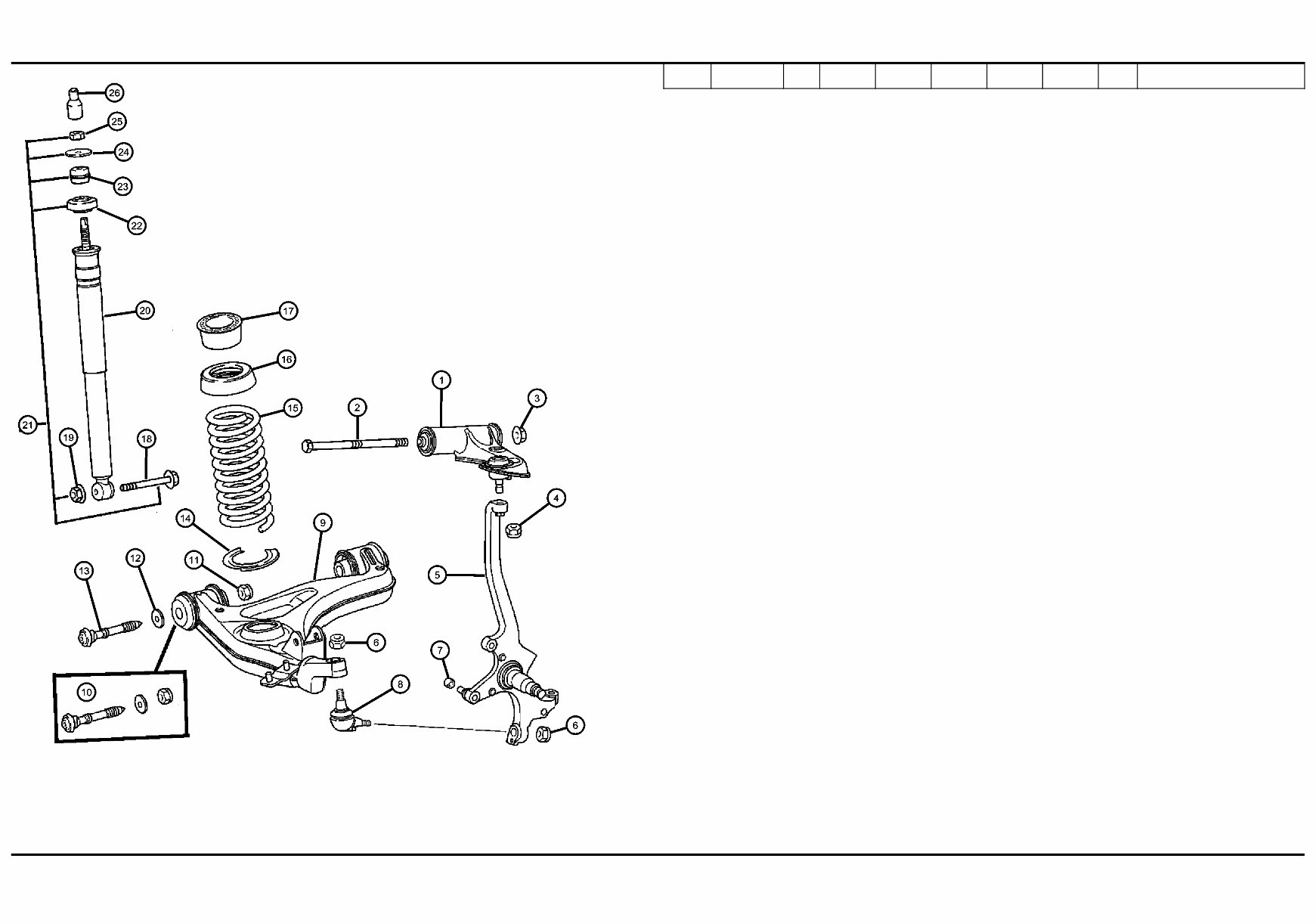

Suspension, Front Figure 2-120 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Suspension, Front S,F Sales Codes: [EGX]=3.2L V6 SOHC 18 VALVE [EGZ]= 3.2L V6 SUPERCHARGED [DED]= 6-SPEED MANUAL [DGJ]=5-SPD AUTO, W5A580 [DGU]=5-SPD AUTO, W5A330 1 ARM, Upper Control, Front 05101056AA 1 C, Z 29 EGX, EGZ DED, DGJ, DGU Left 1 C, Z 27 EGX, EGZ DED, DGJ, DGU Left 05101057AA 1 C, Z 29 EGX, EGZ DED, DGJ, DGU Right 1 C, Z 27 EGX, EGZ DED, DGJ, DGU Right 2 BOLT 05097584AA 1 C, Z 29 EGX, EGZ DED, DGJ, DGU 1 C, Z 27 EGX, EGZ DED, DGJ, DGU 3 NUT, Hex Flange, M10x1.5 06104717AA 1 C, Z 29 EGX, EGZ DED, DGJ, DGU 1 C, Z 27 EGX, EGZ DED, DGJ, DGU 4 NUT 05097588AA 1 C, Z 29 EGX, EGZ DED, DGU, DGJ 1 C, Z 27 EGX, EGZ DED, DGJ, DGU 5 KNUCKLE, Front 05097556AA 1 C, Z 29 EGX, EGZ DED, DGJ, DGU 1 C, Z 27 EGX, EGZ DED, DGJ, DGU 6 NUT, Hex 05097586AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 7 CAP, Bolt Cover 05101546AA 1 C, Z 29 EGX, EGZ DED, DGJ, DGU 1 C, Z 27 EGX, EGZ DED, DGJ, DGU CROSSFIRE (ZH) SERIES LINE BODY ENGINE TRANSMISSION P = PREMIUM S = SPORT X = SPECIAL C = CHRYSLER Z = CHRYSLER (RHD) 27 = 2-DR CONVERTIBLE 29 = SPECIALTY COUPE EGX = 3.2L V6 SOHC 18 Valve Engine EGZ = 3.2L V6 Supercharged Engine DED = 6-Speed Manual Transmission DGJ = 5-Speed Automatic MB Transmission DGU = 5-Spd Auto W5A330 Transmission AR = use ase required - = Non illustrrated part 2006 ZH << RETURN TO GROUP INDEX

Suspension, Front Figure 2-120 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION 8 BALL JOINT, Lower Control Arm 05099237AB 1 C, Z 29 EGX, EGZ DED, DGJ, DGU 1 C, Z 27 EGX, EGZ DED, DGJ, DGU 9 ARM, Lower Control, Front 05099898AA 1 C, Z 29 EGX, EGZ DED, DGJ, DGU Left 1 C, Z 27 EGX, EGZ DED, DGJ, DGU Left 05099899AA 1 C, Z 29 EGX, EGZ DED, DGJ, DGU Right 1 C, Z 27 EGX, EGZ DED, DGJ, DGU Right 10 BOLT KIT, Camber Adjustment 05140876AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 11 NUT, Hex 05097586AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 12 WASHER 05099736AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 13 SCREW 05097558AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 14 ISOLATOR, Spring 05099730AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 15 SPRING, Front Coil 05135480AA 2 C, Z 29 EGX DED, DGU Front Coil 2 C, Z 27 EGX DED, DGU Front Coil 05142010AA 2 C, Z 27 EGZ DGJ Front Coil CROSSFIRE (ZH) SERIES LINE BODY ENGINE TRANSMISSION P = PREMIUM S = SPORT X = SPECIAL C = CHRYSLER Z = CHRYSLER (RHD) 27 = 2-DR CONVERTIBLE 29 = SPECIALTY COUPE EGX = 3.2L V6 SOHC 18 Valve Engine EGZ = 3.2L V6 Supercharged Engine DED = 6-Speed Manual Transmission DGJ = 5-Speed Automatic MB Transmission DGU = 5-Spd Auto W5A330 Transmission AR = use ase required - = Non illustrrated part 2006 ZH << RETURN TO GROUP INDEX

Suspension, Front Figure 2-120 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION 05161527AA 2 C, Z 29 EGZ DGJ Front Coil 05161529AA 2 C, Z 29 EGZ DGJ 16 ISOLATOR, Spring 05102304AA 2 C, Z 29 EGZ DGJ 05102305AA 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 17 SUPPORT, Shock Absorber 05099176AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 18 BOLT, Hex Flange Head 05096849AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 19 NUT 06104716AA 4 C, Z 29 EGZ, EGX DGU, DED, DGJ 4 C, Z 27 EGX, EGZ DED, DGJ, DGU 20 SHOCK ABSORBER, Suspension, Front 05096749AA 2 C, Z 29 EGX DED, DGU 05104991AA 2 C, Z 27 EGX DED, DGU 05135484AA 2 C, Z 29 EGZ DGJ 05142011AA 2 C, Z 27 EGZ DGJ 21 REPAIR KIT, Shock absorber 05127493AA 2 29 EGZ DGJ 2 27 EGZ DGJ 22 GROMMET, Shock Absorber 05101369AA 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 23 GROMMET, Shock Absorber 05101368AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 24 WASHER, Shock Absorber CROSSFIRE (ZH) SERIES LINE BODY ENGINE TRANSMISSION P = PREMIUM S = SPORT X = SPECIAL C = CHRYSLER Z = CHRYSLER (RHD) 27 = 2-DR CONVERTIBLE 29 = SPECIALTY COUPE EGX = 3.2L V6 SOHC 18 Valve Engine EGZ = 3.2L V6 Supercharged Engine DED = 6-Speed Manual Transmission DGJ = 5-Speed Automatic MB Transmission DGU = 5-Spd Auto W5A330 Transmission AR = use ase required - = Non illustrrated part 2006 ZH << RETURN TO GROUP INDEX

Suspension, Front Figure 2-120 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION 05099735AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 25 NUT, Hex 05096974AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 26 CAP, Shock Absorber 05101244AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU CROSSFIRE (ZH) SERIES LINE BODY ENGINE TRANSMISSION P = PREMIUM S = SPORT X = SPECIAL C = CHRYSLER Z = CHRYSLER (RHD) 27 = 2-DR CONVERTIBLE 29 = SPECIALTY COUPE EGX = 3.2L V6 SOHC 18 Valve Engine EGZ = 3.2L V6 Supercharged Engine DED = 6-Speed Manual Transmission DGJ = 5-Speed Automatic MB Transmission DGU = 5-Spd Auto W5A330 Transmission AR = use ase required - = Non illustrrated part 2006 ZH << RETURN TO GROUP INDEX

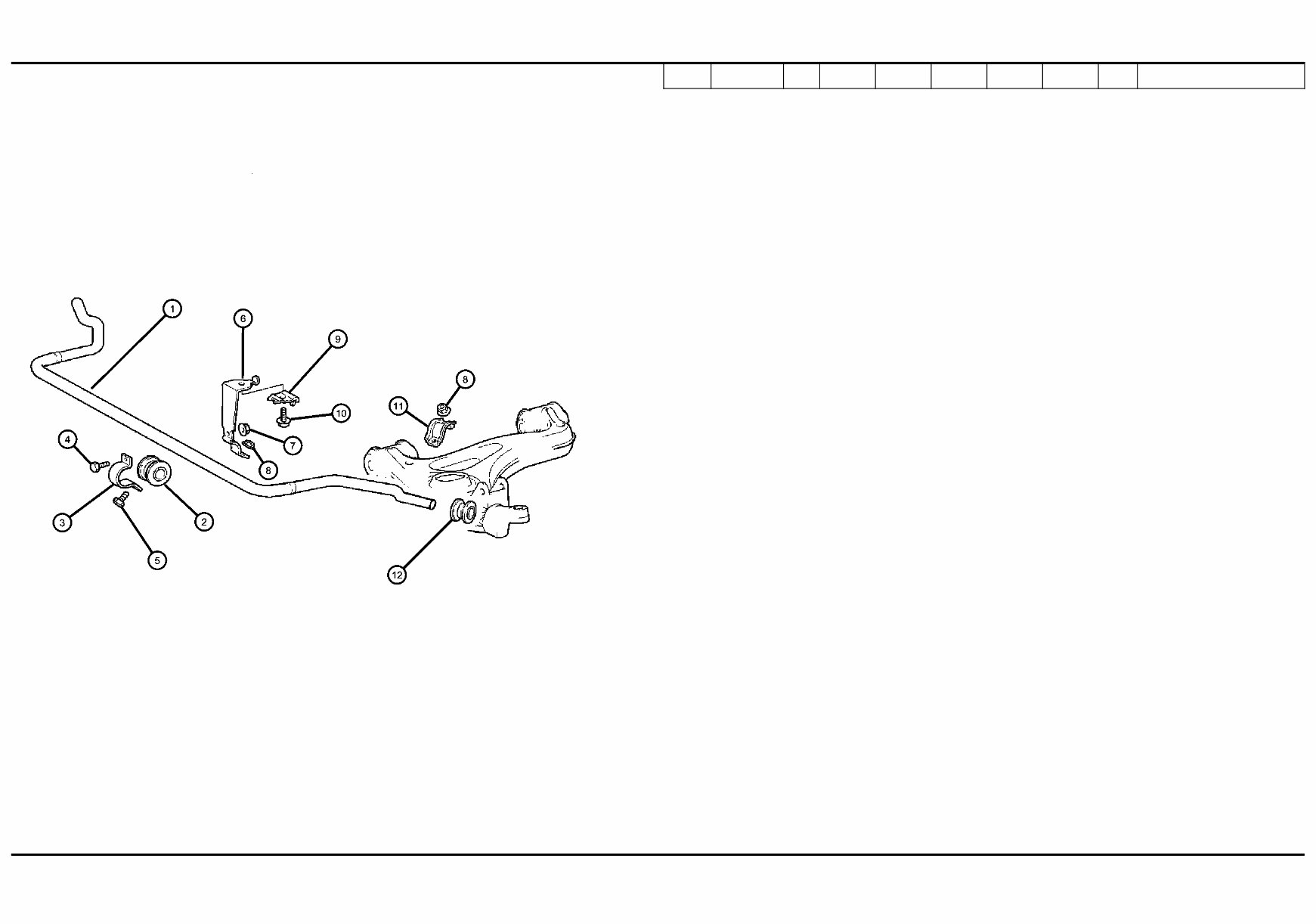

Sway Bar, Front Figure 2-130 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Sway Bar, Front SB,F Sales Codes: [EGX]= 3.2L V6 SOHC 18 VALVE [EGZ]=3.2L V6 SUPERCHARGED [DED]= 6-SPEED MANUAL [DGJ]= 5-SPD AUTO, W5A580 [DGU]=5-SPD AUTO, W5A330 1 BAR, Front Sway 05098980AA 1 C, Z 29 EGX, EGZ DED, DGJ, DGU 1 C, Z 27 EGX, EGZ DED, DGJ, DGU 2 CUSHION, Sway Eliminator 05098933AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 3 CLAMP, Stabilizer Bar Cushion 05099734AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 4 BOLT, Hex Head 05097554AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 5 BOLT, Hex Head 06104198AA 4 C, Z 29 EGX, EGZ DGJ, DGU 4 C, Z 27 EGX, EGZ DGJ, DGU 6 BRACKET, Stabilizer Bar 05096864AA 1 C, Z 29 EGX, EGZ DED, DGJ, DGU 1 C, Z 27 EGX, EGZ DED, DGJ, DGU 7 NUT, Flange 05098117AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 8 NUT 06104716AA 4 C, Z 29 EGX, EGZ DED, DGJ, DGU 4 C, Z 27 EGX, EGZ DED, DGJ, DGU CROSSFIRE (ZH) SERIES LINE BODY ENGINE TRANSMISSION P = PREMIUM S = SPORT X = SPECIAL C = CHRYSLER Z = CHRYSLER (RHD) 27 = 2-DR CONVERTIBLE 29 = SPECIALTY COUPE EGX = 3.2L V6 SOHC 18 Valve Engine EGZ = 3.2L V6 Supercharged Engine DED = 6-Speed Manual Transmission DGJ = 5-Speed Automatic MB Transmission DGU = 5-Spd Auto W5A330 Transmission AR = use ase required - = Non illustrrated part 2006 ZH << RETURN TO GROUP INDEX

Sway Bar, Front Figure 2-130 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION 9 PLATE, Torsion Bar 05098931AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 10 BOLT, Hex Flange Head 05098356AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 11 CLAMP, Stabilizer Bar 05099731AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU 12 BUSHING, Stabilizer Bar 05104862AA 2 C, Z 29 EGX, EGZ DED, DGJ, DGU 2 C, Z 27 EGX, EGZ DED, DGJ, DGU CROSSFIRE (ZH) SERIES LINE BODY ENGINE TRANSMISSION P = PREMIUM S = SPORT X = SPECIAL C = CHRYSLER Z = CHRYSLER (RHD) 27 = 2-DR CONVERTIBLE 29 = SPECIALTY COUPE EGX = 3.2L V6 SOHC 18 Valve Engine EGZ = 3.2L V6 Supercharged Engine DED = 6-Speed Manual Transmission DGJ = 5-Speed Automatic MB Transmission DGU = 5-Spd Auto W5A330 Transmission AR = use ase required - = Non illustrrated part 2006 ZH << RETURN TO GROUP INDEX

Group - 3 Rear Axle 003-200 Differential and Housing 003-400 Rear Axle Shafts Group - 3 Rear Axle Illustration Title Group-Fig. No. Differential and Housing Housing with Differential ..................................................................................................................... Fig. 3 - 210 Rear Axle Shafts Shaft, Rear Axle .............................................................................................................................. Fig. 3 - 410 2006 ZH

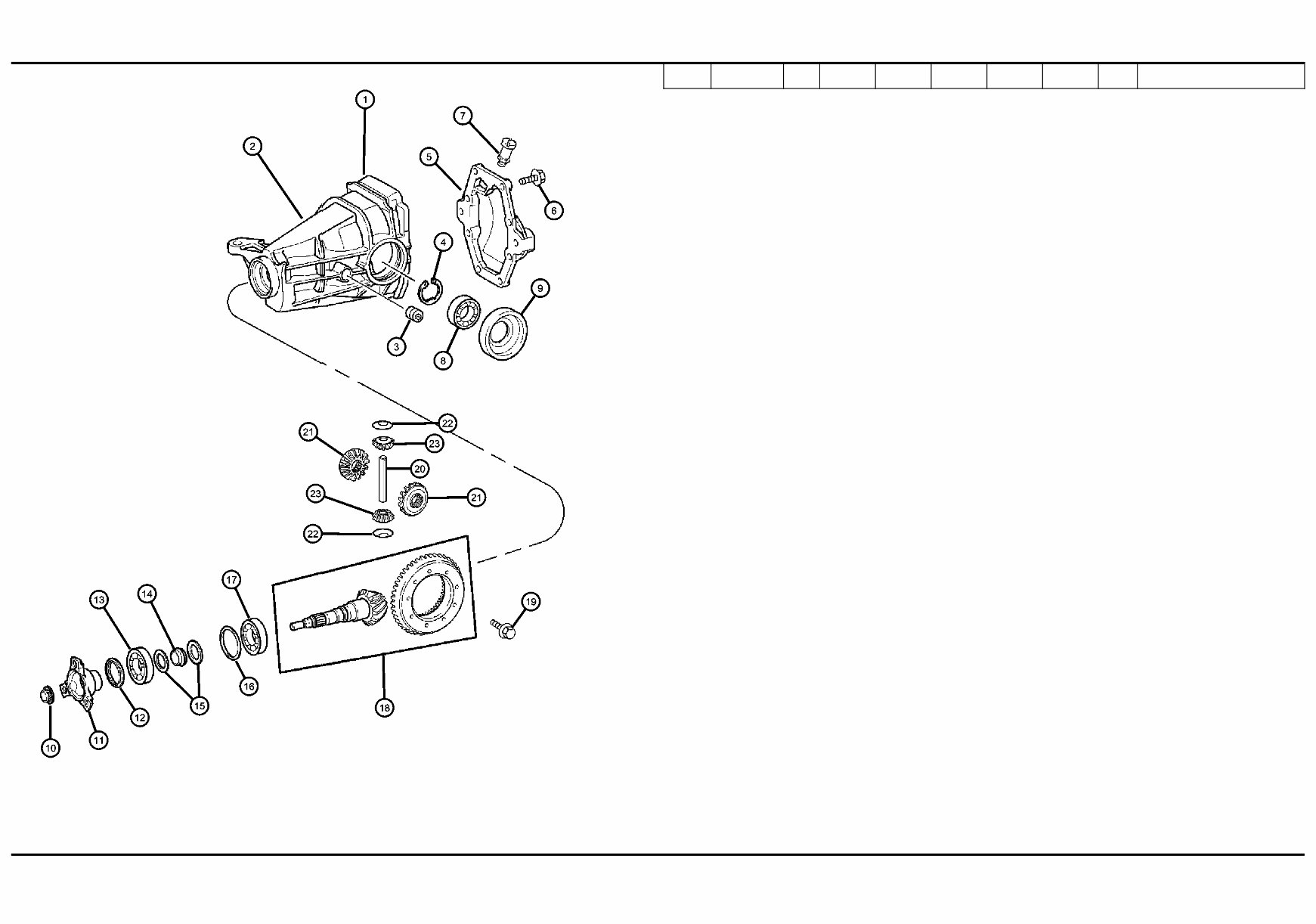

Housing with Differential Figure 3-210 ITEM PART NUMBER QTY LINE SERIES BODY ENGINE TRANS TRIM DESCRIPTION Housing with Differential 1 DIFFERENTIAL, Rear Axle 05142715AB 1 P, S 29 05136035AA Mopar SAE 75W-85 Gear Lube Quart for Crossre Axles 1 P, S 27 05136035AA Mopar SAE 75W-85 Gear Lube Quart for Crossre Axles 05142716AB 1 X 29 Splined With [100 MM] Flanged 05136035AA Mopar SAE 75W-85 Gear Lube Quart for Crossre Axles 1 X 27 Splined With [100 MM] Flanged 05136035AA Mopar SAE 75W-85 Gear Lube Quart for Crossre Axles 68042188AA 1 X 29 Non Splined With [110 MM] Flanged 1 X 27 Non Splined With [110 MM] Flanged 2 HOUSING, Rear Axle 05099238AA 1 C, Z P, S, X 29 1 C, Z P, S, X 27 3 PLUG, Oil Drain 05097712AA 2 C, Z P, S, X 29 2 C, Z P, S, X 27 4 RETAINING RING/SHIM, Differential Bearing 52111661AB 1 X 29 3.60MM 1 X 27 3.60MM 1 P, S 29 3.60MM 1 P, S 27 3.60MM 52111666AB 1 X 29 3.70MM 1 X 27 3.70MM 1 P, S 29 3.70MM 1 P, S 27 3.70MM 52111671AB 1 X 29 3.80MM 1 X 27 3.80MM 1 P, S 29 3.80MM 1 P, S 27 3.80MM 52111674AB 1 X 29 3.86MM 1 X 27 3.86MM CROSSFIRE (ZH) SERIES LINE BODY ENGINE TRANSMISSION P = PREMIUM S = SPORT X = SPECIAL C = CHRYSLER Z = CHRYSLER (RHD) 27 = 2-DR CONVERTIBLE 29 = SPECIALTY COUPE EGX = 3.2L V6 SOHC 18 Valve Engine EGZ = 3.2L V6 Supercharged Engine DED = 6-Speed Manual Transmission DGJ = 5-Speed Automatic MB Transmission DGU = 5-Spd Auto W5A330 Transmission AR = use ase required - = Non illustrrated part 2006 ZH << RETURN TO GROUP INDEX
