1994 Chevy Truck C 1500 Truck 2WD V6-262 4.3L VIN Z
Vehicle Level Maintenance Tune - up and Engine Performance Checks Ignition Timing Technical
Service Bulletins Ignition - Timing Connector Location Change
Ignition - Timing Connector Location Change
Notes
Group Ref.: Engine
Bulletin No.: 366002
Date: January, 1994
INFORMATION
SUBJECT:
TIMING CONNECTOR LOCATION CHANGE
MODELS:
1994 CHEVROLET AND GMC C/K TRUCKS WITH GASOLINE ENGINES
The timing connector, which can be disconnected to return engine timing to base
for adjustment purposes, has been moved from the engine compartment to inside
the cab. This new location is not currently reflected in the Service or Owner's
Manual.
Page 1 of 2 ALLDATA Online - 1994 Chevy Truck C 1500 Truck 2WD V6-262 4.3L VIN Z - Ignitio...
6/5/2010 http://www.alldatapro.com/alldata/PRO~V167293116~C19831~R0~OD~N/0/41746445/42...

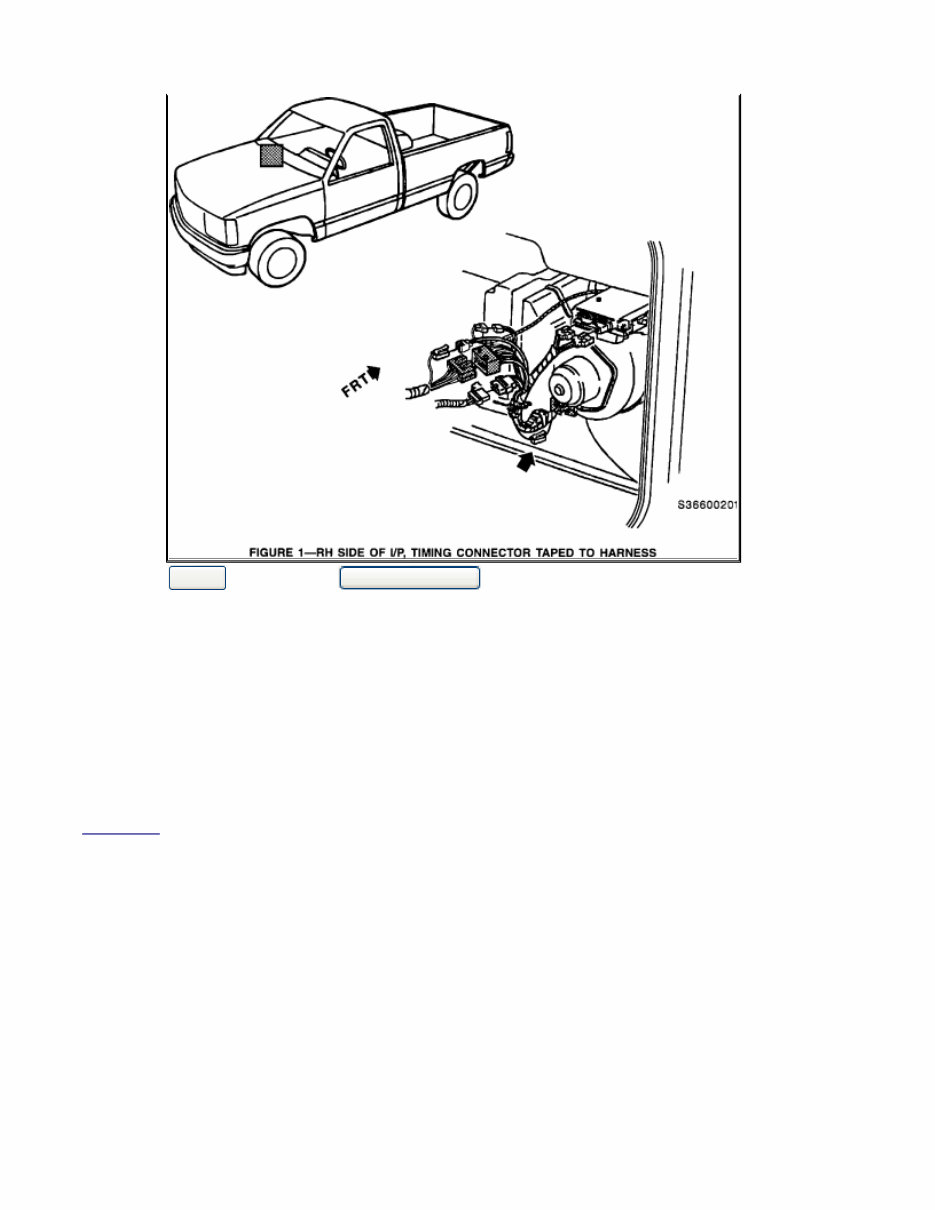

The new location is under the dash directly below the glove compartment. The
tan/black wire is routed for a short distance outside of a large wiring harness. This
large harness is routed between the heater blower motor and evaporator case.
The timing connector is taped to the wire bundle (Figure 1).
