SPECIAL CAUTIONS
AIR BAGS
Refer to Procedure Explanation 29 for Supplemental Restraint/Air
Bag Special Cautions.
ABS
Manufacturer advises that ABS Control Unit be disconnected
before welding and removed if a temperature of 85 degrees C (185
degrees F) is to be exceeded for more than two hours.
REFINISH BAKING
Manufacturer advises that after baking, sufficient cooling time
should be allowed before attempting to start vehicle.
PAINT CODE
LOCATION
Paint code located in trunk compartment.
CLEAR COAT
IDENTIFICATION
All metallic colors are clear coat.
INFORMATION LABELS
NOTE: Emission and Vacuum Routing Labels must be special
ordered from dealer by supplying description, VIN and owner
information.
Unleaded Fuel Only 000 010 018 C $6.00
Air Bag Renewal 443 010 028 F $9.90
Spare Wheel 1H0 010 059 Q $3.90
Spare Wheel MPH 191 010 052 A $2.00
Stationary Brake 7M0 010 088 $6.00
Alarm 4D0 010 138 E $3.30
Oil Level 037 010 049 R $6.00
Radio Coding 893 010 020 L $3.30
Vacuum Hose Layout
To VIN N280000
Man Trans 078 010 113 T $5.15
Auto Trans 078 010 127 $4.85
From VIN N280001 078 010 127 H $50.00

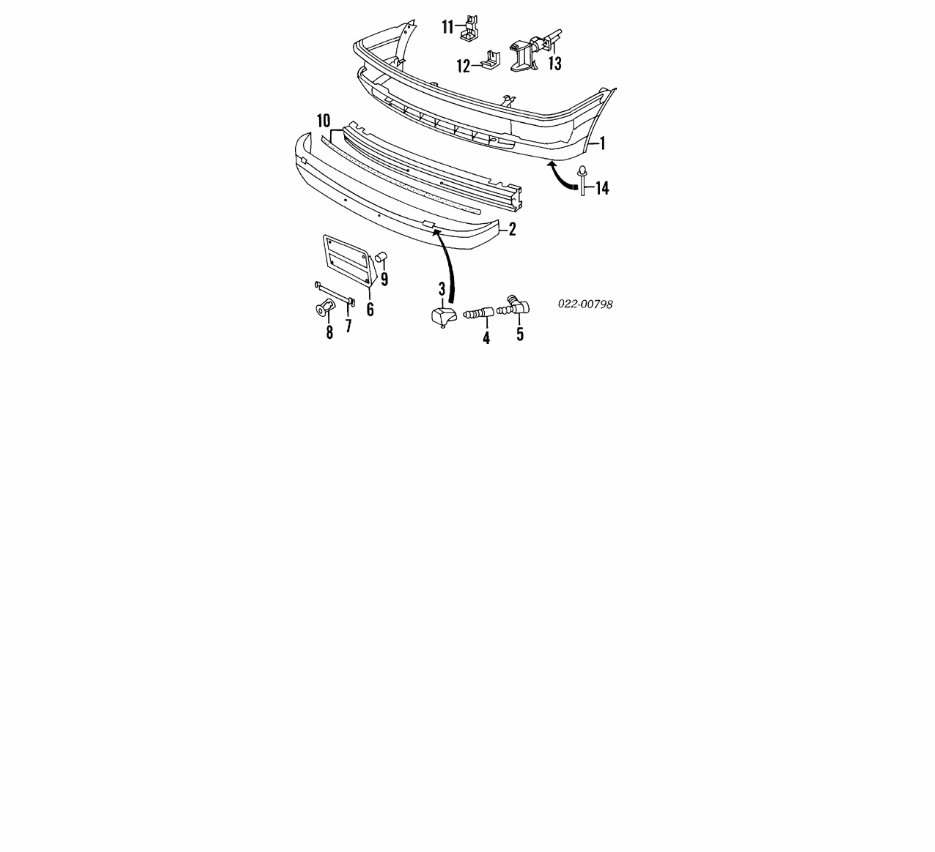

FRONT BUMPER
Use Procedure Explanations 1 and 28
with the following text.
1993-1998 Audi Cabriolet 2
Page 1 of 145
Refinish Front Bumper Complete 2.5
Refinish Outer Cover 1.3
Refinish Inner Cover 1.6
Refinish Headlamp Wash Nozzle R .2
L .2
R&I Bumper Assy .8
O/H Bumper Assy (Includes R&I) 2.6
NOTE: All Parts in this section are included in overhaul unless
noted otherwise.
1 Cover, Front Outer (P) 8A0 807 055 GRU $850.00 #2.6
#Includes R&R Front Inner Cover
2 Cover, Front Inner (P) 8A0 807 111 J GRU $1,050.00 .6
3 Nozzle, H/Lamp Washer (P)
w/Carrier R 895 807 156 A GRU $250.00 .2
L 895 807 155 A GRU $250.00 .2
(P) Paint to Match
4 Connector, Nozzle R 893 955 194 $16.50
L 893 955 194 $16.50
5 Valve, Nozzle R 811 955 187 $45.30
L 811 955 187 $45.30
6 Bracket, License 895 807 287 C 01C $29.10 #.3
7 Strap, License Brkt 895 807 289 $33.90 #.3
#R&R Complete
8 Nut, Cap (2) N 904 691 04 $1.50
9 Bushing (2) 895 807 279 $6.60
10 Bar, Reinforcement 8A0 807 109 $765.00 #.6
#Included in R&R Front Inner Cover
11 Bracket, Center 8A0 807 264 $24.30 IOH
12 Bracket, Mtg 8A0 807 266 A $16.50 IOH
Page 2 of 145
13 Absorber, Impact R 8A0 807 272 $200.00 #.3
L 8A0 807 271 $200.00 #.3
#w/Bumper Assy Removed, Not Included in O/H
14 Clip, Front Cover R 443 807 269 $0.50
L 443 807 269 $0.50
GRILLE
Refinish Lower Grille Trim R .3
L .3
R&I Grille Assy #.3
#Included in R&R Hood
1 Grille Assy 8G0 853 651 G 2ZZ $210.00 #.3
#Included in R&R Hood
2 Emblem, Grille 893 853 605 $57.00 .2
3 Clamp, Emblem N 900 151 02 $1.10 .2
4 Bracket, Grille
1993, (2/Side) R 893 853 577 $2.40
L 893 853 577 $2.40
1994-98, (2/Side) R 4A0 853 645 A $13.50
L 4A0 853 645 A $13.50
5 Fastener, Brkt (2) 93 811 807 577 C $0.70
Included w/Grille Assy
6 Emblem "Quattro" 8A0 853 736 A 2ZZ $19.88 #.2
7 Clamp, Emblem (2) 8A0 853 645 $3.90 #.2
#R&R Complete
8 Plate, Grille Mtg (3) 8G0 823 127 A $9.90
9 Trim, Lower Grille (P) R 8A0 853 208 A $58.00 #.3
L 8A0 853 207 A $58.00 #.3
(P) Paint to Match
Page 3 of 145
#w/Bumper Removed
10 Fastener, Lower Trim R 431 853 548 $1.30
L 431 853 548 $1.30
11 Gskt, Grille to Hood R 8G0 823 738 $125.00
L 8G0 823 737 $125.00
12 Rivet, Grille Gskt (18) 893 823 740 $0.50
FRONT LAMPS

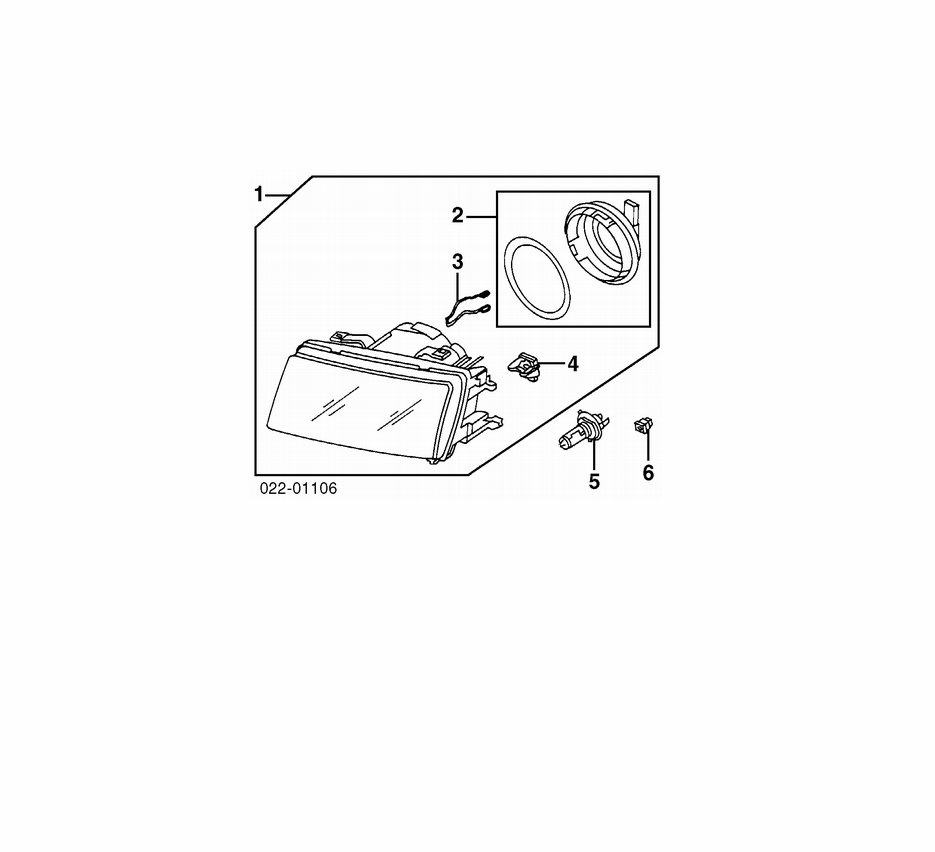

HEADLAMP
R&I Lamp Assy R #.5
L #.5
#Includes R&I/R&R Park/Signal Lamp
R&R Does Not Include Aim Lamps .4
1 Headlamp Assy R 893 941 030 G $410.00 #.5
L 893 941 029 G $410.00 #.5
#Includes R&I/R&R Park/Signal Lamp
2 Cap, Protective R 443 941 159 $58.00
L 443 941 159 $58.00
3 Spring, Bulb R 431 941 172 $8.40
L 431 941 172 $8.40
4 Clamp, Mounting R 893 941 117 A $19.80
L 893 941 117 A $19.80
Included w/Headlamp Assy
5 Bulb, Headlamp R N 905 616 01 $29.10 .1
L N 905 616 01 $29.10 .1
6 Nut, Speed (2/Side) R 811 807 577 C $0.70
L 811 807 577 C $0.70
Pump, Headlamp-See Windshield Section
Page 4 of 145

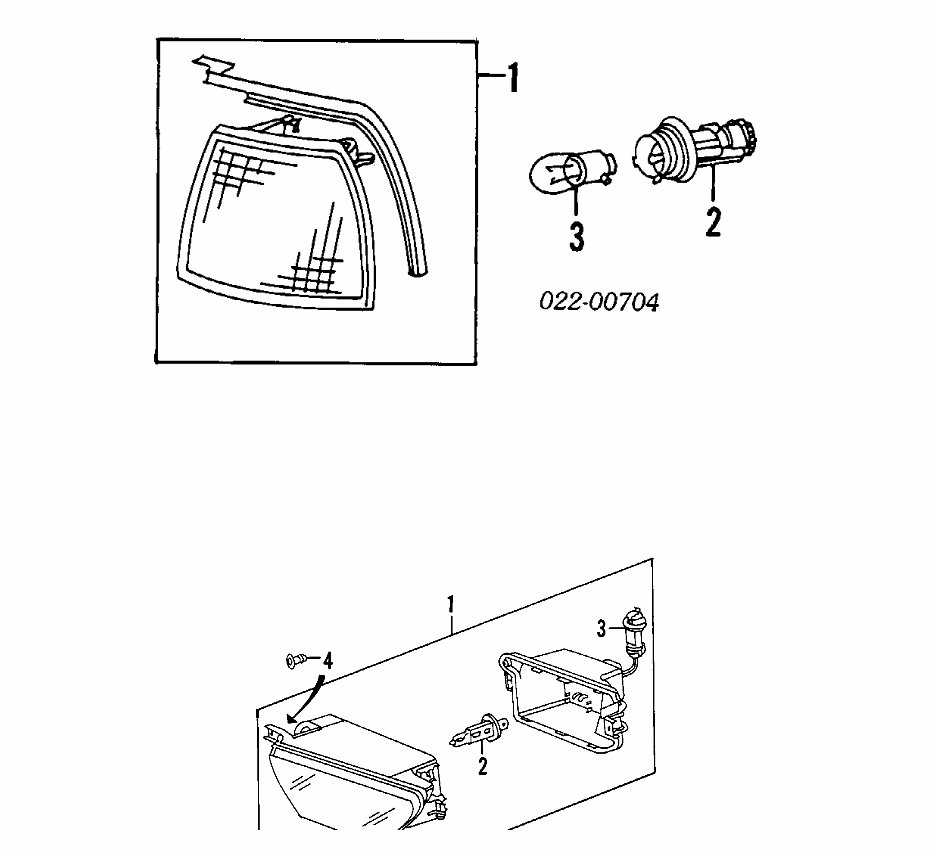

PARK/SIGNAL LAMP
R&I Lamp Assy R #.3
L #.3
#Included in R&I/R&R Headlamp & Fender
1 Lamp, Park/Signal R 8A0 953 050 B $82.00 #.3
L 8A0 953 049 B $82.00 #.3
#Included in R&I/R&R Headlamp & Fender
2 Socket, Park/Signal R 3B0 953 123 $24.30
L 3B0 953 123 $24.30
3 Bulb, Park/Signal R N 017 732 8 $3.90
L N 017 732 8 $3.90
FOG LAMP
Page 5 of 145
1 Lamp Assy, Fog R 8A0 941 700 B $220.00 #.2
L 8A0 941 699 B $220.00 #.2
#Included in R&R or O/H Bumper Assy
2 Bulb, Fog Lamp R N 017 761 2 $8.20
L N 017 761 2 $8.20
3 Contact (2 Pin) R 813 972 926 $19.80
L 813 972 926 $19.80
Included w/Fog Lamp Assy
4 Nut, Speed (2/Side) R N 905 353 01 $0.70
L N 905 353 01 $0.70

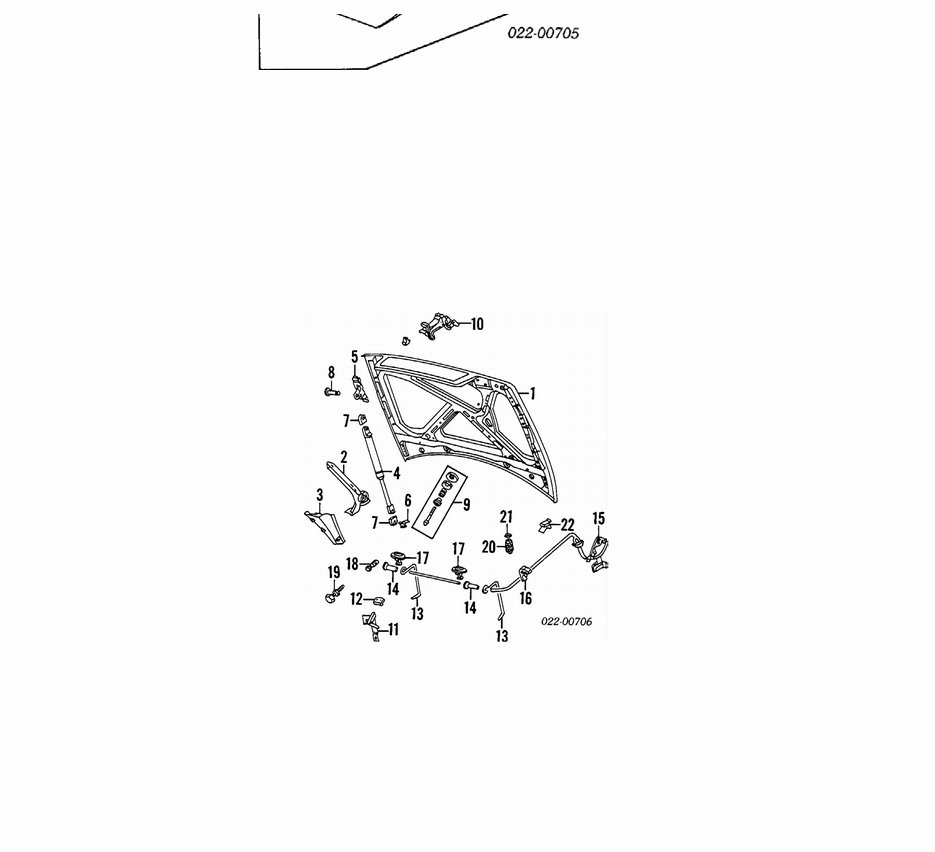

HOOD
Use Procedure Explanations 4 and 28
with the following text.
Refinish Hood Outside 2.9
Add for Underside 1.5
Refinish Hinge R .3
L .3
R&I Hood Assy .6
1 Panel, Hood 8G0 823 029 C $515.00 #1.2
#Includes R&I/R&R Grille Assy
2 Hinge, Hood R 893 823 302 A $82.00 #.3
L 893 823 301 A $82.00 #.3
#w/Hood Removed
3 Cover, Hinge R 893 823 316 $9.90
Page 6 of 145
L 893 823 315 $9.90
4 Strut, Support 8A0 823 360 A $59.50 .3
Mounting, Support Strut
5 Upper 893 823 372 $39.00
6 Lower 893 823 402 $29.10
7 Cap, Strut (2) 443 823 435 A $1.10
8 Pin, Strut (2) 443 823 471 B $9.90
9 Pin Kit, Lock R 893 898 550 A $33.90
L 893 898 550 A $33.90
10 Catch, Safety 8G0 823 480 D $82.00
11 Plate, Guide 8G0 823 465 B $33.90
12 Plate 8G0 823 494 $2.40
13 Lever, Lock Pin R 8A0 823 589 $16.50
L 8A0 823 590 $16.50
14 Sleeve, Guide R 8A0 823 597 $9.90
L 8A0 823 597 $9.90
15 Cable, Hood 443 823 531 A $82.00 .9
16 Brkt, Hood Cable 893 823 595 A $1.80
17 Guide, Hood Cable (3) R 893 823 573 $3.00
18 Nipple, Hood Cable 815 827 525 $16.50
19 Buffer, Hood R 4A0 823 499 $33.90
L 4A0 823 499 $33.90
20 Stop, Hood R 8G0 823 499 A $11.50
L 8G0 823 499 A $11.50
21 Foil, Protect AKL 448 300 04 $60.50
Cut to Fit
22 Clip, Cable 8A0 823 567 $2.40
Lamp, Underhood 4A0 947 319 $60.50 .2
Bulb, Underhood Lamp N 017 719 2 $3.00
Page 7 of 145

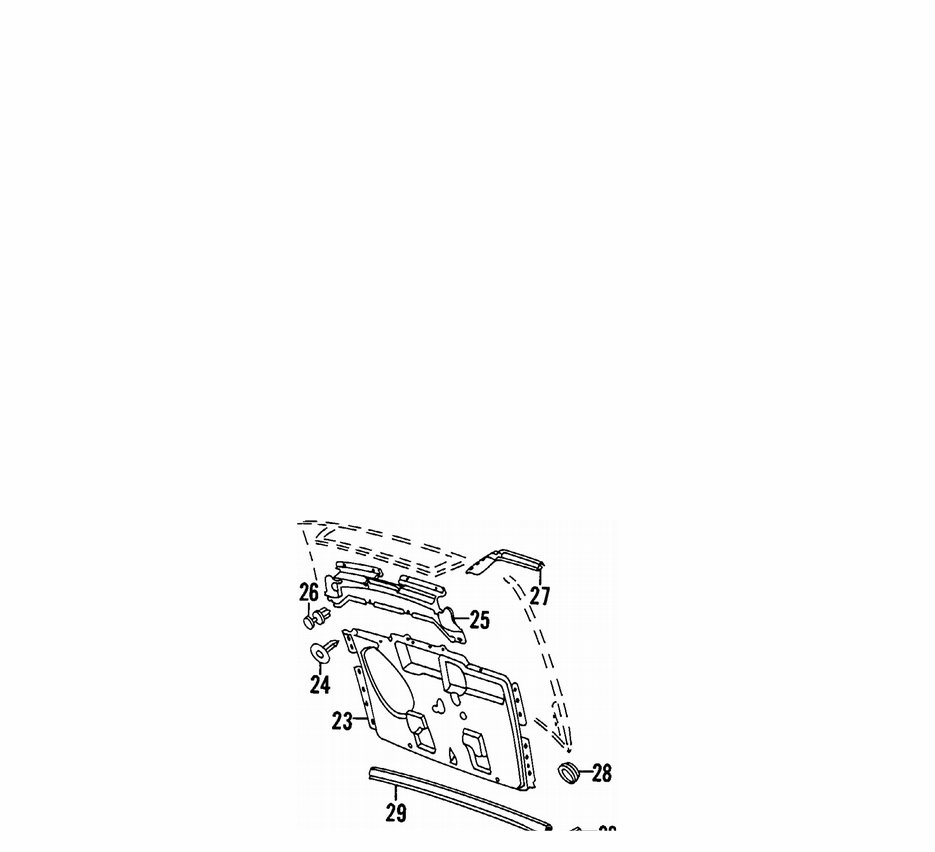

23 Insulator, Hood 8G0 863 825 N $185.00 .4
24 Clip, Insulator (25) 811 863 905 D 01C $0.50
25 Cover, Hood 8G0 823 745 C $175.00
26 Clip, Hood Cover (14) N 905 369 01 $0.50
27 Gskt, Grille to Hood-See Grille Section
28 Plug, Hood R 811 803 583 $1.30
L 811 803 583 $1.30
29 Gskt, Rear Hood 893 823 723 $70.00
30 Gskt, Side Hood R 893 823 731 A $16.50
L 893 823 731 A $16.50
COOLING
Use Procedure Explanations 5 and 28
with the following text.
1 Radiator Assy
1993-97
FWD
Man Trans 8A0 121 251 B $470.00 2.6
Auto Trans 8A0 121 251 C $680.00 2.8
AWD 8A0 121 251 B $470.00 2.6
1998 N.A. 2.6
2 Plug, Radiator 8A0 121 141 $45.30
Included w/Radiator Assy
3 Mount Assy, Upper Radiator R 8A0 121 261 A $29.10
L 8A0 121 261 A $29.10
4 Bushing, Upper Mount R 4A0 121 267 A $6.60
Page 8 of 145
L 4A0 121 267 A $6.60
Included w/Upper Radiator Mount Assy
5 Mount, Lower Rad R 8A0 121 273 $24.30
L 8A0 121 273 $24.30
6 Duct, Air 8G0 121 281 C $59.50 #.3
#w/Radiator Removed
7 Nut, Speed R N 904 190 03 $0.90
L N 904 190 03 $0.90
8 Seal, Air Duct 893 823 723 $70.00 .2
9 Switch, Thermo
2 Pin 893 959 481 $57.00 .5
3 Pin 191 959 481 A $59.50 .5
10 Housing, Switch 321 906 231 A $2.15
11 Cap, Switch 867 972 525 B $3.90
12 Hose, Upper Rad 8A0 121 101 $33.90 .6
13 Hose, Lower Rad
Conv
To VIN S001302 8A0 121 055 $99.00 .6
From VIN S001303 8A0 121 055 A $33.90 .6
Sedan 8A0 121 055 $99.00 .6
14 Hose, Breather 8A0 121 107 E $39.00 .4
15 Pipe, Water 078 121 081 J $59.50 .4
16 Pipe, Oil Cooler 078 121 096 H $16.50 .4
17 Hose, Reservoir Pipe 8A0 121 109 H $33.90 #.4
18 Pipe, Water 8A0 121 075 B $70.00 #.4
19 Hose, Reservoir 8A0 121 109 A $29.10 #.4
#R&R Complete .6
20 Reservoir, Coolant 8A0 121 403 C $70.00 .4
21 Cap Assy, Reservoir 443 121 321 $33.90
22 Gasket, Cap 171 121 327 $6.00
Included w/Reservoir Cap Assy
23 Nut, Speed (3) 811 807 577 C $0.70
Page 9 of 145
24 Shroud, Fan 8A0 121 207 A $146.00 #.7
25 Nut, Speed (3) N 904 101 02 $1.00
26 Fan Assy (2)
180 Watt R 4A0 959 455 C $325.00 #.7
L 4A0 959 455 C $325.00 #.7
300 Watt R 4A0 959 455 B $560.00 #.7
L 4A0 959 455 B $560.00 #.7
27 Blade, Fan
Bosch Brand R 4A0 959 465 A $90.00 #.7
L 4A0 959 465 A $90.00 #.7
MACI Brand, Siemens Brand R 441 959 465 $90.00 #.7
L 441 959 465 $90.00 #.7
Gate R 4A0 959 465 $99.00 #.7
L 4A0 959 465 $99.00 #.7
#R&R Complete, w/Radiator Removed Deduct .4
28 Washer, Lock
w/Gate Fan Blade R N 900 470 01 $2.20
L N 900 470 01 $2.20
w/o Gate Fan Blade R 823 959 473 $6.60
L 823 959 473 $6.60
Included w/Fan Assy
Resistor, Fan
29 Man Trans 8A0 959 493 $160.00 .3
30 Auto Trans 8A0 959 493 C $175.00 .3
31 Flap, Shroud 8A0 121 223 A $33.90
32 Clip, Shroud 893 121 304 $0.70
As Required
A/C REFRIGERANT
CAPACITIES
A/C R-12 Refrigerant Capacity
1993: 24.7-26.5 Ozs (1.54-1.65 Lbs)
A/C R-134a Refrigerant Capacity
1993-98: 23-24.8 Ozs (1.43-1.55 Lbs)
A/C /HEATER
Use Procedure Explanation 6 with the
following text.
Page 10 of 145
