SPECIAL CAUTIONS
REFINISH BAKING
Manufacturer advises that after baking, sufficient cooling time
should be allowed before attempting to start vehicle.
ABS
Manufacturer advises that ABS Control Unit be disconnected
before welding and removed if a temperature of 85 degrees C (185
degrees F) is to be exceeded for more than two hours.
AIR BAG
Refer to Procedure Explanation 29 for Supplemental Restraint/Air
Bag Special Cautions.
SUSPENSION
Manufacturer advises that some new fasteners must be used
whenever old fasteners are loosened or removed.
WELDING
Before initiating any repair involving the use of an electric welder,
the ignition must be in the off position and battery disconnected.
Aluminum reinforcements are in the rocker panel areas.
Manufacturer Advises that Laser Welding is Used on Some
Welded Panels in the Manufacturing Process of this Vehicle.
Please see Manufacturer's Body Service Manual for Specific
Repair Instructions.
PAINT CODE
LOCATION
Paint code located in luggage compartment.
CLEAR COAT
IDENTIFICATION
All colors are clear coat.

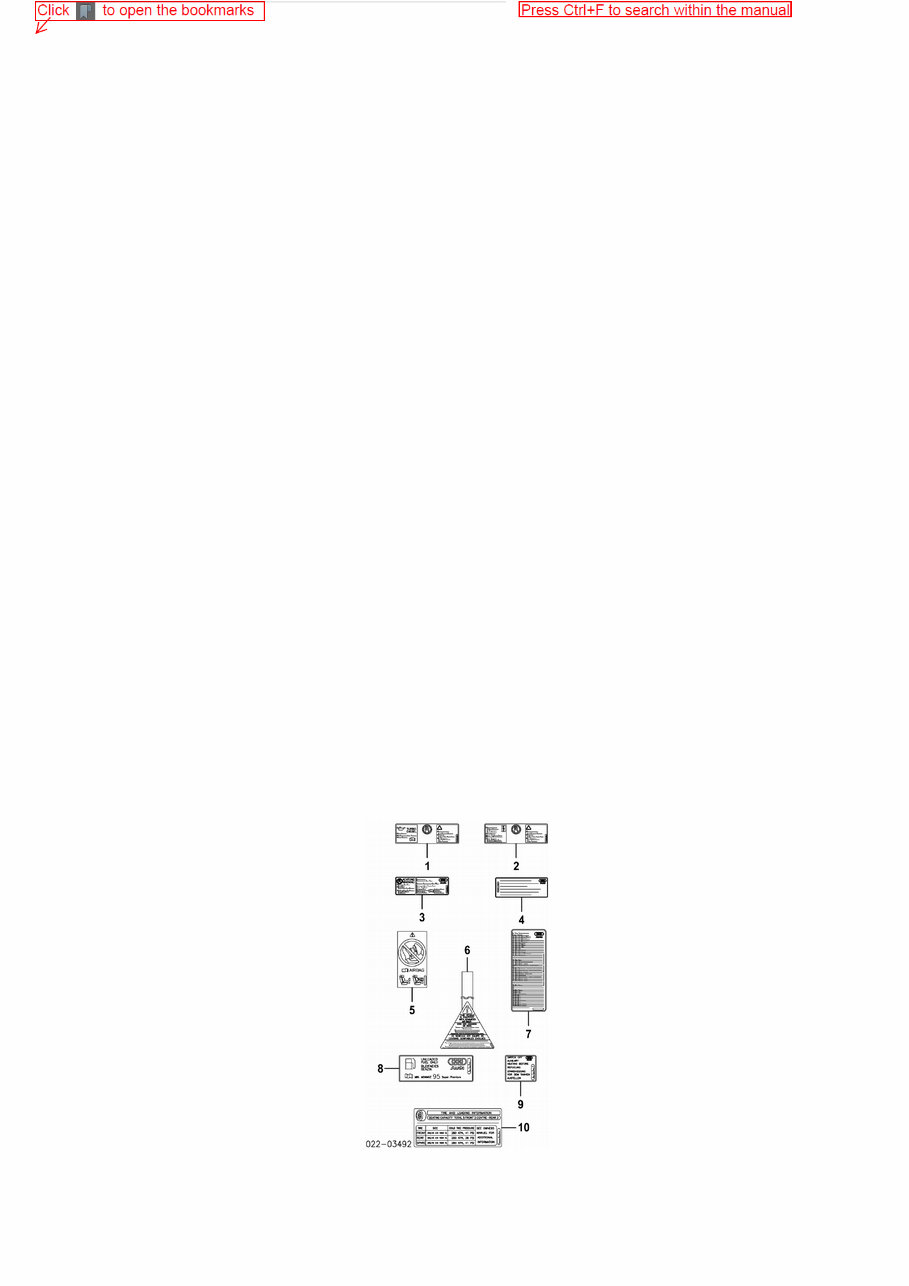

INFORMATION LABELS
2006-2013 Audi A3
Page 1 of 160
1 Label, Oil 4B0 010 157 D $6.00
2 Label, Cooling Fan 4A0 010 114 S $3.90
3 Label, A/C 8P0 010 187 J $14.10
4 Label, Ignition 8E0 010 175 Q $10.40
5 Label, Air Bag Warning 3C0 010 492 L $8.06
6 Label, Air Bag Renewal 8E0 010 352 P $10.38
7 Label, Fuse Box 8P0 010 517 E $14.10
8 Label, Unleaded Fuel Only 8P0 010 371 G $10.40
9 Label, Diesel Fuel 4L0 010 508 B $14.10
10 Label, Tire Pressure 8P0 010 537 DQ $14.10
Label, Emission
2.0L Eng
Type 1 8P0 010 504 F $60.00
Type 2 8P0 010 504 G $60.00
3.2L Eng 06-09 8P0 010 504 D $60.00
Label, Knee Air Bag 4E0 010 357 S $16.50
Label, Child Warning 8E0 010 171 D $31.00
Label, Mercury Disposal 4E0 010 530 $14.10
Order by Application

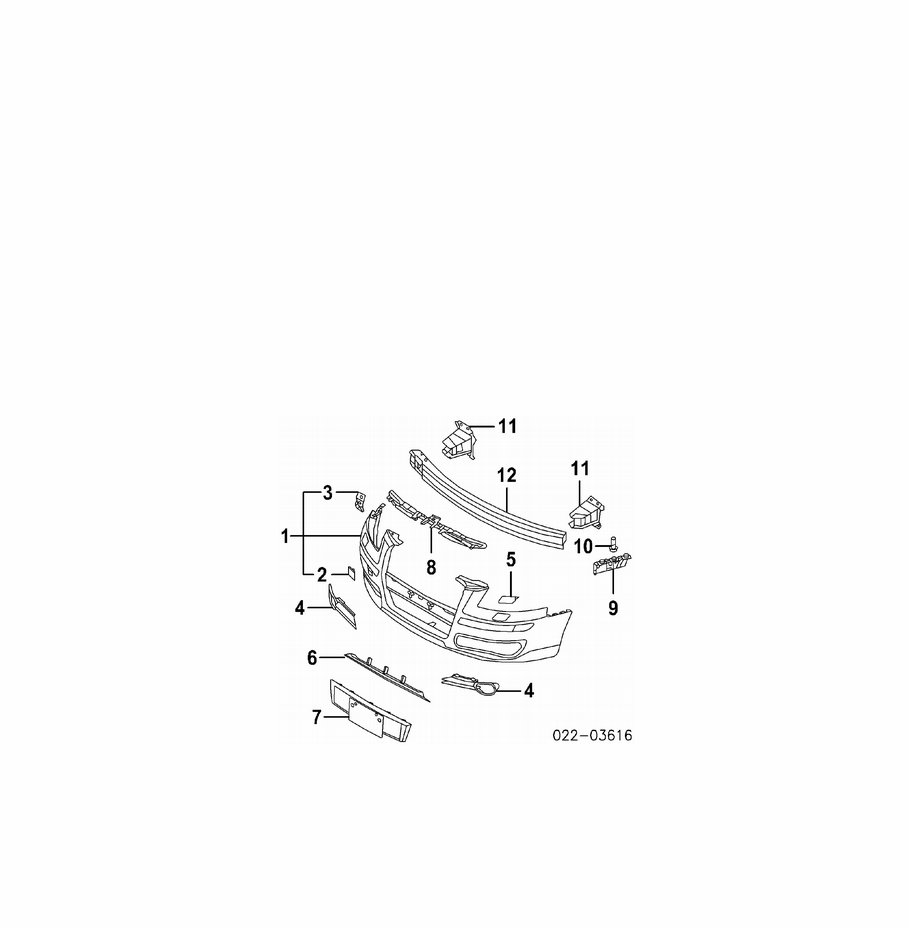

FRONT BUMPER
Use Procedure Explanations 1 and 28
with the following text.
Refinish Front Cover Assy 2.2
Refinish Tow Hook Cover Assy #.3
#Included in Refinish Front Cover Assy
Refinish Washer Cap R .3
L .3
Refinish Parking Sensor Complete .5
.3
R&I Front Cover Assy #1.1
#Includes R&I/R&R Engine Under Cover
Page 2 of 160
O/H Front Cover Assy (Includes R&I) #2.6
#Includes R&I/R&R Engine Under Cover & Grille Assy
Add to R&R or O/H Front Cover Assy
w/Headlamp Washer .4
w/Fog Lamps .3
w/Parking Aid Sensors .4
w/Side Marker Lamps .4
NOTE: All Parts in this section are included in overhaul unless
noted otherwise.
1 Cover Assy, Front
2006-08 (P)
w/Sport Pkg
w/Headlamp Washer 8P0 807 105 C GRU $591.00 #2.6
w/o Headlamp Washer 8P0 807 105 B GRU $591.00 #2.6
w/o Sport Pkg
w/Headlamp Washer 8P4 807 105 C GRU $591.00 #2.6
w/o Headlamp Washer 8P4 807 105 B GRU $591.00 #2.6
2009-13
w/Sport Pkg (P)
w/Parking Aid
w/Headlamp Washer 8P0 807 105 P GRU $591.00 #2.6
w/o Headlamp Washer 8P0 807 105 N GRU $591.00 #2.6
w/o Parking Aid
w/Headlamp Washer 8P0 807 105 M GRU $591.00 #2.6
w/o Headlamp Washer 8P0 807 105 L GRU $591.00 #2.6
w/o Sport Pkg
w/Parking Aid (P)
w/Headlamp Washer 8P0 807 105 H GRU $591.00 #2.6
w/o Headlamp Washer 8P0 807 105 G GRU $591.00 #2.6
w/o Parking Aid
w/Headlamp Washer
Brilliant Black 8P0 807 105 F Y9B $1,068.00 #2.6
Ice Silver 8P0 807 105 F X7W $1,068.00 #2.6
Phantom Black 8P0 807 105 F GRU $591.00 #2.6
Paint to Match 8P0 807 105 F GRU $591.00 #2.6
w/o Headlamp Washer
Brilliant Black 8P0 807 105 E Y9B $925.00 #2.6
Ice Silver 8P0 807 105 E X7W $925.00 #2.6
Phantom Black 8P0 807 105 E Z9Y $925.00 #2.6
Paint to Match 8P0 807 105 E GRU $591.00 #2.6
#Includes R&I/R&R Engine Under Cover & Grille Assy
2 Cover, Tow Hook (P)
w/Sport Pkg 06-08 R 8P4 807 241 A GRU $70.00 .1
09-13 R 8P0 807 241 C GRU $50.00 .1
w/o Sport Pkg 06-08 R 8P4 807 241 GRU $70.00 .1
09-13 R 8P0 807 241 B GRU $50.00 .1
(P) Paint to Match
3 Strip, Cover Attaching 06-08 R 8P0 807 864 A $14.00
L 8P0 807 863 A $14.00
09-13 R 8P0 807 864 B $14.00
L 8P0 807 863 B $14.00
Included w/Front Cover Assy
Page 3 of 160
4 Grille, Front Cover (a)
w/Sport Pkg
2006-08 R 8P4 807 682 F $115.00 .2
L 8P4 807 681 F $115.00 .2
2009-13
Black Trim R 8P0 807 682 F ZDE $155.00 .2
L 8P0 807 681 N ZDE $155.00 .2
Chrome Trim R 8P0 807 682 F 9B9 $155.00 .2
L 8P0 807 681 N 9B9 $155.00 .2
w/o Sport Pkg
w/Fog Lamps
2006-08 R 8P4 807 682 B $130.00 .2
L 8P4 807 681 B $130.00 .2
2009-13
Black Trim R 8P0 807 682 G ZDE $168.00 .2
L 8P0 807 681 Q ZDE $155.00 .2
Chrome Trim R 8P0 807 682 G 9B9 $168.00 .2
L 8P0 807 681 Q 9B9 $130.00 .2
w/o Fog Lamps
2006-08 R 8P4 807 682 A $115.00 .2
L 8P4 807 681 A $115.00 .2
2009-13
Black Trim R 8P0 807 682 G ZDE $168.00 .2
L 8P0 807 681 P ZDE $168.00 .2
Chrome Trim R 8P0 807 682 G 9B9 $168.00 .2
L 8P0 807 681 P 9B9 $168.00 .2
(a) Order by Application
5 Cap, Washer Nozzle (P) 06-08 R 8P4 955 276 GRU $60.00 .2
L 8P4 955 275 GRU $60.00 .2
09-13 R 8P0 955 276 A GRU $60.00 .2
L 8P0 955 275 A GRU $60.00 .2
(P) Paint to Match
6 Spoiler, Lower
w/Sport Pkg 09-13 8P0 807 110 D 1RR $134.00 .2
7 Bracket, License (a)
Type 1
Brilliant Black 8P4 807 287 J 3FZ $170.00 .2
Stone Gray 8P4 807 287 J 1QP $170.00 .2
Type 2
Brilliant Black 8P4 807 287 A 3FZ $170.00 .2
Glossy Black 8P0 807 287 G T94 $170.00 .2
Stone Gray 8P4 807 287 A 1QP $170.00 .2
Type 3
Brilliant Black 8P0 807 287 G 3FZ $170.00 .2
Stone Gray 8P0 807 287 G 1QP $170.00 .2
Type 4
Brilliant Black 8P0 807 287 H 3FZ $235.00 .2
Glossy Black 8P0 807 287 H T94 $235.00 .2
Stone Gray 8P0 807 287 H 1QP $235.00 .2
(a) Order by Application
8 Bracket, Upper
Page 4 of 160
2006-08 8P4 807 501 C $42.67 #.2
2009-13
w/Sport Pkg 8P0 807 233 A $120.00 #.2
w/o Sport Pkg 8P0 807 233 $120.00 #.2
#w/Front Cover Assy Removed
9 Guide, Bumper 06-08 R 8P0 807 184 A $35.00 #.2
L 8P0 807 183 A $35.00 #.2
09-13 R 8P0 807 184 B $35.00 #.2
L 8P0 807 183 B $35.00 #.2
#w/Front Cover Assy Removed, Not Included in O/H, Included in
R&R Fender
10 Clip, Guide (3/Side) R N 910 383 01 $0.60
L N 910 383 01 $0.60
11 Absorber, Impact 06-08 R 8P0 807 134 $83.00 #.3
L 8P0 807 133 $83.00 #.3
09-13 R 8P0 807 134 C $138.00 #.3
L 8P0 807 133 C $138.00 #.3
12 Bar, Reinforcement 06-08 8P4 807 113 A $361.50 #.2
09-13 8P4 807 113 C $371.55 #.2
#w/Front Bumper Assy Removed, Not Included in O/H

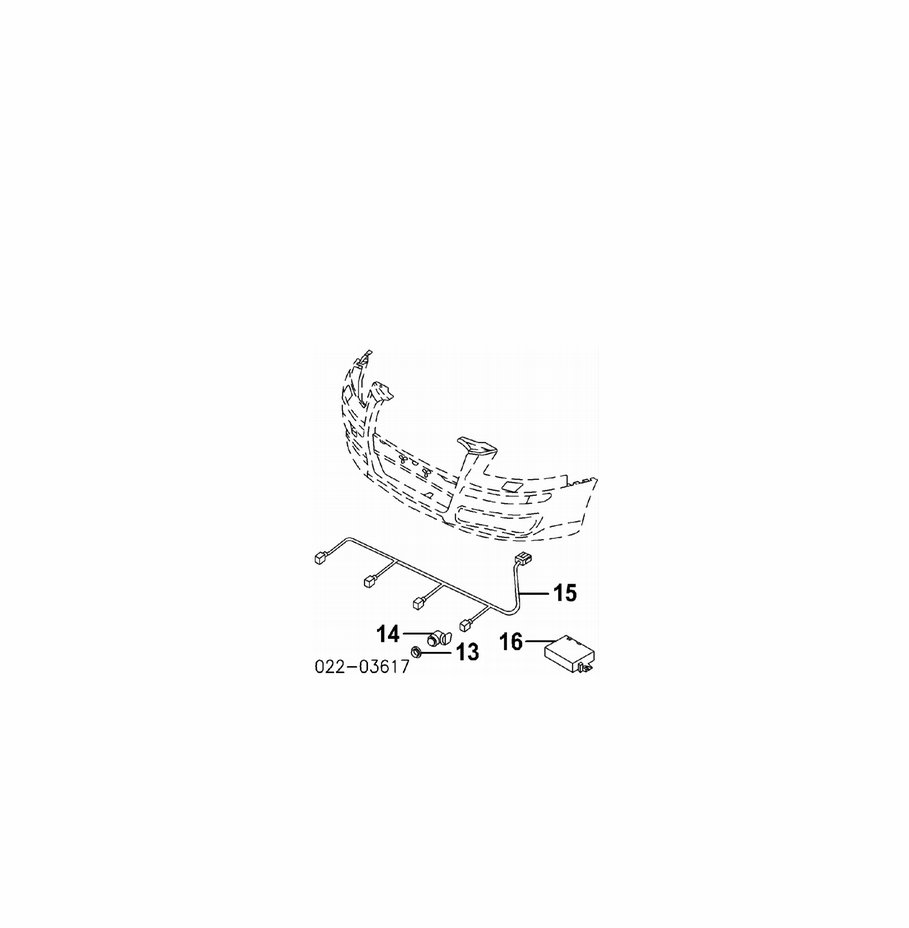

13 Seal, Sensor (2/Side) R 1T0 919 133 C 9B9 $0.52 #
L 1T0 919 133 C 9B9 $0.52 #
14 Sensor, Parking Aid
2009, (2/Side) (P) R 1S0 919 275 A $128.35 #.1
L 1S0 919 275 A $128.35 #.1
2010-13
Outer (P) R 1S0 919 275 A $128.35 #.1
L 1S0 919 275 A $128.35 #.1
Inner
Black R 1S0 919 275 A $128.35 #.1
L 1S0 919 275 A $128.35 #.1
Gray R 1S0 919 275 A $128.35 #.1
L 1S0 919 275 A $128.35 #.1
Page 5 of 160
Satin Black R 1S0 919 275 A $128.35 #.1
L 1S0 919 275 A $128.35 #.1
Stone R 1S0 919 275 A $128.35 #.1
L 1S0 919 275 A $128.35 #.1
Paint to Match R 1S0 919 275 A $128.35 #.1
L 1S0 919 275 A $128.35 #.1
(P) Paint to Match
15 Harness, Parking Aid 8P0 971 085 A $352.00 #
#w/Bumper Cover Removed, Not Included in O/H
16 Module, Parking Sensor-See Rocker/Pillars/Floor
Section

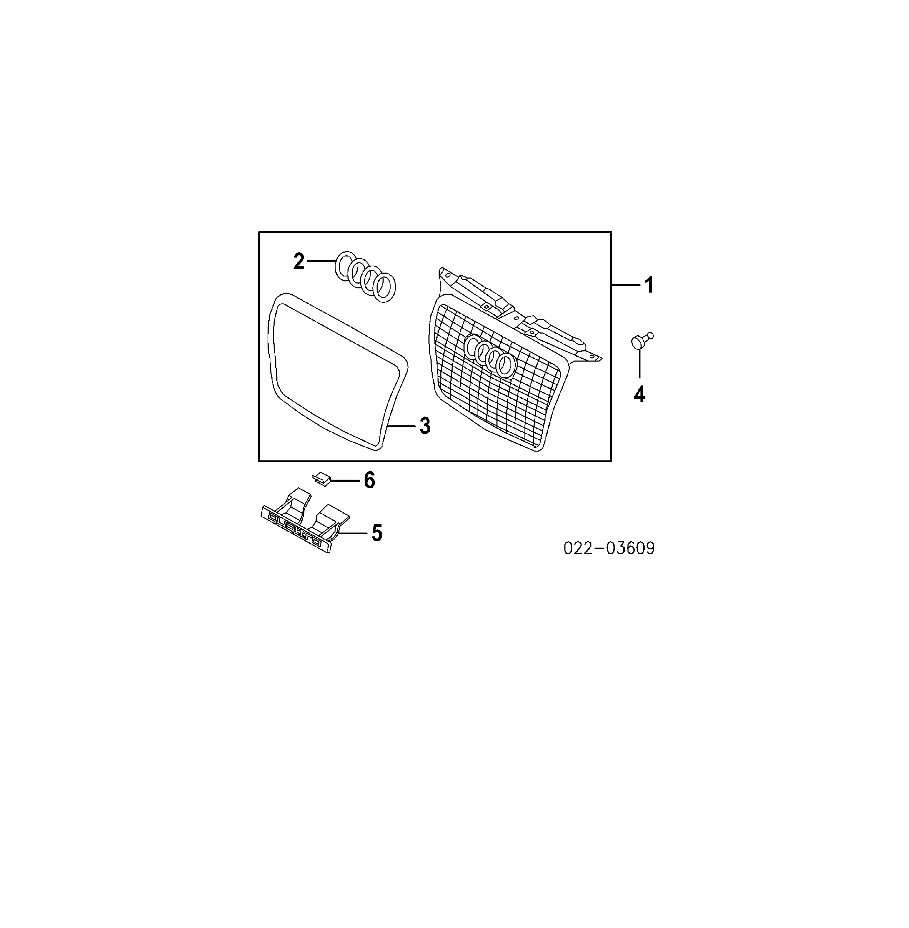

GRILLE
R&I Grille Assy #.4
#w/Front Cover Assy Removed, Included in R&R or O/H Front
Cover Assy
1 Grille Assy
2006-08
w/Sport Pkg
Brilliant Black 8P4 853 651 D VMZ $390.00 #.4
Stone Gray 8P4 853 651 D 1QP $390.00 #.4
w/o Sport Pkg
Brilliant Black 8P4 853 651 A VMZ $390.00 #.4
Stone Gray 8P4 853 651 A 1QP $308.00 #.4
2009-13
Brilliant Black
Type 1 8P0 853 651 P VMZ $640.00 #.4
Type 2 8P0 853 651 H VMZ $640.00 #.4
Glossy Black
Type 1 8P0 853 651 H T94 $450.00 #.4
Type 2 8P0 853 651 J T94 $450.00 #.4
Platinum Gray
Type 1 8P0 853 651 Q 1RR $423.00 #.4
Page 6 of 160
Type 2 8P0 853 651 G 1RR $740.00 #.4
Stone Gray
Type 1 8P0 853 651 M 1QP $306.00 #.4
Type 2 8P0 853 651 J 1QP $308.00 #.4
Order by Application
#w/Front Cover Assy Removed, Included in R&R or O/H Front
Cover Assy
2 Emblem, Grille (Adhesive) (a) 06-08 8D0 853 605 $75.00 .2
09-13 8P0 853 605 $75.00 .2
3 Trim, Grille (a)
2006-08
Brilliant Black 8P4 807 715 VMZ $229.00 #.2
Chrome 8P4 807 715 2ZZ $229.00 #.2
2009-13 8P0 807 715 A 2ZZ $223.00 #.2
(a) Included w/Grille Assy
#w/Front Cover Assy Removed
4 Retainer, Grille
2006-07, (3) N 910 702 01 $1.22
2008-13, (13) N 908 974 01 $0.72
5 Nameplate
"Quattro" 8P0 853 736 B 2ZZ $72.00 .2
6 Clip, Nameplate (2) 8L0 807 180 $6.50

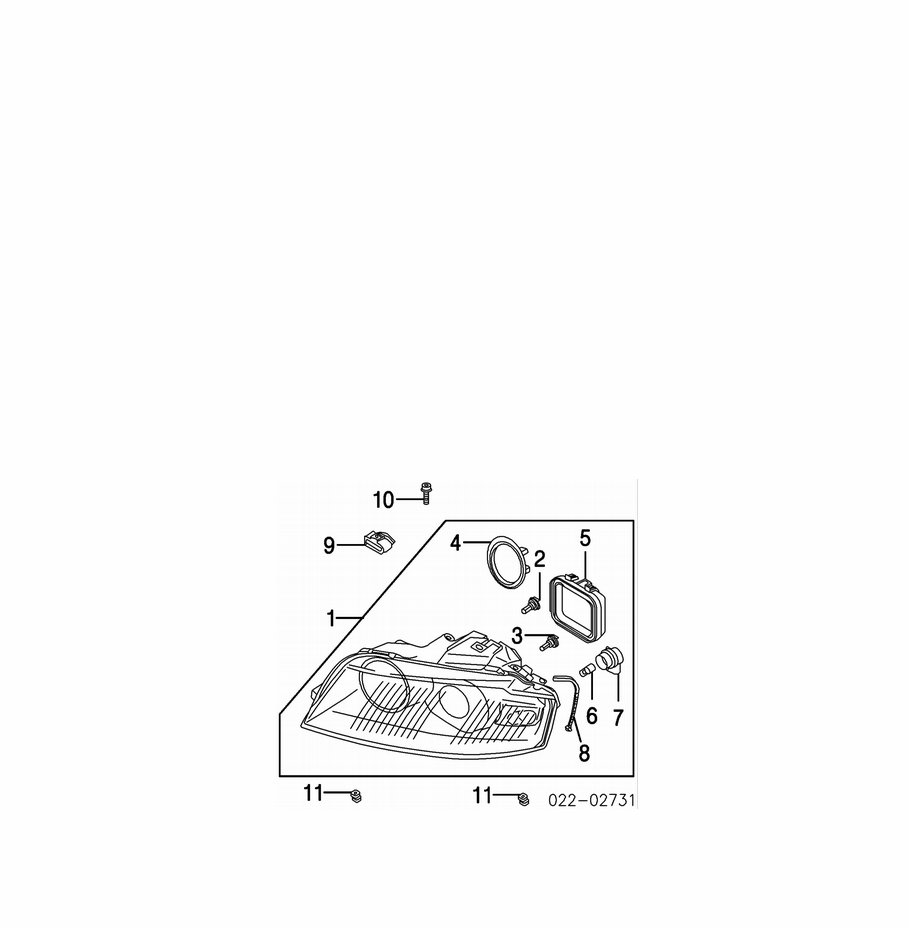

FRONT LAMPS
COMBINATION LAMP
COMBINATION LAMP
HALOGEN 2006-08
Aim Lamps .4
R&I Combination Lamp Assy R #.3
L #.3
#w/Front Cover Assy Removed
NOTE: R&R Does Not include aim lamps.
Page 7 of 160
1 Lamp Assy, Combination R 8P0 941 004 H $370.00 #.3
L 8P0 941 003 H $370.00 #.3
#w/Front Cover Assy Removed
2 Bulb, High Beam R N 105 297 01 $30.56 #.2
L N 105 297 01 $30.56 #.2
3 Bulb, Low Beam R N 103 201 02 $17.33 #.2
L N 103 201 02 $17.33 #.2
4 Cap, High Beam R 8P0 941 159 A $45.00
L 8P0 941 159 A $45.00
5 Cap, Low Beam R 8P0 941 159 $45.00
L 8P0 941 159 $45.00
6 Bulb, Park/Signal R N 102 564 05 $8.82 #.2
L N 102 564 05 $8.82 #.2
#R&R One Side Complete, Included in R&I Combination Lamp
Assy
7 Socket, Park/Signal Bulb R 7H1 953 123 $33.35
L 7H1 953 123 $33.35
8 Seal, Lamp R 8P0 941 192 A $95.00
L 8P0 941 191 A $95.00
Included w/Combination Lamp Assy
9 Contact, Lamp R 6R0 973 735 $16.13
L 6R0 973 735 $16.13
10 Screw, Adjust R N 906 847 05 $1.10
L N 906 847 05 $1.10
11 Spacer, Mounting (2/Side) R 8E0 806 193 $22.58
L 8E0 806 193 $22.58
Repair Kit, Housing R 8P0 998 122 $70.00 #.3
L 8P0 998 121 $70.00 #.3
#w/Combination Lamp Assy Removed
Harness, Eng Compt-See Front Inner Structure
Section

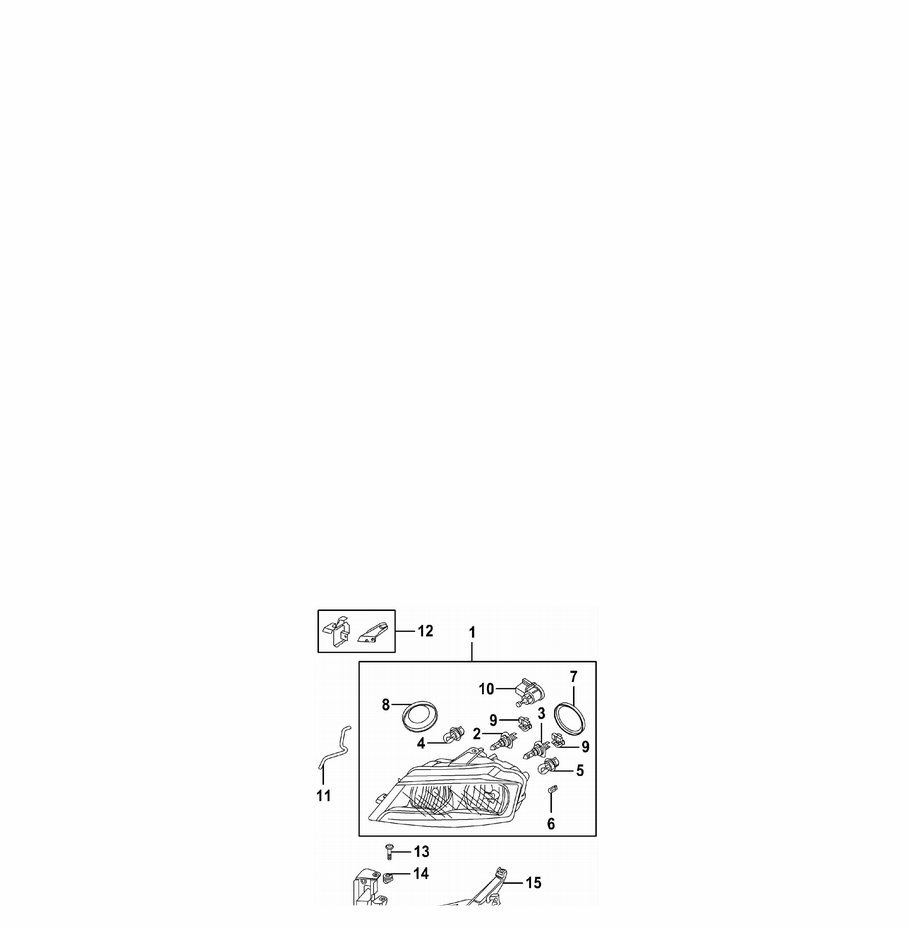

COMBINATION LAMP
COMBINATION LAMP
HALOGEN 2009-13
Page 8 of 160
Aim Lamps .4
R&I Combination Lamp Assy R #.3
L #.3
#w/Front Cover Assy Removed
NOTE: R&R Does Not include aim lamps.
1 Lamp Assy, Combination R 8P0 941 004 BD $370.00 #.3
L 8P0 941 003 BD $370.00 #.3
#w/Front Cover Assy Removed
Bulb, Headlamp
2 High Beam R N 103 201 02 $17.33 #.2
L N 103 201 02 $17.33 #.2
3 Low Beam R N 103 201 02 $17.33 #.2
L N 103 201 02 $17.33 #.2
4 Bulb w/Socket, Signal R N 107 331 01 $47.58 #.2
L N 107 331 01 $47.58 #.2
5 Bulb, Cornering Lamp R N 107 279 01 $50.00 #.2
L N 107 279 01 $50.00 #.2
6 Bulb, Side Marker R N 017 753 5 $6.30 #.2
L N 017 753 5 $6.30 #.2
#R&R One Side Complete, Included in R&I/R&R Combination
Lamp Assy
7 Cap, Outer Bulb R 2E0 941 607 $39.90
L 2E0 941 607 $39.90
8 Cap, Inner Bulb R 3C0 941 607 A $15.54
L 3C0 941 607 A $15.54
9 Clip, Retainer (2/Side) R 5M0 941 160 A $8.38
L 5M0 941 160 A $8.38
10 Motor, Adjuster R 1K6 941 295 $92.22 #.2
L 1K6 941 295 $92.22 #.2
Included w/Combination Lamp Assy
11 Hose, Vent R 8P0 941 718 $12.76
L 8P0 941 717 $12.76
12 Repair Kit, Lamp R 8P0 998 122 A $70.00 #.3
L 8P0 998 121 A $70.00 #.3
#w/Combination Lamp Assy Removed
13 Bolt, Mounting (2/Side) R N 910 361 01 $1.90
L N 910 361 01 $1.90
14 Spacer, Mounting (2/Side) R 8E0 806 193 $22.58
L 8E0 806 193 $22.58
15 Bracket, Headlamp-See Front Inner Structure
Section
Harness, Eng Compt-See Front Inner Structure
Section
COMBINATION LAMP
COMBINATION LAMP XENON
2006-08
Page 9 of 160
Aim Lamps .4
R&I Combination Lamp Assy R #.3
L #.3
#w/Front Cover Assy Removed
NOTE: R&R Does Not include aim lamps.
1 Lamp Assy, Combination
Bi-Xenon R 8P0 941 030 AD $980.00 #.7
L 8P0 941 029 AD $980.00 #.7
Xenon
w/Curve Lighting R 8P0 941 030 AE $830.00 #.7
L 8P0 941 029 AE $830.00 #.7
w/o Curve Lighting R 8P0 941 030 J $763.00 #.7
L 8P0 941 029 J $763.00 #.7
#w/Front Cover Assy Removed
2 Bulb, High Beam
Xenon
w/Curve Lighting R N 017 732 8 $3.90 #.2
L N 017 732 8 $3.90 #.2
w/o Curve Lighting R N 103 201 02 $17.33 #.2
L N 103 201 02 $17.33 #.2
3 Cap, High Beam R 8P0 941 159 A $45.00
L 8P0 941 159 A $45.00
4 Cap, Low Beam R 8P0 941 159 $45.00
L 8P0 941 159 $45.00
5 Bulb, Park/Signal R N 102 564 05 $8.82 #.2
L N 102 564 05 $8.82 #.2
#R&R One Side Complete, Included in R&I/R&R Combination
Lamp Assy
6 Socket, Park/Signal Bulb R 7H1 953 123 $33.35
L 7H1 953 123 $33.35
7 Motor, Adjustment
Xenon R 8P0 941 293 $60.00 #.2
L 8P0 941 293 $60.00 #.2
Page 10 of 160
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$52.99
Viewed 18 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$52.99
The 2007 Audi A3 Sportback Download Service & Repair Manual is the ultimate resource for Audi A3 owners looking to maintain, service, and repair their vehicles with ease. This comprehensive manual covers everything from regular maintenance tasks to complex repairs, providing step-by-step instructions and detailed diagrams to guide you through each process.
With this manual, you'll have access to all the information you need to keep your 2007 Audi A3 Sportback in top-notch condition. Whether you're a seasoned mechanic or just enjoy working on your own car, this manual is designed to help you save time, money, and frustration.
Key features of the 2007 Audi A3 Sportback Download Service & Repair Manual include:
- Complete service and repair procedures
- Detailed maintenance schedules
- Electrical system diagnostics
- Engine, transmission, and drivetrain information
- Suspension, steering, and brake system repairs
Models covered in this manual:
- 2007 Audi A3 Sportback 2.0L
- 2007 Audi A3 Sportback 3.2L
- 2007 Audi A3 Sportback 1.9 TDI
Invest in the 2007 Audi A3 Sportback Download Service & Repair Manual and take control of your vehicle's maintenance and repairs. With this comprehensive guide at your fingertips, you'll have the confidence and knowledge to tackle any project with ease.
