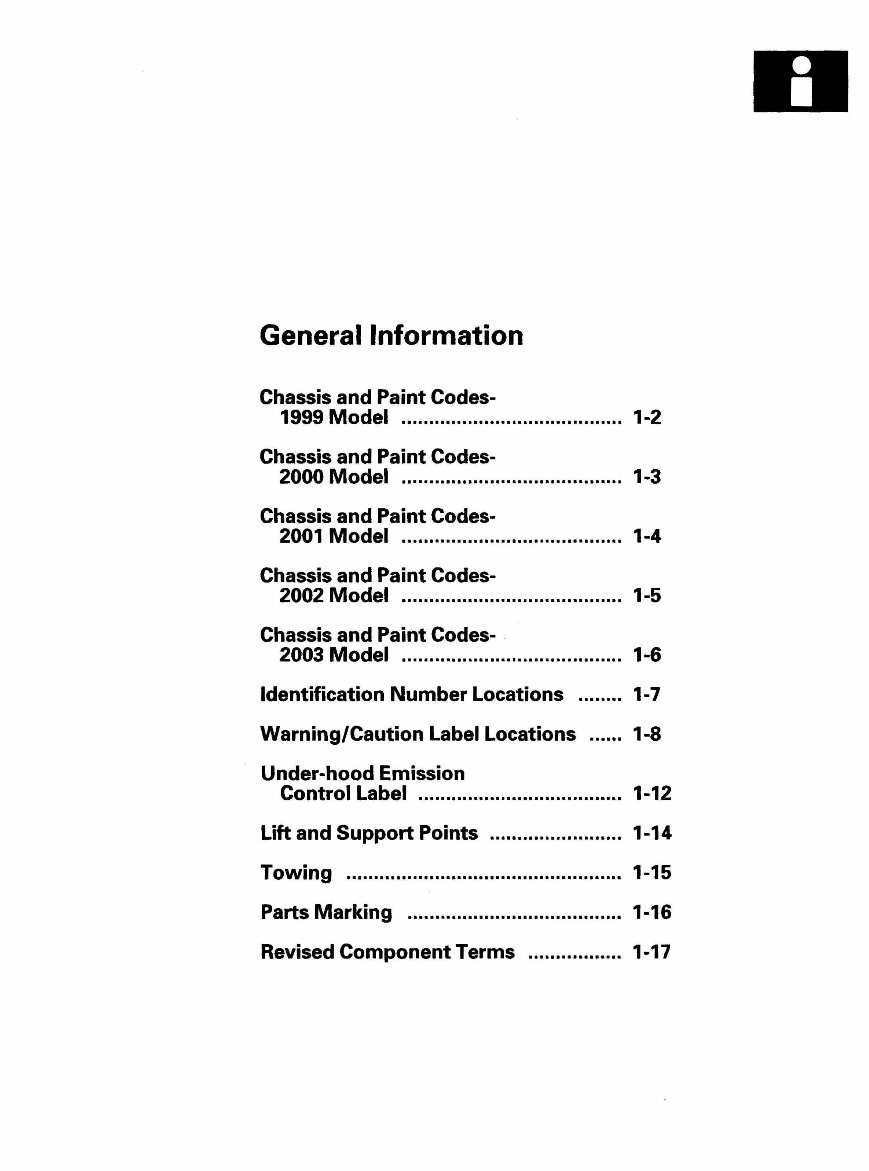

General Information Chassis and Paint Codes- 1999 Model ........................................ 1-2 Chassis and Paint Codes- 2000 Model ........................................ 1-3 Chassis and Paint Codes- 2001 Model ........................................ 1-4 Chassis and Paint Codes- 2002 Model ........................................ 1-5 Chassis and Paint Codes- . 2003 Model ........................................ 1-6 Identification Number Locations ........ 1-7 Warning/Caution Label Locations ...... 1-8 Under-hood Emission Control Label ..................................... 1-12 Lift and Support Points ........................ 1-14 Towing .................................................. 1-15 Parts Marking . .... .... .............. ............. ... 1-16 Revised Component Terms ................. 1-17 P r o t e c t e d b y A R

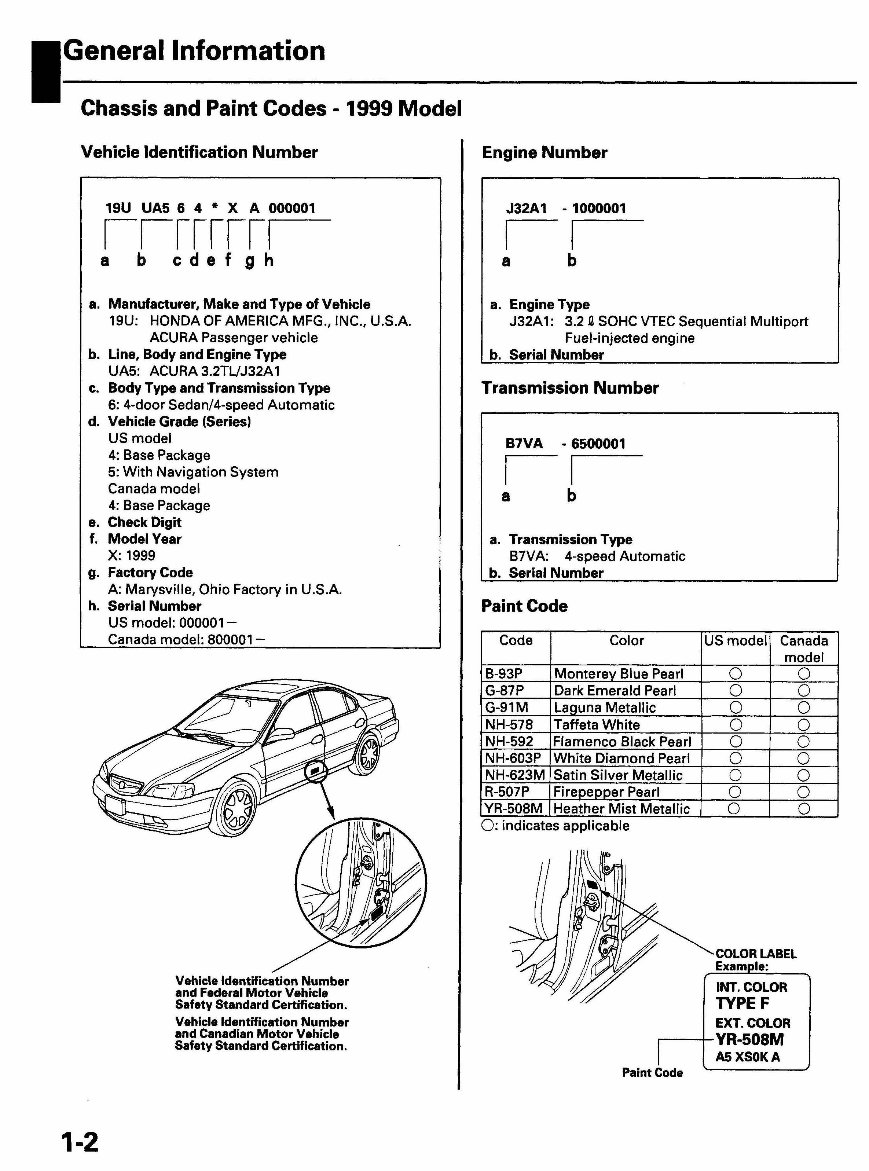

General Information Chassis and Paint Codes - 1999 Model Vehicle Identification Number 19U UA5 6 4 * X A 000001 IIIIIII1 a b cdefgh a. Manufacturer, Make and Type of Vehicle 19U: HONDA OF AMERICA MFG., INC., U.S.A. ACURA Passenger vehicle b. Line, Body and Engine Type UA5: ACURA 3.2TL/J32A 1 c. Body Type and Transmission Type 6: 4-door Sedan/4-speed Automatic d. Vehicle Grade (Series) US model 4: Base Package 5: With Navigation System Canada model 4: Base Package e. Check Digit f. Model Year X: 1999 g. Factory Code A: Marysville, Ohio Factory in U.S.A. h. Serial Number 1-2 US model: 000001- Canada model: 800001- Vehicle Identification Number and Federal Motor Vehicle Safety Standard Certification. Vehicle Identification Number and Canadian Motor Vehicle Safety Standard Certification. Engine Number J32A1 - 1000001 II a b a. Engine Type J32A1: 3.2 ~ SOHC VTEC Sequential Multiport Fuel-injected engine b. Serial Number Transmission Number B7VA - 6500001 II a b a. Transmission Type B7VA: 4-speed Automatic b. Serial Number Paint Code Code Color B-93P Monterey Blue Pearl G-87P Dark Emerald Pearl G-91M Laguna Metallic NH-578 Taffeta White NH-592 Flamenco Black Pearl NH-603P White Diamond Pearl NH-623M Satin Silver Metallic R-507P Firepepper Pearl YR-508M Heather Mist Met1!IILc 0: indicates applicable US model Canada model 0 0 0 0 0 0 0 0 0 - COLOR LABEL ExamDle: INT. COLOR TYPEF EXT. COLOR 0 0 0 0 0 0 0 0 0 r---I-I YR-50SM A5XSOKA Paint Code P r o t e c t e d b y A R

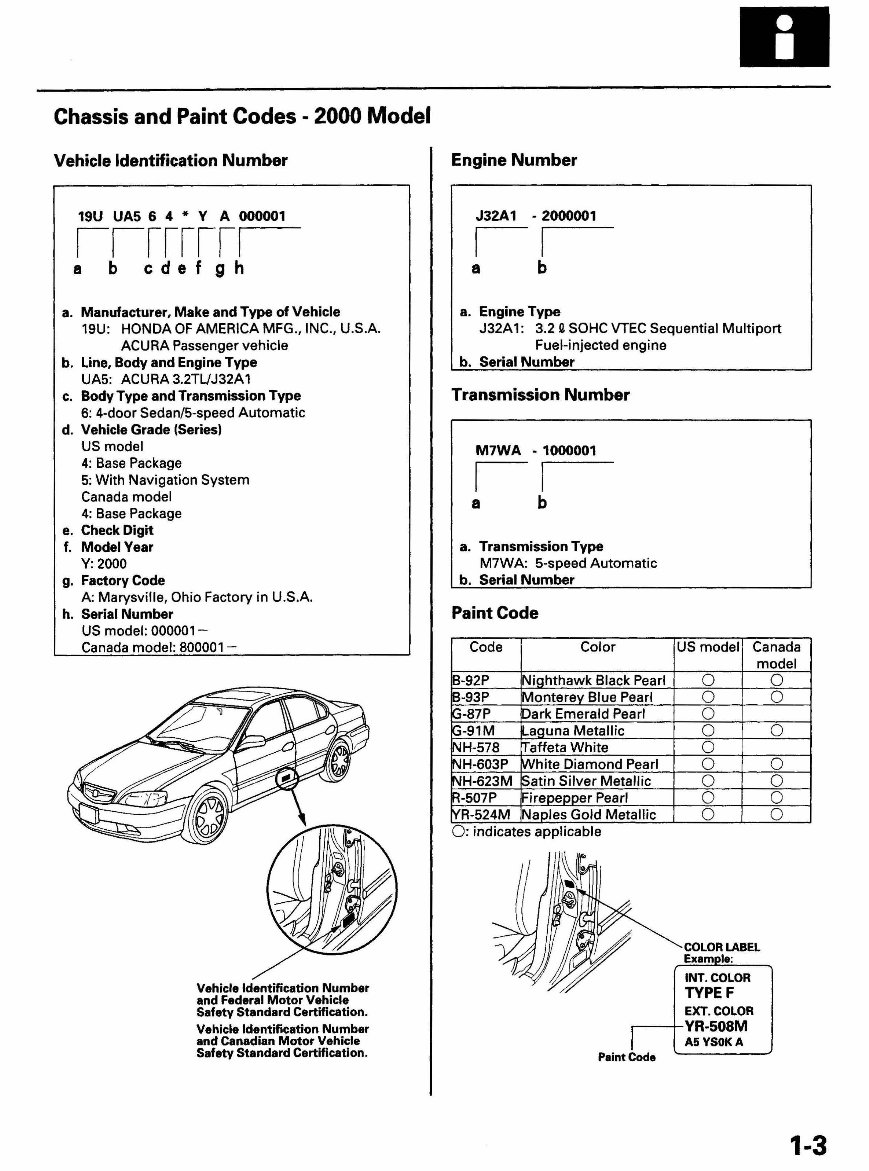

Chassis and Paint Codes - 2000 Model Vehicle Identification Number 19U UA5 6 4 * V A 000001 II111III 8 b cdefgh a. Manufacturer, Make and Type of Vehicle 19U: HONDA OF AMERICA MFG., INC., U.S.A. ACURA Passenger vehicle b. Line, Body and Engine Type UA5: ACURA 3.2TLJJ32A 1 c. Body Type and Transmission Type 6: 4-door Sedan/S-speed Automatic d. Vehicle Grade (Series) US model 4: Base Package S: With Navigation System Canada model 4: Base Package e. Check Digit f. Model Vear Y: 2000 g. Factory Code A: Marysville, Ohio Factory in U.S.A. h. Serial Number US model: 000001- Canada model: 800001- Vehicle Identification Number and Federal Motor Vehicle Safety Standard Certification. Vehicle Identification Number and Canadian Motor Vehicle Safety Standard Certification. Engine Number J32A 1 - 2000001 II 8 b a. Engine Type J32A 1: 3.2 ~ SOHC VTEC Sequential Multiport Fuel-injected engine b. Serial Number Transmission Number M7WA - 1000001 II 8 b a. Transmission Type M7WA: 5-speed Automatic b. Serial Number Paint Code Code Color US model Canada model B-92P Nighthawk Black Pearl 0 0 B-93P Monterey Blue Pearl 0 0 G-87P bark Emerald Pearl 0 G-91M ~aguna Metallic 0 0 NH-S78 ;Taffeta White 0 NH-603P ~hite Diamond Pearl 0 0 NH-623M Satin Silver Metallic 0 0 R-S07P !rirepepper Pearl 0 0 YR-S24M Naples Gold Metallic 0 0 0: indicates applicable COLOR LABEL Exam Ie: INT. COLOR TYPEF EXT. COLOR .---+-VR-50SM A5YSOKA Paint Code 1-3 P r o t e c t e d b y A R

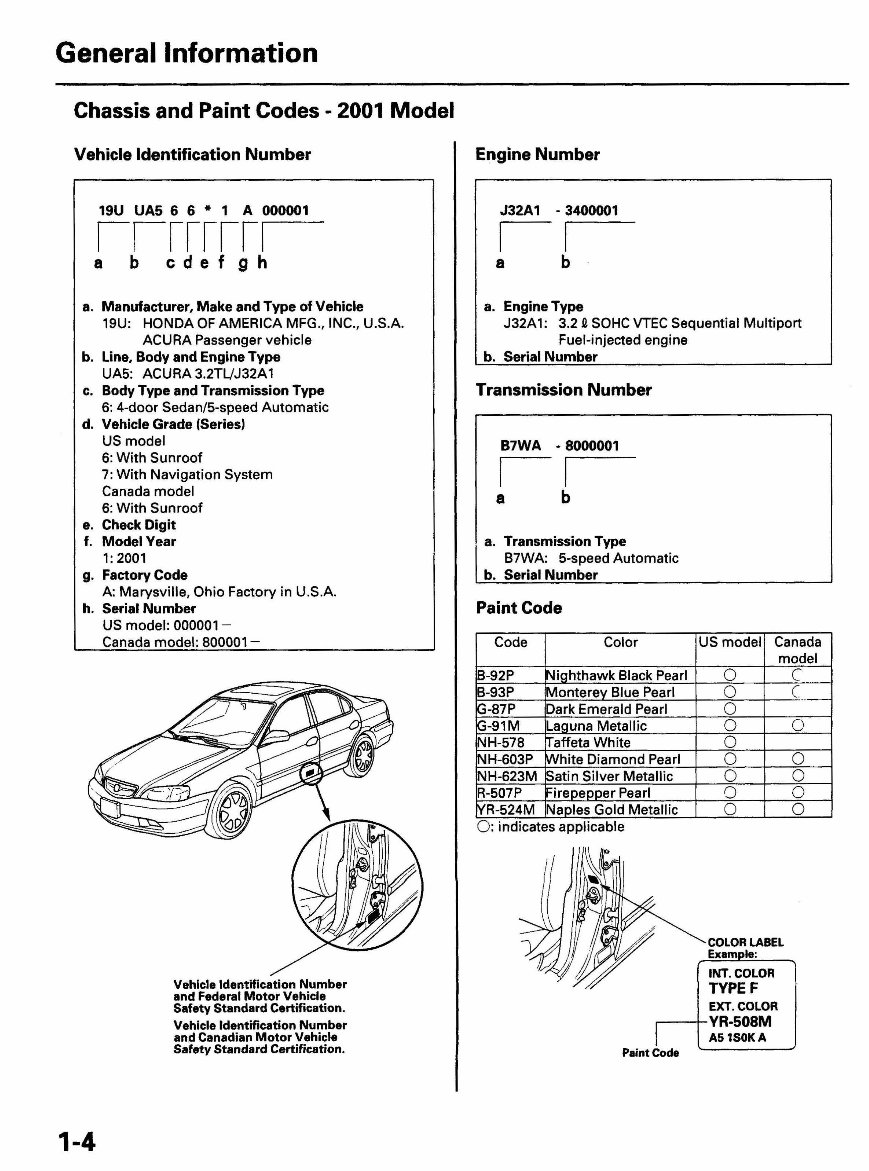

General Information Chassis and Paint Codes - 2001 Model Vehicle Identification Number 19U UA5 6 6 * 1 A 000001 IIIIII1I a b cdefgh a. Manufacturer, Make and Type of Vehicle 19U: HONDA OF AMERICA MFG., INC., U.S.A. ACURA Passenger vehicle b. Line, Body and Engine Type UA5: ACURA 3.2TLJJ32A 1 c. Body Type and Transmission Type 6: 4-door Sedan/S-speed Automatic d. Vehicle Grade (Series) US model 6: With Sunroof 7: With Navigation System Canada model 6: With Sunroof e. Check Digit f. Model Vear 1:2001 g. Factory Code A: Marysville, Ohio Factory in U.S.A. h. Serial Number 1-4 US model: 000001- Canada model: 800001- Vehicle Identification Number and Federal Motor Vehicle Safety Standard Certification. Vehicle Identification Number and Canadian Motor Vehicle Safety Standard Certification. Engine Number J32A 1 - 3400001 II a b a. Engine Type J32A 1: 3.2 £ SOHC VTEC Sequential Multiport Fuel-injected engine b. Serial Number Transmission Number B7WA - 8000001 II a b a. Transmission Type B7WA: S-speed Automatic b. Serial Number Paint Code Code Color B-92P NiQhthawk Black Pearl B-93P Monterey Blue Pearl ~-87P Dark Emerald Pearl G-91M Laguna Metallic NH-S78 Taffeta Wh ite NH-603P White Diamond Pearl NH-623M Satin Silver Metallic R-S07P Firepe(!Qer Pearl YR-S24M Naples Gold Metallic 0: indicates applicable US model Canada model 0 0 0 0 0 0 0 0 0 COLOR LABEL Ex.mDIe: INT. COLOR TVPEF EXT. COLOR C C_ U 0 0 0 0 .---+-1 VR-50SM A51S0KA P.intCoda P r o t e c t e d b y A R

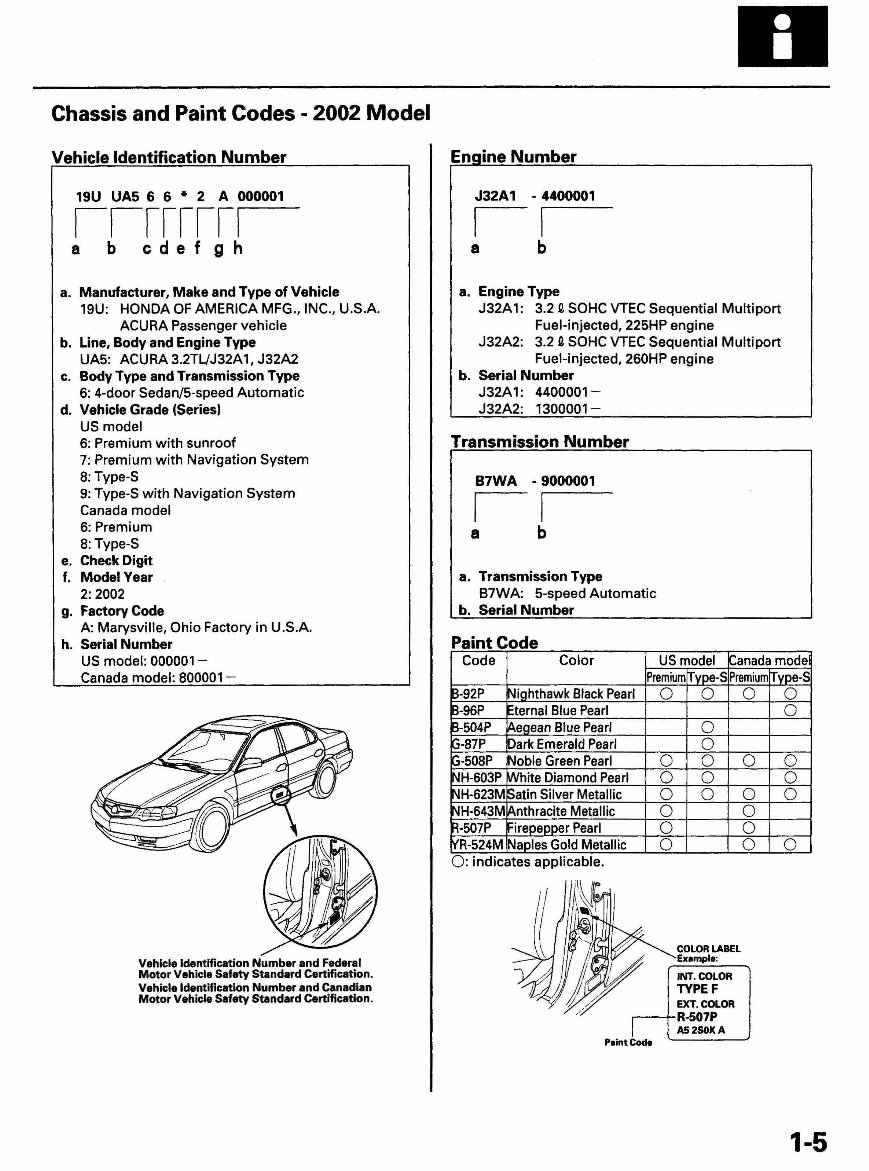

Chassis and Paint Codes - 2002 Model Vehicle Identification Number 19U UA5 6 6 * 2 A 000001 IIIIIIII 8 b cdefgh a. Manufacturer, Make and Type of Vehicle 19U: HONDA OF AMERICA MFG., INC ., U.S.A. ACURA Passenger vehicle b. Line, Body and Engine Type UA5: ACURA 3.2TLJJ32A 1, J32A2 c. Body Type and Transmission Type 6: 4-door Sedan/5-speed Automatic d. Vehicle Grade (Series) US model 6: Premium with sunroof 7: Premium with Navigation System 8: Type-S 9: Type-S with Navigation System Canada model 6: Premium 8: Type-S e. Check Digit f. Model Year 2:2002 g. Factory Code A: Marysville, Ohio Factory in U.S.A. h. Serial Number US model: 000001- Canada model: 800001- Vehicle Iclentificetion Number and Federal Motor Vehicle Safety Standard Certificetion. Vehicle Identification Number and Canadian Motor Vehicle Safety Standard Certificetion. En ine Number J32A1 - 4400001 II 8 b a. Engine Type J32A 1: 3.2 £ SOHC VTEC Sequential Mu ltipart Fuel-injected, 225HP engine J32A2: 3.2 £ SOHC VTEC Sequential Multipart Fuel-injected, 260HP engine b. Serial Number J32A 1: 4400001 - J32A2: 1300001- Transmission Number B7WA - 9000001 II 8 b a. Transmission Type B7WA: 5-speed Automatic b. Serial Number Paint Code Code Color US model lCanada mode B-92P Niahthawk Black Pearl J3- 96P I:ternal Blue Pearl B-504P ~eaean Blue Pearl G-87P Park Emerald Pearl G-508P Noble Green Pearl NH-603P White Diamond Pearl NH-623M lSatin Silver Metallic NH-643M ~nthracite Metallic ~-507P irepepper Pearl f{R-524M Naoles Gold Metallic 0: indicates applicable. Premium lTvOe-S Premium 0 0 0 0 0 0 0 0 0 0 0 0 0 COLOR LABEL Ex.mpl.: INT. COLOR TVPEF EXT. COLOR R·507P A52SOKA 0 0 0 0 0 0 P.intCode Irvpe-S 0 0 0 0 0 0 1-5 P r o t e c t e d b y A R

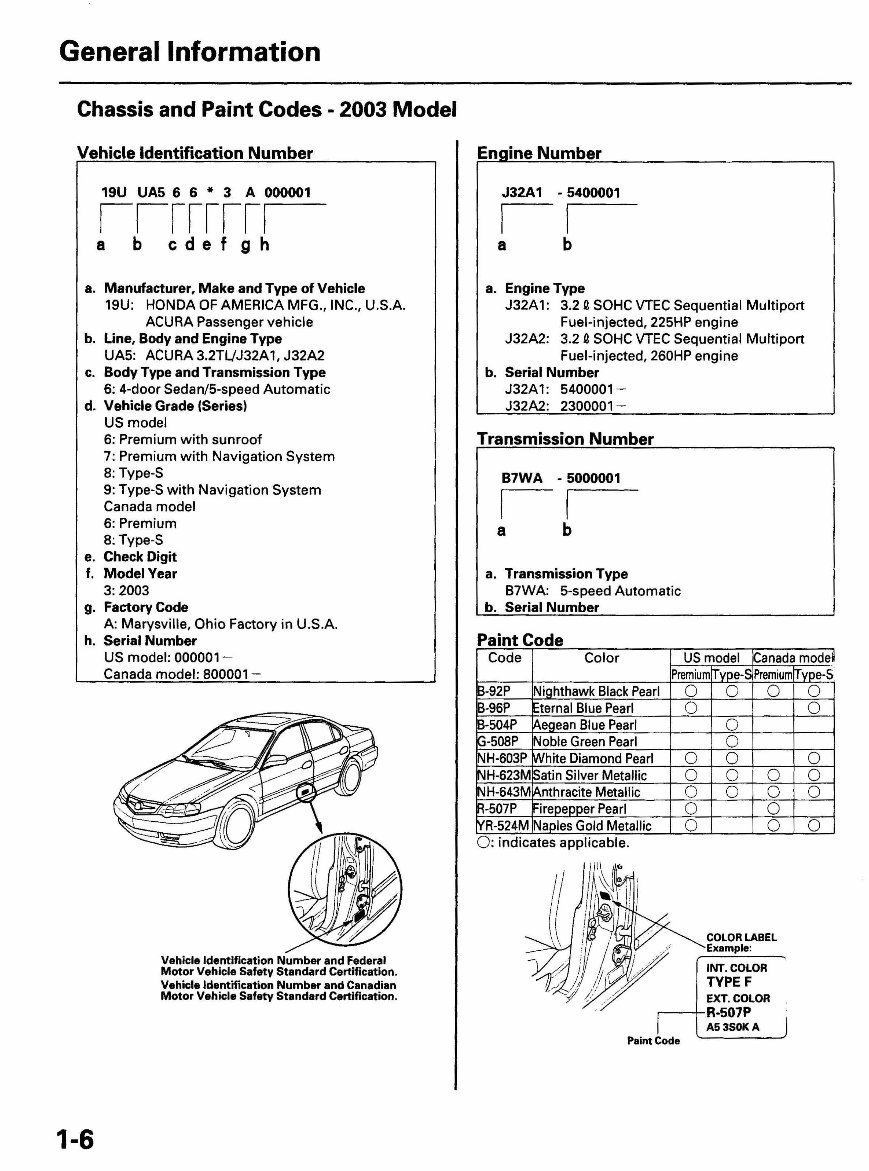

General Information Chassis and Paint Codes - 2003 Model Vehicle Identification Number 19U UA5 6 6 * 3 A 000001 IIIIII11 a b cdefgh a. Manufacturer, Make and Type of Vehicle 19U: HONDA OF AMERICA MFG., INC., U.S.A. ACURA Passenger vehicle b. Line, Body and Engine Type UA5: ACURA 3.2TL/J32A 1, J32A2 c. Body Type and Transmission Type 6: 4-door Sedan/5-speed Automatic d. Vehicle Grade (Series) US model 6: Premium with sunroof 7: Premium with Navigation System 8: Type-S 9: Type-S with Navigation System Canada model 6: Premium 8: Type-S e. Check Digit f. Model Year 3:2003 g. Factory Code A: Marysville, Ohio Factory in U.S.A. h. Serial Number 1-6 US model: 000001 - Canada model: 800001- Vehicle Identification Number and Federal Motor Vehicle Safety Standard Certification. Vehicle Identification Number and Canadian Motor Vehicle Safety Standard Certification. Engine Number J32A 1 - 5400001 II a b a. Engine Type J32A 1: 3.2 Ll, SOHC VTEC Sequential Multiport Fuel-injected, 225HP engine J32A2: 3.2 Ll, SOHC VTEC Sequential Multiport Fuel-injected, 260HP engine b. Serial Number J32A1: 5400001- J32A2: 2300001 - Transmission Number B7WA - 5000001 II a b a. Transmission Type 87WA: 5-speed Automat ic b. Serial Number Paint Code Code Color US model ~anada model Premium Type-S Premium B-92P Nighthawk Black Pearl 0 0 0 a-96P ternal Blue Pearl 0 B-504P Aegean Blue Pearl 0 ~-508P Noble Green Pearl 0 NH-603P White Diamond Pearl 0 0 NH-623M Satin Silver Metallic 0 0 0 NH-643M Anthracite Metallic 0 0 0 B-507P irejlepper Pearl 0 0 VR-524M Naples Gold Metallic 0 0 0: indicates applicable . COLOR LABEL Example: INT. COLOR TYPEF EXT. COLOR r--+-I R-507P A53S0KA Paint Code rrype-S 0 0 0 0 0 0 P r o t e c t e d b y A R

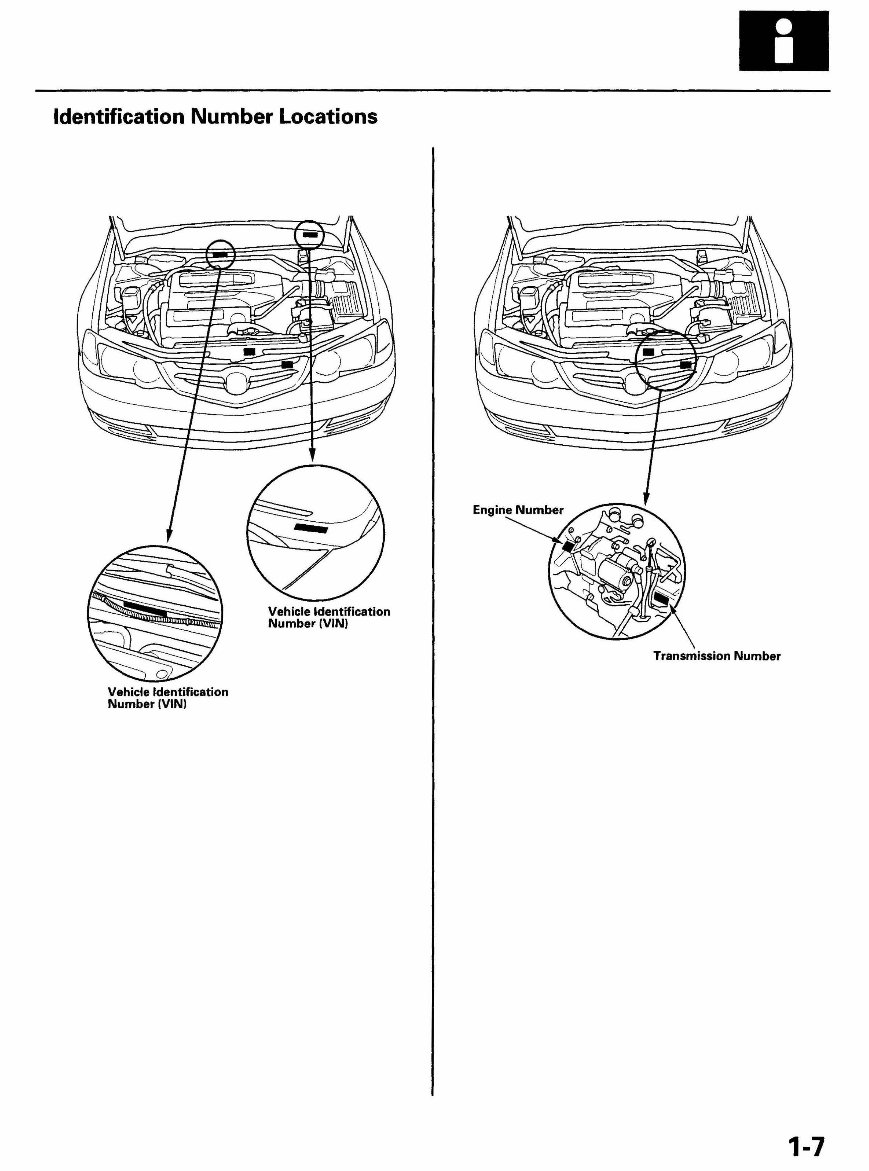

Identification Number Locations Vehicle Identification Number (VINI Transmission Number 1-7 P r o t e c t e d b y A R

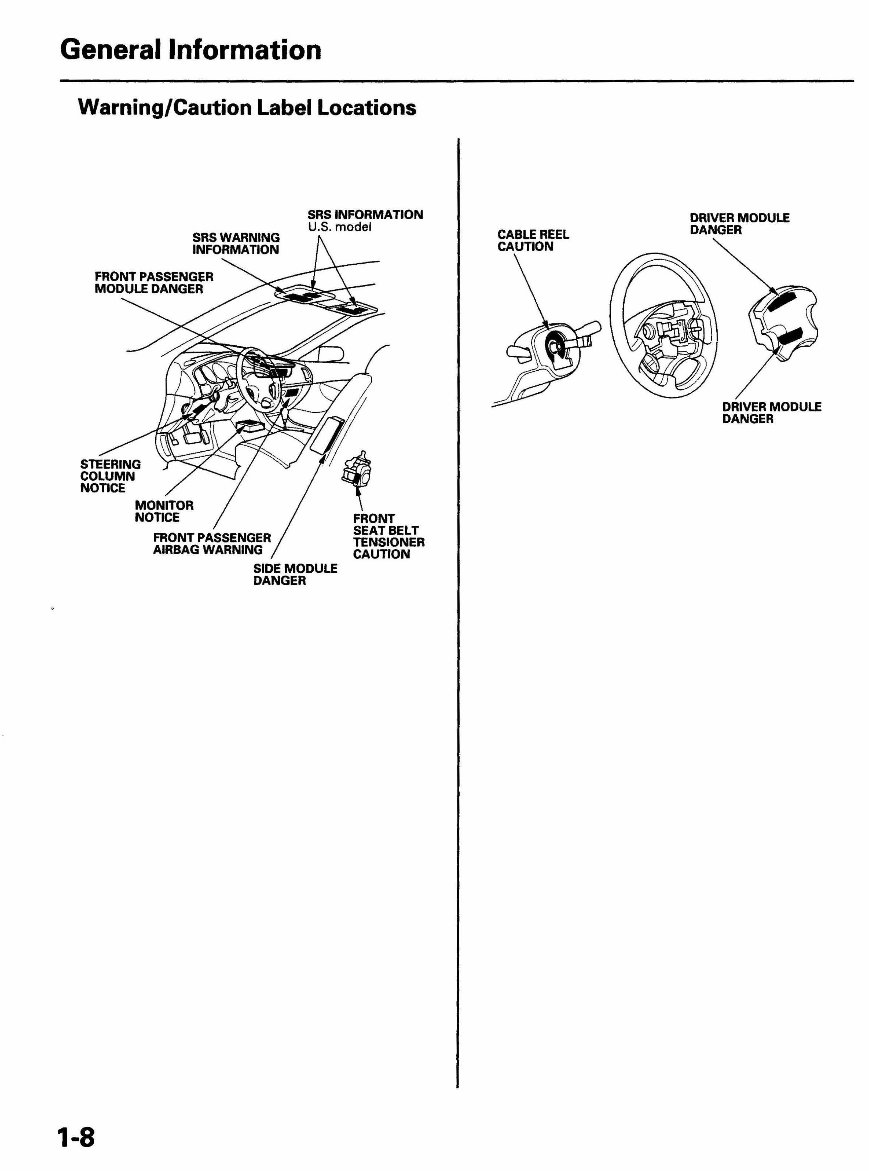

General Information Warning/Caution Label Locations 1-8 MONITOR NOTICE SRS INFORMATION u.s. model SIDE MODULE DANGER CABLE REEL CAUTION DRIVER MODULE DANGER DRIVER MODULE DANGER P r o t e c t e d b y A R

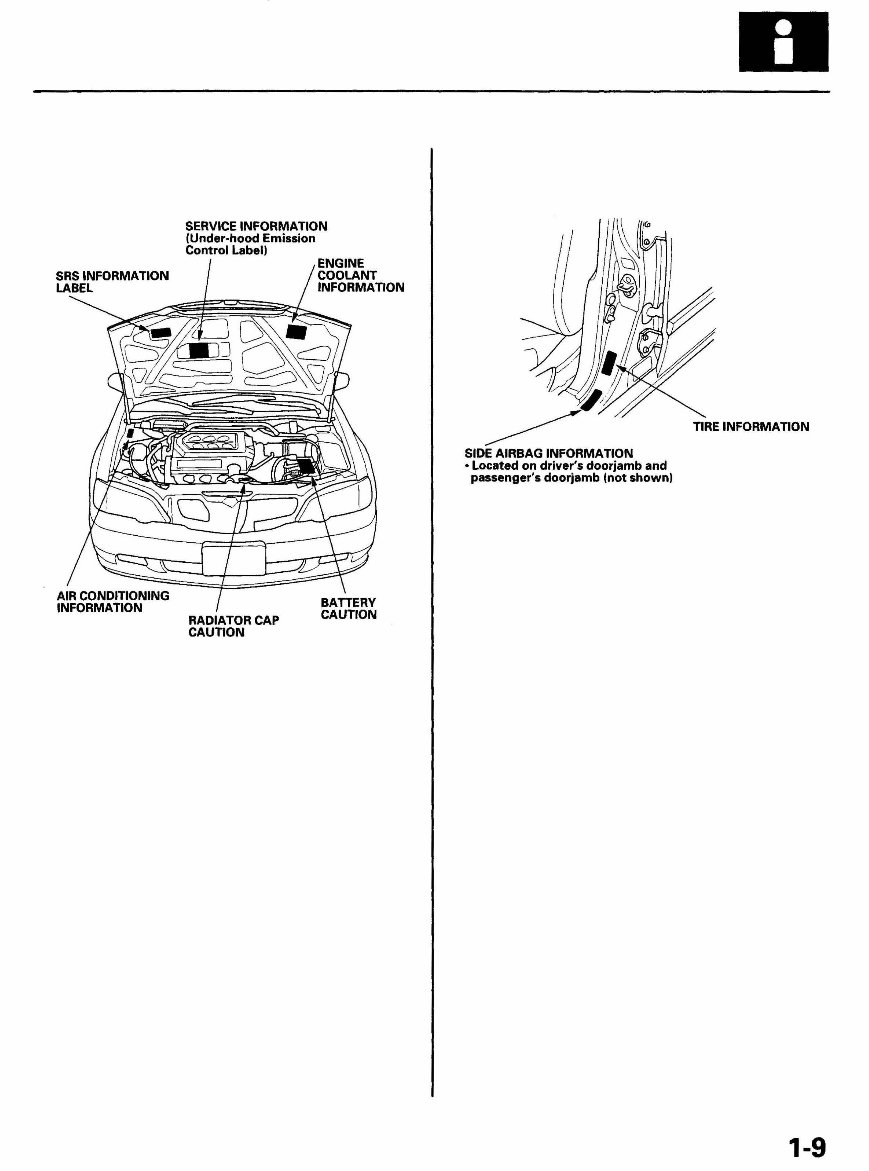

AIR CONDITIONING INFORMATION SERVICE INFORMATION (Under-hood Emission Control Labell RADIATOR CAP CAUTION SIDE AIRBAG INFORMATION • Located on driver's doorjamb and passenger's doorjamb (not shown) TIRE INFORMATION 1-9 P r o t e c t e d b y A R
