CONTENTS
MODEL : YM276(D) (R1573)
Fig.No. GROUP NAME Fig.No. GROUP NAME
ENGINE(3T84HA/-F/-S)
CYLINDER BLOCK 1.
GEAR HOUSING 2.
MAIN BEARING HOUSING 3.
LABELS(FOR ENGINE) 4.
CYLINDER HEAD 5.
BONNET & AIR BREATHER 6.
AIR CLEANER 7.
SILENCER 8.
CAMSHAFT 9.
CRANKSHAFT & FLYWHEEL 10.
PISTON & CONNECTING ROD 11.
LUBRICATING OIL PUMP 12.
LUBRICATING OIL LINES 13.
COOLING WATER PUMP 14.
RADIATOR 15.
COOLING WATER LINES 16.
FUEL INJECTION PUMP 17.
FUEL INJECTION VALVE 18.
FUEL STRAINER 19.
FUEL LINES 20.
GOVERNOR MECHANISM 21.
ELECTRIC EQUIPMENT 22.
THERMOSTART 23.
STARTER 12V-1.8KW(TYPE S12-77) 24.
GENERATOR 25.
REPAIR KIT (FOR ENGINE) 26.
GASKET KIT (FOR ENGINE) 27.
CHASSIS(YM276,YM276D
UNDERSLUNG EXHAUST SILENCER 28.
THROTTLE(STANDARD) 29.
THROTTLE(ENGLAND) 30.
THROTTLE(SCANDINAVIA) 31.
FUEL TANK 32.
FRONT AXLE BRACKET(STANDARD) 33.
FRONT AXLE BRACKET(ENGLAND) 34.
FRONT AXLE BRACKET(SCANDINAVIA 35.
FRONT AXLE (FOR YM276) 36.
PROPELLER SHAFT (FOR YM276D) 37.
1ST SHAFT & RING GEAR (YM276D) 38.
CASING OF FRONT AXLE (YM276D) 39.
SPINDLE OF FRONT AXLE (YM276D) 40.
STEERING(STANDARD) 41.
STEERING(SCANDINAVIA) 42.
CLUTCH HOUSING(STANDARD) 43.
CLUTCH HOUSING(SCANDINAVIA) 44.
TRANSMISSION HOUSING(STANDARD) 45.
TRANSMISSION HOUSING(SCANDINAV 46.
CENTER PLATE & P.S.PUMP 47.
TRANSMISSION GEARS 48.
CYLINDER OF P.S.CLUTCH 49.
P.T.O.DRIVE SHAFT 50.
COLUMN SHIFT 51.
RANGE SHIFT 52.
FRONT DRIVE (FOR YM276D) 53.
DIFFERENTIAL GEARS 54.
REAR AXLE HOUSING (1) 55.
REAR AXLE HOUSING(2)(STANDARD) 56.
PC NO : Y00T2321
CONTENTS
MODEL : YM276(D) (R1573)
Fig.No. GROUP NAME Fig.No. GROUP NAME
REAR AXLE HOUSING(2)(SCANDINAV 57.
REAR AXLE SHAFT 58.
BRAKES 59.
HYDRAULIC PIPES 60.
HYDRAULIC CYLINDER CASE 61.
HYDRAULIC LIFT 62.
HYDRAULIC CONTROL VALVE 63.
OIL PRESSURE CONTROL(STANDARD) 64.
OIL PRESSURE CONTROL(SCANDINAV 65.
DRAFT CONTROL 66.
ELECTRIC PARTS(USA & S.AFRICA) 67.
ELECTRIC PARTS(FRANCE) 68.
ELECTRIC PARTS(EUROPE) 69.
ELECTRIC PARTS(ENGLAND) 70.
ELECTRIC PARTS(SCANDINAVIA) 71.
HOOD(USA & SOUTH AFRICA) 72.
HOOD(FRANCE & EUROPE) 73.
HOOD(ENGLAND & SCANDINAVIA) 74.
FENDER(USA & SOUTH AFRICA) 75.
FENDER(FRANCE & EUROPE) 76.
FENDER(ENGLAND) 77.
STEP(PORTUGAL) 78.
SEAT(STANDARD) 79.
SEAT(USA & SOUTH AFRICA) 80.
THREE-POINT HITCH 81.
DRAWBAR(STANDARD) 82.
DRAWBAR(ENGLAND) 83.
FRONT POWER TAKE OFF 84.
LABEL(USA & SOUTH AFRICA) 85.
LABEL(QUEBEC) 86.
LABEL(EUROPE) 87.
LABEL(NEW ZEALAND) 88.
LABEL(FRANCE) 89.
LABEL(ENGLAND) 90.
LABEL(SCANDINAVIA) 91.
TURF-TIRES(STANDARD) 92.
TURF-TIRES(FRANCE) 93.
AG TIRES(FOR YM276,STANDARD) 94.
AG TIRES(FOR YM276,FRANCE) 95.
AG TIRES(FOR YM276D,STANDARD) 96.
AG TIRES(YM276D,FRANCE&ENGLAND 97.
LARGE TIRES(FOR YM276) 98.
LARGE TIRES(FOR YM276D) 99.
AG TIRES(YM276,EUROPE & SCANDI 100.
TOOLS 101.
FRONT & REAR WHEEL WEIGHT 102.
HEATER(U.S.A.ONLY) 103.
AG TIRES(USA ONLY,FOR YM276) 104.
TURF-TIRES(U.S.A.ONLY) 105.
AG TIRES(USA ONLY,FOR YM276D) 106.
ROLL BAR(U.S.A.ONLY) 107.

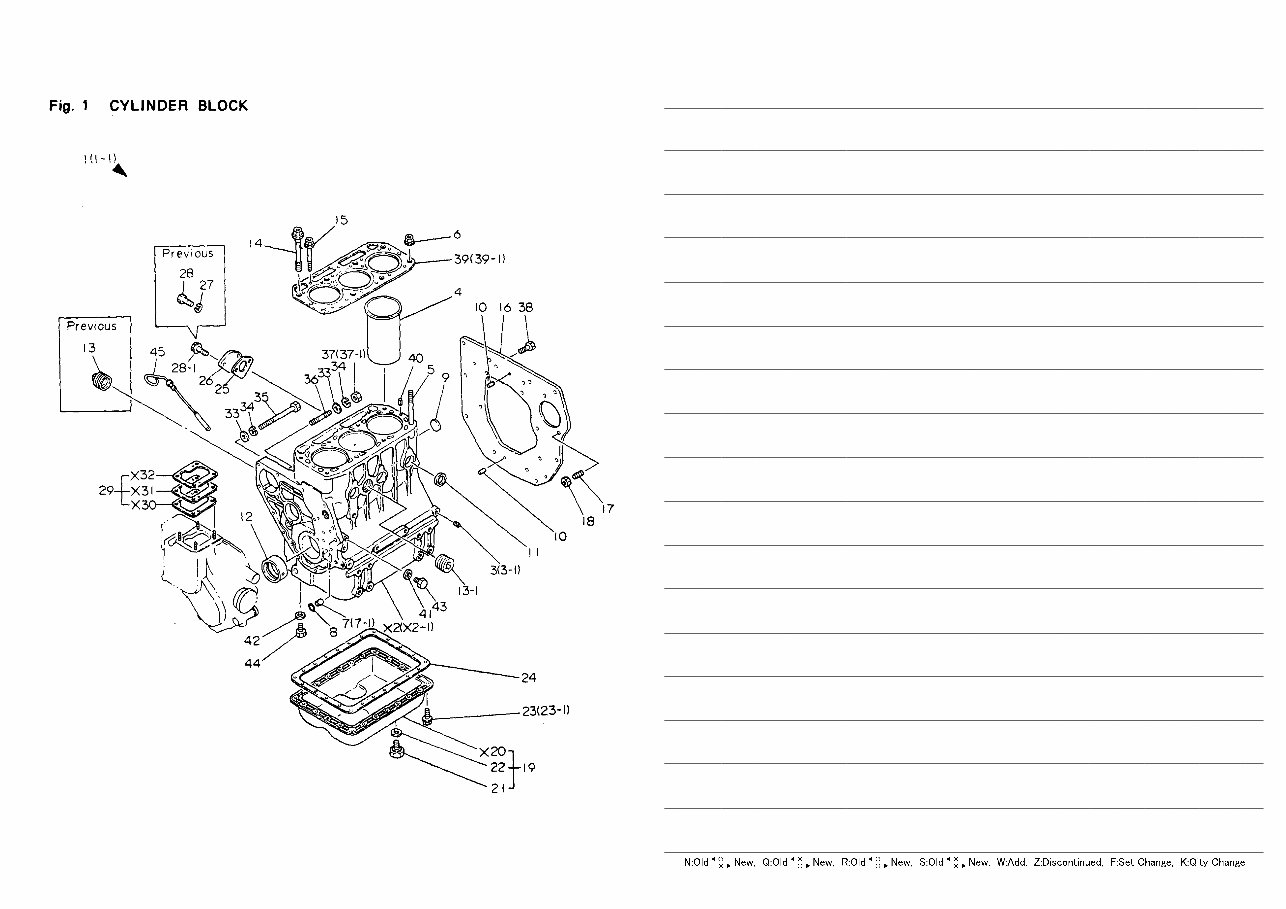

Fig.1. CYLINDER BLOCK
Y00T2321
Y00T2321 1. CYLINDER BLOCK
(F)=
(E)=
(D)=
(C)=3T84HA-S
(B)=3T84HA-F
(A)=3T84HA
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
BLOCK ASSY, CYLINDER 729350-01560-Z 1 1 1 1 1
PLUG, PT1/8 124060-01050 2 3 8 8
PLUG, PT1/8 124060-01050 2 3-1 K 6 6 6
(A=*1982.05) (B=*1982.05)
LINER, CYLINDER 129350-01100 2 4 3 3 3
STUD, CYL. HEAD 124950-01210 2 5 2 2 2
NUT, CYL. HEAD 121450-01220 2 6 2 2 2
GUIDE, O-RING 105225-01900 2 7 2
GUIDE, O-RING 124085-01900 2 7-1 R 2 2 2
(A=*1981.)
O-RING 1A P-10.0 24311-000100 2 8 2 2 2
PLUG 30 121450-01990 2 9 1 1 1
PARALLEL PIN 8X 16 22312-080160 2 10 2 2 2
PLUG 30 27243-300000 2 11 6 6 6
MAIN BEARING 129350-02100 2 12 1 1 1
PLUG 121750-01920 2 13 1 1
PLUG 171051-01921 2 13-1 R 1 1 1
(A=*1982.05) (B=*1982.05)
STUD, CYL. HEAD 129350-01200 1 14 6 6 6
BOLT, CYL. HEAD 129350-01230 1 15 3 3 3
FLANGE, MOUNTING 129350-01600-Z 1 16 1 1 1
STUD, STARTER 124450-01610 1 17 2 2 2
NUT M12 26716-120002 1 18 2 2 2
SUMP ASSY, LUB. OIL 729350-01540-Z 1 19 1 1 1
PLUG, DRAIN 104200-55080 2 21 1 1 1
SEAL WASHER 12 43400-500450 2 22 1 1 1
BOLT 121450-01710 1 23 23 23 23
BOLT M 6X 8 PLATED 26106-060082 1 23-1 N 23 23 23
(A=E/# A3393) (B=E/# A3393) (C=E/# A3393)
GASKET, OIL SUMP 121575-01750 1 24 1 1 1
GASKET, F.FEED PUMP 121520-01850 1 25 1 1 1
GASKET, (NON ASB.) 121520-01851 1 25-1 N 1 1 1
(A=E/# A7791) (B=E/# A7791) (C=E/# A7791)
COVER, BLIND 121520-01860 1 26 1 1 1
SPRING WASHER 6 22217-060000 1 27 Z 2 2
(A=*)
BOLT M6X18 26116-060182 1 28 2 2
BOLT M 6X 18 PLATED 26106-060182 1 28-1 N 2 2 2
(A=*1982.10) (B=*1982.10)
SHIM SET 121450-01951 1 29 1 1 1
WASHER 8 22117-080000 1 33 4 4 4
SPRING WASHER 8 22217-080000 1 34 4 4 4
BOLT M 8X110 PLATED 26116-081102 1 35 2 2 2
STUD M 8X 30 PLATED 26216-080302 1 36 2 2 2
NUT M 8 26716-080002 1 37 2 2
NUT M 8 26716-080002 1 37-1 K 4 4 4
(A=E/# 95898) (B=E/# 85898)
BOLT M10X22 26206-100222 1 38 10 10 10
GASKET, CYL. HEAD 129350-01330 1 39 1 1
GASKET, CYL. HEAD 129350-01331 1 39-1 N 1 1 1
(A=*1982.08) (B=*1982.08)
++ CONTINUE ++ (C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
Fig.1. CYLINDER BLOCK
Y00T2321
Y00T2321 1. CYLINDER BLOCK
(F)=
(E)=
(D)=
(C)=3T84HA-S
(B)=3T84HA-F
(A)=3T84HA
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
SPRING PIN 6X12 22351-060012 1 40 W 2 2 2
(A=*1982.10)
GASKET 12, ROUND 23414-120000 1 41 W 2 2 2
(A=*1982.04)
GASKET 12 23414-120016 1 42 W 2 2 2
(A=*1982.05)
PLUG 12 23881-120002 1 43 W 2 2 2
(A=*1982.05)
PLUG 12,HEX. 23887-120002 1 44 W 2 2 2
(A=*1982.05)
DIPSTICK, LUB. OIL 129350-34800 1 45 1 1 1
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.

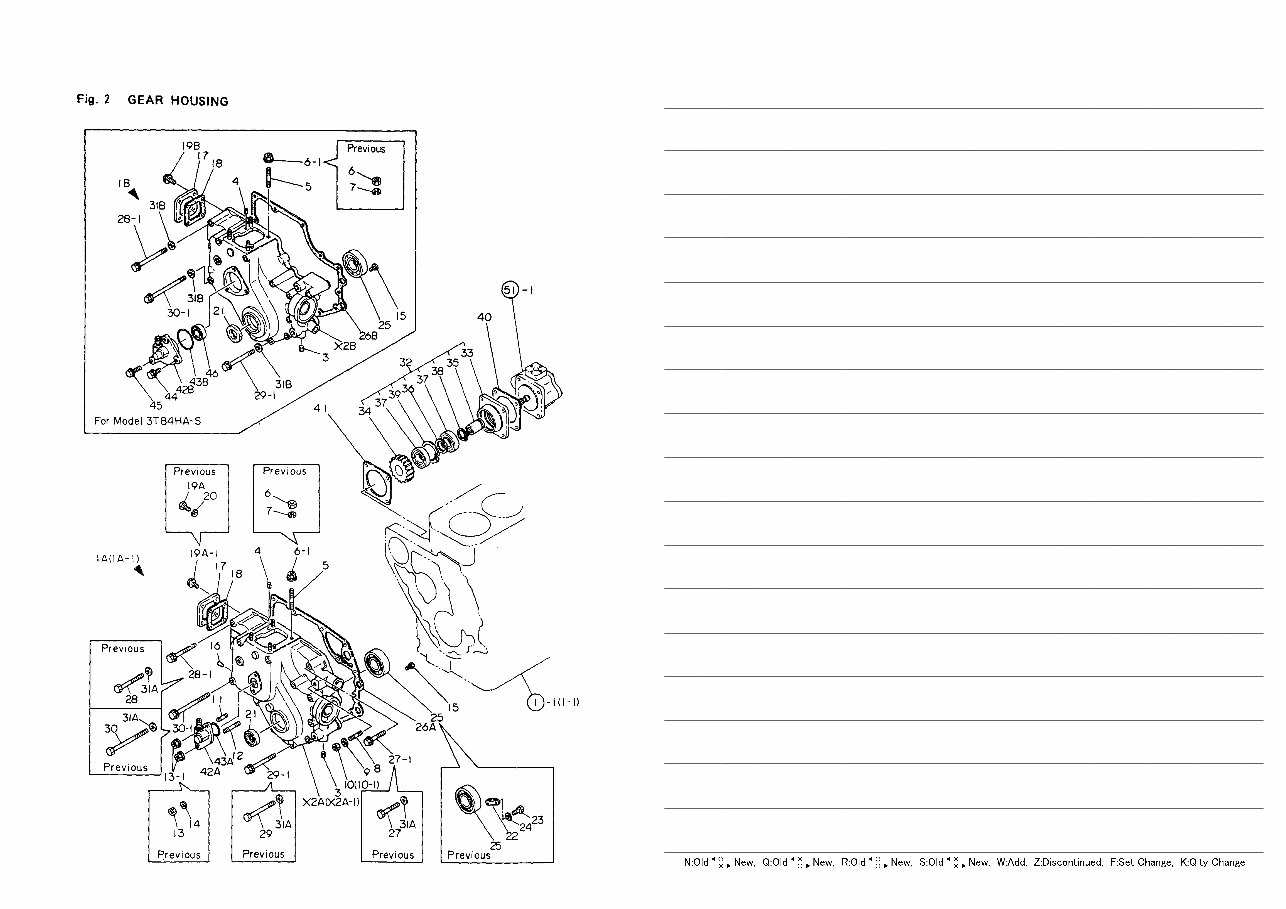

Fig.2. GEAR HOUSING
Y00T2321
Y00T2321 2. GEAR HOUSING
(F)=
(E)=
(D)=
(C)=3T84HA-S
(B)=3T84HA-F
(A)=3T84HA
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
HOUSING ASSY, GEARS 721454-01611-Z 1 1A 1
HOUSING ASSY, GEARS 721454-01612-Z 1 1A-1 N 1 1
(A=*1981.)
HOUSING ASSY, GEAR 729335-01612 1 1B 1
PLUG, PT1/8 124060-01050 2 3 1 1 1
SPRING PIN 4X10 22351-040010 2 4 2 2 2
STUD M 8X 22 121450-01560 2 5 4 4 4
NUT M 8 26716-080002 2 6 4 4 4
NUT W/WASHER 8 194990-22050 2 6-1 S 4 4 4
(A=E/# A0364) (B=E/# A0364) (C=E/# A0364)
SPRING WASHER 8 22217-080000 2 7 Z 4 4 4
(A=E/# A0364) (B=E/# A0364) (C=E/# A0364)
STUD 121450-01570 2 8 1 1
WASHER 10 22117-100000 2 9 1 1
NUT M10 26716-100002 2 10 1 1
NUT M10 26706-100002 2 10-1 N 1 1
(A=*1982.10) (B=*1982.10)
STUD M 6X 14 PLATED 26216-060142 2 11 1 1
STUD M 6X 35 PLATED 26216-060352 2 12 1 1
NUT M 6 26716-060002 2 13 2 2
NUT M 6 26366-060002 2 13-1 N 2 2
(A=*1982.10) (B=*1982.10)
WASHER 6 22117-060000 2 14 Z 2 2
(A=*1982.10) (B=*1982.10)
SCREW M 8X 10 26587-080102 2 15 1 1 1
PLUG 121085-01890 2 16 1 1
COVER, CYL. BLOCK 121450-01550 1 17 1 1 1
GASKET, COVER 121450-01531 1 18 1 1 1
BOLT M 6X 12 26116-060122 1 19A 4 4
BOLT M 6X 12 PLATED 26106-060122 1 19A-1 N 4 4
(A=E/# 95454) (B=E/# 95454)
BOLT M 6X 10 PLATED 26106-060102 1 19B 4
SPRING WASHER 6 22217-060000 1 20 Z 4 4
(A=E/# 95454) (B=E/# 95454)
SEAL TC25 40 8, OIL 121450-01801 1 21 1 1 1
RETAINER, BEARING 124085-01820 1 22 Z 1
(A=*1981.)
BOLT M 4X 12 PLATED 26116-040122 1 23 Z 2
(A=*1981.)
SPRING WASHER 4 22217-040000 1 24 Z 2
(A=*1981.)
BALL BEARING 24101-063050 1 25 1 1 1
GASKET, GEAR HOUSING 121450-01511 1 26A 1 1
GASKET, GEAR HOUSING 121575-01510 1 26B 1
BOLT M 8X 45 PLATED 26116-080452 1 27 1 1
BOLT M 8X 45 PLATED 26106-080452 1 27-1 N 1 1
(A=*1982.10) (B=*1982.10)
BOLT M 8X 75 PLATED 26116-080752 1 28 2 2
BOLT M 8X 75 PLATED 26106-080752 1 28-1 N 2 2 2
(A=*1982.10) (B=*1982.10)
BOLT M 8X 85 PLATED 26116-080852 1 29 7 7
++ CONTINUE ++ (C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
Fig.2. GEAR HOUSING
Y00T2321
Y00T2321 2. GEAR HOUSING
(F)=
(E)=
(D)=
(C)=3T84HA-S
(B)=3T84HA-F
(A)=3T84HA
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
BOLT M 8X 85 PLATED 26106-080852 1 29-1 N 7 7 7
(A=*1982.10) (B=*1982.10)
BOLT M 8X115 PLATED 26116-081152 1 30 3 3
BOLT M 8X115 PLATED 26106-081152 1 30-1 N 3 3 3
(A=E/# 95454) (B=E/# 95454)
WASHER 8 22117-080000 1 31A Z 13 13
(A=*1982.) (B=*1982.)
WASHER 8 22117-080000 1 31B Z 12
(C=E/# A2243)
GEAR UNIT 129354-26000 1 32 1 1 1
BRACKET, HO-P 129350-26050 2 33 1 1 1
GEAR 129354-26200 2 34 1 1 1
SHAFT 129354-26400 2 35 1 1 1
SPACER 124950-26420 2 36 1 1 1
BALL BEARING 129350-26490 2 37 2 2 2
CIRCLIP 25S 22242-000250 2 38 1 1 1
CIRCLIP 47 22252-000470 2 39 1 1 1
GASKET, HO-P 124240-01882 1 40 1 1 1
GASKET, (NON ASB.) 124240-01883 1 40-1 N 1 1 1
(A=E/# A7791) (B=E/# A7791) (C=E/# A7791)
GASKET 124950-26021 1 41 1 1 1
GEAR UNIT 121450-91400 1 42A 1 1
GEAR UNIT 121456-91400 1 42B 1
O-RING 1A S-26.0 24341-000260 1 43A 1 1
O-RING 1A S-46.0 24341-000460 1 43B 1
BOLT M8X 16 PLATED 121456-91981 1 44 2
BOLT M8X 35 PLATED 121456-91991 1 45 1
BALL BEARING 24101-062024 1 46 1
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.

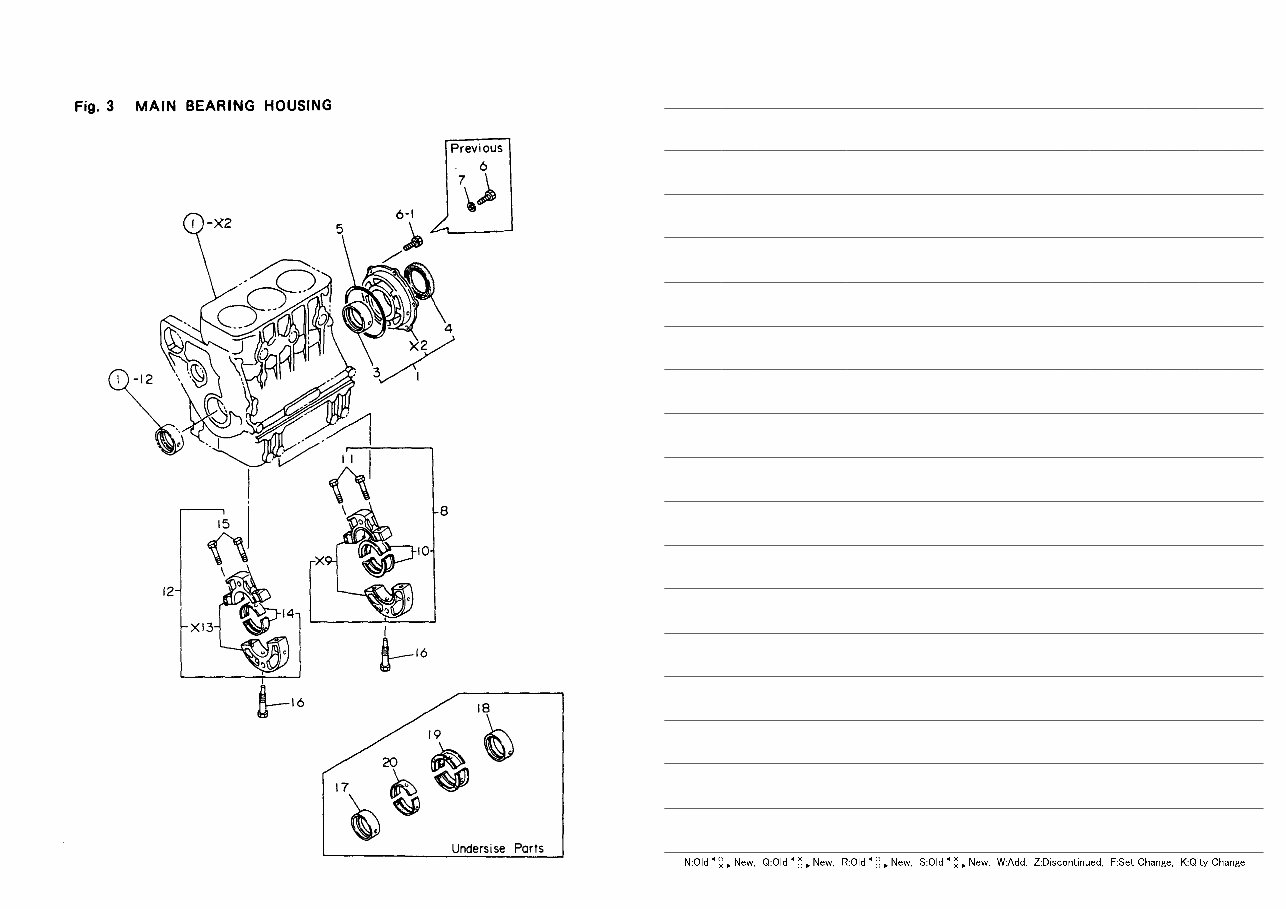

Fig.3. MAIN BEARING HOUSING
Y00T2321
Y00T2321 3. MAIN BEARING HOUSING
(F)=
(E)=
(D)=
(C)=3T84HA-S
(B)=3T84HA-F
(A)=3T84HA
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
HOUSING ASSY 721550-02500 1 1 1 1 1
MAIN BEARING 121550-02110 2 3 1 1 1
SEAL, OIL 121551-02220 2 4 1 1 1
O-RING 1A S-135.0 24341-001350 1 5 1 1 1
BOLT M 8X 20 PLATED 26116-080202 1 6 6 6
BOLT W/WASHER M8X20 26013-080202 1 6-1 N 6 6 6
(A=*1982.10) (B=*1982.10)
SPRING WASHER 8 22217-080000 1 7 Z 6 6
(A=*1982.10) (B=*1982.10)
HOUSING ASSY 729350-02610 1 8 1 1 1
1 MAIN BEARING 729350-02800 2 10 1 1 1
BOLT 121250-02070 2 11 2 2 2
HOUSING ASSY 729350-02620 1 12 1 1 1
2 MAIN BEARING 729350-02810 2 14 1 1 1
BOLT 121250-02070 2 15 2 2 2
BOLT 121550-02300 1 16 2 2 2
3 MAIN BEARING US=0.25 129350-02310 1 17 1 1 1
3 MAIN BEARING US=0.25 121550-02320 1 18 1 1 1
3 MAIN BEARING US=0.25 129350-02330 1 19 1 1 1
3 MAIN BEARING US=0.25 129350-02350 1 20 1 1 1
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.

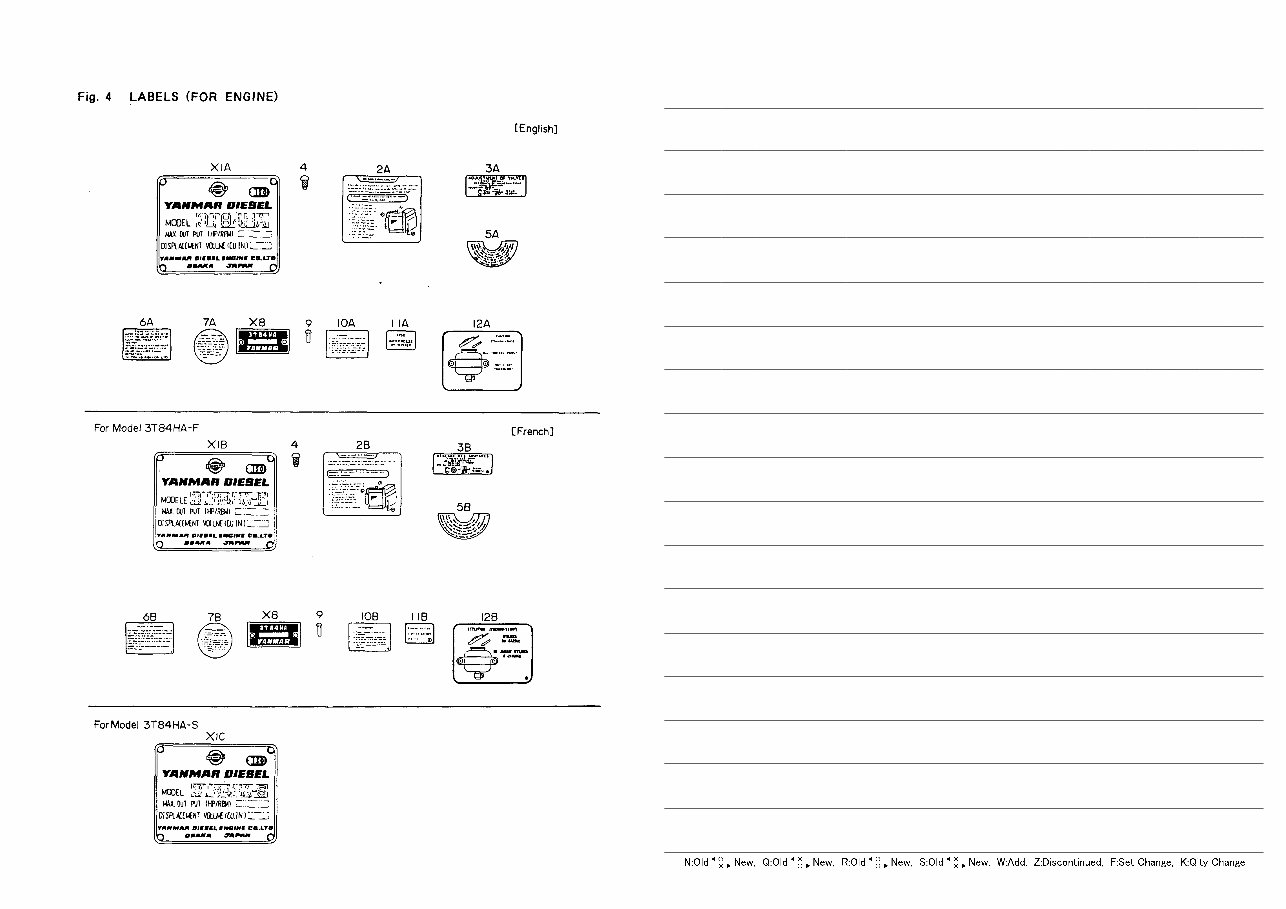

Fig.4. LABELS(FOR ENGINE)
Y00T2321
Y00T2321 4. LABELS(FOR ENGINE)
(F)=
(E)=
(D)=
(C)=3T84HA-S
(B)=3T84HA-F
(A)=3T84HA
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
LABEL, WATER DRAIN 121254-07150 1 2A 1 1
LABEL, WATER DRAIN 121241-07150 1 2B 1
LABEL, VALVE ADJUST. 124064-07160 1 3A 1 1
LABEL, VALVE ADJUST. 124040-07160 1 3B 1
RIVET 102210-07990 1 4 4 4 4
LABEL, PRE-CLEANER 121454-12480 1 5A 1 1
LABEL, PRE-CLEANER(F 121440-12520 1 5B 1
LABEL, AIR-CLEANER 121454-12520 1 6A 1 1
LABEL, AIR CLEANER(F 121440-12480 1 6B 1
LABEL, RADIATOR 124764-44800 1 7A 1 1
LABEL, RADIATOR 124740-44800 1 7B 1
RIVET, LABEL 124220-51890 1 9 1 1 1
LABEL, RESERVE TANK 124764-44810 1 10A 1 1
LABEL, SUB-TANK 124740-44810 1 10B 1
LABEL, ANTI-FREEZING 124764-44920 1 11A 1 1
LABEL, ANTI-FREEZING 124740-44920 1 11B 1
LABEL, FUEL CAUTION 124764-77980 1 12A 1 1
LABEL, FUEL CAUTION 124740-77980 1 12B 1
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.

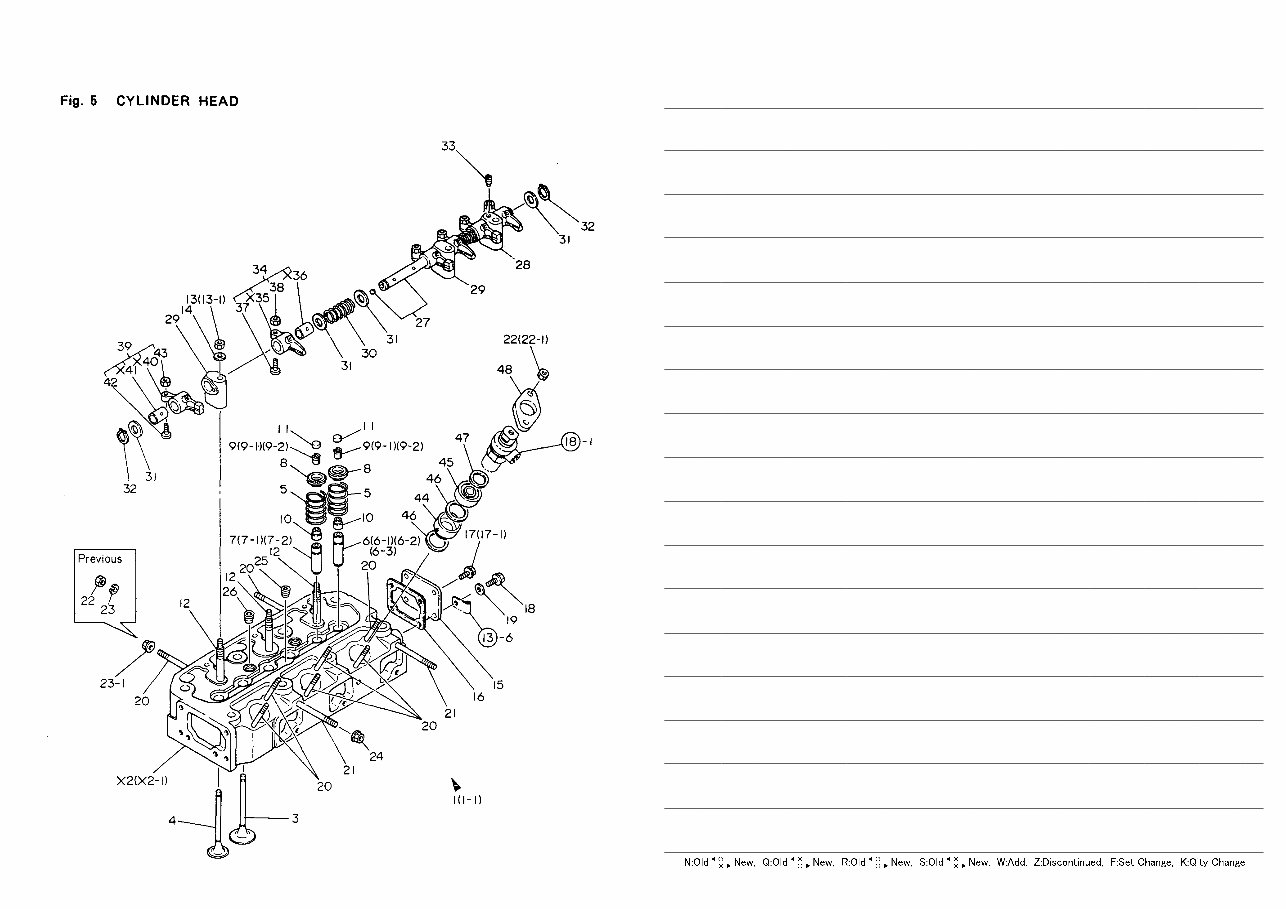

Fig.5. CYLINDER HEAD
Y00T2321
Y00T2321 5. CYLINDER HEAD
(F)=
(E)=
(D)=
(C)=3T84HA-S
(B)=3T84HA-F
(A)=3T84HA
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
HEAD ASSY, CYLINDER 729354-11700-Z 1 1 1 1
HEAD ASSY, CYLINDER 729354-11701-Z 1 1-1 N 1 1 1
(A=*1981.) (B=*1981.)
VALVE, SUCTION 129350-11100 2 3 3 3 3
VALVE, EXHAUST 129350-11110 2 4 3 3 3
SPRING, VALVE 104511-11120 2 5 6 6 6
GUIDE, VALVE 124450-11161 2 6 3 3
GUIDE, VALVE 124450-11800 2 6-1 N 3 3
(A=*) (B=*)
GUIDE, VALVE 129150-11160 2 6-2 N 3 3 3
(A=E/# 95898) (B=E/# 95898)
GUIDE, VALVE 120130-11160 2 6-3 N 3 3 3
(A=E/# A2243) (B=E/# A2243) (C=E/# A2243)
GUIDE, VALVE 124450-11171 2 7 3 3
GUIDE, VALVE 124450-11810 2 7-1 N 3 3
(A=*)
GUIDE, VALVE 129300-11170 2 7-2 N 3 3 3
(A=*1982.) (B=*1982.)
GUIDE, VALVE 129150-11170 2 7-3 N 3 3 3
(A=E/# A1453) (B=E/# A1453) (C=E/# A1453)
RETAINER, SPRING 103338-11180 2 8 6 6 6
COTTER 8 103338-11190 2 9 6 6
COTTER 8 27310-080000 2 9-1 N 6 6
(A=*) (B=*)
COTTER 8 27310-080001 2 9-2 N 6 6 6
(A=*) (B=*)
SEAL, VALVE STEM 124460-11340 2 10 6 6 6
CAP, VALVE 104511-11370 2 11 6 6 6
STUD, SUPPORT 105225-11350 2 12 3 3 3
LOCK NUT M10 PLATED 26776-100002 2 13 3 3
NUT M10 26696-100002 2 13-1 N 3 3 3
(A=*1982.10) (B=*1982.10)
WASHER 10 22117-100000 2 14 3 3 3
COVER 121450-11670 2 15 1 1 1
GASKET, COVER 121450-11680 2 16 1 1 1
BOLT M 8X 12 PLATED 26116-080122 2 17 3 3
BOLT M 8X 12 PLATED 26106-080122 2 17-1 N 3 3 4
(A=*1982.10) (B=*1982.10)
BOLT M 8X 14 121250-01710 2 18 1 1 1
BOLT M 8X 14 PLATED 26106-080142 2 18-1 N 1 1 1
(A=E/# 95454) (B=E/# 95454) (C=E/# 95454)
WASHER 8 22117-080000 2 19 Z 1 1
(A=*) (B=*)
STUD M 8X 65 PLATED 26216-080652 2 20 8 8 8
STUD M 8X 70 PLATED 26216-080702 2 21 2 2 2
NUT M 8 26716-080002 2 22 8 8
NUT 121465-11950 2 22-1 S 6 6 6
(A=*1982.10) (B=*1982.10)
SPRING WASHER 8 22217-080000 2 23 2 2
NUT M 8 26366-080002 2 23-1 S 2 2 2
(A=*1982.10) (B=*1982.10)
++ CONTINUE ++ (C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
Fig.5. CYLINDER HEAD
Y00T2321
Y00T2321 5. CYLINDER HEAD
(F)=
(E)=
(D)=
(C)=3T84HA-S
(B)=3T84HA-F
(A)=3T84HA
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
NUT W/WASHER 8 194990-22140 2 24 2 2 2
PLUG PT 1/4 23873-020000 2 25 1 1 1
PLUG PT 3/8 23873-030000 2 26 2 2 2
SHAFT, ROCKER ARM 129350-11240 1 27 1 1 1
SUPPORT, ROCKER ARM 121450-11260 1 28 1 1 1
SUPPORT, ROCKER ARM 121450-11270 1 29 2 2 2
SPRING 121550-11280 1 30 2 2 2
WASHER 121550-11290 1 31 6 6 6
CIRCLIP 14 22242-000140 1 32 2 2 2
SETSCREW 26921-080102 1 33 1 1 1
ARM, VALVE ROCKER 729350-11650 1 34 3 3 3
SCREW, VALVE 101158-11230 2 37 3 3 3
LOCK NUT M 8 PLATED 26756-080002 2 38 3 3 3
ARM ASSY, ROCKER 729350-11660 1 39 3 3 3
SCREW, VALVE 101158-11230 2 42 3 3 3
LOCK NUT M 8 PLATED 26756-080002 2 43 3 3 3
CHAMBER, FRONT 129350-11400 1 44 3 3 3
CHAMBER, REAR 129350-11410 1 45 3 3 3
GASKET, CHAMBER 101704-11450 1 46 6 6 6
INSULATOR 103854-11490 1 47 3 3 3
FLANGE 101147-11900 1 48 3 3 3
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$37.99
$49.99
Viewed 75 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$37.99
$49.99
Yanmar YM276, YM276D Tractor Parts Manual is a comprehensive technical manual designed for the repair of your Yanmar YM276, YM276D Tractor. It is suitable for both professional mechanics and DIY enthusiasts. The manual is available in PDF format, compatible with all versions of Windows and Mac operating systems. It includes detailed diagrams and instructions for the engine (3T84HA/-F/-S) and chassis (YM276, YM276D), covering various components such as cylinder block, gear housing, main bearing housing, labels, cylinder head, bonnet & air breather, air cleaner, silencer, camshaft, crankshaft & flywheel, piston & connecting rod, lubricating oil pump, lubricating oil lines, cooling water pump, radiator, fuel injection pump, fuel injection valve, fuel strainer, governor mechanism, electric equipment, thermostart, starter, generator, repair kit, gasket kit, underslung exhaust silencer, throttle, fuel tank, front axle bracket, front axle, propeller shaft, 1st shaft & ring gear, casing of front axle, spindle of front axle, steering, clutch housing, transmission housing, center plate & P.S. pump, transmission gears, cylinder of P.S. clutch, P.T.O. drive shaft, column shift, range shift, front drive, differential gears, rear axle housing, rear axle shaft, brakes, hydraulic pipes, hydraulic cylinder case, hydraulic lift, hydraulic control valve, oil pressure control, draft control, electric parts, hood, fender, step, seat, three-point hitch, drawbar, front power take-off, labels, turf-tires, AG tires, large tires, tools, front & rear wheel weight, heater, and roll bar.
Upon purchase, you will receive instant access to the manual, eliminating shipping fees and delivery wait times. This manual is an economical and convenient resource for maintaining and repairing your vehicle. Thank you for visiting!
