PC NO : Y00T2391
CONTENTS
MODEL : YM165(D)( )
Fig.No. GROUP NAME Fig.No. GROUP NAME
VEHICLE YM165(D)
CYLINDER BLOCK 1.
GEARS HOUSING 2.
CYLINDER HEAD 3.
AIR CLEANER(WITH PRE-CLEANER)&SILENCER 4.
CAMSHAFT 5.

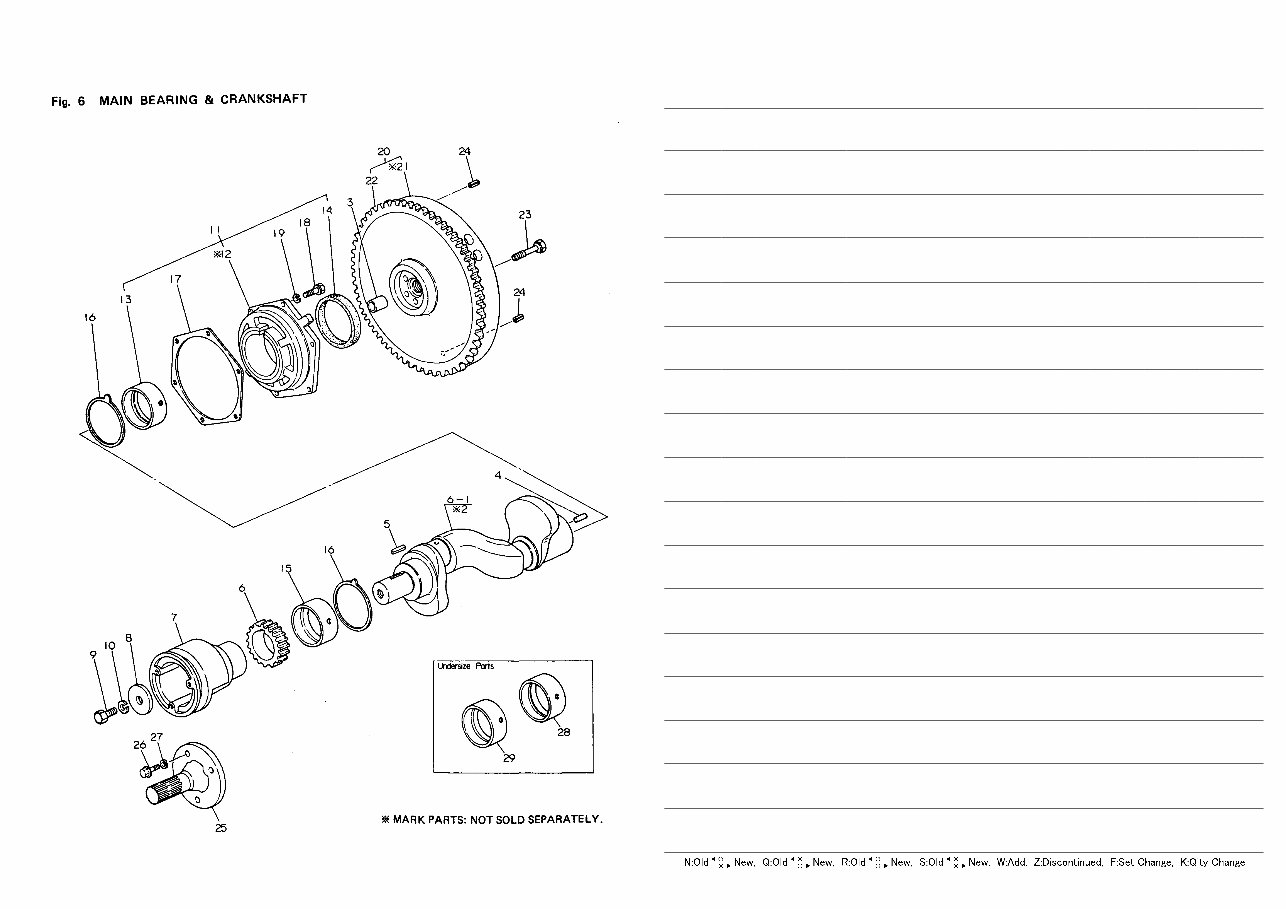

MAIN BEARING&CRANKSHAFT 6.

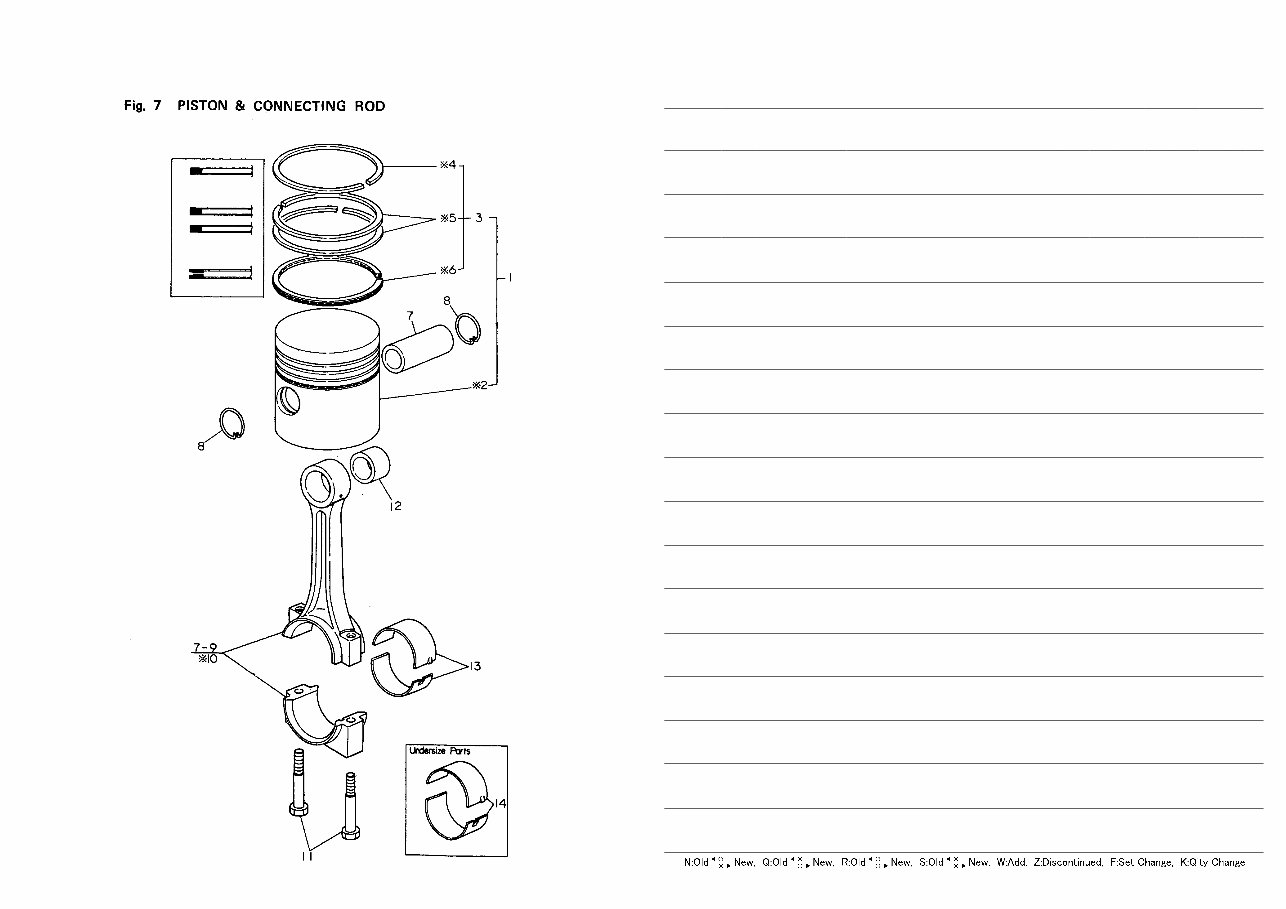

PISTON&CONNECTIONG ROD 7.
LUBRICATING OIL SYSTEM 8.
COOLING WATER SYSTEM 9.
FUEL INJECTION PUMP 10.
FUEL INJECTION VALVE 11.
FUEL SYSTEM 12.
GOVERNOR 13.
ELECTRIC STARTING SYSTEM 14.
THERMOSTERT DEVICE 15.
STARTER(MAKER:HITACHI) 16.
GENERATOR(MAKER:KOKUSAN) 17.
LABELS(FOR ENGINE) 18.
REPAIR KIT(A)(FOR ENGINE) 19.
GASKET KIT(A)(FOR ENGINE) 20.
THROTTLE 21.
FUEL TANK 22.
FRONT AXLE(FOR MODEL YM165) 23.
FRONT AXLE(FOR MODEL YM165D) 24.
FRONT AXLE INTERIOR(FOR MODEL YM165D) 25.
STEERING 26.
CLUTCH 27.
TRANSMISSION HOUSING 28.
TRANSMISSION INTERIOR(GEARS&SHAFTS) 29.
SHIFT LEVER 30.
REAR AXLE 31.
DIFFERENTIAL LOCK 32.
BRAKES 33.
HYDRAULIC LIFT 34.
HYDRAULIC CONTROL VALVE 35.
HYDRAULIC PIPING 36.
ELECTRIC PARTS 37.
HOOD 38.
FENDERS,STEPS&SEAT 39.
REAR HITCH 40.
THREE-POINT HITCH(CATEGORY 0) 41.
THREE-POINT HITCH(CATEGORY 1) 42.
LABELS(FOR U.S.A.) 43.
LABELS(FOR FRENCH) 44.
AG-TIRES(FRONT&REAR)(FOR MODEL YM165) 45.
AG-TIRES(FRONT&REAR)(FOR MODEL YM165D) 46.
TURF-TIRES(FRONT&REAR)(FOR MODEL YM165)(OPTIONAL PARTS) 47.
TURF-TIRES(FRONT&REAR)(FOR MODEL YM165D)(OPTIONAL PARTS) 48.
FRONT POWER TAKE OFF(OPTIONAL PARTS) 49.
ENGINE HEATER(OPTIONAL PARTS) 50.
REAR-VIEW MIRROR(OPTIONAL PARTS) 51.
REAR WHEEL WEIGHT&FRONT WEIGHT(OPTIONAL PARTS) 52.
TOOLS(OPTIONAL PARTS) 53.
AG TIRES(FRONT&REAR)(FOR U.S.A.ONLY) 54.
AG TIRES(FRONT&REAR)(FOR U.S.A.ONLY) 55.
TURF-TIRES(FRONT&REAR)(FOR U.S.A.ONLY) 56.
ROLL BAR 57.
chodina@live.co.uk chodina@live.co.uk
Fig.1. CYLINDER BLOCK
Y00T2391
Y00T2391 1. CYLINDER BLOCK
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=2TR13A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
BLOCK ASSY, CYLINDER 724064-01560 1 1 1
PLUG 121750-01920 2 3 1
PLUG 171051-01921 2 3-1 N 1
PLUG 30 27243-300000 2 4 1
STUD, CYL. HEAD 124060-01201 2 5 4
STUD, CYL. HEAD 124060-01200 2 6 1
STUD, CYL. HEAD 124060-01210 2 7 1
NUT, CYL HEAD 104300-01220 2 8 2
WASHER 103338-01240 2 9 2
SPRING PIN 8X14 22351-080014 2 10 2
PARALLEL PIN 8X12 22312-080120 2 11 1
CONNECTOR 124060-01540 2 12 1
PARALLEL PIN 8X22 22312-080220 2 13 1
PLUG, PT1/8 124060-01050 2 14 6
COVER ASSY, LOWER 724060-01542 2 15 1
PLUG M12 124060-01640 3 17 1
O-RING 1A P-14.0 24311-000140 3 18 1
GASKET 124060-01742 2 19 1
BOLT M 8X 14 121250-01710 2 20 12
BOLT M 8X 16 PLATED 26116-080162 2 21 9
FLANGE 124060-01551 1 27 1
GASKET 124060-01560 1 28 1
BOLT M 8X 14 PLATED 26116-080142 1 29 7
BOLT M 8X 14 PLATED 26106-080142 1 29-1 N 7
FLANGE, MOUNTING 124060-01602 1 30 1
BOLT 121462-01650 1 31 2
NUT M10 26716-100002 1 32 2
NUT M10 26706-100002 1 32-1 N 2
SPRING WASHER 10 22217-100000 1 33 2
SPRING PIN 6X16 22351-060016 1 34 2
DIPSTICK, LUB. OIL 124660-34800 1 35 1
GUIDE, DIPSTICK 124060-34830 1 36 1
GASKET 124060-34842 1 37 1
BOLT M 6X 12 26116-060122 1 38 2
BOLT M 6X 10 PLATED 26106-060102 1 38-1 N 2
SPRING WASHER 6 22217-060000 1 39 2
LINER W/PACKING 724060-01900 1 40 2
PACKING, LINER 124060-01300 2 42 4
GASKET, CYL. HEAD 124060-01330 1 43 1
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
chodina@live.co.uk chodina@live.co.uk

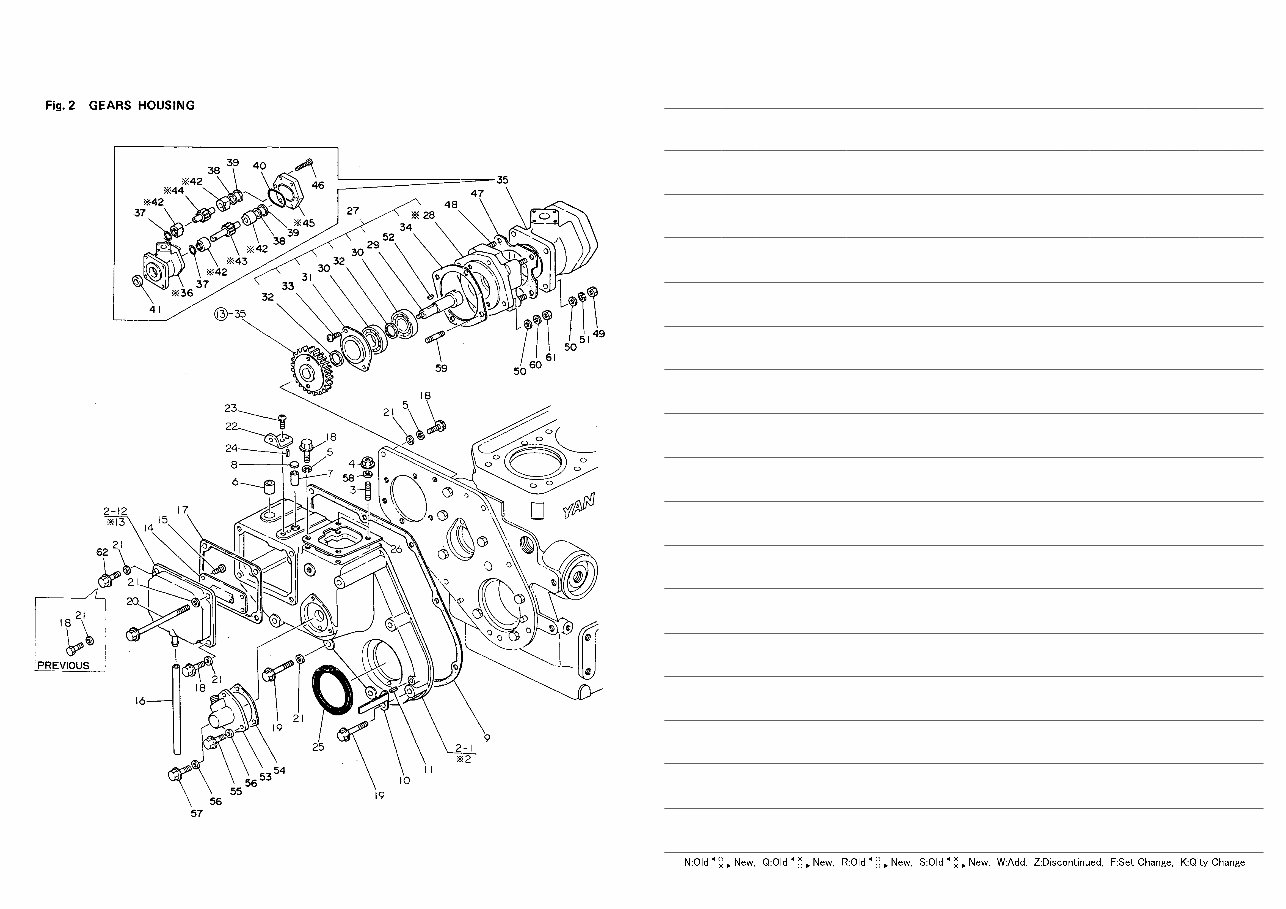

Fig.2. GEARS HOUSING
Y00T2391
Y00T2391 2. GEARS HOUSING
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=2TR13A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
HOUSING ASSY, GEARS 724060-01613 1 1 1
STUD M 8X 22 PLATED 26226-080222 2 3 2
NUT M 8 26716-080002 2 4 2
NUT 8 26366-080002 2 4-1 N 2
SPRING WASHER 8 22217-080000 2 5 3
SPRING WASHER 8 22217-080000 2 5-1 K 2
BUSH 124060-01900 2 6 1
BUSH 124060-01910 2 7 1
PLUG 15 27233-150000 2 8 1
GASKET, GEAR CASE 124060-01511 1 9 1
POINTER 124060-07300 1 10 1
SPRING PIN 4X 8 22351-040008 1 11 1
COVER ASSY, REAR 724060-01521 1 12 1
PLATE, BAFFLE 124060-03080 2 14 1
SCREW M 6X 10 26557-060102 2 15 4
PIPE 23065-140150 2 16 1
GASKET 124060-01532 1 17 1
BOLT M 8X 25 PLATED 26116-080252 1 18 5
BOLT M 8X 25 PLATED 26116-080252 1 18-1 K 2
BOLT M 8X 55 PLATED 26116-080552 1 19 4
BOLT M 8X 55 PLATED 26106-080552 1 19-1 N 4
BOLT M 8X105 PLATED 26116-081052 1 20 4
BOLT M 8X105 PLATED 26106-081052 1 20-1 N 4
WASHER 8 22117-080000 1 21 10
BRACKET 124060-01570 1 22 1
SCREW M 8X 12 26557-080122 1 23 1
SPRING PIN 4X 8 22351-040008 1 24 1
SEAL HTC58 80 12,OIL 124450-01800 1 25 1
SHIM SET 124550-51951 1 26 1
DRIVING SET, H. PUMP 124060-26101 1 27 W 1
SHAFT 124060-26401 2 29 1
BALL BEARING 24107-062034 2 30 2
RETAINER 124060-26410 2 31 1
SPACER 124060-26420 2 32 2
SCREW M 5X 8 26587-050082 2 33 2
GASKET 124060-26063 1 34 1
PUMP ASSY, HYDRAULIC 124064-26020 1 35 1
O-RING 194200-41200 2 37 2
RING, SUPPORT 194200-41190 2 38 2
SEAL RING 194200-41180 2 39 2
O-RING 194200-41170 2 40 1
SEAL, OIL 194200-41150 2 41 1
BOLT 194200-41160 2 46 6
GASKET 124060-01883 1 47 1
STUD M 8X 22 PLATED 26216-080222 1 48 4
26716-080222 1 49 4
WASHER 8, POLISHED 22137-080000 1 50 8
SPRING WASHER 8 22217-080000 1 51 4
WOODRUFF KEY 4X13 22522-040130 1 52 1
GEAR UNIT,TACHOMETER 124250-91400 1 53 1
GASKET, TACHOMETER 124250-91412 1 54 1
++ CONTINUE ++ (C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
chodina@live.co.uk chodina@live.co.uk
Fig.2. GEARS HOUSING
Y00T2391
Y00T2391 2. GEARS HOUSING
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=2TR13A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
BOLT M 6X 16 PLATED 26116-060162 1 55 2
BOLT M 6X 14 PLATED 26106-060142 1 55-1 N 2
WASHER 6 22117-060000 1 56 3
BOLT M 6X 32 PLATED 26116-060322 1 57 1
BOLT M 6X 30 PLATED 26106-060302 1 57-1 N 1
SEAL WASHER 8 43400-500410 1 58 2
STUD 124060-01580 1 59 4
SPRING WASHER 8 22217-080000 1 60 4
NUT M 8 26716-080002 1 61 4
BOLT M 8X 22 PLATED 26106-080222 1 62 W 3
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
chodina@live.co.uk chodina@live.co.uk

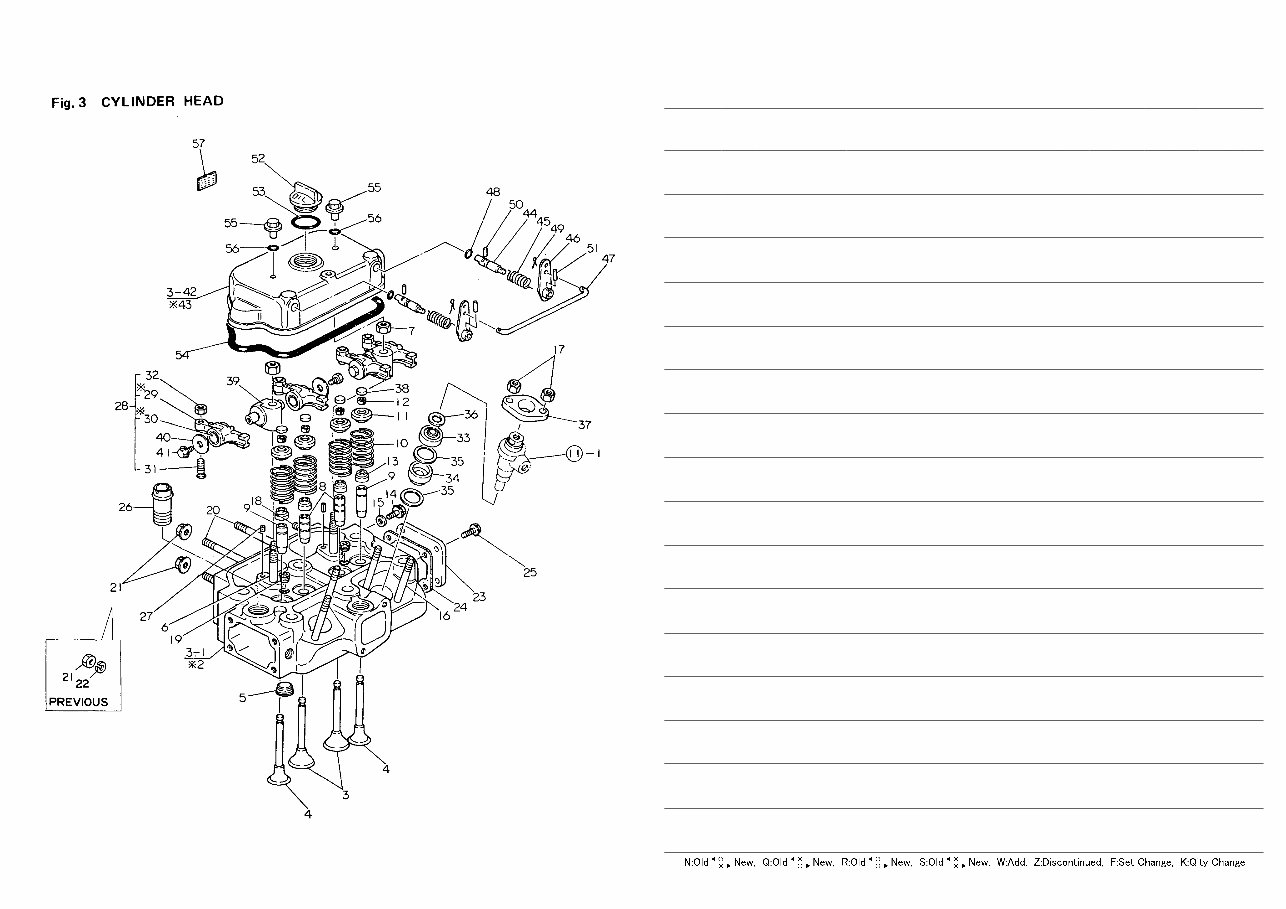

Fig.3. CYLINDER HEAD
Y00T2391
Y00T2391 3. CYLINDER HEAD
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=2TR13A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
HEAD ASSY, CYLINDER 724060-11701 1 1 1
VALVE, SUCTION 104200-11100 2 3 2
VALVE, EXHAUST 104200-11110 2 4 2
PLUG PT 1/2 23873-040000 2 5 1
STUD 104200-11350 2 6 2
STUD 106100-11350 2 6-1 N 2
NUT M10 26736-100002 2 7 2
NUT M10 26366-100002 2 7-1 N 2
GUIDE, VALVE 124060-11800 2 8 2
GUIDE, VALVE 124060-11810 2 9 2
SPRING, VALVE 124060-11120 2 10 4
RETAINER, SPRING 104200-11180 2 11 4
COTTER 7 27310-070000 2 12 4
SEAL, VALVE STEM 124160-11340 2 13 4
BOLT M 8X 10 PLATED 26116-080102 2 14 1
BOLT M 8X 10 PLATED 26106-080102 2 14-1 N 1
GASKET 8, ROUND 23414-080000 2 15 1
STUD M 8X 70 PLATED 26216-080702 2 16 4
NUT M 8 26716-080002 2 17 4
NUT 121465-11950 2 17-1 N 4
STUD BOLT M8X16 26216-080162 2 18 2
PLUG PT 1/4 23873-020000 2 19 2
STUD M 8X 22 PLATED 26216-080222 2 20 4
NUT M 8 26716-080002 2 21 4
NUT 8 26366-080002 2 21-1 N 4
SPRING WASHER 8 22217-080000 2 22 4
COVER, SIDE 124450-11671 2 23 1
GASKET 124450-11681 2 24 1
BOLT M 8X 14 PLATED 26116-080142 2 25 4
BOLT M 8X 12 PLATED 26116-080122 2 25-1 N 4
PIN 124060-11280 2 27 2
ARM, VALVE ROCKER 724060-11650 1 28 4
SCREW, VALVE 101158-11230 2 31 4
LOCK NUT M 8 PLATED 26756-080002 2 32 4
CHAMBER, REAR 104200-11410 1 33 2
CHAMBER, FRONT 106200-11400 1 34 2
GASKET, CHAMBER 101204-11452 1 35 4
INSULATOR 103854-11490 1 36 2
FLANGE 101147-11900 1 37 2
CAP, VALVE 104211-11370 1 38 4
SUPPORT, ROCKER ARM 124060-11260 1 39 2
WASHER 124060-11290 1 40 4
BOLT M 6X 8 PLATED 26116-060082 1 41 4
BOLT M 6X 8 PLATED 26106-060082 1 41-1 N 4
BONNET ASSY, HEAD 724060-11521 1 42 1
SHAFT, DECOMPRESSION 104200-03600 2 44 2
SPRING,DECOMPRESSION 104200-03641 2 45 2
LEVER, DECOMPRESSION 124060-03750 2 46 2
CONNECTOR 124060-03760 2 47 1
O-RING 1A P-7.0 24311-000070 2 48 2
COTTER PIN 2.0X20 22417-200200 2 49 2
++ CONTINUE ++ (C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
chodina@live.co.uk chodina@live.co.uk
Fig.3. CYLINDER HEAD
Y00T2391
Y00T2391 3. CYLINDER HEAD
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=2TR13A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
PARALLEL PIN 3X18 22312-030180 2 50 2
TAPER PIN 3X16 22322-030160 2 51 2
CAP, LUB.OIL SUPPLY 124160-01751 2 52 1
O-RING 121420-01760 2 53 1
O-RING 1A P-32.0 24311-000320 2 53-1 N 1
GASKET, BONNET 124060-11311 1 54 1
KNOB 124160-11360 1 55 2
O-RING 1A P12 24311-000120 1 56 2
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
chodina@live.co.uk chodina@live.co.uk

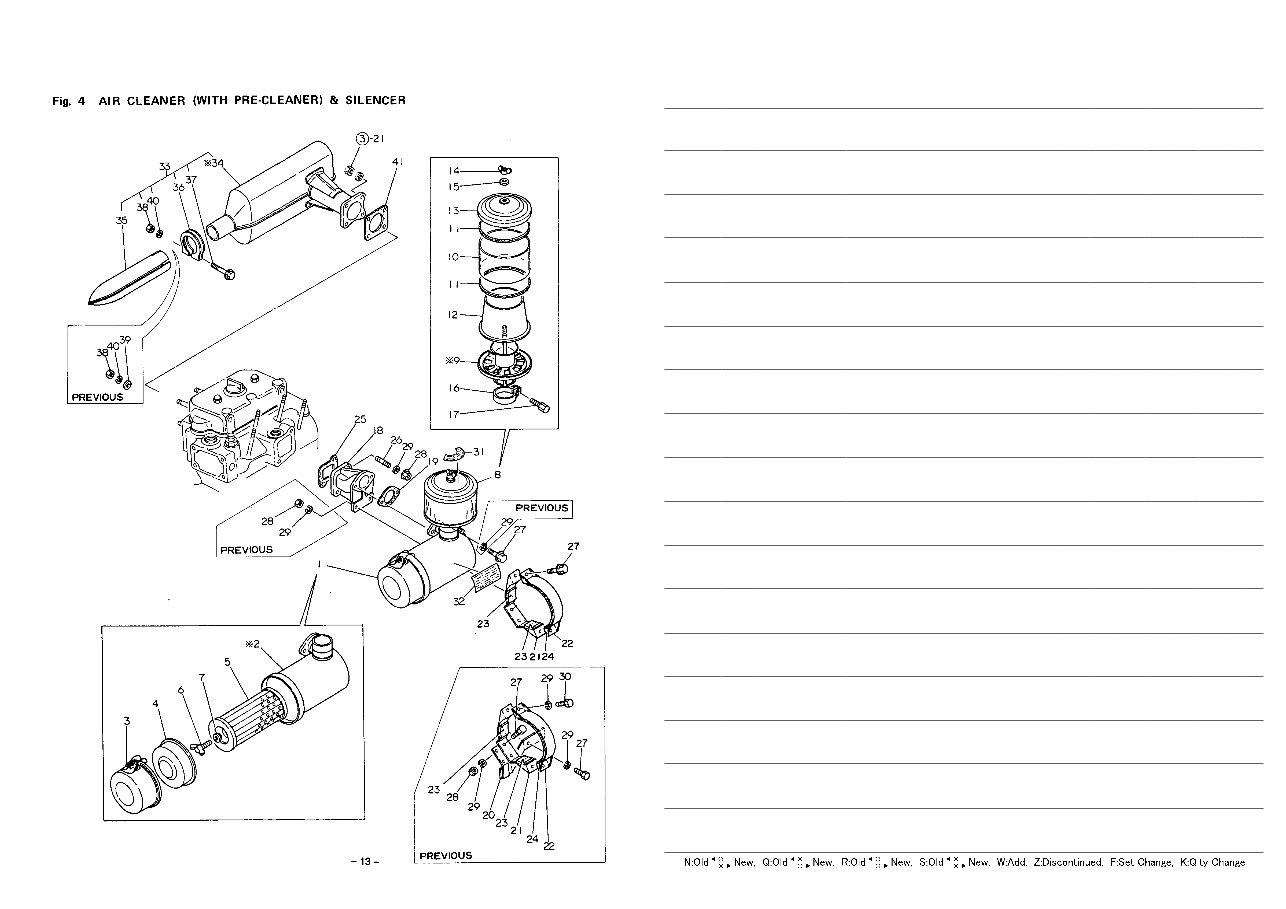

Fig.4. AIR CLEANER(WITH PRE-CLEANER)&SILENCER
Y00T2391
Y00T2391 4. AIR CLEANER(WITH PRE-CLEANER)&SILENCER
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=2TR13A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
CLEANER, AIR 121454-12500 1 1 1
PAN, DUST 121454-12660 2 3 1
BAFFLE 124064-12670 2 4 1
ELEMENT, AIR CLEANER 124064-12510 2 5 1
BOLT, WING 124064-12680 2 6 1
WASHER 124064-12690 2 7 1
PRE-CLEANER ASSY 124064-12400 2 8 1
TUBE, CLEANER 124064-12420 3 10 1
GASKET, CLEANER 124064-12430 3 11 2
CASE W/GASKET 124064-12470 3 12 1
COVER, PRE-CLEANER 124064-12440 3 13 1
WING NUT 101147-12550 3 14 1
WING NUT 124450-12560 3 14-1 S 1
WASHER 124450-12571 3 15 1
CLAMP W/BOLT 124064-12450 3 16 1
BOLT 124064-12460 3 17 1
BRACKET, AIR CLEANER 124067-12100 1 18 1
GASKET 124067-12050 1 19 1
BRACKET, AIR CLEANER 194345-01310 1 20 Z 1
BRACE 121454-12550 1 21 1
BRACE (B) 124064-12560 1 22 1
SEAT (A) 124064-12570 1 23 2
PAD (B) 124064-12580 1 24 1
GASKET 124060-12030 1 25 1
STUD M 8X 22 PLATED 26216-080222 1 26 2
BOLT M 8X 22 PLATED 26116-080222 1 27 6
BOLT M 8X 22 PLATED 26106-080222 1 27-1 N 4
NUT M 8 26716-080002 1 28 6
NUT 8 26366-080002 1 28-1 N 2
SPRING WASHER 8 22217-080000 1 29 12
SPRING WASHER 8 22217-080000 1 29-1 K 2
BOLT M 8X 16 PLATED 26116-080162 1 30 2
SILENCER 121454-13491 1 33 1
PIPE, EXHAUST 121454-13651 2 35 1
CLAMP, SILENCER 121470-13580 2 36 1
BOLT M10X 65 PLATED 26116-100652 2 37 1
BOLT M10X 65 PLATED 26106-100652 2 37-1 N 1
NUT M10 26716-100002 2 38 1
NUT M10 26706-100002 2 38-1 N 1
WASHER 10 22117-100000 2 39 1
SPRING WASHER 10 22217-100000 2 40 1
GASKET 124450-11900 1 41 1
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
chodina@live.co.uk chodina@live.co.uk

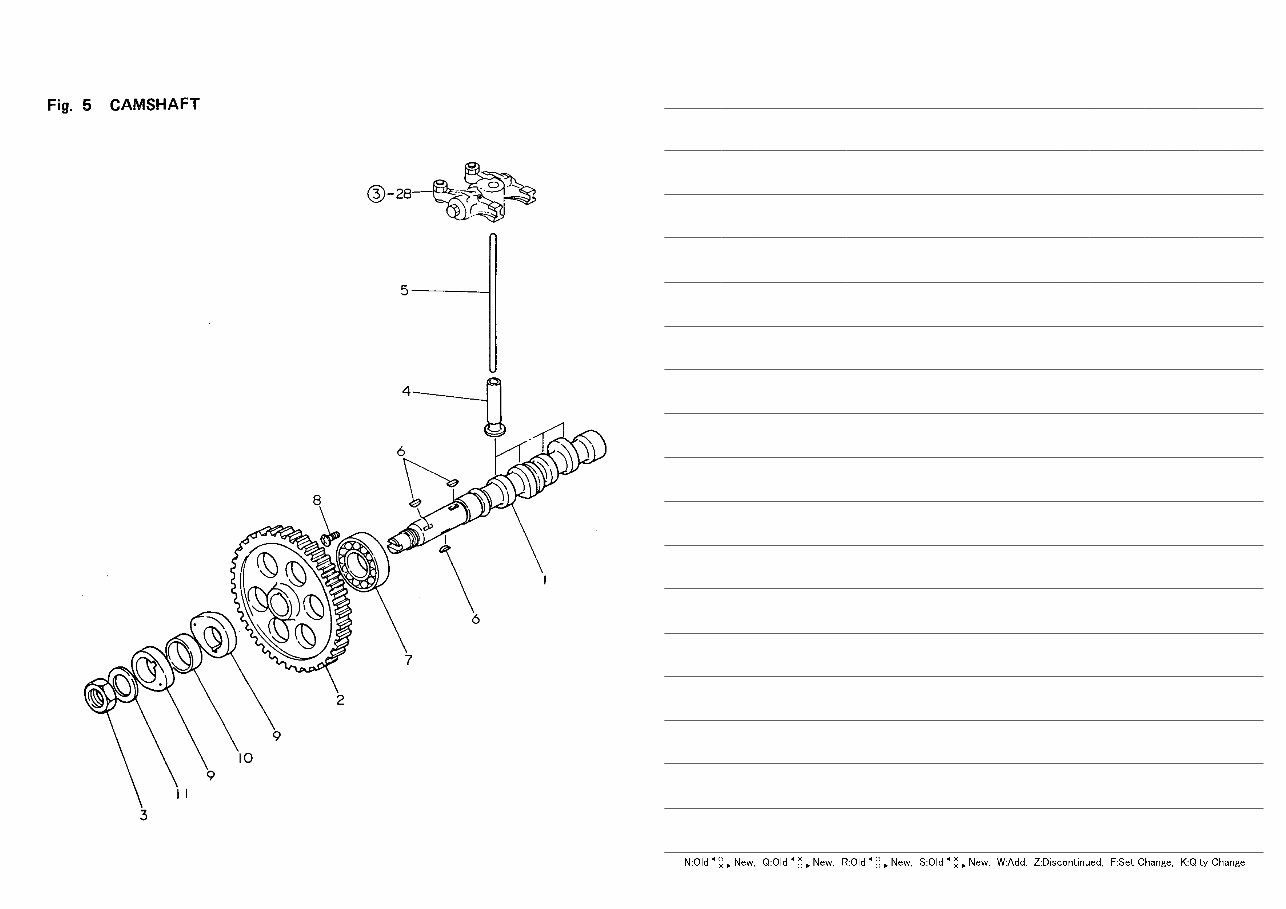

Fig.5. CAMSHAFT
Y00T2391
Y00T2391 5. CAMSHAFT
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=2TR13A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
CAMSHAFT 124060-14010 1 1 1
GEAR, CAMSHAFT 124060-14100 1 2 1
NUT 104300-76460 1 3 1
NUT, CAMSHAFT GEAR 121450-14120 1 3-1 N 1
TAPPET 104200-14200 1 4 4
ROD, PUSH 124060-14400 1 5 4
WOODRUFF KEY 5X19 22522-050190 1 6 3
BEARING #6205 24101-062054 1 7 1
SCREW M 8X 10 26587-080102 1 8 1
CAM, FUEL 124060-14090 1 9 2
SPACER 124060-14950 1 10 1
WASHER 124060-14470 1 11 Z 1
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
chodina@live.co.uk chodina@live.co.uk
Fig.6. MAIN BEARING&CRANKSHAFT
Y00T2391
Y00T2391 6. MAIN BEARING&CRANKSHAFT
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=2TR13A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
CRANKSHAFT ASSY 724060-21700 1 1 1
BUSH, PILOT 124450-21230 2 3 1
PARALLEL PIN 8X 16 22312-080160 2 4 1
KEY 7X 28 22512-070282 2 5 1
GEAR, CRANKSHAFT 124060-21200 1 6 1
V-PULLEY 124060-21651 1 7 1
WASHER 124060-21660 1 8 1
BOLT 105582-21950 1 9 1
WASHER 12,SPRING 22217-120000 1 10 1
HOUSING ASSY,BEARING 724060-02500 1 11 1
MAIN BEARING 124060-02101 2 13 1
MAIN BEARING 121550-02110 2 13-1 N 1
SEAL, OIL 121551-02220 2 14 1
MAIN BEARING 124060-02101 1 15 1
MAIN BEARING 121550-02110 1 15-1 N 1
BEARING THRUST 124060-02110 1 16 2
GASKET 124060-02020 1 17 1
BOLT M 8X 22 PLATED 26116-080222 1 18 6
BOLT M 8X 22 26013-080222 1 18-1 N 6
SPRING WASHER 8 22217-080000 1 19 6
FLYWHEEL W/RING GEAR 124060-21590 1 20 1
GEAR, RING 124060-21600 2 22 1
BOLT, REAMER 124160-21500 1 23 5
BOLT, FLYWHEEL 124160-21501 1 23-1 N 5
SPRING PIN 8X16 22351-080016 1 24 2
SHAFT 124060-21680 1 25 1
BOLT M10X 25 PLATED 26116-100252 1 26 3
BOLT M10X 25 PLATED 26106-100252 1 26-1 N 3
SPRING WASHER 10 22217-100000 1 27 3
MAIN BEARING025 124064-02130 1 28 1
MAIN BEARING025 124064-02130 1 29 1
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
chodina@live.co.uk chodina@live.co.uk
Fig.7. PISTON&CONNECTIONG ROD
Y00T2391
Y00T2391 7. PISTON&CONNECTIONG ROD
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=2TR13A
LEV. REF. PARTS NO. DESCRIPTION R I
Q'TY
(F) (D) (C) (B) (A) (E)
PISTON W/RINGS 724060-22722 1 1 2
RING SET 724066-22501 2 3 2
PIN, PISTON 104200-22300 1 7 2
CIRCLIP 172100-22400 1 8 4
ROD ASSY, CONNECTING 724660-23100 1 9 2
BOLT, ROD 124060-23201 2 11 4
124500-23201 2 11-1 N 4
BUSH, PISTON PIN 124060-23100 2 12 2
BEARING PIN 124060-23300 2 13 2
BEARING,PIN U.S=0.25 724064-23610 1 14 2
(C)Copy Rights YANMAR CO.,LTD and YANMAR AGRICULTURAL EQUIPMENT CO.,LTD.
chodina@live.co.uk chodina@live.co.uk
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$61.99
Viewed 91 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$61.99
Get the comprehensive parts catalog manual for the Yanmar Tractor YM165D. This manual is an essential resource for both professional mechanics and DIY enthusiasts. It contains detailed diagrams and part numbers for all components of the YM165D tractor, making it easier to identify and order the correct parts for maintenance and repairs.
Whether you're looking for engine components, electrical parts, or hydraulic system elements, this manual provides clear and concise information to support your tractor maintenance needs. With this manual at your disposal, you can ensure the proper functioning and longevity of your Yanmar Tractor YM165D.
