TYM OPERATOR’S MANUAL FOR TRACTORS (T353) #604-9, Namsan-dong, Changwon-city, Kyungnam, Korea ■TEL:82-55-279-4379, FAX:82-55-279-4447■www.tym.co.kr

FOREWARD Thank you very much for purchasing our tractor, which, we feel sure, will give you many years of troubling the service. The introduction in this manual set out the correct manner of operating, maintaining and checking the tractor to ensure long-term durability. Please ensure correct operation of the tractor as incorrect operation can cause substantial mechanical damage as well as cause accidents with the associated injuries. Please note that in some cases differences can exist between this manual and your tractor due to the manufacture’s policy of constant product improvement. In the event that you strike a problem not covered by this manual please contact your nearest dealer who will assist you in resolving your problem. WARNING SIGNS IN THIS MANUAL The following warning signs in this manual draw additional attention to items of importance for the safe and correct operation of the tractor. SIGN MEANING OF THE SIGN Serious hazard with a very high level of risk of either serious injury or death Hazard or unsafe practice that can lead to severe injury or death. Hazard or unsafe practice that can lead in injury or death. Instructions for the correct operation of the machine which, if followed, will ensure that it performs at it’s best 1 Danger Warning Caution Important

CONTENTS 1. Tractor Identification 3 2. About this manual 4 3. Introduction & description 5~7 4. Owner assistance 8 5. ROPS (Roll over protection structures) 9~11 6. Safety instructions, Do’s & Don’ts 12~25 7. Safety signs 26~29 8. Universal symbols 30 Section A 9. Controls, Instruments & Operations 31~52 Section B 10. Lubrication & maintenance 53~76 Sr. No. Description Page No. Section C 11. Specifications 77~79 12. Fuel saving Tips 80~81 13. Fault tracing 82~85 14. Wiring Diagram 86~89 15. Tractor history card 90 16. Service record 91 17. Daily operating Log 92 18. Part replacement record 93 All information, illustrations and specifications in this manual are based on latest information available at the time of publication. The right is reserved to make changes at any time without notice. 2

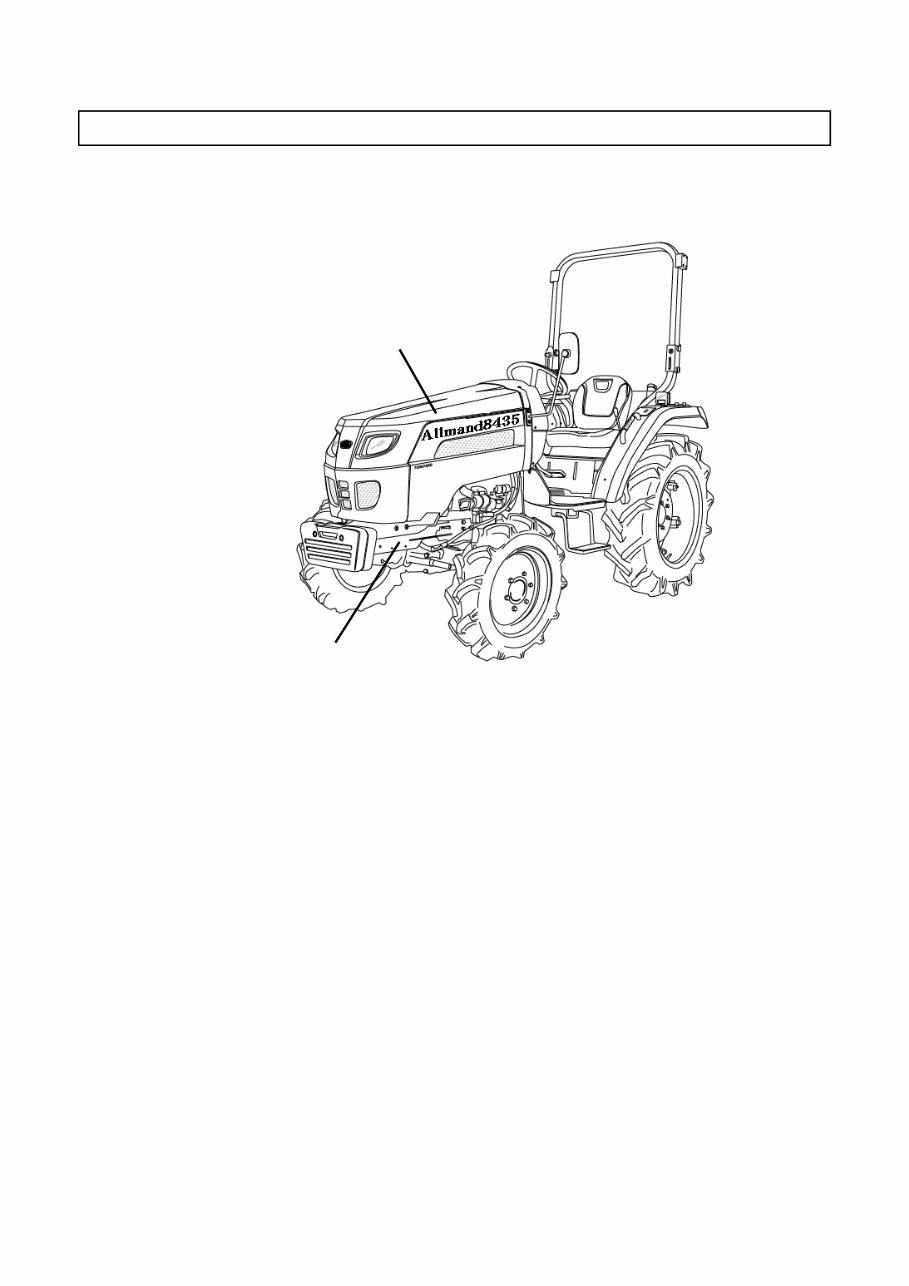

TRACTOR IDENTIFICATION The engine number is stamped on the left hand side of the engine block. The chassis number is shown on the left hand side of the tractor as shown in the drawing. Engine type and number on the R.H.S of Engine body Manufacturer’s tractor Sr . No. Illustration A WARRANTY OF THE PRODUCT. The manufacturer warrants this product and full details of the warranty are provided on a separate warranty schedule. SERVICE. Service is available from any Allmand dealer in the country. PARTS. To obtain spare parts please contact your nearest dealer and give him the details listed below. Tractor model Tractor serial number Tractor engine number Part number and description Quantity required. 3 Manufacturer’s tractor Sr . No. punched on plate on the L.H.S of Axle bracket

ABOUT THIS MANUAL This manual has been prepared to assist you in following/adopting the correct procedure for running-in operation and maintenance of your new Allmand Tractor. Your Tractor has been designed and built to give maximum performance, with good fuel economy and ease of operation under a wide variety of operating conditions. Prior to delivery, The tractor was carefully inspected, both at the factory and by your Allmand Dealer/Distributor, to ensure that it reaches you in optimum conditions .To maintain this condition and ensure trouble free performance. it is important that the routine services, as specified in this manual, are carried out at the recommended intervals. Read this Manual carefully and keep it in a convenient place for future reference. If at any time you require advice concerning your Tractor, do not hesitate to contact your Authorized Allmand dealer/Distributor. He has trained personnel, genuine parts and necessary equipments to undertake all your service requirements. Allmand policy is one of continuous improvement, and the right to change prices, specifications or equipments at any time without notice is reserved. All data given in this book is subject to production variations. Dimensions & weight are approximate only and the illustrations do not necessarily show Tractors in standard condition. For exact information about any particular Tractor, please consult your Allmand dealer/Distributor. 4

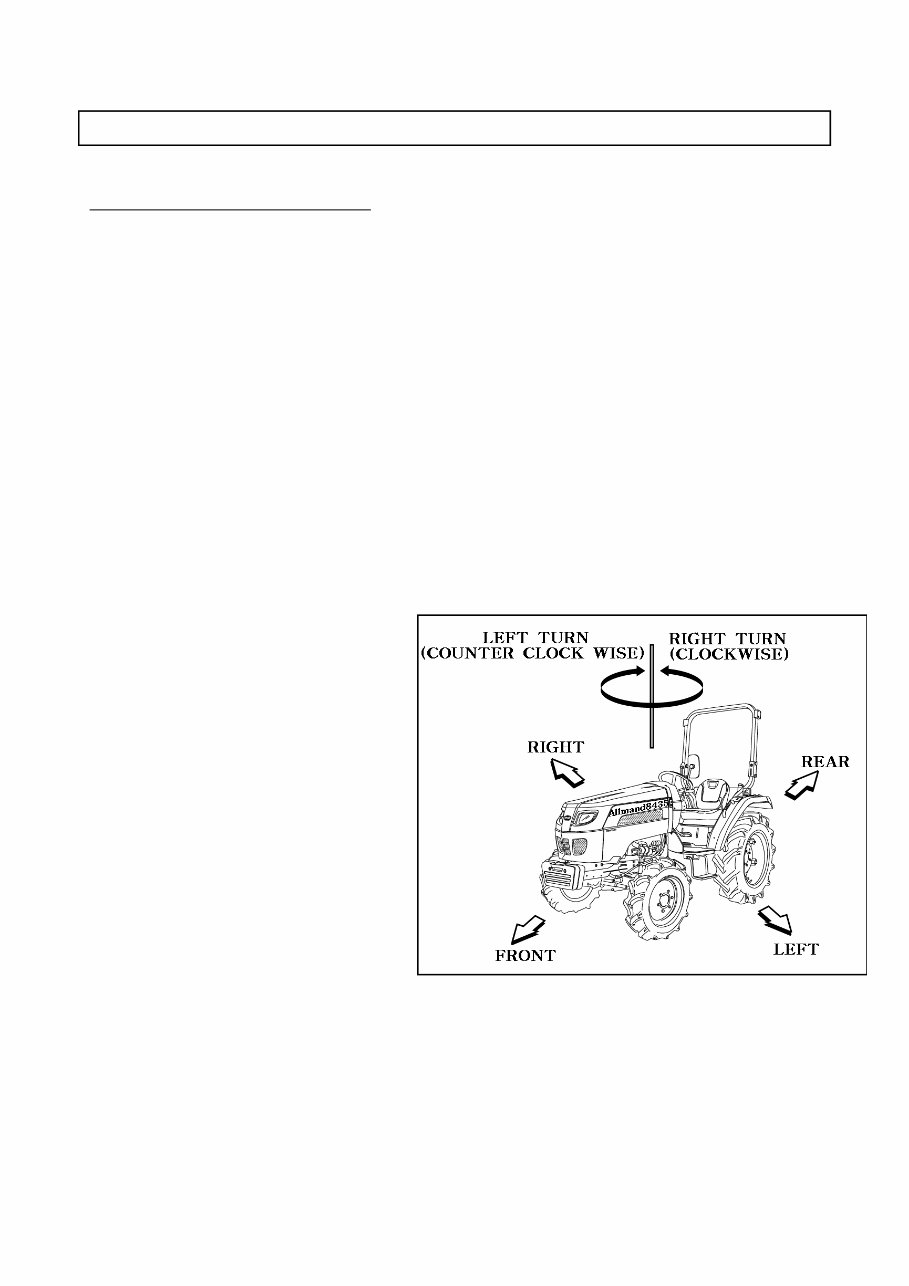

Introduction & Description TRACTOR AN INTRODUCTION The word, ’Tractor’ has been derived from ‘Traction’ which means pulling. A Tractor is required to pull or haul an equipment, implement or trolley which are coupled to the Tractor body through suitable linkage. A Tractor can also be used as a prime mover as it has a power outlet source which is also called Power Take or PTO shaft. In this book the operating, maintenance and storage instructions for all models of Allmand Diesel Tractors has been complied. This material has been prepared in detail to help you in the better understanding of maintenance and efficient operation of the machine. If you need any information not given in this manual, or require the services of a trained mechanic, please get in touch with the Allmand Dealer/Distributor in your locality. Dealer/Distributors are kept informed of the latest methods of servicing Tractors. They stock genuine spare parts and are backed by the Company’s full support. Through this manual. The use of the terms LEFT, RIGHT, FRONT and REAR must be understood, to avoid any must be understood, to avoid any confusion when following the introductions. The LEFT and RIGHT means left and fight sides of the Tractor when facing forward in the driver’s seat, Reference to the FRONT indicates the radiator end of the Tractor, while the REAR, indicates the drawbar end (illustration E) When spare parts are required, always specify the Tractor and engine serial number when ordering these parts.(See illustration A).This will facilitate faster delivery and help ensure that the correct parts for your particular Tractor is received. The tractor serial number is punched on a plate attached to the left hand side of the engine body (illust.A),For easy reference, we suggest you to write the number in the space provided in the owner’s personal data. illustration E ( Front, Rear,Left,Right Portion) 5

DESCRIPTION ■ General construction The transmission case, Clutch, Clutch housing, Engine and Front Axle Support are bolted together to form a rigid unit ■ Front Axle & Wheels The 4WD front axle is a center-pivot, reverse Eliot type. The front wheel drive mechanism is incorporated as a part of the axle. The front wheel drive power is taken off the rear transmission and transmitted to the differential in the front axle where the power is divided into right and left and to the respective final cases. In the final cases, the transmitted revolution is reduced by the level gears to drive the front wheel. The 4WD mechanism with level gears provides wider steering and greater durability. ■ Engine The tractors are fitted with vertical, Water-cooled 4-cycle and spherical chamber type MITSUBISH ENGINES (S4L2) ■ Clutch and Transmission A single plate dry clutch(8.86″diameter) is used on these tractors. Tractor with IPTO(Independent Power Take Off) are fitted with hydraulic Clutch Assy. The transmission Gear box has twelve forward speeds & twelve reverse speeds of Allmand 8435 with high-low selector lever, Presently, Allmand Tractors are fitted with partial synchro mesh type gears. Allmand Tractors are fitted with partial synchro mesh type gears. ■ Brakes TYM tractors are provided with independent disc brakes operated by two road travel. A foot brake lever is fitted for parking. ■ Rear axle & Wheels This is mounted on ball bearings and is enclosed in removable housing which are bolted to the transmission case. The rim & Disc fitted with Rear tires are bolted to the outer flange of Rear Axle. ■ Hydraulic system & Linkages. TYM Tractors are fitted with Live (i.e. system is in operation even when clutch is disengaged.) independent, very touch of hydraulic System. Three point Linkages can be used for category 1 type of implements. ■ Steering It consists of Hydrostatic Power steering system, which has a hydraulic cylinder and tandem type hydraulic pump 6

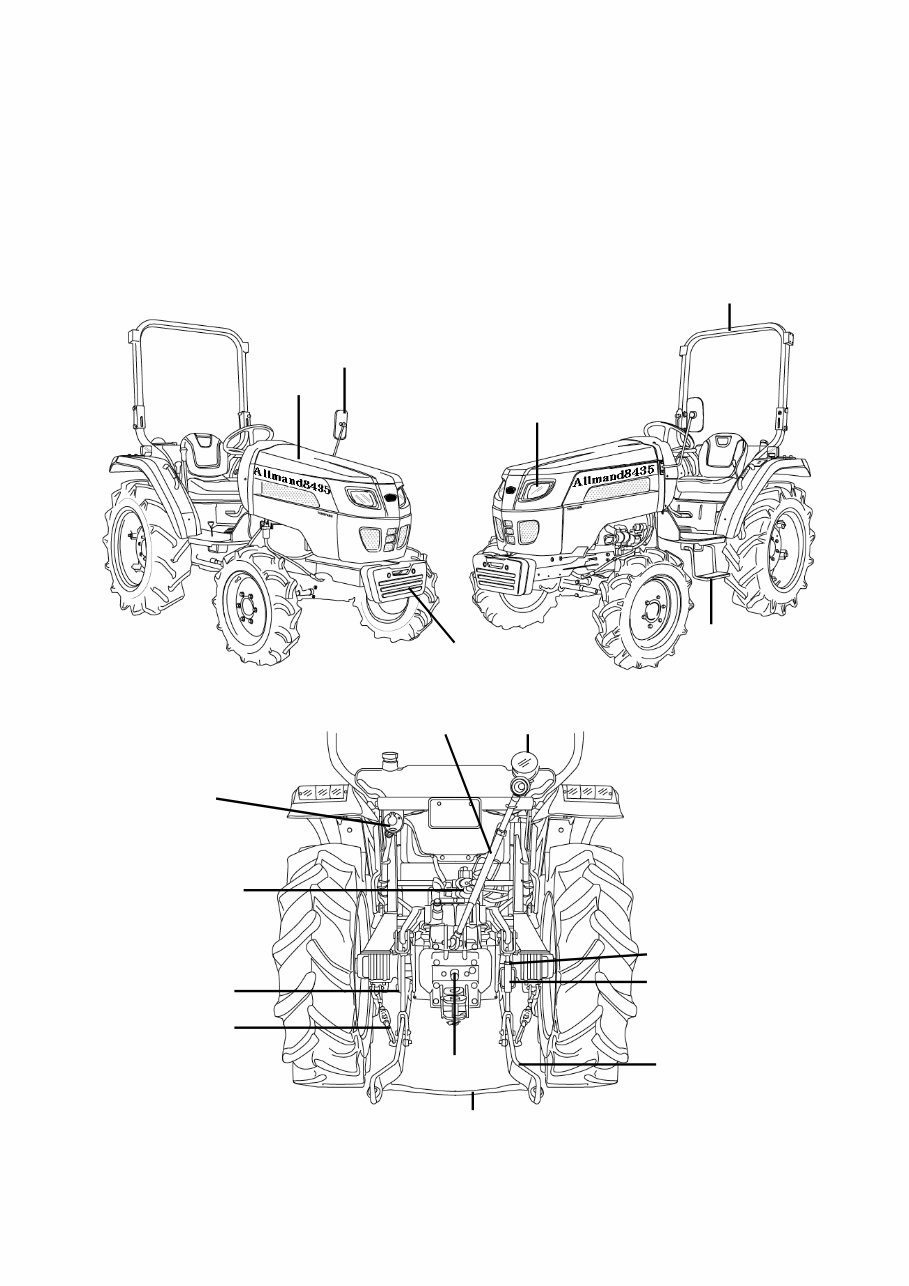

■ Electrical System A 12 Volt Lead Acid Propylene Battery is used to activate the Engine through the Starter Motor and the Electrical system comprising Horn, Head Lamp. Side indicator Lamps, Plough Lamp, Brake Light, Gauge lamp, Hazard Lamp. Generator or Alternator, , Fuse box also from part of the Electrical system. Step ROPS High,Low beam lamp Rear mirror Hood 7 Working Lamp Check chain Lift rod(LH) Hydraulic port Trailer coupler Top link Lift rod(RH) Adjusting handle Lower link Retention rubber PTO shaft Step Ballast(optional)

OWNER ASSISTANCE We at Allmand .and Allmand Dealer/Distributor wants you to be completely satisfied with your investment. Normally any problems with your equipment will be handled by your Dealer/Distributor’s Service Departments, however, misunderstanding can occur. If you feel that your problem has not been handled to your satisfaction, we suggest the following. Contact the owner or General Manager of the Dealership, explain the problem, and request assistance. When additional assistance is needed, Your Dealer/Distributor has direct access to your office. If you cannot obtain satisfaction by doing this, contact the Allmand. Office and provide them with; • Your name, address and telephone number • Model and Tractor serial number • Dealer/Distributor Name & Address • Dealer/Distributor Name & Address • Machine purchase date and Hours used • Nature of problem Before contacting Allmand. office, be aware that your problem will likely to be resolved in the Dealership using the Dealer’s/Distributor’s facilities, equipment and personnel. So it is important that your initial contact be with the Dealer/Distributor. 8

(ROPS) Roll Over Protective Structures Roll Over Protective Structures (ROPS) Allmand Tractors are fitted with a frame for the protection of Operators of Tractors to minimize the possibility of serious operator injury result from accidental upset. These are called as ROPS and are characterized by providing space for the clearance zone inside the envelope of the structure or within a space bounded by a series of straight lines from the outer edge of the tractor to any part of the Tractor that might come in contact with flat ground and is capable of supporting the Tractor in that position if the Tractor overturns. The mounting structure and fasteners forming the mounting connection with the Tractor are part of the ROPS. Loosen and release the knob slowly and cautiously to fold down the ROPS. If Tractor is operated with ROPS folded (E.g. to enter a low building) Drive with extreme caution and do not use seat belt. Fold the ROPS up again before the Tractor is operated under normal conditions. Please note that in no condition. The tractor is to be operated without ROPS. Operating the tractor without ROPS, with folded Caution ROPS. Operating the tractor without ROPS, with folded ROPS with damaged ROPS or hardware can lead to fatal injuries (ROPS) Maintenance and inspection The ROPS has been certified to industry and/or government standards. Any damage or alteration to the ROPS, mounting hardware or seat belt voids the certification and will reduce or eliminate protection for the operator, in the event of a roll-over. The ROPS, mounting hardware and seat belt should be checked after the first 100 hrs. of machine operation and every 500 hrs thereafter for any evidence of damage wear or cracks. In the event of damage or alteration the ROPS must be replaced prior to further operation of the machine. The seat belt must be worn during machine operation when it is equipped with a certified ROPS. Failure to do so will reduce or eliminate protection of the operate in the event of a roll-over. Substitution of mounting hardware, seat belt etc. with components not equal to or superior to the original certified components will void the certification and will reduce or eliminate protection for the operator in the event of a roll-over. 9
