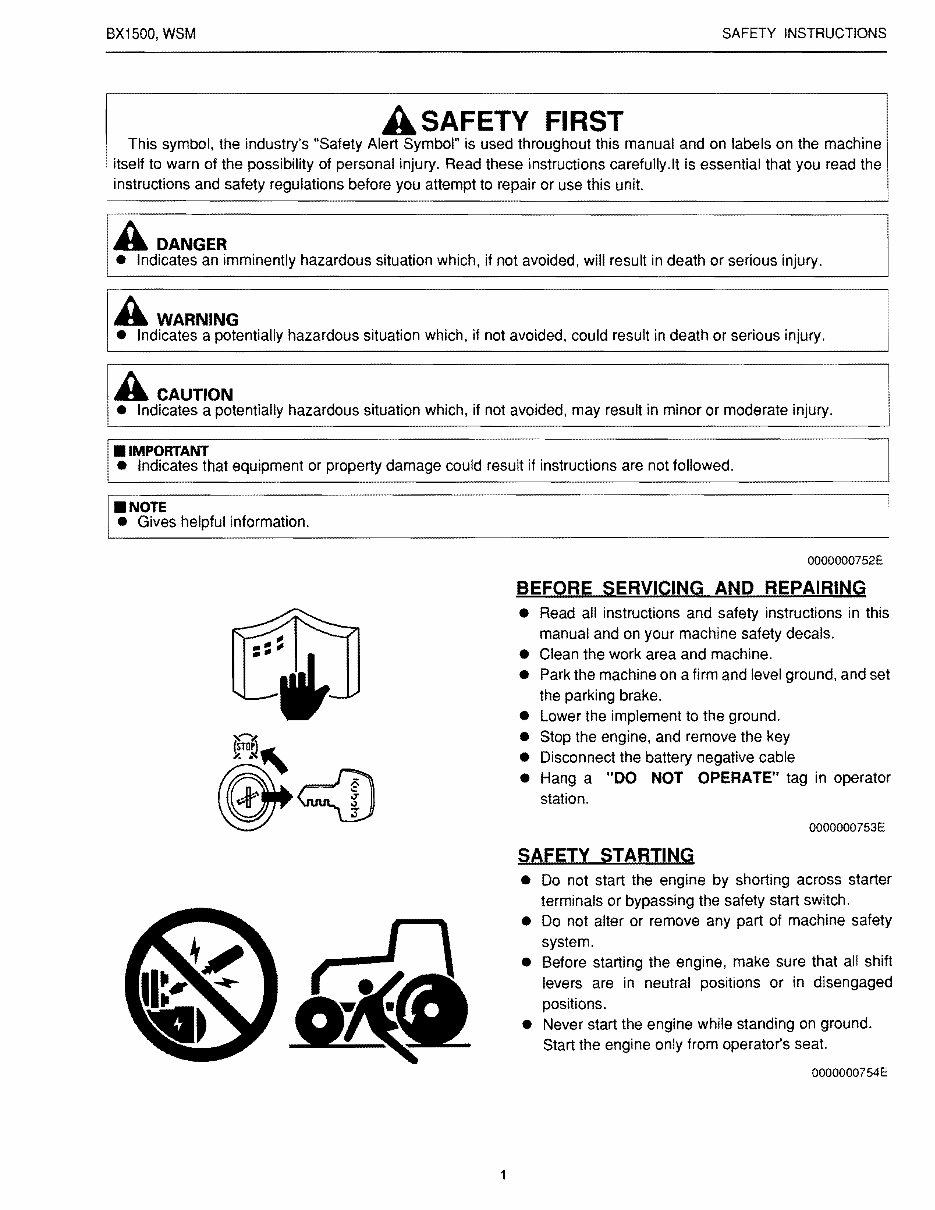

BX1500, WSM SAFETY INSTRUCTIONS A SAFETY FIRST This symbol, the industry's "Safety Alert Symbol" is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully.lt is essential that you read the instructions and safety regulations before you attempt to repair or use this unit. A DANGER • Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. A WARNING • Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. A CAUTION • Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. _IMPORTANT • Indicates that equipment or property damage could result if instructions are not followed. I_NoTE ~ Gives helpful information. 0000000752E BEFORE SERVICING AND REPAIRING • Read all instructions and safety instructions in this manual and on your machine safety decals. • Clean the work area and machine. • Park the machine on a firm and level ground, and set the parking brake. • Lower the implement to the ground. • Stop the engine, and remove the key • Disconnect the battery negative cable • Hang a "DO NOT OPERATE" tag in operator station. 0000000753E SAFETY STARTING • Do not start the engine by shorting across starter terminals or bypassing the safety start switch. • Do not alter or remove any part of machine safety system. • Before starting the engine, make sure that all shift levers are in neutral positions or in disengaged positions. • Never start the engine while standing on ground. Start the engine only from operator's seat. 0000000754E

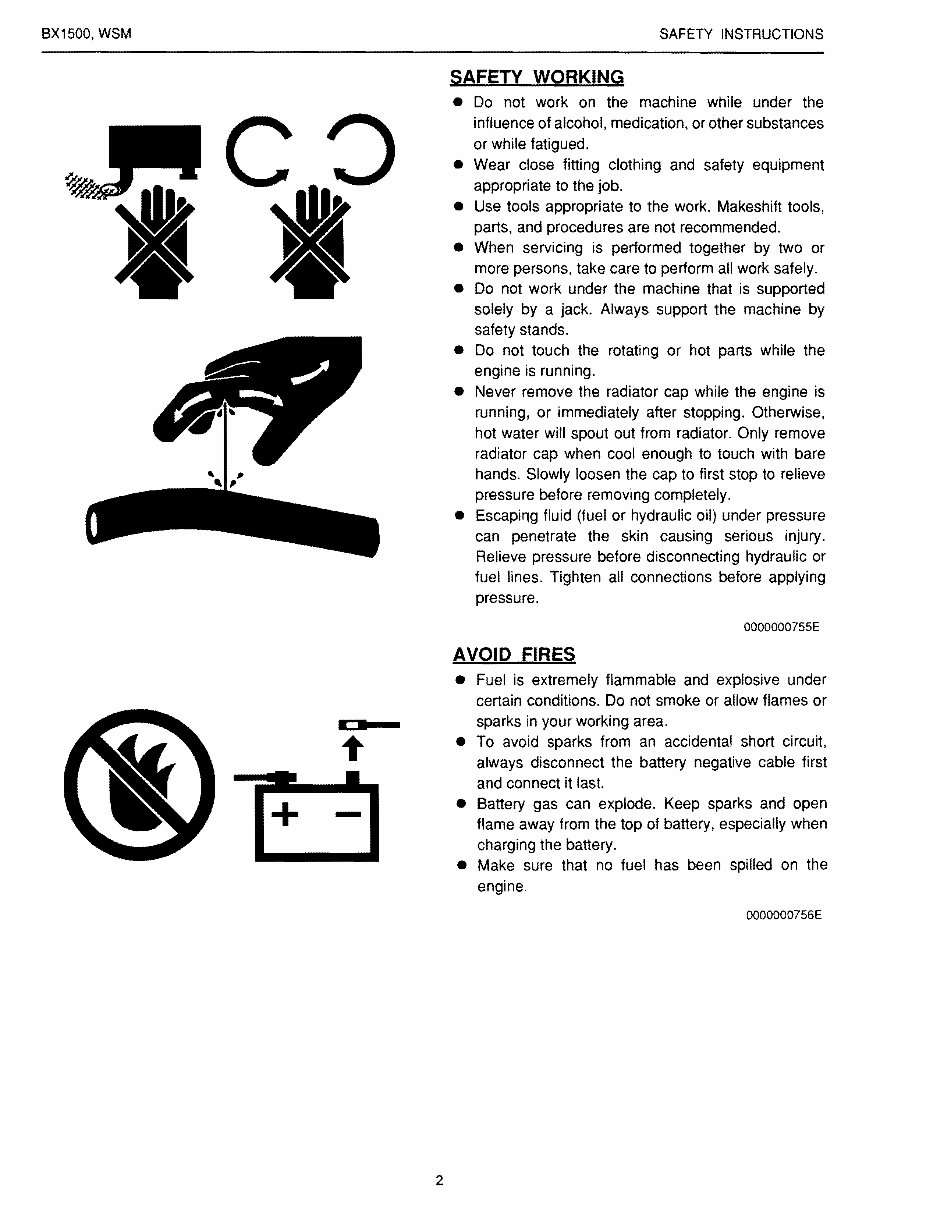

BX1500, WSM SAFETY INSTRUCTIONS SAFETY WORKING • + - • Do not work on the machine while under the influence of alcohol, medication, or other substances or while fatigued. • Wear close fitting clothing and safety equipment appropriate to the job. • Use tools appropriate to the work. Makeshift tools, parts, and procedures are not recommended. • When servicing is performed together by two or more persons, take care to perform all work safely. • Do not work under the machine that is supported solely by a jack. Always support the machine by safety stands. • Do not touch the rotating or hot parts while the engine is running. • Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise, hot water witl spout out from radiator. Only remove radiator cap when cool enough to touch with bare hands. Slowly loosen the cap to first stop to relieve pressure before removing completely. • Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure. 0000000755E AVOID FIRES • Fuel is extremely flammable and explosive under certain conditions. Do not smoke or allow flames or sparks in your working area . • To avoid sparks from an accidental short circuit, always disconnect the battery negative cable first and connect it last. • Battery gas can explode. Keep sparks and open flame away from the top of battery, especially when charging the battery. • Make sure that no fuel has been spilled on the engine. 0000000756E 2

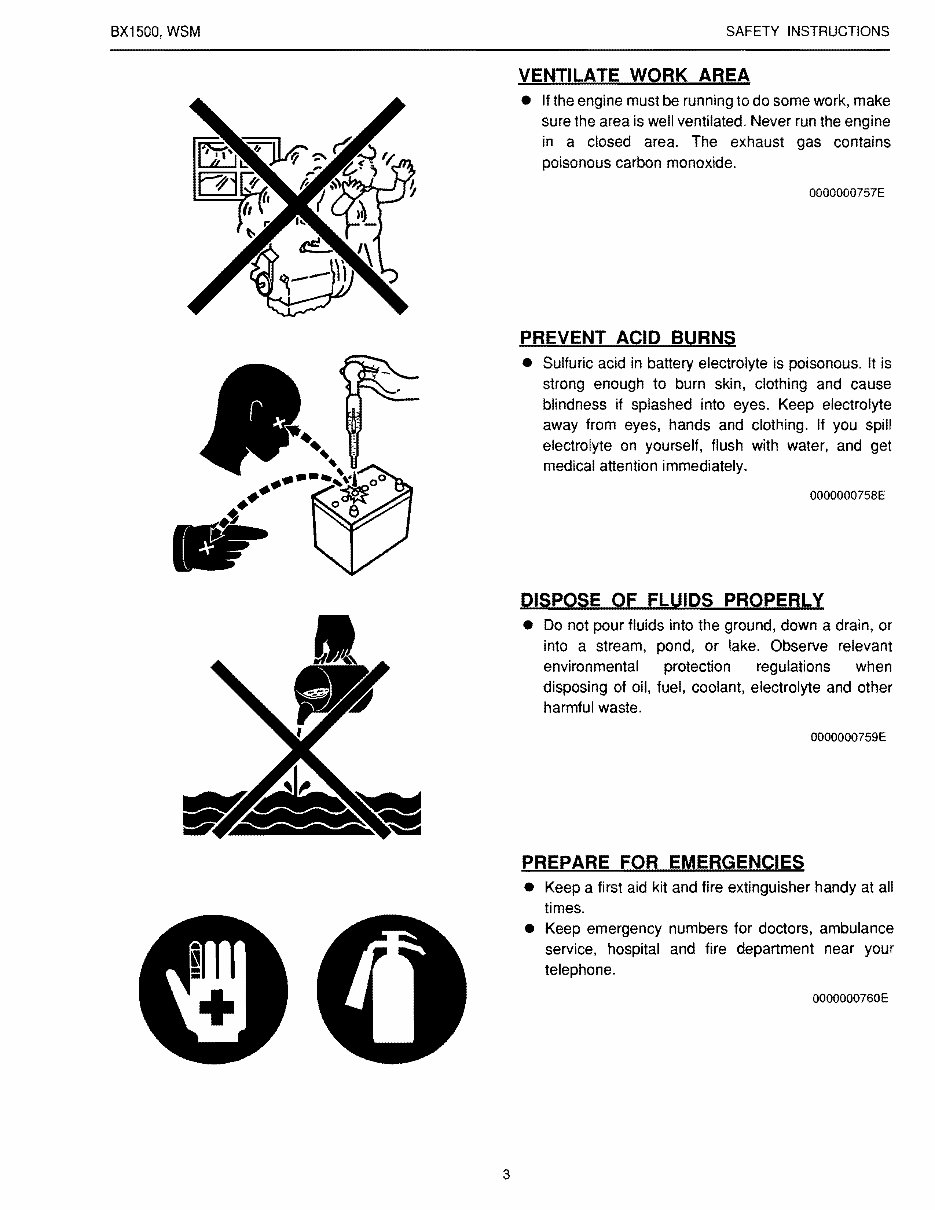

BX1500, WSM SAFETY INSTRUCTIONS VENTILATE WORK AREA • If the engine must be running to do some work, make sure the area is well ventilated. Never run the engine in a closed area. The exhaust gas contains poisonous carbon monoxide. 0000000757E PREVENT ACID BURNS • Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, clothing and cause blindness if splashed into eyes. Keep electrolyte away from eyes, hands and clothing. If you spill electrolyte on yourself, flush with water, and get medical attention immediately. 0000000758E DISPOSE OF FLUIDS PROPERLY • Do not pour fluids into the ground, down a drain, or into a stream, pond, or lake. Observe relevant environmental protection regulations when disposing of oil, fuel, coolant, electrolyte and other harmful waste. 0000000759E PREPARE FOR EMERGENCIES • Keep a first aid kit and fire extinguisher handy at all times. • Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone. 0000000760E 3

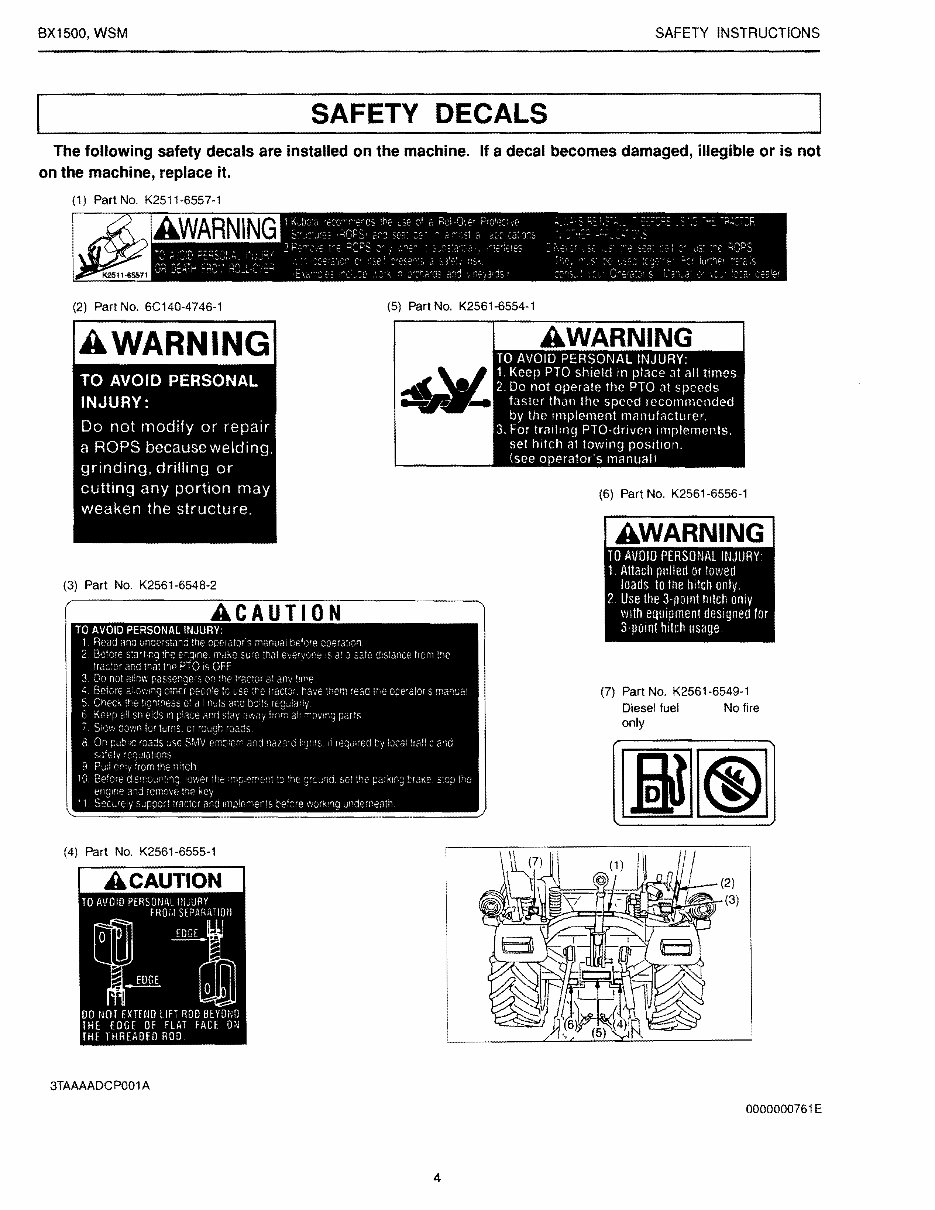

BX1500, WSM SAFETY INSTRUCTIONS SAFETY DECALS The following safety decals are installed on the machine. If a decal becomes damaged, illegible or is not on the machine, replace it. (1) Part No. K2511-6557-1 (2) Part No. 6C140-4746-1 AWARNING TO AVOID PERSONAL INJURY: Do not modify or repair a ROPS because welding, grinding, drilling or cutting any portion may weaken the structure. (3) Part No. K2561-6548-2 (4) Part No. K2561-6555-1 A CAUTION TO AVOID PERSONAL IfiJURY FROi,] S£PARATlO~1 T~1 DO NOT EXTEND LIFT ROD BEYOND THE EDGE OF FLAT FACE ON THE THREADED ROD (5) Part No. K2561-6554-1 (6) Part No. K2561-6556-1 ~ TO AVOID PERSONAL INJURY: 1. Attach pulled or towed loads to the hilcll onlv. 2. Use the 3-IJOmt hitch onlv with equipment designed for 3·poinl hitch usage. (7) Part No. K2561-6549-1 Diesel fuel No fire only 3TAAAADCP001 A 0000000761E 4

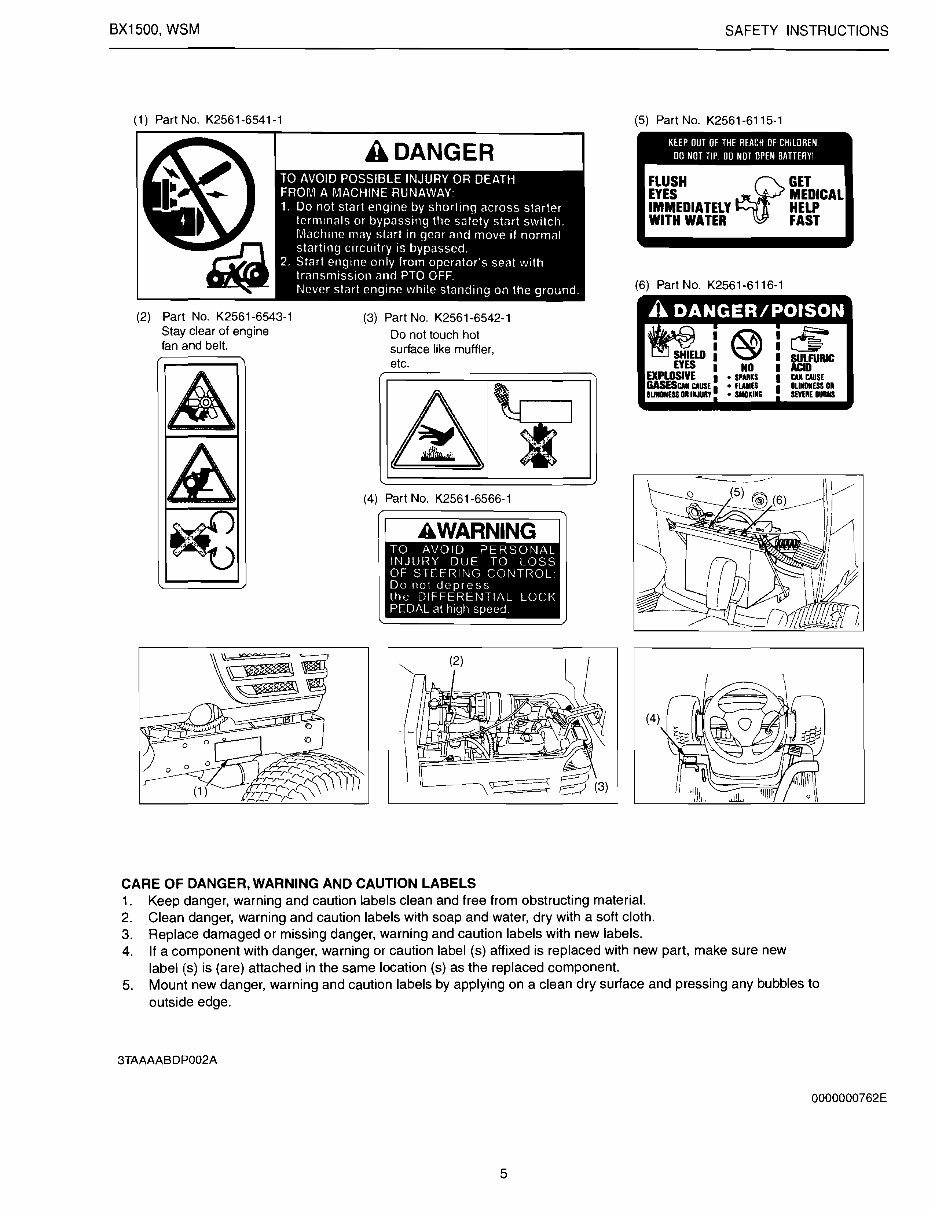

Part No. K2561-6566-1 I SHIElD : EYES I EXPlOSIVE I GASESw CAUSE I ILllDIIESS OR IIIJURY NO o SPARIS oflAIIES o SIDliNG BX1500, WSM SAFETY INSTRUCTIONS (1) Part No. K2561-6541-1 (5) Part No. K2561-6115-1 (2) Part No. K2561-6543-1 Stay clear of engine fan and belt. CARE OF DANGER, WARNING AND CAUTION LABELS 1. Keep danger, warning and caution labels clean and free from obstructing material. 2. Clean danger, warning and caution labels with soap and water, dry with a soft cloth. 3. Replace damaged or missing danger, warning and caution labels with new labels. 4. If a component with danger, warning or caution label (s) affixed is replaced with new part, make sure new label (s) is (are) attached in the same location (s) as the replaced component. 5. Mount new danger, warning and caution labels by applying on a clean dry surface and pressing any bubbles to outside edge. (3) Part No. K2561-6542-1 Do not touch hot surface like muffler, etc. (4) KEEP OUT OF THE REACH OF CHI LOREN 00 NOT TIP 00 NOT OPEN BATTERYI FLUSH ~GET EYES MEDICAL IMMEDIATELY . HElP WITH WATER FAST (6) Part No. K2561-6116-1 3TAAAABDP002A 0000000762E 5

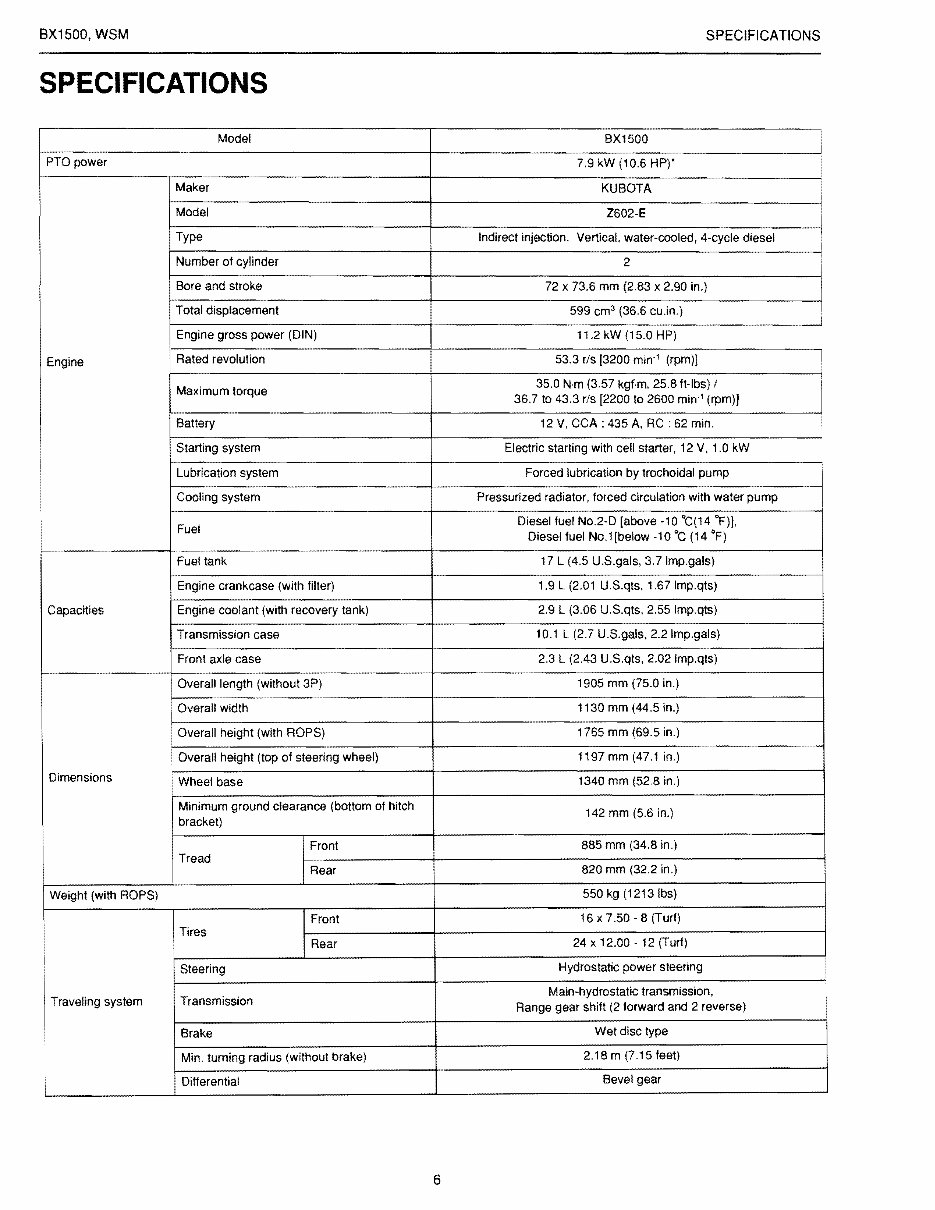

BX1500, WSM SPECIFICATIONS SPECIFICATIONS Model BX1500 i PTO power 7.9 kW (10.6 HP)* Maker KUBOTA i Model Z602-E i Type Indirect injection. Vertical, water-cooled, 4-cycle diesel i Number of cylinder 2 Bore and stroke 72 x 73.6 mm (2.83 x 2.90 in.) Total displacement 599 cm 3 (36.6 cu-in.) Engine gross power (DIN) 11.2 kW (15.0 HP) Engine • Rated revolution 53.3 rls [3200 min· 1 (rpm)) Maximum torque 35.0 N·m (3.57 kgf·m, 25.8 ft-Ibs) I 36.7 to 43.3 rls [2200 to 2600 min· 1 (rpm)) Battery 12 V, CCA: 435 A, RC : 62 min. Starting system Electric starting with cell starter, 12 V, 1.0 kW ! Lubrication system Forced lubrication by trochoidal pump Cooling system Pressurized radiator, forced circulation with water pump Fuel Diesel fuel No.2-D [above -10 °C(14 OF)), Diesel fuel No.1 [below -10 °c (14 of) Fuel tank 17 L (4.5 U.S.gals, 3.7Imp.gals) Engine crankcase (with filter) 1.9 L (2.01 U.S.qts, 1.67 Imp.qts) Capacities Engine coolant (with recovery tank) 2.9 L (3.06 U.S.qts, 2.55 Imp.qts) Transmission case 10.1 L (2.7 U.S.gals, 2.2 Imp.gals) Front axle case 2.3 L (2.43 U.S.qts, 2.02 Imp.qts) Overall length (without 3P) 1905 mm (75.0 in.) i Overall width 1130 mm (44.5 in.) i Overall height (with ROPS) 1765 mm (69.5 in.) Overall height (top of steering wheel) 1197 mm (47.1 in.) Dimensions Wheel base 1340 mm (52.8 in.) Minimum ground clearance (bottom of hitch 142 mm (5.6 in.) bracket) Front 885 mm (34.8 in.) Tread Rear 820 mm (32.2 in.) Weight (with ROPS) 550 kg (1213Ibs) I Tires Front 16 x 7.50 - 8 (Turf) Rear 24 x 12.00 - 12 (Turf) Steering Hydrostatic power steering Traveling system Transmission Main-hydrostatic transmission, Range gear shift (2 forward and 2 reverse) Brake Wet disc type Min. turning radius (without brake) 2.18 m (7.15 feet) i Differential Bevel gear 6

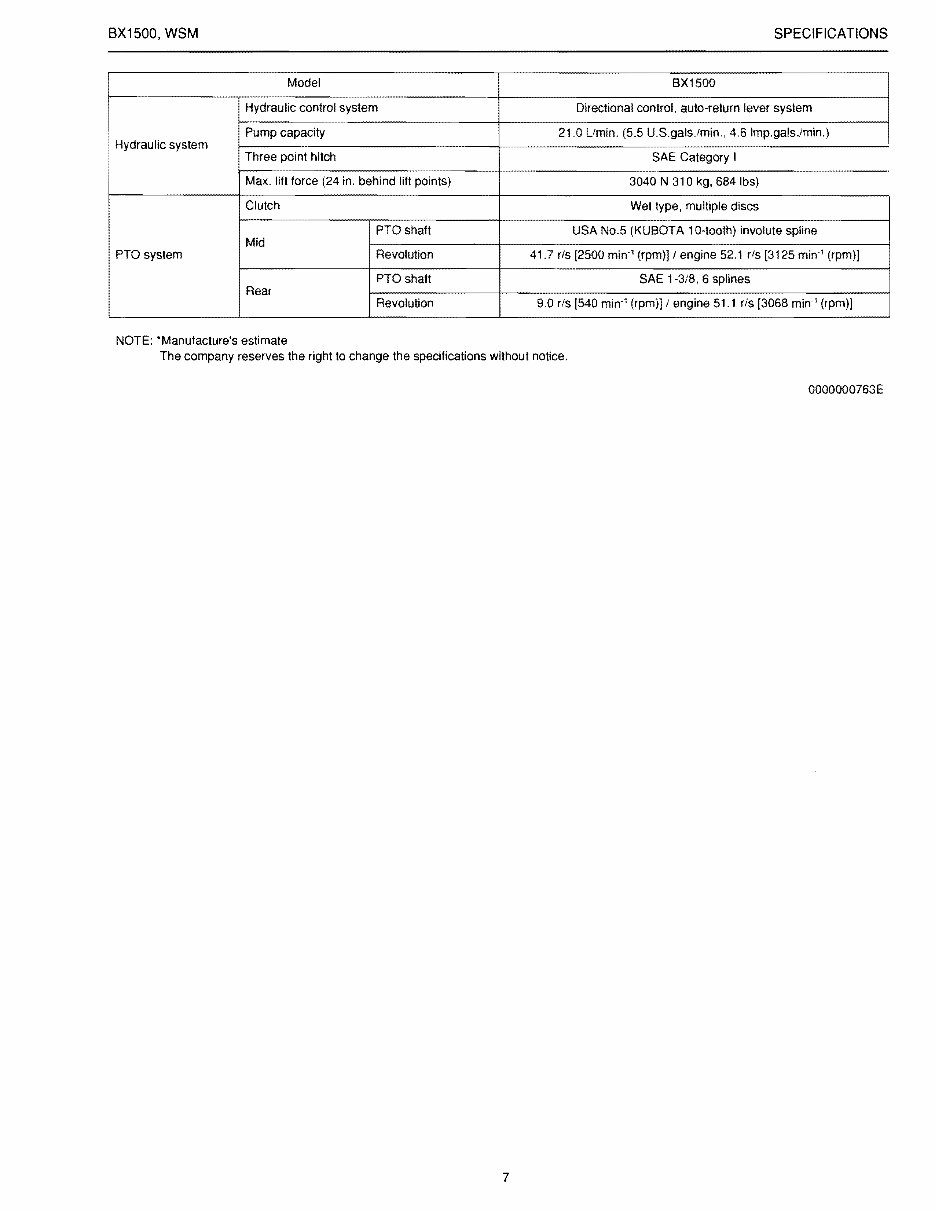

BX1500, WSM SPECIFICATIONS Hydraulic system PTa system Model Hydraulic control system Pump capacity BX1500 Directional control, auto-return lever system 21.0 Llmin. (5.5 U.S.gals.lmin., 4.6 Imp.gals.!min.) Three point hitch Max. lift force (24 in. behind lift pOints) Clutch SAE Category I i 3040 N 310 kg, 684 Ibs) Wet type, multiple discs Mid PTa shaft USA NO.5 (KUBOTA 10-tooth) involute spline Revolution 41.7 rls [2500 min" (rpm)] 1engine 52.1 rls [3125 min-' (rpm)] Rear PTa shaft SAE 1-3/8, 6 splines Revolution 9.0 rls [540 min-' (rpm)] 1 engine 51.1 rls [3068 min-' (rpm)] NOTE: 'Manufacture's estimate The company reserves the right to change the specifications without notice. 0000000763E 7

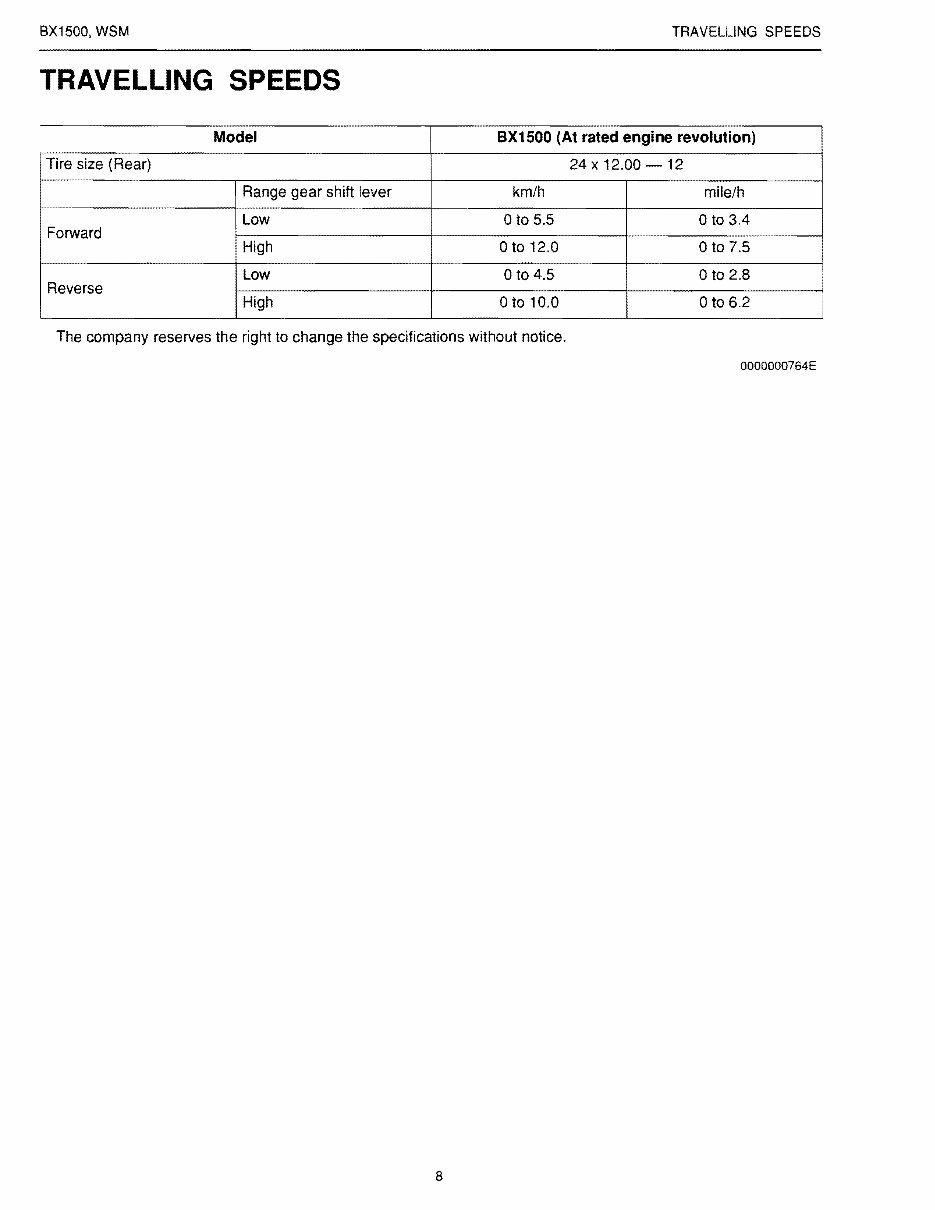

BX1500. WSM TRAVELLING SPEEDS TRAVELLING SPEEDS I Model BX1500 (At rated engine revolution) Tire size (Rear) 24 x 12.00 -12 Range gear shift lever km/h mile/h Forward Low o to 5.5 oto 12.0 o to 3.4 o to 7.5 Reverse ~ High oto 4.5 oto 10.0 o to 2.8 oto 6.2 • The company reserves the right to change the specifications without notice. 0000000764E 8

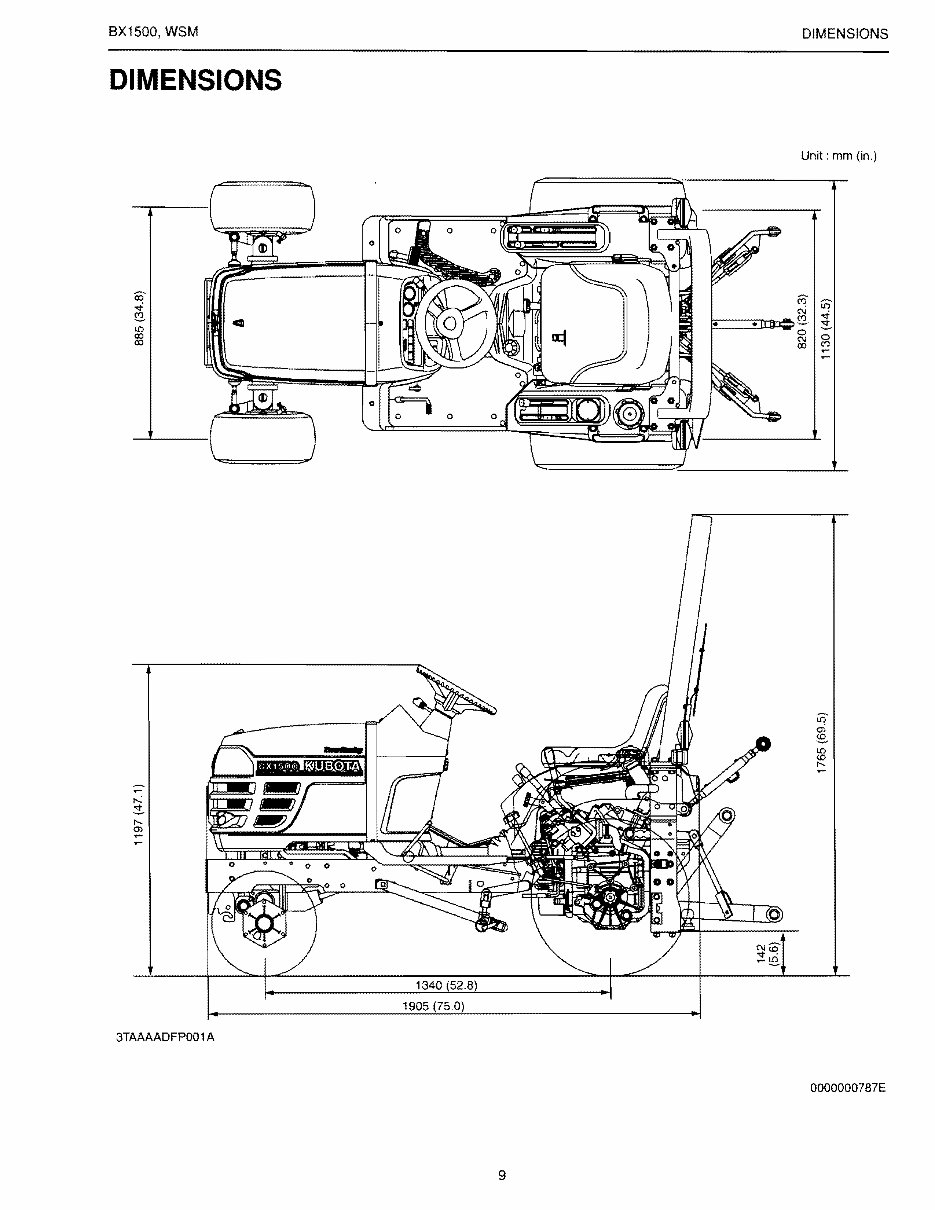

BX1500. WSM DIMENSIONS DIMENSIONS Unit: mm (in.) $ ..t f2- LJ') co co g N f2- 0 C\I co if) ..t :!- 0 C') ~ ~ 3TAAAADFPOOl A 0000000787E 9
