SERVICE MANUAL
CUB CADET • P.O. BOX 368023 • CLEVELAND, OHIO 44136-9723
SERIES 7000
COMPACT TRACTOR
Model Number
7360SS
www.mymowerparts.com
K&T Saw Shop 606-678-9623 or 606-561-4983
1
INDEX
1. GENERAL 3
1. SAFETY 4
2. LOCATION OF ENGINE MODEL, ENGINE SERIAL NO.
AND TRACTOR SERIAL NO. IDENTIFICATIONS 6
3. SPECIFICATION AND DATA 7
4. TRANSMISSION DIAGRAM 8
5. TIGHTENING TORQUES 9
6. PRECAUTIONS FOR DISASSEMBLY 10
7. GENERAL INFORMATION 11
2. ASSEMBLY REMOVAL AND REINSTALLATION 12
1. FRONT AXLE ASSY REMOVAL AND REINSTALLATION 13
1-1 FRONT AXLE ASSY REMOVAL 13
1-2 FRONT AXLE ASSY REINSTALLATION 14
2. ENGINE ASSY REMOVAL AND REINSTALLATION 15
2-1 ENGINE ASSY REMOVAL 15
2-2 ENGINE ASSY REINSTALLATION 19
3. CLUTCH HOUSING, TRANSMISSION CASE, REAR AXLE CASE
AND HYDRAULIC LIFT CASE REMOVAL AND REINSTALLATION 21
3-1 HOUSING REMOVAL 21
3-2 HOUSING REINSTALLATION 23
4. ENGINE 25
4-1 DETERMINING WHEN TO OVERHAUL THE ENGINE 25
4-2 TROUBLE SHOOTING 28
4-3 DISASSEMBLING 34
4-4 REASSEMBLING 44
4-5 INSPECTION 79
4-6 ADJUSTMENT 100
4-7 SPECIAL TOOLS 107
www.mymowerparts.com
K&T Saw Shop 606-678-9623 or 606-561-4983
2
5. CLUTCH 108
5-1 DISASSEMBLING 108
5-2 REASSEMBLING 108
5-3 ADJUSTMENT 109
6. TRANSMISSION 111
6-1 CLUTCH HOUSING DISASSEMBLING 111
6-2 CENTER CASE DISASSEMBLING 113
6-3 TRANSMISSION CASE DISASSEMBLING 115
6-4 CLUTCH HOUSING REASSEMBLING 117
6-5 CENTER CASE REASSEMBLING 118
6-6 TRANSMISSION CASE REASSEMBLING 121
6-7 CHECK AND MAINTENANCE 123
7. REAR AXLE 126
7-1 DIFFERENTIAL CASE ASSY DISASSEMBLING 126
7-2 REAR AXLE DISASSEMBLING 126
7-3 BRAKE CONTROL DISASSEMBLING 127
7-4 DIFFERENTIAL CASE ASSY REASSEMBLING 128
7-5 REAR AXLE REASSEMBLING 129
7-6 BRAKE CONTROL REASSEMBLING 130
7-7 CHECK AND MAINTENANCE 131
8. FRONT AXLE 132
8-1 FRONT AXLE DISASSEMBLING 132
8-2 FRONT AXLE REASSEMBLING 135
8-3 FRONT AXLE CHECK AND MAINTENANCE 139
9. STEERING 141
9-1 OPERATOR CONTROL AREA DISASSEMBLING 141
9-2 STEERING UNIT DISASSEMBLING 142
9-3 HYDRAULIC CYLINDER DISASSEMBLING 144
9-4 OPERATOR CONTROL AREA REASSEMBLING 146
9-5 STEERING UNIT REASSEMBLING 147
9-6 HYDRAULIC CYLINDER REASSEMBLING 150
9-7 CHECK AND MAINTENANCE 152
10. HYDRAULICS 153
10-1 MAIN HYDRAULICS DISASSEMBLING 153
10-2 HYDRAULIC LIFT DISASSEMBLING 155
10-3 MAIN HYDRAULICS REASSEMBLING 158
10-4 HYDRAULIC LIFT REASSEMBLING 159
10-5 HYDRAULIC LINE CHECKING 164
10-6 HYDRAULIC CHECK AND MAINTENANCE 166
11. ELECTRICAL 167
11-1 ELECTRICAL DIAGRAM 168
11-2 SPECIFICATION 170
www.mymowerparts.com
K&T Saw Shop 606-678-9623 or 606-561-4983
3
I. GENERAL
www.mymowerparts.com
K&T Saw Shop 606-678-9623 or 606-561-4983
4

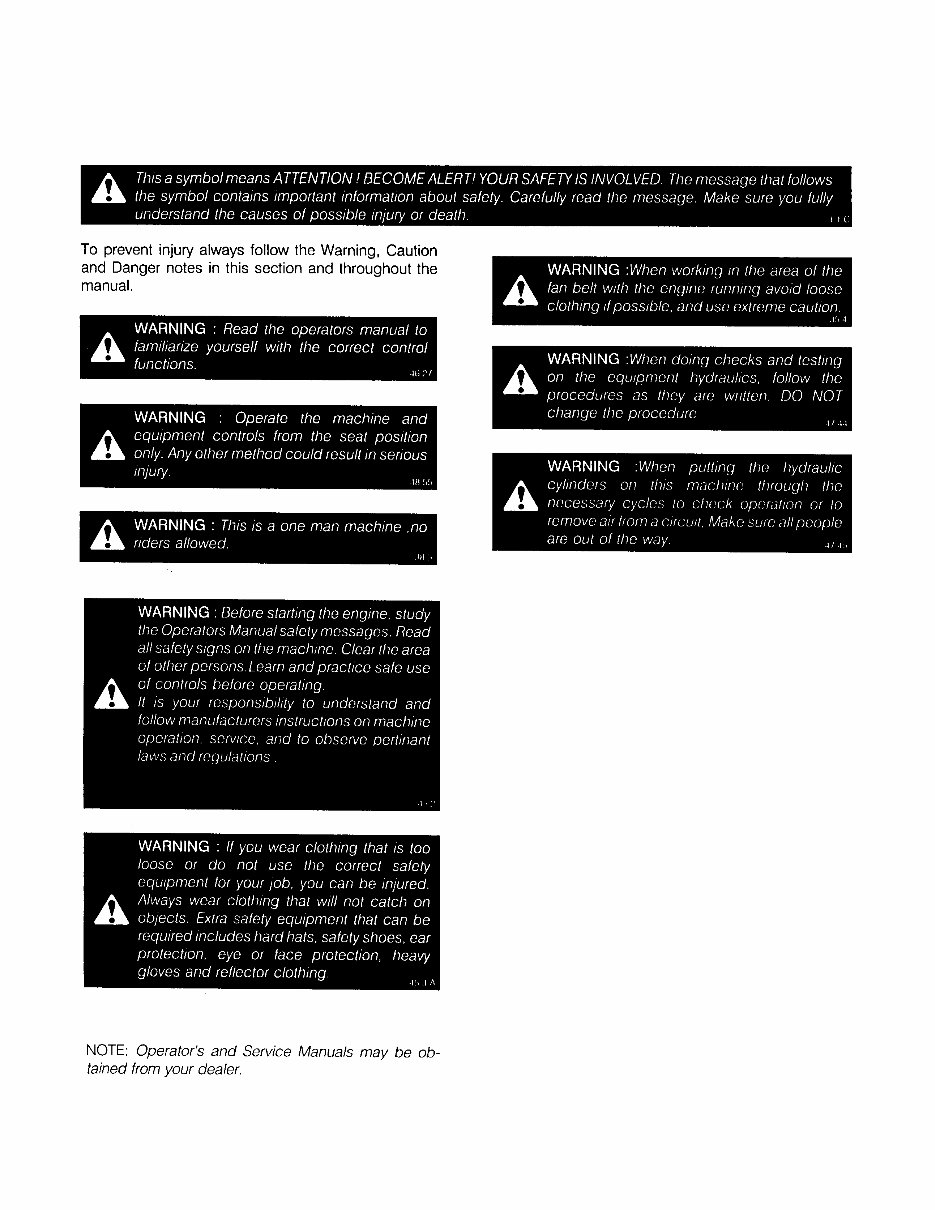

1. SAFETY
www.mymowerparts.com
K&T Saw Shop 606-678-9623 or 606-561-4983
5
www.mymowerparts.com
K&T Saw Shop 606-678-9623 or 606-561-4983
6
(1) ENGINE MODEL
Engine model is relieved on right side of
cylinder block . Enter this model and engine
serial number
(See next paragraph) for ordering parts.
(2) ENGINE SERIAL NO.
Engine serial No. is punched on right side of
engine block by the injection pump.
(3) TRACTOR SERIAL NO.
Tractor Serial No. is punched on right side of
transmission center case.
2. LOCATION OF ENGINE MODEL, ENGINE SERIAL NO.
AND TRACTOR SERIAL NO. IDENTIFICATIONS
www.mymowerparts.com
K&T Saw Shop 606-678-9623 or 606-561-4983
7
3. SPECIFICATION AND DATA
Capacities
Engine oil capacity with filter change ———————————————— 4.5 liters 4.8 QTS
NOTE : Oil filter capacity is 0.5 liters (0.13 US Galls)
Cooling capacity ————————————————————————— 7.1 liters 7.9 QTS
Transmission & Hydraulic oil———————————————————— 43 liters 45.9 QTS
MFD Axle ———————————————————————————— 6.5 liters 6.9 QTS
Fuel Tank ———————————————————————————— 35 liters 9.2 Gallons
NOTE : Use the capacities listed above only as a guide. Always use the dipstick or level plug to make
sure the units are filled to the correct level.
Fuel Specifications
A.P.I Gravity (Min) ————————————————————————— 34
Flash Point (Min) ————————————————————————— 60 C 140 F
Cloud Point (Wax Appearance Point) (Max)—————————————— 21 C 5.8 F
Pour Point (Max)————————————————————————— 26 C 14.8 F
Distillation Temperature, 90% Point ————————————————282 to 338flC 539 to 640flF
Viscosity at 38flC
Centistokes ——————————————————————————— 2.0 to 4.3
Saybolt second Universal ————————————————————— 32 to 40
Cetane Number (Min) —————————————————— 43 (45 to 55 for winter or high altitude)
Water and Sediment by Volume (Max) ———————————————— 0.05 of 1 %
Sulfer, by weight (Max) —————————————————————— 0.50 of 1 %
Copper Strip Corrosion (Max) ———————————————————— No. 2
Ash, by weight (Max) ——————————————————————— 0.01 of 1 %
Fuel Filter Cup Service Interval ——————————————————— Every 10 Hours
Fuel Filter Element Change ———————————————————— Replace yearly or as needed
Fuel injectors
Valve Leakage Rate ——— No Leakage Permissible, Slight Moistening of the Nozzle Tips is allowed
www.mymowerparts.com
K&T Saw Shop 606-678-9623 or 606-561-4983
8

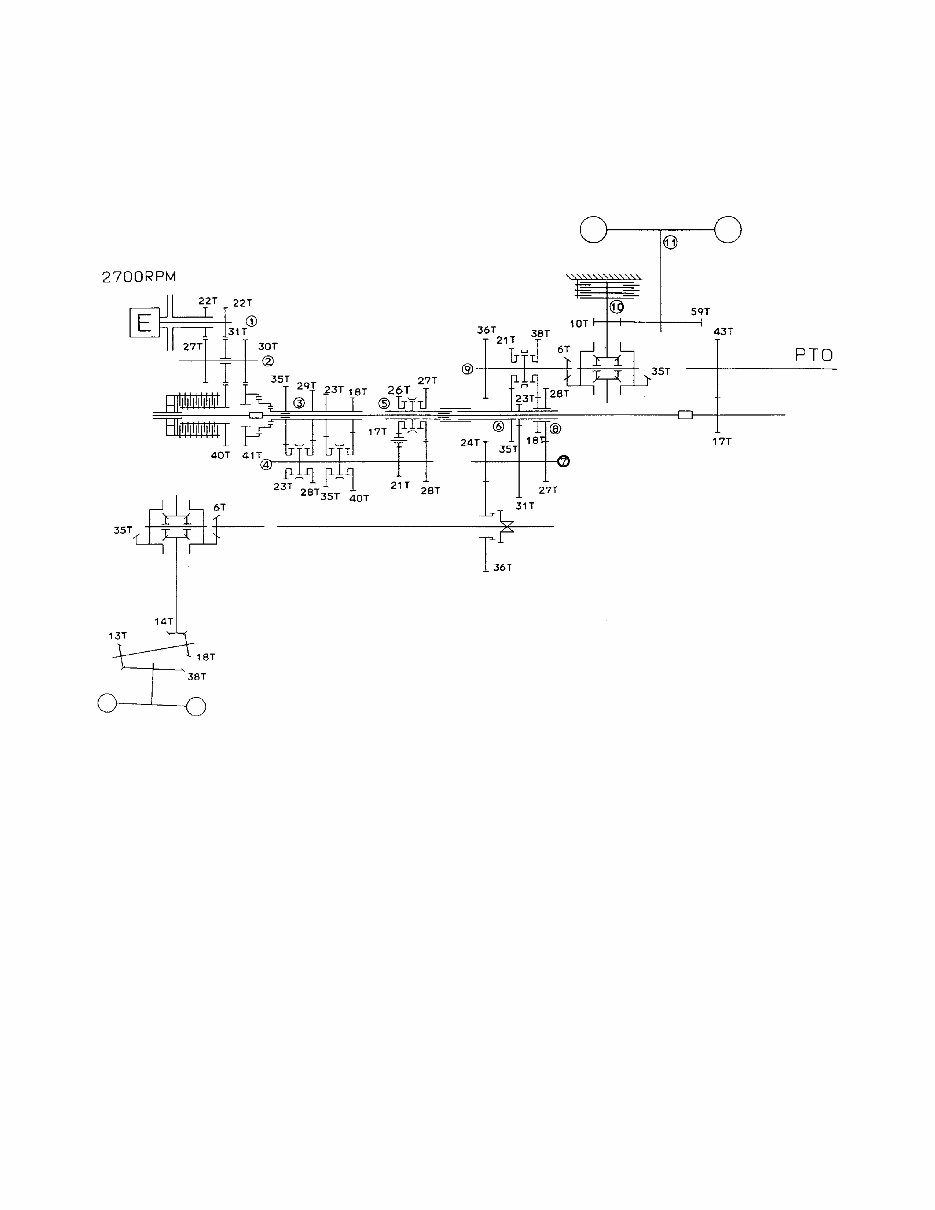

4. POWER TRANSMISSION DIAGRAM
www.mymowerparts.com
K&T Saw Shop 606-678-9623 or 606-561-4983
9

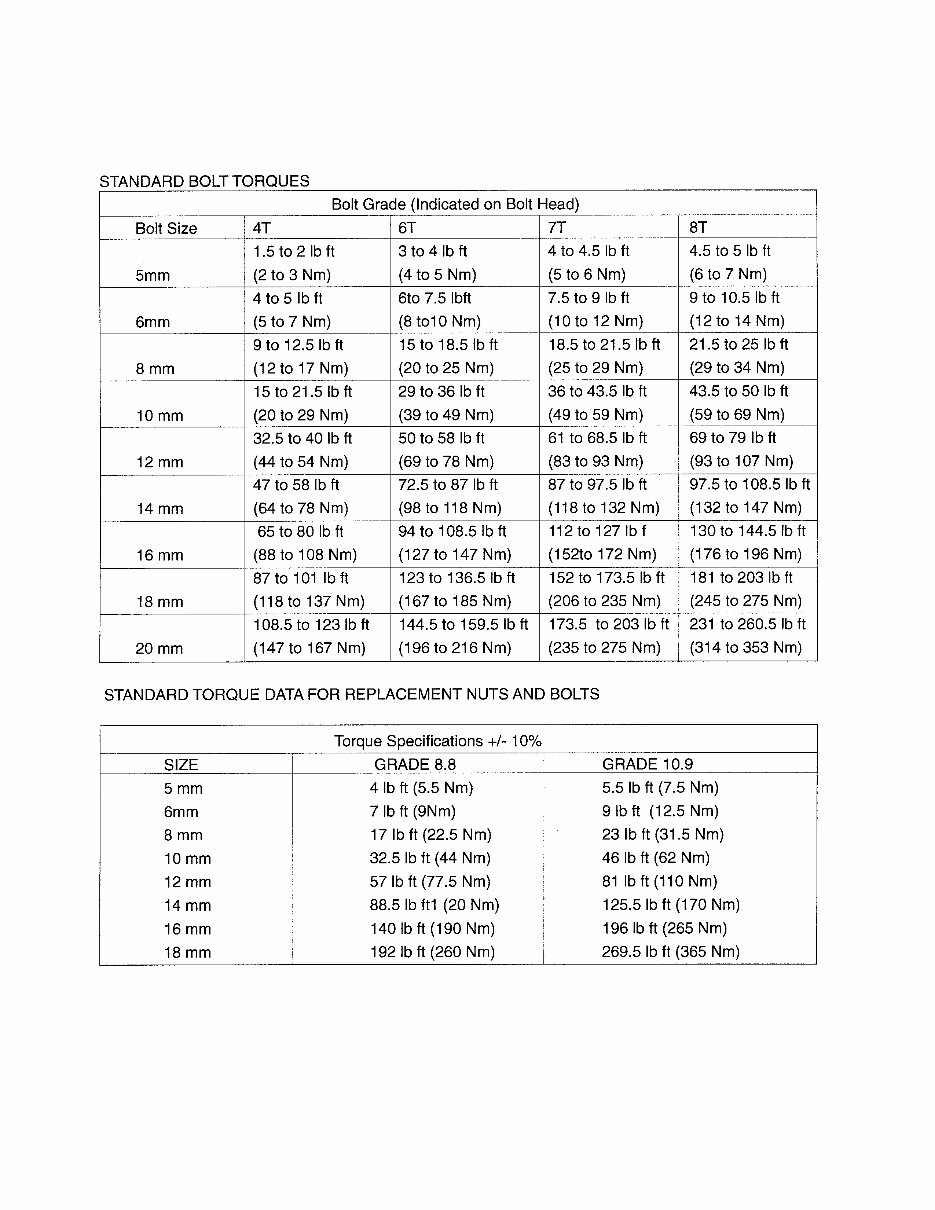

5. TIGHTENING TORQUES
www.mymowerparts.com
K&T Saw Shop 606-678-9623 or 606-561-4983
