5150 CASE IH DIESEL TRACTOR (1/96-12/96) - Pictorial Index 01 PARTS CATALOG

Ref Numer części Il. Opis 5150 CASE IH DIESEL TRACTOR (1/96-12/96) - Pictorial Index 01 PARTS CATALOG

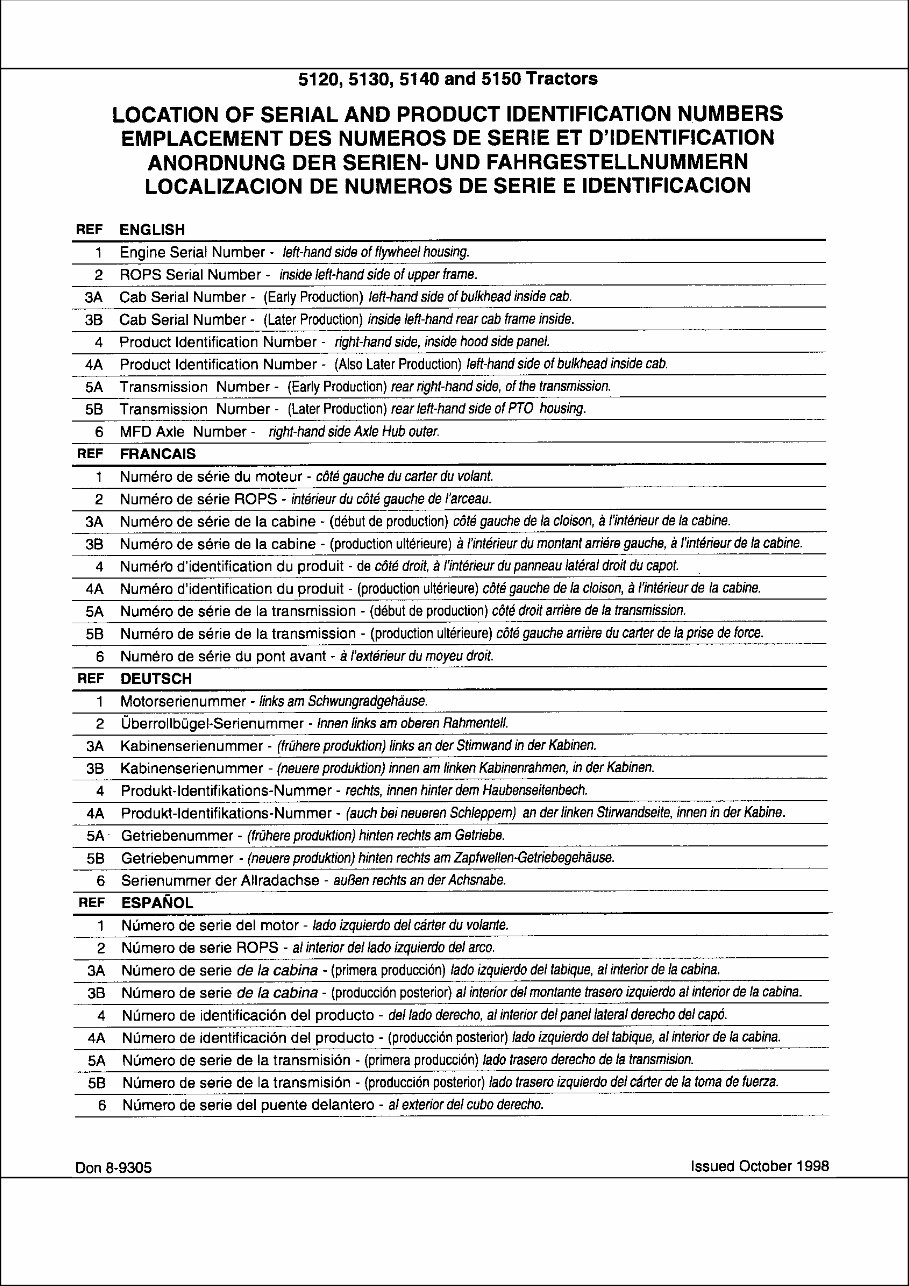

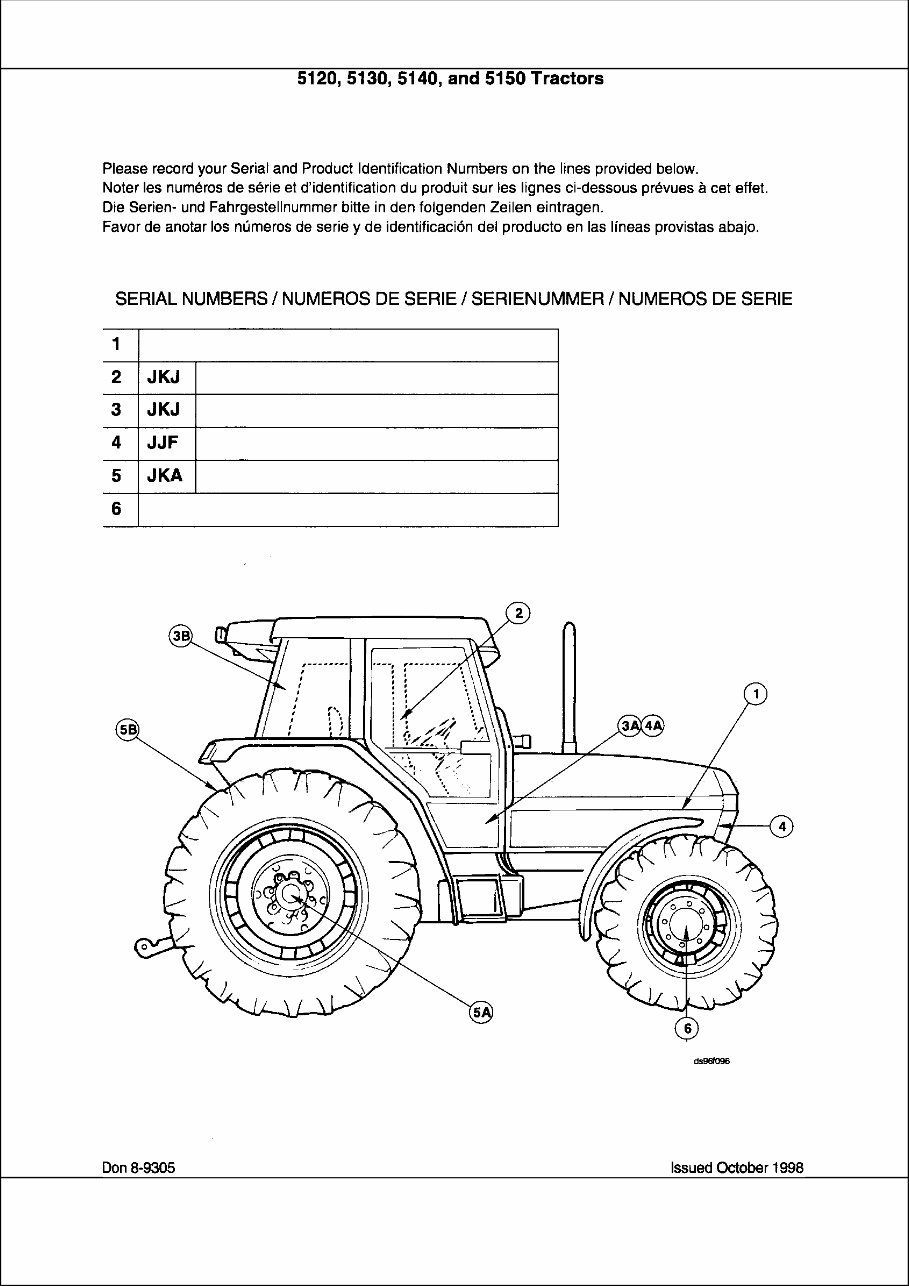

5150 CASE IH DIESEL TRACTOR (1/96-12/96) - Pictorial Index 02 LOCATION OF SERIAL AND PRODUCT IDENTIFICATION NUMBERS

Ref Numer części Il. Opis 5150 CASE IH DIESEL TRACTOR (1/96-12/96) - Pictorial Index 02 LOCATION OF SERIAL AND PRODUCT IDENTIFICATION NUMBERS

5150 CASE IH DIESEL TRACTOR (1/96-12/96) - Pictorial Index 03 LOCATION OF SERIAL AND PRODUCT IDENTIFICATION NUMBERS

Ref Numer części Il. Opis 5150 CASE IH DIESEL TRACTOR (1/96-12/96) - Pictorial Index 03 LOCATION OF SERIAL AND PRODUCT IDENTIFICATION NUMBERS

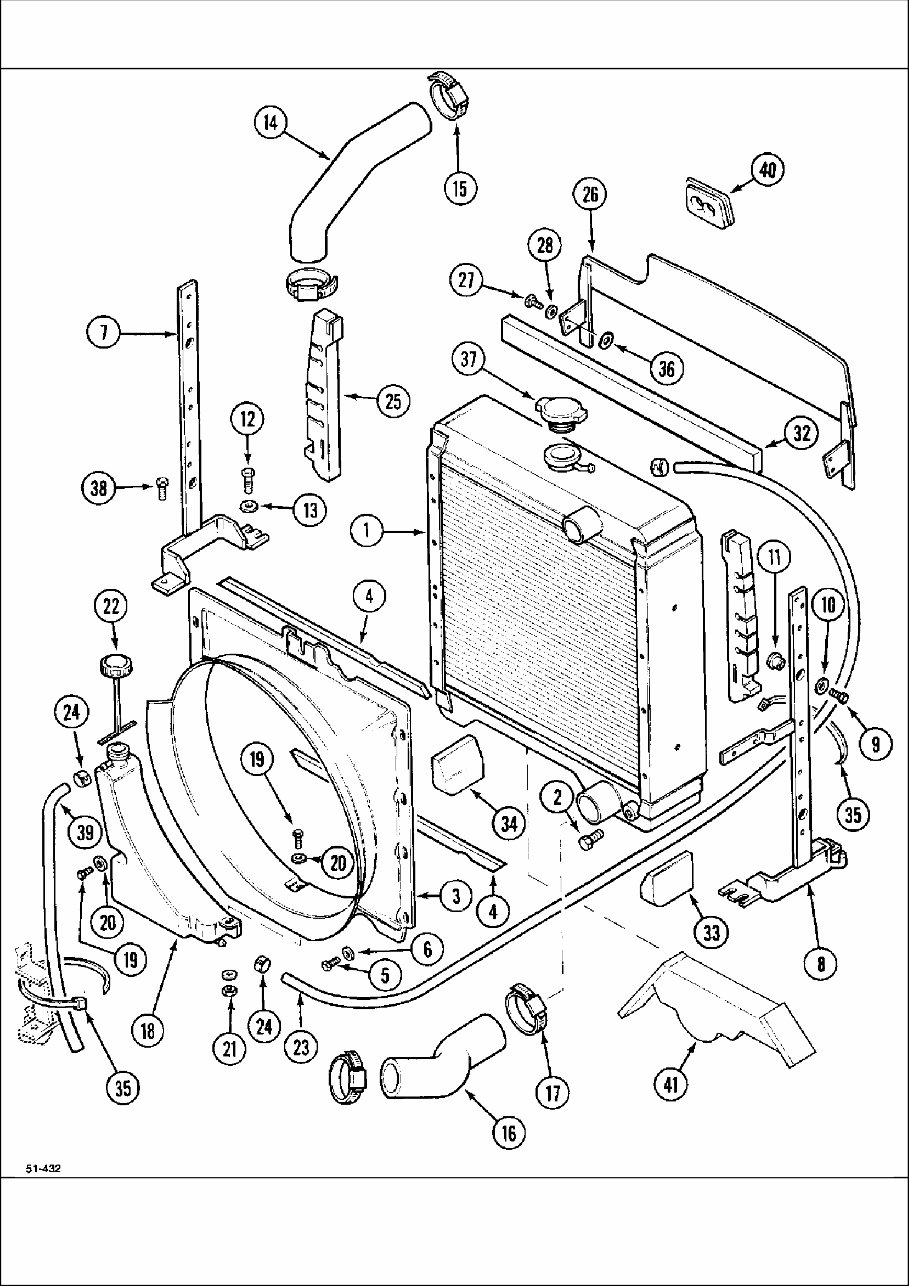

5150 CASE IH DIESEL TRACTOR (1/96-12/96) - Pictorial Index 2-002 RADIATOR AND CONNECTIONS

Ref Numer części Il. Opis 5150 CASE IH DIESEL TRACTOR (1/96-12/96) - Pictorial Index 2-002 RADIATOR AND CONNECTIONS 1 104753A1 1 RADIATOR, 20311 Includes : 2 2 217-86 1 KOREK, Hex Hd, 1/4"-18, Brass, 3 A189115 1 ELEMENT WIĄŻĄCY, 20313 Version With Air Compressor 3 A173459 1 ELEMENT WIĄŻĄCY, 4 A173165 2 SEAL, 5 614-8016 7 ?RUBA , Hex, M8 x 16, 8.8, 6 895-15008 7 PODKŁADKA, M8 x 20 x 1.6, 7 1531329C1 1 SUPPORT, 8 1531328C1 1 SUPPORT, 9 614-10030 4 ?RUBA , Hex, M10 x 30, 8.8, 10 895-11010 4 PODKŁADKA, M10 x 20 x 2, 11 T100568 4 GUMA, MOUNTING 12 614-10030 2 ?RUBA , Hex, M10 x 30, 8.8, 13 934674R1 2 PODKŁADKA, M10.5 x 30 x 2.5, 14 T103198 1 HOSE, 20311 Inlet 15 214-1428 2 ZACISK WĘŻA, #28, 1.31/2.25 Type F Worm, 16 T103197 1 HOSE, 20311 Outlet 17 214-1440 2 ZACISK WĘŻA, #40, 2.06/3.00 Type F Worm, 18 A189107 1 ZBIORNIK, 19 614-8020 2 ?RUBA , Hex, M8 x 20, 8.8, 20 895-15008 3 PODKŁADKA, M8 x 20 x 1.6, 21 825-1408 1 NAKRĘTKA, M8, Cl 8, 22 1547924C1 1 NASADKA, 23 A189144 1 HOSE, 1050 mm (41-3/8 in) 24 A171099 3 ZACISK WĘŻA, 25 1533890C2 2 TA?MA USZCZELNIAJĄCA, TRIM 26 1531616C2 1 PLATE ASSY., 26 1530610C2 1 PLATE ASSY., 27 614-8016 4 ?RUBA , Hex, M8 x 16, 8.8, 28 895-11008 4 PODKŁADKA, M8 x 16 x 1.6, 32 1533889C2 1 TA?MA USZCZELNIAJĄCA, 542 x 20 mm 33 1533887C1 1 SEAL, 20311 Right 34 1533888C1 1 SEAL, 20311 Left 35 3148767R2 2 ZACISK KOŁNIERZA, STRAP CABLE 197 mm 36 905920R1 UAR PODKŁADKA REGULACYJNA, M9 ID x 15 OD x .5 Thk, adjusting 37 A170241 1 KOREK CHŁODNICY , filler, 15 psi 38 854-10030 2 ?RUBA , Hex Flg, M10 x 30, 10.9, 39 1998841C1 1 HOSE, 660 mm (26 in) 40 1530635C1 1 SEAL ASSY., 20311 5150 41 1530829C2 1 PIANKA, 20311 Foam 5150 41 1533978C2 1 PIANKA, 20311 Foam Front P.T.O.

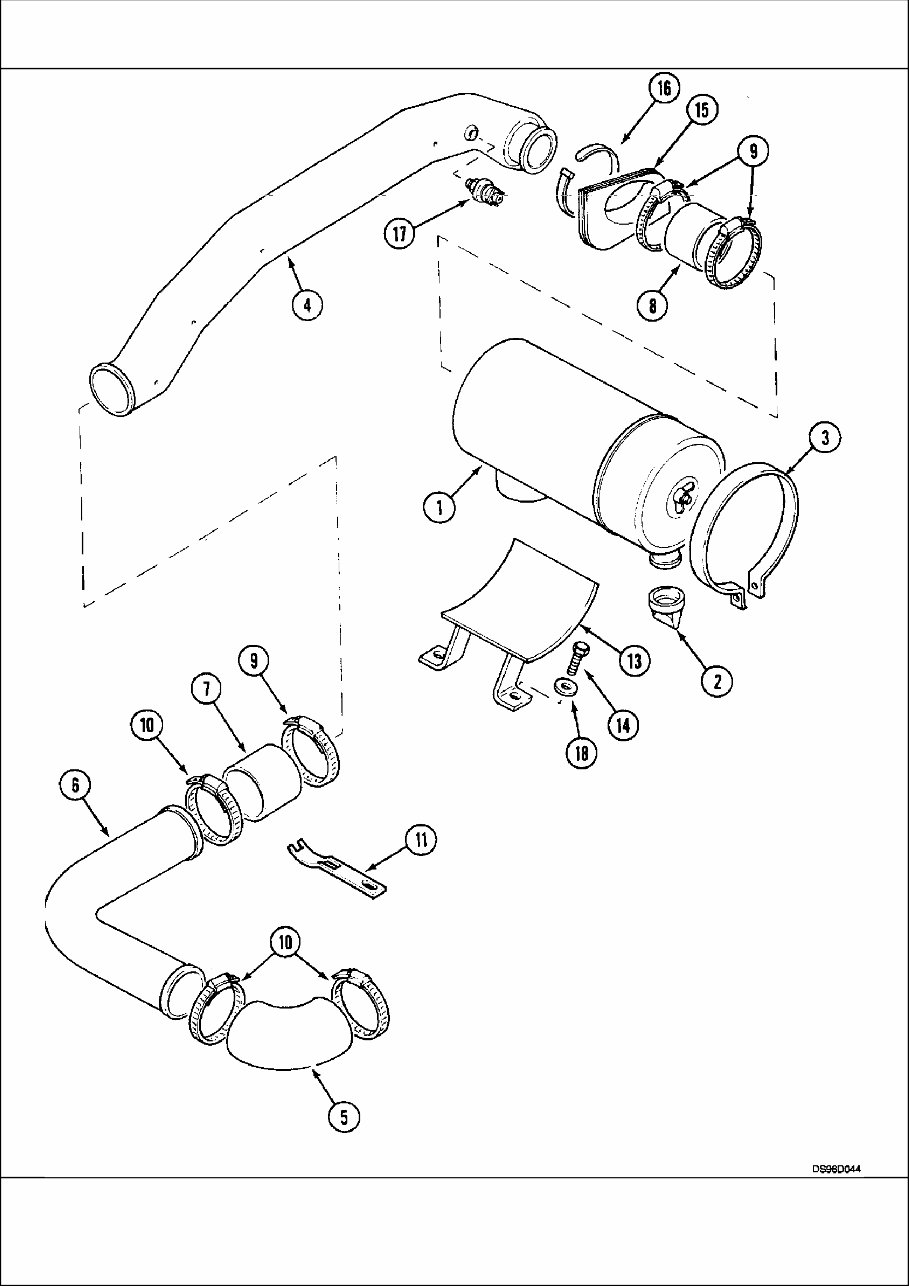

5150 CASE IH DIESEL TRACTOR (1/96-12/96) - Pictorial Index 2-010 AIR CLEANER AND CONNECTIONS, (5140/5150)

Ref Numer części Il. Opis 5150 CASE IH DIESEL TRACTOR (1/96-12/96) - Pictorial Index 2-010 AIR CLEANER AND CONNECTIONS, (5140/5150) 1 REF 1 INSTRUKCJA, AIR CLEANER ASSY., 20321, 5140, See Figure: 2-12 1 REF 1 INSTRUKCJA, AIR CLEANER ASSY., 20321, 5150, See Figure: 2-12 2 A184939 1 ZAWÓR, press relief 3 T103239 1 STRAP, 20321, 5140 3 1534843C1 1 CLAMP, BAND ASSY., 20321, 5150 4 1530736C2 1 DUŻY WĄŻ, 20323, 5140 4 1534948C2 1 DUŻY WĄŻ, 20323, 5150 4 1530735C2 1 DUŻY WĄŻ, 20323, 5140 Compressor 4 113581A2 1 DUŻY WĄŻ, 20323, 5150 Compressor 5 T100698 1 HOSE, 6 1530733C2 1 DUŻY WĄŻ, 7 1533379C1 1 DUŻY WĄŻ, 8 1533407C1 1 DUŻY WĄŻ, 20323, 5140 8 906010R1 1 HOSE, 20323, 5150 9 3219245R1 3 ZACISK, M70-90, Worm, 20323, 5140 9 3219245R1 1 ZACISK, M70-90, Worm, 20323, 5150 9 3226801R1 2 ZACISK, M100-120, Worm, 20323, 5150 10 3220461R1 3 ZACISK, M80-100, Worm, 11 235743A1 1 SUPPORT, 13 1533565C2 1 SUPPORT ASSY., 20321, 5140 13 1534834C1 1 SUPPORT ASSY., 20321, 5150 14 614-8018 2 ?RUBA , Hex, M8 x 18, 8.8, Full Thd, 15 1531506C3 1 SEAL ASSY., 16 3402979R2 1 BAND, cable 350 mm 17 292950A1 1 SWITCH, 42015 Indicator 18 895-11008 2 PODKŁADKA, M8 x 16 x 1.6,
