1680 CASE IH AXIAL-FLOW COMBINE (EUROPE) (4/87- ) - Pictorial Index

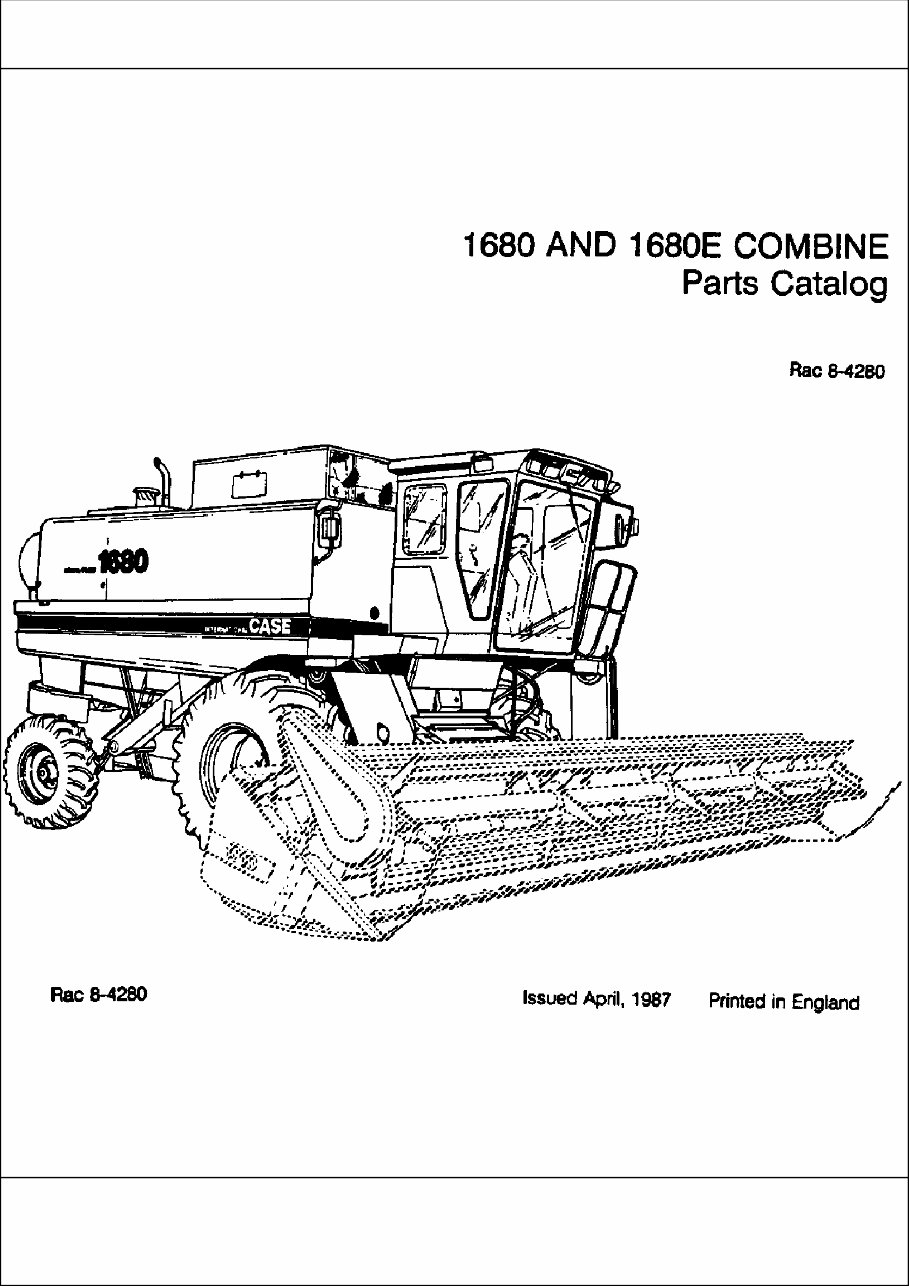

1-003 1680 AND 1680E COMBINE PARTS CATALOG
Ref Numer części Il. Opis
1680 CASE IH AXIAL-FLOW COMBINE (EUROPE) (4/87- ) - Pictorial Index
1-003 1680 AND 1680E COMBINE PARTS CATALOG
1680 CASE IH AXIAL-FLOW COMBINE (EUROPE) (4/87- ) - Pictorial Index

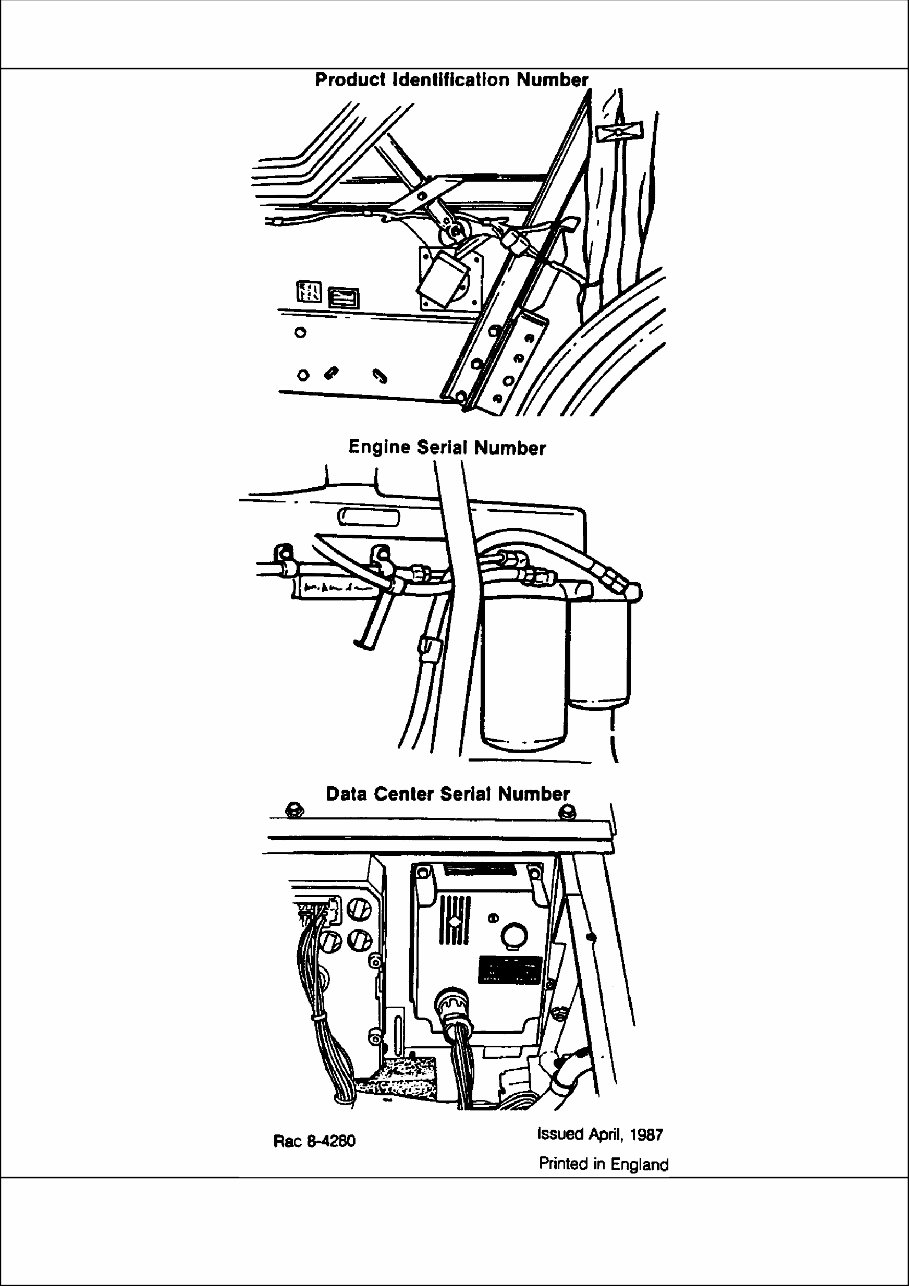

1-04 PRODUCT IDENTIFICATION NUMBER
Ref Numer części Il. Opis
1680 CASE IH AXIAL-FLOW COMBINE (EUROPE) (4/87- ) - Pictorial Index
1-04 PRODUCT IDENTIFICATION NUMBER
1680 CASE IH AXIAL-FLOW COMBINE (EUROPE) (4/87- ) - Pictorial Index
1-04 PRODUCT IDENTIFICATION NUMBER
Ref Numer części Il. Opis
1680 CASE IH AXIAL-FLOW COMBINE (EUROPE) (4/87- ) - Pictorial Index
1-04 PRODUCT IDENTIFICATION NUMBER
1680 CASE IH AXIAL-FLOW COMBINE (EUROPE) (4/87- ) - Pictorial Index

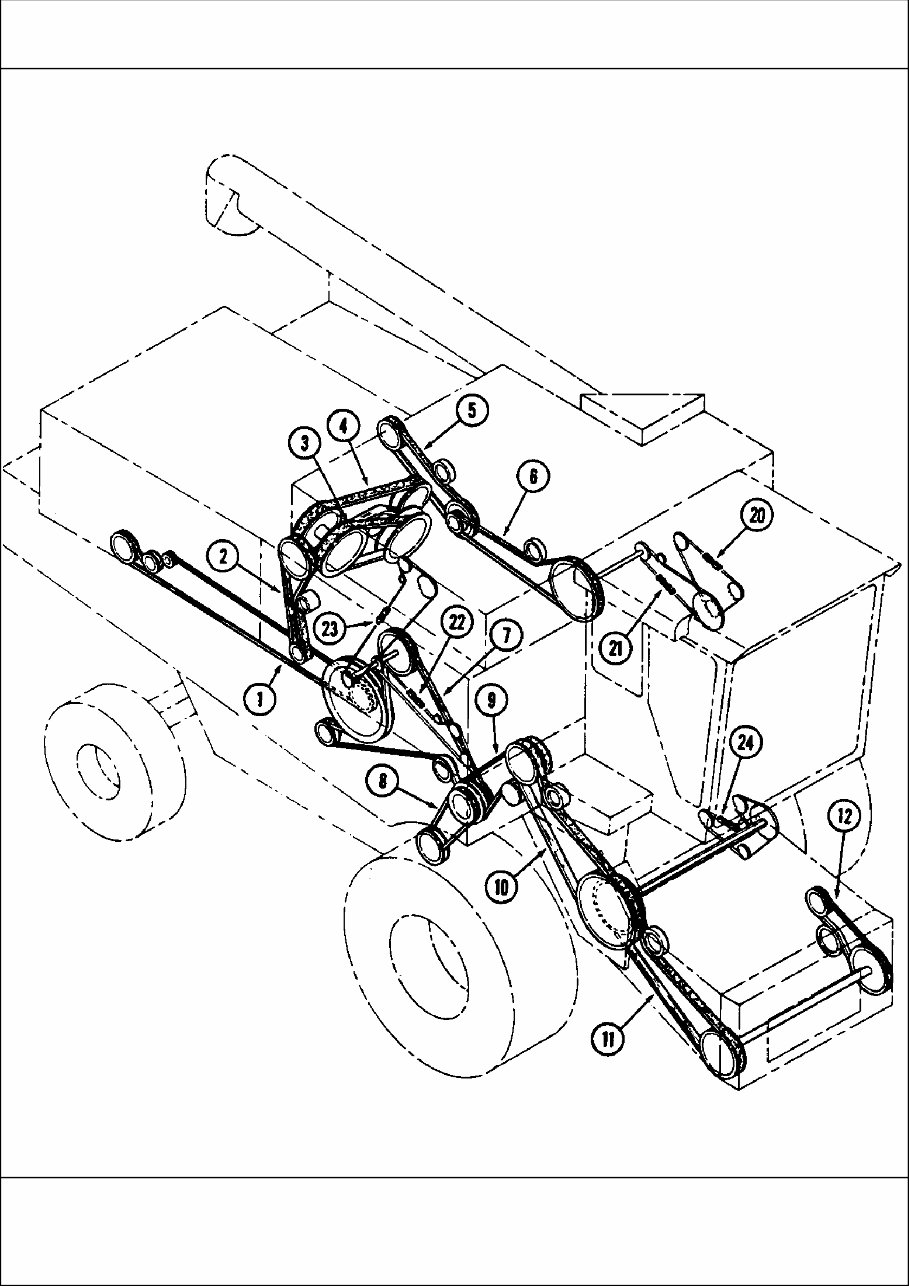

1-10 PICTORIAL INDEX, BELTS
Ref Numer części Il. Opis
1680 CASE IH AXIAL-FLOW COMBINE (EUROPE) (4/87- ) - Pictorial Index
1-10 PICTORIAL INDEX, BELTS
1 Straw Spreader Drive Belt 9-581
2 Straw Chopper Drive Belt 9-589
3 Rotor Drive Belt 9-443
4 Separator Drive Belt 9-409
5 Auxiliary Pump Drive Belt 8-325
6 Grain Tank Unloader Drive Belt 9-557
7 Elevator Drive Belt 9-401
8 Cleaning Fan Drive Belt 9-509
9 Fan Jackshaft Drive Belt 9-399
10 Feeder Drive Belt 9-417
11 Feeder Jackshaft Drive Belt 9-419
12 Reel Pump Drive Belt 8-367
CHAINS
20 Grain Tank Unloader Drive Chain 9-561
21 Grain Tank Unloader Drive Chain 9-561
22 Tailings Elevator Drive Chain 9-541
23 Grain Elevator Drive Chain 9-529
24 Feeder Reverser Drive Chain "9-439, 441"
1680 CASE IH AXIAL-FLOW COMBINE (EUROPE) (4/87- ) - Pictorial Index

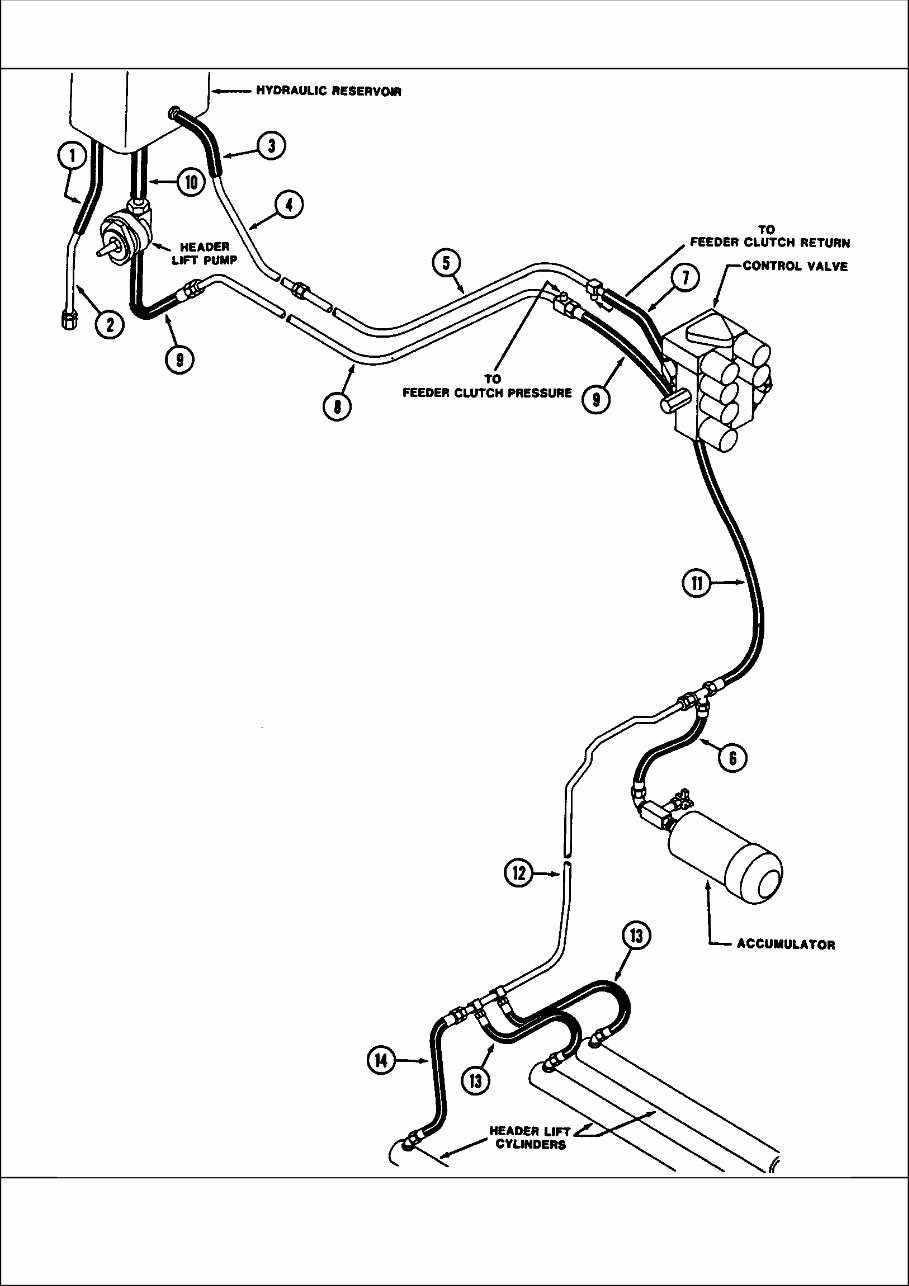

1-12 PICTORIAL INDEX, HEADER LIFT HYDRAULICS
Ref Numer części Il. Opis
1680 CASE IH AXIAL-FLOW COMBINE (EUROPE) (4/87- ) - Pictorial Index
1-12 PICTORIAL INDEX, HEADER LIFT HYDRAULICS
1 Reservoir Drain Hose 8-313
2 Reservoir Drain Tube 8-313
3 Header Lift Return, Rear Hose 8-323
4 Header Lift Return, Rear Tube 8-323
5 Header Lift Return, Front Tube 8-323
6 Accumulator Hose 8-389
7 Header Lift Return Front Hose 8-321
8 Header Lift Pressure Tube 8-321
9 Header Lift Pressure Hoses 8-321
10 Header Lift Suction Hose 8-321
11 Header Lift Hose 8-329
12 Header Lift Cylinder Tube 8-329
13 Header Lift Cylinder Hose 8-329
14 Header Lift Cylinder Hose 8-329
