KUBOTA LA1001 LA1002 LA1162 LA1251 FRONT END Loader Workshop Service Manual

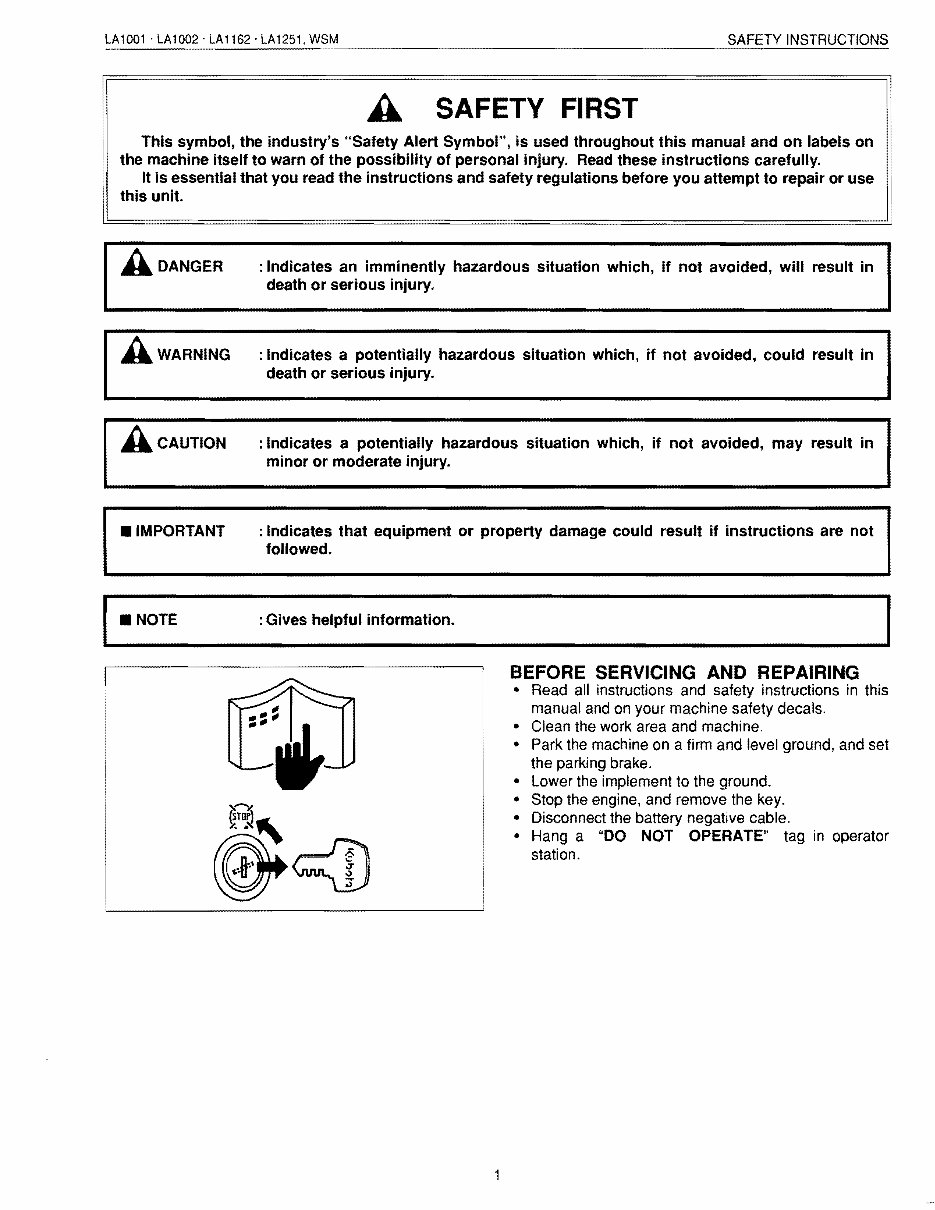

II lA1001 ·lA1002· lA1162 'lA1251, WSM SAFETY INSTRUCTIONS SAFETY FIRST This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to repair or use this unit. • NOTE : Gives helpful information . BEFORE SERVICING AND REPAIRING • Read all instructions and safety instructions in this manual and on your machine safety decals. • Clean the work area and machine. • Park the machine on a firm and level ground, and set the parking brake. • Lower the implement to the ground. • Stop the engine, and remove the key. • Disconnect the battery negative cable. • Hang a "DO NOT OPERATE" tag in operator station. A DANGER : Indicates an imminently hazardous Situation which, if not avoided, will result in death or serious injury. A WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. A CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. • IMPORTANT : Indicates that equipment or property damage could result if instructions are not followed.

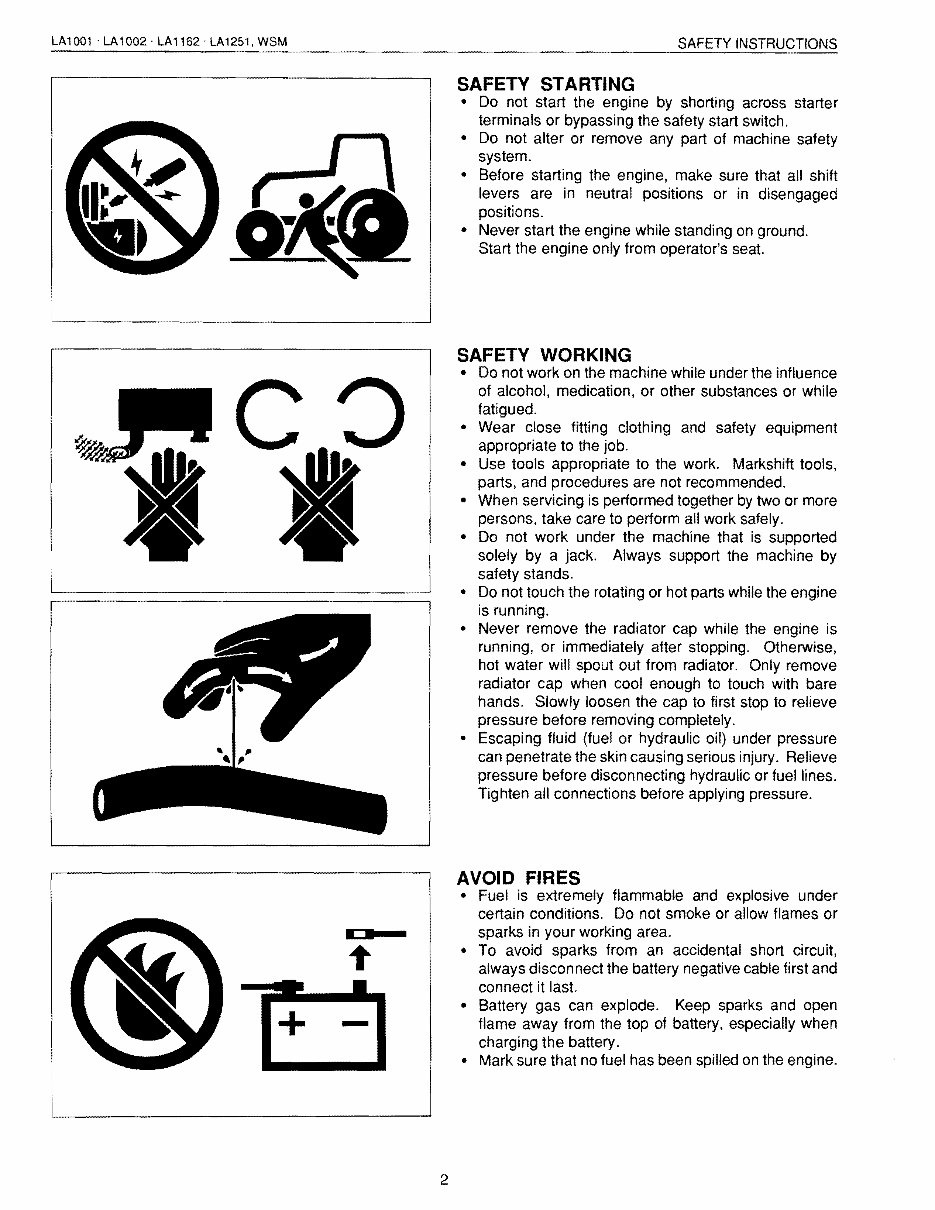

LA1001 . LA 1002' LA1162' LA1251 WSM • + - SAFETY STARTING • Do not start the engine by shorting across starter terminals or bypassing the safety start switch. • Do not alter or remove any part of machine safety system. • Betore starting the engine, make sure that all shift levers are in neutral positions or in disengaged positions. • Never start the engine while standing on ground. Start the engine only trom operator's seat. SAFETY WORKING • Do not work on the machine while under the influence of alcohol, medication, or other substances or while fatigued. • Wear close fitting clothing and satety equipment appropriate to the job. • Use tools appropriate to the work. Markshift tools, parts, and procedures are not recommended. • When servicing is performed together by two or more persons, take care to perform all work safely. • Do not work under the machine that is supported solely by a jack. Always support the machine by safety stands. • Do not touch the rotating or hot parts while the engine is running. • Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise, hot water will spout out from radiator. Only remove radiator cap when cool enough to touch with bare hands. Slowly loosen the cap to first stop to relieve pressure before removing completely. • Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure. AVOID FIRES • Fuel is extremely flammable and explosive under certain conditions. Do not smoke or allow flames or sparks in your working area . • To avoid sparks from an accidental short circuit, always disconnect the battery negative cable first and connect it last. • Battery gas can explode. Keep sparks and open flame away from the top of battery, especially when charging the battery. • Mark sure that no fuel has been spilled on the engine. 2

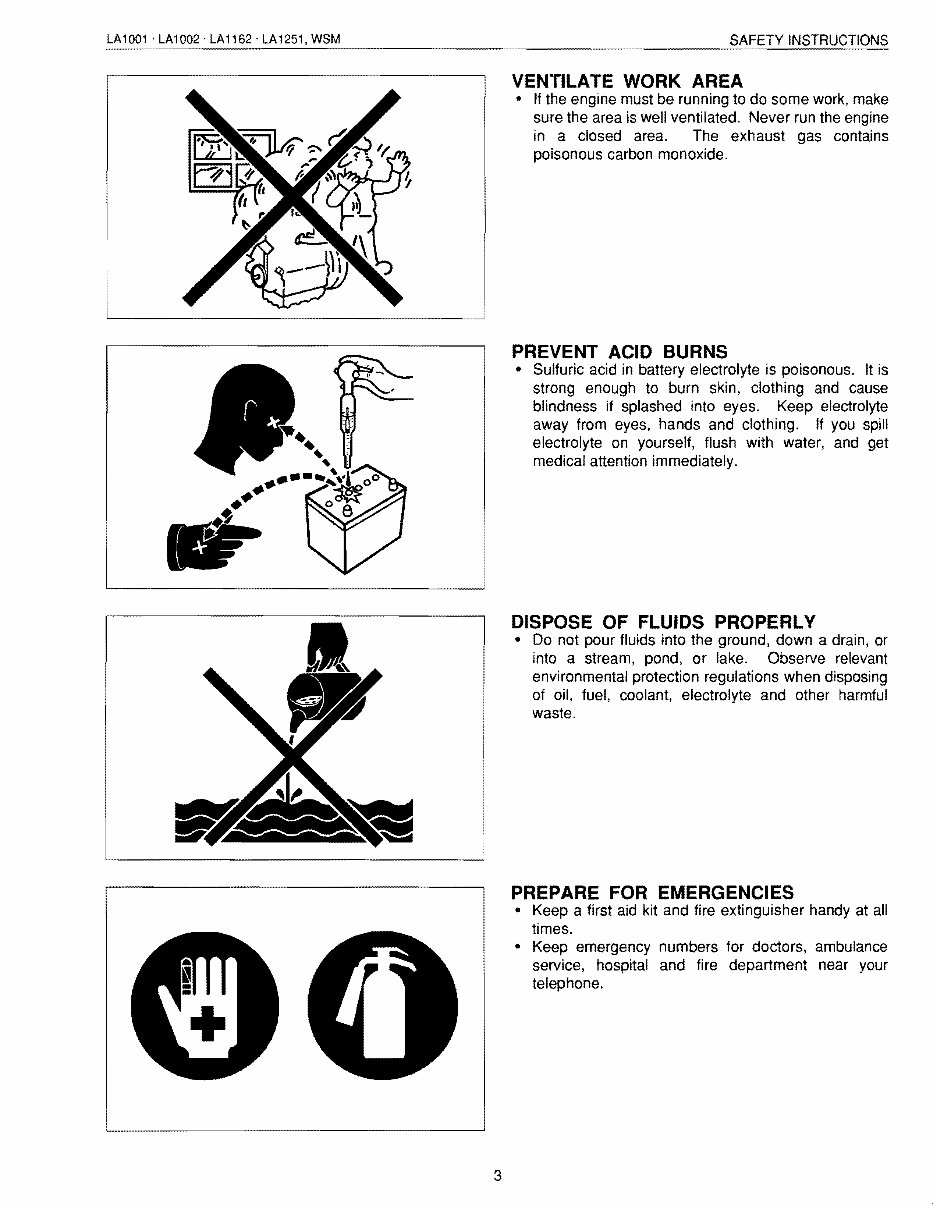

LA1001 . LA1002· LA1162· LA1251, WSM VENTILATE WORK AREA • If the engine must be running to do some work, make sure the area is well ventilated. Never run the engine in a closed area. The exhaust gas contains poisonous carbon monoxide. PREVENT ACID BURNS • Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, clothing and cause blindness if splashed into eyes. Keep electrolyte away from eyes, hands and clothing. If you spill electrolyte on yourself, flush with water, and get medical attention immediately. DISPOSE OF FLUIDS PROPERLY • Do not pour fluids into the ground, down a drain, or into a stream, pond, or lake. Observe relevant environmental protection regulations when disposing of oil, fuel, coolant, electrolyte and other harmful waste. PREPARE FOR EMERGENCIES • Keep a first aid kit and fire extinguisher handy at all times. • Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone. 3

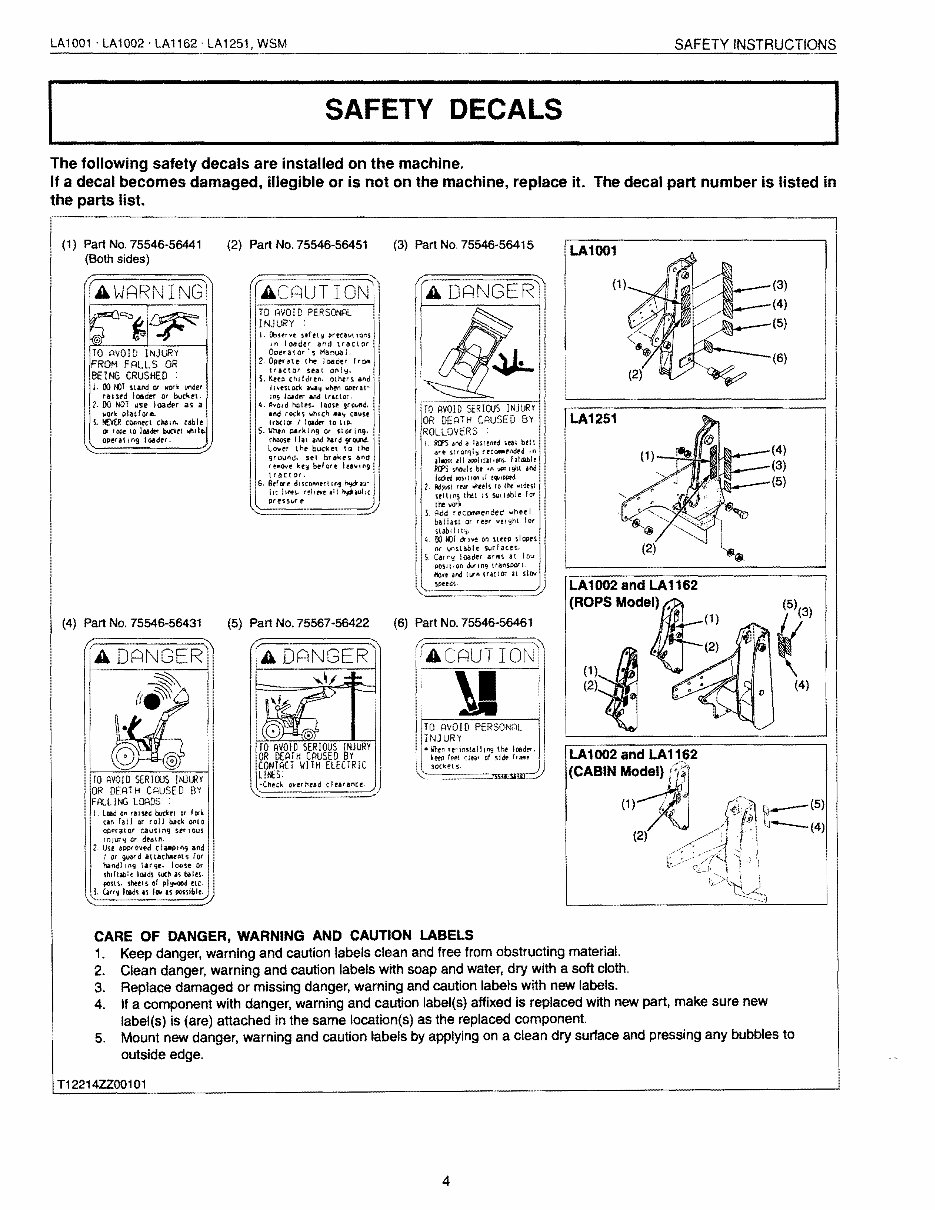

LA1001 . LA1002' LA1162' LA1251, WSM SAFETY INSTRUCTIONS SAFETY DECALS The following safety decals are installed on the machine. If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed in the parts list. (3) Part No. 75546-56415 (1) Part No. 75546-56441 (Both sides) (AWARNINGI ~~~I~ TO AVOlD INJURy FROM FALLS OR BE I NG CRUSHED l. 00 1'4)1 stand or wort: lIt'ldfl!l' ralse-d loader or bucke-t. 1. DO NOT us. loader a. a ~Otk platfor •. 3. NEVER COMtcl Chaltt. cable or rope 10 loader bLciet \lhJte. ope-tal jog loeder. (4) Part No. 75546-56431 A DANGER ~ O~ 1- load on ralud bucket Dr foci: can Fa! J or rol J back ()t'Ito oppralor Cav'H(\g Stf 10uS lnrUr'J or death. 2. U~e 3PPI'oved cla-plng Md I or guar d illllCMtl'l{ 5 ror handlJt'19 large. loose Or shiftable loack ub as biles, po~lS, ShttlS of pl!tWood etc. t Ut'rl~ load1 IS I. u: ~$iblt. (2) Part No. 75546-56451 ACHUTION TO AVOID PERSONAL INJURY: I. Oburv! ufel ~ precautions In loader and traelor OperatOr's Manual, 2. Operate the loader from tractor St&l onls_ ). Keep ckddten, Qthers. and II'.ntock aW'l'i when ODt'rat- U\9 Joadu and tractor. 4. A ... o.d hairs. loo~r 9round. altd r()(k~ whiCh -a'1 uuse lraUl)' lloadrr to liP. S. irlhtn park i ng or It or j ng, CfloIKt rl.t and hard grtll.fld. Love'r tht bucket to tN! ground. sel brakn and rtlli)Vt' ktlt befort lea ..... "9 tractor. G, eefore dIICOMt'cttf\9 hlp'au· Ilc linn. fehtve itll n.pllull( prtss!)r t· (5) Part No. 75567-56422 (6) A DANGER A DHNGER TO AVOID SERIOUS INJURy OR DEATH CAuSED BY ROLLOVERS L ReFS and a laSHfied itai bel t are strongl" recOINit'fldtd In alM)$t ill ap!)lmtIOflS. Follilble Rt:fS snould be 11\ uP1'lghl and iaO:edPl1dlMdtqJl~ 2. Adjust tear lIhtels to Int II'1de"SI sttllllS th:1l !~ SUd6ble for the \lork ). Add rec[}fMended .. httl ballast or rear wel9hl lor Sl.abilltlj. 4, 00 H)T drive on w~e" slopts or uns.table surfaces, 5. Carr,:! loader anlS a t 10\.1 POSition <:b'ln9 transport. Move and turn (raClor at slav sPt't'd~ Part No. 75546-56461 (ACAUT IONI i \I I TO AVOID PERSONAL INJURY ·~en Tt'"HlSt.lIln9 tnt' loader, reeD (pPt clt'\l" of sj~ fr.Jlllp S()(kt"l S. ) (1 ) LA1251 (1 ) (2) ])'\'1..1_-(3) 1:\\1__-(4) D,\"1 __-(5) (6) (4) (3) (5) LA1001 CARE OF DANGER, WARNING AND CAUTION LABELS 1. Keep danger, warning and caution labels clean and free from obstructing material. 2. Clean danger, warning and caution labels with soap and water, dry with a soft cloth. 3. Replace damaged or miSSing danger, warning and caution labels with new labels. 4. If a component with danger, warning and caution label(s) affixed is replaced with new part, make sure new label(s) is (are) attached in the same location(s) as the replaced component. 5. Mount new danger. warning and caution labels by applying on a clean dry surface and pressing any bubbles to outside edge. T12214ZZ00101 4

LA1001 . LA1002' LA1162' LA1251, WSM LOADER TERMINOLOGY LOADER TERMINOLOGY (2) (3) (4) (5) (10) T12213FL00101 (1) Boom (4) Side Frame (7) Brace (9) Bucket Cylinder (2) Hydraulic Control Valve (5) Main Frame (8) Parallel Link (LA 1162 only) (10) Bucket (3) Mounting Pin (6) Boom Cylinder 5

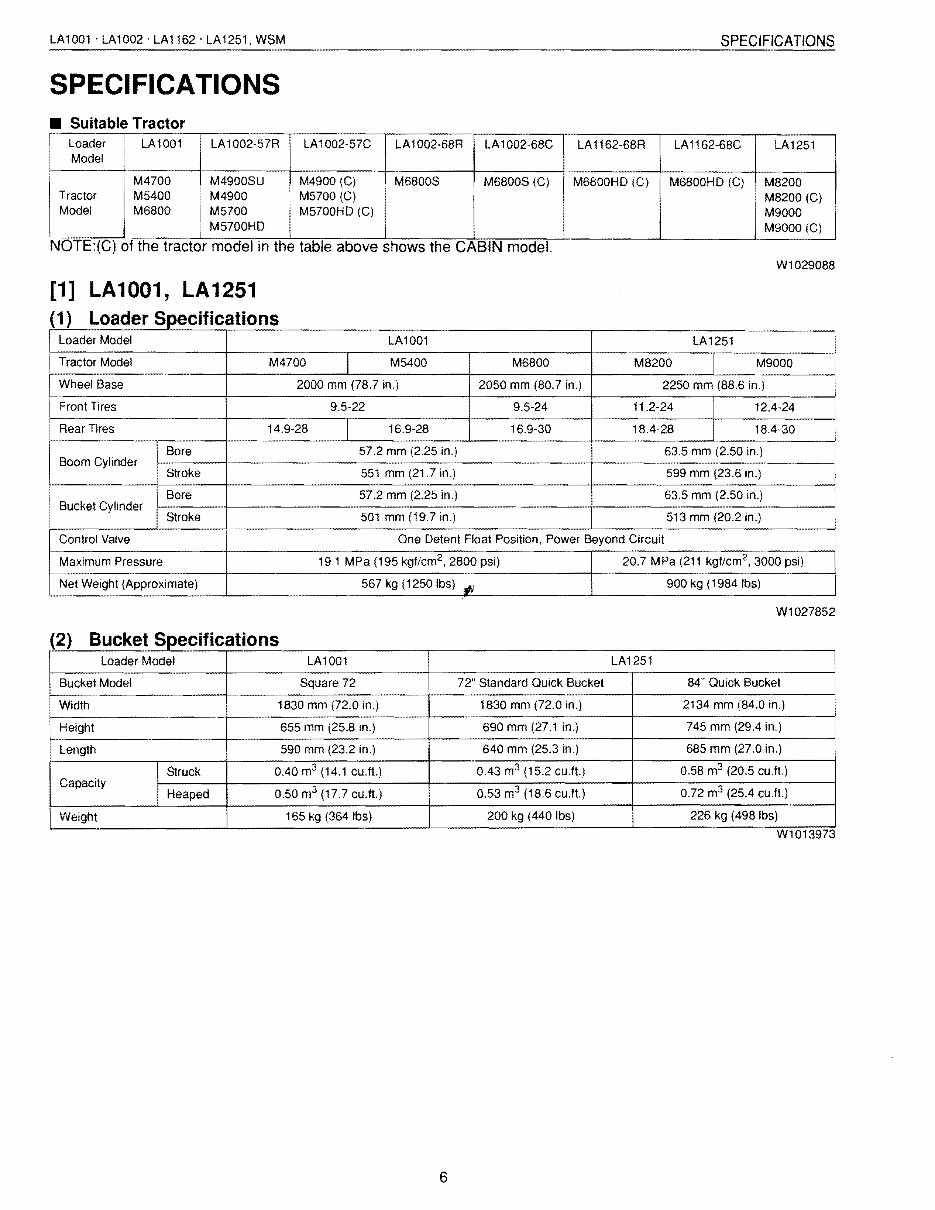

LA100l' LA1002' LAl162' LA1251, WSM SPECIFICATIONS SPECIFICATIONS • Suitable Tractor Wl029088 Loader i LA1001 LA1002-57R LA1002-57C LA1002-68R LA1002-68C LAl162-68R LA1162-68C LA 1251 I Model I M4700 M4900SU M4900 (C) M6800S M6800S (C) M6800HD (C) M6800HD (C) M8200 Tractor M5400 M4900 M5700 (C) Model M6800 M5700 M5700HD (C) I M5700HD NOTE.(C) of the tractor model In the table above shows the CABIN model. [1] LA1001, LA1251 (1) Loader Specifications j M8200 (C) M9000 M9000 (C) Loader Model Tractor Model M4700 LA1001 I M5400 Wheel Base 2000 mm (78.7 in.) ~- I Front Tires 9.5-22 Rear Tires 14.9-28 I 16.9-28 Boom Cylinder I Bore 57.2 mm (2.25 in.) I Stroke 551 mm (21.7 in.) i Bucket Cylinder I Bore 57.2 mm (2.25 in.) I Stroke 501 mm (19.7 in.) M6800 2050 mm (80.7 in.) 9.5-24 16.9-30 LA1251 I M8200 I M9000 I 2250 mm (88.6 in.) i j 11.2-24 12.4-24 18.4-28 18.4-30 63.5 mm (2.50 in.) i 599 mm (23.6 in.) I 63.5 mm (2.50 in.) 513 mm (20.2 in.) i Control Valve One Detent Float Position, Power Beyond Circuit • Maximum Pressure 19.1 MPa (195 kgf/cm 2 , 2800 psi) 20.7 MPa (211 kgf/cm 2 , 3000 psi) Net Weight (Approximate) 567 kg (1250 Ibs) >/'l 900 kg (1984Ibs) Wl027852 (2) Bucket Specifications Loader Model LA100l LA1251 Bucket Model Square 72 72" Standard Quick Bucket 84" Quick Bucket i Width 1830 mm (72.0 in.) 1830 mm (72.0 in.) 2134 mm (84.0 in.) I Height 655 mm (25.8 in.) 690 mm (27.1 in.) 745 mm (29.4 in.) Length 590 mm (23.2 in.) 640 mm (25.3 in.) 685 mm (27.0 in.) Struck 0.40 m 3 (14.1 cu.ft.) 0.43 m 3 (15.2 cu.ft.) 0.58 m 3 (20.5 cu.ft.) Capacity Heaped 0.50 m 3 (17.7 cu.ft.) 0.53 m 3 (18.6 cu.f!.) 0.72 m 3 (25.4 cu.ft.) Weight 165 kg (364Ibs) 200 kg (440 Ibs) 226 kg (498 Ibs) Wl013973 6

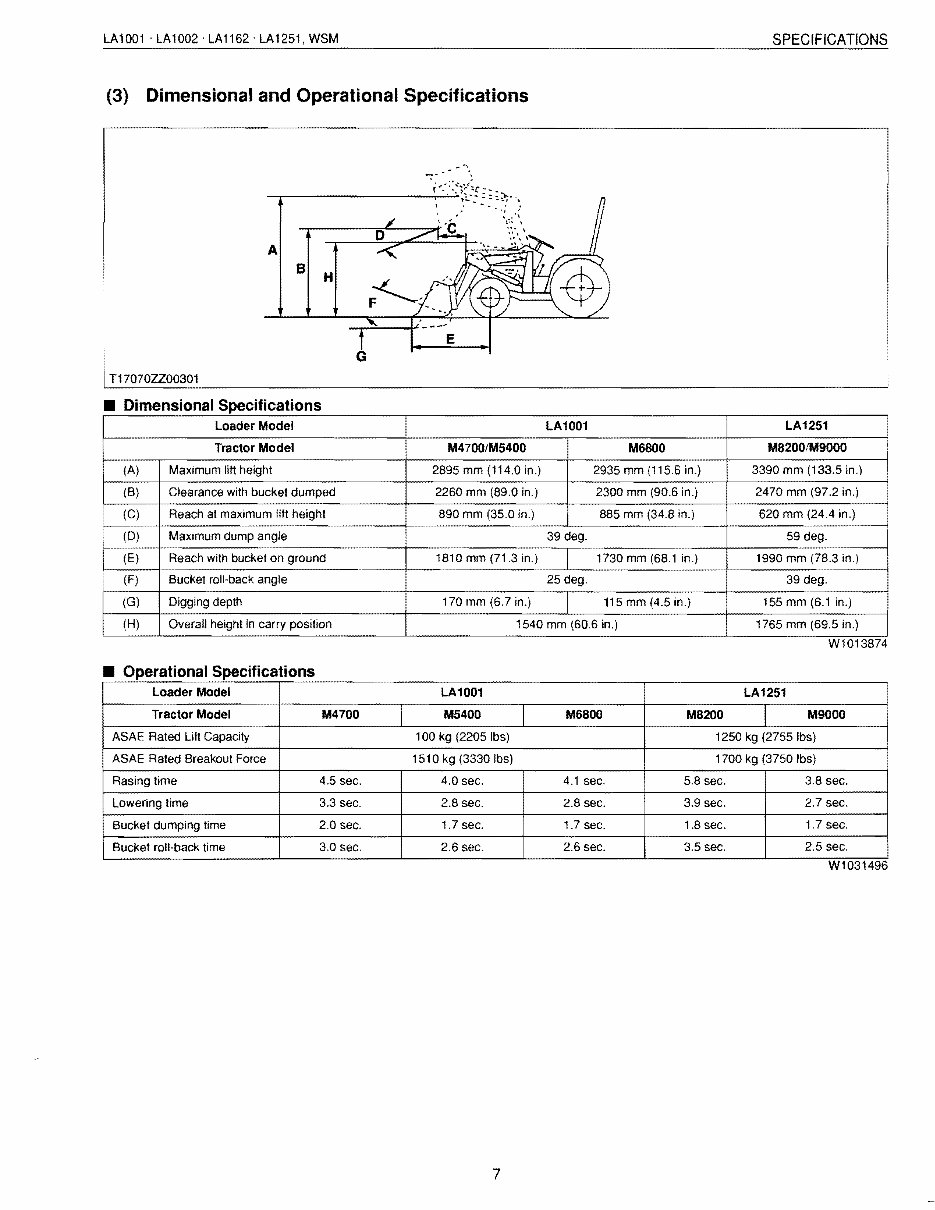

LAi001 . LA1002' LAl162' LA1251 WSM (3) Dimensional and Operational Specifications -. - " --r_________r,...· -'-'-~::";':{~:; ~;'>;'" , ... ~ . ': : \i~'\ A B H • Dimensional Specifications LA1251 Loader Model LA1001 Tractor Model M4700/M5400 M8200/M9000 M6800 Maximum lift height 3390 mm (133.5 in.) (A) 2895 mm (114.0 in.) 2935 mm (115.6 in.) (B) 2260 mm (89.0 in.) 2300 mm (90.6 in.) 2470 mm (97.2 in.) Clearance with bucket dumped (C) Reach at maximum lift height 890 mm (35.0 in.) 885 mm (34.8 in.) 620 mm (24.4 in.) Maximum dump angle (D) 39 deg. 59 deg. (E) Reach with bucket on ground 1810 mm (71.3 in.) 1730 mm (68.1 in.) 1990 mm (78.3 in.) (F) Bucket roli·back angle 25 deg. 39 deg. (G) Digging depth 170 mm (6.7 in.) 155 mm (6.1 in.) 115 mm (4.5 in.) (H) Overall height in carry position 1540 mm (60.6 in.) 1765 mm (69.5 in.) Loader Model LA1001 LA1251 Tractor Model M4700 M5400 M6800 M8200 M9000 ASAE Rated Lift Capacity 100 kg (2205 Ibs) 1250 kg (2755Ibs) I ASAE Rated Breakout Force 1510 kg (3330 Ibs) 1700 kg (3750 Ibs) Rasing time 4.5 sec. 4.0 sec. 4.1 sec. 5.8 sec. 3.8 sec. Lowering time 3.3 sec. 2.8 sec. 2.8 sec. 3.9 sec. 2.7 sec. Bucket dumping time 2.0 sec. 1.7 sec. 1.7 sec. 1.8 sec. 1.7 sec. Bucket roll· back time 3.0 sec. 2.6 sec. 2.6 sec. 3.5 sec. 2.5 sec. Wl013874 • Operational Specifications Wl03i496 7 i I

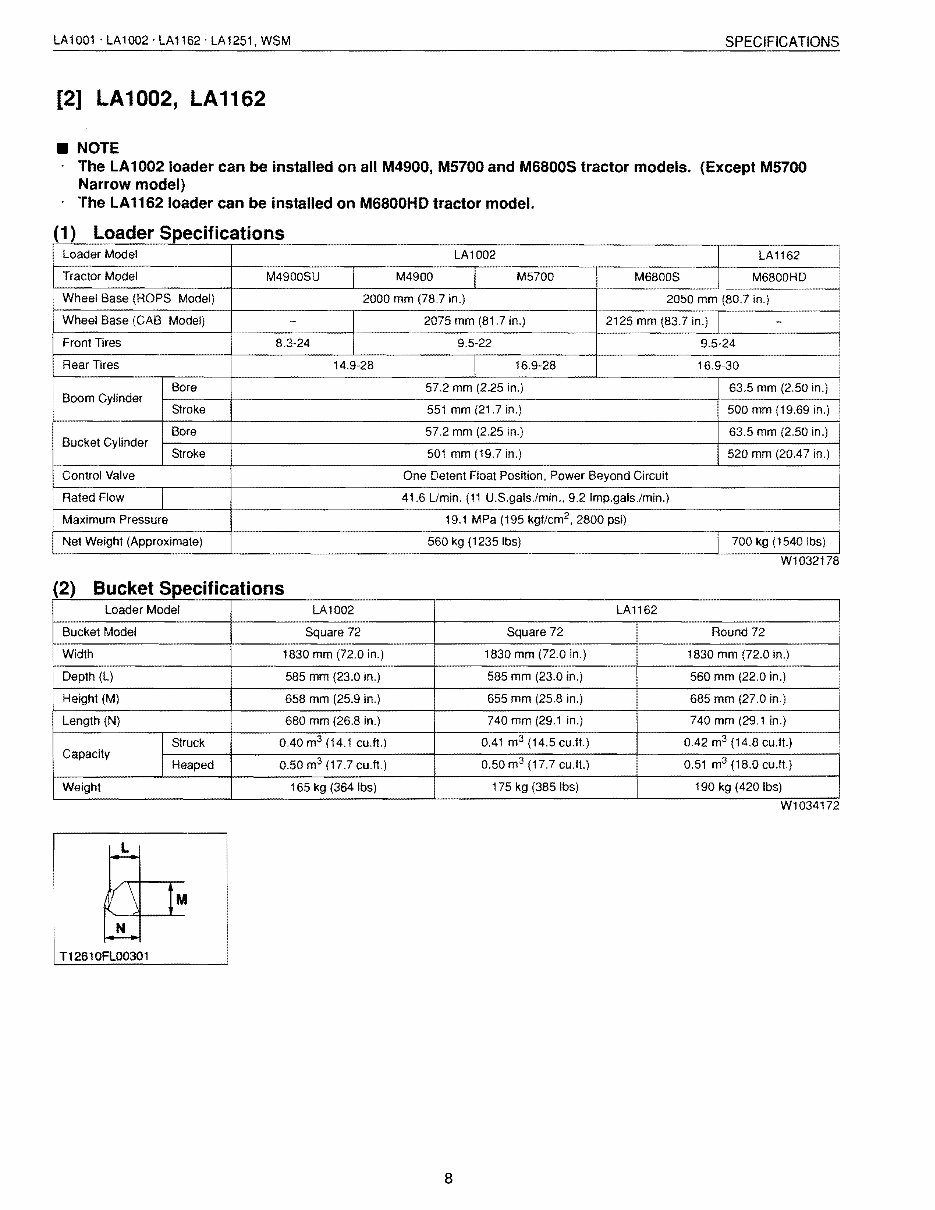

lA1001 'lAl002 'lA1162 'lA1251 WSM [2] LA1002, LA1162 • NOTE The LA100210ader can be installed on all M4900, M5700 and M6800S tractor models. (Except M5700 Narrow model) The LA1162 loader can be installed on M6800HD tractor model. (1) Loader S ,peci Icatlons T Loader Model LA1002 LA1162 Tractor Model M4900SU M4900 I M5700 M6800S M6800HD Wheel Base (RaPS Model) 2000 mm (78.7 in.) 2050 mm (80.7 in.) Wheel Base (CAB Model) 2075 mm (81.7 in.) 2125 mm (83.7 in.) - Front Tires 8.3-24 9.5-22 9.5-24 Rear Tires i 14.9-28 I 16.9-28 16.9-30 Boom Cylinder Bore 57.2 mm (2.25 in.) 63.5 mm (2.50 in.) Stroke 551 mm (21.7 in.) 500 mm (19.69 in.) Bucket Cylinder Bore 57.2 mm (2.25 in.) 63.5 mm (2.50 in.) Stroke 501 mm (19.7 in.) 520 mm (20.47 in.) Control Valve One Detent Float Position, Power Beyond Circuit Rated Flow 41.6 Umin. (11 U.S.gals.lmin., 9.2 Imp.gals.lmin.) Maximum Pressure 19.1 MPa (195 kgf/cm 2 , 2800 psi) Net Weight (Approximate) 560 kg (1235 Ibs) 700 kg (1540 Ibs) I I i I I J I ! I Wl032178 (2) Bucket S ipeci Ica Ions T r Loader Model LA1002 LA1162 Bucket Model Square 72 Square 72 Round 72 Width 1830 mm (72.0 in.) 1830 mm (72.0 in.) 1830 mm (72.0 in.) i Depth (L) 585 mm (23.0 in.) 585 mm (23.0 in.) 560 mm (22.0 in.) Height (M) 658 mm (25.9 in.) 655 mm (25.8 in.) 685 mm (27.0 in.) Length (N) 680 mm (26.8 in.) 740 mm (29.1 in.) 740 mm (29.1 in.) Capacity G~r ped 0.40 m 3 (14.1 cu.ft.) 0.50 m 3 (17.7 cu.ft.) 0.41 m 3 (14.5 cu.fI.) 0.50 m 3 (17.7 cu.f!.) 0.42 m 3 (14.8 cu.f!.) 0.51 m 3 (18.0 cu.ft.) Weight 165 kg (364 Ibs) 175 kg (385 Ibs) 190 kg (420 Ibs) Wl034172 L M 8

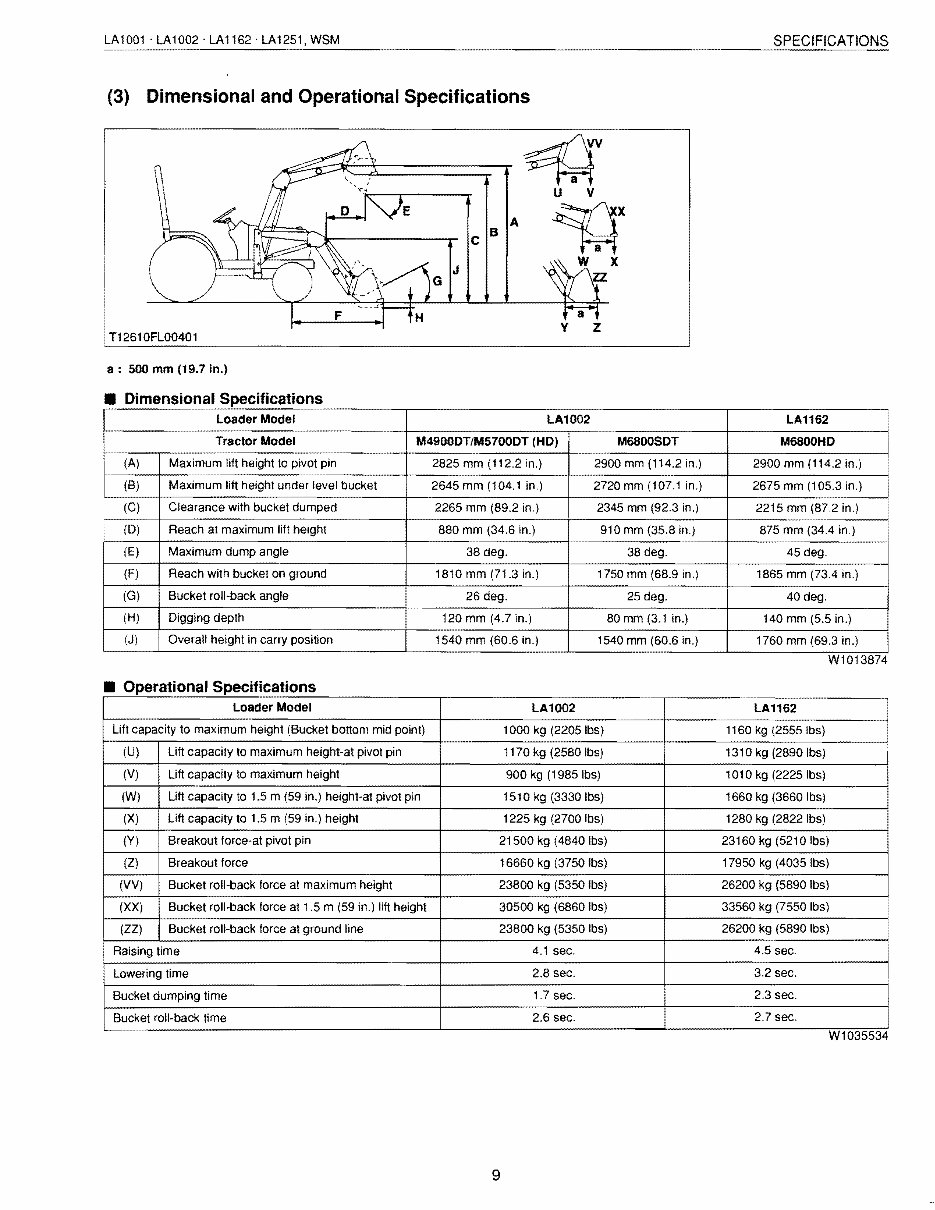

LA 1001 . LA1002 . LAl162 . LA1251, WSM (3) Dimensional and Operational Specifications T12610FL00401 a: 500 mm (19.7 in.) • Dimensional Specifications ~ C B A J G U v ~ w x y Z Loader Model LA1002 LA1162 Tractor Model M49000TIM57000T (HO) M6800S0T M6800HO (A) Maximum lift height to pivot pin 2825 mm (112.2 in.) 2900 mm (114.2 in.) 2900 mm (114.2 in.) (8) Maximum lift height under level bucket 2645 mm (104.1 in.) 2720mm (107.1 in.) 2675 mm (105.3 in.) (C) Clearance with bucket dumped 2265 mm (89.2 in.) 2345 mm (92.3 in.) 2215 mm (87.2 in.) (D) Reach at maximum lift height 880 mm (34.6 in.) 910 mm (35.8 in.) 875 mm (34.4 in.) (E) Maximum dump angle 38 deg. 38 deg. 45 deg. (F) Reach with bucket on ground 1810 mm (71.3 in.) 1750 mm (68.9 in.) ! 1865 mm (73.4 in.) (G) Bucket roll-back angle 26 deg. 25 deg. 40 deg. (H) Digging depth 120 mm (4.7 in.) 80 mm (3.1 in.) 140 mm (5.5 in.) I (J) Overall height in carry position 1540 mm (60.6 in.) 1540 mm (60.6 in.) 1760 mm (69.3 in.) Wl013874 • Operational Specifications Loader Model LA1002 LA1162 [fu""""Y to m,,'mum h",ht (Bu"," bottom mid po'ol, 1000 kg (2205 Ibs) 1160 kg (2555 Ibs) ) Lift capacity to maximum height-at pivot pin 1170 kg (2580 Ibs) 1310 kg (2890 Ibs) (V) Lift capacity to maximum height 900 kg (1985 Ibs) 1010 kg (2225 Ibs) (W) Lift capacity to 1.5 m (59 in.) height-at pivot pin 1510 kg (3330 Ibs) 1660 kg (3660 Ibs) (X) Lift capacity to 1.5 m (59 in.) height 1225 kg (2700 Ibs) 1280 kg (2822Ibs) (Y) Breakout force-at pivot pin 21500 kg (4840 Ibs) 23160 kg (5210 Ibs) (l) Breakout force 16660 kg (3750 Ibs) 17950 kg (4035Ibs) (VV) Bucket roll-back force at maximum height 23800 kg (5350 Ibs) 26200 kg (5890 Ibs) (XX) Bucket roll-back force at 1.5 m (59 in.) lift height 30500 kg (6860 Ibs) 33560 kg (7550 Ibs) (ll) Bucket roll-back force at ground line 23800 kg (5350 Ibs) 26200 kg (5890 Ibs) Raising time 4.1 sec. 4.5 sec. Lowering time 2.8 sec. 3.2 sec. Bucket dumping time 1.7 sec. 2,3 sec. Bucket roll-back time 2.6 sec. 2.7 sec. I W1035534 9
