Deutz
BF 4M1011F
Engines
(Before SN 0262361)
Used In:
SL5635 & SL6635
Skid Loaders
Engine Parts Book
®
Form No.
907763
Revision B
09/99
Introduction
This manual covers BF 4M 1011F engines (Gehl part number 130320) used in SL5635SXT, SL5635DXT,
SL6635SXT and SL6635DXT skid loaders. When ordering service parts, specify the correct part number, full
description, quantity required, and the engine model number and serial number (located on a plate on the valve
mechanical cover). NOTE: This manual only covers engines before engine serial number 0262361.
Items shown that do not have a part number are shown for reference purposes only and are not available for
purchase. Part numbers may change. Your Gehl dealer will have the latest part number.
Gehl
®
Company reserves the right to make changes or improvements in the design or construction of any part of the
unit without incurring the obligation to install such changes on any previously delivered units.
Table of Contents
Adapter Housing ....................... 50
Alternator............................. 52
Alternator Bracket ...................... 53
Alternator Fastenings ................... 54
Camshaft ............................. 19
Camshaft Drive ........................ 18
Connecting Rod ....................... 12
Control Rod ........................... 47
Control Unit ........................... 55
Cover Plate ........................... 10
Crankcase Breather ..................... 3
Crankshaft ............................. 8
Crankshaft Accessories .................. 7
Cylinder Head ......................... 16
Cylinder Head Fastenings ................ 15
Dipstick ............................... 2
Engine Block ........................... 5
Exhaust Manifold....................... 58
Fan Support .......................... 49
Filler Cap ............................. 14
Filter Cartridge ........................ 32
Flywheel ............................. 11
Front Block Plugs ...................... 44
Front Cover/governor ................... 45
Fuel Injection Pump .................... 33
Fuel Injector .......................... 35
Fuel Line ............................. 38
Fuel Supply Pump ...................... 34
Gasket Set ........................... 60
Glow Plug ............................ 42
Heater Connection ..................... 29
High Pressure Pipe ..................... 39
Index ................................ 61
Intake Manifold ........................ 40
Narrow V-Belt ......................... 48
Lubrication Oil Filter .................... 24
Lubrication Oil Line ..................... 27
Lubrication Oil Pump .................... 23
Oil Filter Fastenings .................... 25
Oil Pan ............................... 6
Oil Pressure Switch ..................... 56
Oil Return Line ........................ 28
Oil Suction Line ........................ 26
Overflow Line ......................... 37
Piston ............................... 13
Power Take-Off ......................... 9
Protection Hood ....................... 20
Radiator Connections ................... 30
Rear End Cover ........................ 1
Rocker Arm Bracket .................... 21
Screw Plug ........................... 31
Shutdown Device ...................... 59
Starter ............................... 51
Temperature Transmitter ................. 57
Torque Capsule ........................ 43
Turbocharger .......................... 41
Valve Drive ........................... 22
Valve Mechanical Cover ................. 17
Ref Part
No. No. Description Quantity

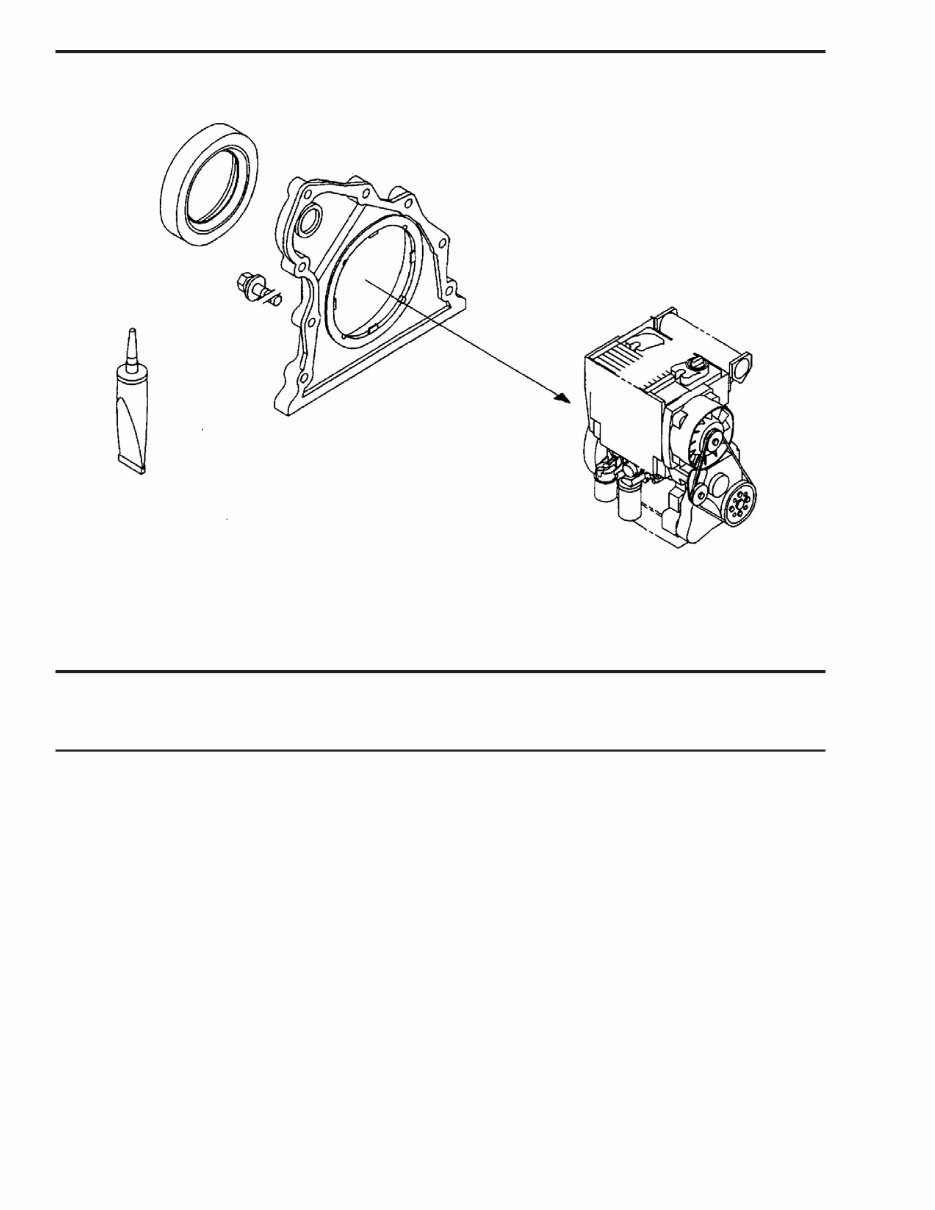

1 133390 COVER/REAR END 1
2 133204 BOLT/HEX 8 X 30MM CLASS 8.8 8
3 133387 SEAL/ROTATION SHAFT LIP 1
4 133100 COMPOUND/PACKING 250 ML 1
907763/BP0999 1 PRINTED IN USA
BF 4M1011F DEUTZ ENGINE REAR END COVER
5051009
1
3
4
2
Ref Part
No. No. Description Quantity

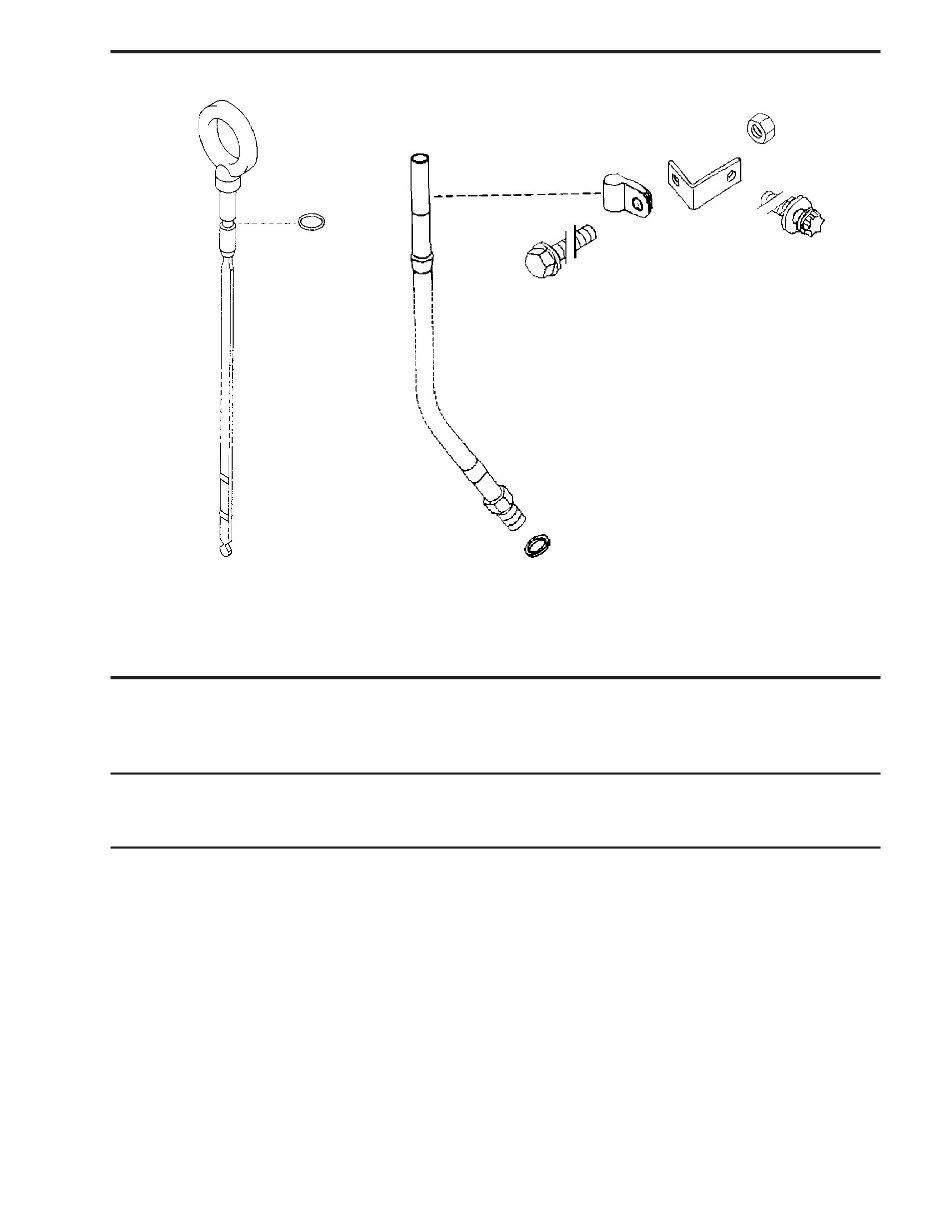

1 133257 DIPSTICK (INCLUDES ITEM 2) 1
2 133186 O-SEAL 5 1.5MM 1
3 133500 TUBE/GUIDE 1
4 133234 BOLT/TORX HEAD 8 X 20MM CLASS 8.8 1
5 133134 RING/SEALING 14 X 20MM 1
6 133494 BRACKET 1
7 133501 CLAMP/PIPE 1
8 133253 BOLT/HEX 6 X 16MM CLASS 10.9 1
9 133125 NUT/HEX 6-8MM 1
PRINTED IN USA 2 907763/BP0999
DIPSTICK BF 4M1011F DEUTZ ENGINE
5067762
5067789
1
2
3
8
7
6
4
9
5
Ref Part
No. No. Description Quantity

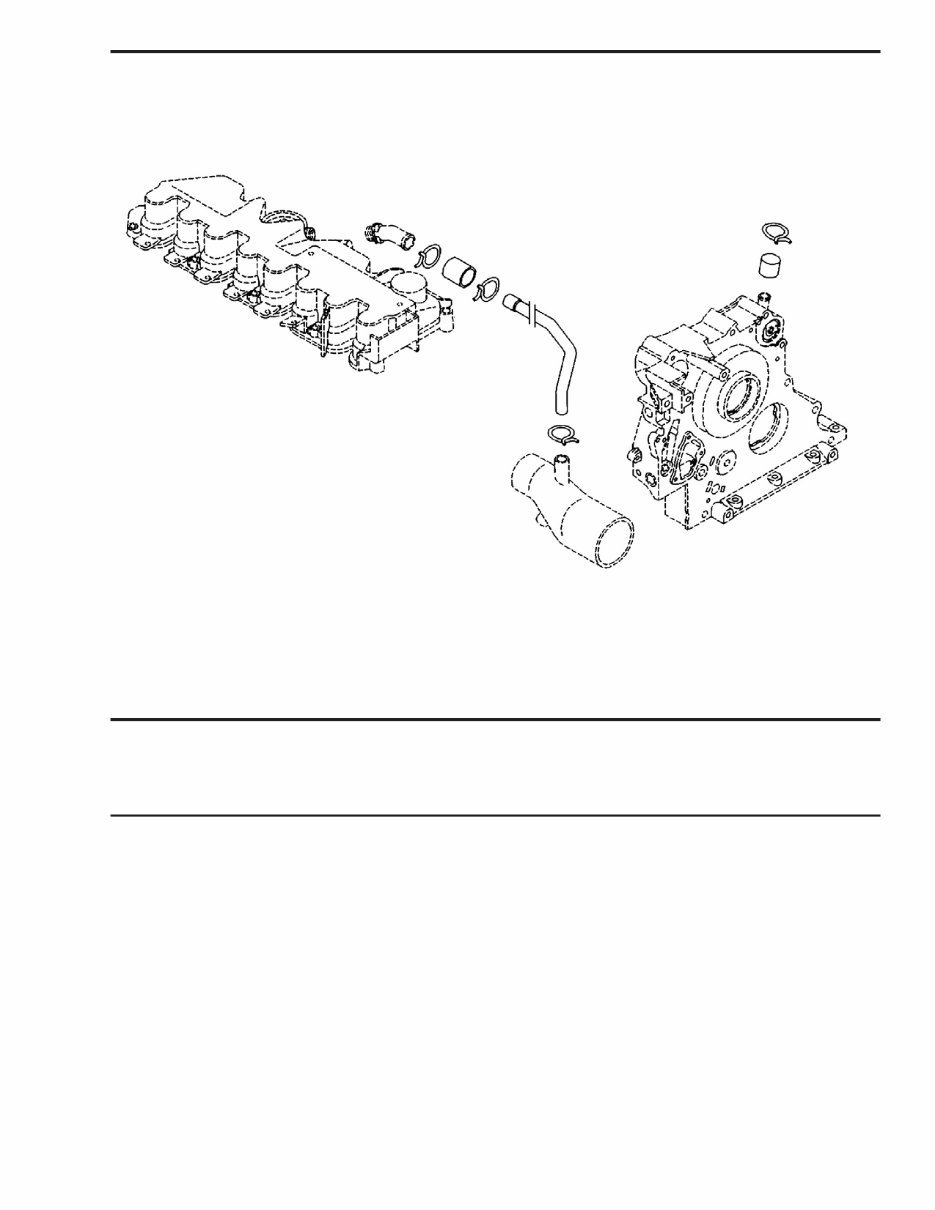

1 133552 PIPE/BREATHER 1
2 133202 CLIP/HOSE 1
3 133212 CLIP/HOSE 1
4 133553 GASKET 1
5 133482 CAP 1
6 133554 BOLT/HEX 6 X 30MM 2
907763/BP0999 3 PRINTED IN USA
BF 4M1011F DEUTZ ENGINE CRANKCASE BREATHER
5069156
4
1
6
3
2
5
Engine Serial Number 0214548 & later
Ref Part
No. No. Description Quantity

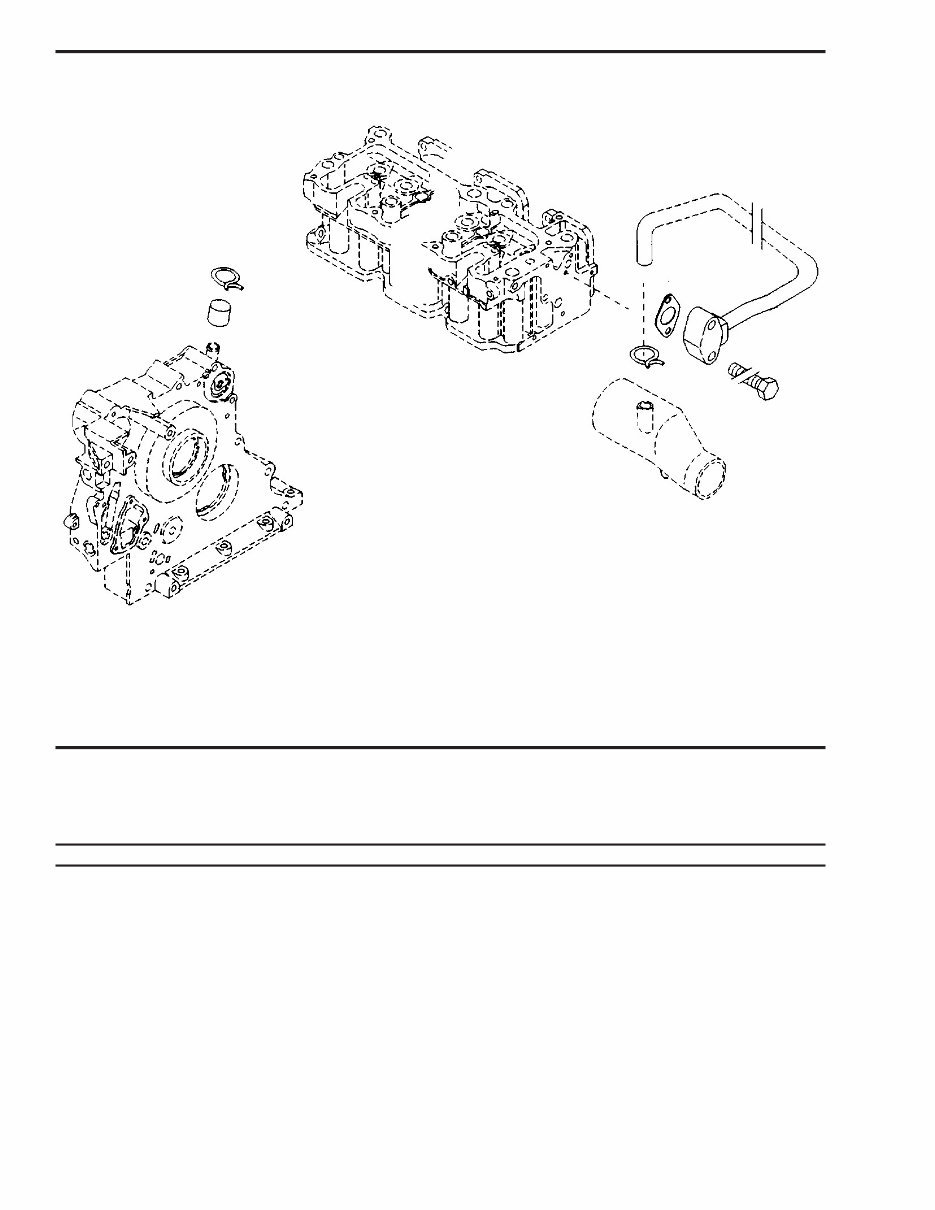

1 133511 PIPE/BREATHER 1
2 133202 CLIP/HOSE 3
3 133212 CLIP/HOSE 1
4 133482 CAP 1
5 133258 SLEEVE/RUBBER 1
PRINTED IN USA 4 907763/BP0999
CRANKCASE BREATHER BF 4M1011F DEUTZ ENGINE
5069114
2
5
2
1
3
2
4
Before Engine Serial Number 0214548
Ref Part
No. No. Description Quantity

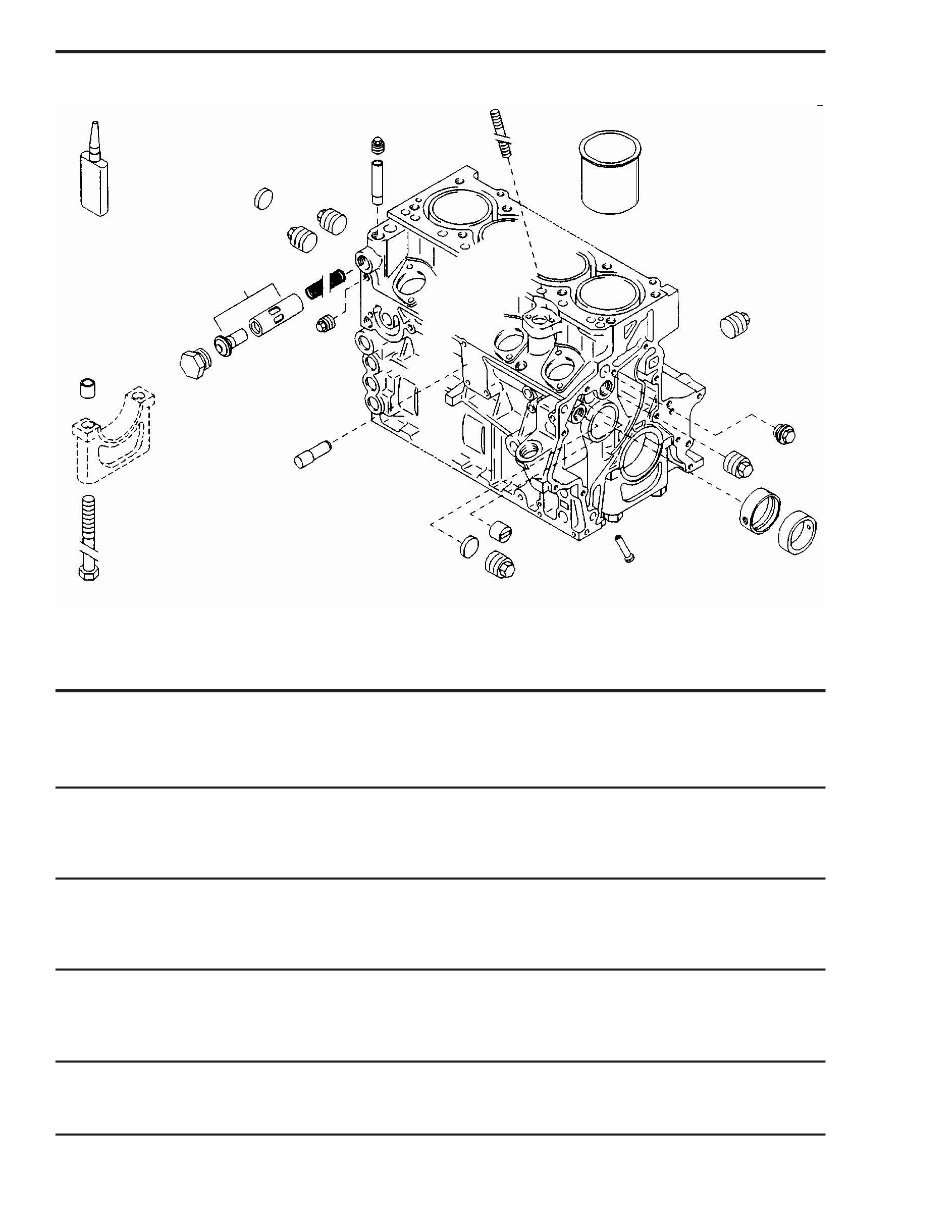

1 133437 BLOCK/ENGINE (INCLUDES ITEMS 2-19) 1
2 133405 BUSHING/WRAPPED BEARING 2
3 133404 BUSHING/WRAPPED BEARING 3
4 133316 SLEEVE/GUIDE 2
5 133430 PLUG/SCREW 1
6 133536 PLUG/SCREW 12 X 1.5MM 1
7 133537 PLUG/SCREW 2
8 133538 PLUG/SCREW 14 X 1.5MM 1
9 133539 PLUG/SCREW 10 X 1MM 1
10 133540 PLUG/SCREW 20 X 1.5MM 1
11 133408 TUBE 1
12 133541 PLUG/SCREW 1
13 133166 COVER 1
14 133240 STUD 8 X 20MM CLASS 8.8 8
15 133542 PLUG/SCREW 18 X 1.5MM 2
16 133323 BOLT/HEX 10
17 133350 BUSHING 10
18 133473 THERMOSTAT (INCLUDES ITEM 19) 1
19 133411 SPRING/COMPRESSION 1
20 133417 NOZZLE/PISTON COOLING 8
21 133249 COVER 1
22 133476 PIN 1
23 133543 LINER/CYLINDER AR
24 133107 AGENT/SAFETY LOCK 50ML AR
907763/BP0999 5 PRINTED IN USA
BF 4M1011F DEUTZ ENGINE ENGINE BLOCK
5067707
17
16
12
21
9
19
10
11
7
8
14
23
1
24
6
5
2
3
20
13
4
5
18
7
22
Ref Part
No. No. Description Quantity

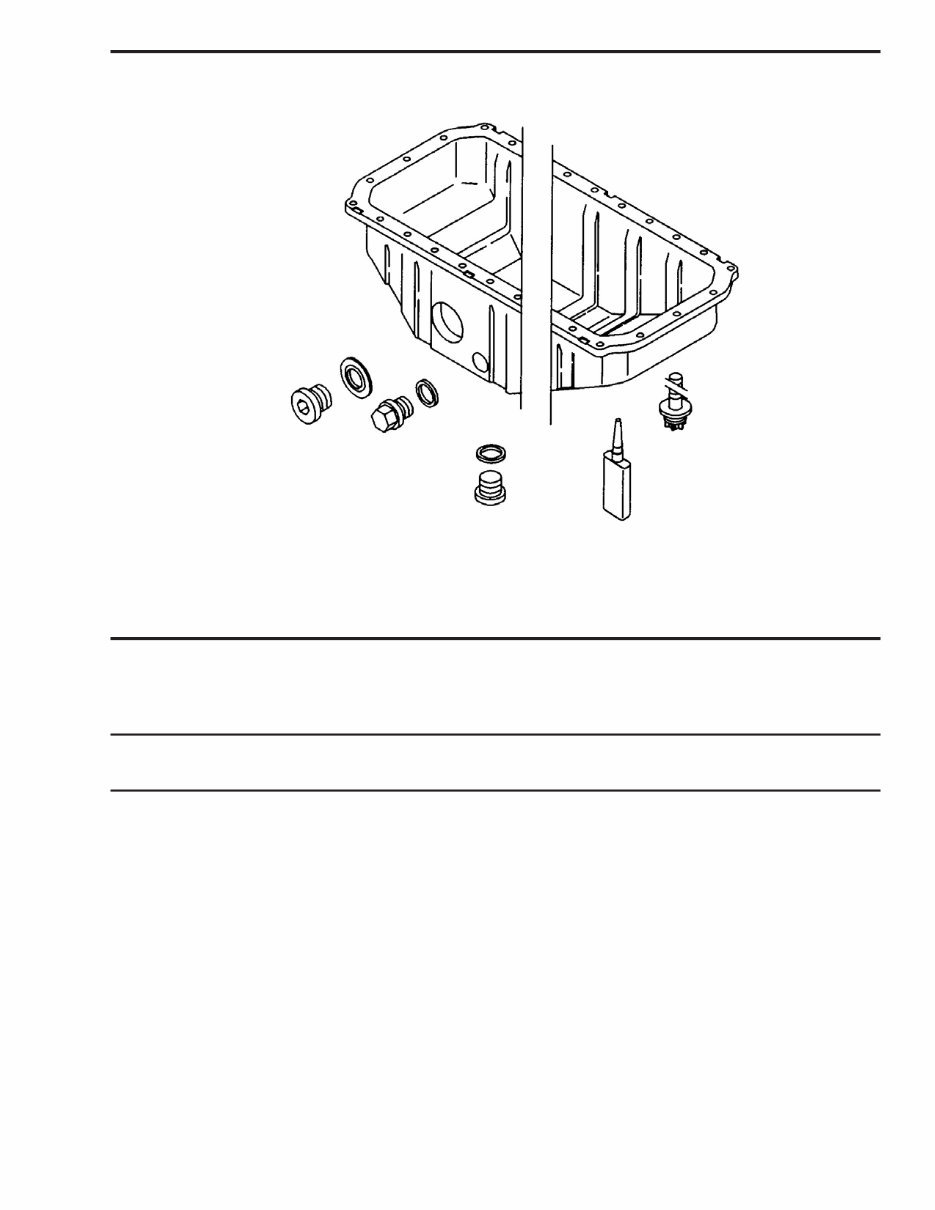

1 133348 PAN/OIL (INCLUDES ITEMS 2,3) 1
2 133155 PLUG/SCREW 48 X 1.5MM 1
3 133203 RING/SEALING 48 X 59 X 3MM 1
4 133137 RING/SEALING 18 X 24MM 2
5 133143 PLUG/SCREW 18 X 1.5MM 1
6 133151 PLUG/SCREW18 X 1.5MM 1
7 133233 BOLT/TORX HEAD 8 X 16MM CLASS 8.8 26
8 133104 COMPOUND/PACKING 300ML AR
PRINTED IN USA 6 907763/BP0999
OIL PAN BF 4M1011F DEUTZ ENGINE
5069001
1
8
7
4
6
4
5
3
2
Ref Part
No. No. Description Quantity

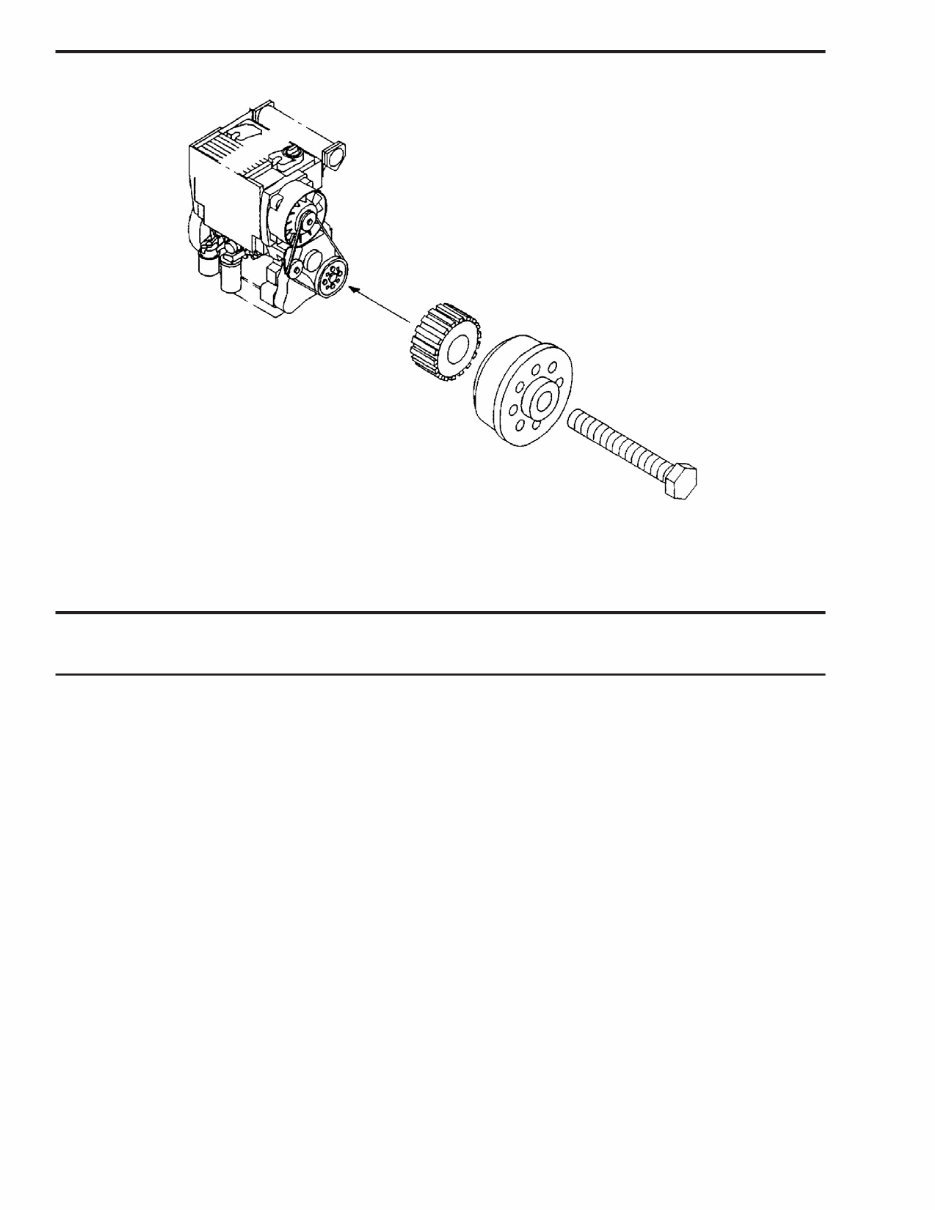

1 133325 BOLT/HEX 1
2 133370 PULLEY/SYNCHRONOUS BELT 1
3 133381 FLANGE/OUTPUT 1
907763/BP0999 7 PRINTED IN USA
BF 4M1011F DEUTZ ENGINE CRANKSHAFT ACCESSORIES
5063382
2
3
1
