KOEHRING BANTAM C 366 Excavator MASTER Parts Manual

BANTAM C-366 HYDRAULIC EXCAVATOR Serial No. _____ _ K KOEHRING. CRANE AND EXCAVATOR GROUP Part No. 366-85 .

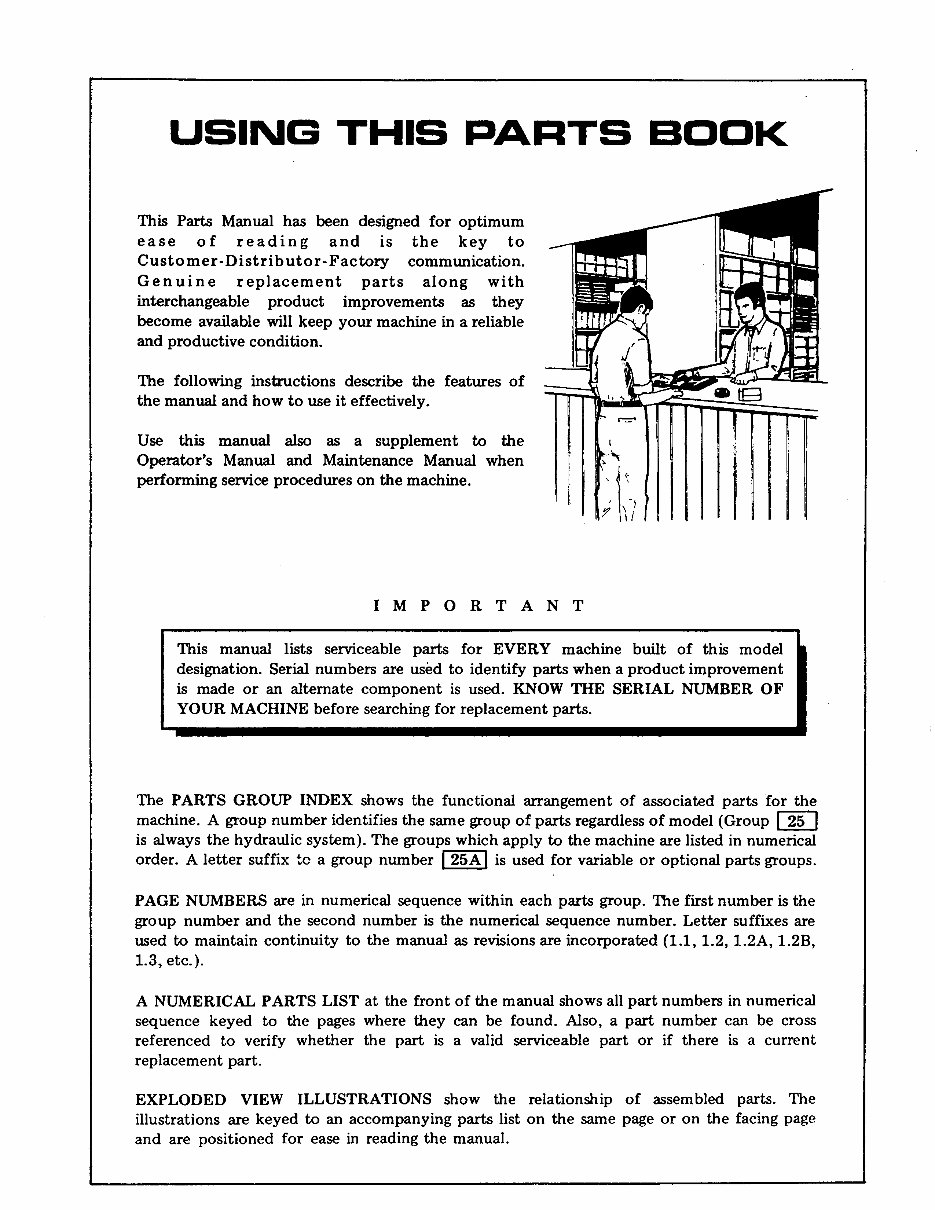

USING THIS PARTS BOOK This Parts Manual has been designed for optimum ease of reading and is the key to Customer-Distributor-Factory communication. Genuine replacement parts along with interchangeable product improvements as they become available will keep your machine in a reliable and productive condition. The following instructions describe the features of the manual and how to use it effectively. Use this manual also as a supplement to the Operator's Manual and Maintenance Manual when performing service procedures on the machine. IMP 0 R TAN T This manual lists serviceable parts for EVERY machine built of this model designation. Serial numbers are used to identify parts when a product improvement is made or an alternate component is used. KNOW THE SERIAL NUMBER OF YOUR MACHINE before searching for replacement parts. The PARTS GROUP INDEX shows the functional arrangement of associated parts for the machine. A group number identifies the same group of parts regardless of model (Group [][] is always the hydraulic system). The groups which apply to the machine are listed in numerical order. A letter suffix to a group number I 25A I is used for variable or optional parts groups. PAGE NUMBERS are in numerical sequence within each parts group. The first number is the group number and the second number is the numerical sequence number. Letter suffixes are used to maintain continuity to the manual as revisions are incorporated (1.1, 1.2, 1.2A, 1.2B, 1.3, etc.). A NUMERICAL PARTS LIST at the front of the manual shows all part numbers in numerical sequence keyed to the pages where they can be found. Also, a part number can be cross referenced to verify whether the part is a valid serviceable part or if there is a current replacement part. EXPLODED VIEW ILLUSTRATIONS show the relationship of assembled parts. The illustrations are keyed to an accompanying parts list on the same page or on the facing page and are positioned for ease in reading the manual.

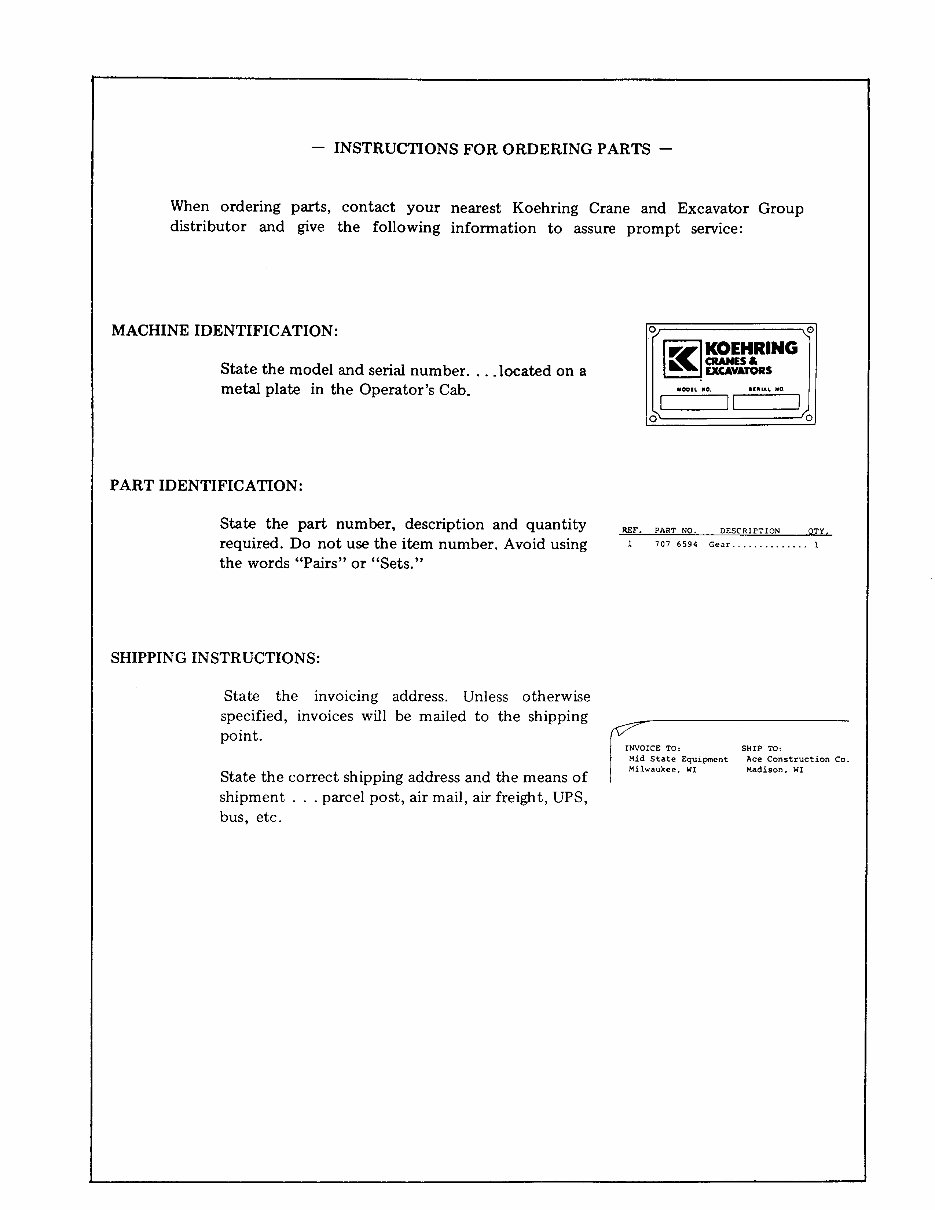

- INSTRUCTIONS FOR ORDERING PARTS - When ordering parts, contact your nearest Koehring Crane and Excavator Group distributor and give the following information to assure prompt service: MACHINE IDENTIFICATION: State the model and serial number .... located on a metal plate in the Operator's Cab. PART IDENTIFICATION: State the part number, description and quantity required. Do not use the item number. Avoid using the words "Pairs" or "Sets." SHIPPING INSTRUCTIONS: State the invoicing address. Unless otherwise specified, invoices will be mailed to the shipping point. State the correct shipping address and the means of shipment ... parcel post, air mail, air freight, UPS, bus, etc. o o I~IKOEHRING .... CRANES & - EXCAVATORS MOOIL MO. IIIUAL NO. '--------, , o o REF. PART NO. DESCRIPTION OTY. 707 6594 Gear .............. 1 INVOICE TO, SHIP TO, Mid State Equipment Ace Construction Co. Milwaukee, WI Madison, WI

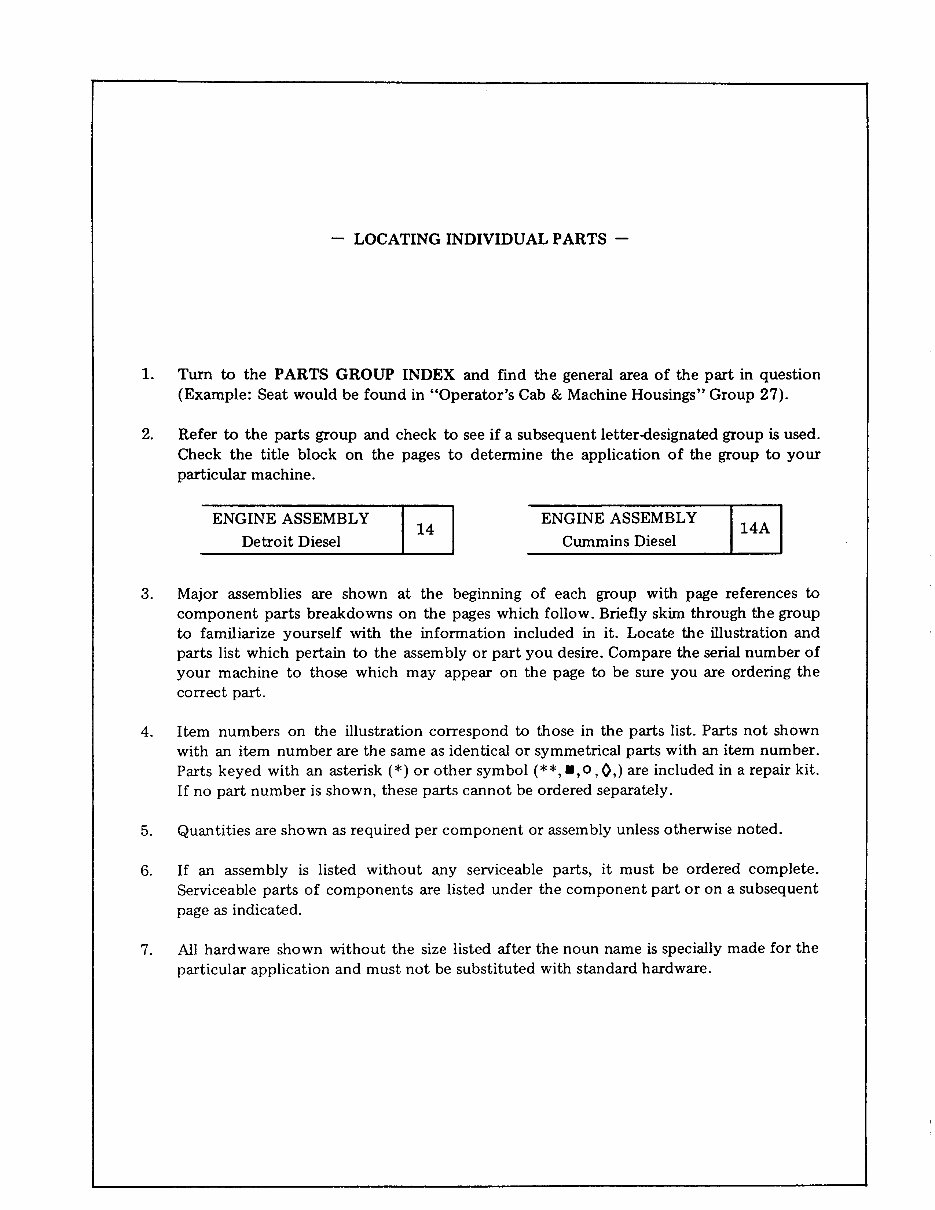

- LOCATING INDIVIDUAL PARTS - 1. Turn to the PARTS GROUP INDEX and find the general area of the part in question (Example: Seat would be found in "Operator's Cab & Machine Housings" Group 27). 2. Refer to the parts group and check to see if a subsequent letter-designated group is used. Check the title block on the pages to determine the application of the group to your particular machine. ENGINE ASSEMBLY Detroit Diesel 14 ENGINE ASSEMBLY Cummins Diesel 14A 3. Major assemblies are shown at the beginning of each group with page references to component parts breakdowns on the pages which follow. Briefly skim through the group to familiarize yourself with the information included in it. Locate the illustration and parts list which pertain to the assembly or part you desire. Compare the serial number of your machine to those which may appear on the page to be sure you are ordering the correct part. 4. Item numbers on the illustration correspond to those in the parts list. Parts not shown with an item number are the same as identical or symmetrical parts with an item number. Parts keyed with an asterisk (*) or other symbol (**,.,0,0,) are included in a repair kit. If no part number is shown, these parts cannot be ordered separately. 5. Quantities are shown as required per component or assembly unless otherwise noted. 6. If an assembly is listed without any serviceable parts, it must be ordered complete. Serviceable parts of components are listed under the component part or on a subsequent page as indicated. 7. All hardware shown without the size listed after the noun name is specially made for the particular application and must not be substituted with standard hardware.

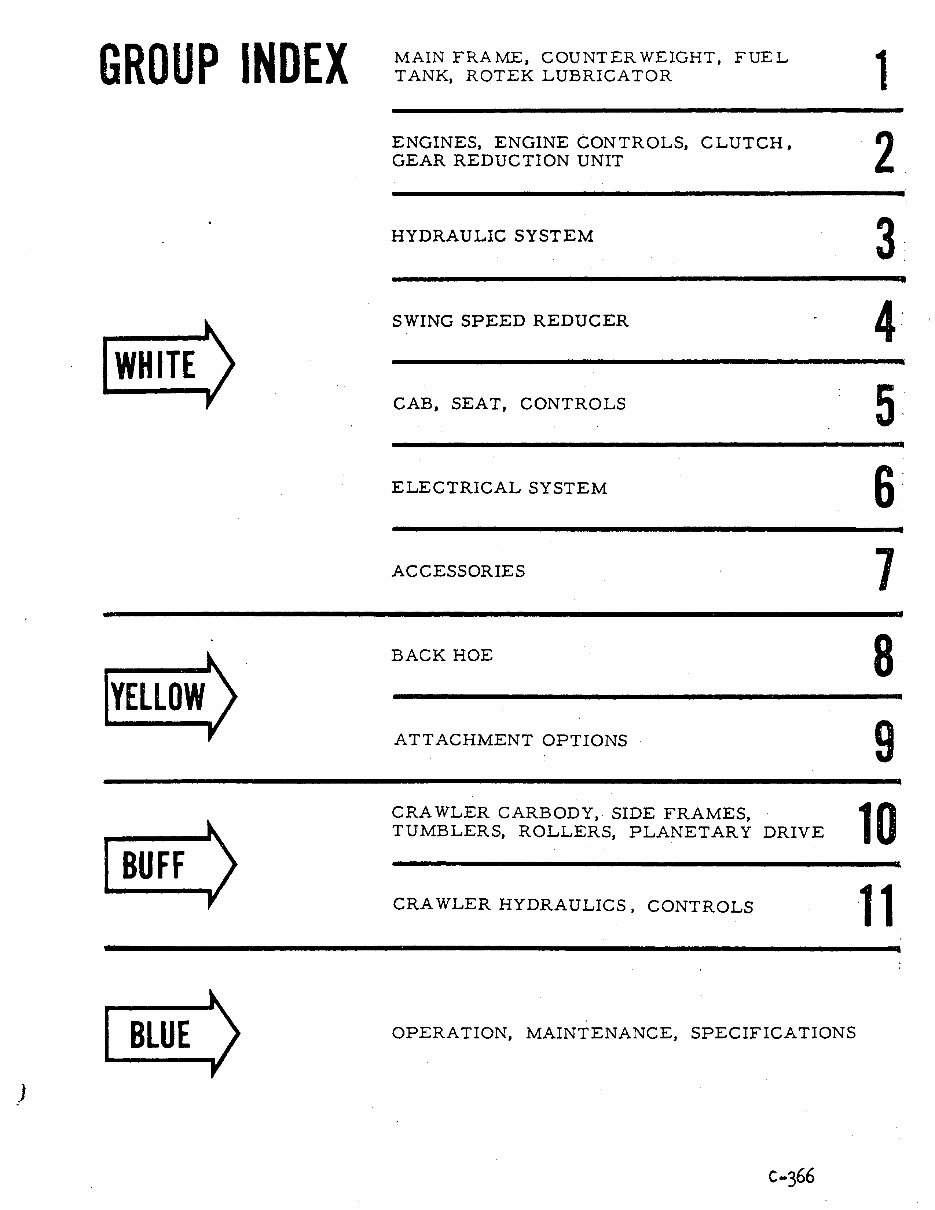

BLUE OPERATION, MAINTENANCE, SPECIFICATIONS )

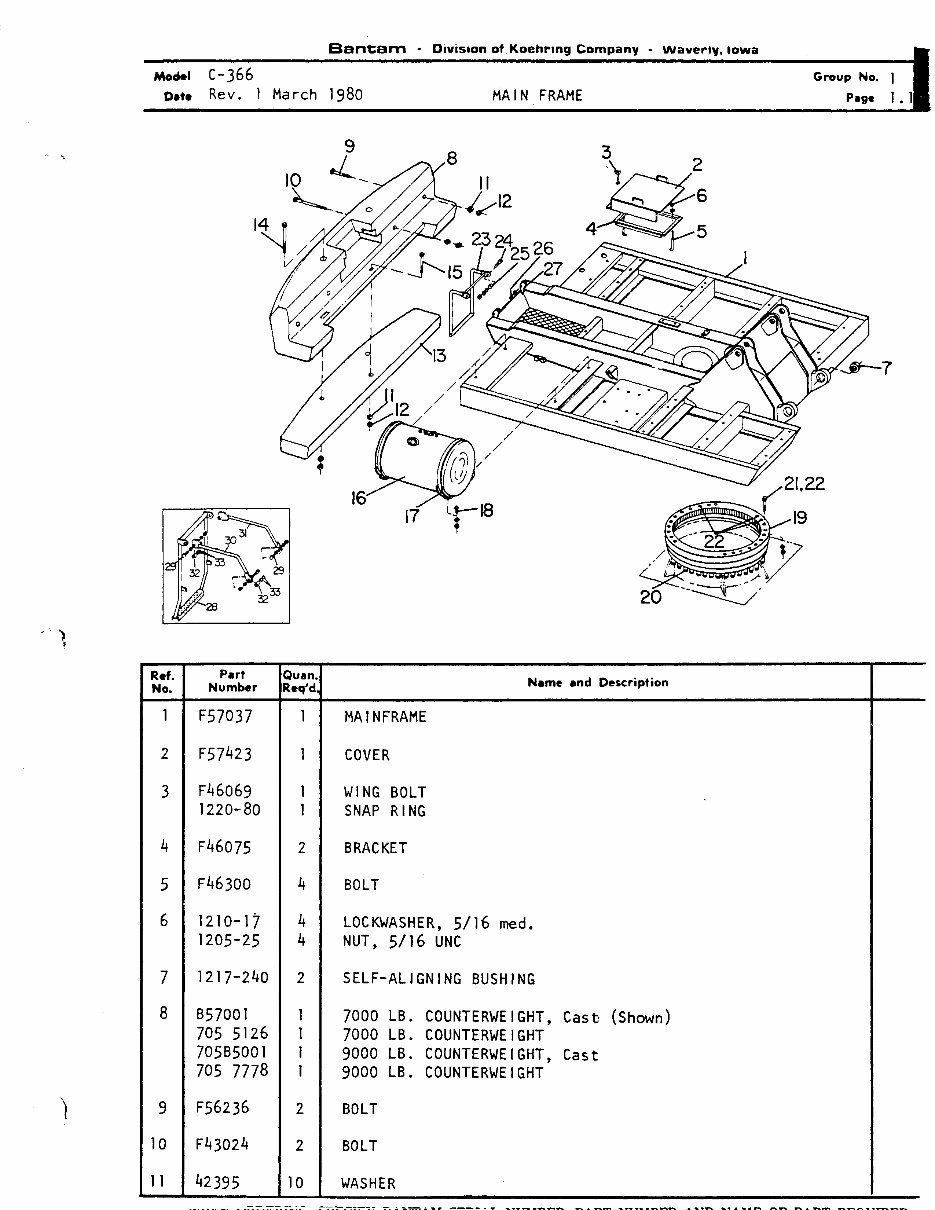

Bantam . Division of Koehrmg Company . Waverly, Iowa Mo_1 C-366 D~. Rev. 1 March 1980 MAIN FRAME Ref. Part Quan. Name and Description No. Number Req'd 1 F57037 1 MAINFRAME 2 F57423 I COVER 3 F46069 1 WING BOLT 1220-80 1 SNAP RING 4 F46075 2 BRACKET 5 F46300 4 BOLT 6 1210-17 4 LOCKWASHER, 5/16 med. 1205-25 4 NUT, 5/16 UNC 7 1217-240 2 SELF-ALIGNING BUSHING 8 B57001 1 7000 LB. COUNTERWEIGHT, Cast (Shown) 705 5126 1 7000 LB. COUNTERWEIGHT 705B5001 1 9000 LB. COUNTERWEIGHT, Cast 705 7778 1 9000 LB. COUNTERWEIGHT 9 F56236 2 BOLT 10 F43024 2 BOLT 11 42395 10 WASHER Group No. 1 Page I. 1

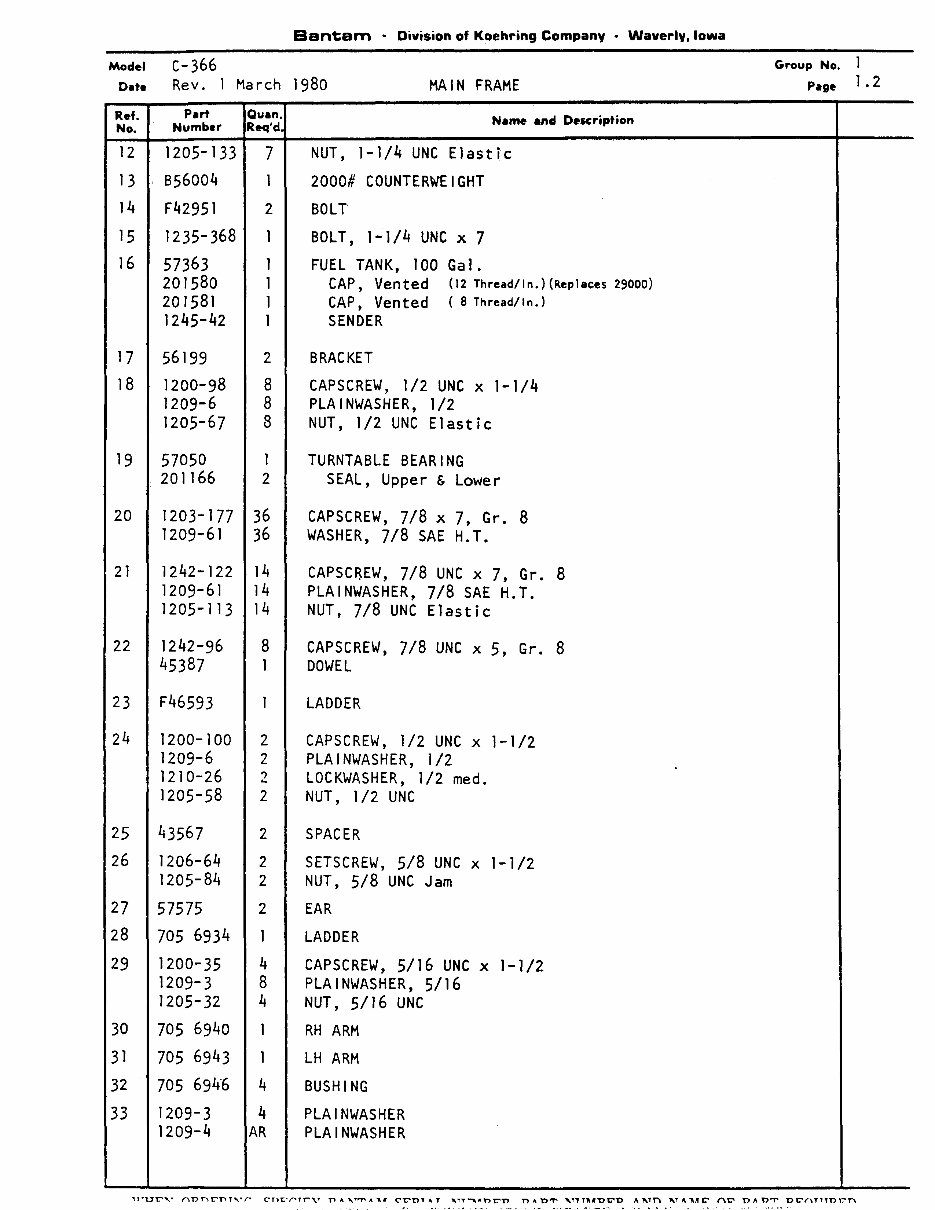

Bantam . Division of Koehring Company • Waverly, Iowa C-366 Model Oat. Rev. I March 1980 MA IN FRAME Ref. Put Quan. No. Number Req'd 12 1205-133 7 13 B56004 I 14 F42951 2 15 1235-368 I 16 57363 1 201580 I 201581 I 1245-42 I 17 56199 2 18 1200-98 8 1209-6 8 1205-67 8 19 57050 I 201166 2 20 1203-177 36 1209-61 36 21 1242-122 14 1209-61 14 1205-113 14 22 1242-96 8 45387 I 23 F46593 I 24 1200-100 2 1209-6 2 1210-26 2 1205-58 2 25 43567 2 26 1206-64 2 1205-84 2 27 57575 2 28 705 6934 I 29 1200-35 4 1209-3 8 1205-32 4 30 705 6940 1 31 705 6943 I 32 705 694'6 4 33 1209-3 4 1209-4 AR Name and Description NUT, 1-1/4 UNC Elastic 2000# COUNTERWEIGHT BOLT BOLT, 1-1/4 UNC x 7 FUEL TANK, 100 Gal. CAP, Vented (12 Thread/In.) (Replaces 29000) CAP, Vented (8 Thread/In.) SENDER BRACKET CAPSCREW, 1/2 UNC x 1-1/4 PLAINWASHER, 1/2 NUT, 1/2 UNC Elastic TURNTABLE BEARING SEAL, Upper & Lower CAPSCREW, 7/8 x 7, Gr. 8 WASHER, 7/8 SAE H.T. CAPSC~EW, 7/8 UNC x 7, Gr. 8 PLAINWASHER, 7/8 SAE H.T. NUT, 7/8 UNC Elastic CAPSCREW, 7/8 UNC x 5, Gr. 8 DOWEL LADDER CAPSCREW, 1/2 UNC x 1-1/2 PLAINWASHER, 1/2 LOCKWASHER, 1/2 med. NUT, 1/2 UNC SPACER SETSCREW, 5/8 UNC x 1-1/2 NUT, 5/8 UNC Jam EAR LADDER CAPSCREW, 5/16 UNC x 1-1/2 PLAINWASHER, 5/16 NUT, 5/16 UNC RH ARM LH ARM BUSHING PLAINWASHER PLAINWASHER Group No. Page I 1.2

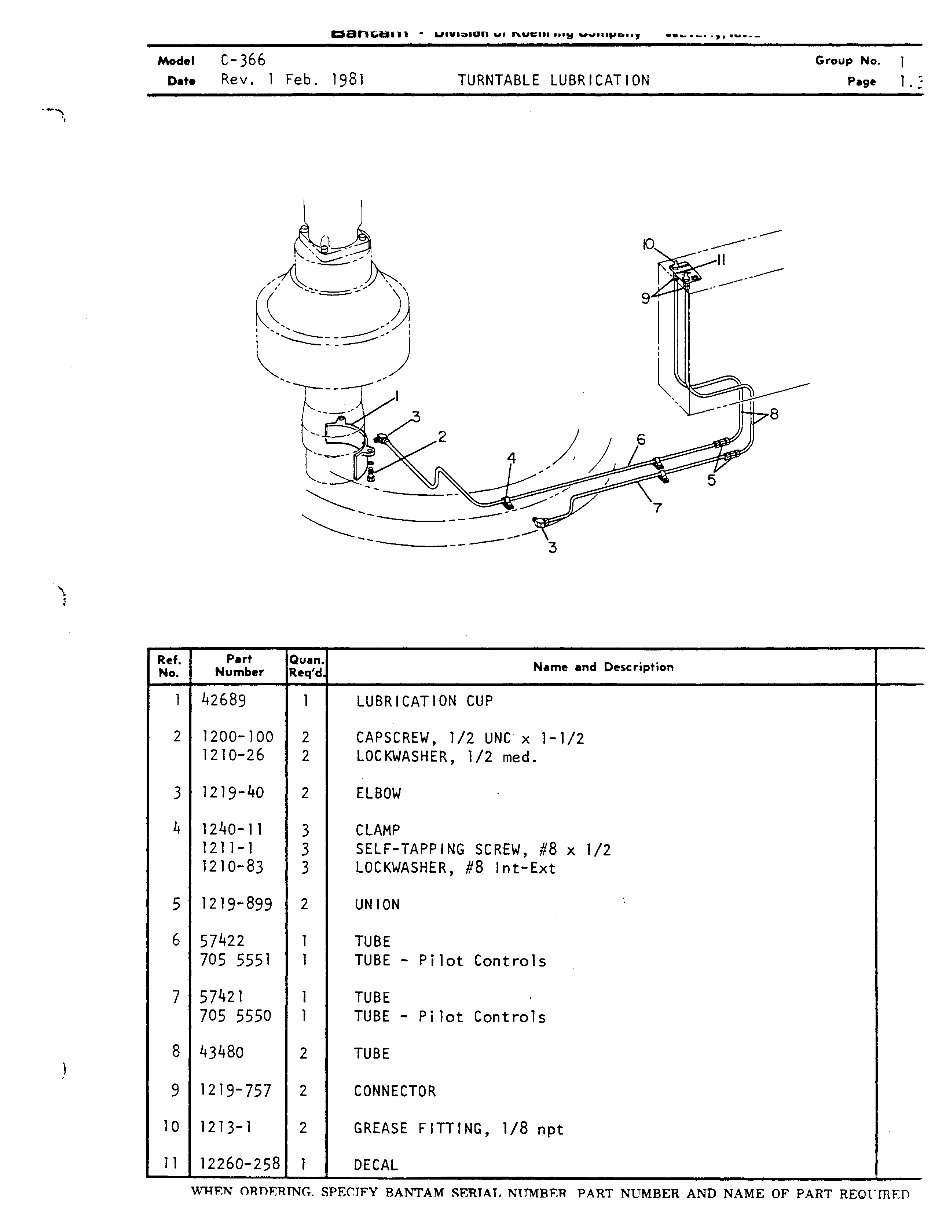

._, " \ ! l:IanLI::IIJ .... UIVI::tlon UI n..UCI" "'!:f " ...... .,D .. ' ......... -. . J" ._ ...... _ Model C-366 Dat. Rev. 1 Feb. 1981 TURNTABLE LUBRICATION Ref. Part Quan. No. Number Req'd 1 42689 1 2 1200-100 2 1210-26 2 3 1219-40 2 4 1240-11 3 1211-1 3 1210-83 3 5 1219-899 2 6 57422 1 705 5551 1 7 57421 1 705 5550 1 8 43480 2 9 1219-757 2 10 1213-1 2 11 12260-258 1 3 Name and Description LUBRICATION CUP CAPSCREW, 1/2 UNC X 1-1/2 LOCKWASHER, 1/2 med. ELBOW CLAMP SELF-TAPPING SCREW, #8 X 1/2 LOCKWASHER, #8 Int-Ext UNION TUBE TUBE - Pilot Controls TUBE TUBE - Pilot Controls TUBE CONNECTOR GREASE FITTING, 1/8 npt DECAL ---- II --- --- .. -- Group No. I Page 1. :: WHF.N ORnF.RTNG. SPECIFY BANTAM SERTAL NlTMBF.R PART NUMBER AND NAME OF PART REQlTffiED

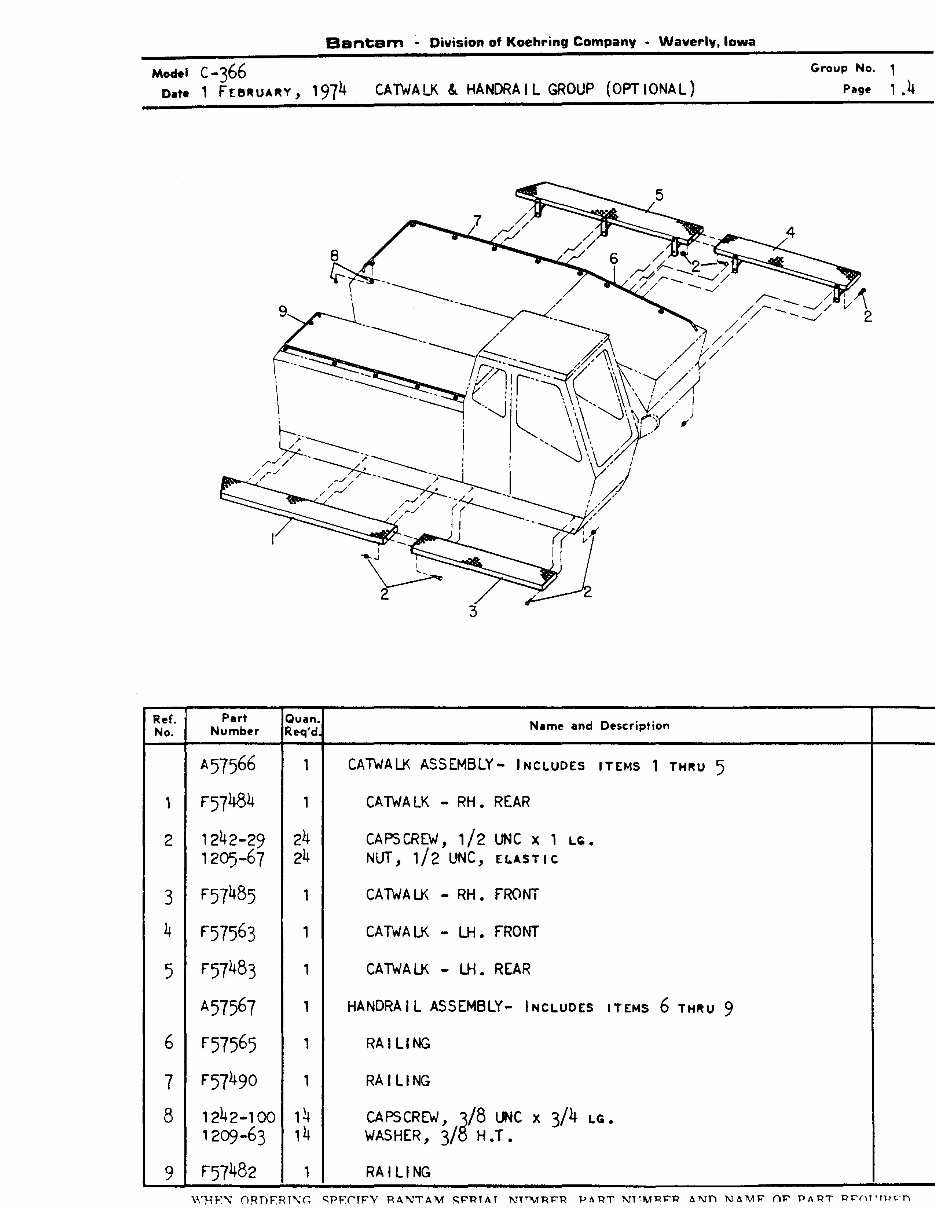

Bantam • Division of Koehring Company· WaverlY,lowa Model C-366 O.te 1 FEe~UA~Y, '974 CATWALK &. HANDRAIL GROUP (OPTIONAL) Ref. No. Part Quan. Number Req'd A575 66 1 F57484 2 1242-29 24 1205-67 24 3 F57 48 5 , 4 F57563 , 5 F57 48 3 A575 6 7 6 F57565 7 F57 4 90 , , , 8 1242 -, 00 1 4 1209-63 14 9 F57 4 82 1 Nilme and Description CATWALK ASSEMBLY- INCLUDES ITEMS 1 TH~U 5 CATWALK - RH. REAR CAPS CREW , '/2 UNC X , L(i,. NUT, '/2 UNC, ELAST I C CATWALK - RH. FRONi CATWALK - LH. FRONT CATWALK - LH. REAR HANDRAIL ASSEMBLY- INCLUDES ITEMS 6 TH~U 9 RA III NG RA I LI NG CAPS CREW , 3/8 UNe X 3/4 LG. WASHER, 3/8 H.T • RA I LI NG Group No. 1 Pilge 1.4 WHEN ()RDFRIN(; ~PFrJF"V RANTAM ~F1HAT NT11IIIRF"R VA"RT NTTMl'!F"R ANn NAMF nF PhRT PIO"()T'TlH'1")

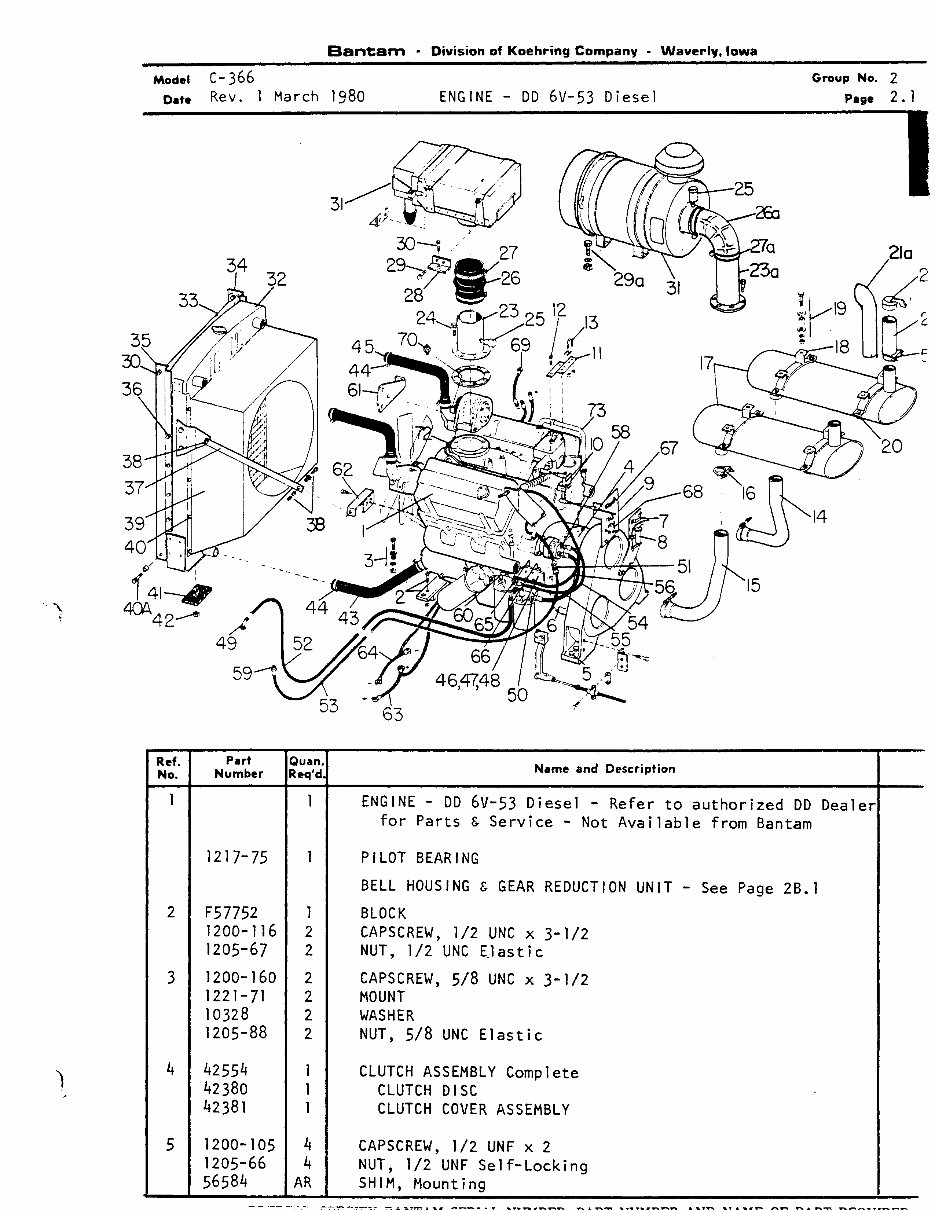

Bantam . Division of Koehring Company· Waverly,lowa Model c- 366 Ode Rev. 1 March 1980 ENGINE - DD 6V-53 Diesel Group No. 2 P.ge 2. 1 39 40 ~/ 141-1 ~42-- Ref. No. Part Quan. Number Req'd 1217-75 2 F57752 1 1200-116 2 1205-67 2 3 1200-160 2 1221-71 2 10328 2 1205-88 2 4 42554 42380 42381 5 1200-105 4 1205-66 4 56584 AR N.me and Description ENGINE - DD 6v-53 Diesel - Refer to authorized DD Dealer for Parts & Service - Not Available from Bantam PILOT BEARING BELL HOUSING & GEAR REDUCTION UNIT - See Page 2B.l BLOCK CAPSCREW, 1/2 UNC x 3-1/2 NUT, 1/2 UNC E.1 as tic CAPSCREW, 5/8 UNC x 3-1/2 MOUNT WASHER NUT, 5/8 UNC Elastic CLUTCH ASSEMBLY Complete CLUTCH DISC CLUTCH COVER ASSEMBLY CAPSCREW, 1/2 UNF x 2 NUT, 1/2 UNF Self-Locking SHIM, Mounting I 21e
